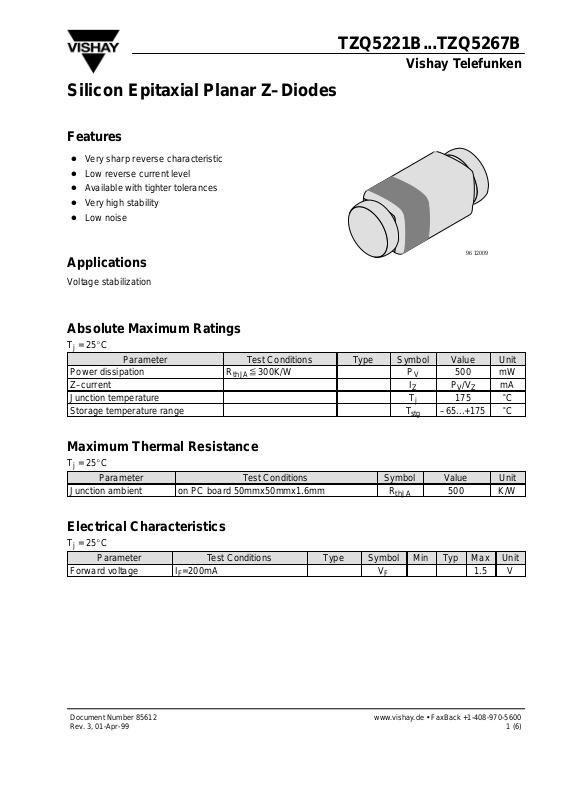

Silicon Epitaxial Planar Z–Diodes
Features
D
Very sharp reverse characteristic
D
Low reverse current level
D
Available with tighter tolerances
D
Very high stability
D
Low noise
Applications
Voltage stabilization
TZQ5221B...TZQ5267B
Vishay Telefunken
96 12009
Absolute Maximum Ratings
Tj = 25_C
Parameter Test Conditions Type Symbol Value Unit
Power dissipation R
Z–current I
Junction temperature T
Storage temperature range T
x
300K/W P
thJA
Maximum Thermal Resistance
Tj = 25_C
Parameter Test Conditions Symbol Value Unit
Junction ambient on PC board 50mmx50mmx1.6mm R
thJA
Electrical Characteristics
Tj = 25_C
Parameter Test Conditions Type Symbol Min Typ Max Unit
Forward voltage IF=200mA V
F
Z
stg
V
j
500 mW
PV/V
Z
175
–65...+175
500 K/W
1.5 V
mA
°
C
°
C
Document Number 85612
Rev. 3, 01-Apr-99 1 (6)
www.vishay.de • FaxBack +1-408-970-5600
Page 2
TZQ5221B...TZQ5267B
Vishay Telefunken
Type
TZQ5221B 2.4 20 < 30 < 1200 0.25 < 100 1.0 < –0.085
TZQ5222B 2.5 20 < 30 < 1250 0.25 < 100 1.0 < –0.085
TZQ5223B 2.7 20 < 30 < 1300 0.25 < 75 1.0 < –0.080
TZQ5224B 2.8 20 < 30 < 1400 0.25 < 75 1.0 < –0.080
TZQ5225B 3.0 20 < 29 < 1600 0.25 < 50 1.0 < –0.075
TZQ5226B 3.3 20 < 28 < 1600 0.25 < 25 1.0 < –0.070
TZQ5227B 3.6 20 < 24 < 1700 0.25 < 15 1.0 < –0.065
TZQ5228B 3.9 20 < 23 < 1900 0.25 < 10 1.0 < –0.060
TZQ5229B 4.3 20 < 22 < 2000 0.25 < 5 1.0 < ±0.055
TZQ5230B 4.7 20 < 19 < 1900 0.25 < 5 2.0 < ±0.030
TZQ5231B 5.1 20 < 17 < 1600 0.25 < 5 2.0 < ±0.030
TZQ5232B 5.6 20 < 11 < 1600 0.25 < 5 3.0 < +0.038
TZQ5233B 6.0 20 < 7 < 1600 0.25 < 5 3.5 < +0.038
TZQ5234B 6.2 20 < 7 < 1000 0.25 < 5 4.0 < +0.045
TZQ5235B 6.8 20 < 5 < 750 0.25 < 3 5.0 < +0.050
TZQ5236B 7.5 20 < 6 < 500 0.25 < 3 6.0 < +0.058
TZQ5237B 8.2 20 < 8 < 500 0.25 < 3 6.5 < +0.062
TZQ5238B 8.7 20 < 8 < 600 0.25 < 3 6.5 < +0.065
TZQ5239B 9.1 20 < 10 < 600 0.25 < 3 7.0 < +0.068
TZQ5240B 10 20 < 17 < 600 0.25 < 3 8.0 < +0.075
TZQ5241B 11 20 < 22 < 600 0.25 < 2 8.4 < +0.076
TZQ5242B 12 20 < 30 < 600 0.25 < 1 9.1 < +0.077
TZQ5243B 13 9.5 < 13 < 600 0.25 < 0.5 9.9 < +0.079
TZQ5244B 14 9.0 < 15 < 600 0.25 < 0.1 10 < +0.082
TZQ5245B 15 8.5 < 16 < 600 0.25 < 0.1 11 < +0.082
TZQ5246B 16 7.8 < 17 < 600 0.25 < 0.1 12 < +0.083
TZQ5247B 17 7.4 < 19 < 600 0.25 < 0.1 13 < +0.084
TZQ5248B 18 7.0 < 21 < 600 0.25 < 0.1 14 < +0.085
TZQ5249B 19 6.6 < 23 < 600 0.25 < 0.1 14 < +0.086
TZQ5250B 20 6.2 < 25 < 600 0.25 < 0.1 15 < +0.086
TZQ5251B 22 5.6 < 29 < 600 0.25 < 0.1 17 < +0.087
TZQ5252B 24 5.2 < 33 < 600 0.25 < 0.1 18 < +0.088
TZQ5253B 25 5.0 < 35 < 600 0.25 < 0.1 19 < +0.089
TZQ5254B 27 4.6 < 41 < 600 0.25 < 0.1 21 < +0.090
TZQ5255B 28 4.5 < 44 < 600 0.25 < 0.1 21 < +0.091
TZQ5256B 30 4.2 < 49 < 600 0.25 < 0.1 23 < +0.091
TZQ5257B 33 3.8 < 58 < 700 0.25 < 0.1 25 < +0.092
TZQ5258B 36 3.4 < 70 < 700 0.25 < 0.1 27 < +0.093
TZQ5259B 39 3.2 < 80 < 800 0.25 < 0.1 30 < +0.094
TZQ5260B 43 3.0 < 93 < 900 0.25 < 0.1 33 < +0.095
TZQ5261B 47 2.7 < 105 < 1000 0.25 < 0.1 36 < +0.095
TZQ5262B 51 2.5 < 125 < 1100 0.25 < 0.1 39 < +0.096
TZQ5263B 56 2.2 < 150 < 1300 0.25 < 0.1 43 < +0.096
TZQ5264B 60 2.1 < 170 < 1400 0.25 < 0.1 46 < +0.097
TZQ5265B 62 2.0 < 185 < 1400 0.25 < 0.1 47 < +0.097
TZQ5266B 68 1.8 < 230 < 1600 0.25 < 0.1 52 < +0.097
TZQ5267B 75 1.7 < 270 < 1700 0.25 < 0.1 56 < +0.098
1.)Based on dc measurement at thermal equilibrium; case temperature maintained at 30°C ± 2°C.
1)
V
Znom
V mA
IZT for r
zjT
W W
r
zjk
at I
ZK
mA
IR at V
R
m
A V %/K
TK
VZ
www.vishay.de • FaxBack +1-408-970-5600 Document Number 85612
Rev. 3, 01-Apr-992 (6)
Page 3
TZQ5221B...TZQ5267B
)
Characteristics (Tj = 25_C unless otherwise specified)
Vishay Telefunken
tot
P – Total Power Dissipation ( mW )
95 9602
Z
V – Voltage Change ( mV )
D
600
500
400
300
200
100
0
0 40 80 120 160
T
– Ambient Temperature ( °C )
amb
Figure 1. Total Power Dissipation vs.
Ambient Temperature
1000
Tj=25°C
100
IZ=5mA
10
200
15
–4
Z
10
5
IZ=5mA
0
VZ
–5
TK – Temperature Coefficient of V ( 10 /K
0102030
95 9600
VZ – Z-Voltage ( V )
Figure 4. Temperature Coefficient of Vz vs.
Z–Voltage
200
150
VR=2V
100
50
D
C – Diode Capacitance ( pF )
Tj=25°C
40
50
1
25
95 9598
0 5 10 15 20
VZ – Z-Voltage ( V )
Figure 2. Typical Change of Working Voltage under
Operating Conditions at T
1.3
V
Ztn=VZt/VZ
1.2
1.1
1.0
Ztn
0.9
V – Relative Voltage Change
0.8
–60 0 60 120 180
95 9599
(25°C)
TKVZ=10 10–4/K
Tj – Junction Temperature ( °C )
amb
=25°C
8 10
6 10–4/K
4 10–4/K
2 10
0
–2 10
–4 10–4/K
–4
/K
–4
/K
–4
/K
240
Figure 3. Typical Change of Working Voltage vs.
Junction Temperature
95 9601
F
I – Forward Current ( mA )
95 9605
0
0 5 10 15
VZ – Z-Voltage ( V )
Figure 5. Diode Capacitance vs.
Z–Voltage
100
10
Tj=25°C
1
0.1
0.01
0.001
0 0.2 0.4 0.6 0.8
VF – Forward Voltage ( V )
Figure 6. Forward Current vs.
Forward Voltage
20
25
1.0
Document Number 85612
www.vishay.de • FaxBack +1-408-970-5600
Rev. 3, 01-Apr-99 3 (6)
Page 4
TZQ5221B...TZQ5267B
Vishay Telefunken
Z
I – Z-Current ( mA )
95 9604
Z
I – Z-Current ( mA )
100
80
P
tot
T
amb
60
40
20
0
04 81216
VZ – Z-Voltage ( V )
Figure 7. Z–Current vs. Z–Voltage
50
P
=500mW
40
30
20
10
tot
T
=25°C
amb
=500mW
=25°C
1000
W
IZ=1mA
100
5mA
10mA
10
Z
r – Differential Z-Resistance ( )
20
95 9606
0 5 10 15 20
VZ – Z-Voltage ( V )
1
Tj=25°C
25
Figure 9. Differential Z–Resistance vs. Z–Voltage
0
15 20 25 30
95 9607
VZ – Z-Voltage ( V )
Figure 8. Z–Current vs. Z–Voltage
1000
tp/T=0.5
100
tp/T=0.2
10
tp/T=0.1
tp/T=0.02
tp/T=0.05
1
thp
Z – Thermal Resistance for Pulse Cond. (K/W)
–1
10
Figure 10. Thermal Response
10
0
tp/T=0.01
35
Single Pulse
1
10
iZM=(–VZ+(V
2
+4rzjDT/Z
Z
R
=300K/W
thJA
D
T=T
jmax–Tamb
1/2
)
)/(2rzj)
thp
2
10
tp – Pulse Length ( ms )95 9603
www.vishay.de • FaxBack +1-408-970-5600 Document Number 85612
Rev. 3, 01-Apr-994 (6)
Page 5

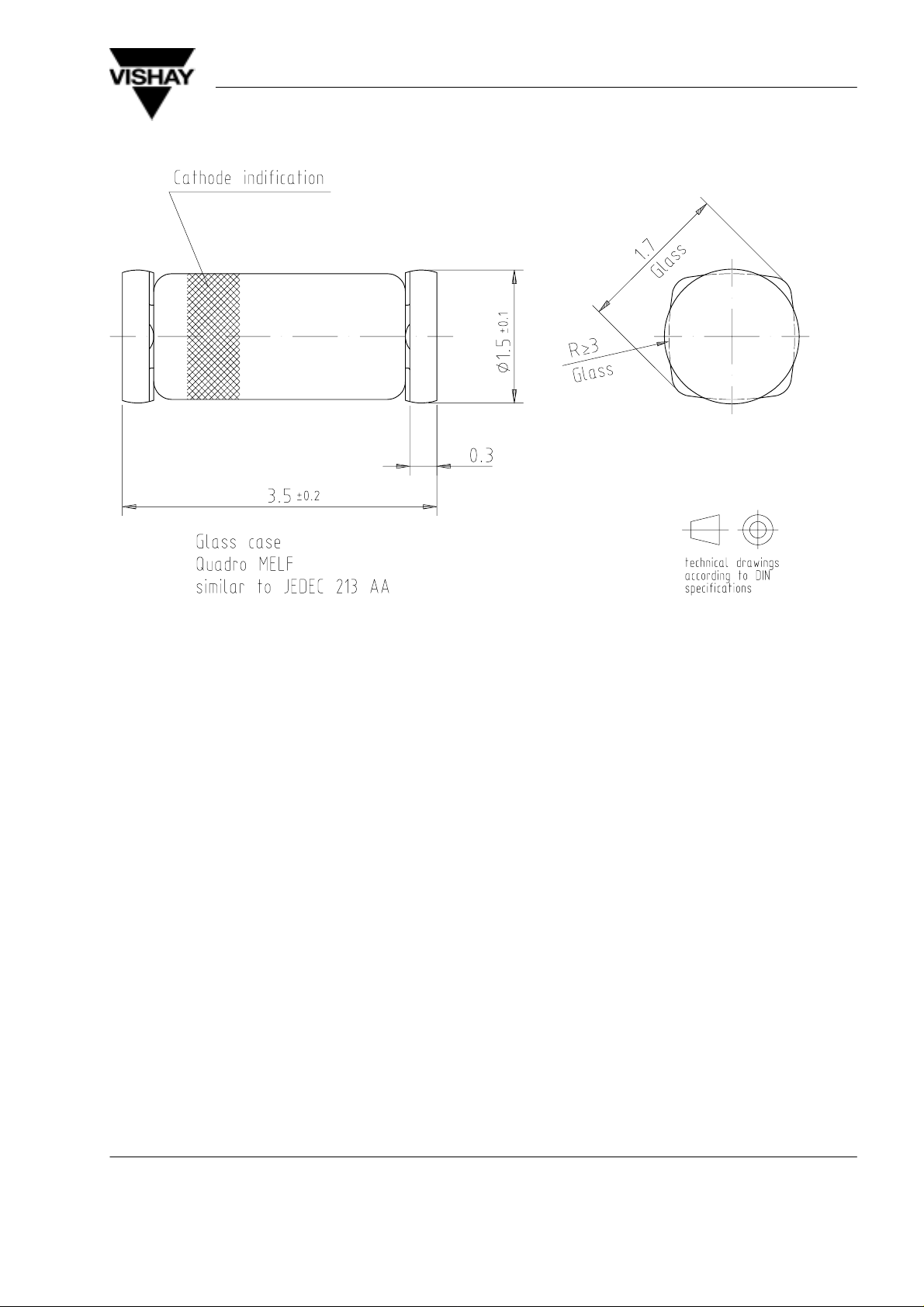

Dimensions in mm
TZQ5221B...TZQ5267B
Vishay Telefunken
96 12071
Document Number 85612
Rev. 3, 01-Apr-99 5 (6)
www.vishay.de • FaxBack +1-408-970-5600
Page 6
TZQ5221B...TZQ5267B
Vishay Telefunken
