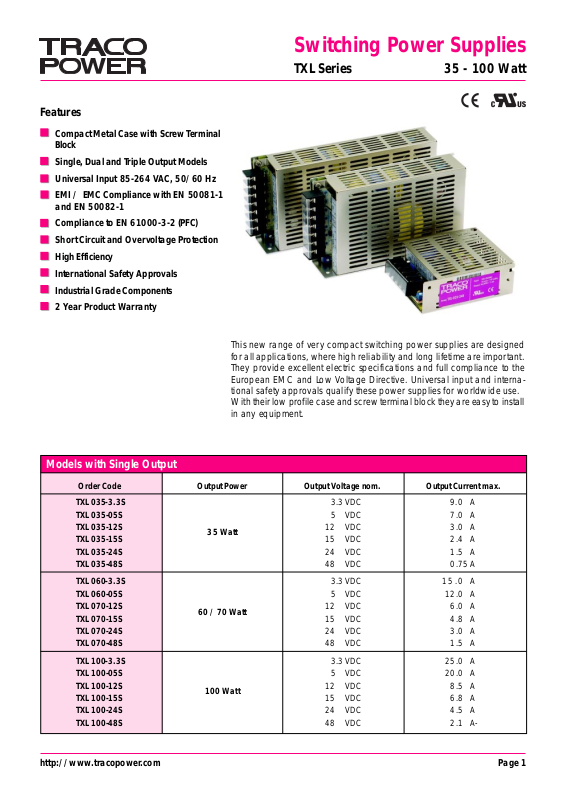

Datasheet TXL100-0512D, TXL070-48S, TXL070-24S, TXL070-15S, TXL070-12S Datasheet (TRACO)

http://www.tracopower.com Page 1

Features

Compact Metal Case with Screw T erminal
Block

Single, Dual and T riple Output Models
Universal Input 85-264 VAC, 50/60 Hz
EMI / EMC Compliance with EN 50081-1

and EN 50082-1
Compliance to EN 61000-3-2 (PFC)
Short Circuit and Overvoltage Protection
High Efficiency
International Safety Approvals
Industrial Grade Components
2 Year Product W arranty

This new range of very compact switching power supplies are designed
for all applications, where high reliability and long lifetime are important.
They provide excellent electric specifications and full compliance to the
European EMC and Low Voltage Directive. Universal input and interna­tional safety approvals qualify these power supplies for worldwide use.
With their low profile case and screw terminal block they are easy to install
in any equipment.

Order Code Output Power Output V oltage nom. Output Current max.

TXL 035-3.3S 3.3VDC 9.0 A
TXL 035-05S 5 VDC 7.0 A
TXL 035-12S

35 Watt

12 VDC 3.0 A

TXL 035-15S 15 VDC 2.4 A
TXL 035-24S 24 VDC 1.5 A
TXL 035-48S 48 VDC 0.75 A

TXL 060-3.3S 3.3VDC 15 .0 A
TXL 060-05S 5 VDC 12.0 A
TXL 070-12S

60 / 70 W att

12 VDC 6.0 A

TXL 070-15S 15 VDC 4.8 A
TXL 070-24S 24 VDC 3.0 A
TXL 070-48S 48 VDC 1.5 A

TXL 100-3.3S 3.3 VDC 25.0 A
TXL 100-05S 5 VDC 20.0 A
TXL 100-12S

100 Watt

12 VDC 8.5 A

TXL 100-15S 15 VDC 6.8 A
TXL 100-24S 24 VDC 4.5 A
TXL 100-48S 48 VDC 2.1 A-

Models with Single Output

Switching Power Supplies

TXL Series 35 - 100 Watt

http://www.tracopower.com Page 2

All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

Switching Power Supplies

TXL Series 35 – 100 Watt

Order Code Output Power * Output1 * Output 2 * Output 3

max.

TXL 060-0512D +5 VDC / 8.0 A +12 VDC / 4.0 A
TXL 060-0524D +5 VDC / 6.0 A +24 VDC / 2.2 A
TXL 060-0521T

60 Watt

+5 VDC / 8.0 A +12 VDC / 3.5 A –5 VDC / 1.0 A

TXL 060-0522T +5 VDC / 7.0 A +12 VDC / 3.5 A –12 VDC / 1.0 A
TXL 060-0533T +5 VDC / 7.0 A +15 VDC / 3.0 A –15 VDC / 1.0 A
TXL 060-0534T +5 VDC / 6.0 A +12 VDC / 1.5 A +24 VDC / 1.2 A

TXL 100-0512D +5 VDC / 12 A +12 VDC / 5.0 A
TXL 100-0524D +5 VDC / 10 A +24 VDC / 3.0 A
TXL 100-0521T

100 Watt

+5 VDC / 12 A +12 VDC / 5.0 A –5 VDC / 1.5 A

TXL 100-0522T +5 VDC / 12 A +12 VDC / 5.0 A –12 VDC / 1.5 A
TXL 100-0533T +5 VDC / 12 A +15 VDC / 3.0 A –15 VDC / 1.5 A
TXL 100-0534T +5 VDC / 12 A +12 VDC / 3.0 A +24 VDC / 2.0 A

Models with Multiple Output

* T otal power must not exceed specified output power

Input Specifications

Input voltage range 85 – 264 VAC

88 – 264 VAC (TXL 100 models)

Input frequency 47 – 63 Hz

Input current (at full load) Vin = 115 V AC Vin = 230 VAC

TXL 035 models 0.7 A typ. 420 mA typ.

TXL 060/ 070 models 1.0 A typ. 600 mA typ.

TXL 100 models 1.65 A typ. 950 mA typ.

Input current (at no load) Vin = 115 V AC Vin = 230 VAC

TXL 035 models 50 mA typ. 55 mA typ.

other models 100 mA typ. 80 mA typ.

Start-up time 200 ms max @ 230 VAC

700 ms max @ 115 VAC

http://www.tracopower.com Page 3

All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

Output Specifications

Output voltage adjustment range (only single output models) ±10%

Regulation – Input variation ± 1 % max.

– Load variation (10–100%) ± 2 % max. (main output)

± 5 % max. (output 2/3)

Ripple and noise (20Mhz Bandwidth) 3.3VDC output < 50mV

Output 3 (of triple output models) < 1.5% of Vout

all other output voltages < 1.0% of Vout nom.

Output current limitation 105 % – 150% of Iout max.
Overload protection mode Fold back, automatic recovery
Over voltage protection (only output 1) 115 % – 140 % of Vout nom.

(depending on model)

Capacitive load, max. 3.3 –12 VDC output models: 10’000 µF

TXL 070: 24 VDC & 48VDC output models: 10’000 µF
TXL 100: 24 VDC & 48VDC output models: 4’700 µF
TXL 035: 24 VDC & 48VDC output models: 1’000 µF

Switching Power Supplies

TXL Series 35 – 100 Watt

http://www.tracopower.com Page 4

All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.

General Specifications

T emperature ranges – Operating 0 °C…+70 °C

– Load derating above 45°C 2% /°C
– Storage (non operating) – 10 °C…+75 °C

Temperature coefficient 0.02 % / °C

Efficiency 70 – 80 % (depending on model)

Humidity (non condensing) 85 % rel max. (non condensing)

Switching frequency 50 kHz typ. (pulse width modulation)

Hold-up time Vin = 115 V AC Vin = 230 V AC

16 ms min. 60 ms min.

Isolation voltage – Input / output 3‘000 VAC

– Input / case 1‘500 VAC
– Output / case 500 VAC

Reliability /calculated MTBF (MIL-HDBK-217F)

TXL 035 > 335‘000 h @ 25°C

TXL 060/070 single output models > 355’000 h @ 25°C

TXL 100 single output models > 270’000 h @ 25°C

Multi output Models > 290’000 h @ 25°C

ELectromagnetic compatibility (EMC), Emissions

– Conducted input RI suppression EN 55022, class B, FCC part 15, level B
– Harmonic current emissions IEC / EN 61000-3-2, class A

– Flicker IEC / EN 61000-3-3

ELectromagnetic compatibility (EMC), Immunity (all multioutput models)

– Electrostatic discharge ESD IEC / EN 61000-4-2 4 kV / 8 kV
– RF field immunity IEC / EN 61000-4-3 3 V/m
– Electrical fast transients/burst immunity IEC / EN 61000-4-4 1 kV
– Surge IEC / EN 61000-4-5 1 kV / 2 kV

– Conducted RF IEC / EN 61000-4-6 3 V/m
– Magnetic field IEC / EN 61000-4-8 3 A/m
– Voltage dip IEC / EN 61000-4-11

Safety standards UL 1950, IEC 60950, EN 60950
Safety approval cUL /UL File E188913
Case material TXL 035 Stainless steel (chassis & cover)

TXL 060/070/100 Aluminium (chassis), stainless steel (cover)

Switching Power Supplies

TXL Series 35 – 100 Watt

http://www.tracopower.com Page 5

Specifications can be changed without notice

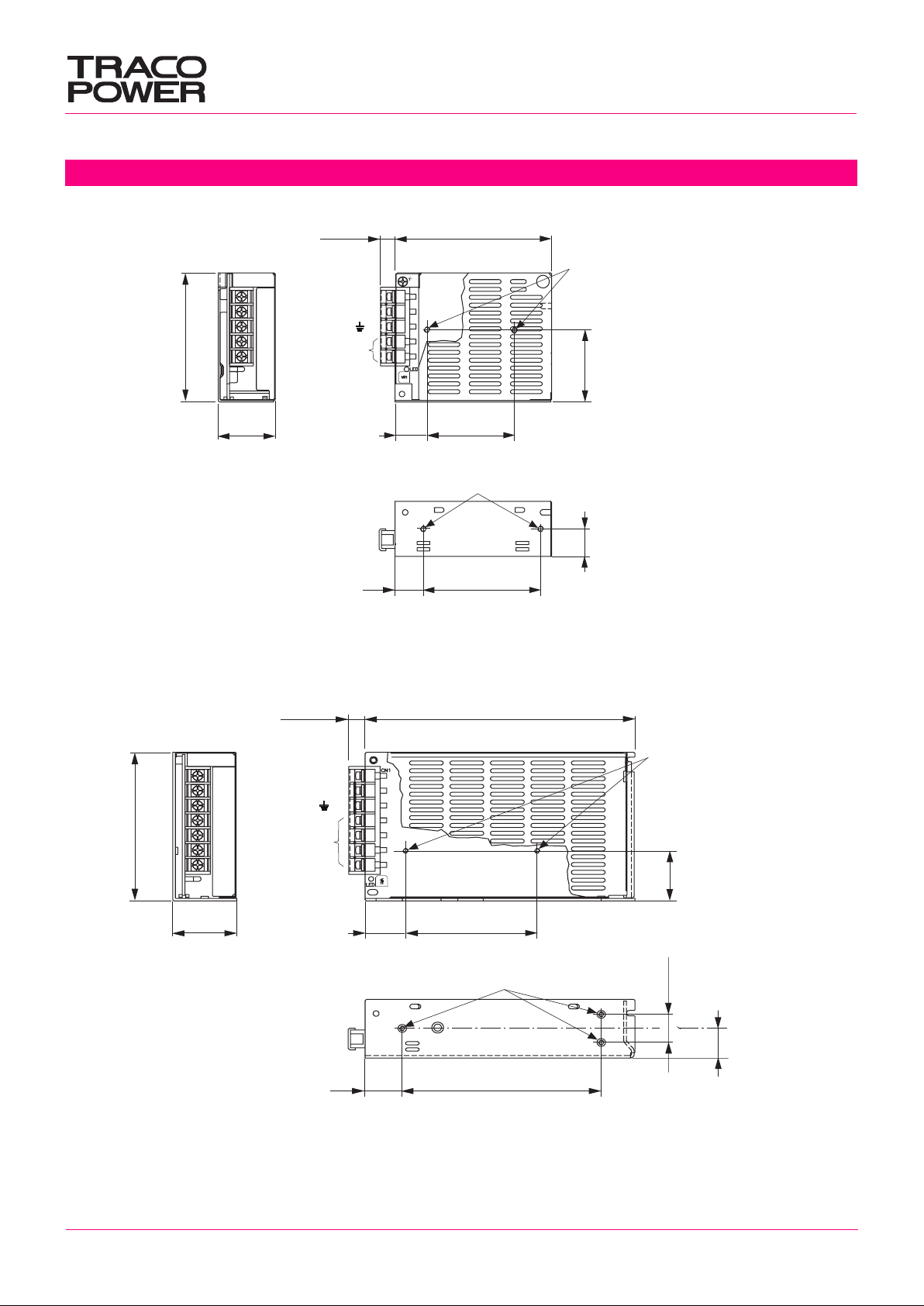

TXL 035

Outline Dimensions mm (inches)

TXL 060 / 070

Switching Power Supplies

TXL Series 35 – 100 Watt

Weight: 0.7 kg (25 oz)

Weight: 0.3 kg (10 oz)

82

±0.8

99 ±0.8

10 max.

(0.39 max.)

(3.90

±0.03)

20.5

55

±0.5

(2.17

±0.02

)

(0.81)

45

(1.77)

M3 threa

d

(bottom

)

M3 thread

18

74

±0.5

(2.91

±0.02)

(0.71)

17.5

(0.69)

35 ±0.5

(1.38

± 0.03

)

(3.23

±0.03

)

L

N

Vout

160

±0.8

10 max.

(0.39 max.)

(6.30

±0.03

)

Vout

M3 thread

(bottom)

32

(1.26)

24

78

±0.5

(3.07

±0.02

)

(0.95)

M3 thread

22

118

±0.5

(4.65

±0.02

)

(0.87)

18

±0.5

(0.71

± 0.02)

19

(0.75)

37.5

±0.5

(1.48

±0.02

)

95

±0.8

(3.74

±0.03

)

L

N

Page 6

Specifications can be changed without notice

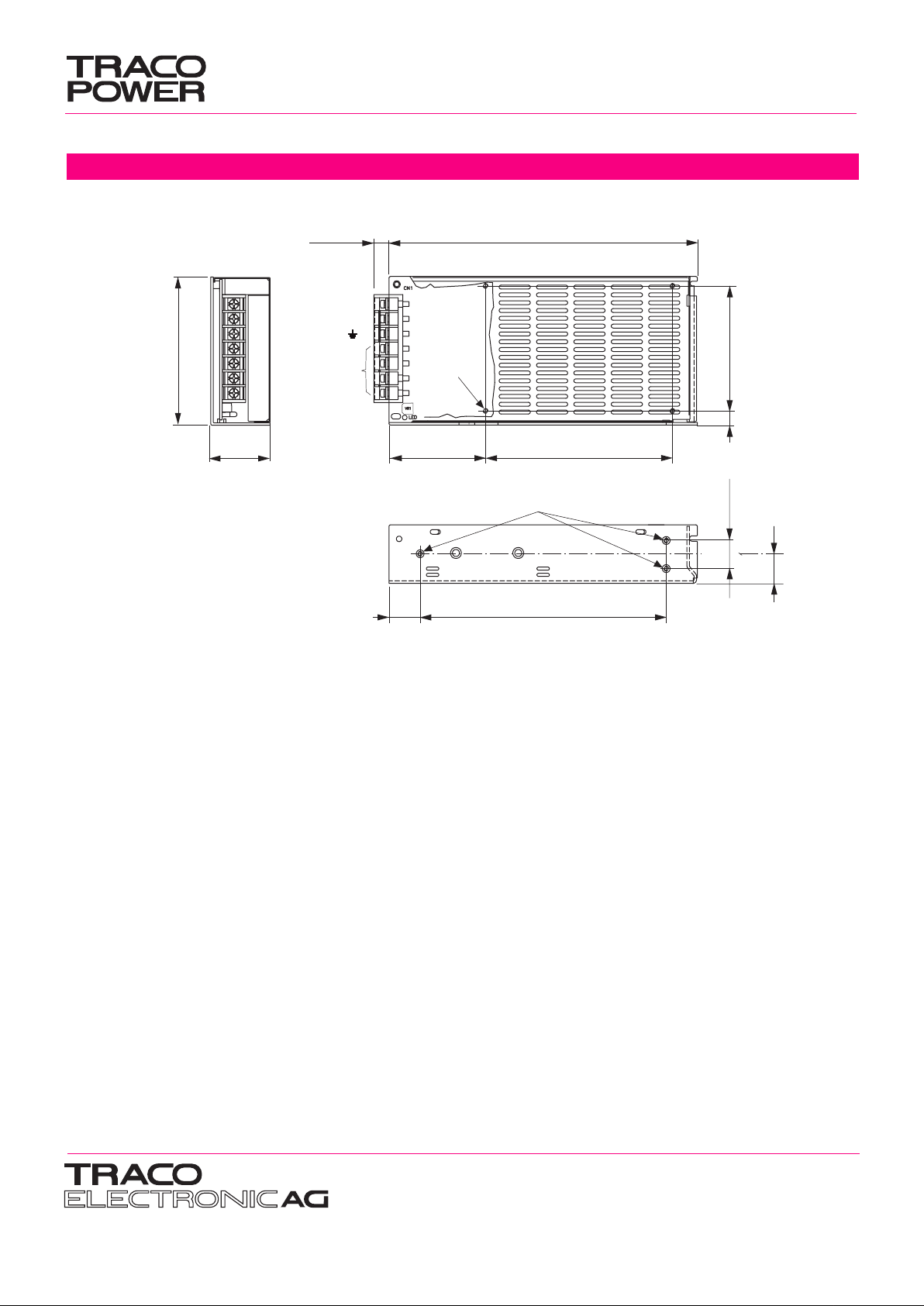

Outline Dimensions mm (inches)

Jenatschstrasse 1 • CH-8002 Zurich • Switzerland
Tel. [phone] • Fax [phone] • e-mail: [email protected] • internet: http://www.tracopower.com

11/01

TXL 100

Weight: 0.9 kg (30 oz)

198

±0.8

10 max.

(0.39 max.)

(7.80

±0.03

)

9

(0.35)

80

±0.5

(3.15

±0.02)

62

120

±0.8

(4.72

±0.03

)

(2.44)

4 x M3 thread

(bottom)

18 ±0.5

(0.71

± 0.02

)

(0.75)

20

158

±0.5

(6.22

±0.02)

(0.79)

38

±0.5

(1.50

±0.02

)

95

±0.8

(3.74

±0.03

)

M3 thread

19

Vout

L

N

Switching Power Supplies

TXL Series 35 – 100 Watt
