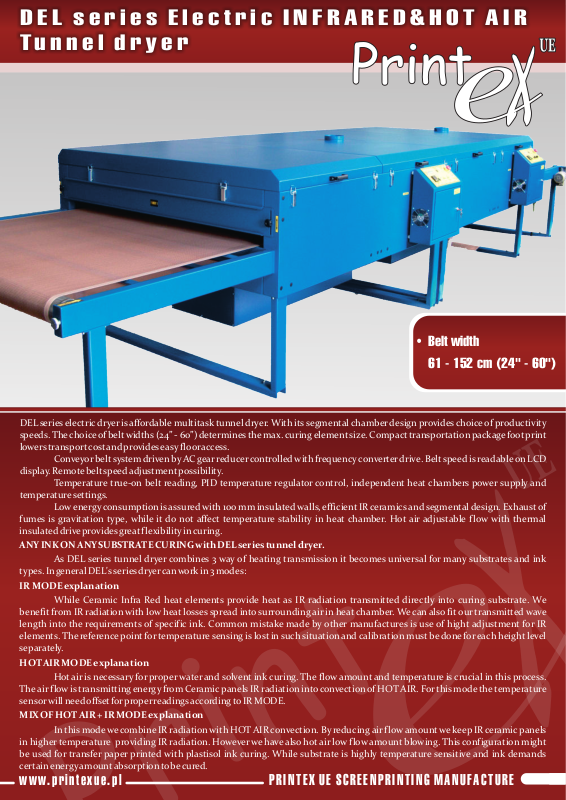

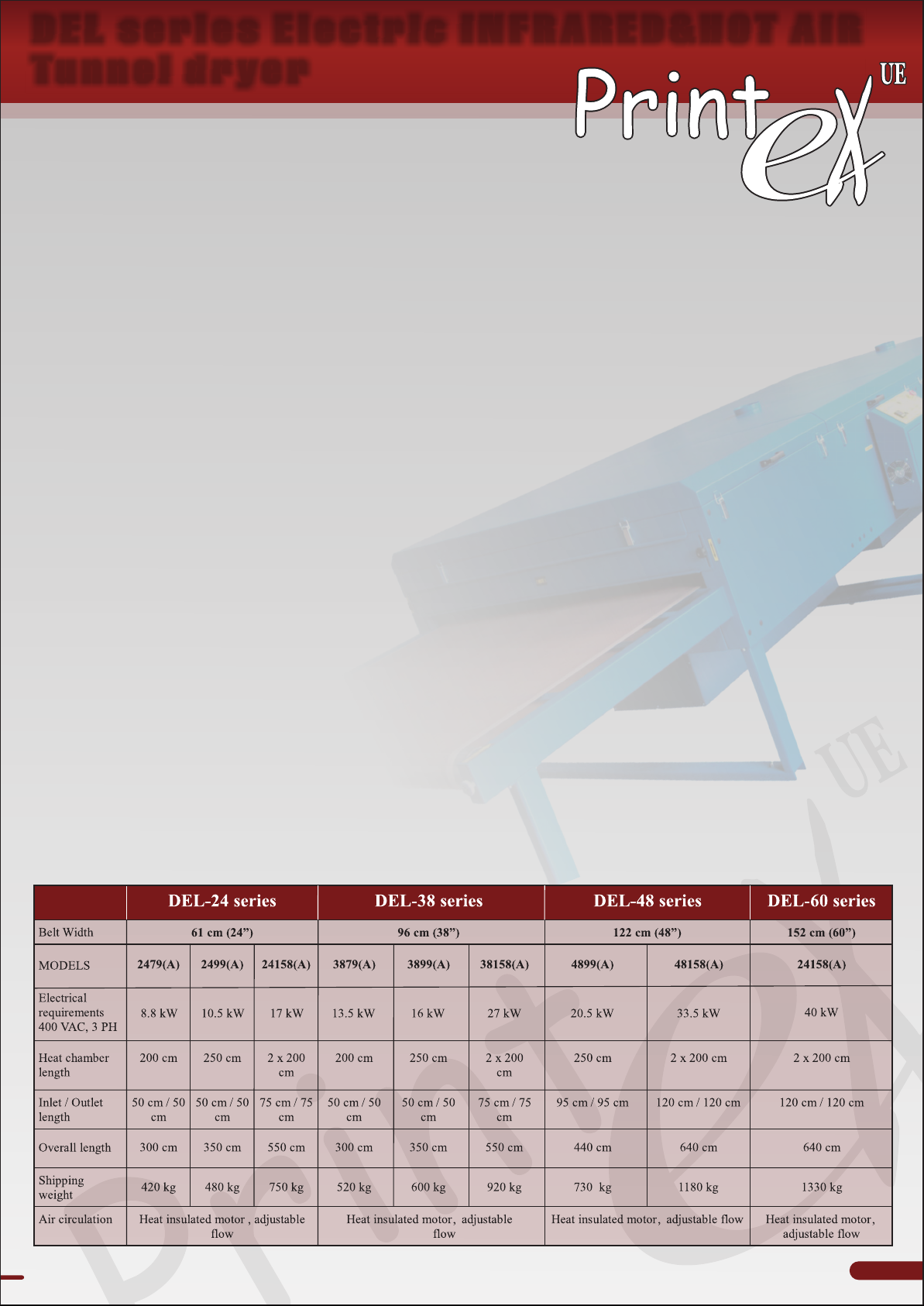

Page 1
D E L s e r i e s E l e c t r i c I N F R A R E D & H O T A I R
Tu n n e l d r y e r
Belt width
61 - 152 cm (24" - 60")

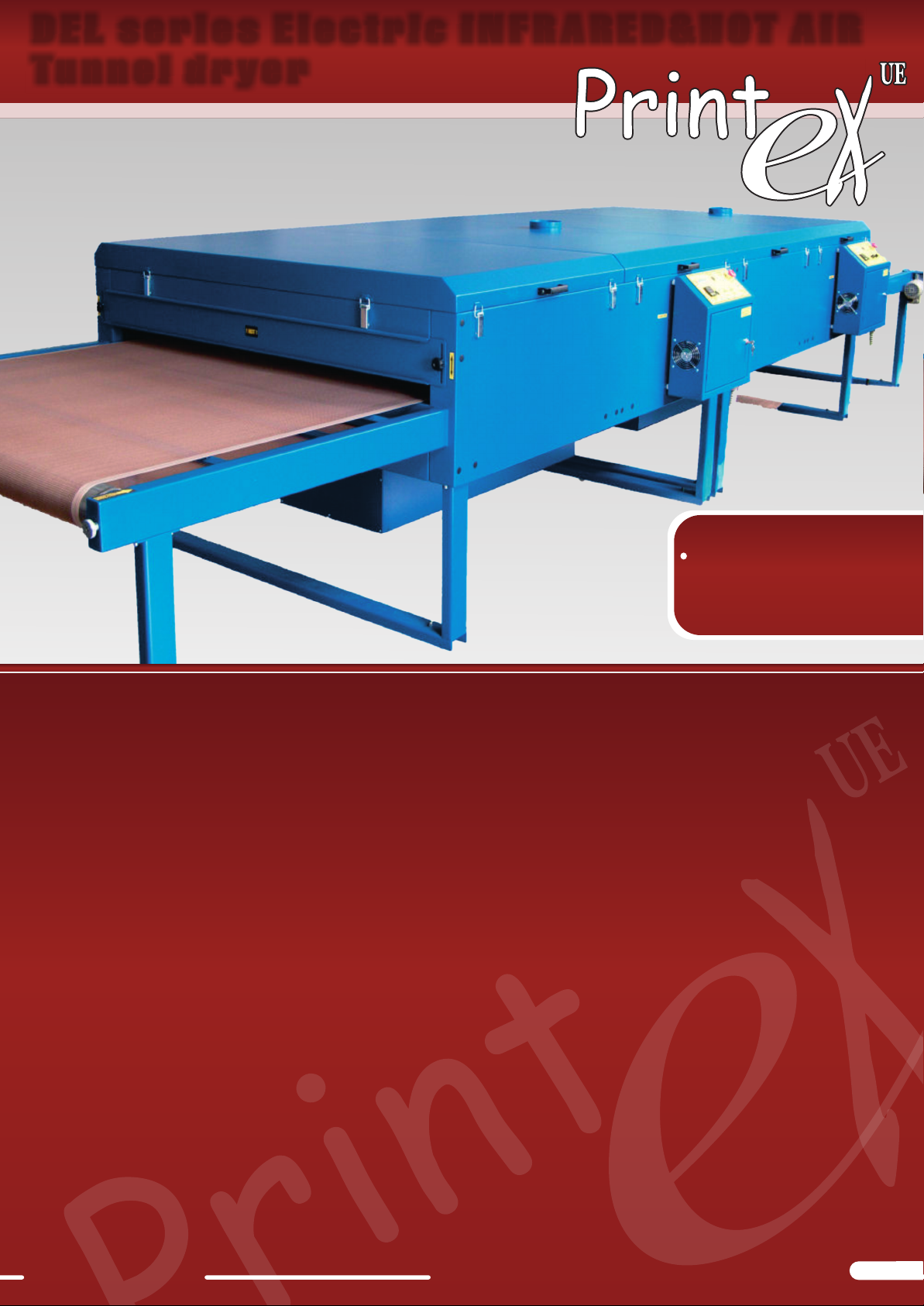

DEL series electric dryer is affordable multitask tunnel dryer. With its segmental chamber design provides choice of productivity
speeds. The choice of belt widths (24” - 60”) determines the max. curing element size. Compact transportation package foot print
lowers transport cost and provides easy floor access.
Conveyor belt system driven by AC gear reducer controlled with frequency converter drive. Belt speed is readable on LCD
display. Remote belt speed adjustment possibility.
Temperature true-on belt reading, PID temperature regulator control, independent heat chambers power supply and
temperature settings.
Low energy consumption is assured with 100 mm insulated walls, efficient IR ceramics and segmental design. Exhaust of
fumes is gravitation type, while it do not affect temperature stability in heat chamber. Hot air adjustable flow with thermal
insulated drive provides great flexibility in curing.
ANY INK ON ANY SUBSTRATE CURING with DEL series tunnel dryer.
As DEL series tunnel dryer combines 3 way of heating transmission it becomes universal for many substrates and ink
types. In general DEL's series dryer can work in 3 modes:
IR MODE explanation
While Ceramic Infra Red heat elements provide heat as IR radiation transmitted directly into curing substrate. We
benefit from IR radiation with low heat losses spread into surrounding air in heat chamber. We can also fit our transmitted wave
length into the requirements of specific ink. Common mistake made by other manufactures is use of hight adjustment for IR
elements. The reference point for temperature sensing is lost in such situation and calibration must be done for each height level
separately.
HOT AIR MODE explanation
Hot air is necessary for proper water and solvent ink curing. The flow amount and temperature is crucial in this process.
The air flow is transmitting energy from Ceramic panels IR radiation into convection of HOT AIR. For this mode the temperature
sensor will need offset for proper readings according to IR MODE.
MIX OF HOT AIR + IR MODE explanation
In this mode we combine IR radiation with HOT AIR convection. By reducing air flow amount we keep IR ceramic panels
in higher temperature providing IR radiation. However we have also hot air low flow amount blowing. This configuration might
be used for transfer paper printed with plastisol ink curing. While substrate is highly temperature sensitive and ink demands
certain energy amount absorption to be cured.
PR IN TE X U E S CR EE NP RI NT IN G M AN UFA CT UR Eww w. p r i n t e x u e . p l
Page 2
HEATING ELEMENTS
·Ceramic heating elements with wave length 3.3 um suited for plastizol inks curing while operated with nominal power
· With even power density across belt width and low maintenance cost
HEAT MANAGEMENT
· IR combined with adjustable flow HOT AIR provides full control over IR radiation, amount of convection f low and temperature
· We offer much more sophisticated curing process than just temperature setting
SEGMENTAL EXPANDABLE DESIGN
· All heat chambers are made of 2 or 2.5 meter length segments. Mostly used are 1 or 2 heat segments depending of productivity needed.
· The heat segments can be disassembled quickly into basic elements enabling installation throw narrow doors or throw staircase
AIR CIRCULATION
· Air circulation with adjustable flow, sucking air leaving heat chamber and guiding it evenly to the conveyor belt
· Air is spreading around ceramic elements exchanging heat with it
· Blower motor is temperature isolated
MULTISUBSTRATE & MULTINK CURING
·DEL series dryer provide wide range substrate and ink drying. Plastisol ink, Water base ink, solvent inks, Substrates can be textile , plastic, paper foil and
other also temperature sensitive materials. With this very specific feature it is possible curing high power density demanding inks like plastisols on
temperature sensitive substrates as paper. This we achieve using unique feature of simultaneous IR emission with substrate cooling.
SMART DESIGN
· Smart design do not cost more in manufacturing and gives all advantages of having efficient and multifunctional dryer
TEMPERATURE STABILITY
· As described above temperature might mean different things for different curing process .Good understanding of this knowledge will help in curing
process. Whatever MODE we work with DEL-series dryer it stays temperature and power density stable.
ENERGY EFFICIENCY
· 100 mm insulated walls
· adjustable in/out shutters
· reflective inside material for IR low penetration
· adjustable exhaust chimney for low fumes losses
CONTROL INTERFACE
· Control interface consists of PID temperature regulator
· belt speed regulation with LCD visualization
· air circulation with flow adjustment
· heating ON/OFF switch
· LED power light signalization
· E-STOP, ON/OFF Buttons in standard
PR IN TE X U E s .c ., 17 -1 00 Bi el sk Po dl as ki , u l. Re jo no wa 4, te l. : + 48 85 73 0 1 6 8 0
STANDARD FEATURES
D E L s e r i e s E l e c t r i c I N F R A R E D & H O T A I R
Tu n n e l d r y e r
CONVEYOR SYSTEM
· Build of heat resistant Fiberglas Teflon coated heavy duty belt
· Driven by direct-on shaft AC reducer controlled with frequency converter
· Its truly industrial drive with LCD display speed display
· Both direction operation
WARRANTY & SERVICE
· 2 year warranty
· service agreement on special conditions
OPTIONS
· 3 color light tower for dryer stage signalization
· customized heat chamber and inlet / outlet
· UV heat chamber
· LCD signalization for air circulation blowing flow
