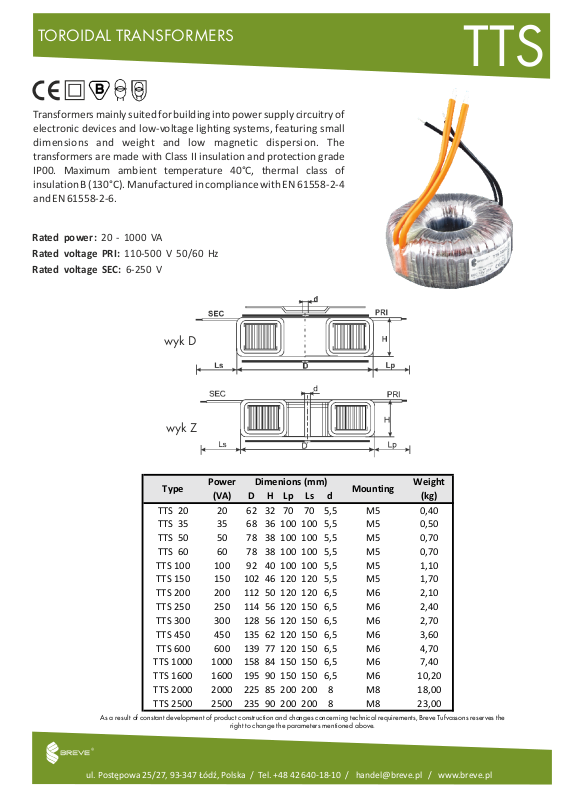

TOROIDAL TRANSFORMERS
Transformers mainly suited for building into power supply circuitry of
electronic devices and low-voltage lighting systems, featuring small
dimensions and weight and low magnetic dispersion. The
transformers are made with Class II insulation and protection grade
IP00. Maximum ambient temperature 40°C, thermal class of
insulation B (130°C). Manufactured in compliance with EN 61558-2-4
and EN 61558-2-6.
TTS
Rated power:
Rated voltage PRI:
Rated voltage SEC:
20 - 1000 VA
As a result of constant development of product construction and changes concerning technical requirements, Breve Tufvassons reserves the
110-500 V 50/60 Hz
6-250 V
wyk D
wyk Z
Type
TTS 20 20 62 32 70 70 5,5 M5 0,40
TTS 35 35 68 36 100 100 5,5 M5 0,50
TTS 50 50 78 38 100 100 5,5 M5 0,70
TTS 60 60 78 38 100 100 5,5 M5 0,70
TTS 100 100 92 40 100 100 5,5 M5 1,10
TTS 150 150 102 46 120 120 5,5 M5 1,70
TTS 200 200 112 50 120 120 6,5 M6 2,10
TTS 250 250 114 56 120 150 6,5 M6 2,40
TTS 300 300 128 56 120 150 6,5 M6 2,70
TTS 450 450 135 62 120 150 6,5 M6 3,60
TTS 600 600 139 77 120 150 6,5 M6 4,70
TTS 1000 1000 158 84 150 150 6,5 M6 7,40
TTS 1600 1600 195 90 150 150 6,5 M6 10,20
TTS 2000 2000 225 85 200 200 8 M8 18,00
TTS 2500 2500 235 90 200 200 8 M8 23,00
Power Weight
(VA) D H Lp Ls d (kg)
Dimenions (mm)
right to change the parameters mentioned above.
Mounting
