Datasheet TT-4 series Specification

TEWA TEMPERATURE SENSORS

Sensing Element

PT1000

Class according to EN 60751

B

Temperature Coefficient

TCR = 3850 ppm/k

Operating temperature range

-20C ÷ 125C

Test Voltage

500V DC

RoHS Compatible

YES

Mylar Tube Filled

Epoxy Resin

19

10

Ø 5.2

500 ± 20

Ring Type

Housing

6

AWG24, Tinned Copper,

White Teflon insulation

5 ± 1

HIGH PRECISION NTC THERMISTORS AND TEMPERATURE SENSORS

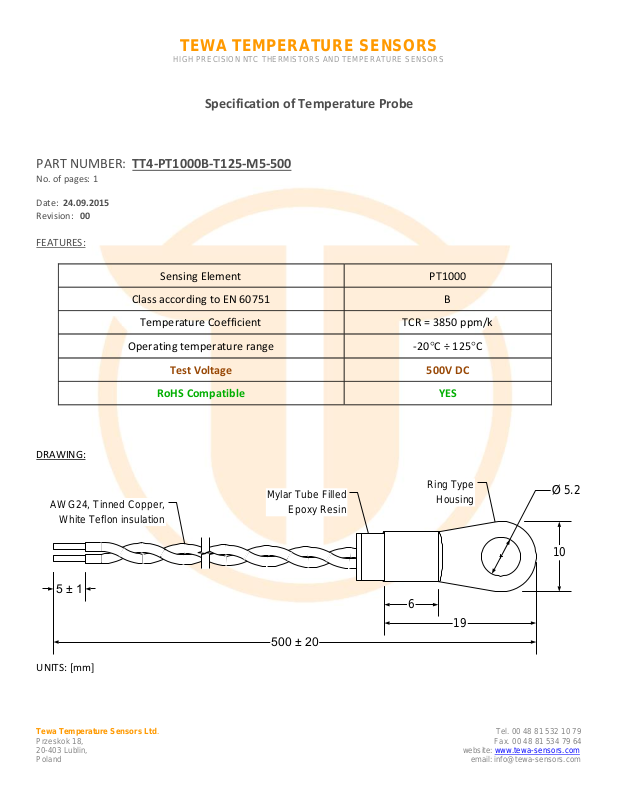

Specification of Temperature Probe

PART NUMBER: TT4-PT1000B-T125-M5-500

No. of pages: 1

Date: 24.09.2015
Revision: 00

FEATURES:

DRAWING:

UNITS: [mm]
