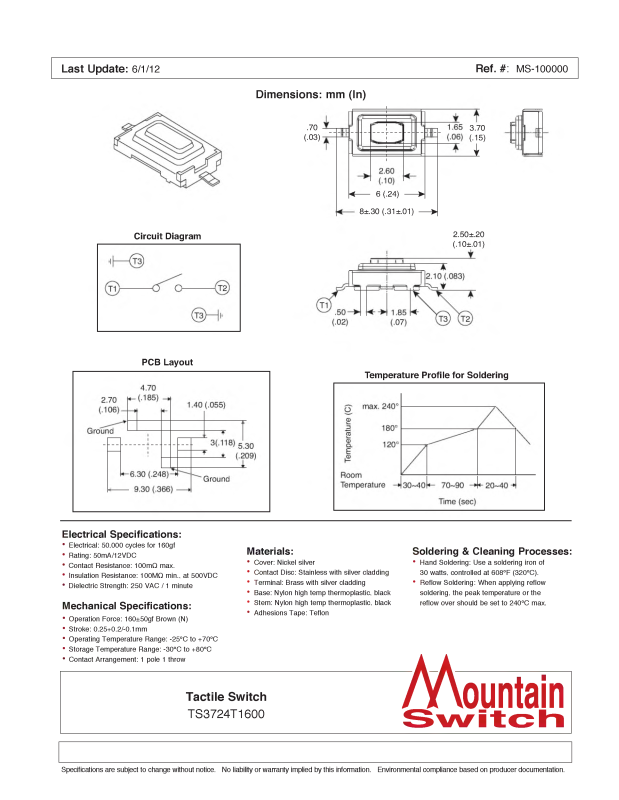

Page 1
Last Update: 6/1/12 Ref.#: MS-100000
Dimensions: mm (In)
Circuit Diagram
PCB Layout
.70
(.03)
A .
<
-------
6 (.24)
8±.30 (.31 ±.01)
Temperature Profile for Soldering
-------
►
------
►
2.50 ±.20
(.10±.01)
3.70
(.15)
Electrical Specifications:
• Electrical: 50,000 cycles for 160gf
• Rating: 50mA /12VDC
• Contact Resistance: 100mQ max.
• Insulation Resistance: 100MQ min., at 500VDC
• Dielectric Strength: 250 VAC /1 minute
Mechanical Specifications:
• Operation Force: 160±50gf Brown (N)
• Stroke: 0.25+0.2/-0.1 mm
• Operating Temperature Range: -25°C to +70°C
• Storage Temperature Range: -30°C to +80°C
• Contact Arrangem ent: 1 pole 1 throw
Materials:
• Cover: Nickel silver
• Contact Disc: Stainless with silver cladding
• Terminal: Brass with silver cladding
• Base: Nylon high temp thermoplastic, black
• Stem: Nylon high temp thermoplastic, black
• Adhesions Tape: Teflon
Tactile Switch
TS3724T1600
Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.
Soldering & Cleaning Processes:
• Hand Soldering: Use a soldering iron of
30 watts, controlled at 608°F (320°C).
• Reflow Soldering: When applying reflow
soldering, the peak temperature or the
reflow over should be set to 240°C max.
M ountain
Switch
