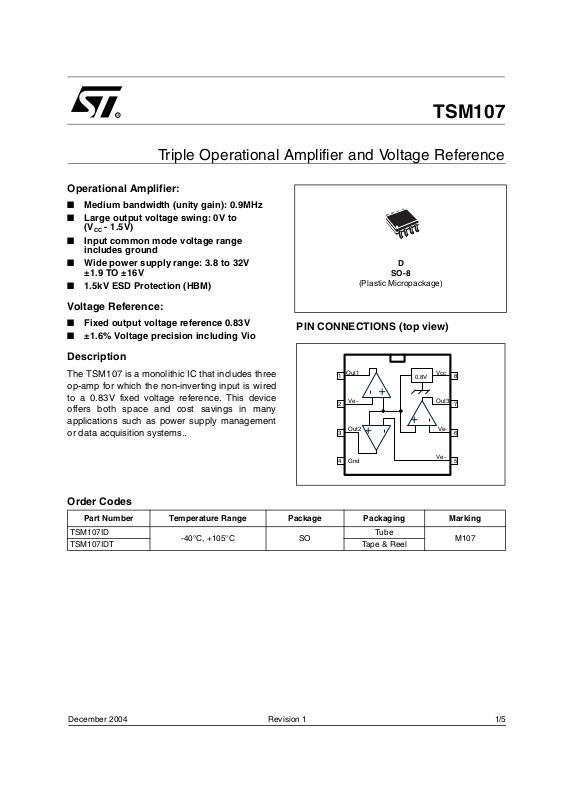

Triple Operational Amplifier and Voltage Reference
Operational Amplifier:
■ Medium bandwidth (unity gain): 0.9MHz
■ Large output voltage swing: 0V to
(V
- 1.5V)
CC
■ Input common mode voltage range
includes ground
■ Wide power supply range: 3.8 to 32V
±1.9 TO ±16V
■ 1.5kV ESD Protection (HBM)
Voltage Reference:
■ Fixed output voltage reference 0.83V
■ ±1.6% Voltage precision including Vio
Description
The TSM107 is a monolithic IC that includes three
op-amp for which the non-inverting input is wired
to a 0.83V fixed voltage reference. This device
offers both space and cost savings in many
applications such as power supply management
or data acquisition systems..
TSM107
D
SO-8
(Plastic Micropackage)
PIN CONNECTIONS (top view)
+
0.8V
Vcc
8
Out3
7
-
Ve-
6
Out1
1
+
-
Ve-
2
+
Out2
3
-
Gnd
45
Ve-
Order Codes
Part Number Temperature Range Package Packaging Marking
TSM107ID
TSM107IDT Tape & Reel
December 2004 Revision 1 1/5
-40°C, +105°C SO
Tube
M107
Page 2
TSM107 Absolute Maximum Ratings
1 Absolute Maximum Ratings
Table 1. Key parameters and their absolute maximum ratings
Symbol Parameter Value Unit
V
T
R
ESD Electrostatic Discharge Protection 1.5 kV
Supply Voltage
CC
Differential Input Voltage
V
id
Negative Input Voltage
V
i
Operating Free-air Temperature Range
oper
Maximum Junction Temperature
T
j
Thermal Resistance Junction to Ambient (SO package)
thja
Maximum Lead Temperature (10 seconds maximum)
T
l
36 V
36 V
-0.3 to Vcc + 0.3V V
-40 to +105 °C
150 °C
175 °C/W
260 °C
2/5
Page 3
Electrical Characteristics TSM107
2 Electrical Characteristics
Table 2. General electrical characteristics
Symbol Parameter Min. Typ. Max. Unit
Total Supply Current
I
CC
Tmin. < Tamb < Tmax.
Vcc+ = 30V, no load
Tmin. < Tamb < Tmax
Table 3. Electrical characteristics for operator/ VCC+ = +5V, VCC- = Ground, Tamb = 25°C
(unless otherwise specified)
Symbol Parameter Min. Typ. Max. Unit
Vcc+ = 5V, no load
Vref + V
I
ib
I
source
I
o
I
sink
V
OH
V
OL
Input Offset Voltage
T
= 25°
io
amb
T
≤ T
min.
amb
Input Bias Current
negative input 20
Output Current Source
= 2V
V
o
V
= +15V 20 40 mA
CC
Short Circuit to Ground
V
= +15V
CC
Output Current Sink
V
= +15V, Vo = 2V
CC
High Level Output Voltage
+
V
= 30V
CC
T
= 25°C, RL = 10k
amb
T
≤ T
min.
amb
Low Level Output Voltage
= 10k
R
L
T
≤ T
min.
amb
≤ T
≤ T
≤ T
max.
max.
max.
0.818
0.748
10 20 mA
27
27
2.5
4.5
6
5.5
8.5
10
0.83 0.842
0.872
40 60 mA
28 V
52020mV
mA
V
nA
3/5
Page 4
TSM107 Package Mechanical Data
3 Package Mechanical Data
SO-8 MECHANICAL DATA
DIM.
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.04 0.010
A2 1.10 1.65 0.043 0.065
B 0.33 0.51 0.013 0.020
C 0.19 0.25 0.007 0.010
D 4.80 5.00 0.189 0.197
E 3.80 4.00 0.150 0.157
e 1.27 0.050
H 5.80 6.20 0.228 0.244
h 0.25 0.50 0.010 0.020
L 0.40 1.27 0.016 0.050
k ˚ (max.)
ddd 0.1 0.04
MIN. TYP MAX. MIN. TYP. MAX.
mm. inch
8
4/5
0016023/C
Page 5
Revision History TSM107
4 Revision History
Date Revision Description of Changes
01 Dec. 2004 1 First Release
