TS1117B
TO-252
SOT-223
SOP
-8
Pin
Definition
:
Pin
Definition
:
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator
(DPAK)
1. Fixed / Adj
2. Output (Tab)
3. Input
1. Fixed / Adj 8. N/C
2. Output 7. Output
3. Output 6. Output
4. Input 5. N/C
General Description
TS1117B are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, TS1117B provides excellent regulation over variations due
to changes in line, load and temperature. Outstanding features include low dropout performance at rated current,
fast transient response, internal current limiting and thermal shutdown protection of the output device. TS1117B
are three terminal regulators with fixed and adjustable voltage options available in popular packages.
Features
● Low Dropout Performance 1.5V max.
● Fill Current Rating Over Line and Temperature
● Fast Transient Response
● Built-in thermal shutdown
● Output Current Limit
● Line Regulation Typical 0.2%
● Load Regulation Typical 0.05%
● Low-ESR Ceramic Capacitor (MLCC) Required
for Stability.
● Good Ripple Rejection

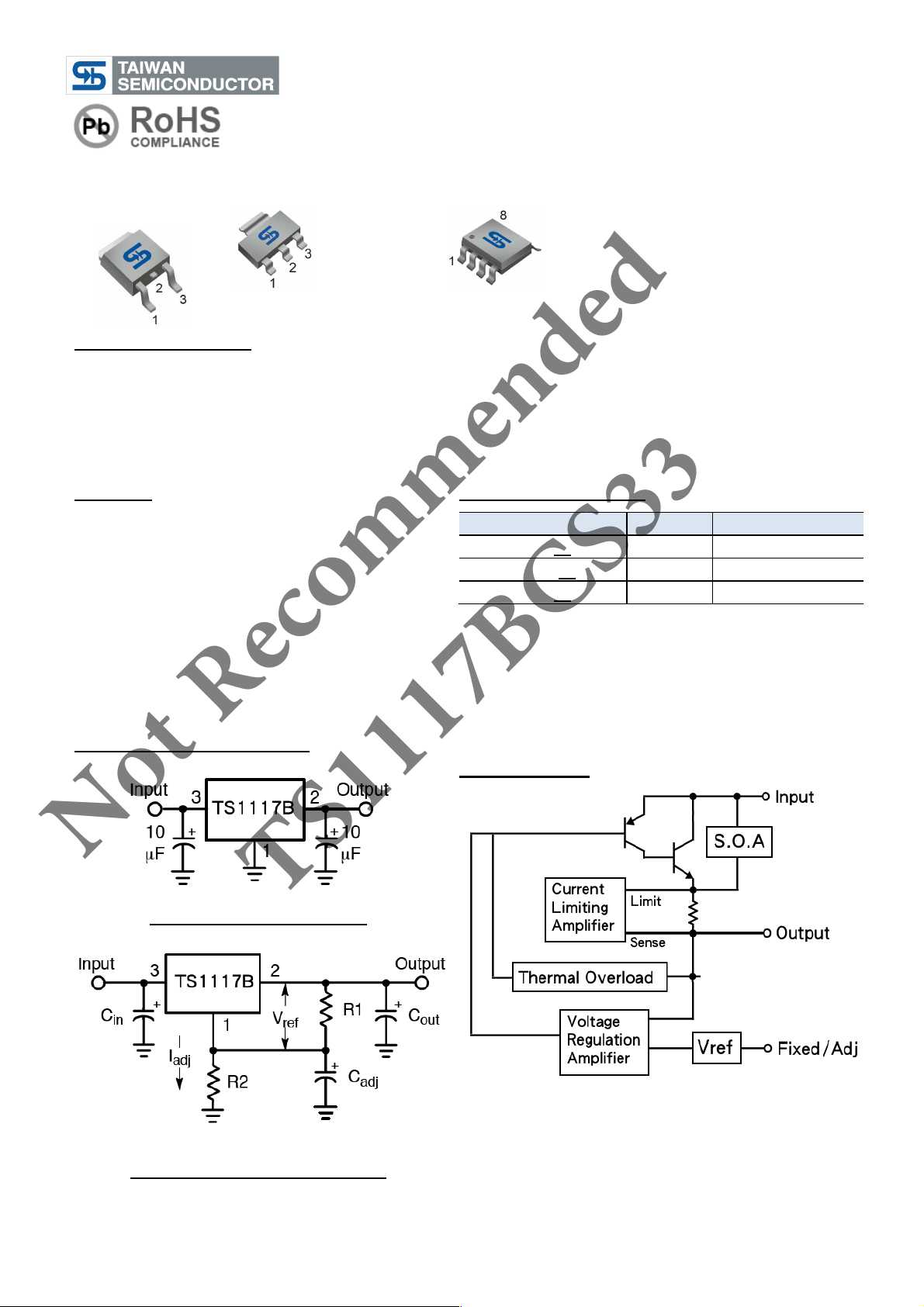

Typical Application Circuit
Fixed Output Voltage Version
Ordering Information
Part No. Package
TS1117BCPxx ROG TO-252 2.5kpcs / 13” Reel
TS1117BCWxx RPG SOT-223 2.5kpcs / 13” Reel
TS1117BCSxx RLG SOP-8 2.5kpcs / 13” Reel
Note: Refer to detail ordering information table.
“G” denotes Halogen Free Products
Packing
Block Diagram
V
= V
OUT
Adjustable Output Voltage Version
(1+R2/R1) + I
REF
adj
R2
1/8 Version: F14
Page 2
TS1117B
IN
OPER
STG
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator
Absolute Maximum Ratings (Note 1)
Parameter Symbol Limit Unit
Input Supply Voltage VIN 15 V
Recommend Operation Input Supply Voltage V
Power Dissipation (Note 2) PD Internal limited
Thermal Resistance
Junction to Ambient
Operating Temperature Range T
Storage Temperature Range T
Lead Soldering Temperature (260oC)
TO-252
SOP-8 160
TO-252 / SOT-223 5
SOP-8 2
(Opr. Typ.)
R
ӨJA
-40 ~ +125
-65 ~ +150
12 V
105
o
C/W SOT-223 130
o
C Junction Temperature Range TJ +150
s
Electrical Specification (T
Parameter Conditions Min Typ Max Unit
Reference Voltage VIN = 2.75, Io=1A 1.225 1.25 1.275 V
Output Voltage (Note 4)
Line Regulation Vo+1.5V ≤ VIN ≤ 12V, Io= 10mA -- 0.2 0.5 %
Load Regulation (Note 1,2) VIN = V
Dropout Voltage Io=1A, ∆V
Quiescent Current VIN = 5V -- 5 10 mA
Adjustable Pin Current -- 90 -- µA
Output Current Limit VIN - V
Temperature Stability Io=10mA, -- 0.5 -- %
Ripple Rejection
Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load
regulation are measured at a constant junction temperature by low duty cycle pulse testing. Load
regulation is measured at the output lead = 1/18” from the package.
Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation
is determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.
Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.
Note 4: The Output Capacitor does not have a theoretical upper limit and increasing its value will increase stability
C
=100uF or more is typical for high current regulator design.
OUT
=25oC, unless otherwise specified.)
A
VIN = 2.7V~12V, Io=1A 1.176 1.2 1.224 V
VIN = 3V~12V, Io=1A 1.470 1.5 1.530 V
VIN = 3.3V~12V, Io=1A 1.764 1.8 1.836 V
VIN = 4V~12V, Io=1A 2.450 2.5 2.550 V
VIN = 4.8V~12V, Io=1A 3.235 3.3 3.366 V
VIN = 6.5V~12V, Io=1A 4.900 5.0 5.100 V
+1.5V, Io = 10mA~1A -- 0.05 1.0 %
OUT
= 1% V
OUT
= 1.5V 1.1 -- -- A
OUT
F= 120Hz, Io= 1A, C
= Vout+3V
-- 1.3 1.5 V
OUT
=25uF, VIN
OUT
-- 60 70 dB
2/8 Version: F14
Page 3
Not Recommended
TS1117BCS33
Electrical Characteristics Curve
TS1117B
1A Low Dropout Positive Voltage Regulator

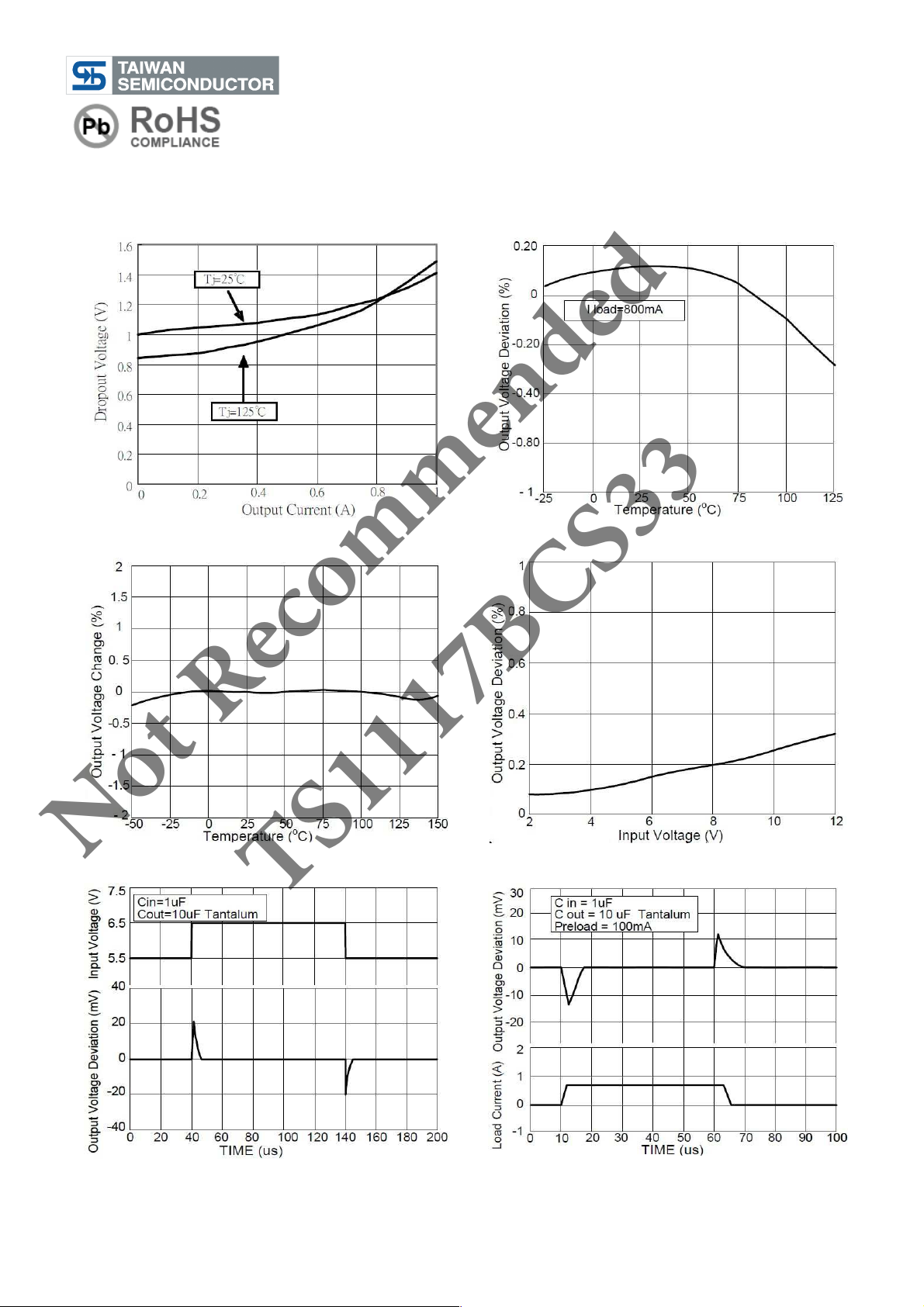

Figure 1. Vdrop vs. Output Current
Figure 3. Vout Change vs. Temperature
Figure 2. Load Regulation vs. Temperature
Figure 4. Vout Deviation vs. Temperature
Figure 5. Line Transient Response
3/8 Version: F14
Figure 6. Load Transient Response
Page 4
TS1117B
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator
Ordering information
Voltage TO-252 SOT-223 SOP-8
ADJ TS1117BCP ROG TS1117BCW RPG
1.2V TS1117BCW12 RPG
1.8V TS1117BCW18 RPG
2.5V TS1117BCW25 RPG
3.3V TS1117BCP33 ROG TS1117BCW33 RPG TS1117BCS33 RLG
5V TS1117BCP50 ROG TS1117BCW50 RPG
Packing code information
Packing 2.5kpcs / 13" Reel 2.5kpcs / 13" Reel 2.5kpcs / 13" Reel
4/8 Version: F14
Page 5
TS1117B
= Year C
= Month Code for Halogen Free Product
= Lot Code
= Output Voltage
= Adjustable
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator

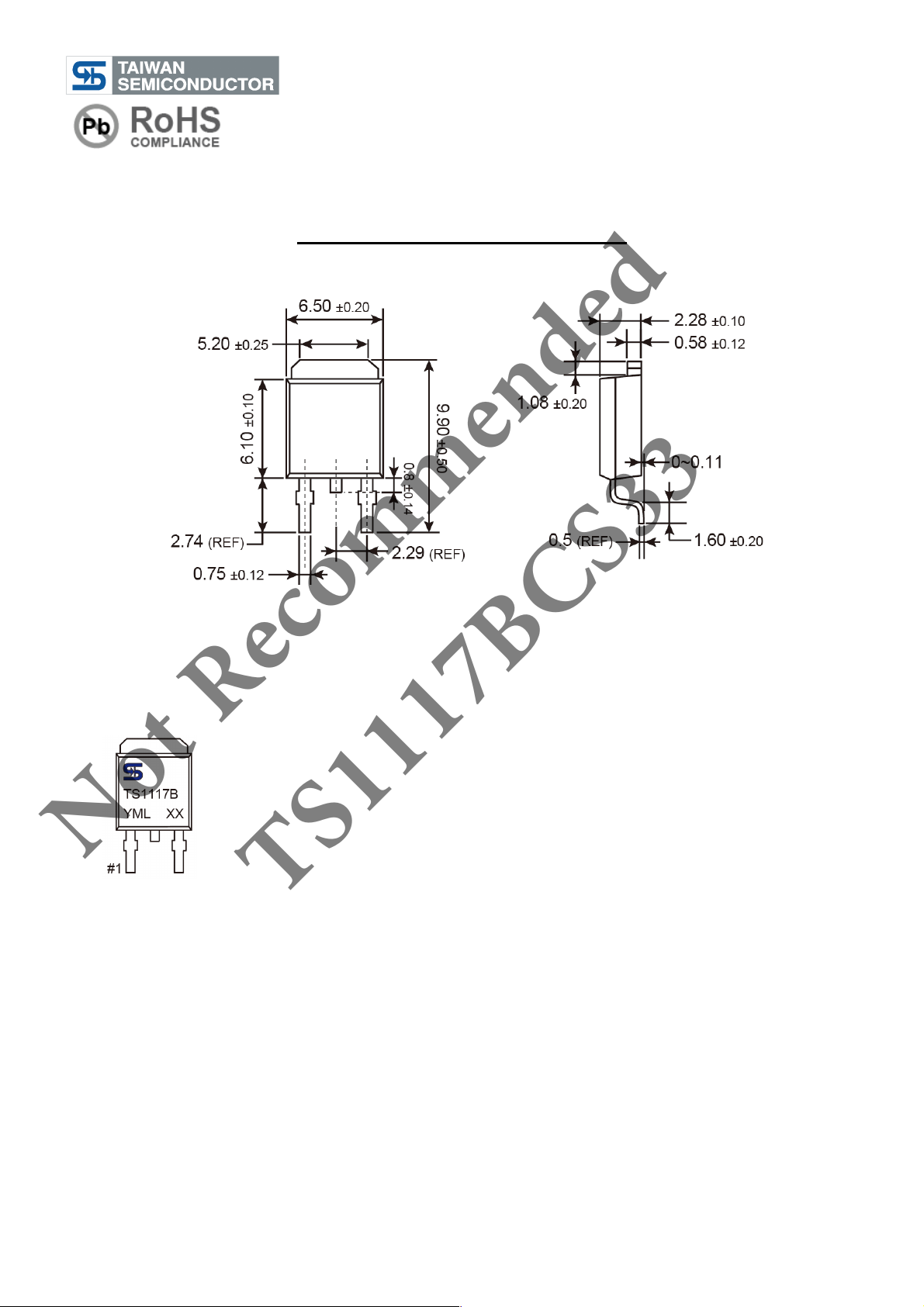

TO-252 Mechanical Drawing
Marking Diagram
Y
M
L
XX
CP
Unit: Millimeters
ode
(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,
X=Oct, Y=Nov, Z=Dec)
(3.3=3.3V, 5.0=5V)
Voltage
5/8 Version: F14
Page 6
TS1117B
= Year Code
= Month Code for Halogen Free Product
= Lot Code
= Output Voltage
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator
SOT-223 Mechanical Drawing
Marking Diagram
Y
M
(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,
X=Oct, Y=Nov, Z=Dec)
L
XX
(1.2=1.2V, 1.8=1.8V, 2.5=2.5V, 3.3=3.3V, 5.0=5V)
Unit: Millimeters
6/8 Version: F14
Page 7
TS1117B
= Year Code
= Month Code for Halogen Free Product
= Lot Code
= Output Voltage
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator

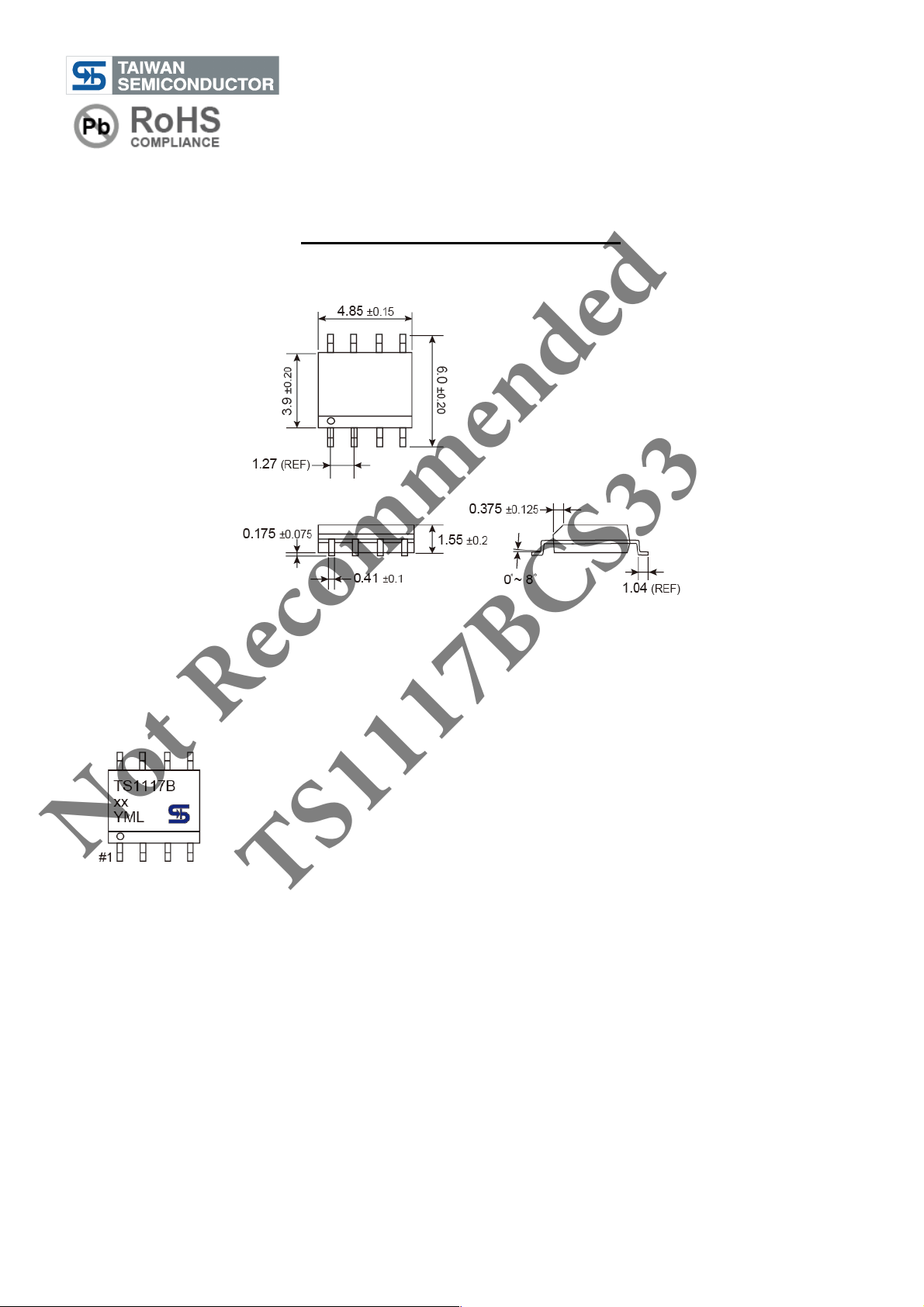

SOP-8 Mechanical Drawing
Marking Diagram
Y
M
(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,
X=Oct, Y=Nov, Z=Dec)
L
XX
(3.3=3.3V)
Unit: Millimeters
7/8 Version: F14
Page 8
TS1117B
Not Recommended
TS1117BCS33
1A Low Dropout Positive Voltage Regulator
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
sumes no responsibility or liability for any errors or inaccuracies.
as
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
8/8 Version: F14
