Datasheet TS1117BCW33, TS1117BCW25 Specification

TO-252

SOT-223

SOP

-8

Pin

Definition

:

Pin

Definition

:

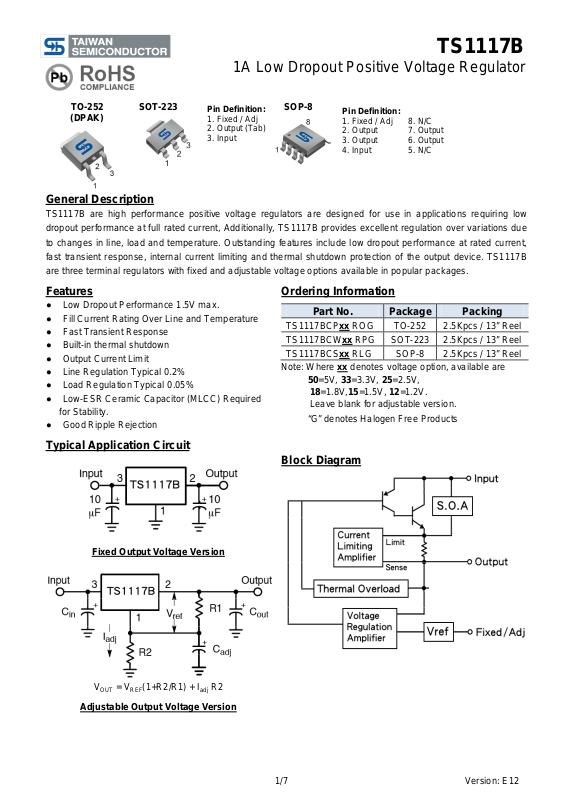

TS1117B

1A Low Dropout Positive Voltage Regulator

(DPAK)

1. Fixed / Adj

2. Output (Tab)

3. Input

1. Fixed / Adj 8. N/C

2. Output 7. Output

3. Output 6. Output

4. Input 5. N/C

General Description

TS1117B are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, TS1117B provides excellent regulation over variations due
to changes in line, load and temperature. Outstanding features include low dropout performance at rated current,
fast transient response, internal current limiting and thermal shutdown protection of the output device. TS1117B
are three terminal regulators with fixed and adjustable voltage options available in popular packages.

Features

● Low Dropout Performance 1.5V max.

● Fill Current Rating Over Line and Temperature

● Fast Transient Response

● Built-in thermal shutdown

● Output Current Limit

● Line Regulation Typical 0.2%

● Load Regulation Typical 0.05%

● Low-ESR Ceramic Capacitor (MLCC) Required

for Stability.

● Good Ripple Rejection

Typical Application Circuit

Fixed Output Voltage Version

Ordering Information

Part No. Package

TS1117BCPxx ROG TO-252 2.5Kpcs / 13” Reel
TS1117BCWxx RPG SOT-223 2.5Kpcs / 13” Reel
TS1117BCSxx RLG SOP-8 2.5Kpcs / 13” Reel

Note: Where xx denotes voltage option, available are
50=5V, 33=3.3V, 25=2.5V,

18=1.8V,15=1.5V, 12=1.2V.
Leave blank for adjustable version.

“G” denotes Halogen Free Products

Packing

Block Diagram

V

= V

OUT

Adjustable Output Voltage Version

(1+R2/R1) + I

REF

adj

R2

1/7

Version: E12

IN

STG

TS1117B

1A Low Dropout Positive Voltage Regulator

Absolute Maximum Rating

Parameter Symbol Limit Unit

Input Supply Voltage VIN 15 V
Recommend Operation Input Supply Voltage V
Power Dissipation (Note 2) PD Internal limited

Thermal Resistance
Junction to Ambient

Operating Temperature Range T
Junction Temperature Range TJ +150
Storage Temperature Range T

Lead Soldering Temperature (260oC)

(Note 1)

(Opr. Typ.)

TO-252

Ө

JA

SOP-8 160

-40 ~ +125

OPER

-65 ~ +150
TO-252 / SOT-223 5
SOP-8 2

12 V

105

o

C/W SOT-223 130

o

C

S

Electrical Specification

(

Ta = 25oC, unless otherwise specified.)

Parameter Conditions Min Typ Max Unit

Reference Voltage VIN = 2.75, Io=1A 1.225 1.25 1.275 V

VIN = 2.7V~12V, Io=1A 1.176 1.2 1.224 V
VIN = 3V~12V, Io=1A 1.470 1.5 1.530 V

Output Voltage (Note 4)

Line Regulation Vo+1.5V ≤ VIN ≤ 12V, Io= 10mA -- 0.2 0.5 %
Load Regulation (Note 1,2) VIN = V
Dropout Voltage Io=1A, ∆V
Quiescent Current VIN = 5V -- 5 10 mA
Adjustable Pin Current -- 90 -- uA
Output Current Limit VIN - V
Temperature Stability Io=10mA, -- 0.5 -- %

Ripple Rejection

Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load

regulation are measured at a constant junction temperature by low duty cycle pulse testing. Load
regulation is measured at the output lead = 1/18” from the package.

Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation

is determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.

Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.
Note 4: The Output Capacitor does not have a theoretical upper limit and increasing its value will increase stability
C

=100uF or more is typical for high current regulator design.

OUT

VIN = 3.3V~12V, Io=1A 1.764 1.8 1.836 V
VIN = 4V~12V, Io=1A 2.450 2.5 2.550 V
VIN = 4.8V~12V, Io=1A 3.235 3.3 3.366 V
VIN = 6.5V~12V, Io=1A 4.900 5.0 5.100 V

+1.5V, Io = 10mA~1A -- 0.05 1.0 %

OUT

= 1% V

OUT

= 1.5V 1.1 -- -- A

OUT

F= 120Hz, Io= 1A, C
= Vout+3V

-- 1.3 1.5 V

OUT

=25uF, VIN

OUT

-- 60 70 dB

2/7

Version: E12

TS1117B

1A Low Dropout Positive Voltage Regulator

Electrical Characteristics Curve

Figure 1. Vdrop vs. Output Current

Figure 2. Load Regulation vs. Temperature

Figure 3. Vout Change vs. Temperature

Figure 5. Line Transient Response

Figure 4. Vout Deviation vs. Temperature

Figure 6. Load Transient Response

3/7

Version: E12

=

= Month Code for Halogen Free Product

= Lot Code

= Output Voltage

TS1117B

1A Low Dropout Positive Voltage Regulator

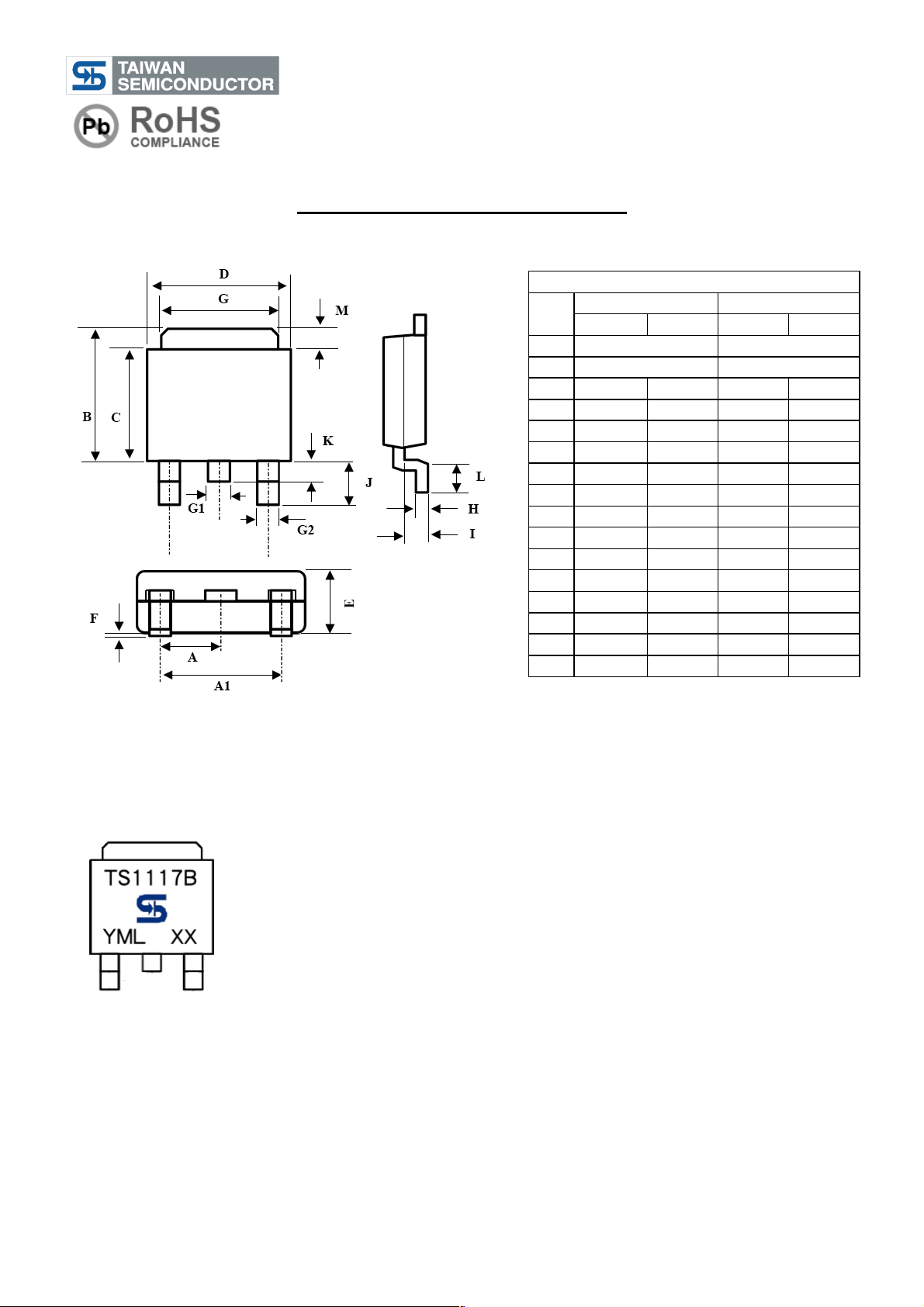

TO-252 Mechanical Drawing

TO-252 DIMENSION

DIM

A 2.3BSC 0.09BSC

A1

B 6.80 7.20 0.268 0.283
C 5.40 5.60 0.213 0.220
D 6.40 6.65 0.252 0.262
E 2.20 2.40 0.087 0.094
F 0.00 0.20 0.000 0.008

G 5.20 5.40 0.205 0.213
G1
G2

H 0.35 0.65 0.014 0.026

J 2.20 2.80 0.087 0.110
K 0.50 1.10 0.020 0.043
L 0.90 1.50 0.035 0.059

M 1.30 1.70 0.051 0.67

MILLIMETERS INCHES

MIN MAX MIN MAX

4.6BSC 0.18BSC

0.75 0.85 0.030 0.033

0.55 0.65 0.022 0.026

I 0.90 1.50 0.035 0.059

Marking Diagram

Y
M

L
XX

Year Code

(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,

X=Oct, Y=Nov, Z=Dec)

(1.2=1.2V, 1.5=1.5V, 1.8=1.8V, 2.5=2.5V, 3.3=3.3V, 5.0=5V)

4/7

Version: E12

= Year Code

= Month Code for Halogen Free Product

= Lot Code

= Output Voltage

TS1117B

1A Low Dropout Positive Voltage Regulator

SOT-223 Mechanical Drawing

SOT-223 DIMENSION

DIM

A 6.350 6.850 0.250 0.270
B 2.900 3.100 0.114 0.122
C 3.450 3.750 0.136 0.148
D 0.595 0.635 0.023 0.025
E 4.550 4.650 0.179 0.183

F 2.250 2.350 0.088 0.093
G 0.835 1.035 0.032 0.041
H 6.700 7.300 0.263 0.287

I 0.250 0.355 0.010 0.014

J 10° 16° 10° 16°
K 1.550 1.800 0.061 0.071

MILLIMETERS INCHES
MIN MAX MIN MAX

Marking Diagram

Y
M

(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,

X=Oct, Y=Nov, Z=Dec)

L
XX

(1.2=1.2V, 1.5=1.5V, 1.8=1.8V, 2.5=2.5V, 3.3=3.3V, 5.0=5V)

5/7

Version: E12

= Year Code

= Month Code for Halogen Free Product

= Lot Code

= Output Voltage

0º 7º 0º 7º

TS1117B

1A Low Dropout Positive Voltage Regulator

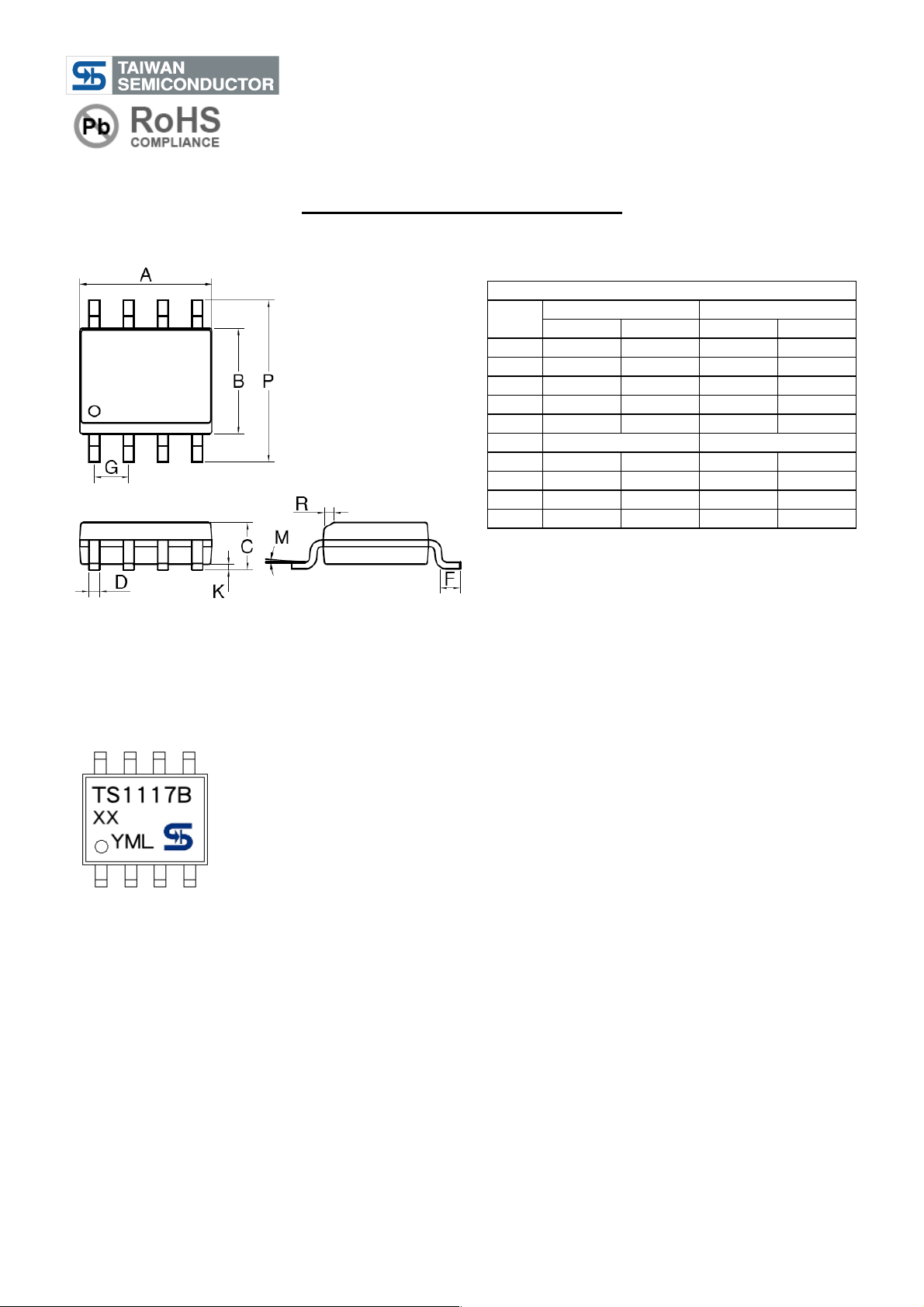

SOP-8 Mechanical Drawing

SOP-8 DIMENSION

DIM

A
B
C
D

F
G
K
M
P
R

MILLIMETERS

MIN

4.80

3.80

1.35

0.35

0.40

1.27BSC

0.10

5.80

0.25

MAX

5.00

4.00

1.75

0.49

1.25

0.25

6.20

0.50

INCHES

MIN

0.189

0.150

0.054

0.014

0.016 0.049

0.05BSC

0.004

0.229

0.010

MAX.

0.196

0.157

0.068

0.019

0.009

0.244

0.019

Marking Diagram

Y
M

(O=Jan, P=Feb, Q=Mar, R=Apl, S=May, T=Jun, U=Jul, V=Aug, W=Sep,

X=Oct, Y=Nov, Z=Dec)

L
XX

(1.2=1.2V, 1.5=1.5V, 1.8=1.8V, 2.5=2.5V, 3.3=3.3V, 5.0=5V)

6/7

Version: E12

TS1117B

1A Low Dropout Positive Voltage Regulator

Notice

Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.

Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.

The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
