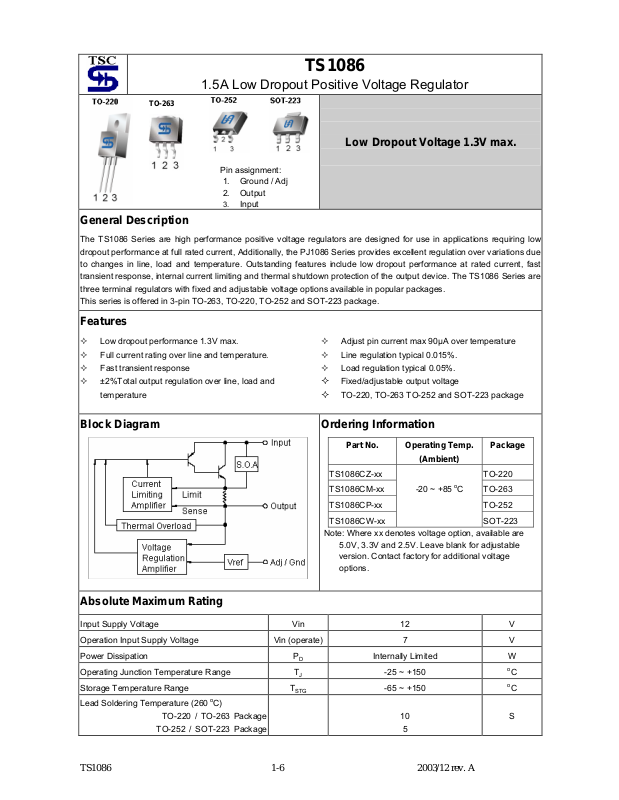

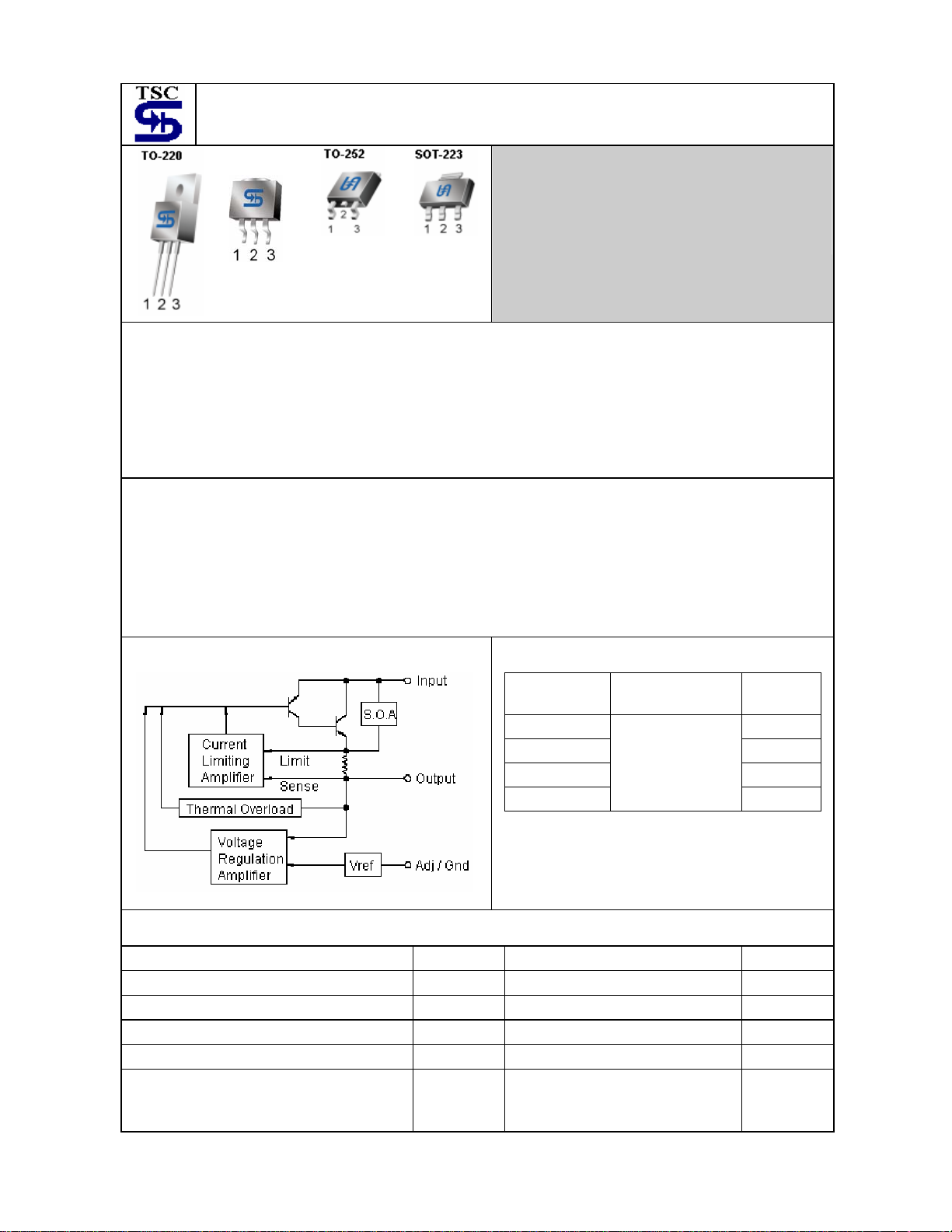

Datasheet TS1086CP33, TS1086CP25 Specification

TS1086

1.5A Low Dropout Positive Voltage Regulator

TO-263

General Description

The TS1086 Series are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, the PJ1086 Series provides excellent regulation over variations due
to changes in line, load and temperature. Outstanding features include low dropout performance at rated current, fast
transient response, internal current limiting and thermal shutdown protection of the output device. The TS1086 Series are
three terminal regulators with fixed and adjustable voltage options available in popular packages.
This series is offered in 3-pin TO-263, TO-220, TO-252 and SOT-223 package.

Pin assignment:

1. Ground / Adj

2. Output

3. Input

Low Dropout Voltage 1.3V max.

Features

 Low dropout performance 1.3V max.

 Full current rating over line and temperature.

 Fast transient response

 ±2%Total output regulation over line, load and

temperature

Block Diagram

Absolute Maximum Rating

 Adjust pin current max 90µA over temperature

 Line regulation typical 0.015%.

 Load regulation typical 0.05%.

 Fixed/adjustable output voltage

TO-220, TO-263 TO-252 and SOT-223 package



Ordering Information

Part No. Operating Temp.

(Ambient)

TS1086CZ-xx TO-220

TS1086CM-xx TO-263

TS1086CP-xx TO-252

TS1086CW-xx

Note: Where xx denotes voltage option, available are

5.0V, 3.3V and 2.5V. Leave blank for adjustable
version. Contact factory for additional voltage
options.

-20 ~ +85

o

C

Package

SOT-223

Input Supply Voltage Vin 12 V

Operation Input Supply Voltage Vin (operate) 7 V

Power Dissipation PD Internally Limited W

Operating Junction Temperature Range TJ -25 ~ +150

Storage Temperature Range T

Lead Soldering Temperature (260 oC)

TO-220 / TO-263 Package

TO-252 / SOT-223 Package

-65 ~ +150

STG

10

5

o

C

o

C

S

TS1086 1-6 2003/12 rev. A

Electrical Characteris t ic s

o

Ta = 25

C, unless otherwise specified. Adjustable version test with Vout = 2.5V.

Parameter Conditions Min Typ Max Unit

Vout+1.5V ≤ Vin ≤ 7V, Io=10mA 0.990|Vo| 1.010|Vo| V Output Voltage

Vout+1.5V ≤ Vin ≤ 7V, Io=1.5A 0.980|Vo|

(Vin-out) =1.5V, Io=10mA 0.990|Vo| 1.010|Vo| V Reference Voltage

(Vin-out) =1.5V, Io=1.5A 0.980|Vo|

Input Supply Voltage -- -- 7 V

Line Regulation Vout+1.5V ≤ Vin ≤ 7V, Io=10mA -- 0.015 0.2 %

-- 0.05 1.0

10mA ≤ Io

Dropout Voltage Io=1.5A, ∆Vout=0.1%Vout -- 1.3 1.4 V

Minimum Load Current Vin=5V -- 8 10 mA

Adjustable Pin Current -- 90 -- uA

Current Limit Vin - Vout=3V 2.0 -- -- A

Temperature Stability Io=10mA -- 0.5 -- %

Ripple Rejection

F = 120Hz, Io=1.5A Cout=25uF,

Vin=Vout + 3V

≤ 1.5A

-- 60 70 dB

5.0 / 3.3

2.5

1.25

1.020|Vo| V

1.020|Vo| V

% Load Regulation (note 1,2) Vin=Vout+1.5V,

%

Thermal Performance

Condition Package type Typ Unit

Thermal Resistance

Junction to Ambient

Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load regulation

are measured at a constant junction temperature by low duty cycle pulse testing. Load regulation is measured at
the output lead = 1/18” from the package.

Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation is

determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.

Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.

TO-220 45

TO-263 45

TO-252 80

SOT-223 100

o

C/W

TS1086 2-6 2003/12 rev. A

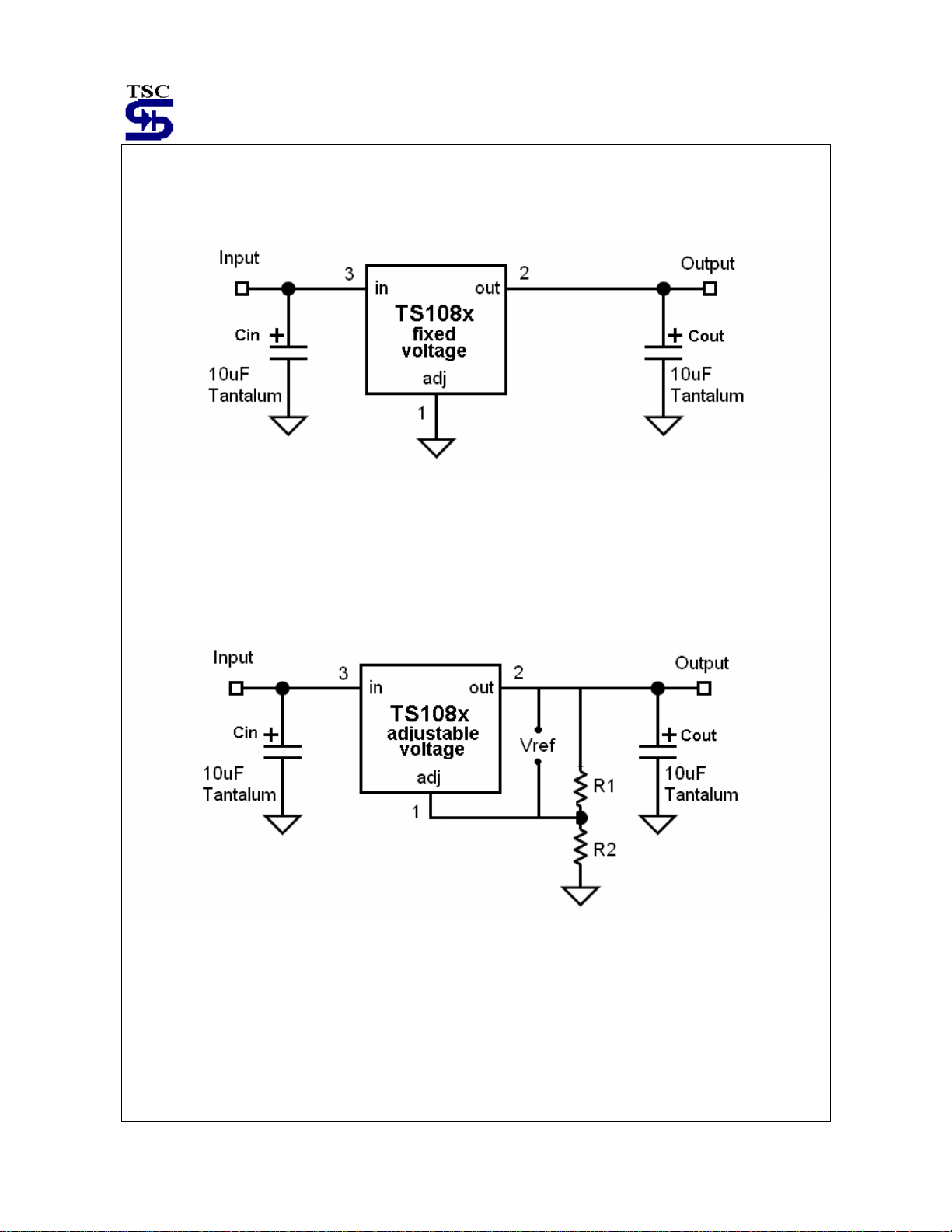

Typical Application Circuit

Fixed output voltage version

Vout = Vref * (1 + R2 / R1)

Far from power supply filter

* Cin is requested if regulator is located

** Design Cout as close to Vout pin as possible

Adjustable output voltage version

TS1086 3-6 2003/12 rev. A

Electrical Characteristics Curve

Figure 1: dropout voltage v.s. output current

Figure 3: output change v.s. temp.

Figure 2: load regulation v.s. temp.

Figure 4: line regulation

Figure 5: line transient response

Figure 6: load transient response

TS1086 4-6 2003/12 rev. A

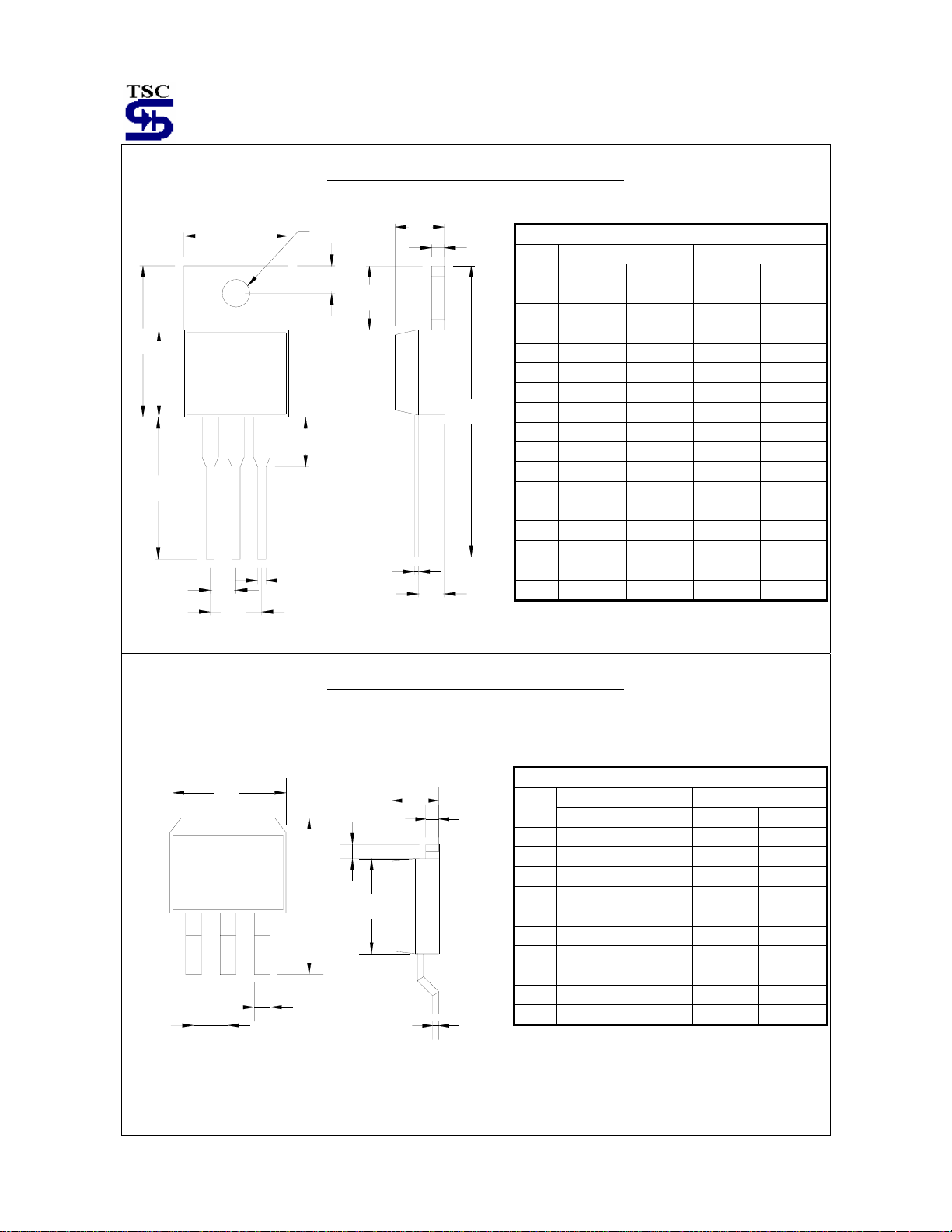

TO-220 Mechanical Drawing

A

B

C

P

J

I

D

H

F

E

G

K

L

DIM

A 10.000 10.500 0.394 0.413

B 3.240 4.440 0.128 0.175

C 2.440 2.940 0.096 0.116

D - 6.350 - 0.250

E 0.381 1.106 0.015 0.040

F 2.345 2.715 0.092 0.058

M

O

N

G 4.690 5.430 0.092 0.107

H 12.700 14.732 0.500 0.581

I 8.382 9.017 0.330 0.355

J 14.224 16.510 0.560 0.650

K 3.556 4.826 0.140 0.190

L 0.508 1.397 0.020 0.055

M 27.700 29.620 1.060 1.230

N 2.032 2.921 0.080 0.115

O 0.255 0.610 0.010 0.024

P 5.842 6.858 0.230 0.270

TO-220 DIMENSION

MILLIMETERS INCHES

MIN MAX MIN MAX

TO-263 Mechanical Drawing

A

E

DIM

F

A 10.000 10.500 0.394 0.413

B 14.605 15.875 0.575 0.625

I

B

H

C

D

G

C 0.508 0.991 0.020 0.039

D 2.420 2.660 0.095 0.105

E 4.064 4.830 0.160 0.190

F 1.118 1.400 0.045 0.055

G 0.450 0.730 0.018 0.029

H 8.280 8.800 0.325 0.346

I 1.140 1.400 0.044 0.055

J 1.480 1.520 0.058 0.060

TO-263 DIMENSION

MILLIMETERS INCHES

MIN MAX MIN MAX

TS1086 5-6 2003/12 rev. A

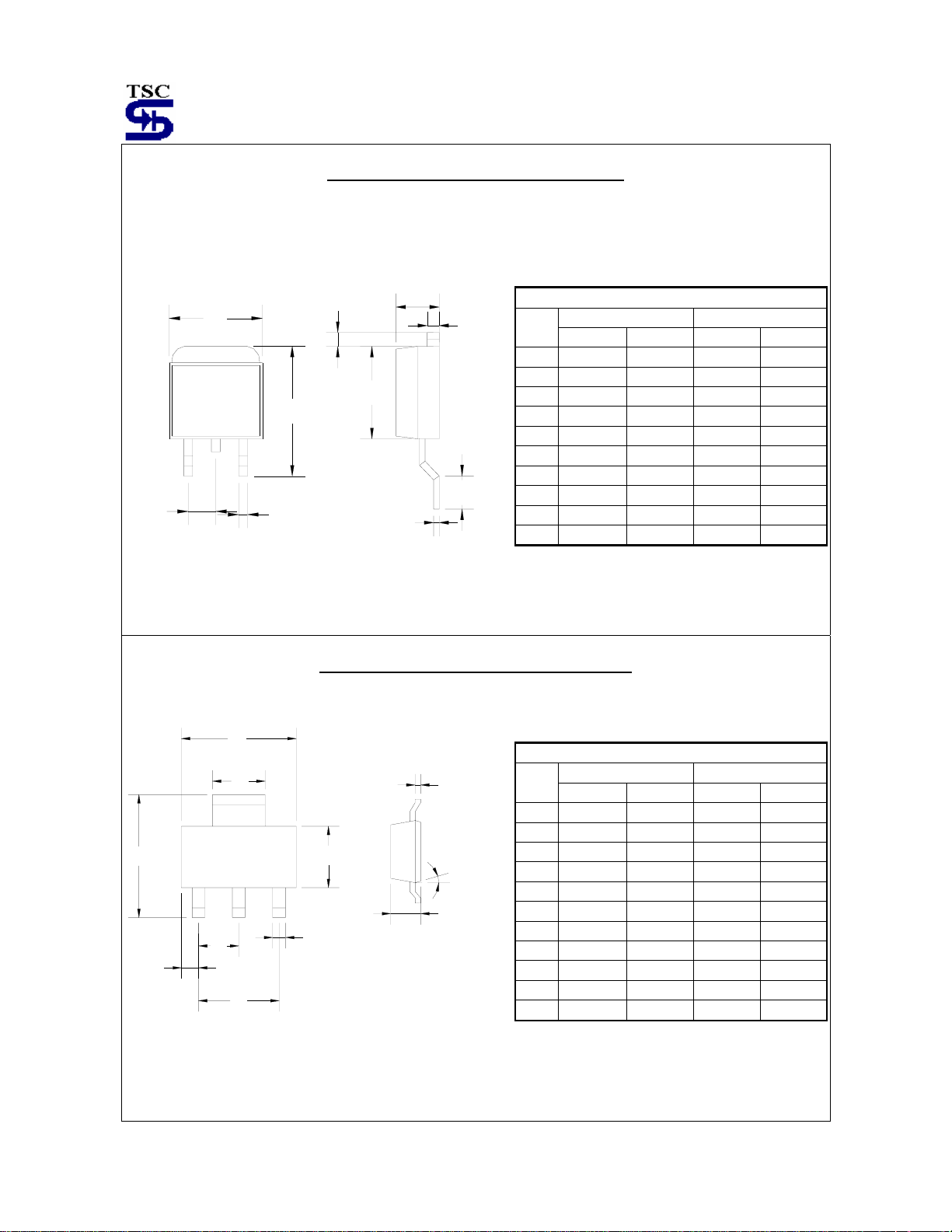

TO-252 Mechanical Drawing

J

A

B

D

C

E

F

I

G

H

DIM

A 6.570 6.840 0.259 0.269

B 9.250 10.400 0.364 0.409

C 0.550 0.700 0.022 0.028

D 2.560 2.670 0.101 0.105

E 2.300 2.390 0.090 0.094

F 0.490 0.570 0.019 0.022

G 1.460 1.580 0.057 0.062

H 0.520 0.570 0.020 0.022

I 5.340 5.550 0.210 0.219

J 1.460 1.640 0.057 0.065

TO-252 DIMENSION

MILLIMETERS INCHES

MIN MAX MIN MAX

SOT-223 Mechanical Drawing

A

SOT-223 DIMENSION

B

H

F

G

E

C

D

I

J

K

DIM

A 6.350 6.850 0.250 0.270

B 2.900 3.100 0.114 0.122

C 3.450 3.750 0.136 0.148

D 0.595 0.635 0.023 0.025

E 4.550 4.650 0.179 0.183

F 2.250 2.350 0.088 0.093

G 0.835 1.035 0.032 0.041

H 6.700 7.300 0.263 0.287

I 0.250 0.355 0.010 0.014

J 10° 16° 10° 16°

K 1.550 1.800 0.061 0.071

MILLIMETERS INCHES

MIN MAX MIN MAX

TS1086 6-6 2003/12 rev. A
