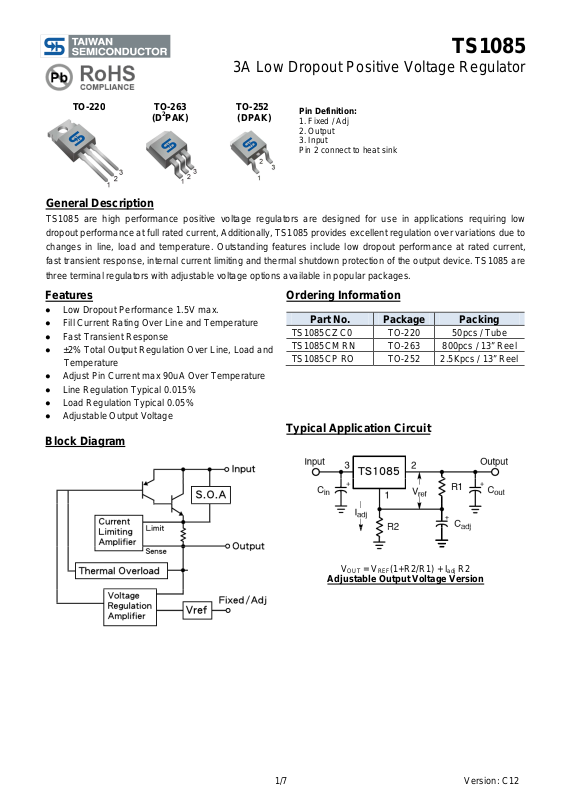

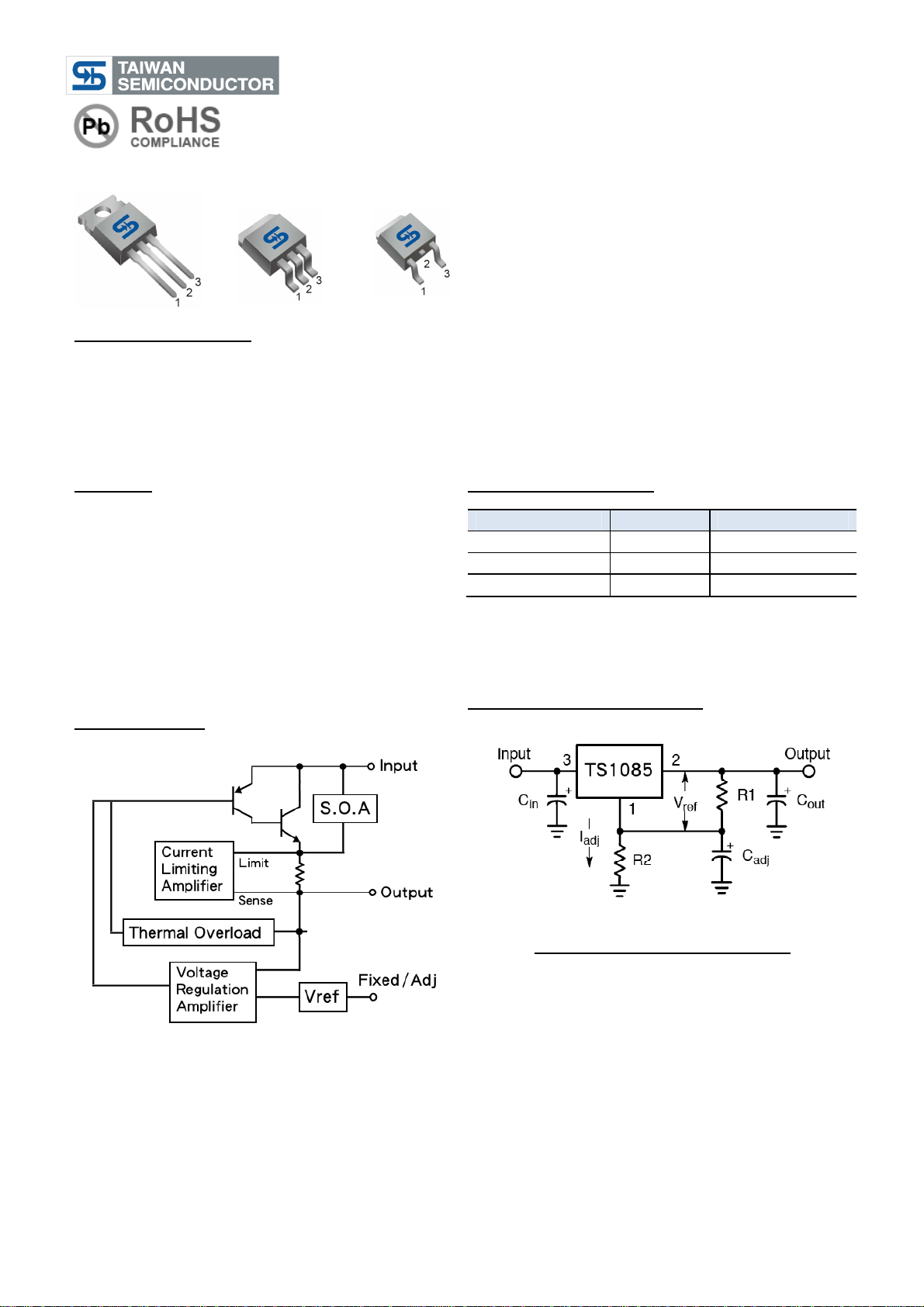

TO-
220
TO-263
TO-252
Pin Definition
:
TS1085
3A Low Dropout Positive Voltage Regulator
(D2PAK)
(DPAK)
1. Fixed / Adj
2. Output
3. Input
Pin 2 connect to heat sink
General Description
TS1085 are high performance positive voltage regulators are designed for use in applications requiring low
dropout performance at full rated current, Additionally, TS1085 provides excellent regulation over variations due to
changes in line, load and temperature. Outstanding features include low dropout performance at rated current,
fast transient response, internal current limiting and thermal shutdown protection of the output device. TS1085 are
three terminal regulators with adjustable voltage options available in popular packages.
Features
● Low Dropout Performance 1.5V max.
● Fill Current Rating Over Line and Temperature
● Fast Transient Response
● ±2% Total Output Regulation Over Line, Load and
Temperature
● Adjust Pin Current max 90uA Over Temperature
● Line Regulation Typical 0.015%
● Load Regulation Typical 0.05%
● Adjustable Output Voltage
Block Diagram
Ordering Information
Part No. Package Packing
TS1085CZ C0 TO-220 50pcs / Tube
TS1085CM RN TO-263 800pcs / 13” Reel
TS1085CP RO TO-252 2.5Kpcs / 13” Reel
Typical Application Circuit
V
= V
OUT
Adjustable Output Voltage Version
(1+R2/R1) + I
REF
adj
R2
1/7
Version: C12
Page 2
TS1085
3A Low Dropout Positive Voltage Regulator
Absolute Maximum Rating
Parameter Symbol Limit Unit
Input Supply Voltage VIN 15 V
Operation Input Supply Voltage V
Power Dissipation (Note 2) PD Internal limited
Thermal Resistance
Junction to Ambient
Operating Junction Temperature Range TJ 0 ~+125
Storage Temperature Range T
Lead Soldering Temperature (260oC)
(Note 1)
(Opr. Typ.)
IN
TO-220
Ө
JA
TO-252 105
-65 ~ +150
STG
TO-220 / TO-263 10
TO-252 5
12 V
80
o
C/W TO-263 85
o
o
S
C
C
Electrical Specification
(
Ta = 25oC, unless otherwise specified.)
Parameter Conditions Min Typ Max Unit
Reference Voltage VIN= 2.75, Io=3A 1.225 1.25 1.275 V
Line Regulation Vo+1.5V ≤ VIN ≤ 7V, Io= 10mA -- 0.015 0.2 %
Load Regulation (Note 1,2) VIN = V
Dropout Voltage Io=3A, ∆ V
Quiescent Current VIN = 5V -- 8 10 mA
Adjustable Pin Current -- 90 -- uA
Output Current Limit VIN - V
Temperature Stability Io=10mA, -- 0.5 -- %
Ripple Rejection
F= 120Hz, Io= 1A, C
VIN = Vout+3V
Note 1: See thermal regulation specification for changes in output voltage due to heating effects. Line and load
regulation are measured at a constant junction temperature by low duty cycle pulse testing. Load
regulation is measured at the output lead = 1/18” from the package.
Note 2: Line and load regulation are guaranteed up to the maximum power dissipation of 15W. Power dissipation
is determined by the input / output voltage difference and the output current. Guaranteed maximum power
dissipation will not be available over the full input / output voltage range.
Note 3: Quiescent current is defined as the minimum output current required to maintain the regulation.
Note 4: The Output Capacitor does not have a theoretical upper limit and increasing its value will increase stability
C
=100uF or more is typical for high current regulator design.
OUT
+1.5V, Io= 10mA ~ 3A -- 0.05 1 %
OUT
= 1% V
OUT
= 1.5V 3 4 -- A
OUT
-- 1.3 1.5 V
OUT
= 25uF,
OUT
-- 60 70 dB
Version: C12
2/7
Page 3
TS1085
3A Low Dropout Positive Voltage Regulator
Electrical Characteristics Curve
Figure 1. Vdrop vs. Output Current
Figure 2. Reference Voltage vs. Temperature
Figure 3. Load Regulation vs. Output Current
Figure 5. Iadj Pin vs. Temperature
Figure 4. Minimum Load Current
3/7
Version: C12
Page 4
= Year Code
= Month Co
= Lot Code
Marking Diagram
3A Low Dropout Positive Voltage Regulator

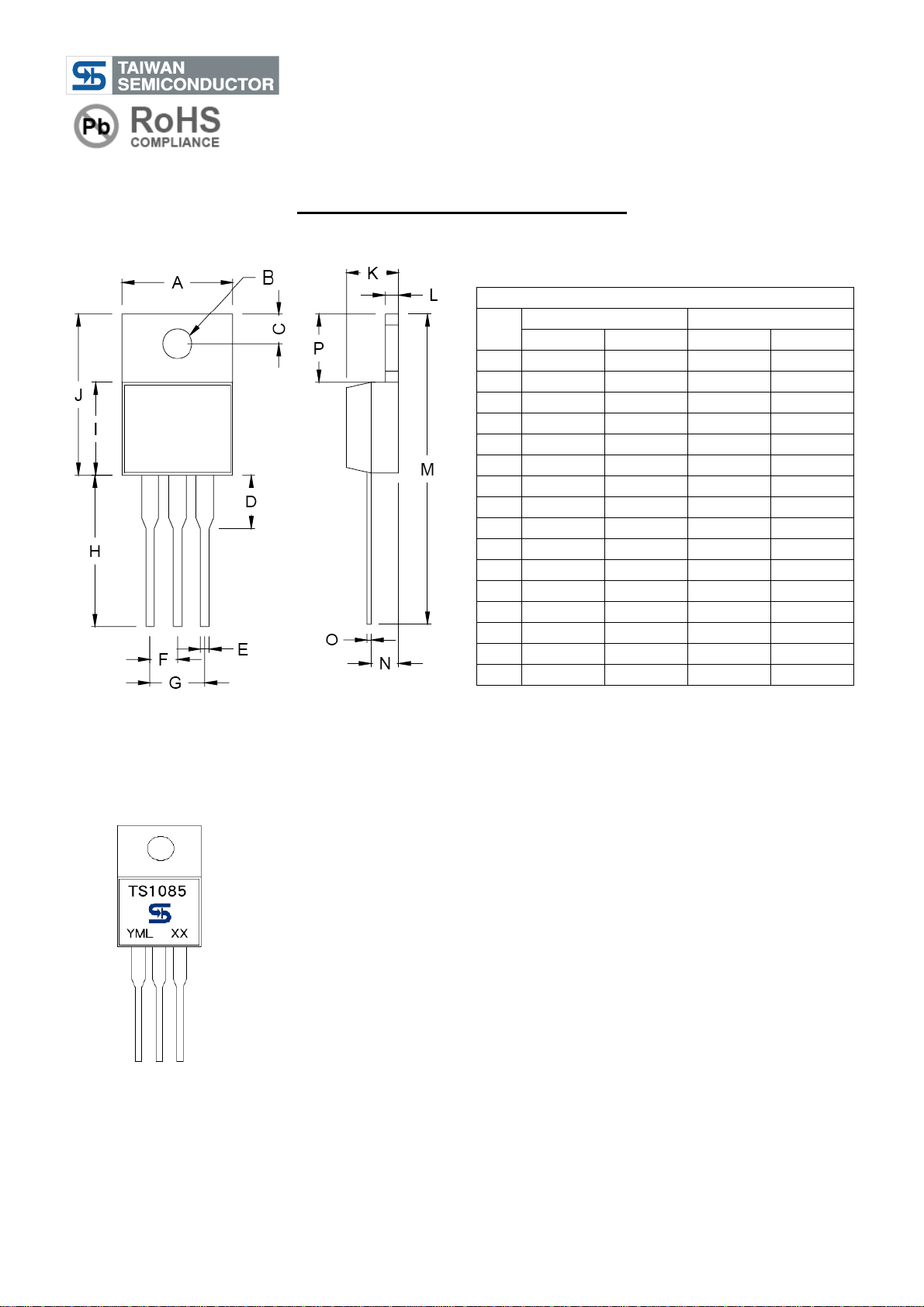

TO-220 Mechanical Drawing
DIM
A 10.000 10.500 0.394 0.413
B
C 2.440 2.940 0.096 0.116
D - 6.350 - 0.250
E 0.381 1.106 0.015 0.040
F 2.345 2.715 0.092 0.058
G 4.690 5.430 0.092 0.107
H 12.700 14.732 0.500 0.581
I 8.382 9.017 0.330 0.355
J 14.224 16.510 0.560 0.650
K 3.556 4.826 0.140 0.190
L 0.508 1.397 0.020 0.055
M 27.700 29.620 1.060 1.230
N 2.032 2.921 0.080 0.115
O 0.255 0.610 0.010 0.024
Y
M
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L
XX = Package Code for Adjustable type
(CZ = TO-220)
de
P 5.842 6.858 0.230 0.270
MIN MAX MIN MAX
3.740 3.910 0.147 0.154
TS1085
TO-220 DIMENSION
MILLIMETERS INCHES
4/7
Version: C12
Page 5
= Year Code
=
= Lot Code
TS1085
3A Low Dropout Positive Voltage Regulator
TO-263 Mechanical Drawing
TO-263 DIMENSION
DIM
A 10.000 10.500 0.394 0.413
B 14.605 15.875 0.575 0.625
C 0.508 0.991 0.020 0.039
D 2.420 2.660 0.095 0.105
E 4.064 4.830 0.160 0.190
F 1.118 1.400 0.045 0.055
G 0.450 0.730 0.018 0.029
H 8.280 8.800 0.325 0.346
I 1.140 1.400 0.044 0.055
J 1.480 1.520 0.058 0.060
MILLIMETERS INCHES
MIN MAX MIN MAX
Marking Diagram
Y
M
L
XX = Package Code for Adjustable type
Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
(CM = TO-263)
5/7
Version: C12
Page 6
= Year C
= Month Code
= Lot Code
= Package Code for Adjustable type
Marking Diagram
3A Low Dropout Positive Voltage Regulator

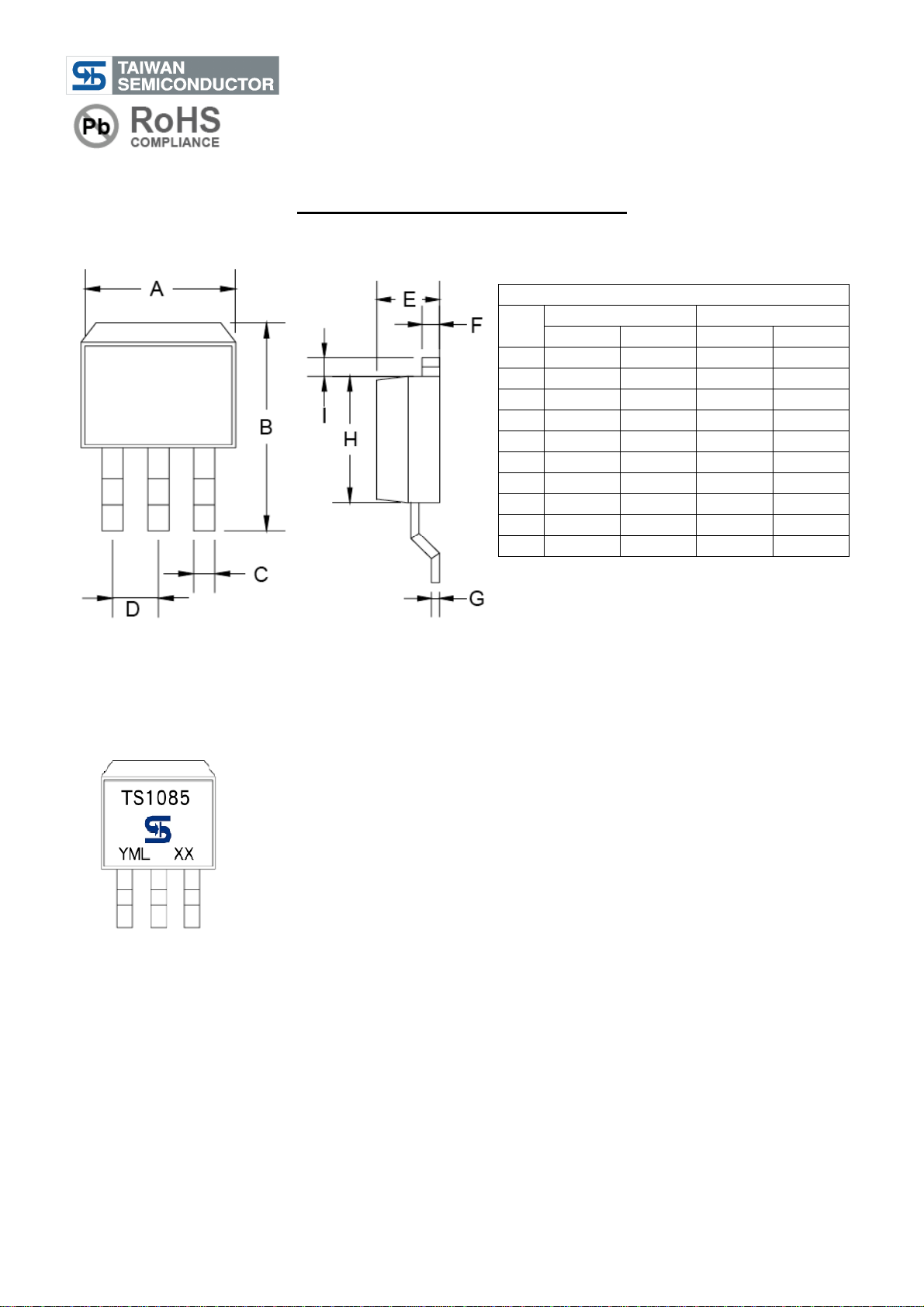

TO-252 Mechanical Drawing
DIM
A 2.3BSC 0.09BSC
A1
B 6.80 7.20 0.268 0.283
C 5.40 5.60 0.213 0.220
D 6.40 6.65 0.252 0.262
E 2.20 2.40 0.087 0.094
F 0.00 0.20 0.000 0.008
G 5.20 5.40 0.205 0.213
G1
G2
H 0.35 0.65 0.014 0.026
I 0.90 1.50 0.035 0.059
J 2.20 2.80 0.087 0.110
K 0.50 1.10 0.020 0.043
L 0.90 1.50 0.035 0.059
M 1.30 1.70 0.051 0.67
Y
M
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
L
XX
(CP = TO-252)
ode
J=Oct, K=Nov, L=Dec)
TS1085
TO-252 DIMENSION
MILLIMETERS INCHES
MIN MAX MIN MAX
4.6BSC 0.18BSC
0.75 0.85 0.030 0.033
0.55 0.65 0.022 0.026
6/7
Version: C12
Page 7
TS1085
3A Low Dropout Positive Voltage Regulator
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC’s terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
7/7
Version: C12
