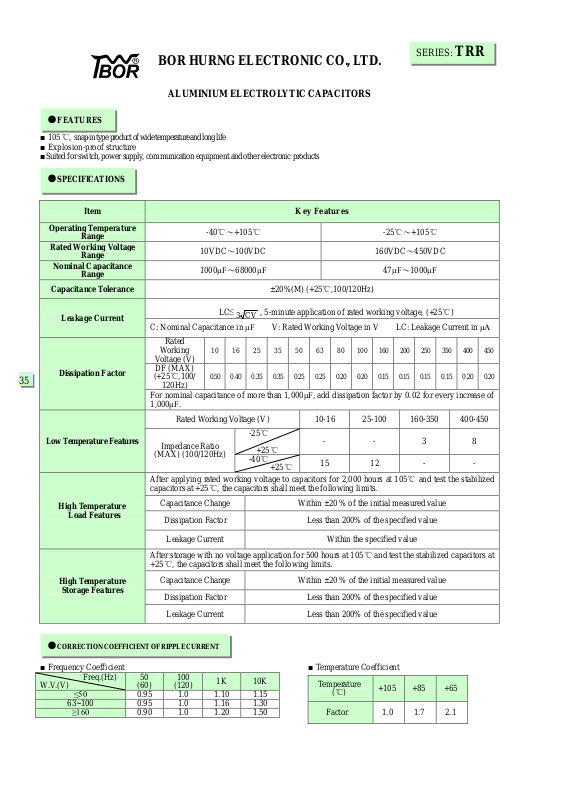

■ 105℃, snap-in type product of wide temperature and long life
■ Explosion-proof structure
■Suited for switch, power supply, communication equipment and other electronic products
Item
Key Features
Operating Temperature
Range
-40℃〜+105℃
-25℃〜+105℃
Rated Working Voltage
Range
10VDC〜100VDC
160VDC〜450VDC
Nominal Capacitance
Range
1000μF〜68000μF
47μF〜1000μF
Capacitance Tolerance
±20%(M) (+25℃,100/120Hz)
Leakage Current
LC≤ , 5-minute application of rated working voltage, (+25℃)
C: Nominal Capacitance in μF V: Rated Working Voltage in V LC: Leakage Current in μA
Dissipation Factor
Rated
Working
Voltage (V)
10
16
25
35
50
63
80
100
160
200
250
350
400
450
DF (MAX)
(+25℃,100/
120Hz)
0.50
0.40
0.35
0.35
0.25
0.25
0.20
0.20
0.15
0.15
0.15
0.15
0.20
0.20
For nominal capacitance of more than 1,000μF, add dissipation factor by 0.02 for every increase of
1,000μF.
Low Temperature Features
Rated Working Voltage (V)
10-16
25-100
160-350
400-450
Impedance Ratio
(MAX) (100/120Hz)
-25℃
+25℃
- - 3 8 -40℃
+25℃
15
12 - -
High Temperature
Load Features
After applying rated working voltage to capacitors for 2,000 hours at 105℃ and test the stabilized
capacitors at +25℃, the capacitors shall meet the following limits.
Capacitance Change
Within ±20 % of the initial measured value
Dissipation Factor
Less than 200% of the specified value
Leakage Current
Within the specified value
High Temperature
Storage Features
After storage with no voltage application for 500 hours at 105℃ and test the stabilized capacitors at
+25℃, the capacitors shall meet the following limits.
Capacitance Change
Within ±20 % of the initial measured value
Dissipation Factor
Less than 200% of the specified value
Leakage Current
Less than 200% of the specified value
Freq.(Hz)
W.V.(V)
50
(60)
100
(120)
1K
10K
≤50
0.95
1.0
1.10
1.15
63~100
0.95
1.0
1.16
1.30
≥160
0.90
1.0
1.20
1.50
Temperature
(℃)
+105
+85
+65
Factor
1.0
1.7
2.1
●FEATURES
●SPECIFICATIONS
●CORRECTION COEFFICIENT OF RIPPLE CURRENT
35
CV3
SERIES: TRR
BOR HURNG ELECTRONIC CO., LTD.
ALUMINIUM ELECTROLYTIC CAPACITORS
■ Frequency Coefficient ■ Temperature Coefficient
Page 2
R
BOR HURNG ELECTRONIC CO., LTD.
ALUMINIUM ELECTROLYTIC CAPACITORS
●DIMENSIONS DXL(mm) AND MAXIMUM RIPPLE CURRENT(A
W.V.
(V)
CAP.
(μF)
1000
1500
2200
3300
4700
5600
6800
8200
10000
15000
22000
33000
47000
56000
68000
W.V.
(V)
CAP.
(μF)
47
56
68
82
100
150
220
330
470
560
680
820
1000
.

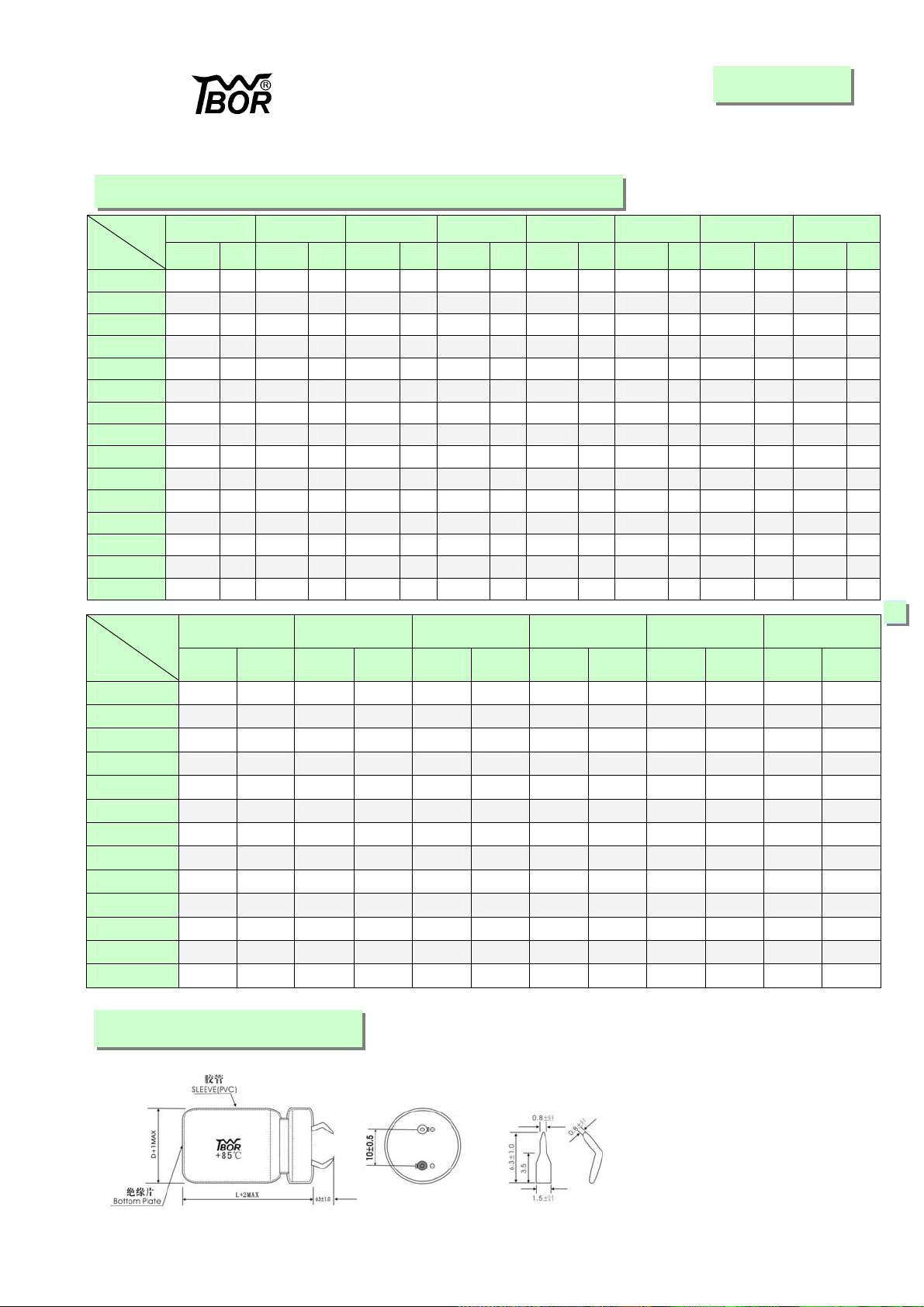

●CASE SIZE AND DIMENSIONS (MM)
10 16 25 35 50 63 80 100
SIZE IR SIZE IR SIZE IR SIZE IR SIZE IR SIZE IR SIZE IR SIZE I
22×25 1.0 22×25 1.1 22×35 1.2
22×25 1.1 22×30 1.3 22×30 1.5 25×40 1.6
22×30 1.4 22×35 1.7 25×35 1.8 30×40 2.0
22×25 1.4 25×35 1.8 25×40 2.0 30×40 2.2 30×45 2.3
22×25 1.5 22×35 1.8 25×40 2.3 30×40 2.8 30×45 3.0 35×50 3.7
22×30 1.6 22×40 1.9 25×50 2.5 30×45 3.2 30×50 3.3
22×25 1.5 22×30 1.8 25×35 2.1 30×40 3.0 30×50 3.6 35×50 4.0
22×30 1.7 22×35 2.1 25×40 2.4 30×50 3.3 35×45 3.8 35×50 4.4
22×25 1.5 22×35 1.9 25×35 2.3 25×45 2.8 35×40 3.8 35×50 4.1 35×50 4.8
22×35 2.1 22×40 2.5 25×45 3.1 30×45 3.1 35×50 4.1
22×40 2.5 25×45 3.3 30×45 4.0 35×50 4.8
25×45 3.3 30×45 4.3 35×50 5.3
30×45 4.1 35×50 5.3
30×50 4.6
35×50 5.4
160 200 250 350 400 450
SIZE IR SIZE IR SIZE IR SIZE IR SIZE IR SIZE IR
22×25 0.32 22×25 0.30
22×25 0.39 22×25 0.37
22×25 0.45 22×25 0.41
22×25 0.47 22×30 0.51 22×30 0.48
22×30 0.52 22×30 0.57 22×40 0.59
22×25 0.63 22×25 0.60 22×25 0.58 25×30 0.61 22×40 0.72 25×40 0.68
22×25 0.83 22×25 0.76 22×35 0.75 25×40 0.89 25×50 1.00 30×40 0.87
22×30 1.0 22×35 0.93 25×35 0.95 30×40 0.93 30×45 1.30 30×50 1.20
22×35 1.3 25×35 1.20 25×45 1.20 35×40 1.30 35×45 1.60 35×50 1.50
22×40 1.5 25×40 1.40 30×40 1.40 35×45 1.50 35×50 1.90
25×35 1.7 25×45 1.70 30×45 1.70 35×50 1.80
25×45 2.0 30×40 2.00 35×45 2.10
25×50 2.2 30×50 2.30 35×50 2.30
.
rms at 105℃, 100/120Hz)
