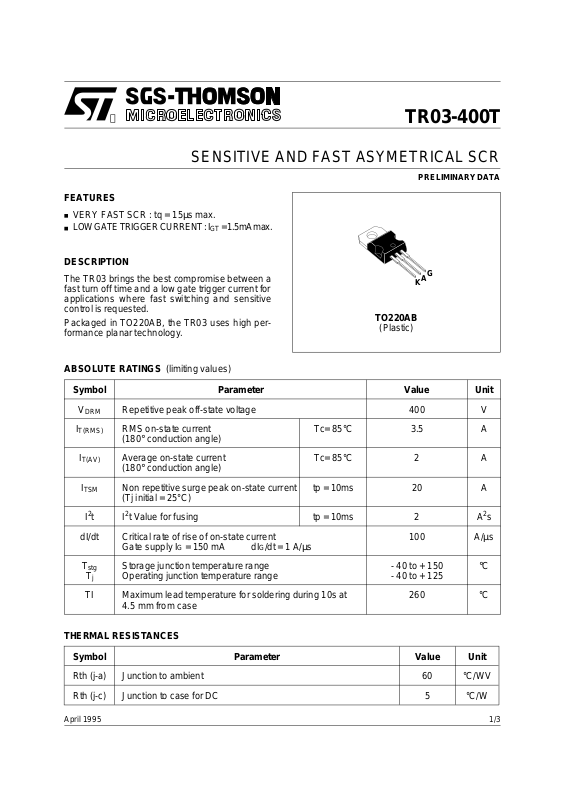

TR03-400T
SENSITIVE AND FAST ASYMET RI CAL SCR
PRELIMINARY DATA
FEATURES
VERY FAST SCR : tq = 15µs max.
LOW GATE TRIGGER CURRENT : IGT = 1.5mA max.
DESCRIPTION
G
The TR03 brings the best compromise between a
fast turn off time and a low gate trigger current for
applications where fast switching and sensitive
control is requested.
Packaged in TO220AB, the TR03 uses high performance planar technology.
TO220AB
(Plastic)
ABSOLUTE RAT I NG S (limiting values)
Symbol Parameter Value Unit
A
K
V
DRM
I
T(RMS)
Repetitive peak off-state volta ge 400 V
RMS on-state curr ent
Tc= 85°C 3.5 A
(180° conduction angle)
I
T(AV)
Average on-state current
Tc= 85° C 2 A
(180° conduction angle)
I
TSM
Non repetitive surge peak on-state current
tp = 10ms 20 A
(Tj initial = 25°C)
2
I
tI
dI/dt Critical rate of rise of on-state cur rent
T
stg
T
j
TI Maximum lead temperature for soldering during 10s at
2
t Value for fusing tp = 10ms 2 A2s
100 A/µs
Gate supply I
Storage junction temperature range
Operating junction temperature range
= 150 mA dIG/dt = 1 A/µs
G
- 40 to + 150
- 40 to + 125
260 °C
4.5 mm f rom case
THERMAL RESI STANCES
Symbol Parameter Value Unit
Rth (j-a)
Junction to ambient
60 °C/WV
°C
Rth (j-c) Junction to case for DC 5 ° C/W
April 1995
1/3
TR03-400T
GATE CHARACTERIST ICS (maximum v alues)
P
= 0.5W PGM = 2.5 W (tp = 20 µs) I
G (AV)
ELECTRICAL CHARACTE RISTICS
Symbol Test Condit ion s Type Value Unit
V
I
GT
=6V (DC) RL=100Ω
D
= 0.5 A (tp = 20 µs) V
FGM
Tj= 25°CMAX 1.5 mA
RGM
= 5 V
V
V
GT
V
GD
I
I
H
ITM= 10A tp= 380µsTj= 25°CMAX 2.2 V
V
TM
V
I
DRM
=6V (DC) RL=100Ω
D
= 1kΩ
R
GK
V
D=VDRM
= 100mA Gate open Tj= 25°CTYP 5 mA
T
DRM
RL=3.3kΩ RGK = 1 kΩ
rated
RGK
= 1 kΩ Tj= 25°C MAX 0.01 mA
Tj= 25ÉC MAX 1.2 V
Tj= 125°CMIN 0.2 V
Tj= 125°CMAX 0.2
dV/dt V
tq I
=67%V
D
= 10A VR = -1V
TM
RGK = 1 kΩ Tj= 125°C MIN 20 V/µs
DRM
Tj = 85°C MAX 15 µs
dI/dt = 20 A/µs dV/dt = 20 V/µs
= 67% V
V
D
VGK = -2.5V
DRM
2/3
PACKAGE MECHANICAL DATA
TO220AB(Plastic)
TR03-4 00T
DIMENSI ONS
REF.
A 10.0 10.4 0.393 0.409
B 15.2 15.9 0.598 0.626
C 13 14 0.511 0.551
D 6.2 6.6••••• 0.244 0.260
E 16.4 typ. 0.645 typ.
F 3.5 4.2 0.137 0.165
G 2.65 2.95 0.104 0.116
H 4.4 4.6 0.173 0.181
I 3.75 3.85 0.147 0.151
J 1.23 1.32 0.048 0.051
K 1.27 typ. 0.050 typ.
L 0.49 0.70 0.019 0.027
M 2.4 2.72 0.094 0.107
N 4.95 5.15 0.194 0.203
N1 2.40 2.70 0.094 0.106
O 1.14 1.70 0.044 0.067
P 0.61 0.88 0.024 0.034
Millimeters Inches
Min. Max. Min. Max.
Cooling method : C
Marking : Type number
Weight : 2.0g
Recommended torque value : 0.55 m.N.
Maximum torque value : 0.70 m.N.
