Datasheet tpm4.1ela Datasheet (Philips)

Colour Television Chassis

18850_000_100107.eps

100209

TPM4.1E

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specifications, Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 18

7. Circuit Descriptions 20

8. IC Data Sheets 24

9. Block Diagrams
Wiring Diagram (32") 29
Wiring Diagram (42") 30
Block Diagram 31

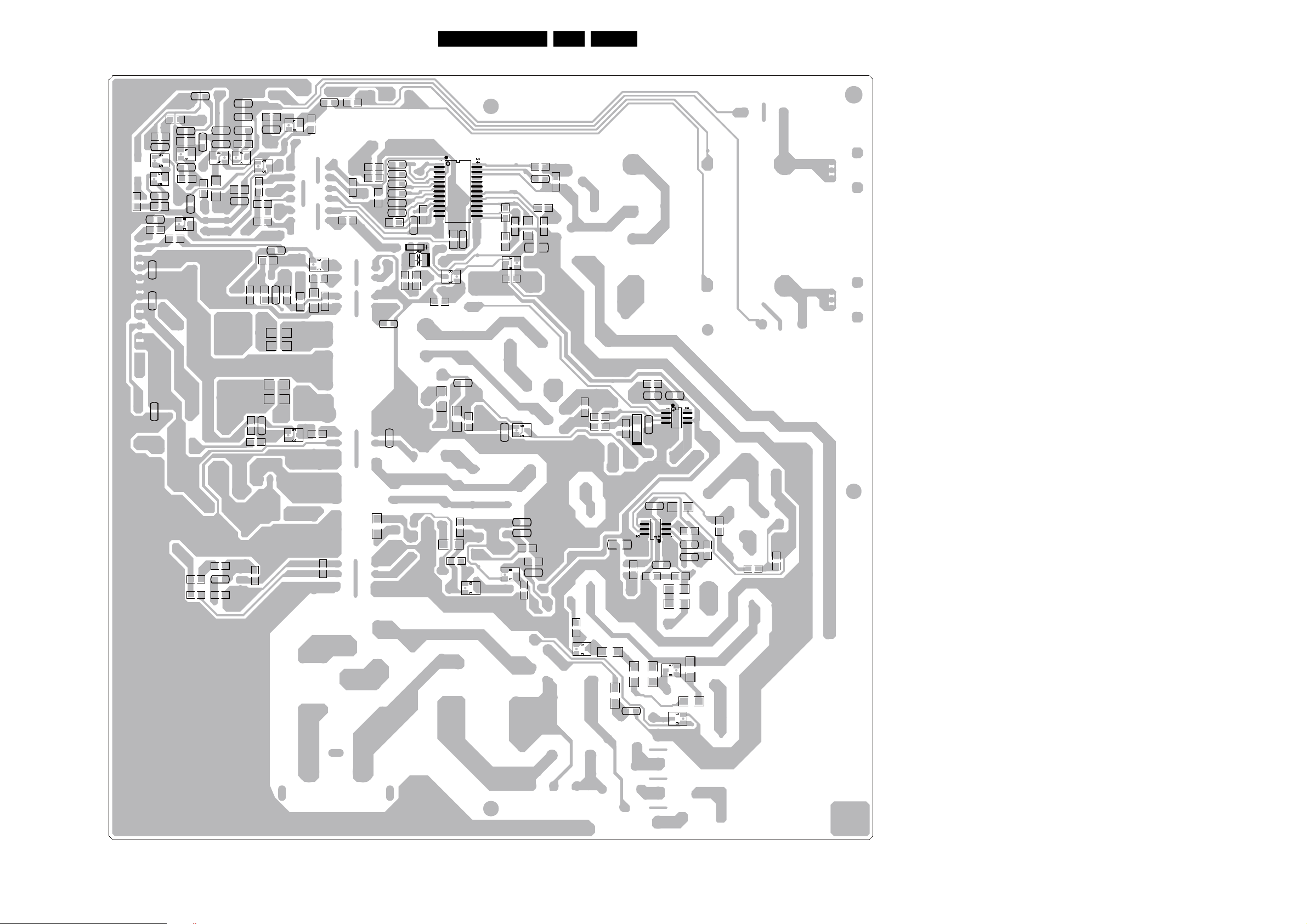

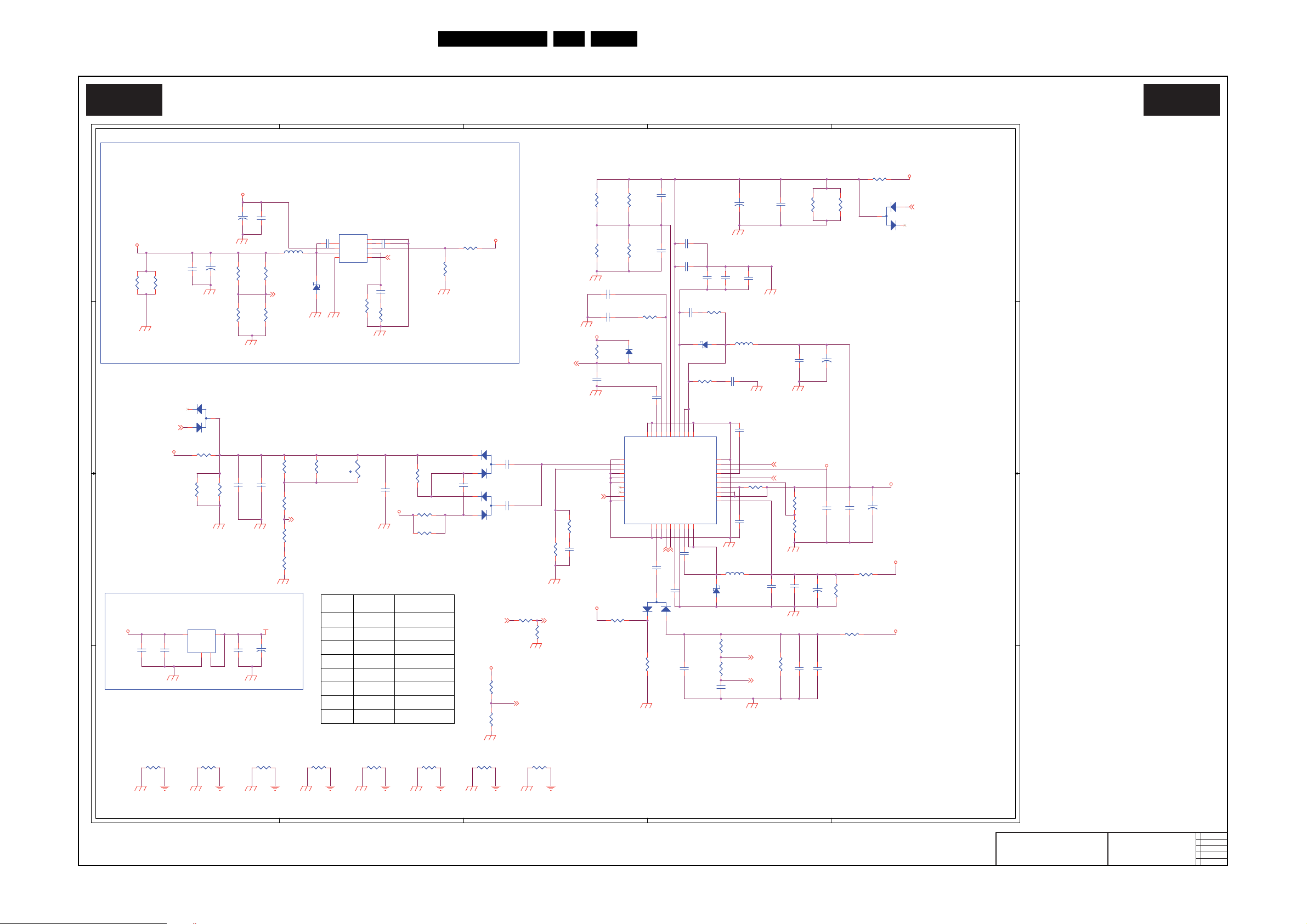

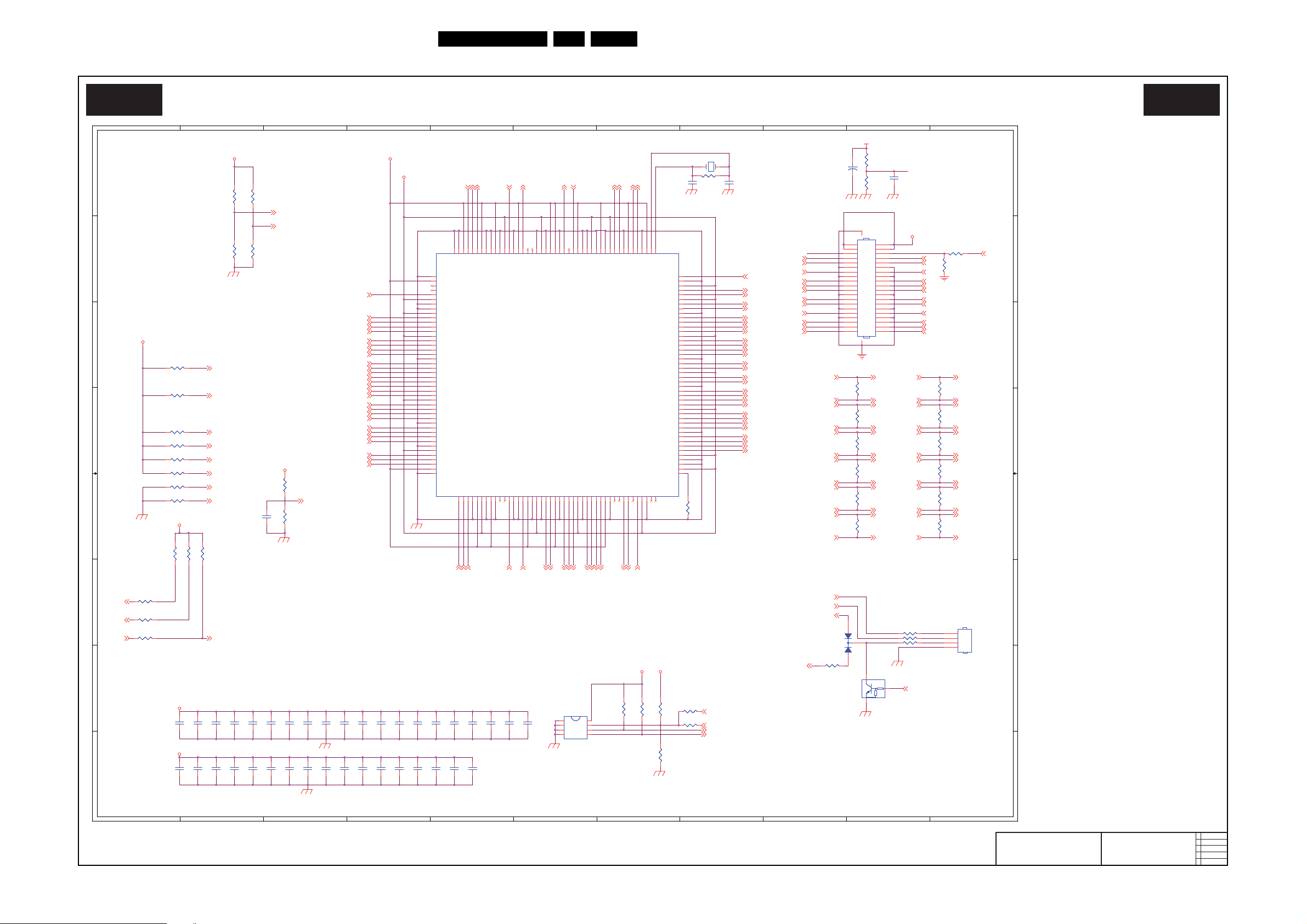

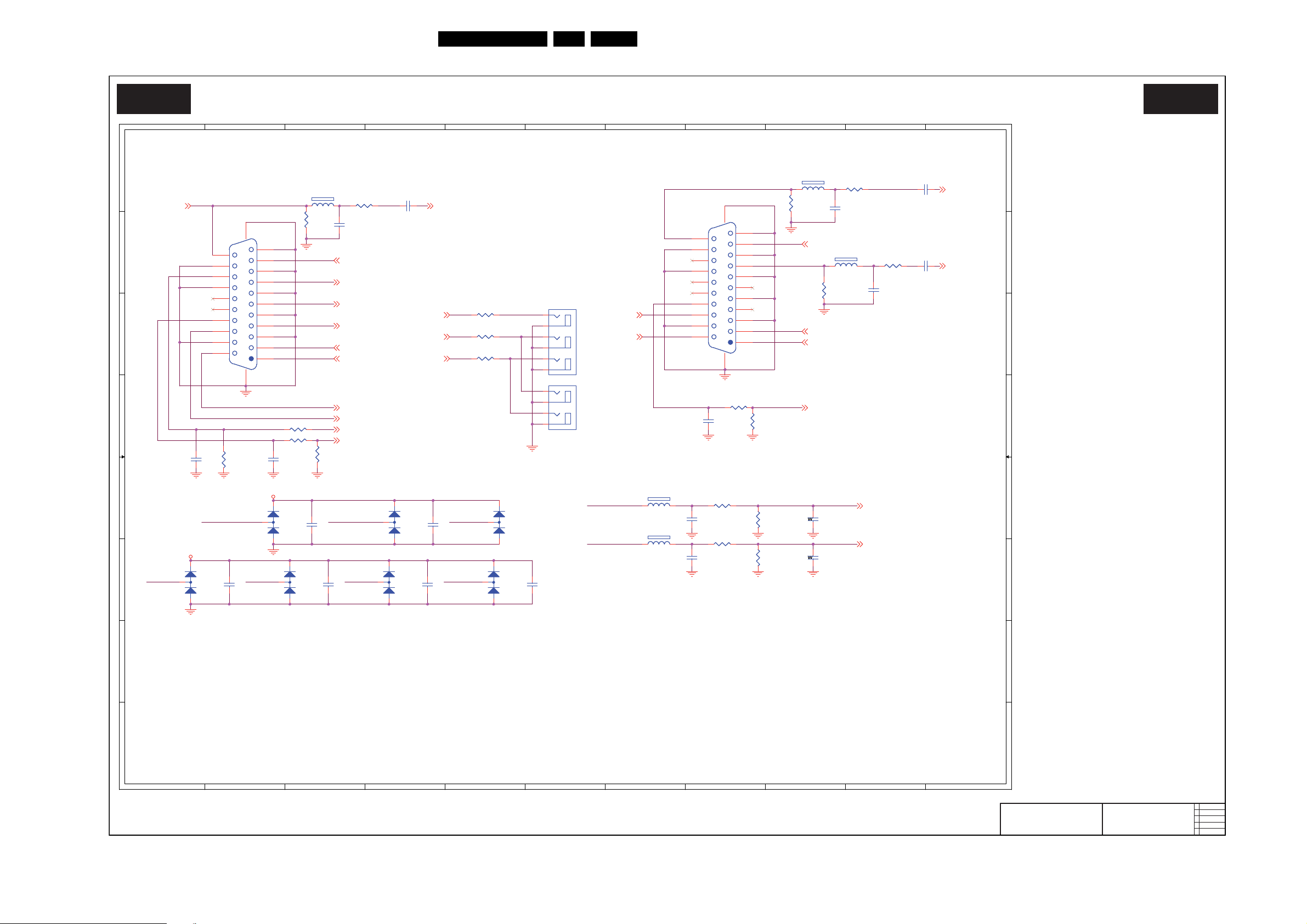

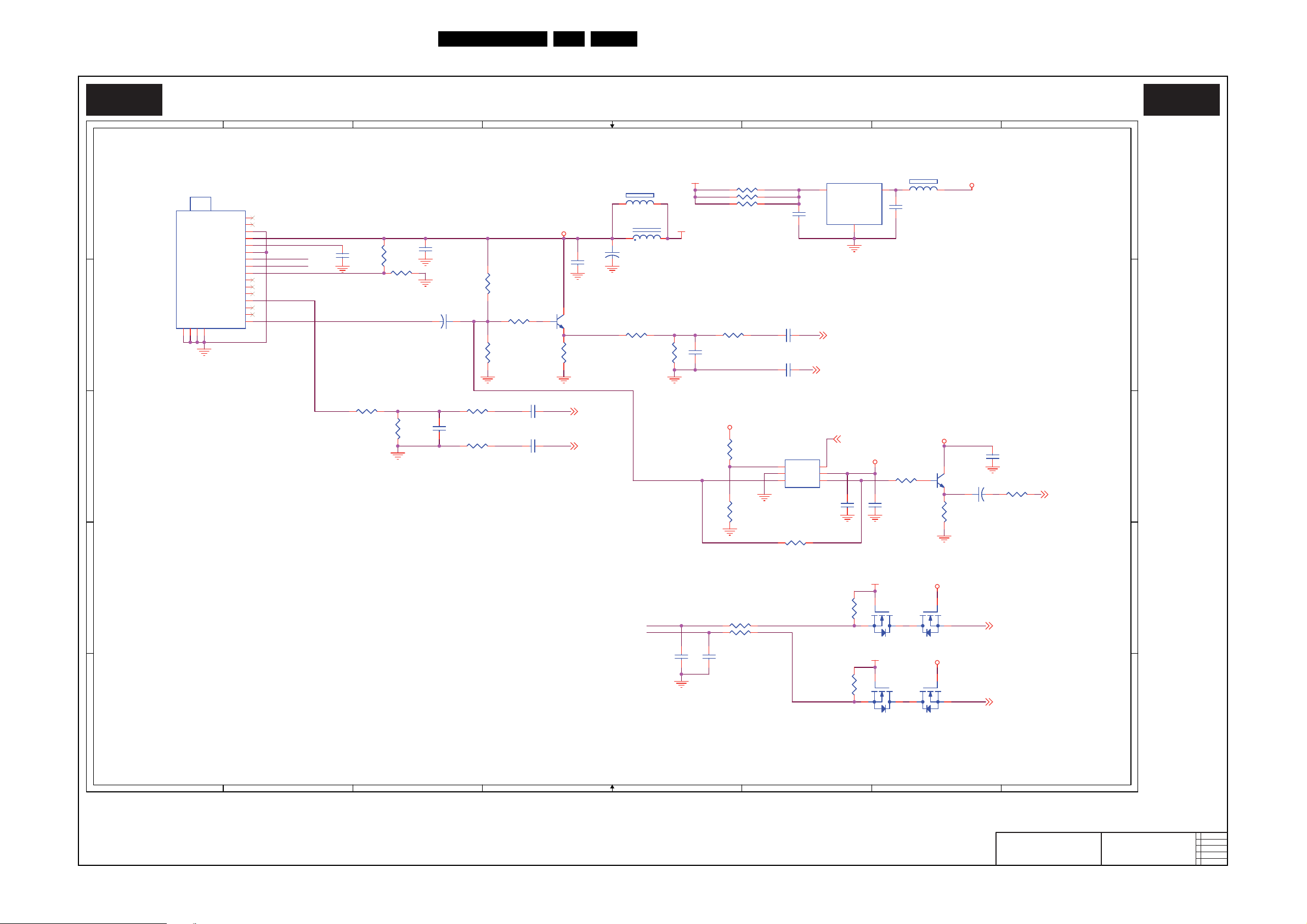

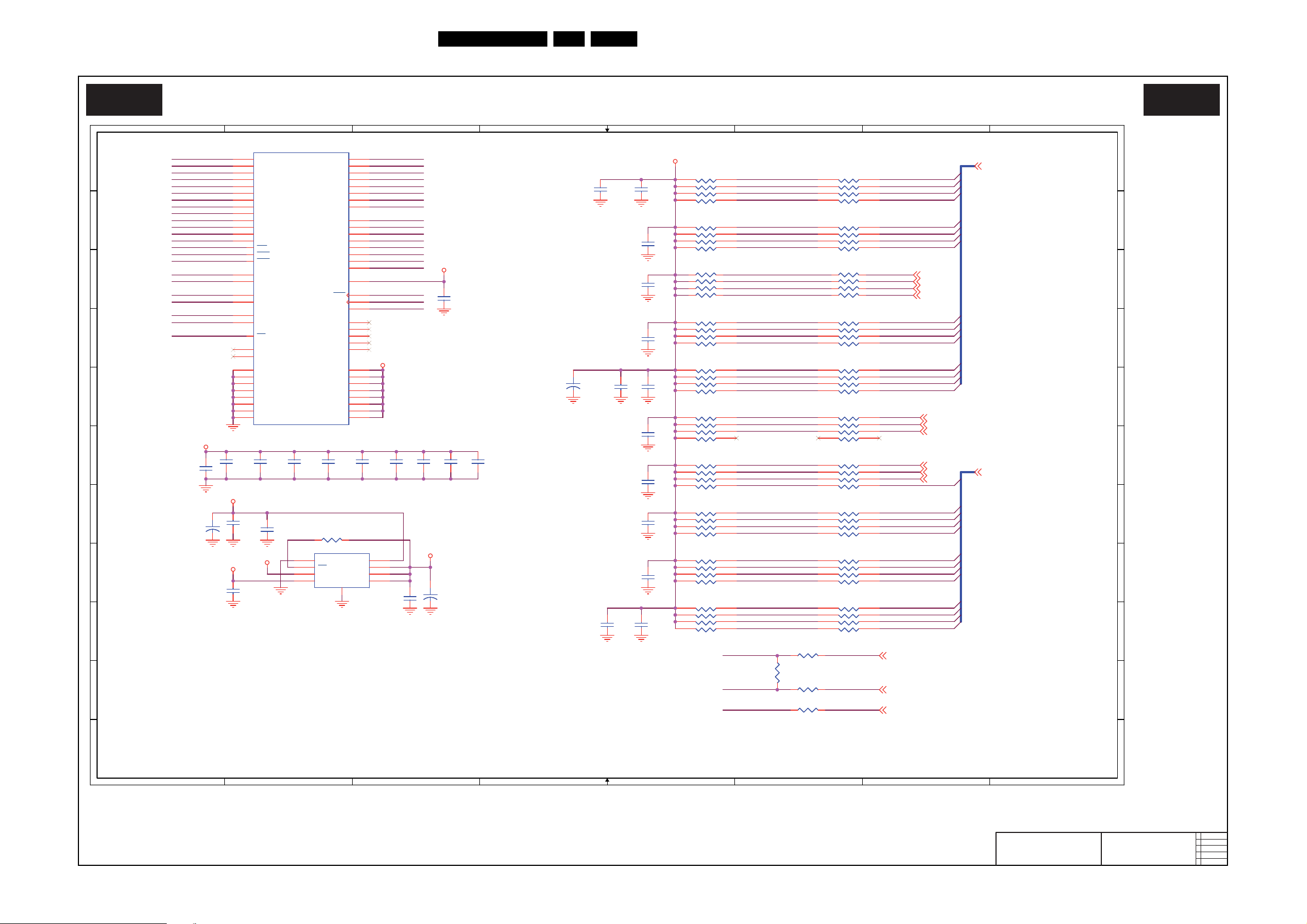

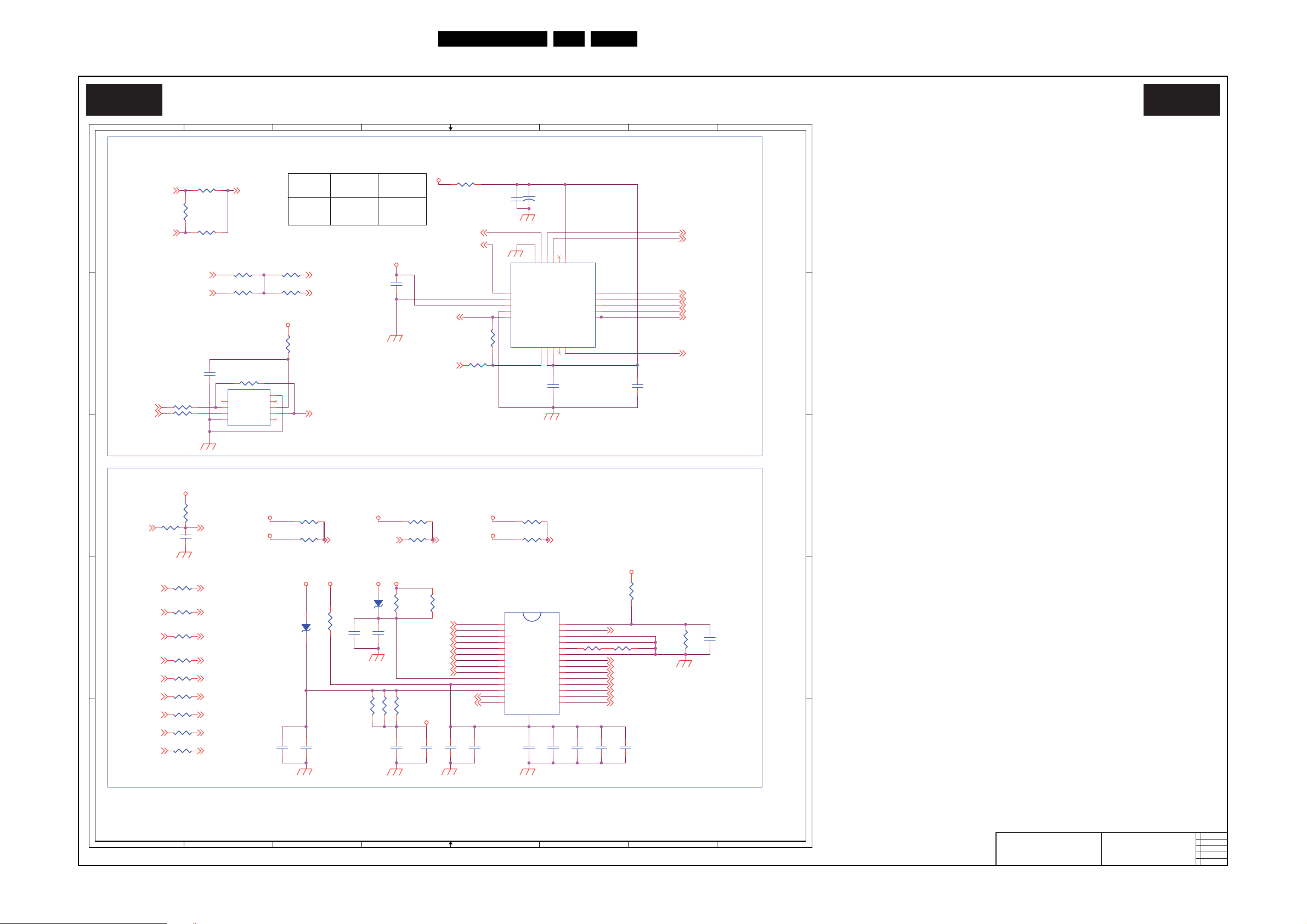

10. Circuit Diagrams and PWB Layouts Drawing PWB
Power Board: Power, 32"
Power Board: Inverter, 32" (A02) 33 34-35
Power Board: Power, 42" (A01) 36 38-39
Power Board: Inverter, 42" (A02) 37 38-39
SSB: D-Sub Input (B01) 40 59-60
SSB: REAR I/O (B02) 41 59-60
SSB: Scart (B03) 42 59-60
SSB: SIDE Input (B04) 43 59-60
SSB: CVBS/ Audio Out (B05) 44 59-60
SSB: Tuner (B06) 45 59-60
SSB: HDMI Input (B07) 46 59-60
SSB: WT6703F (Stand-by MCU) (B08) 47 59-60
SSB: MTK8222 (B09) 48 59-60
SSB: DDR1 Memory (B10) 49 59-60
SSB: KEYBOARD, IR/LED & ComPair I/F (B11) 50 59-60
SSB: Audio Switch (B12) 51 59-60
SSB: AUDIO Preamplifier (B13) 52 59-60
SSB: Audio Amplifier (B14) 53 59-60
SSB: DC/DC Power (B15) 54 59-60
SSB: T-CON, LCD Panel I/F (B16) 55 59-60
SSB: T-CON DC/DC (B17) 56 59-60

©

Copyright 2011 Koninklijke Philips Electronics N.V.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, or otherwise without the prior permission of Philips.

(A01) 32 34-35

SSB: T-CON TGMA , Level-Shifter (B18) 57 59-60
SSB: T-CON Mini-LVDS I/F (B19) 58 59-60
IR/LED Board (J) 61 62

11. Styling Sheets
Styling Sheet 32" 63
Styling Sheet 42" 64

Published by WEP/WS 1161 BU TV Consumer Care, the Netherlands Subject to modification EN 3122 785 18873

2011-Jan-21

EN 2 TPM4.1E LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Added “/60” models to Table 6-3

Manual xxxx xxx xxxx.2

• Chapter 4: added information on returning a defect LCD
panel.

• Chapter 6: updated Option code overview.

Manual xxxx xxx xxxx.3

• Added 32PFL3205/12 to the manual.

.

2. Technical Specifications, Connections

Index of this chapter:

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in. Here is
product information available, as well as getting started, user
manuals, frequently asked questions and software & drivers.

Table 2-1 Described Model Numbers:

Model Number Styling Published in

32PFL3205/12

32PFL3605/12

32PFL3605/60

42PFL3605/12

42PFL3605/60

Note: The given Model Numbers are subject to change.

Dali 3122 785 18873

Dali 3122 785 18870

Dali 3122 785 18870

Dali 3122 785 18870

Dali 3122 785 18870

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

2011-Jan-21

2.3 Connections

18870_001_100107.eps

100308

1

2

3

9

8

10

11

4

6

7

5

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

Technical Specifications, Connections

EN 3TPM4.1E LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Cinch: Video CVBS - In, Audio - In

Ye - Video CVBS 1 V
Rd - Audio R 0.5 V
Wh - Audio L 0.5 V

2 - HDMI: Digital Video, Digital Audio - In

/ 75  jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.

15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

3 - USB2.0

Figure 2-3 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 - Ground Gnd H

2.3.2 Rear Connections

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

5 - Audio - Out: Left / Right

Wh - Audio - L 0.5 V
Rd - Audio - R 0.5 V

/ 10 k kq

RMS

/ 10 k kq

RMS

2011-Jan-21

EN 4 TPM4.1E LA2.

21

20

1

2

10000_001_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specifications, Connections

6 - EXT1 - 2: Video RGB/YC - In, CVBS - In/Out, Audio ­In/Out

Figure 2-4 SCART connector

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V
4 - Ground Audio Gnd H

/ 1 k k

RMS

/ 10 k j

RMS

/ 1 k k

RMS

5 - Ground Blue Gnd H
6 - Audio L 0.5 V
7 - Video Blue/C-out 0.7 V
8 - Function Select 0 - 2 V: INT

/ 10 k j

RMS

/ 75  jk

PP

4.5 - 7 V: EXT 16:9

9.5 - 12 V: EXT 4:3 j

9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
12 - n.c.

/ 75  j

PP

13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red/C 0.7 V
16 - Status/FBL 0 - 0.4 V: INT

/ 75  j

PP

1 - 3 V: EXT / 75  j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS 1 V
20 - Video CVBS/Y 1 V
21 - Shield Gnd H

/ 75  k

PP

/ 75  j

PP

7 - EXT3: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu - Video - Pb 0.7 V
Rd - Video - Pr 0.7 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

Wh - Audio - L 0.5 V
Rd - Audio - R 0.5 V

/ 10 kW jq

RMS

/ 10 kW jq

RMS

8 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 kW jq

RMS

9 - PC IN:VGA

Figure 2-5 VGA connector

1 - Video Red 0.7 V
2 - Video Green 0.7 V
3 - Video Blue 0.7 V

/ 75  j

PP

/ 75  j

PP

/ 75  j

PP

4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V

DC

+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

10 - Service / UART

1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j

11 - HDMI 1: Digital Video, Digital Audio - In

See 2 - HDMI: Digital Video, Digital Audio - In

.

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2011-Jan-21

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

EN 5TPM4.1E LA 3.

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

-9

), or pico-farads (p 10

. Select

-12

-6

),

).

3.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

2011-Jan-21

EN 6 TPM4.1E LA3.

Precautions, Notes, and Abbreviation List

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then
result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
AG is Bruges), digit 3 refers to the B.O.M. code, digit 4 refers
to the Service version change code, digits 5 and 6 refer to the
production year, and digits 7 and 8 refer to production week (in
example below it is 2006 week 17). The 6 last digits contain the
serial number.

MODEL :

PROD.NO:

32PF9968/10

AG 1A0617 000001

MADE IN BELGIUM

220-240V 50/60Hz

VHF+S+H+UHF

S

10000_024_090121.eps

~

BJ3.0E LA

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

128W

100105

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),
6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion

2011-Jan-21

Precautions, Notes, and Abbreviation List

EN 7TPM4.1E LA 3.

DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion
DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

I

C Inter IC bus

2

I

D Inter IC Data bus

2

I

S Inter IC Sound bus

carrier distance is 6.0 MHz

IF Intermediate Frequency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used
for broadcast grade video.
Uncompressed digital component or
digital composite signals can be used.
The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

ITV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (color

carrier= 4.433619 MHz) and South

America (color carrier PAL M=

2011-Jan-21

EN 8 TPM4.1E LA3.

Precautions, Notes, and Abbreviation List

3.575612 MHz and PAL N= 3.582056

MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation
PDP Plasma Display Panel
PFC Power Factor Corrector (or Pre-

conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

Téléviseurs
SCL Serial Clock I
SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Color system mainly used in France
and East Europe. Color carriers=

4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a 4-

wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)

SVHS Super Video Home System
SW Software
SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1 600 × 1 200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2011-Jan-21

4. Mechanical Instructions

18870_101_100204.eps

100204

Mechanical Instructions

EN 9TPM4.1E LA 4.

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assy/Panel Removal 32"

4.4 Assembly/Panel Removal 42"

4.5 Returning a defect LCD panel

4.6 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

Figure 4-1 Cable dressing (32")

2011-Jan-21

EN 10 TPM4.1E LA4.

18870_100_100107.eps

100308

Mechanical Instructions

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assy/Panel Removal 32"

4.3.1 Rear Cover

Warning: Disconnect the mains power cord before removing

the rear cover.

1. Remove the fixation screws that secure the rear cover.

2. Lift the rear cover from the TV. Make sure that wires and
flat foils are not damaged while lifting the rear cover from
the set.

4.3.2 Small Signal Board (SSB)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from both the LVDS Flat Foil connectors.
Caution: be careful, as these are very fragile connectors!
Take the flat foils out of their connectors.

2. Unplug all other connectors.

3. Release the tape near the bottom side of the set from the
LCD panel.

4. Remove all other fixation screws from the SSB.

Figure 4-2 Cable dressing (42")

5. Take out the SSB together with its shielding.

6. Remove the screws near the HDMI and L/R audio
connectors.

7. The SSB can now be shifted sidewards away from the side
connector cover and take out of the shielding.
Caution: be careful not to damage the thermal pad
between the SSB and shielding.

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug power connector from the SSB.

2. Unplug all other connectors from the PSU.

3. Remove all fixation screws from the PSU.

4. The PSU can now be taken out of the set.

When defective, replace the whole unit.

2011-Jan-21

Mechanical Instructions

18850_104_100203.eps

100203

2

1

EN 11TPM4.1E LA 4.

4.3.4 Stand removal

See Figure 4-3
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Be sure to put the set in
the Service Position.

1. Remove the SSB as described earlier up till step 5 and
including step 5.

2. Remove the fixation screws [1], (M3).

3. Remove the fixation screws [2], (M4).

4. Remove the fixation screws [3], (Parker).

5. Take out the stand.

.

1

1

5. Remove the bezel from the set.

6. Unplug the connectors from the IR/LED board.

7. See Figure 4-4
Keyboard Control Panel.

8. Release the clips that secure the Keyboard Control
Panel [2].

When defective, replace the whole unit.

, unplug the connector [1] from the

22

3

4.3.9 LCD Panel

18850_102_100203.eps

Figure 4-3 Stand (32")

4.3.5 Speakers

1. Unplug the speaker connector from the SSB and remove
the wire wrap from this cable.

2. Remove the fixation screws from the speaker.

3. Take the speaker out.

When defective, replace the whole unit.

4.3.6 Stand support plate

1. Release the IR/LED/Keyboard Control cable from its
clamps and put it aside.

2. Remove the SSB as described earlier.

3. Remove the PSU as described earlier.

4. Remove the Stand as described earlier.

5. Release the tape and take out of the set.

4.3.7 IR/LED Board

1. Release the IR/LED/Keyboard Control cable from its
clamps.

2. Remove the fixation screw in the middle-bottom of the
stand that secures the stand with the bezel,
see Figure 4-3

3. Remove the clips at the bottom that secure the LCD panel
with the bezel.

4. Remove the fixation screws that secure the LCD panel with
the bezel.

5. Remove the bezel from the set.

6. Unplug the connectors from the IR/LED board.

7. Release the clips that hold the board and take it from the
bezel.

When defective, replace the whole unit.

4.3.8 Keyboard Control Panel

1. Release the IR/LED/Keyboard Control cable from its
clamps.

2. Remove the fixation screw in the middle-bottom of the
stand that secures the stand with the bezel,
see Figure 4-3

3. Remove the clips at the bottom that secure the LCD panel

4. Remove the fixation screws that secure the LCD panel with

with the bezel.

the bezel.

[3].

[3].

100203

4.4 Assembly/Panel Removal 42"

4.4.1 Rear Cover

4.4.2 Small Signal Board (SSB)

Figure 4-4 Keyboard Control Panel (32")

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the speaker as described earlier.

4. Remove the stand as described earlier.

5. Remove the Stand support as described earlier.

6. Remove the clips at the bottom that secure the LCD panel
with the bezel.

7. Remove the fixation screws that secure the LCD panel with
the bezel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws that secure the rear cover.

2. Lift the rear cover from the TV. Make sure that wires and
flat foils are not damaged while lifting the rear cover from
the set.

Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from both the LVDS Flat Foil connectors.
Caution: be careful, as these are very fragile connectors!
Take the flat foils out of their connectors.

2. Unplug all other connectors.

3. Release the tape near the tuner from the LCD panel.

4. Release the tape near the processor shielding from the
LCD panel.

5. Remove the fixation screw that connects the ground cable.

6. Remove all other fixation screws from the SSB.

7. Take out the SSB together with its shielding.

8. Remove the screws near the HDMI and L/R audio
connectors.

9. The SSB can now be shifted sidewards away from the side
connector cover and take out of the shielding.
Caution: be careful not to damage the thermal pad
between the SSB and shielding.

2011-Jan-21

EN 12 TPM4.1E LA4.

18850_104_100203.eps

100203

2

1

18931_100_100510.eps

100510

Mechanical Instructions

4.4.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug power connector from the SSB and take the cable
out of the cable clamp.

2. Unplug all other connectors from the PSU.

3. Remove all fixation screws from the PSU.

4. The PSU can now be taken out of the set.

When defective, replace the whole unit.

4.4.4 Stand removal

See Figure 4-5
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Be sure to put the set in
the Service Position.

1. Remove the fixation screws [1], (Parker).

2. Remove the fixation screws [2], (M4).

3. Take out the stand.

.

1

2 2

1

1

18850_105_100203.eps

4. Remove the clips that secure the LCD panel with the bezel.

5. Remove the fixation screws that secure the LCD panel with
the bezel.

6. Lift the LCD Panel from the bezel.

7. Unplug the connector [1] from the Keyboard Control Panel.

8. Release the clips that secure the Keyboard Control
Panel [2].

When defective, replace the whole unit.

Figure 4-6 Keyboard Control Panel (42")

4.4.9 LCD Panel

1. Remove the stand as described earlier.

2. Remove the speakers as described earlier.

1

100203

3. Remove the SSB as described earlier.

4. Remove the PSU as described earlier.

5. Remove the Stand support as described earlier.

6. Remove the clips that secure the LCD panel with the bezel.

7. Remove the fixation screws that secure the LCD panel with
the bezel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

Figure 4-5 Stand (42")

4.4.5 Speakers

1. Unplug the speaker connector from the SSB.

2. Remove the stand, as described earlier.

3. Take the speakers out together with their casing.
When defective, replace the whole unit.

4.4.6 Stand support plate

1. Remove the stand as described earlier.

2. Remove the SSB as described earlier.

3. Remove the PSU as described earlier.

4. Remove all fixation screws from the stand support plate
and take it out of the set.

4.4.7 IR/LED Board

1. Remove the stand as described earlier.

2. Remove the speakers as described earlier.

3. Remove the SSB as described earlier.

4. Remove the clips at the bottom that secure the LCD panel
with the bezel.

5. Remove the fixation screws that secure the LCD panel with
the bezel.

6. Lift the LCD Panel from the bezel.

7. Unplug the connectors from the IR/LED board.

8. Release the clips that hold the board and take it from the
bezel.

When defective, replace the whole unit.

4.5 Returning a defect LCD panel

To return a defect LCD panel to the factory, all boards, cabling,
mechanical supports, shieldings, clamps, spacers, the bezel
and tapes have to be removed from the panel, see Figure 4-7
Be sure to carefully pack the area’s of the panel that are visible
during normal use.

Figure 4-7 LCD panel

.

4.4.8 Keyboard Control Panel

See Figure 4-6

1. Remove the stand as described earlier.

2. Remove the speakers as described earlier.

3. Remove the SSB as described earlier.

2011-Jan-21

.

4.6 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position.
See Figure 4-1

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

and Figure 4-2.

Mechanical Instructions

EN 13TPM4.1E LA 4.

2011-Jan-21

EN 14 TPM4.1E LA5.

18870_211_100310.eps

100310

18870_211_100310.eps

100310

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Service Tools

5.3 Software Upgrading

5.4 Error Codes

5.5 Fault Finding and Repair Tips

5.1 Service Modes

The Customer Service Mode (CSM) is used for communication
between the call centre and the customer, while the Service
Alignment Mode (SAM) offers several features for the service
technician.

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the abilities of structured troubleshooting, error code
reading, and software version read-out for all chassis.

5.1.1 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV's operation settings.The call centre can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set.This helps the call centre to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

Figure 5-2 CSM Menu [2/3]

How to Activate CSM

Key in the code “123654” via the standard RC transmitter.

Note: Activation of the CSM is only possible if there is no (user)
menu on the screen!

18870_201_100209.eps

100310

Figure 5-1 CSM Menu [1/3]

Figure 5-3 CSM Menu [3/3]

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll
wheel) on the RC-transmitter, can be navigated through the
menus.

General

• 1.1 Set Type NVM read/write (max. 16 characters).

• 1.2 Production code NVM read/write (max. 16
characters).

• 1.4 Option Code Store in NVM (set feature grouping as
option) panel code.

• 1.5 Codes Error code Layer 2. Store in NVM. 10 error
buffers: 000 = No problem, 011 = I

2

C bus error,

012 = tuner error, 013 = panel.

• 1.6 SSB 12NC NVM read/write (12 characters).

• 1.7 Display 12NC NVM read/write (12 characters).

• 1.8 PSU 12NC NVM read/write (12 characters).

• 2.1 Current Main SW Detects and displays software
version.

• 2.4 NVM version Detects and displays software version.

• 3.1 Signal Quality/Present analog/digital signal strength.

• 3.2 TV lock Detects and displays.

• 3.3 HDCP keys Detects and displays.

• 3.6 HDMI audio format input stream Per supported
format e.g. Dolby TrueHD, DTS-HD Master Audio, MPCM.

• 3.7 HDMI video format input stream Per Supported
format. e.g. 576i 50 Hz, 576p 50 Hz, 720p 50 Hz,
1080i 50 Hz, 1080p 50 Hz

2011-Jan-21

How to Exit CSM

Press “MENU” on the RC-transmitter.

Service Modes, Error Codes, and Fault Finding

18870_202_100209.eps

100209

5.1.2 Service Alignment Mode (SAM)

How to enter

To enter the factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the “INFO”
button.

After entering the factory mode, the following screen is visible
on the top and right of the panel.

Table 5-1 Contents of SAM

Action Items Range Default Value Description

Scaler

Brand PHILIPS PHILIPS Set brand

Date Jan 26 2010 Jan 26 2010

Panel type LG LC320WUY-SCA1 LG LC420WUY-SCA1 Panel type number

Panel ID 117 116 Panel ID identify

Current source TV TV Selected source

Auto color GO GO PC: any pattern has black and white YPbPr:

Gain 0 - 255 R 0 G 0 B 0 R 0 G 0 B 0

Offset 0 - 255 R 0 G 0 B 0 R 0 G 0 B 0

Color temp Normal Normal colour temperature settings, nor mal, cool, or warm

Gain 0 - 255 R 127 G 124 B119 R 127 G 126 B113 Back-End Scaler R G B Gain NVM hasYPbPr

Burn in Off Off Resets the set to manufacturer's mode

EEPROM init GO GO Resets the EEPROM to initial mode

Backlight time 1 hr(s) 1 hr(s) Setsthe backlight time

Reset PBS setting GO GO Resets the PBS setting

NVM address 0 0 Example of an NVM address

value 77 77 Example of an NVM value

store GO GO Stores the NVM setting

NVM copy Copy to USB Copy to USB Use this to copy the NVM data from the TV to the

Virgin mode Off Off Resets the set to its initial status

ACI On On ACI “On” or “Off”

ATS On On ATS “On” or “Off”

V - Com adjust Press OK V-Com adjust Pattren White GAM1 862 35E GMA2

Exit Press OK Exit from factory mode

MT8222T MT8222T

Copy from USB Copy from USB Use this to copy the NVM data from the USB to the

821 335 GMA3 754 2F2 GMA4 638 27E GMA5 390
186 GMA6 270 10E GMA7 205 CD GMA8 162 A2
VCOM 455 1C7 Store Default init Yes Exit

32" 42"

Figure 5-4 Example of SAM

V-Com adjust Pattren White GAM1 879 36F GMA2
834 342 GMA3 768 300 GM A4 649 289 GMA5 388
184 GMA6 261 105 GMA7 195 C3 GMA8 151 97
VCOM 417 1A1 Store Default init Yes Exit

EN 15TPM4.1E LA 5.

Scaler IC type

example of released Software date

SMPTE bar (colour bar), any timing.

Analogue to Digital Converter Gain for each colour,
AutoColor affects this and it value is depends on
the input

Analogue to Digital Converter Offset for each col­our, AutoColor affects this and it value is depends
on the input

NORMAL, WARM, COOL, CUSTOMER four sets.
Other source use offset with hardcoding

USB

TV

Adjusts the V-Com setting

How to Navigate

With the up/down cursor keys can be used to navigate through
the menu, while with the Left/Right cursor the values can be
changed.

How to EXIT

Choose “EXIT”, and press the “OK” button.

5.2 Service Tools

5.2.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips
Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to
repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore
capable of accurately indicating problem areas. No
knowledge on I

2

C or UART commands is necessary,

because ComPair takes care of this.

3. ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the uP
is working) and all repair information is directly available.

4. ComPair features TV software upgrade possibilities.

Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair II interface box is connected to the PC via an
USB cable. For the TV chassis, the ComPair interface box and

2011-Jan-21

EN 16 TPM4.1E LA5.

10000_036_090121.eps

091118

TO

UART SERVICE

CONNECTOR

TO

UART SERVICE

CONNECTOR

TO
I2C SERVICE
CONNECTOR

TO TV

PC

HDMI
I

2

C only

Optional power

5V DC

ComPair II Developed by Philips Brugge

RC out

RC in

Optional

Switch

Power ModeLink/

Activity

I

2

C

ComPair II

Multi

function

RS232 /UART

18870_203_100209.eps

100209

Service Modes, Error Codes, and Fault Finding

the TV communicate via a bi-directional cable via the service
connector(s).
The ComPair fault finding program is able to determine the
problem of the defective television, by a combination of
automatic diagnostics and an interactive question/answer
procedure.

How to Connect

This is described in the chassis fault finding database in
ComPair.

Figure 5-5 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in
between), as the ComPair interface acts as a level shifter. If
one connects the TV directly to the PC (via UART), ICs will be
damaged!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Programming software can be downloaded from the Philips
Service portal.

• ComPair UART interface cable for TPM4.1x xx.
3122 785 90630.

Note: While having problems, contact the local support desk.

5.3.2 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “Menu” button on your remote control.

2. Select “Setup” and press “OK”, then select [Software
update] > [Current software].

If the current software version of your TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.3.3 Download the latest software

1. Point your web browser to http://www.philips.com/support

2. Find information and software related to your TV.

3. Select the latest software update file and download it to
your PC.

4. Insert a USB flash drive into one of the USB ports of your
PC.

5. Decompress the downloaded ZIP file and copy the
“autorun.upg” to the root directory of the USB flash drive.

5.3.4 Update the TV software

1. Power off your TV and disconnect all memory devices.

2. Insert the USB flash drive that contains the software
update file.

3. Switch on your TV, and TV will display the Main Menu upon
detection of USB portable.

4. Select [Setup] and press OK. See Figure 5-6
Note:If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

5. Select [Software update] > [Local updates] and press OK.
See Figure 5-7

and Figure 5-8.

6. When prompted, select [Cancel] or [OK] and press OK.
See Figure 5-9

.

7. To proceed, In next menu select [Start] and press OK to
start software updates. See Figure 5-10

.

8. Upgrading will now begins and the status of the updating
progress will be displayed. See Figure 5-11

9. When the TV software is updated, the TV automatically
restarts and the TV starts up with the new software.

, it is

.

.

.

5.3 Software Upgrading

5.3.1 Introduction

Philips continuously tries to improve its products, and we
recommend that you update the TV software when updates are
available. Software update files can be obtained from your
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

You require the following:

1. A personal computer connected to the Internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A USB flash drive (preferably empty).

Note:

1. Only FAT/DOS-formatted flash drives are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

2011-Jan-21

web site.

Figure 5-6 Update the TV software [1/6]

Service Modes, Error Codes, and Fault Finding

18870_204_100209.eps

100209

18870_205_100209.eps

100209

18870_206_100209.eps

100209

18870_207_100209.eps

100209

18870_208_100209.eps

100209

EN 17TPM4.1E LA 5.

Figure 5-7 Update the TV software [2/6]

Figure 5-8 Update the TV software [3/6]

Figure 5-11 Update the TV software [6/6]

Notes:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as power comes back.

• If an error occurs during the update retry the procedure or
contact your dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use your PC to remove the
TV software from your USB portable memory.

5.4 Error Codes

The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.

Basically there are three kinds of error codes:

Error Code Event

000 No problem

011 I

012 Tuner error

2

C bus error

Figure 5-9 Update the TV software [4/6]

Figure 5-10 Update the TV software [5/6]

5.5 Fault Finding and Repair Tips

5.5.1 Speakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

5.5.2 Tuner

Attention: In case the tuner is replaced, always check the tuner
options.

2011-Jan-21

EN 18 TPM4.1E LA6.

18870_209_100209.eps

100308

6. Alignments

Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Hardware Alignments

6.3 TV Mode display adjust

6.4 PC mode display adjustment

6.5 Gamma upload and V-com adjustment

6.6 Option Settings

6.7 Serial Number Definition

Note: The Service Alignment Mode (SAM) are described in
chapter 5. Service Modes, Error Codes, and Fault Finding
Menu navigation is done with the CURSOR UP, DOWN, LEFT
or RIGHT keys of the remote control transmitter.

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 195 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground.
Caution: It is not allowed to use heatsinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 M, Ci < 20 pF.

i

, 50/60 ± 3 Hz.

AC

6.2 Hardware Alignments

values. This is the next best solution. The default values are
average values coming from production.

• Select a COLOUR TEMPERATURE (e.g. COOL,
NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according
to the values in Table 6-2

• When finished press OK on the RC, then press STORE (in
the SAM root menu) to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

.

Table 6-2 White tone default settings

Picture mode

Normal 32" 127 124 119

Cool 32" 119 114 127

Warm 32" 127 114 73

Luminance >400 cd/m
picture at contrast 50, Video contrast 50 and brightness 100,
with temp color “cool”.

Note: This group setting about colour temp is also applied in
TV/EX1/EX2/EXT3/VGA/HDMI/HDMI SIDE/AV SIDE. It means
that TV/EX1/EX2/EXT3/VGA/HDMI/HDMI SIDE/ AV SIDE use
one same setting.

Screen
size

42" 127 126 113

42" 125 121 127

42" 127 118 72

Colour temperature

Red Green Blue

2

in the centre of the screen when “stand”

Not applicable.

6.3 TV Mode display adjust

6.3.1 White balance adjustment

Equipment Requirements:

Quantum Data Pattern Generator 801GD or 802G or 802R;
Apply 720P/60 at the pattern TVBAR100.

Alignment method:

Set Smart picture as “personal” (Brightness = 50,
Contrast = 50, Video contrast = 50, Colour = 50); Access to
SAM first, then to enable AUTO_COLOR to get HD ADC
OFFSET and HD ADC GAIN. Check whether 32 gray scales
are distinguishable.

6.3.2 Colour Temperature Alignment

Apply full white pattern, select smart setting to be Personal
(Brightness = 50, Contrast = 50, Video contrast = 50, and
Colour = 50). Adjust SCALER GAIN R G B to reach W/D and
luminance in SAM mode as below.
Select Color Temp in the SAM OSD. The 1931 CIE
chromaticity (X, Y) coordinates must be adjusted
according to Table 6-1

Table 6-1 Reading with Minolta CA-110

Picture Temp x y

Normal 0.287 0.005 0.296 0.005

Cool 0.276 0.005 0.282 0.005

Warm 0.313 0.005 0.329 0.005

If you do not have a colour analyser, you can use the default

.

6.4 PC mode display adjustment

6.4.1 AUTO colour adjustment

Set Brightness 100, Contrast 50, and apply 1024 × 768 @
60Hz mode with 50 Black and 50 White pattern at the factory
mode.
Activate AUTO-COLOR function for auto ADC offset and gain
setup. See Figure 6-1

Figure 6-1 50-Black 50-White

.

6.5 Gamma upload and V-com adjustment

6.5.1 Gamma Upload

Press Remote control “123789+Info” Key, Gamma data will be
load in IC MAX9668ETP by FW

2011-Jan-21

6.5.2 V-com adjustment

18850_207_100107.eps

100107

R

Row 1

Row 2

Row 3

Row 4

127 gray

0 gray

G B R G B R G B R G B R G B

Press Remote control “147852+info” Key, or press
“062596+Info” for TV V-com adjustment, enter the V-com
adjustment mode with a pattern (Green 2) as
shown in Figure 6-2

.

Figure 6-2 1920 × 1080 @ 60 Hz, Pixel ON/OFF pattern

Press up/down key of remote control to select V-com in the
OSD. Press the right/left buttons on the remote control to
fine-tune V-com untill minimum or no flicker is detected.
Press the “Store” key to save the aligned VCOM data into NVM.
Note: Make sure you get the optimum result before saving.
This data is saved in the NVM of the IC MAX9668ETP (U7401).

This device can only be rewritten 100 times!

Alignments

EN 19TPM4.1E LA 6.

6.6 Option Settings

6.6.1 Reset Options

In SAM, after reset “Reset option code”, restart the set
immediately.

6.6.2 Option Code Overview

Table 6-3 Option code overview

CTN_ALT BOM# Panel Type Panel ID

32PFL3205/12_1 LG LC320WUY-SCB1 117

32PFL3605/12_1 LG LC320WUY-SCB1 117

42PFL3605/12_1 LG LC420WUY-SCB1 116

32PFL3605/60_1 LG LC320WUY-SCB1 117

42PFL3605/60_1 LG LC420WUY-SCB1 116

6.7 Serial Number Definition

Table 6-4 BOM Code

Panel Supplier Code

AU 1

CPT 2

LPL (LG) 3

QDI 4

CMO 5

HSD 6

SVA 7

2011-Jan-21

EN 20 TPM4.1E LA7.

18870_210_100308.eps

100308

MM Tuner

74HC4052D

MUX

TV_CVBS

Y,Pb,Pr 1

CVBS1P

CVBS3P

SIF_P

AUDR, AUDL

DDR

SPI Flash
ROM / 4M

24C02

DSUB EDID

24C32

NVRAM

I2C

CS4334

DAC

SPI

UART1

Cloning

(iTV-1)

(5P)

Video I/F

(iTV-2)

Y,Pb,Pr 2

RP,GP,BP

24C02

DVI EDID

Remark : Reserve only for iTV function

WT6703

STDBY MCU

Audio out(AR2, AL2)

Audio In

Monitor Out

TV OUT

Audio out(AR3, AL3)

CVBS out

I2C

Audio In

CVBS_SC0

Tcon

TL2428

MC

Side S -Video

PC Audio

YPbPr 1 Audio

YPbPr 2

AV Audio

MT8222

TTL/LVDS

LCD

Panel

Com Pair

10P

(3P)

(7P)

IR Board

Key Board

2 × (2P)

L-R Speaker

LIPS/PS

control

Side AV

YPbPr 2 Audio

HP

D-SUB

HDMI 1

HDMI 2

Side AV Audio

MAX9728

YPbPr 1

AV IN

MAX9728

MAX9728

TPA3110D

SCART 1

Side USB

AR1,AL 1

SCART 2

CVBS2P

(CVBS 0P)

7. Circuit Descriptions

Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Architecture

7.3 T-CON Architecture

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams) and circuit diagrams (see chapter

10. Circuit Diagrams and PWB Layouts).Where necessary,
you will find a separate drawing for clarification.

7.1 Introduction

The TPM4.1E LA chassis is using the MT8222 for main
processing.

7.1.1 Implementation

A key component of this chassis is the TCON TL2428MC

7.1.2 TPM4.1E LA Architecture Overview

• For details about the chassis diagrams refer to
chapter 10. Circuit Diagrams and PWB Layouts.
An overview of the TPM4.1E LA architecture can be found
in Figure 7-1

.

2011-Jan-21

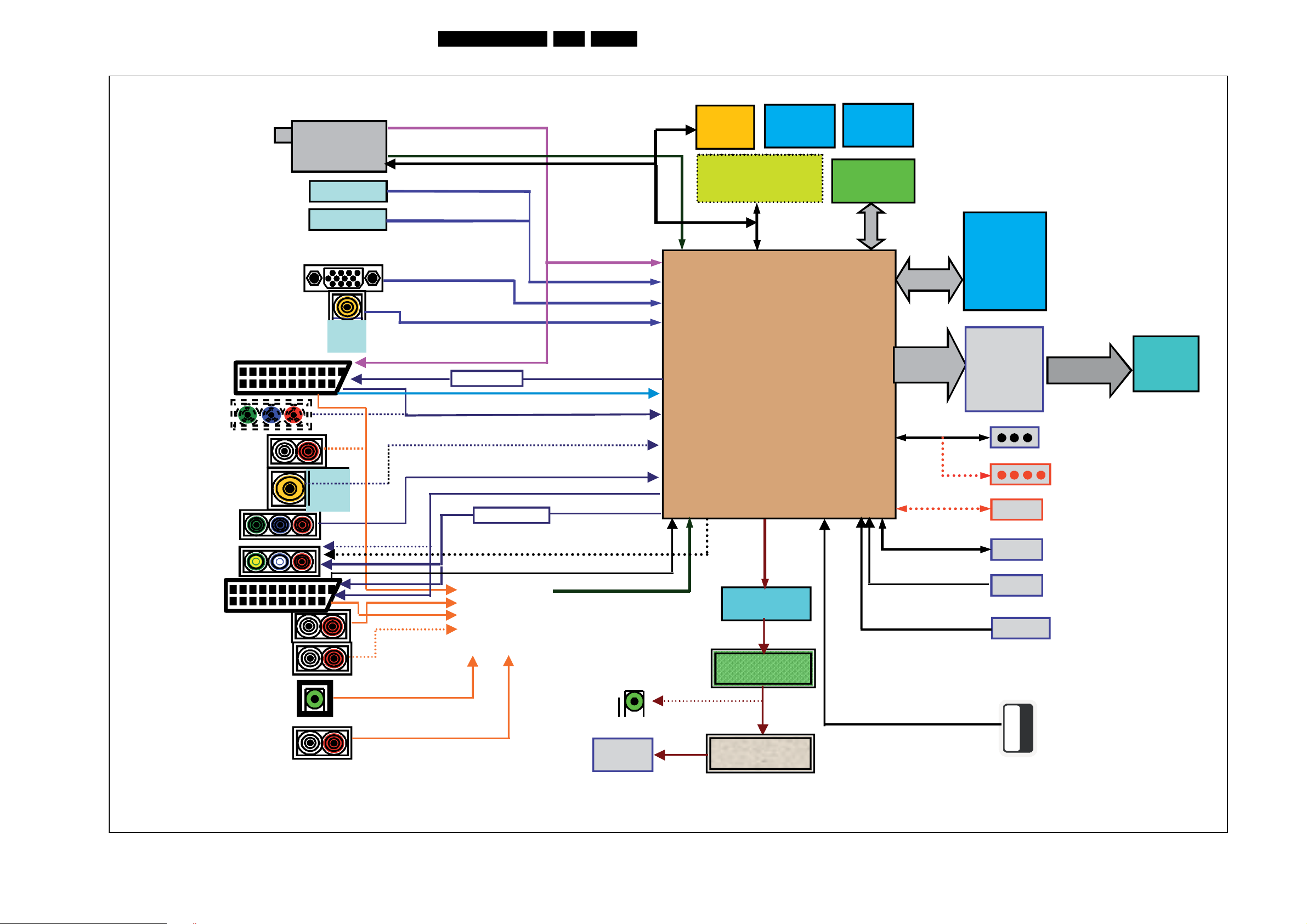

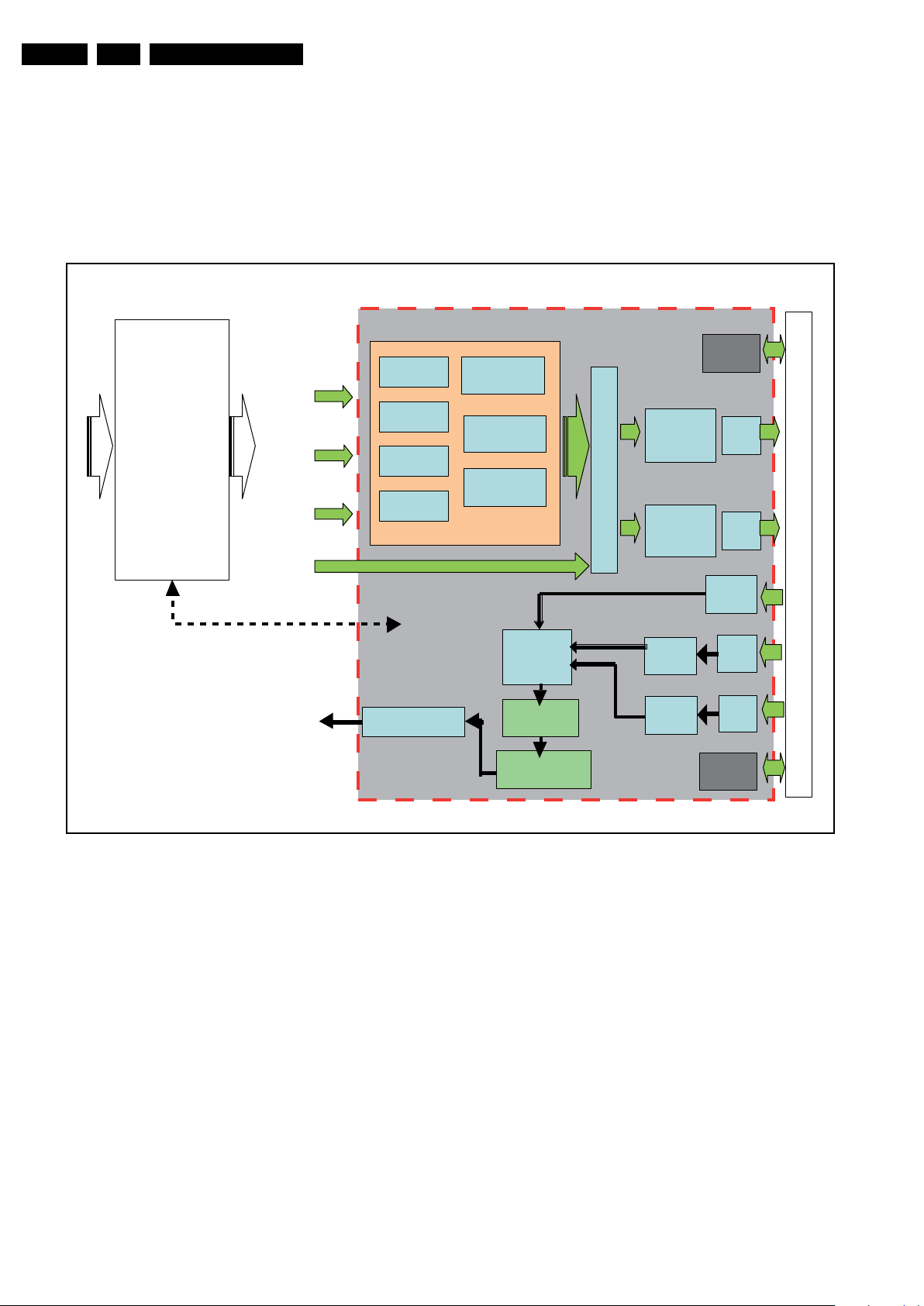

Figure 7-1 Architecture of TPM4.1E LA

7.1.3 SSB Cell Layout

18870_200_100204.eps

100308

MTK8222

ANALOG I/O

DIGITAL I/O

SERVICE

CONNECTOR

DC - DC CONVER

SION

TUNER

TCON

AUDIO CLASS - D

Circuit Descriptions

EN 21TPM4.1E LA 7.

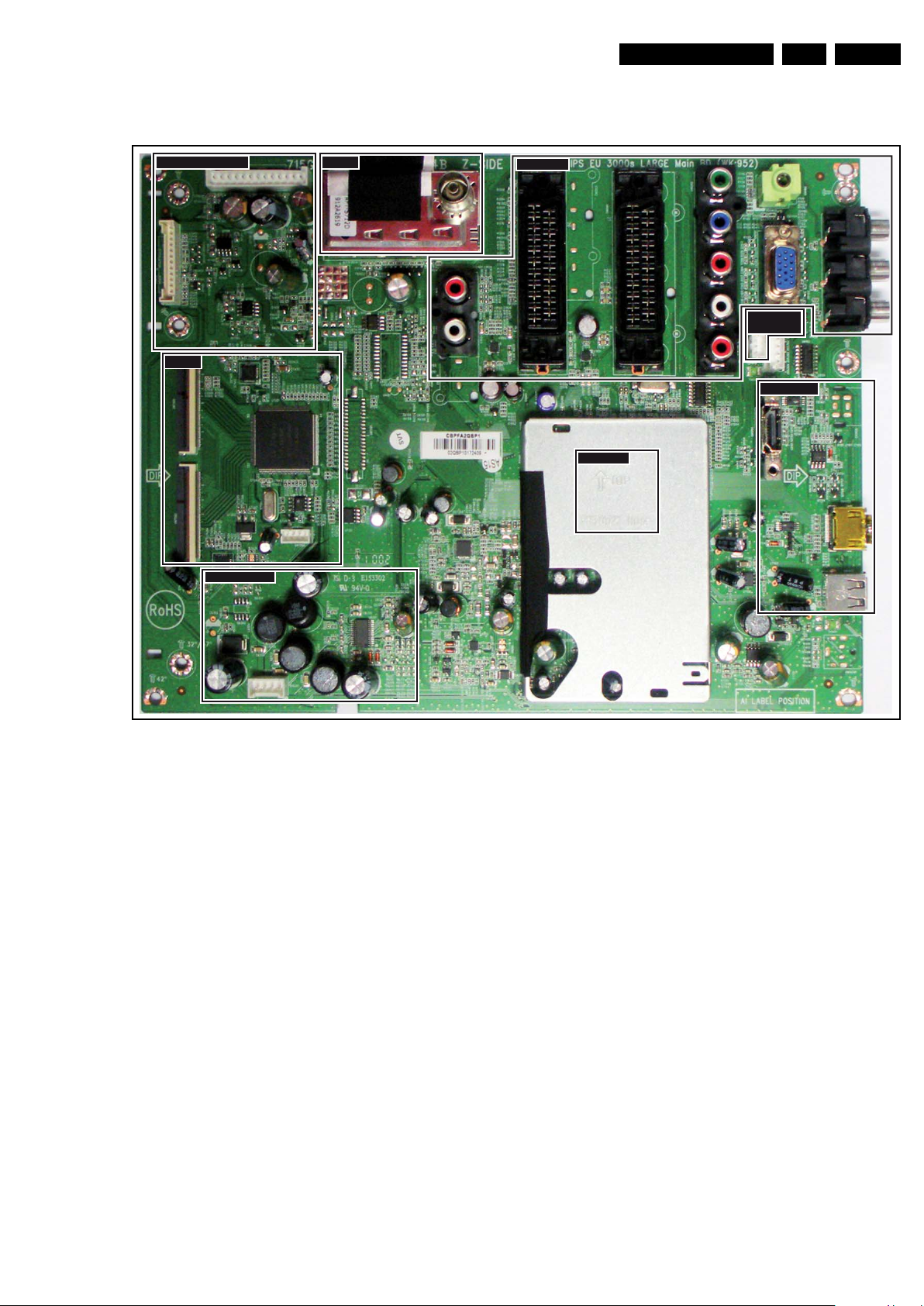

Figure 7-2 SSB layout cells (top view)

2011-Jan-21

EN 22 TPM4.1E LA7.

LP2996

U5102

DDR

U5101

G973
U7106

+3V3

Audio OP
U1501
U1502
U6202

TUNER

TU1601

AME5106

U7105

DV10

OPTION

OPTION

MT8222

U4201

+5V_ON

TPA3110

U6301

AMP_EN

24C32
U4103

+24V

SI4835
Q7106

+5V

5V_PWR_SW

TPS62203

U7101

WT6703F

U4101

+3.3V_STBY

+5V_STBY

SI4835
Q7102

PANEL_PWR_CTL

+12V

Audio switch

U6101
U6102

G9084T43U

U7102

DDRV

FLASH
U4104

SI4835
Q7106

AUD_PWR_SW

CS4344
U4203

LDO G912T63U
1A/1.2V

U7104

AV12

PANEL_VCC

7805
U1602

OPTION

OPTION

+5V_TUNER

VTT
+1.25V

18870_404_100211.eps

100308

7.2 Power Architecture

Refer to figure Figure 7-3 for the power architecture of this
platform.

Circuit Descriptions

7.2.1 Power Supply Unit

1. +5V: It will transform 3.3V, DV 1.0V,5V on.

2. 3.3V: it can’t be controlled by MCU. It transform AV1.2 V for
analog core power.

3. DV1.0V: It is digital core power.

4. 5V on: it can be controlled by MCU. It transform 2.6V V for

5. 12V: it is for panel power, it can be controlled by MCU.

DDR power.

6. 24V: it is for audio power, it can be controlled by MCU.

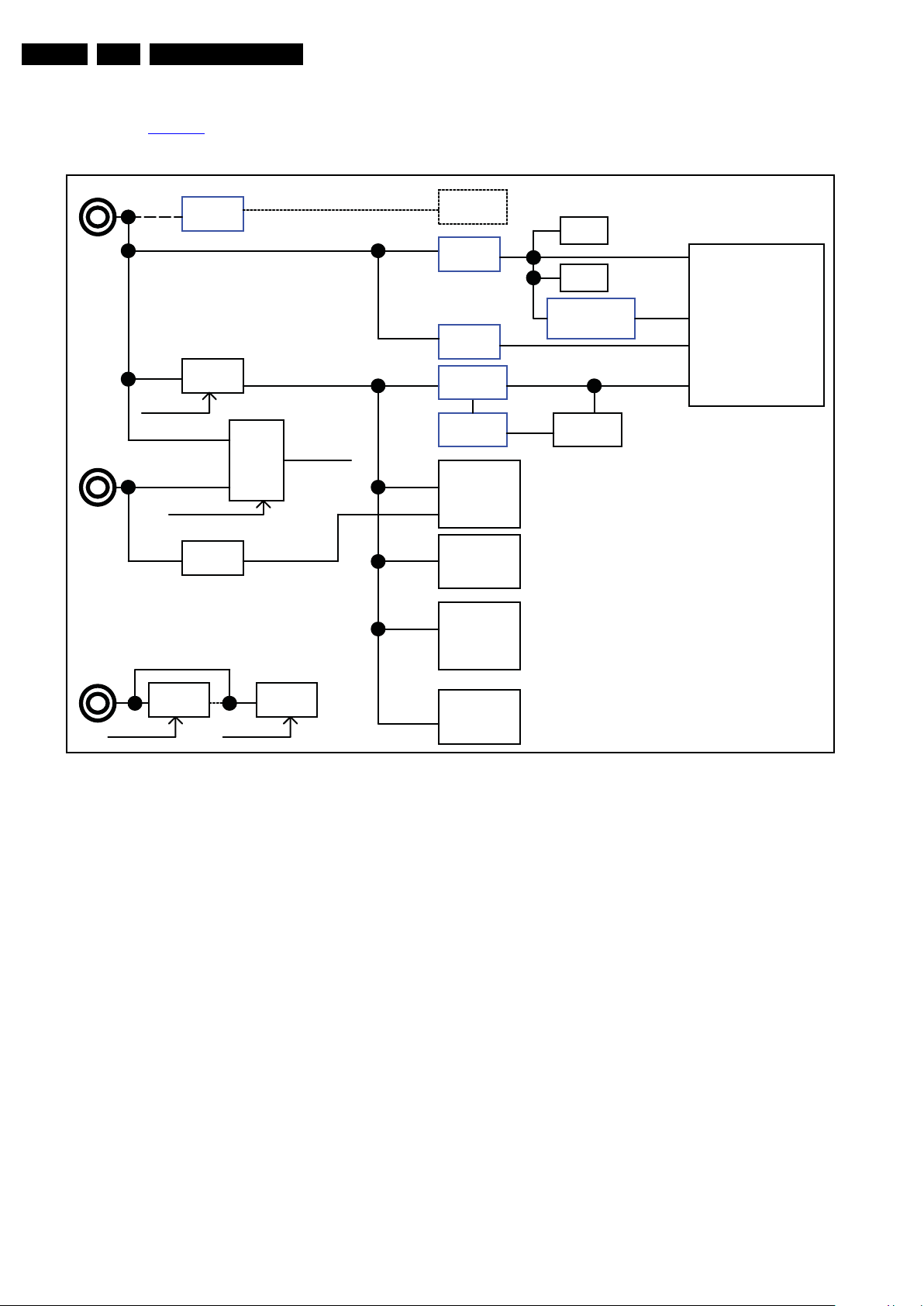

Figure 7-3 Power Architecture TPM4.1E LA platform

2011-Jan-21

7.3 T-CON Architecture

T-con chip
TL2428MC

Gamma

V-com buffer

P-Gamma/V -

com

EEPROM

24C32

Mini LVDS

GCLK

Level shifter

LVDS from
Scaler chip

Panel Vcc

DC to DC (HVDD)

DC to DC (VGH/VDD/VCC/VGL)

Panel Module

18870_404_100211.eps

100308

Refer to figure Figure 7-4 for the power architecture of this
platform.

Circuit Descriptions

EN 23TPM4.1E LA 7.

7.3.1 T-CON Unit

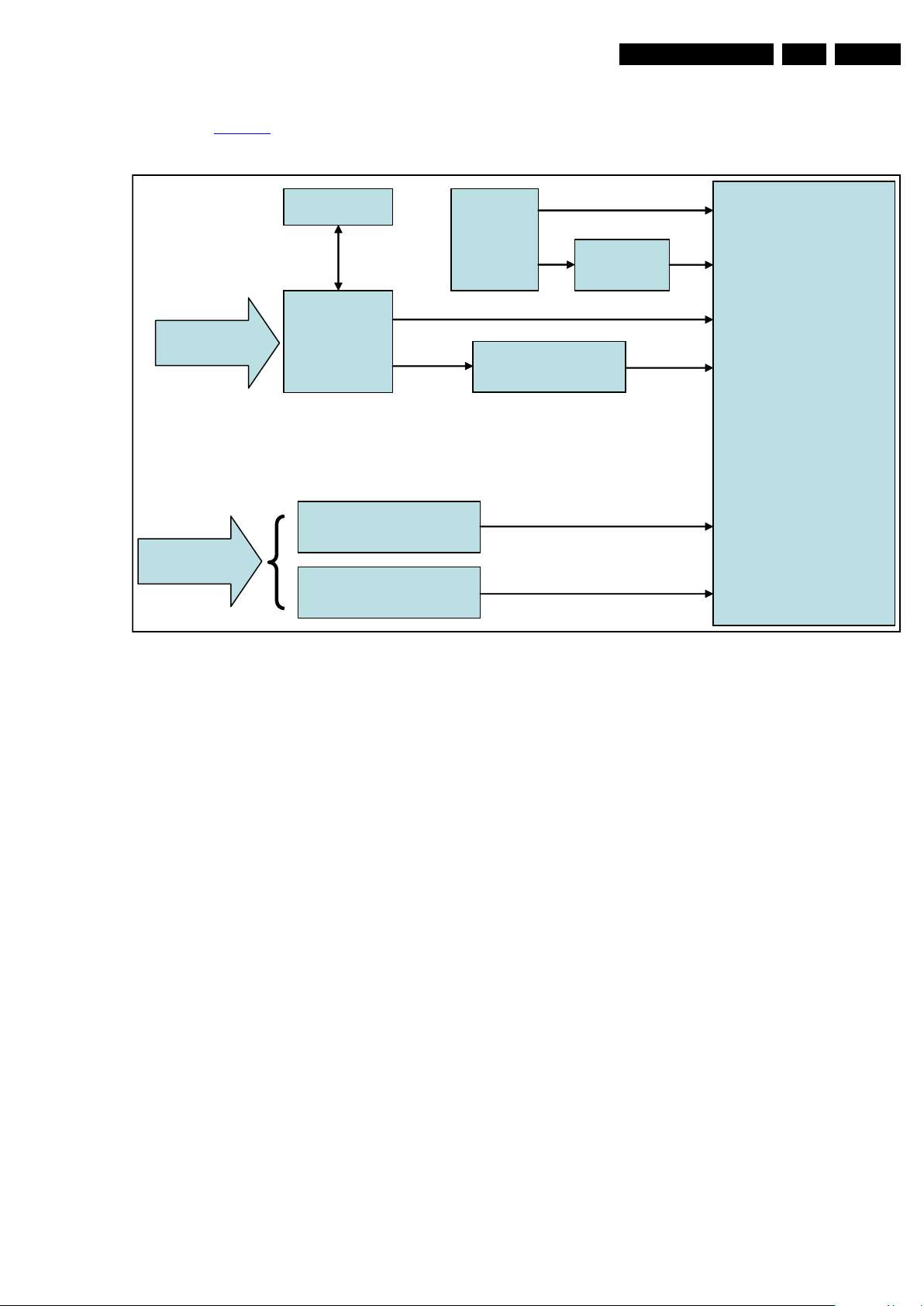

Figure 7-4 T-CON Architecture TPM4.1E platform

The T-CON section includes the T-CON IC, a Level shift IC, a
DC to DC conversion IC and a correction Gamma IC. The
T-CON IC will transform the LVDS signal into a mini-LVDS
signal with a 6 pairs Level shifter IC. This is a 9 channel
level-shifter intended for use in LCD display applications such
as TVs and monitors. The device converts the logic-level
signals generated by the Timing Controller (T-CON) to the
high-level signals used by the display panel. The gamma IC
outputs eight voltage references for gamma correction in TFT
LCDs and one voltage reference for VCOM. Each gamma
reference voltage has its own 10-bit digital-to-analog converter
(DAC) and buffer to ensure a stable voltage. The VCOM
reference voltage has its own 10-bit DAC and an amplifier to
ensure a stable voltage when critical levels and patterns are
displayed. The DC to DC IC multiple-output power-supply
controller generates all the supply rails for thin-film transistor
(TFT) liquid-crystal display (LCD) panels in TVs and monitors
operating from a regulated 12 V input. It includes a step-down
and a step-up regulator, a positive and a negative charge
pump, a dual-mode logic controlled high-voltage switch control
block, and an adjustable timing power-good output. The
positive and negative charge-pump regulators provide the TFT
gate driver supply voltages.

2011-Jan-21

EN 24 TPM4.1E LA8.

18870_300_100211.eps

100616

Block diagram

CVBS / SV

(8 ×)

Analog Front End

ADC

3D TVD

8032

Main Path

(Customer)

External

Switches

YPbPr

(2 ×)

VGA

ADC

ADC

ADC

HDTVD

VGAD

MDDi

PIP Path

DS

HDMI × 3

Digital Path

MDDi

DS

OSD

Control Signal (GPIO,...)

LVDS

LVDS

Tx

Merge

Gamma

Dithering

Color

Color

US

US

DSP

DRAM

MU

X

IC Data Sheets

8. IC Data Sheets

This section shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram B09 SSB: MTK8222, MTK8222TMMU/B LQFP256 (IC U4201)

Figure 8-1 Internal block diagram

2011-Jan-21

IC Data Sheets

18870_301_100211.eps

100305

Pinning information

EN 25TPM4.1E LA 8.

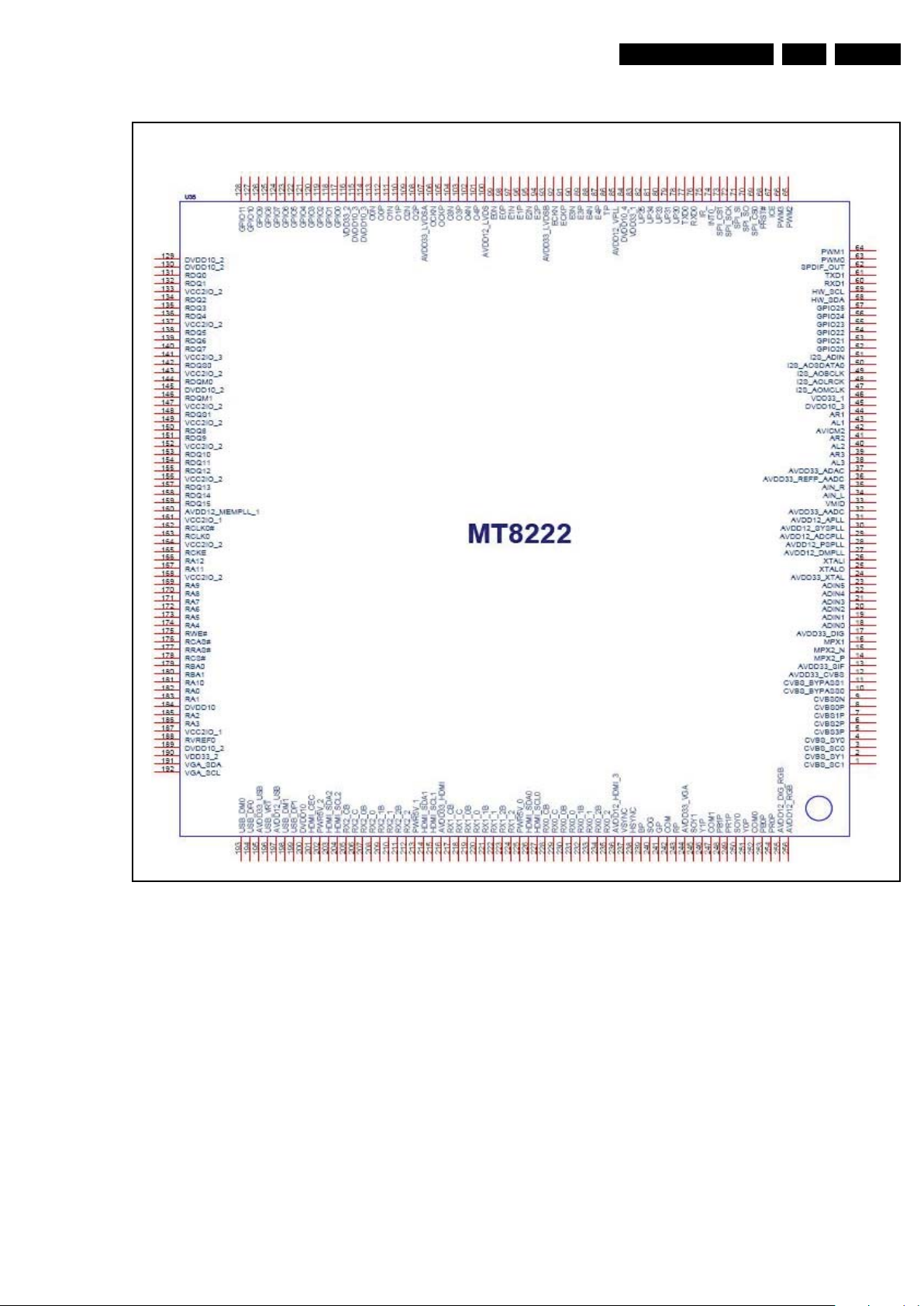

Figure 8-2 Pin configuration

2011-Jan-21

EN 26 TPM4.1E LA8.

18850_305_100107.eps

100223

Block diagram

Pinning information

RLV0~6P/M

OPC + ODC

TCON

mini-L VDS

TFT LCD ARRAY

Source

Driver 1

Source

Driver 2

Source

Driver 5

Source

Driver 8

Internal

SSIC

VST

SOE,POL

2

1RxA~E

2RxA~E

1RxCLK

2RxCLK

LVDS

Input

Frame Memory

SDRAM
(16Mbit)

EEPROM

(LUT)
16Kbit
or 32Kbit

S

C

L

S

DA

LLV0~6P/M

14

14

Gate

Driver

1

Gate

Driver

2

Gate

Driver

n

Gate in

panel

1

Gate in

panel

2

Gate in

panel

n

C

L

K1(FLK)

,

…,GCLK3

(

GSC), … , GCLK6

GIP_ENMPVSS

MPVDD

R

LV0+

RLV0-

MLVDD

R

LV1+

RL

V1-

M

L

VSS

RLV2+

R

LV2-

RLV3+

RLV3-

M

LVDD

RL V4 +

R

L

V4-

RLV5+

RLV5-ML

VSS

RLV6+

RL V6 -

ML

V

DD

LLV0+

LLV0-

M

L

VSS

L

L

V1+

LLV1-

LLV

2+

LL

V

2-

MLVDD

LL

V

3+

LLV

3-

LLV

4+

LLV4-

MLVSS

LLV5+

LLV5-

LLV6+

LLV6-

MLVDD

MLVSS

RMLVDS

MPVSS

MPVDD

132

131

130

1

29128

127

126

125124

123

122121

120

119

118

117116

115

114

113

112

111

1101

09

108

107

106

1

05

104

103

1

02

101

100

99

98

979695

94

93

929190

89

XIN 1 33 88 TESTB

XOUT 134 87TESTA

EOVDD 135 86CGND

EOVSS 136 85CVDD
OPT_N 137 84EEP_SIZE

H_CONV 138 83 NC

EOVDD 139 82GCLK6

EOVSS 140 81GCLK5

POL 141 80NC
SOE 142 79 NC

CVDD 143 78 OGN D

CGND 144 77 OVDD

EOVDD 145 76 GCLK 4(OPT_P)

EOVSS 146 75 GCLK3

CVDD 147 74 GCLK2

CGND 148 73 GCLK1(GSP_ R)

EIVSS 149 72 CGND

EIVDD 150 71 C VDD

I2C_EN 151 70 VDD_EVEN(GOE)

NC 15 2 69 VDD_ODD( GSC)

WP 15 3 68 VST(G SP)

EOVSS 154 67 EIVSS

EOVDD 155 66 EIVDD

OVDD 156 65 FLK1
OGND 157 64 DPM

CVDD 158 63 CGND

CGND 159 62 CVDD

WPWM 160 61 EIVSS

REFM ODE 1 61 60 EIVDD

LEDON 1 62 59 RESET
EOVDD 163 58 EIVSS

EOVSS 164 57 EIVSS

REVERSE165 56 VCORES

CVDD 166 55 TEST D
CGND 167 54 TEST C
OVDD 168 53 OGND
OGND 169 52 OVDD

EOVSS 170 51 CGND

EOVDD 171 50 C VDD

SDA 172 49 EIVDD
SCL 173 48 EI VSS

DISM174 47 ODC_BYPASS

OVDD 175 46 MODE[ 1]

]

1

2

3

456

789

10

11

12

13

14

15

161718

192021

22

23

24

25

26

272829

30

31

32

33

34

35

36

37

38

39

40

414243

44

O
G
ND

O
V
DD

P
W

M
_

T
IN

PW

M_
T

O
UT

O
P
C
_

EN

C
V
DD

CGND

L
G

ND

LVDD

R1AM

R1AP

R1BMR1BPL

V
DD

R1CM

R1CP

R
1C

LKM

R
1C

LKP

L
G

ND

R
1
DM

R
1
DP

R
1
EM

R
1
EP

R
2
AM

R
2
AP

R2
BM

R2
BP

L
VDD

R2CM

R2CP

R
2
C
L
KM

R2 C LK P

L
GND

R2DMR2DPR2EMR2EPC

G
ND

C
V
DD

B
I

T
_S

EL

FSELR

BF

O
V
DD

OG

ND

IC Data Sheets

8.2 Diagram B16 SSB: T-CON, LCD Panel I/F, TL2428MC LQPF-176 (IC U7201)

OGND 176 45 MODE[0

2011-Jan-21

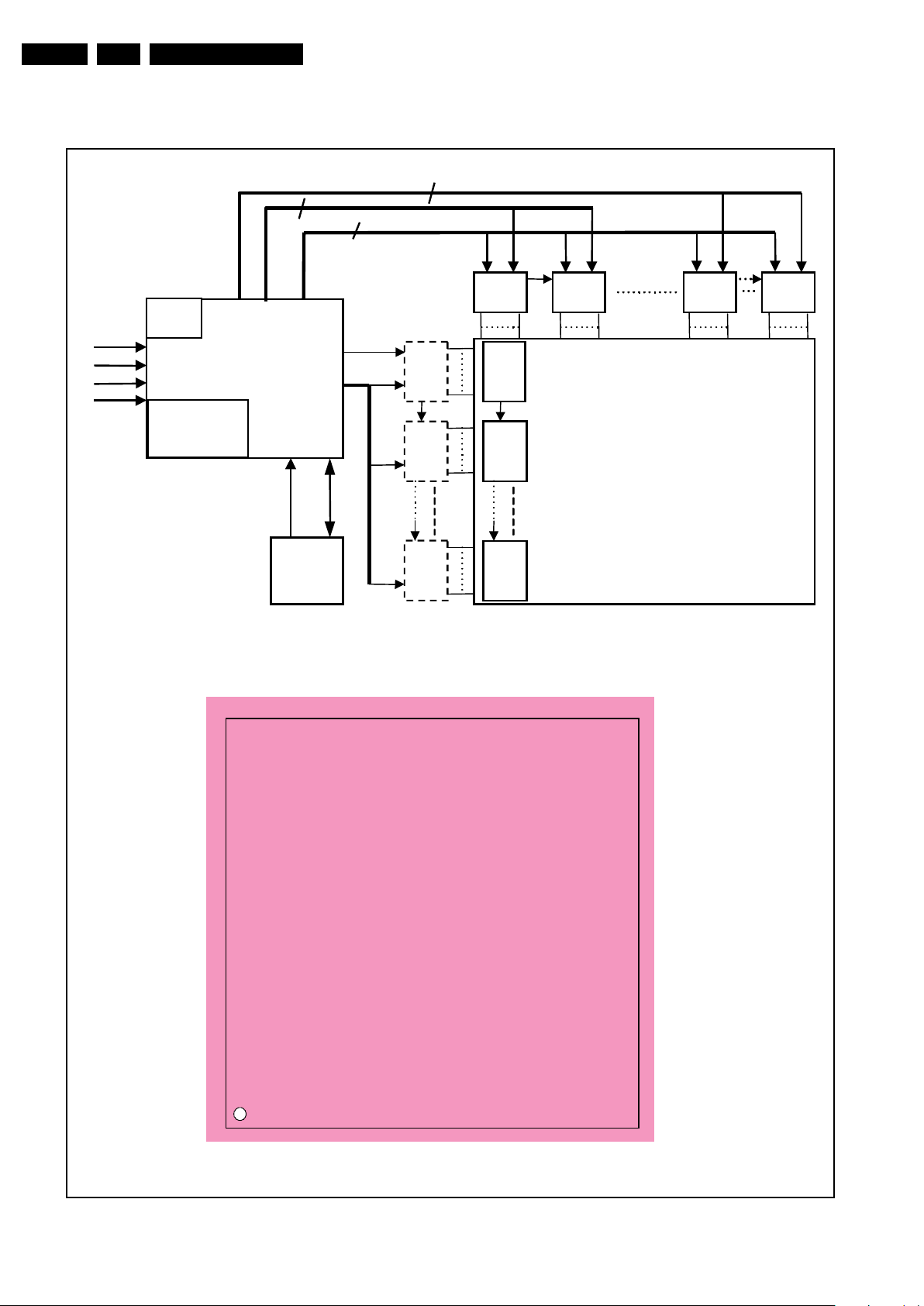

Figure 8-3 Internal block diagram and pin configuration

8.3 Diagram B17 SSB: T-CON DC/DC, TPS65192RHDR QFN-28 (IC U7402)

18850_306_100107.eps

100223

Block diagram

Pinning information

IN7

1

IN6

2

IN5

3

IN4

4

5

IN9

6

IN8

2
NI

8

1NI

9

10

1
1

12

1TUO

13

28

1KLF

27

LGV

26

DNG

25

ER

24

1H

G
V

23

OUT9

21

OUT8

20

OUT7

19

OUT6

18

OUT5

17

OUT4

16

Exposed

IN3

7

OUT3

15

2T
U

O

14

2HGV

22

EGRAH

CS
ID

3KLF

ESNESV

2KLF

VGH1

IN1

IC Data Sheets

EN 27TPM4.1E LA 8.

FLK1

FLK2

FLK3

RE

OUT1

VSENSE

GND

VGH2

IN2

IN3

IN4

IN5

IN6

IN7

IN8

IN9

OUT2

OUT3

OUT4

OUT5

OUT6

OUT7

-

V

+

REF

DISCHARGE

VGL

OUT8

OUT9

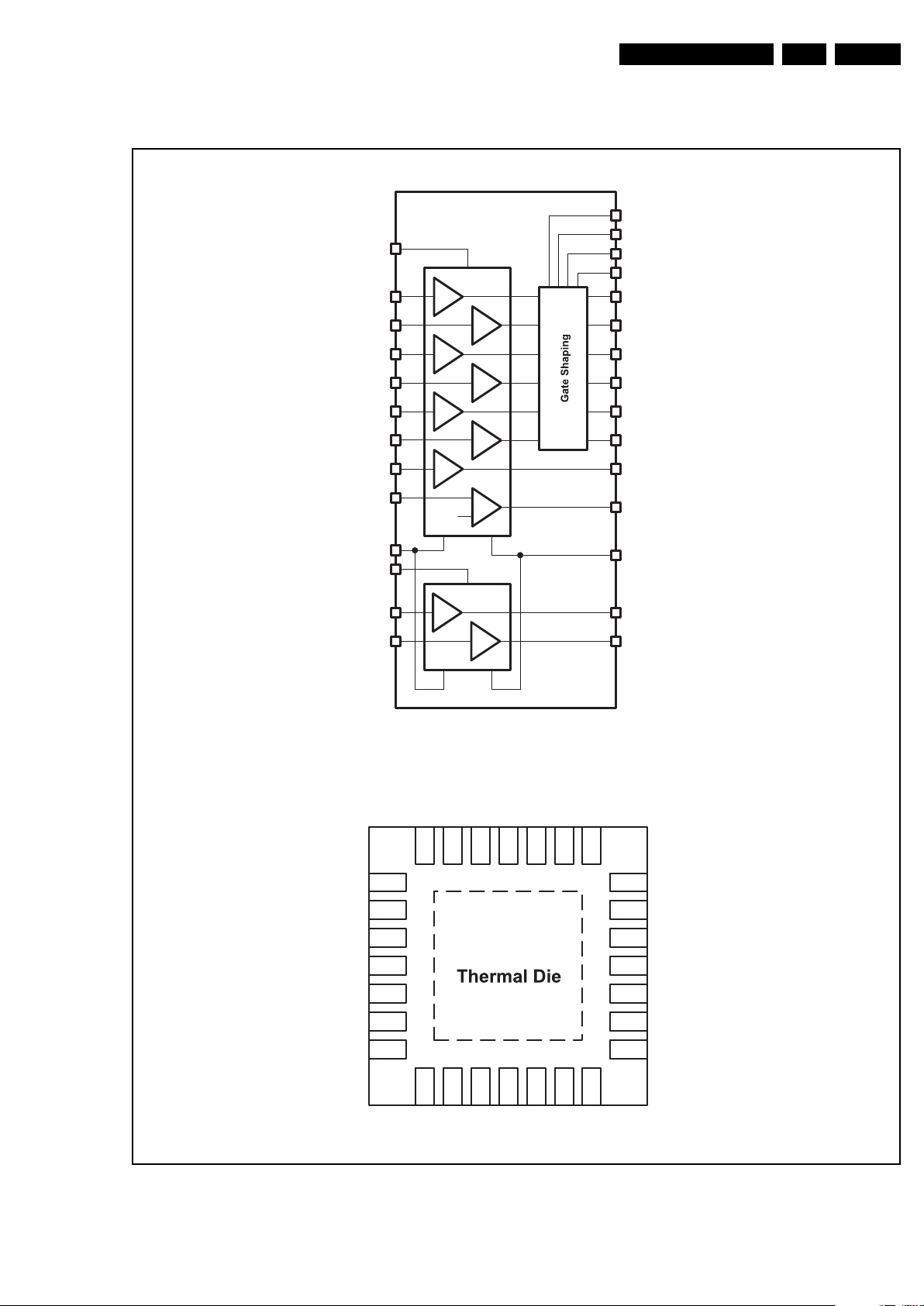

Figure 8-4 Internal block diagram and pin configuration

2011-Jan-21

EN 28 TPM4.1E LA8.

18850_307_100107.eps

100223

Block diagram

Pinning information

MAX9668

'$&

REGISTERS

I

2

C

REGISTERS

I

2

C

INTERFACE

MTP

MEMORY

10-BIT

DAC

10

GMA1

AVDD

10

10-BIT

DAC

10

GMA2

10

10-BIT

DAC

10

GMA3

10

10-BIT

DAC

10

GMA4

10

10-BIT

DAC

10

GMA5

10

10-BIT

DAC

10

GMA6

10

10-BIT

DAC

10

GMA7

10

10-BIT

DAC

10

GMA8

10

DVDD

SDA
SCL

A0

10-BIT

DAC

10

AVDD_AMP

VCOM_FB
GND_AMP

VCOM

10

GND

19

20

18

17

7

6

8

A0

AGND_AMP

VCOM

9

SDA

GMA5

GMA3

GMA2

GMA6

12

GMA7

45

15 14 12 11

GMA8

SCL

N.C.

AVDD

AVDD_AMP

VCOM_FB

MAX9668

DVDD

GMA4

3

13

N.C.

16

10

GMA1

AVDD

EP*

+

IC Data Sheets

8.4 Diagram B17 SSB: T-CON DC/DC, MAX9668ETP+ TQFN-EP-20 (IC U7401)

2011-Jan-21

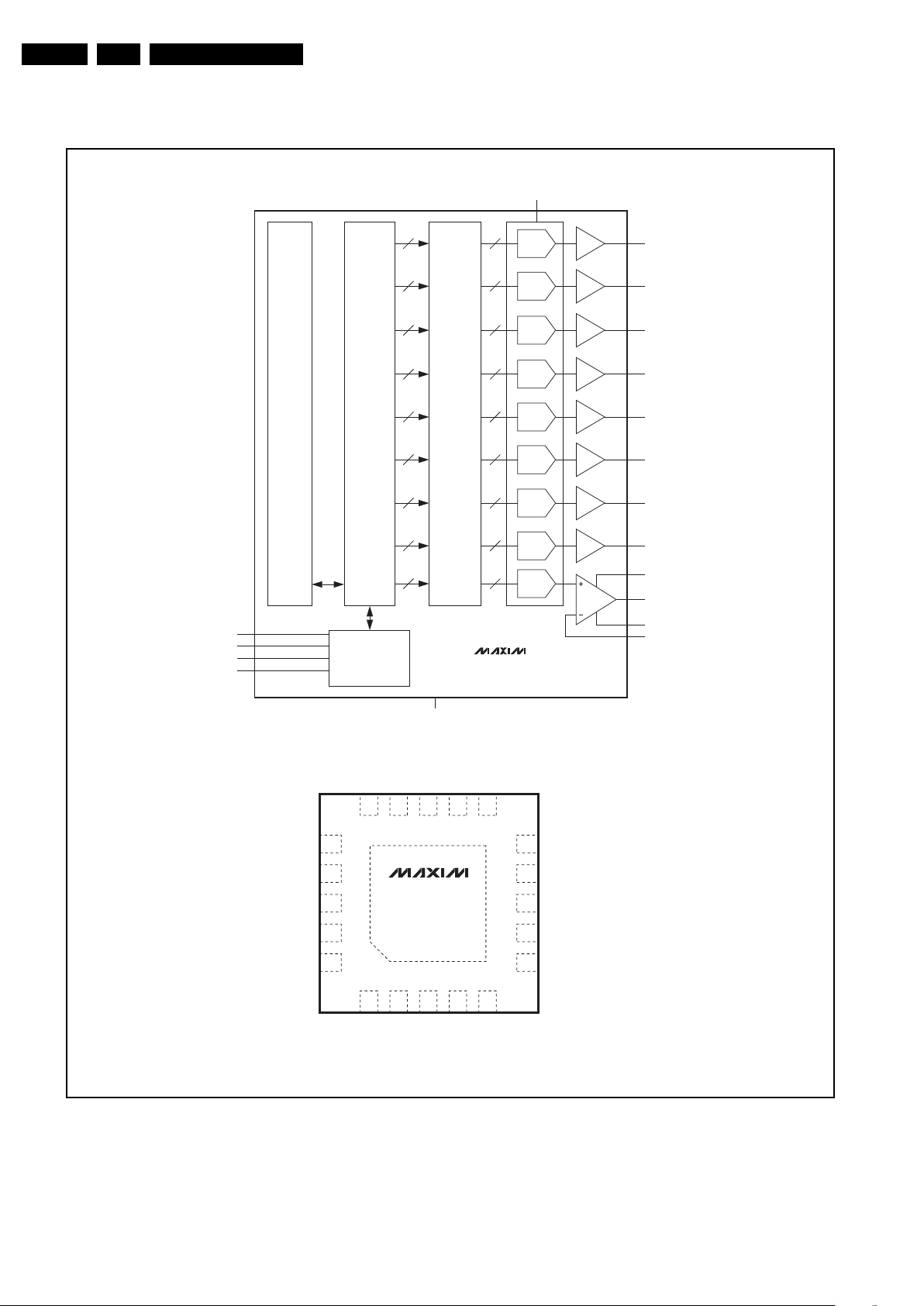

Figure 8-5 Internal block diagram and pin configuration

9. Block Diagrams

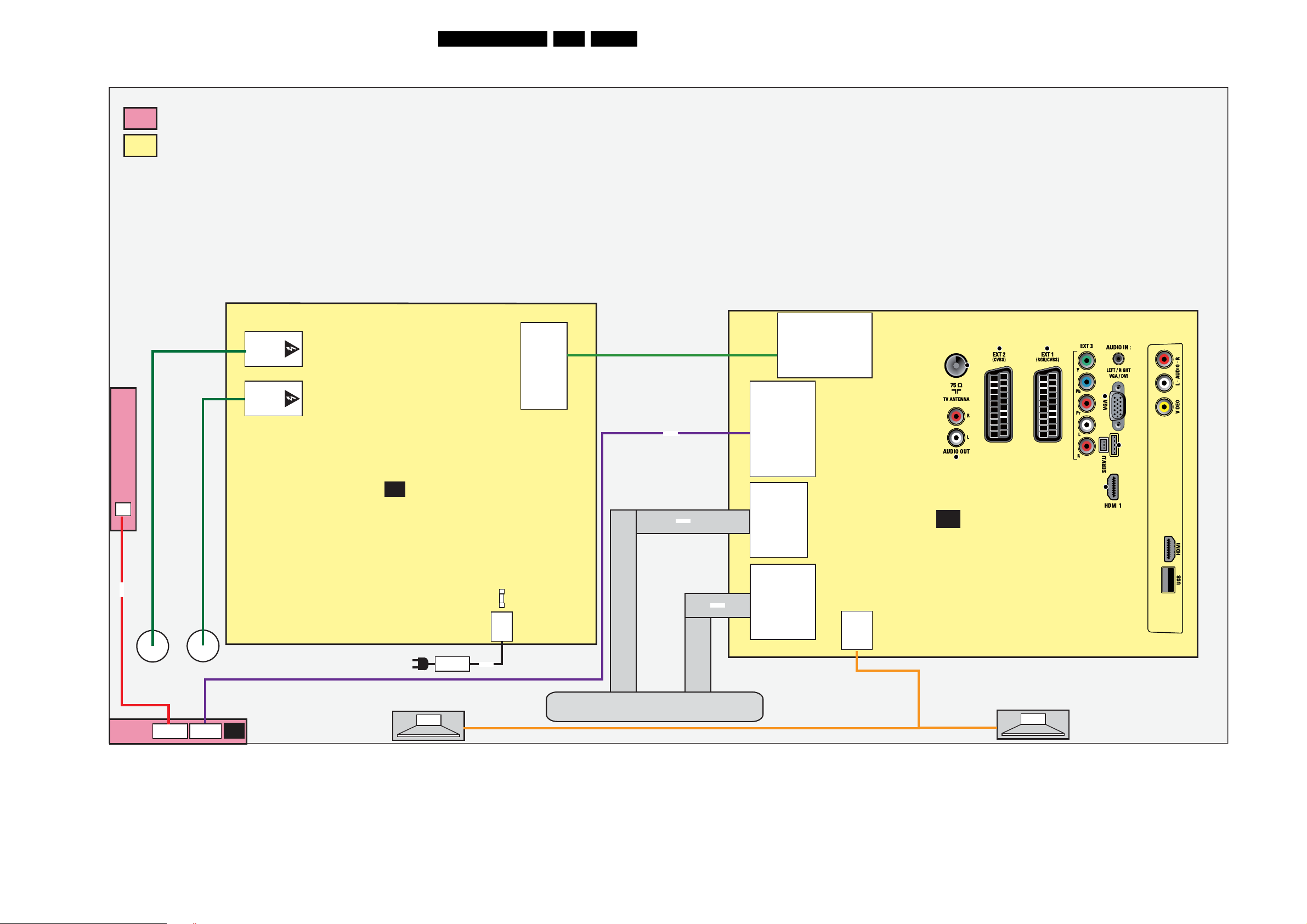

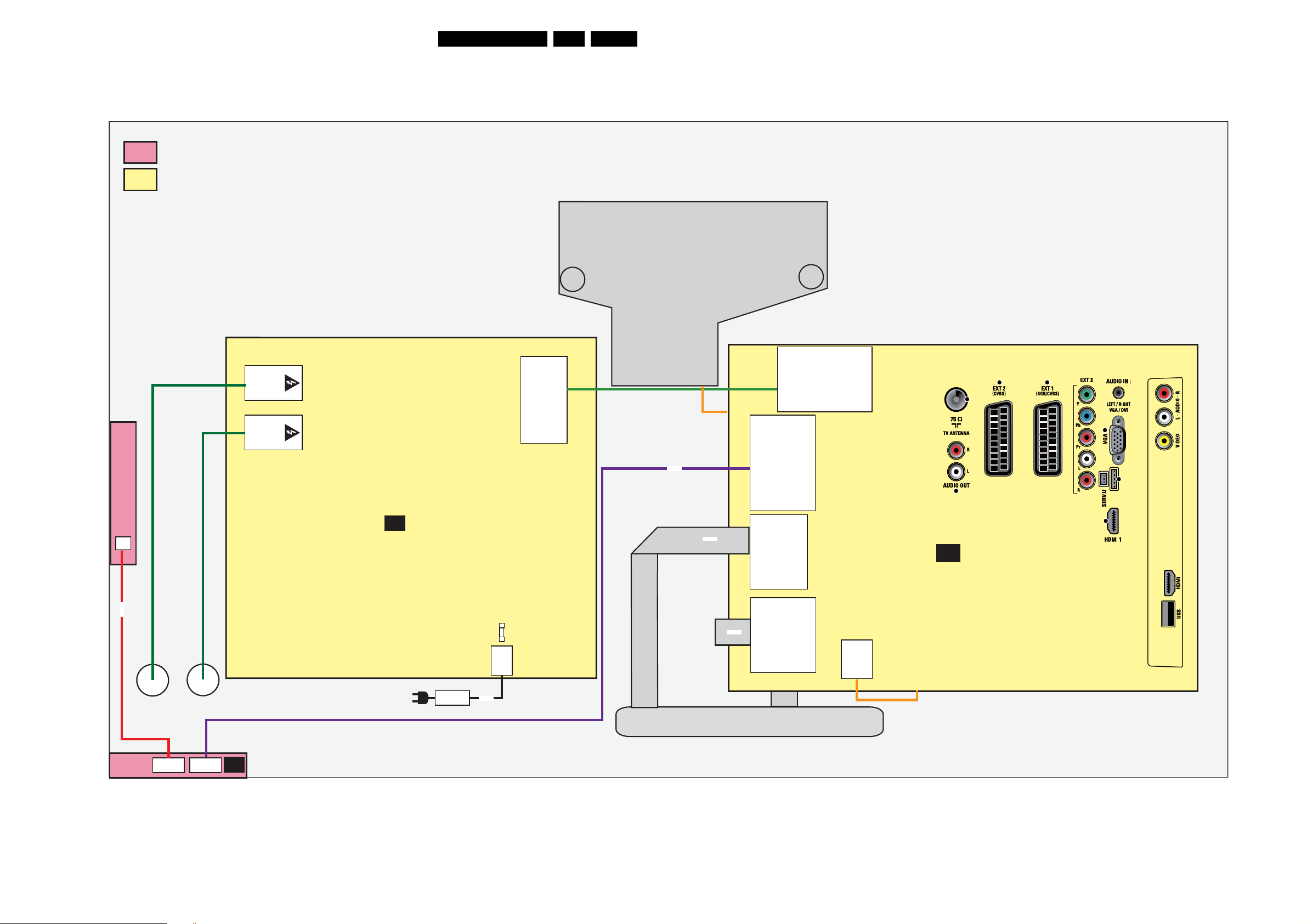

Wiring Diagram (32")

WIRING DIAGRAM 32"

Board Level Repair

Component Level Repair
Only For Authorized Workshop

KEYBOARD CONTROL PANEL

CN803

1. HV2

2. HV2

3. HV2

CN802

1. HV2

2. HV2

3. HV2

Block Diagrams

HIGH VOLTAGE

DANGEROUS

HIGH VOLTAGE

DANGEROUS

MAIN POWER SUPPLY

(1054)

A

CN902

1. ENA

2. DIM

3. +12V

4. +12V

5. GND

6. GND

7. GND

8. +24V

9. +24V

10. S/B

11. +5V

12. +5V

13.

14. INV_OK

EN 29TPM4.1E LA 9.

CN7101

13. LED_ON_OUT

12. +5V_STBY

11. +5V_STBY

10. STANDBY

9. +24V

8. +24V

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. BRIGHTNESS_PWM

1. INVERTER_ON_OFF

CN5401

13.GND

12.LIGHT_SENSOR

11.+5V_ON

10.DC_ON_OFF

9. KEY2

8. KEY1

8807

8802

7. GND

6. +3V3

5. +3V3

4. GND

3. RC_IR_5V

2. LED1_ON

1. LED_2STBY

CN7501

1. GND

2. GMA1

3. GMA3

4. GMA4

5. GMA6

6. GMA7

7. GMA9

8. GMA10
...

62. GND

B

SSB
(1053)

8006

IR LED BOARD

TO

BACKLIGHT

CN02018PCN0202

4P

CN7502

1. GND

2. Z_OUT

3. CLK1

4. CLK2

8803

5. CLK3

INLET

1172

CN1

6. CLK4

7. CLK5

8. CLK6
...

1. N

2. L

LCD DISPLAY

62. GND

(1050)

CN6301

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

J

18870_400_100107.eps

2010-Jan-21

100308

Wiring Diagram (42")

WIRING DIAGRAM 42"

Board Level Repair

Component Level Repair
Only For Authorized Workshop

KEYBOARD CONTROL PANEL

8006

TO

BACKLIGHT

CN803

1. HV2

2. HV2

3. HV2

CN802

1. HV2

2. HV2

3. HV2

Block Diagrams

CN1

CN903

1. ENA

2. DIM

3. +12V

4. +12V

5. GND

6. GND

7. GND

8. +24V

9. +24V

10. S/B

11. +5V

12. +5V

13.

14. POK

1. N

2. L

HIGH VOLTAGE

DANGEROUS

HIGH VOLTAGE

DANGEROUS

MAIN POWER SUPPLY

(1054)

A

EN 30TPM4.1E LA 9.

9. +24V

8. +24V

7. GND

6. GND

5. GND

4. +12V

3. +12V

2. BRIGHTNESS_PWM

8807

8803

8802

1. INVERTER_ON_OFF

CN5401

13.GND

12.LIGHT_SENSOR

11.+5V_ON

10.DC_ON_OFF

9. KEY2

8. KEY1

7. GND

6. +3V3

5. +3V3

4. GND

3. RC_IR_5V

2. LED1_ON

1. LED_2STBY

CN7501

1. GND

2. GMA1

3. GMA3

4. GMA4

5. GMA6

6. GMA7

7. GMA9

8. GMA10
...

62. GND

CN7502

1. GND

2. Z_OUT

3. CLK1

4. CLK2

5. CLK3

6. CLK4

7. CLK5

8. CLK6
...

62. GND

11. +5V_STBY

10. STANDBY

CN6301

1. ROUT-

2. ROUT+

3. LOUT-

4. LOUT+

CN7101

13. LED_ON_OUT

12. +5V_STBY

B

SSB
(1053)

IR/LED BOARD

CN02018PCN0202

4P

INLET

J

RIGHT SPEAKER

1172

LCD DISPLAY

(1050)

RIGHT SPEAKER

18870_401_100107.eps

100308

2010-Jan-21

Block Diagram

Block Diagrams

EN 31TPM4.1E LA 9.

SCART 1

YPbPr 1

YPbPr 1 Audio

AV IN

YPbPr 2

Monitor Out

SCART 2

Side AV Audio

MM Tuner

D-SUB

Side AV

Side S -Video

HDMI 1

HDMI 2

Audio In

RP,GP,BP

CVBS1P

Audio In

TV_CVBS

SIF_P

TV OUT

MAX9728

CVBS2P

CVBS3P

Y,Pb,Pr 2

CVBS out

74HC4052D

(CVBS 0P)

MAX9728

CVBS_SC0

MUX

Audio out(AR2, AL2)

Y,Pb,Pr 1

Audio out(AR3, AL3)

AUDR, AUDL

I2C

24C32

NVRAM

WT6703

STDBY MCU

I2C

MT8222

AR1,AL 1

CS4334

24C02

DSUB EDID

DAC

24C02

DVI EDID

SPI Flash

ROM / 4M

SPI

TTL/LVDS

UART1

DDR

Tcon

TL2428

MC

(5P)

(7P)

(3P)

10P

LCD

Panel

Com Pair

Cloning

(iTV-1)

Video I/F

(iTV-2)

IR Board

Key Board

LIPS/PS

control

AV Audio

PC Audio

YPbPr 2 Audio

Remark : Reserve only for iTV function

HP

2 × (2P)

L-R Speaker

2010-Jan-21

MAX9728

TPA3110D

Side USB

18870_403_100107.eps

100308

Circuit Diagrams and PWB Layouts

10. Circuit Diagrams and PWB Layouts

EN 32TPM4.1E LA 10.

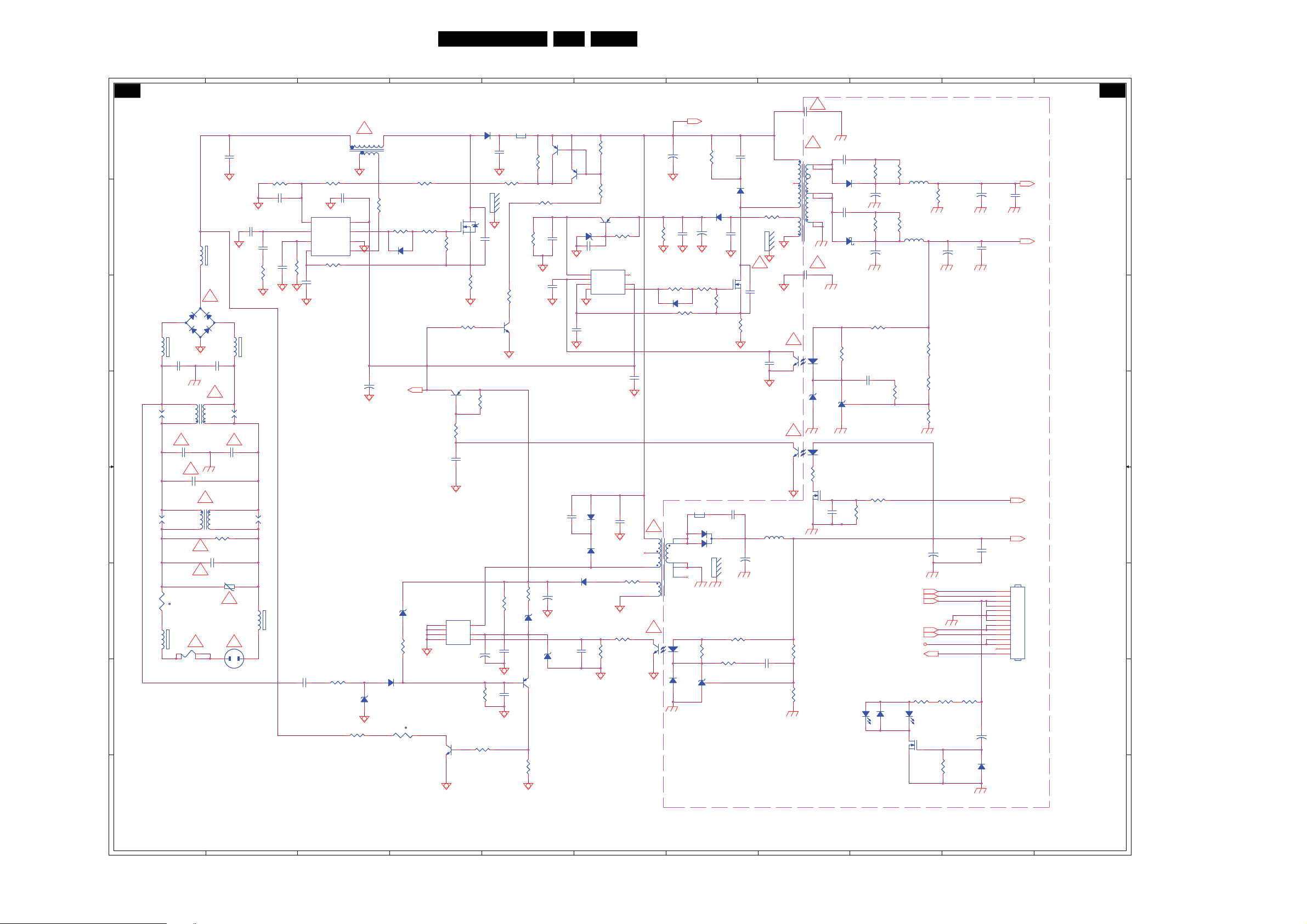

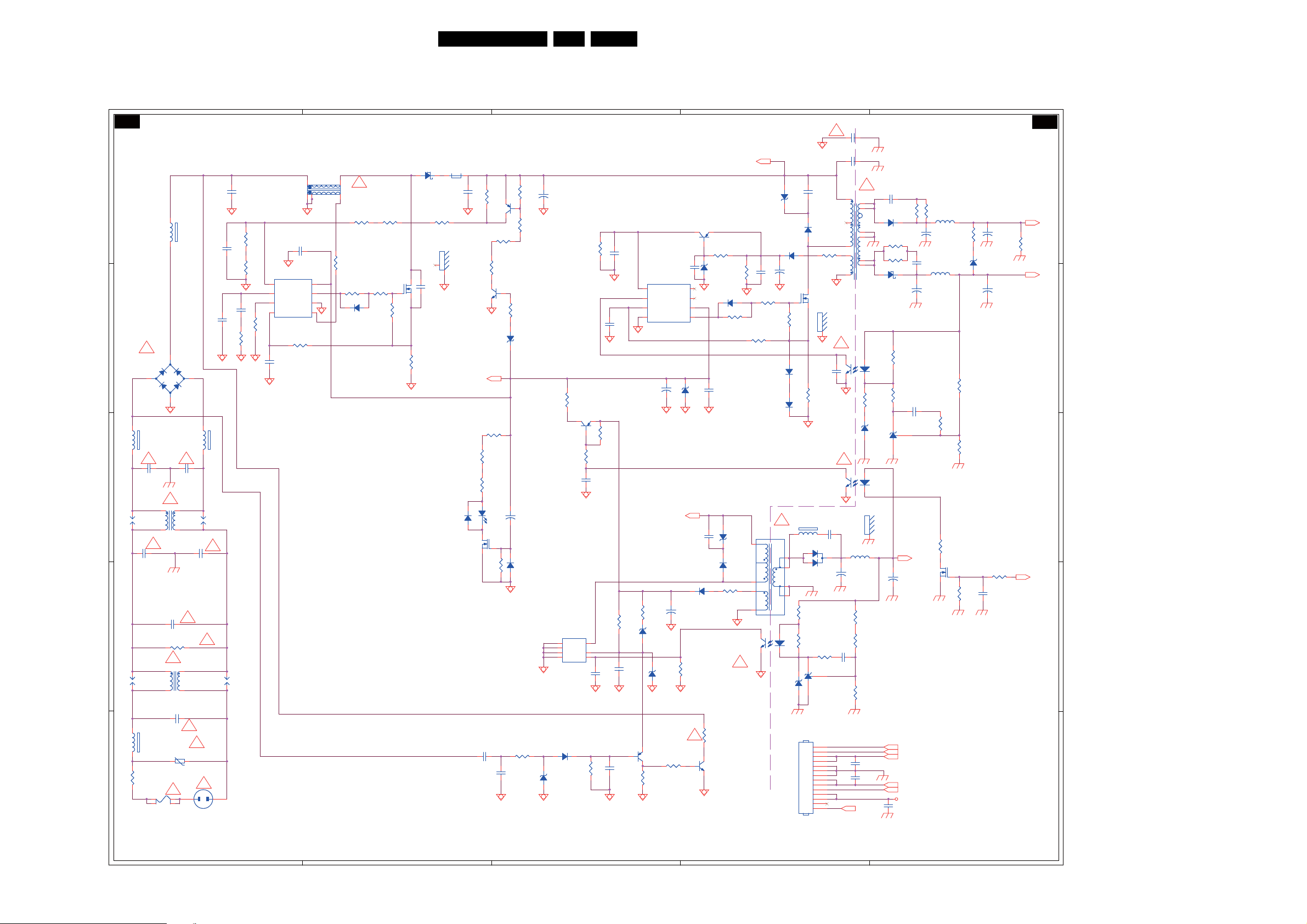

Power Board: Power, 32"

A01

Power

A A

12

B

C C

D D

!

BD901

BD901

TS4B06G

TS4B06G

3

12

FB901

FB901

BEAD

BEAD

! !

C903

C903

470pF/250V

470pF/250V

SG904

SG904

GS41-201MA

GS41-201MA

!

C901

C901

470pF/250V

470pF/250V

0.47uF/275V

0.47uF/275V

R901 1M2 5% 1/2W_NCR901 1M2 5% 1/2W_NC

SG901

SG901

GS41-201MA

GS41-201MA

C908

C908

2

3

3

1

+

+

-

-

4

!

!

C906

C906

0.47uF/275V

0.47uF/275V

FB904

FB904

BEAD

BEAD

FB902

FB902

BEAD

BEAD

C950

C950

470pF/250V

470pF/250V

1

L902

L902

6mH 2.0A

6mH 2.0A

4

!

142

L901

L901

14mH 2.0A

14mH 2.0A

2

12

C902

C902

470pF/250V

470pF/250V

!

1

C942

C942

560PF

560PF

C943

C943

330N 25V

330N 25V

SG903

SG903

GS41-201MA

GS41-201MA

!

C909

C909

1uF/520V

1uF/520V

1U 25V

1U 25V

C944

C944

R959

R959

33K

33K

SG902

SG902

GS41-201MA

GS41-201MA

R957

R957

R958

R958

620R 1/8W 1%

620R 1/8W 1%

18.7K

18.7K

R960

R960

39K

39K

2

D917

D917

FB906FB906

1

4

C946

C946

2U2 25V

2U2 25V

IC909

IC909

1

FB

Comp

Mult

CS

C945

C945

10N 50V

10N 50V

SG6961

SG6961

330R

330R

R965

R965

Vcc

Driver

GND

ZCD

2

3

4

678

8

7

6

5

125

!

L906

L906

CC-011310

CC-011310

R954

R954

1M 1/4W 1%

1M 1/4W 1%

R961

R961

47KOHM +-5% 1/8W

47KOHM +-5% 1/8W

R962

R962

47R

47R

4R7 1/8W 5%

4R7 1/8W 5%

D914

D914

1N4148

1N4148

R955

R955

1M 1/4W 1%

1M 1/4W 1%

FMV11N60ES

FMV11N60ES

R963

R963

R964

R964

22K

22K

Q904

Q904

31DF6

31DF6

C947

C947

220PF/1KV_NC

220PF/1KV_NC

R966

R966

0R15 1W 1%

0R15 1W 1%

C938

C938

1.5NF/1KV

1.5NF/1KV

R956

R956

1MOHM +-1% 1/4W

1MOHM +-1% 1/4W

HQ904HQ904

2

1

D915

D915

BA591WS

BA591WS

R968

R968

Q912

Q912

RK7002

RK7002

Vdd-S

220R 1/8W 5%

220R 1/8W 5%

R9710RR971

0R

R967

R967

22R 1/6W 5%

22R 1/6W 5%

R969

R969

12

LED901

LED901

R970

R970

23

Q911

Q911

PBHV9040T_NC

PBHV9040T_NC

R974

R974

3.3M_NC

3.3M_NC

R975

R975

3.3M_NC

3.3M_NC

Q910

Q910

PMBTA45_NC

PMBTA45_NC

12

220R 1/8W 5%

220R 1/8W 5%

+

+

LED

LED

1M 1/8W 5%

1M 1/8W 5%

+

+

R972

R972

100K_NC

100K_NC

1

R973

R973

3.3M_NC

3.3M_NC

R976

R976

33K_NC

33K_NC

ZD912

ZD912

MTZJ T-72 3.3B_NC

MTZJ T-72 3.3B_NC

C949

C949

10UF/50V

10UF/50V

D916

D916

1N4148

1N4148

C907

C907

120uF 450V

120uF 450V

R916

R916

4.7R

4.7R

10K OHM 1/4W

10K OHM 1/4W

MMBT2907AK

MMBT2907AK

R915

R915

TNY274PN-TL

TNY274PN-TL

5
6

S

7

S

8

EN/UV

S

IC901

IC901

BP/M

Q903

Q903

D4S

3

R917

R917

1

C916

C916

0.01uF_NC

0.01uF_NC

2
1

4

B+

C904

C904

2200PF/250V

2200PF/250V

!

C905

C905

2200PF/250V_NC

2200PF/250V_NC

5

A01

HOT COLD

12

ZD911

ZD911

P6KE200A

P6KE200A

Q905

Q905

BC857C

BC857C

R919

C917

C917

HV

NC

1 2

2n2/500V

2n2/500V

R913

R913

390K

390K

330P 50V

330P 50V

8

7

6

5

ZD909

ZD909

C911

C911

BZX79-C20

BZX79-C20

D904

D904

RGP10D

RGP10D

R919

10KOHM +-5% 1/8W

10KOHM +-5% 1/8W

ZD905

ZD905

BZX79-B18

BZX79-B18

1 2

D907

D907

LL4148

LL4148

R921

R921

100 OHM +-5% 1/8W

100 OHM +-5% 1/8W

1U 25V

1U 25V

C922

C922

12

12

ZD904

ZD904

P6KE160A

P6KE160A

D905

D905

UF1007

UF1007

R918

R918

0R05 1/4W

0R05 1/4W

R920

R920

1.5K 1/4W

1.5K 1/4W

1K 1/8W

1K 1/8W

IC906

IC906

EL817MA

EL817MA

!

R924

R924

T902

T902

PPH7019AL

PPH7019AL

1

3

3

2

4

5

R922

R922

10 OHM

10 OHM

43

C948

C948

330N 50V

330N 50V

R923

R923

D906

D906

D913

D913

!

+

+

12

10K

10K

C919

C919

0.01uF

0.01uF

IC902

IC902

1

Skip/latch

2

FB

3

CS

GND

NCP1271D65R2G

NCP1271D65R2G

C921

C921

22uF/50V

22uF/50V

R912

R912

47R

47R

ZD903

ZD903

BZX79-C15

BZX79-C15

ZD910

ZD910

1 2

BZX79-C9V1

BZX79-C9V1

VCC

DRV

+

+

B+

C912

C912

+

+

47uF/50V

47uF/50V

4

C923

C923

100P 50V

100P 50V

23

R914

R914

22K 1/8W

22K 1/8W

R911

R911

12K

12K

1 2

C914

C914

C913

C913

0.1uF

0.1uF

100pF

100pF

D908

D908

RGP10D

RGP10D

C920

C920

47UF 50V_NC

47UF 50V_NC

22K +-5% 1/8W

22K +-5% 1/8W

RGP10D

RGP10D

RGP10D

RGP10D

FB903

FB903

1

BF-L25030W-768

BF-L25030W-768

10

9

D912 SP1060D912 SP1060

8

7

ZD908

ZD908

1 2

MTZJ T-72 6.2B

MTZJ T-72 6.2B

D909

D909

UF1007

UF1007

Q901

Q901

TO-220F

TO-220F
FQPF3N80C

HQ901HQ901

R925

R925

0R82 1W 5%

0R82 1W 5%

1

3

R948

R948

100R 1/8W 5%

100R 1/8W 5%

R949

R949

3.3K

3.3K

IC907

IC907

KIA431A-AT/P

KIA431A-AT/P

C924

C924

0.0022uF/500V

0.0022uF/500V

R926

R926

100 OHM 1/4W

100 OHM 1/4W

1

C918

C918

1N 50V

1N 50V

C932

C932

0.0022uF/500V

0.0022uF/500V

2

R950

R950

0R051/8W

0R051/8W

2

1

2

3

5

6

POWER ER-28

POWER ER-28

!

43

!

43

L905

L905

0.8uH

0.8uH

C933

C933

2200uF 10V

2200uF 10V

+

+

C935

C935

0.1uF

0.1uF

!

T901

T901

7

8

9
10

11
12

12

1 2

12

R9440RR944

0R

R945

R945

12K 1/8W 1%

12K 1/8W 1%

R947

R947

10K5 1/8W 1%

10K5 1/8W 1%

IC903

IC903

EL817MA

EL817MA

R940

R940

100 OHM

100 OHM

ZD907

ZD907

IC905

IC905

EL817MA

EL817MA

HD912HD912

1

C925

C925

470PF/1KV

470PF/1KV

D910

D910

HER303G-18

HER303G-18

R932

R932

100 OHM

100 OHM

R933

R933

100 OHM

100 OHM

1 2

D911

D911

SR310-24

SR310-24

MTZJT-7213B

MTZJT-7213B

+

+

R930

R930

100 OHM

100 OHM

R937

R937

4.7K OHM 1/8W

4.7K OHM 1/8W

R938

R938

1K OHM 1/8W

1K OHM 1/8W

C931 22nF25VC931 22nF25V

IC904

IC904

KIA431A-AT/P

KIA431A-AT/P

+5VSB

C934

C934

47uF/50V

47uF/50V

C928

C928

470PF/1KV

470PF/1KV

+

C929

+

C929

1000uF/16V

1000uF/16V

RK7002

RK7002

100 OHM

100 OHM

R931

R931

L903

L903

0.8uH

0.8uH

+

+

C926

C926

470uF 35V

470uF 35V

L904

L904

0.8uH

0.8uH

R935

R935

10K 1/8W 1%

10K 1/8W 1%

Q907

Q907

R934

R934

47R

47R

ZD906

ZD906

P6KE13A

P6KE13A

R939

R939

1.5K

1.5K

R936

R936

2.61K

2.61K

R941

R941

2.2K OHM 1/8W

2.2K OHM 1/8W

C927

C927

+

+

47uF/50V

47uF/50V

R953

R953

1.2K OHM 1W_NC

1.2K OHM 1W_NC

1 2

+

+

C930

C930

47uF/50V

47uF/50V

BD901 B1 CN901 E1 CN902 E4 C901 C1
C902 C1 C903 C1 C904 A4 C905 A4
C906 D1 C907 A3 C908 D1 C909 A1
C910 E2 C911 C4 C912 D3 C913 D3
C914 D3 C915 E3 C916 C3 C917 B4
C918 B4 C919 A3 C920 B4 C921 B3
C922 B4 C923 B3 C924 A4 C925 A5
C926 A5 C927 A5 C928 A5 C929 B5
C930 B5 C931 B5 C932 C4 C933 C4
C934 D5 C935 D4 C936 D5 C937 E3
C938 A2 C939 E4 C940 E4 C941 E5
C942 A1 C943 B1 C944 B1 C945 B1
C946 A1 C947 B2 C948 B4 C949 C3
C950 C1 D902 E3 D904 D4 D905 C4
D906 B4 D907 B4 D908 A4 D909 A4
D910 A5 D911 B5 D912 C4 D913 B4
D914 B2 D915 C2 D916 C3 D917 A2
FB901 C1 FB902 C1 FB903 C4 FB904 A1
FB905 E1 FB906 A2 F901 E1 HD912 C4
HQ901 B4 HQ904 A2 IC901 D3 IC902 B3
IC903 B4 IC904 C5 IC905 C4 IC906 D4
IC907 D4 IC909 B1 LED901 C2 L901 D1
L902 C1 L903 A5 L904 B5 L905 C4
L906 A2 Q901 B4 Q902 E3 Q903 C3
Q904 B2 Q905 A4 Q907 C5 Q909 E4
Q910 B2 Q911 A3 Q912 C2 RV901 E1
R901 D1 R906 E3 R907 E3 R908 E3
R909 E3 R910 E4 R911 D3 R912 D3
R913 D3 R914 C3 R915 C3 R916 B3
R917 A3 R918 D4 R919 A4 R920 B4
R921 B4 R922 B4 R923 B4 R924 B4
R925 B4 R926 A4 R930 A5 R931 A5
R932 A5 R933 A5 R934 A5 R935 B5
R936 C5 R937 B5 R938 B5 R939 C5
R940 B4 R941 C5 R942 D5 R943 D5
R944 D4 R945 D4 R947 D4 R948 D4
R949 D4 R950 D4 R953 A5 R954 A2
R955 A2 R956 A2 R957 A1 R958 A1
R959 B1 R960 B1 R961 A2 R962 B2
R963 B2 R964 B2 R965 B1 R966 B2
R967 C2 R968 C2 R969 C2 R970 C3
R971 A2 R972 A3 R973 A3 R974 A3
R975 A2 R976 B3 SG901 D1 SG902 D1
SG903 C1 SG904 C1 TH901 E1 T901 A4
T902 C4 ZD902 E3 ZD903 D3 ZD904 C4
ZD905 A4 ZD906 A5 ZD907 C4 ZD908 D4
ZD909 B3 ZD910 D3 ZD911 A4 ZD912 B3

R943

R943

1KOHM +-5% 1/8W

1KOHM +-5% 1/8W

R942

R942

330K

330K

C936

C936

0.01uF

0.01uF

24V

12V

S/B

B

RV901

RV901

TVR14561KFC4FY

TVR14561KFC4FY

!

2

F901F901

!

!

C910

C910

1500pF

1500pF

!

2

1

CN901

CN901

SOCKET

SOCKET

1

2

R906

R906

100K 1/4W

100K 1/4W

C937

C937

22N 50V_NC

22N 50V_NC

D902

D902

BAV21

BAV21

C915

R907

R907

430K

430K

ZD902

ZD902

1 2

BZX79-C9V1

BZX79-C9V1

C915

0.33uF

0.33uF

3

Q902

Q902

BC857C

BC857C

R908

R908

2K2 1/8W 5%

2K2 1/8W 5%

R909

R909

1K 1/4W 5%

1K 1/4W 5%

!

R910

R910

15K OHM 2W

15K OHM 2W

Q909

Q909

PMBTA45

PMBTA45

HOT COLD

CN902CN902

1
2

3

4
5
6
7

8

9
10
11
12
13
14

4

C940

C940

0.1uF

0.1uF

C939

C939

0.1uF

0.1uF

INV_OK

C941

C941

0.1uF

0.1uF

ENA
DIM
12V

24V

+5VSB

S/B

715G3816-P01
32" LIPS

5

18850_504_100107.eps

100107

12

FB905

FB905

BEAD

BEAD

TH901

TH901

NTCR

NTCR

E E

341

T5.0AH 250V

2010-Jan-21

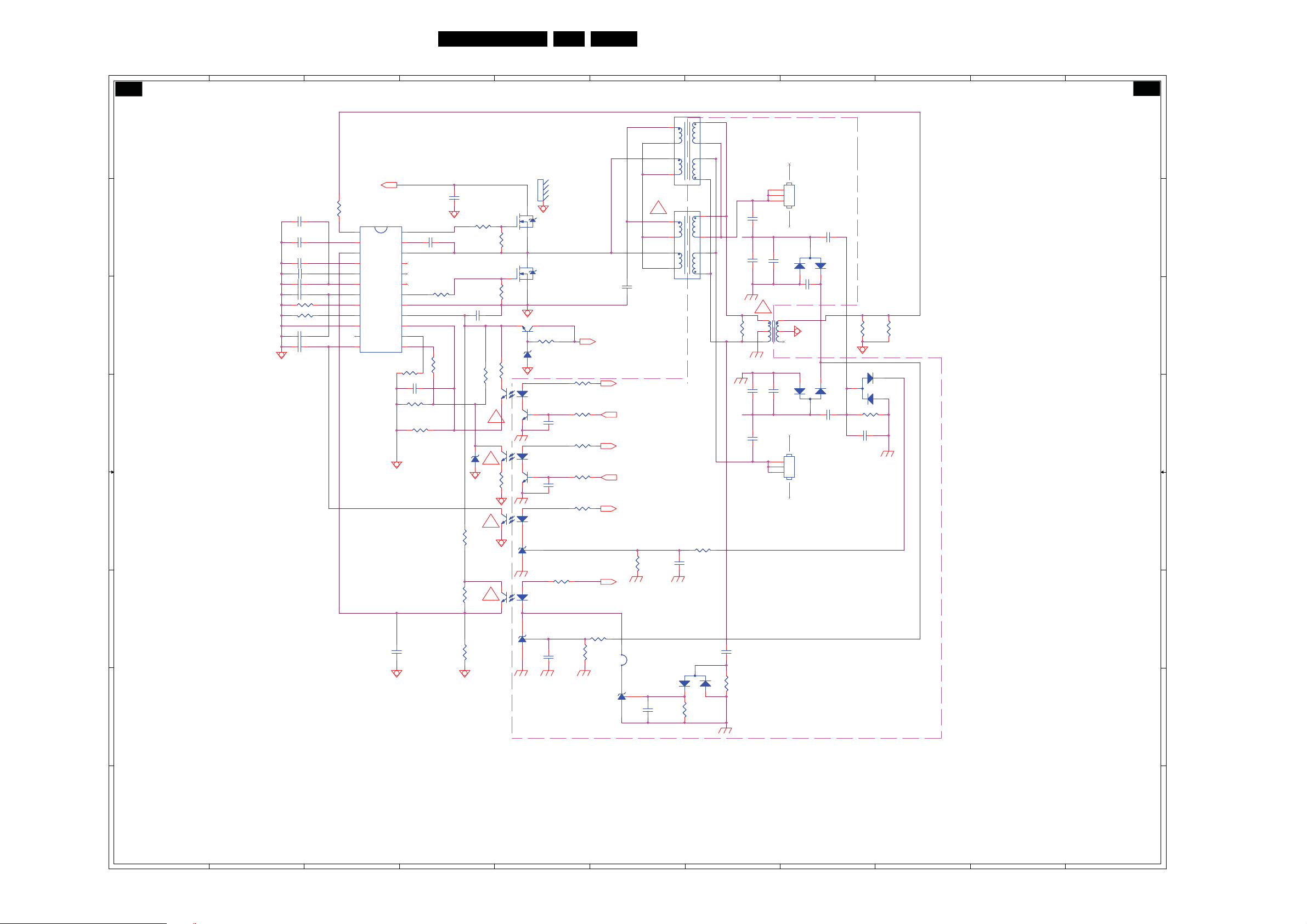

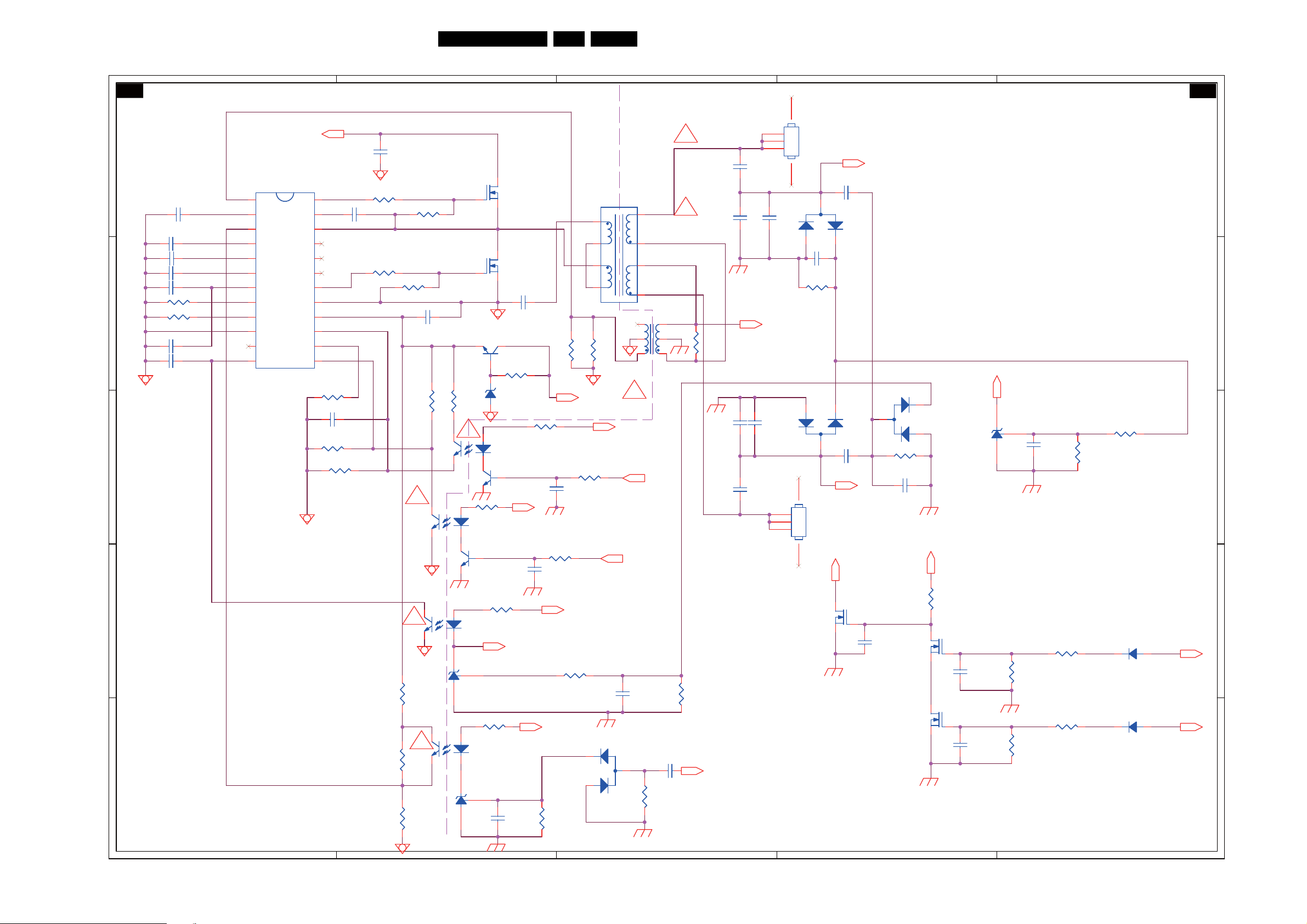

Circuit Diagrams and PWB Layouts

1

1

2

2

3

3

4

4

5

5

A

A

B

B

C

C

D D

E

E

Vshort

IFB

Vdd

NF

12V

12V

C

D

D

A

A

12V

12V

ENA

DIM

Vdd-S

B+

C

C

B

B

12V

COLD

INVERTER

HOT COLD

!

!

!

!

!

HOT

!

!

CN802 C4 CN803 A3 C801 A2 C802 B2
C803 A2 C804 B2 C805 A4 C806 A3
C807 A3 C808 C3 C809 C3 C810 C4
C811 A1 C812 A1 C813 B1 C814 B1
C815 B1 C816 B1 C817 E3 C819 C1
C821 D3 C823 B1 C824 E2 C825 C4
C826 A3 C827 B4 C828 C3 C829 D4
C830 E4 C831 D4 C832 C5 C833 C2
C834 D2 D801 A4 D802 C4 D803 C4
D804 D5 D805 E5 D806 E3 IC801 A1
IC803 C2 IC804 C2 IC805 D2 IC806 E2
Q801 A2 Q802 B2 Q803 D4 Q804 D4
Q805 E4 Q806 B2 Q807 D2 Q808 E2
Q809 C4 Q810 C2 Q811 C2 R801 A2
R802 B2 R803 B4 R804 B2 R805 E3
R806 B1 R807 C1 R808 B2 R809 C1
R810 B1 R811 B2 R812 C2 R813 C2
R814 D2 R

815 E2 R816 E2 R817 E2
R818 E2 R819 C5 R820 D3 R821 C4
R822 B3 R823 B3 R824 D2 R825 B3
R826 D3 R827 B1 R828 D5 R829 E5
R830 D4 R831 E4 R832 D4 R834 A2
R835 B2 R836 C5 R837 C3 R838 C2

Q805

RK7002

Q805

RK7002

R803

68K 1/8W 1%

R803

68K 1/8W 1%

R820

390KOHM +-1%

R820

390KOHM +-1%

R817

2K7 1/8W 1%

R817

2K7 1/8W 1%

C812

220N 50V

C812

220N 50V

C803

10nF

C803

10nF

C809

15pF/6KV

C809

15pF/6KV

Q809

KIA431A-AT/P

Q809

KIA431A-AT/P

C832

10N 50V

C832

10N 50V

Q806

BC848CLG

Q806

BC848CLG

IC804

EL817MA

IC804

EL817MA

12

43

C806

1N2 50V

C806

1N2 50V

IC806

EL817MA

IC806

EL817MA

12

43

D806

BAV99

D806

BAV99

3

1

2

R815

3K6 1/8W 1%

R815

3K6 1/8W 1%

Q801

FQPF8N60C

Q801

FQPF8N60C

R801

22R 1/8W 5%

R801

22R 1/8W 5%

R832

10K 1/6W 5%

R832

10K 1/6W 5%

C826

100P 50V_NC

C826

100P 50V_NC

R807

100K 1/8W 1%

R807

100K 1/8W 1%

C829

100N 50V

C829

100N 50V

R838

10K 1/8W 1%

R838

10K 1/8W 1%

C834

10N 50V

C834

10N 50V

Q802

FQPF8N60C

Q802

FQPF8N60C

C817

56P 50V

C817

56P 50V

R816

47K 1/8W 1%

R816

47K 1/8W 1%

R804

470R 1/8W 1%

R804

470R 1/8W 1%

C828

220P 50V_NC

C828

220P 50V_NC

C821

100N 50V

C821

100N 50V

R827

0 OHM +-5% 1/8W

R827

0 OHM +-5% 1/8W

C807

15pF/6KV

C807

15pF/6KV

R822

10K 1/8W 1%

R822

10K 1/8W 1%

R818

150K 1/8W +/-1%

R818

150K 1/8W +/-1%

R810

0 OHM +-5% 1/8W

R810

0 OHM +-5% 1/8W

Q811

PMBS3904

Q811

PMBS3904

1

32

C831

100N 50V

C831

100N 50V

D805

1N4148

D805

1N4148

T801

TRF-UU9.8

T801

TRF-UU9.8

16

2

4 3

5

C808

1N2 50V

C808

1N2 50V

D801

BAV99

D801

BAV99

3

1

2

C824

10N 50V

C824

10N 50V

C805

470P 50V

C805

470P 50V

R826

10K 1/8W 1%_NC

R826

10K 1/8W 1%_NC

R814

2K7 1/8W 1%

R814

2K7 1/8W 1%

C811

15N 50V

C811

15N 50V

IC805

EL817MA

IC805

EL817MA

12

43

IC801

UBA2071

IC801

UBA2071

IFB

1

CIFB

2

VFB

3

CVFB

4

CSWP

5

CT

6

CF

7

IREF

8

CPWM

9

N,FAULT

12

PWMd

13

PWMa

14

EN

15

VDD

16

PGND

17

NC

19

NC

20

GL

18

SGND

10

COMM

11

NC

21

SH

22

GH

24

FS

23

Q807

KIA431A-AT/P

Q807

KIA431A-AT/P

C819

100N 50V

C819

100N 50V

CN803

CONN

CN803

CONN

1

2

3

4 5

R819

390KOHM +-5% 1/4W_NC

R819

390KOHM +-5% 1/4W_NC

Q804

RK7002

Q804

RK7002

R824

10K 1/6W 5%

R824

10K 1/6W 5%

Q803

RK7002

Q803

RK7002

ZD801

MTZJT-7213B

ZD801

MTZJT-7213B

1 2

R806

33K 1/8W 1%

R806

33K 1/8W 1%

D803

BAV99

D803

BAV99

3

1

2

D802

BAV99

D802

BAV99

3

1

2

C814

220N 50V

C814

220N 50V

R829

5K6 +-1% 1/8W

R829

5K6 +-1% 1/8W

R802

22R 1/8W 5%

R802

22R 1/8W 5%

R835

10K 1/8W 1%

R835

10K 1/8W 1%

R823

27R +-1% 1/8W

R823

27R +-1% 1/8W

R821

68K 1/8W 1%

R821

68K 1/8W 1%

R811

100K 1/8W 1%

R811

100K 1/8W 1%

R808

100K 1/8W 1%

R808

100K 1/8W 1%

C830

100N 50V

C830

100N 50V

D804

1N4148

D804

1N4148

IC803

EL817MA

IC803

EL817MA

12

43

Q808

KIA431A-AT/P

Q808

KIA431A-AT/P

R837

10K 1/8W 1%

R837

10K 1/8W 1%

R834

10K 1/8W 1%

R834

10K 1/8W 1%

C815

56P 50V

C815

56P 50V

C802

330NF 450V

C802

330NF 450V

R828

5K6 +-1% 1/8W

R828

5K6 +-1% 1/8W

R805

330K 1/8W 1%

R805

330K 1/8W 1%

C827

22N 50V

C827

22N 50V

R813

2K7 1/8W 1%

R813

2K7 1/8W 1%

CN802

CONN

CN802

CONN

1

2

3

4 5

C823

470P 50V

C823

470P 50V

C816

56P 50V

C816

56P 50V

R809

39KOHM +-5% 1/8W

R809

39KOHM +-5% 1/8W

C833

10N 50V

C833

10N 50V

T803

TRF-UU28

T803

TRF-UU28

6

5

7

4

1

83

2

R831

56K 1/8W +/-1%

R831

56K 1/8W +/-1%

Q810

PMBS3904

Q810

PMBS3904

1

32

R812

2K7 1/8W 1%

R812

2K7 1/8W 1%

R830

56K 1/8W +/-1%

R830

56K 1/8W +/-1%

C804

2U2 25V

C804

2U2 25V

C801

100N 50V

C801

100N 50V

R825

24R 1/8W 1%

R825

24R 1/8W 1%

C813

2N7 50V

C813

2N7 50V

C825

2N7 50V

C825

2N7 50V

R836

33K 1/8W 1%

R836

33K 1/8W 1%

C810

470P 50V

C810

470P 50V

18850_525_100107.eps

100107

A02

Inverter

A02

Power Board: Inverter, 32"

EN 33TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

y18850_526_100107.eps

100308

HD912

Q901

Q801

Q802

RV901

C902

C904

L905

T901

C809

C807

L904

L903

T902

D912

BD901

C901

FB903

L902

FB905

FB901

IC901

IC803

IC804

IC805

IC806

C802

C934

C927

L901

C930

FB902

IC903

IC905

C938

C947

FB904

Q904

CN902

C909

R925

CN901

C920

C912

FB906

ZD907

ZD801

CN802

CN803

T801

T803

L906

D916

C803

C905

IC906

C903

C950

ZD903

ZD905

ZD908

D904

F901

TH901

C906

C908

C910

R910

R966

J902

J914

J912

J913

J915

J925

J907

J926

J928

C907

J916

J923

J918

J908

J903

J930

J931

R956

D917

D914

D804

ZD909

ZD912

C921

C949

D906

ZD902

ZD910

D909

D905

D908

D913

D902

C924

C932

C911

J911

J901 J922

J920

J919

J917

R916

R824

R909

R915

C933

J929

J904

J927

C925

C928

D910

C926

C929

J909

J910

R953

R934

R967

J906

J905

J921

J924

ZD906

ZD911

ZD904

R832

R901

D805

Q808

IC907

IC904

Q809 Q807

D911

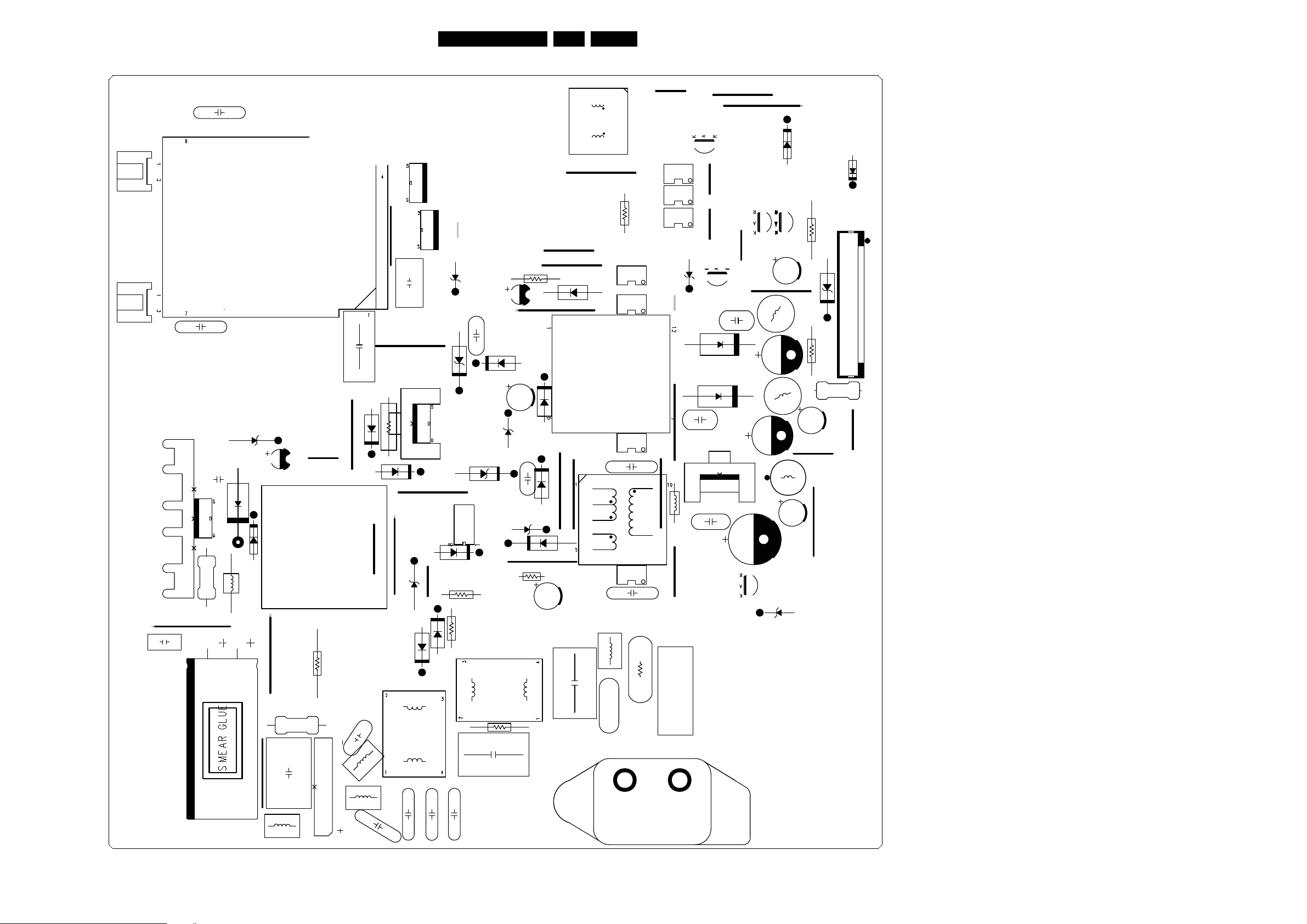

Layout Power Board, 32" (Top Side)

EN 34TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

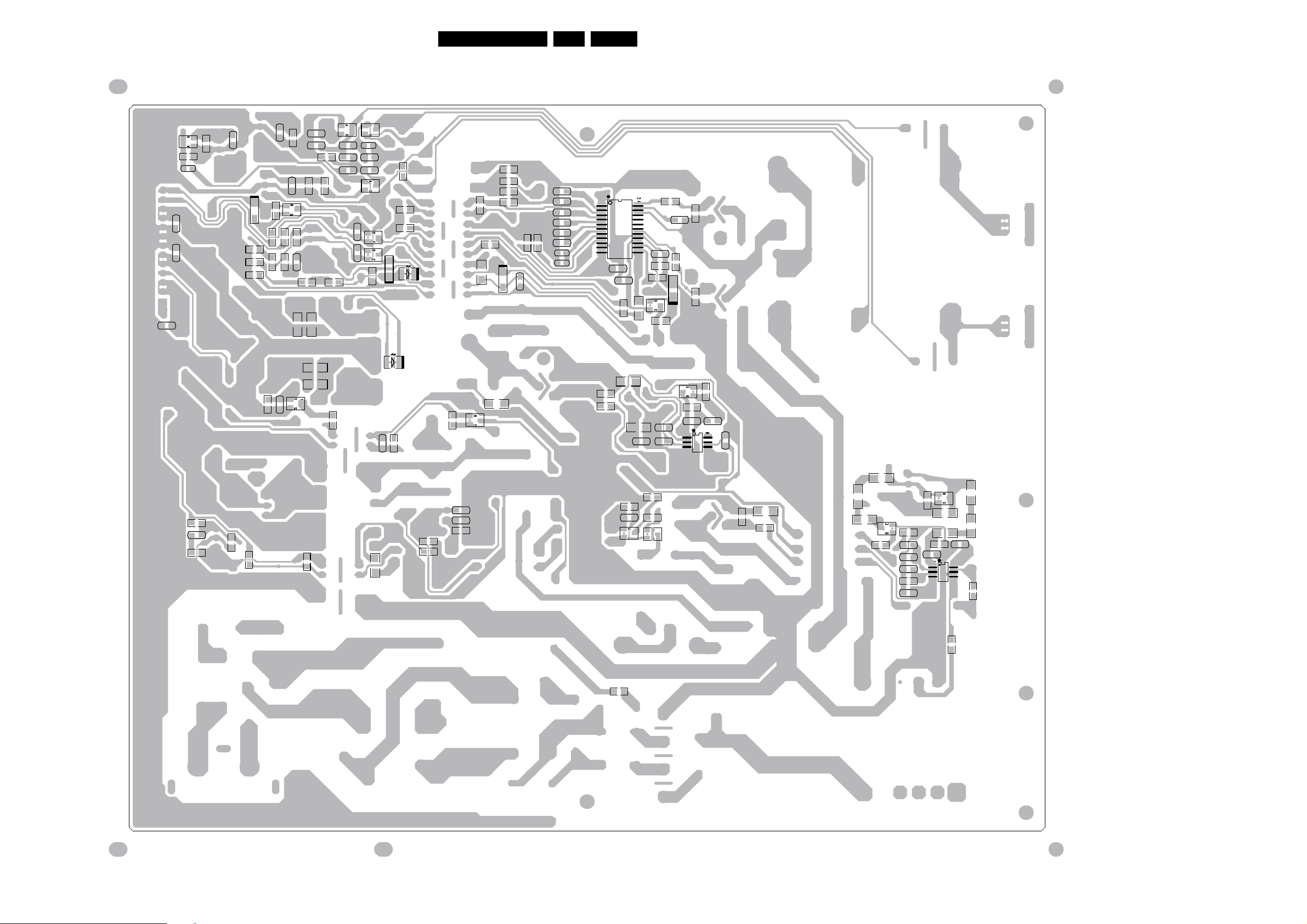

Layout Power Board, 32" (Bottom Side)

EN 35TPM4.1E LA 10.

C810

R828

C825

R830

R821

C829

D803

Q804

C821

Q805

R820

C830

R831

R829

C833

R837

C939 C940

C941

C831

Q810

R838

C805

R826

C806

C826

R819

C808

C828

C827

R803

D802D801

R836

C832

Q803

R814

R812

R935

R942

R943

R818

C824

R817

R936

C936

C834

R939

R933

R932

R930

R931

C931

D806

R938

Q907

Q811

R813

R940

R941

R805

RJ903

C817

R937

R822

R811

C811

R825

C812

R823

R815

R806

C918

C813
C814
C815
C816

D915

LED901

R969

C916

R816

IC801

R810

C823

R807

C819

Q912

R968

R970

C948

R926

R920

R919

R809 R808

Q806

R804

C917

R827

Q905

R801

C801

R802

RJ904

C804

R834

R835

R917

C919

C922

R923

R924
R922

R921

D907

IC902

C923

R944

R948

R945

C935

R950

R947

R949

C945

R965

Q902

C914

C913

R913

R907

C915

R908

R976

Q910

C946

R975

R918

R911

R912

R914

Q903

R906

C937

R961

R974

IC909

C942

Q911

R971

R957R958

R954

R955

Q909

R960

C943

C944

R973

R972

R959

R962

R963

R964

2010-Jan-21

18850_527_100107.eps

100107

Power Board: Power, 42"

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B B

C

C

D

D

E E

F

F

G

G

H

H

B+

395V

24V

12V

S/B

24V

ENA

12V

DIM

+5VSB

Vdd-S

S/B

POK

+5VSB

LIPS-1

HOT

COLD

42"

!

! !

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

!

T5.0AH 250V

HOT

HOT COLD

COLD

!

BD901 C1 CN901 F2
CN903 F10 C901 D1
C902 D2 C903 B8
C904 A8 C905 C2
C906 C1 C907 A6
C908 E2 C909 E1
C910 G3 C911 A2
C912 B2 C913 B2
C914 D4 C915 D6
C916 B2 C917 B7
C918 C5 C919 B7
C920 B3 C921 A7
C922 D3 C923 C8
C924 A5 C925 B5
C926 E6 C927 B7
C928 B4 C929 B6
C930 E8 C931 A8
C932 B9 C933 B9
C934 B8 C935 D9
C936 C7 C937 B9
C938 B10 C939 B2
C940 E10 C942 G5
C945 E5 C946 F5
C947 F5 C948 F5
C949 E7 C950 E7
C951 E9 C952 F8
C954 C5 C955 C3
C958 G10 C959 F4
C960 B10 C961 B10
D901 A4 D902 B7
D904 G3 D910 B4
D913 C6 D914 E6
D915 E6 D916 F5
D917 E7 D921 B8
D922 A8 D923 B7
D926 G10 D927 G9
FB901 B1 FB902 F1
FB903 F2 FB904 C1
FB905 A5 FB906 C2
FB907 E7 F901 F1
HD917 E7 HQ902 B5
HQ903 B8 IC901 B6
IC902 B3 IC903 C8
IC904 D8 IC905 F4
IC907 F6 IC908 G7
IC921 D8 LED901 G9
LED902 G9 L901 E1
L902 D1 L907 E8
L921 A9 L922 B9
Q902 B4 Q903 C7
Q905 B6 Q907 D4
Q909 E8 Q915 G5
Q916 C5 Q917 A5
Q918 G4 Q919 A5
Q920 G9 RV901 F2
R901 E2 R904 B6
R905 B5 R906 C5
R907 A5 R908 A4
R909 A3 R910 A6
R911 A2 R912 B6
R913 B2 R914 B2
R915 C6 R916 B4
R917 B4 R918 B3
R919 B4 R920 C4
R921 F7 R922 F5
R923 A7 R924 C7
R925 D4 R926 D4
R927 C7 R928 C7
R929 B4 R930 C7
R931 A5 R932 B5
R934 G3 R935 A9
R936 A9 R937 C9
R938 D9 R939 B6
R941 D9 R942 B9
R943 B9 R944 D8
R945 E9 R946 G4
R948 G5 R949 D9
R950 B3 R951 F5
R953 F7 R954 B9
R955 F7 R956 F8
R957 G8 R958 C9
R959 F6 R961 B8
R962 F6 R963 C8
R964 E8 R965 F4
R966 G4 R967 G3
R970 F6 R973 G10
R974 G9 R975 G9
R976 G9 SG901 E1

SG902 E2 SG904 D1
SG905 D2 TH902 F1

TH903 G4 T901 A8
T902 A3 T904 E6
ZD903 G6 ZD905 B6
ZD907 F5 ZD908 F5
ZD909 G3 ZD912 F4

RV901

TVR14561

RV901

TVR14561

SG904

GS41-201MA

SG904

GS41-201MA

C902

470pF/250V

C902

470pF/250V

R923

82K OHM 1W

R923

82K OHM 1W

C927

270PF 1KV_NC

C927

270PF 1KV_NC

ZD903

B6V2

ZD903

B6V2

R955

0 OHM

R955

0 OHM

R918

47K 1/8W

R918

47K 1/8W

Q905

BC857C

Q905

BC857C

R901

1MOHM +-5% 1/2W_NC

R901

1MOHM +-5% 1/2W_NC

Q917

MPSA94A_NC

Q917

MPSA94A_NC

IC908

KIA431A-AT/P

IC908

KIA431A-AT/P

Q915

BC857C

Q915

BC857C

R974

220R 1/8W 5%

R974

220R 1/8W 5%

t

TH902

SCK15037

t

TH902

SCK15037

12

R964

47K +-5% 1/8W

R964

47K +-5% 1/8W

R905

3M3 1/4W_NC

R905

3M3 1/4W_NC

R927

10 OHM

R927

10 OHM

SG905

GS41-201MA_NC

SG905

GS41-201MA_NC

C931

270PF 1KV

C931

270PF 1KV

R914

39K 1/8W

R914

39K 1/8W

R937

1K OHM 1/8W

R937

1K OHM 1/8W

R973

220R 1/8W 5%

R973

220R 1/8W 5%

C908

680N 275V

C908

680N 275V

R932

4.7K 1/8W

R932

4.7K 1/8W

R967

10KOHM +-5% 1/8W

R967

10KOHM +-5% 1/8W

R976

1M 1/8W 5%

R976

1M 1/8W 5%

+

C937

47UF 50V

+

C937

47UF 50V

D914
P6KE180A

D914
P6KE180A

R938

1.5K

R938

1.5K

ZD925

MTZJT-7213B

ZD925

MTZJT-7213B

1 2

C925

0.01uF

C925

0.01uF

L902

6mH

L902

6mH

1

4

2

3

D904

BAV21

D904

BAV21

C952

0.1uF

C952

0.1uF

FB903

BEAD

FB903

BEAD

12

+

C950

2200uF 10V

+

C950

2200uF 10V

R924

1R2 5% 2W

R924

1R2 5% 2W

+

C946

47UF 50V

+

C946

47UF 50V

R915

47R 1/6W 5%

R915

47R 1/6W 5%

D923

BAV21

D923

BAV21

+

C938

47uF/50V

+

C938

47uF/50V

FB902

BEAD

FB902

BEAD

12

C955

33P 50V

C955

33P 50V

R925

22K 1/8W

R925

22K 1/8W

ZD907

BZX79-C9V1

ZD907

BZX79-C9V1

1 2

SG902

GS41-201MA

SG902

GS41-201MA

IC905

TNY277PN-TL

IC905

TNY277PN-TL

EN/UV

1

BP/M

2

D

4

S

5

S

6

S

7

S

8

C921

0.0022uF/500V

C921

0.0022uF/500V

Q918

PMBTA45

Q918

PMBTA45

R957

10K5 1/8W 1%

R957

10K5 1/8W 1%

R928

22K OHM 1/8W

R928

22K OHM 1/8W

C914

10N 50V

C914

10N 50V

LED902

LED

LED902

LED

12

C934

270PF 1KV

C934

270PF 1KV

HQ902HQ902

2

C905

470pF/250V

C905

470pF/250V

R943

100 OHM

R943

100 OHM

F901F901

341

2

C910

1500pF

C910

1500pF

D921

SR310-24

D921

SR310-24

1 2

C920

1uF/25V

C920

1uF/25V

R970

390K +-5% 1/8W

R970

390K +-5% 1/8W

HD917HD917

1

Q907

MMBT2907AK

Q907

MMBT2907AK

1

23

R953

47OHM +-5% 1/8W

R953

47OHM +-5% 1/8W

FB905FB905

Q902

AOTF12N60

Q902

AOTF12N60

2

1

3

D916

RGP10D

D916

RGP10D

FB904

BEAD

FB904

BEAD

12

R922

15K 1/8W

R922

15K 1/8W

D917

SP1060

D917

SP1060

1

3

2

R916

4.7 OHM

R916

4.7 OHM

R954

820 OHM 3W

R954

820 OHM 3W

R921

3.3K

R921

3.3K

R909

1 MOHM +-1% 1/4W

R909

1 MOHM +-1% 1/4W

+

C932

1000uF/16V

+

C932

1000uF/16V

R945

4.7K OHM

R945

4.7K OHM

R946

1K 1/8W

R946

1K 1/8W

C916

10N 50V

C916

10N 50V

IC921

KIA431A-AT/P

IC921

KIA431A-AT/P

LED901

LED

LED901

LED

12

C949

0.01uF 100V

C949

0.01uF 100V

ZD908

MTZJ15B

ZD908

MTZJ15B

1 2

C913

470P 50V

C913

470P 50V

R949

10K 1/8W

R949

10K 1/8W

R911

18.7K OHM

R911

18.7K OHM

C918

220P 50V

C918

220P 50V

C939

1uF/25V_NC

C939

1uF/25V_NC

IC904

EL817MA

IC904

EL817MA

12

43

T904

EF20

T904

EF20

3

2

1

4

5

8

10

6

9

7

FB906

BEAD

FB906

BEAD

12

+

C919

22uF 50V_NC

+

C919

22uF 50V_NC

C926

10nF

C926

10nF

L922

0.8uH

L922

0.8uH

R906

3M3 1/4W_NC

R906

3M3 1/4W_NC

L907

0.8uH

L907

0.8uH

C904

470pF/250V

C904

470pF/250V

R961

100 OHM 1/4W

R961

100 OHM 1/4W

R958

240 OHM +-5% 1/8W

R958

240 OHM +-5% 1/8W

R919

0.22OHM 2W

R919

0.22OHM 2W

C909

680N 275V

C909

680N 275V

C924

1.5NF/1KV

C924

1.5NF/1KV

R910

100K 1/8W _NC

R910

100K 1/8W _NC

R942

100 OHM

R942

100 OHM

t

TH903

PTC

t

TH903

PTC

1 2

Q916

PMBTA45_NC

Q916

PMBTA45_NC

D902

FR107

D902

FR107

R959

0 OHM 1/4W

R959

0 OHM 1/4W

C935

0.022uF/25V

C935

0.022uF/25V

FB901

BEAD

FB901

BEAD

12

IC901

NCP1271D65R2G

IC901

NCP1271D65R2G

Skip/latch

1

FB

2

CS

3

GND4DRV

5

VCC

6

HV

8

C917

330N 50V

C917

330N 50V

R904

3M3 1/4W_NC

R904

3M3 1/4W_NC

R929

22K OHM 1/8W

R929

22K OHM 1/8W

R936

100 OHM

R936

100 OHM

C960

100N 50V

C960

100N 50V

C911

1UF450V

C911

1UF450V

C940

100N 50V

C940

100N 50V

C948

0.1uF

C948

0.1uF

C936

150PF 1KV

C936

150PF 1KV

D922

HER303G-18

D922

HER303G-18

D915

FR107

D915

FR107

R912

22K 1/8W 5%

R912

22K 1/8W 5%

C923

1N5 50V

C923

1N5 50V

L901

6mH

L901

6mH

1

423

R926

10K 1/8W

R926

10K 1/8W

R963

4K7 +-5% 1/8W

R963

4K7 +-5% 1/8W

R962

47R 1/4W 5%

R962

47R 1/4W 5%

+

C922

2.2uF 50V

+

C922

2.2uF 50V

T902

ER-28L

T902

ER-28L

1

12

5

4

ZD905

MTZJ T-72 16B

ZD905

MTZJ T-72 16B

1 2

C912

1U 25V

C912

1U 25V

R907

1 MOHM +-1% 1/4W

R907

1 MOHM +-1% 1/4W

C954

470P 50V

C954

470P 50V

R930

1K 1/4W

R930

1K 1/4W

C942

330N 25V

C942

330N 25V

R941

2.61K

R941

2.61K

Q903

FQPF3N80C

Q903

FQPF3N80C

R951

47R

R951

47R

IC902

SG6961

IC902

SG6961

FB

1

Comp

2

Mult

3

CS

4

Vcc

8

Driver

7

GND

6

ZCD

5

D927

BAV21P

D927

BAV21P

R965

2M2 1/6W 5%

R965

2M2 1/6W 5%

CN901

SOCKET

CN901

SOCKET

1

2

R948

2.2K

R948

2.2K

C906

470pF/250V

C906

470pF/250V

+

C907

120uF/450V

+

C907

120uF/450V

HQ903HQ903

1

+

C951

470uF/16V

+

C951

470uF/16V

IC903

EL817MA

IC903

EL817MA

12

43

FB907FB907

D901

STTH5L06FP

D901

STTH5L06FP

+

C933

470UF 35V

+

C933

470UF 35V

C929

330P 50V_NC

C929

330P 50V_NC

Q920

RK7002

Q920

RK7002

R939

1.5K 1/4W

R939

1.5K 1/4W

IC907

EL817MA

IC907

EL817MA

12

43

D913

1N4148

D913

1N4148

R956

12K 1/8W 1%

R956

12K 1/8W 1%

R917

47OHM +-5% 1/8W

R917

47OHM +-5% 1/8W

CN903

CONN

CN903

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14

Q919

PBHV9040T_NC

Q919

PBHV9040T_NC

1

23

C945

0.0022uF/500V

C945

0.0022uF/500V

C915

1U 25V

C915

1U 25V

C928

220PF/1KV_NC

C928

220PF/1KV_NC

R935

100 OHM

R935

100 OHM

R920

33K +-5% 1/8W_NC

R920

33K +-5% 1/8W_NC

+

C959

10UF/50V

+

C959

10UF/50V

C947

100pF

C947

100pF

R975

220R 1/8W 5%

R975

220R 1/8W 5%

R950

1K OHM 1/4W

R950

1K OHM 1/4W

ZD912

BZX79-C9V1

ZD912

BZX79-C9V1

1 2

T901T901

1

6

2

3

5

11

10

7

8

12

9

R913

10K 1/8W

R913

10K 1/8W

D926

BAV21P

D926

BAV21P

C961

100N 50V

C961

100N 50V

D910

1N4148

D910

1N4148

ZD909

BZX79-C9V1

ZD909

BZX79-C9V1

1 2

L921

0.8uH

L921

0.8uH

+

C958

10UF/50V

+

C958

10UF/50V

R966

330K 1/8W 5%

R966

330K 1/8W 5%

R908

1 MOHM +-1% 1/4W

R908

1 MOHM +-1% 1/4W

SG901

GS41-201MA_NC

SG901

GS41-201MA_NC

R931

0R05 1/4W

R931

0R05 1/4W

R934

15K 5% 3W

R934

15K 5% 3W

-

+

BD901

KBJ608G

-

+

BD901

KBJ608G

2

1

3

4

Q909

RK7002

Q909

RK7002

R944

2.2K OHM 1/8W

R944

2.2K OHM 1/8W

C903

0.001uF/250V

C903

0.001uF/250V

C901

470pF/250V

C901

470pF/250V

C930

10NF 25V

C930

10NF 25V

A01

Power

A01

18850_500_100107.eps

Circuit Diagrams and PWB Layouts

EN 36TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

EN 37TPM4.1E LA 10.

Power Board: Inverter, 42"

A02

A A

B B

C C

D D

1

Inverter

2

C818

C818

47N 50V

47N 50V

C811

C811

47N 50V

47N 50V

C812

C812

220N 50V

220N 50V

C813

C813

4N7 50V

4N7 50V

C814

C814

220N 50V

220N 50V

C815

C815

22P 50V

22P 50V

R806

R806

33K

33K

R810

R810

0 OHM +-5% 1/8W

0 OHM +-5% 1/8W

C816

C816

82pF 50V

82pF 50V

C823

C823

470P 50V

470P 50V

3

395V

R805

R805

0 OHM +-5% 1/8W

0 OHM +-5% 1/8W

IC801

IC801

1

IFB

2

CIFB

3

VFB

4

CVFB

5

CSWP

6

CT

7

CF

8

IREF

9

CPWM

10

SGND

11

COMM

N,FAULT12PWMd

UBA2071

UBA2071

24

GH

23

FS

22

SH

21

NC

20

NC

19

NC

18

GL

17

PGND

16

VDD

15

EN

14

PWMa

13

R829

R829

0 OHM +-5% 1/8W

0 OHM +-5% 1/8W

10 OHM +-5% 1/8W

10 OHM +-5% 1/8W

100N 50V

100N 50V

C801

C801

100N 50V

100N 50V

R802

R802

Vdd

JR901

JR901

0 OHM 1/4W

0 OHM 1/4W

C819

C819

R809

R809

39K 1/6W 5%

39K 1/6W 5%

R807

R807

100K

100K

BZT52C5V1-7-F_NC

BZT52C5V1-7-F_NC

4

C803

C803

10nF

10nF

10 OHM +-5% 1/8W

10 OHM +-5% 1/8W

R801

R801

R808

R808

100K

100K

ZD802

ZD802

1 2

0 OHM 1/4W

0 OHM 1/4W

C804

C804

1U 25V

1U 25V

JR902

JR902

!

!

1

R832

R832

47K +-5% 1/8W

47K +-5% 1/8W

1

R833

R833

47K +-5% 1/8W

47K +-5% 1/8W

BC848C

BC848C

R811

R811

100K

100K

43

43

Q806

Q806

2

3

2

3

1 2

12

IC803

IC803

EL817MA

EL817MA

32

Q808

Q808

PMBS3904

PMBS3904

12

IC804

IC804

EL817MA

EL817MA

32

Q809

Q809

PMBS3904

PMBS3904

5

HQ801HQ801

2

Q801

Q801

AOTF10N60

AOTF10N60

Q802

Q802

AOTF10N60

AOTF10N60

ZD801

ZD801

RLZ13B

RLZ13B

1

C831

C831

10N 50V

10N 50V

1

C832

C832

10N 50V

10N 50V

R804

R804

470R

470R

R828

R828

1K 1/4W 5%

1K 1/4W 5%

R812

R812

470R

470R

R835

R835

1K 1/4W 5%

1K 1/4W 5%

R813

R813

470R

470R

Vdd-S

12V

12V

ENA

DIM

6

HOT

C802

C802

470N 450V

470N 450V

7

8

9

10

11

A02

T802

T802

TRF-UU28

TRF-UU28

T803

T803

TRF-UU28

TRF-UU28

5

COLD

6

7

8

NC

5

6

7

8

C806

C806

1.8NF 50V

1.8NF 50V

VS1

C807

C807

15PF 6KV

15PF 6KV

!

1 6

10K

10K

2

R822

R822

3

C808

C808

1.8NF 50V

1.8NF 50V

VS2

C809

C809

15PF 6KV

15PF 6KV

3

2
1

4 5

C825

C825

470P 25V_NC

470P 25V_NC

T801

T801
TRF-UU10.5

TRF-UU10.5

5

4

C826

C826

330P_NC

330P_NC

3

2
1

4 5

CN803

CN803

CONN

CONN

COLD HOT

C805

C805

1N 50V

1N 50V

3

D807

D807

BAV99

BAV99

C827

C827

1

2

4N7 50V

4N7 50V

1

2

D808

D808

3

BAV99

BAV99

3

C810

C810

1N 50V

1N 50V

47KOHM +-5% 1/8W

47KOHM +-5% 1/8W

CN802

CN802

CONN

CONN

R823

R823

10 R

10 R

D809 BAV99D809 BAV99

2

1

R821

R821

C828

C828

2N7 50V

2N7 50V

R825

R825

10 R

10 R

1

2

3

4

!

1

2

3

4

CN802 D7 CN803 B7
C801 B4 C802 C6
C803 B4 C804 C4
C805 B8 C806 B7
C807 B7 C808 D7
C809 D7 C810 D8
C811 B2 C812 B2
C813 B2 C814 C2
C815 C2 C816 C2
C817 F7 C818 B2
C819 D4 C821 E6
C823 C2 C824 F5
C825 B7 C826 D7
C827 C8 C828 D8
C829 G6 C830 F3
C831 D5 C832 E5
D806 F6 D807 B8
D808 D8 D809 C8
HQ801 B5 IC801 B3
IC803 D5 IC804 D5
IC805 E5 IC806 F5
IC808 F5 IC809 G6
IC810 E5 JR901 C4
JR902 D4 J919 F6
Q801 B5 Q802 B5
Q806 C5 Q808 D5
Q809 D5 R801 B4
R802 C4 R804 C5
R805 B3 R806 C2
R807 D4 R808 C4
R809 D4 R810 C2
R811 C4 R812 D5
R813 D5 R814 F5
R815 F4 R

816 F4
R818 F5 R819 F5
R820 E6 R821 D8
R822 C7 R823 C8
R824 E4 R825 C9
R826 E7 R827 E5
R828 D5 R829 C3
R830 G7 R831 G6
R832 B4 R833 C4
R835 D5 T801 C7
T802 A6 T803 B6
ZD801 C5 ZD802 D4

R819

R819

390K 1/6W 5%

390K 1/6W 5%

R818

R818

30K 1/8W 1%

30K 1/8W 1%

12V

12V

12

R820

R820

30K 1/8W 1%

30K 1/8W 1%

J919J919

IC809

IC809

KIA431A-AT/P

KIA431A-AT/P

C829

C829

10N 50V

10N 50V

D806

D806

BAV99

BAV99

R826

R826

330K 1/8W 1%_NC

330K 1/8W 1%_NC

C821

C821

1U 25V

1U 25V

3

1

2

R831

R831

100KOHM +-5% 1/8W

100KOHM +-5% 1/8W

C817

C817

56P 50V

56P 50V

R830

R830

330K 1/8W 1%

330K 1/8W 1%

COLD HOT

12

43

IC805

IC805

EL817MA

E E

R824

R824

10K 1/6W

10K 1/6W

R816

R816

47K

47K

F

R815

C830

C830

1N 50V_NC

1N 50V_NC

R815

5K6 1/8W 5%

5K6 1/8W 5%

!

!

EL817MA

IC810

IC810

KIA431A-AT/P

KIA431A-AT/P

12

43

IC806

IC806

EL817MA

EL817MA

IC808

IC808

KIA431A-AT/P

KIA431A-AT/P

C824

C824

100N 50V

100N 50V

R814

R814

470R

470R

R8271KR827

1K

HOT COLD

G G

H H

F

1

2

3

4

5

6

7

8

9

10

11

18850_501_100107.eps

100308

2010-Jan-21

Circuit Diagrams and PWB Layouts

18850_502_100107.eps

FPAD2

FPAD4

BD901

C802

C803

C908

C909

C910

C911

C924

C926

C927

C928

C931

C934

C936

C938

C945

C946

CN901

D901

D917

F901

FB901

FB902

FB903

FB904

FB906

FB907

IC803

IC804

IC805

IC806

IC903

IC904

IC905

IC907

IC921

L901

L907

L921

L922

Q801

Q802

Q902

Q903

Q917

R901

R919

R923

R924

R954

RV901

T803

T901

T904

C807

C809

C903

C901 C902

CN903

C951

C950

C933

T902

L902

CN802

CN803

FB905

R934

T801

T802

C937

C907

C919

C922

C958

C959

J922

J905

J903

J909

J916

J924

J902

J918

J921

J919

J923

J936

J929

J914

J913

J941

D921

D922

C904

ZD903

ZD905

ZD907

ZD925

ZD908

ZD912

ZD909
D904

D914

D902

D916

D923

D913

R915

J917

J907

J912

J908

J906

J901

J926

J933

J915

J911

J927

J931

J934

J928

J910

J930

R824

R835

R809

R828

R965

R962

D910

R945

R819

J932

J925

J935

J940

J939

J938

J937

IC809

IC808

IC810

IC908

C921

C949

D915

C932

C905 C906

J942

J943

J920

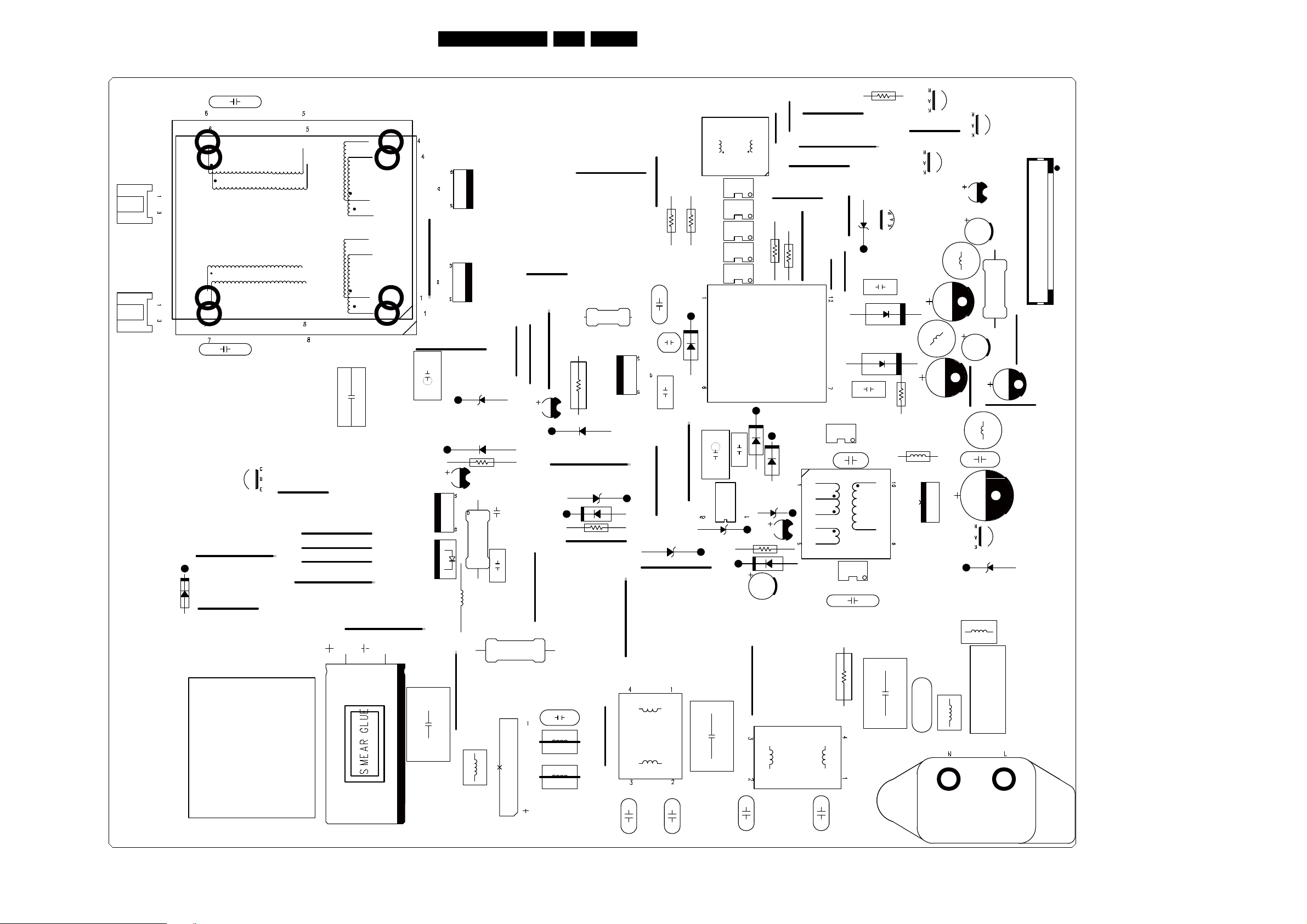

Layout Power Board, 42" (Top Side)

EN 38TPM4.1E LA 10.

2010-Jan-21

18850_503_100107.eps

C801

C804

C805

C806

C808

C810

C811

C812
C813
C814
C818

C819

C821

C940

C823

C824

C825 C826

C827

C828

C829

C830

C831C832

C912

C913

C914

C915

C916

C918

C920

C923

C925

C930

C935

C939

C942

C947

C948

C952

C954

C955

D806

D807 D808

D809

IC801

Q806

Q808

Q809

Q907

Q909

Q915

Q916

Q918

Q919

Q920

R801

R802

R804

R805

R806

R807

R808

R810

R811

R812

R813

R815

R816

R814

R818

R820

R821

R822

R823

R825

R826

R827

R829

R830

R831

R832R833

R904

R905

R906

R907R908

R909

R910

R911

R912

R913

R914

R916

R917

R921

R922

R925

R926

R927

R928

R929

R932

R935

R936

R937

R938

R941

R942

R943

R944

R948

R949

R950

R955

R957

R958

R959

R961

R963

R964

R966

R970

R973

R974 R975

R976

LED901

IC902

R918

R920

R946

R956

D926

D927

JR901

JR902

R953

R931

R967

ZD801

R951

LED902

Q905

IC901

C917

R939

R930

C929

ZD802

C815
C816

C817

C960C961

Circuit Diagrams and PWB Layouts

Layout Power Board, 42" (Bottom Side)

EN 39TPM4.1E LA 10.

2010-Jan-21

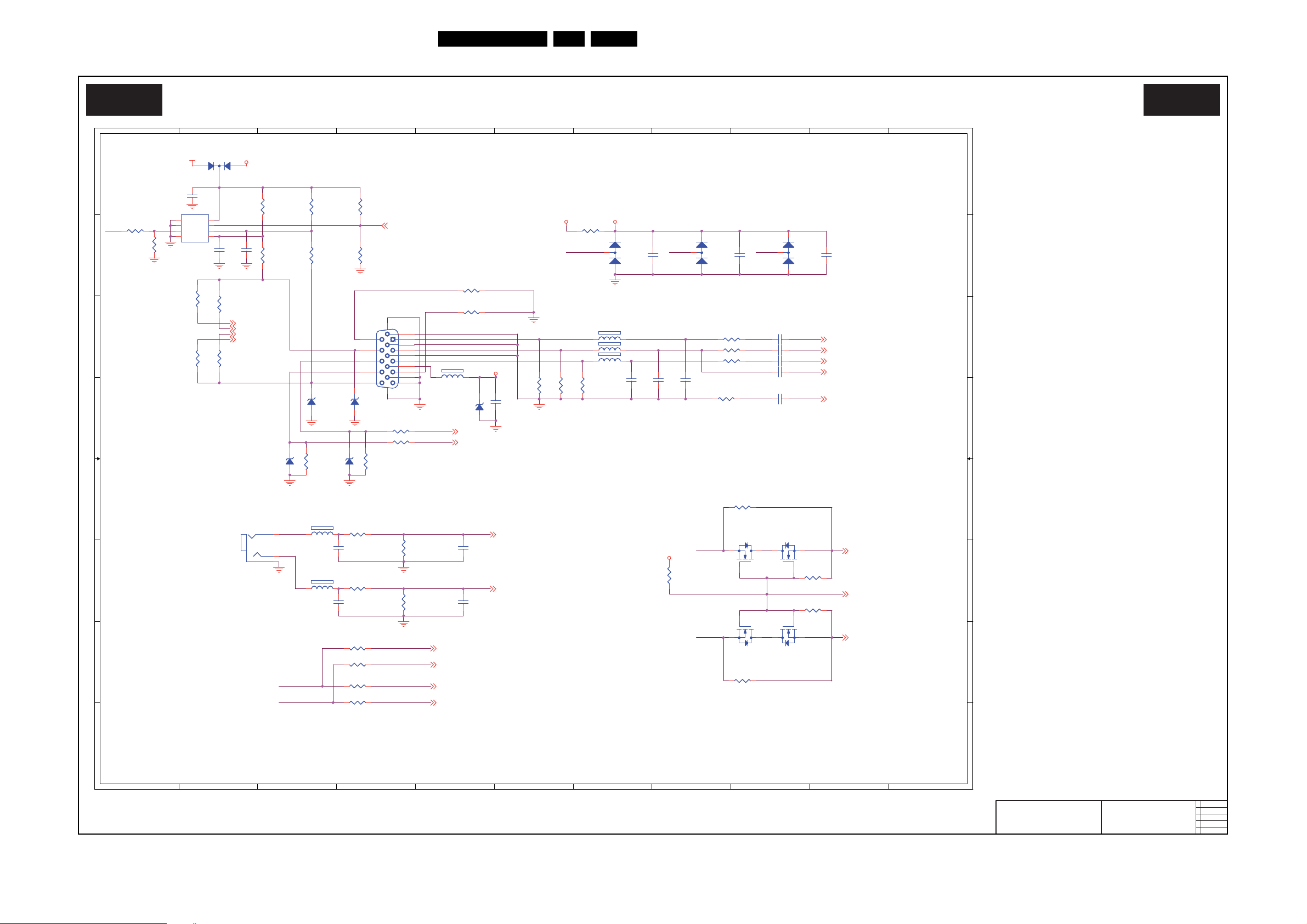

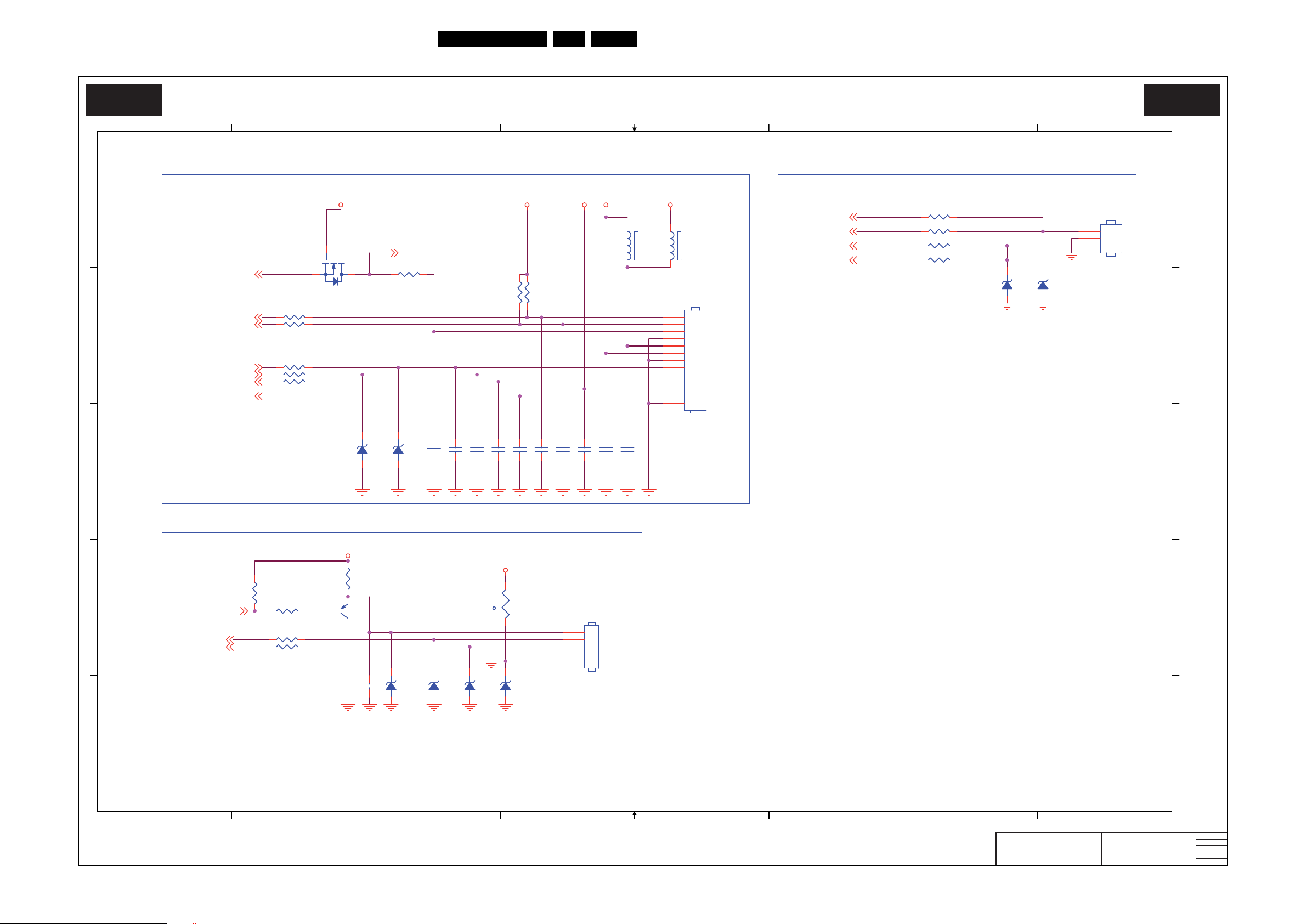

SSB: D-Sub Input

18870_501_100107.eps

100308

D-Sub Input

B01 B01

2010-01-14

C

715G3786

D-Sub Input

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B B

C C

D D

E E

F

F

G G

H H

HS

DDCSCL

R

VS

DDCSDA

B

G

R G

B

RX1

TX1

RX1

TX1

VGA_SDA

VGA_SCL

TCON_SEL

VGA5V

VGA5V

+5V

+3V3_ESD+3V3_STBY

+3V3

ISP1_SCL 12

VGA_SDA 13

DDCWP_PC 10

PC_G_IN 13

PC_B_IN 13

PC_SOG 13

PC_R_IN 13VGA_SCL 13

ISP1_SDA 12

PC_GND 13

PC_AUL_IN 16

PC_HSYNC 12

PC_VSYNC 12

U0TX 13,15

U0RX 13,15

U0RX 13,15

U0TX 13,15

PC_AUR_IN 16

TCON_SCL 20

TCON_SDA 20

TCON_SEL 13,20

PC_AUDIO

CN1101 C4 CN1102 E2
C1101 D5 C1102 A2
C1103 B7 C1104 B8
C1105 B10 C1106 B2
C1107 B2 C1108 C9
C1109 C9 C1110 C9
C1111 C9 C1112 C7
C1113 C7 C1114 C8
C1115 D9 C1116 F3
C1117 F5 C1118 E3
C1119 E5 D1101 A2
D1102 B7 D1103 B8
D1104 B9 FB1101 C5
FB1102 C7 FB1103 C7
FB1104 C7 FB1105 F3
FB1106 E3 Q1101 E8
Q1102 E9 Q1103 F8
Q1104 F9 R1101 A4
R1103 A2 R1104 A3
R1105 B7 R1106 B2
R1107 B3 R1108 B4
R1109 B2 R1110 B2
R1111 C8 R1112 C2
R1113 C2 R1114 C8
R1115 C8 R1116 C6
R1117 C6 R1118 C6
R1119 D8 R1120 D4
R1121 D4 R1122 D3
R1123 D4 R1124 F4
R1125 F4 R1126 E4
R1127 E4 R1129 C5
R1132 G4 R1133 G4
R1134 G4 R1135 G4
R1137 B5 R1138 G8
R1139 E8 R1140 F9
R1141 F9 R1142 F8
R1143 B1 R1144 B1
U1101 A2 ZD1101 D3
ZD1102 D5 ZD1103 D4
ZD1104 D3

ZD1105 D4

C1106

33P (NC)

C1106

33P (NC)

D1101

BAT54C

D1101

BAT54C

1

3

2

C1101

100N 16V

C1101

100N 16V

R1122

2K2 1/16W 5%

R1122

2K2 1/16W 5%

R1140

33K 1/16W(NC)

R1140

33K 1/16W(NC)

D1103

BAV99(NC)

D1103

BAV99(NC)

3

1 2

R1137 0R05 1/16W(NC)R1137 0R05 1/16W(NC)

R1134

10R 1/16W 5%

R1134

10R 1/16W 5%

R1116

75R 1/16W 1%

R1116

75R 1/16W 1%

R1112

0R05OHM1/16W

R1112

0R05OHM1/16W

R1138

0R05OHM1/16W(NC)

R1138

0R05OHM1/16W(NC)

R1123

2K2 1/16W 5%

R1123

2K2 1/16W 5%

FB1101

120R/3000mA

FB1101

120R/3000mA

1 2

C1109

10N 50V

C1109

10N 50V

C1104

100N(NC)

C1104

100N(NC)

C1115 10N 50VC1115 10N 50V

R1144

0R05OHM1/16W(NC)

R1144

0R05OHM1/16W(NC)

ZD1103

BZX84-C5V6(NC)

ZD1103

BZX84-C5V6(NC)

1 3

CN1101

D-SUB 15P

CN1101

D-SUB 15P

1

6

2

7

3

8

4

9

5

11

12

13

14

15

10

1716

R1103

10K1/16W

R1103

10K1/16W

D1102

BAV99(NC)

D1102

BAV99(NC)

3

1 2

FB1103

30R/700mA

FB1103

30R/700mA

1 2

R1129 0R05 1/16W(NC)R1129 0R05 1/16W(NC)

R1119

100R 1/16W 5%

R1119

100R 1/16W 5%

C1113

5PF 50V

C1113

5PF 50V

C1111 4700P 50VC1111 4700P 50V

C1119

330pF 50V

C1119

330pF 50V

R1141

33K 1/16W(NC)

R1141

33K 1/16W(NC)

Q1104

2N7002

Q1104

2N7002

C1102

100N 16V

C1102

100N 16V

U1101

M24C02-WMN6TP

U1101

M24C02-WMN6TP

A0

1

A1

2

A2

3

VSS4SDA

5

SCL

6

WP

7

VCC

8

FB1104 30R/700mAFB1104 30R/700mA

1 2

D1104

BAV99(NC)

D1104

BAV99(NC)

3

1 2

ZD1101

BZX84-C5V6(NC)

ZD1101

BZX84-C5V6(NC)

1 3

ZD1102

BZX84-C5V6(NC)

ZD1102

BZX84-C5V6(NC)

1 3

C1108 10N 50VC1108 10N 50V

R1111

68OHM 1/16W

R1111

68OHM 1/16W

FB1102

30R/700mA

FB1102

30R/700mA

1

2

C1116

330pF 50V

C1116

330pF 50V

R1139

0R05OHM1/16W(NC)

R1139

0R05OHM1/16W(NC)

C1112

5PF 50V

C1112

5PF 50V

C1107

33P (NC)

C1107

33P (NC)

R1132 10R 1/16W 5%(NC)R1132 10R 1/16W 5%(NC)

C1105

100N(NC)

C1105

100N(NC)

R1143

0R05OHM1/16W

R1143

0R05OHM1/16W

R1117

75R 1/16W 1%

R1117

75R 1/16W 1%

ZD1104

BZX84-C5V6(NC)

ZD1104

BZX84-C5V6(NC)

1 3

R1106

10R 1/16W 5%

R1106

10R 1/16W 5%

R1115

68OHM 1/16W

R1115

68OHM 1/16W

Q1102

2N7002

Q1102

2N7002

R1108

22K1/16W

R1108

22K1/16W

C1110

10N 50V

C1110

10N 50V

R1120 0R05 1/16WR1120 0R05 1/16W

C1117

330pF 50V

C1117

330pF 50V

R1105

10K(NC)

R1105

10K(NC)

R1101

10K1/16W

R1101

10K1/16W

C1103

100N 16V(NC)

C1103

100N 16V(NC)

R1107

10R 1/16W 5%

R1107

10R 1/16W 5%

R1110

0R05 1/16W(NC)

R1110

0R05 1/16W(NC)

C1114

5PF 50V

C1114

5PF 50V

R1104

10K1/16W

R1104

10K1/16W

ZD1105

BZX84-C5V6(NC)

ZD1105

BZX84-C5V6(NC)

1 3

R1135 10R 1/16W 5%R1135 10R 1/16W 5%

R1109

0R05OHM1/16W

R1109

0R05OHM1/16W

R1113

0R05 1/16W(NC)

R1113

0R05 1/16W(NC)

R1125

12KOHM +-5% 1/16W

R1125

12KOHM +-5% 1/16W

Q1101

2N7002

Q1101

2N7002

R1121 0R05 1/16WR1121 0R05 1/16W

FB1105

600R/200mA

FB1105

600R/200mA

1 2

FB1106

600R/200mA

FB1106

600R/200mA

1 2

Q1103

2N7002

Q1103

2N7002

R1127

12KOHM +-5% 1/16W

R1127

12KOHM +-5% 1/16W

CN1102

PHONEJACK

CN1102

PHONEJACK

1

2

3

R1118

75R 1/16W 1%

R1118

75R 1/16W 1%

R1133 10R 1/16W 5%(NC)R1133 10R 1/16W 5%(NC)

R1142

4.7K1/16W

R1142

4.7K1/16W

R1114

68OHM 1/16W

R1114

68OHM 1/16W

C1118

330pF 50V

C1118

330pF 50V

R1124 10K 1/16W 5%R1124 10K 1/16W 5%

R1126 10K 1/16W 5%R1126 10K 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 40TPM4.1E LA 10.

2010-Jan-21

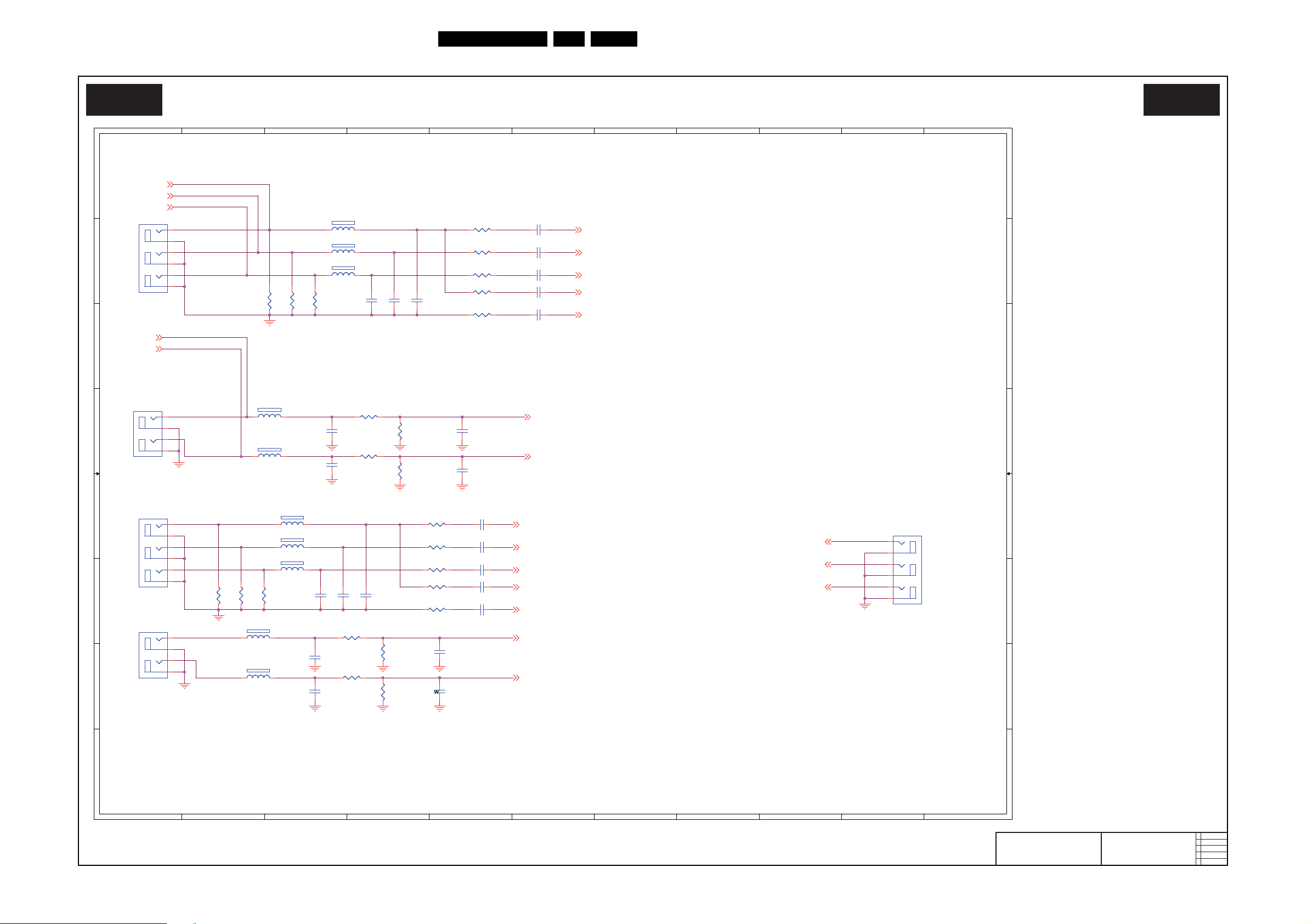

SSB: REAR I/O

18870_502_100107.eps

100308

Rear I/O

B02 B02

2010-01-14

C

715G3786

Rear I/O

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A A

B

B

C

C

D D

E

E

F F

G G

H H

COMP1_PB_IN 13

COMP1_PR_IN 13

COMP1_Y_IN 13

COMP1_GND 13

SCT1_B_IN6

SCT1_R_IN6

SCT1_G_IN6

COMP1_AUL_IN 16

COMP1_AUR_IN 16

SCT1_AUL_IN

6

SCT1_AUR_IN

6

COMP2_Y_IN 13

COMP2_AUL_IN 16

COMP2_AUR_IN 16

COMP2_PB_IN 13

COMP2_PR_IN 13

COMP2_SOG 13

COMP2_GND 13

SOY1/FB1 6,13

SCT1_CVBSIN6

SCT2_AURIN

6

SCT2_AULIN6

CVBS INPUT

N1201A B1 N1201B D1
N1202A E1 N1202B F1
CN1203 E10 C1201 B6
C1202 B6 C1203 B6
C1204 C6 C1205 B4
C1206 B4 C1207 B4
C1208 E5 C1209 E5
C1210 D3 C1211 D5
C1212 D3 C1213 D5
C1214 G3 C1215 E5
C1217 F5 C1220 F3
C1221 F3 C1222 F4
C1227 F5 C1228 G3
C1230 G5 C1232 B6
C1235 F5 FB1201 A3
FB1202 B3 FB1203 B3
FB1204 D2 FB1205 D2
FB1206 E3 FB1207 E3
FB1208 E3 FB1209 F2
FB1210 G2 R1201 B5
R1202 B5 R1203 B5
R1204 E4 R1205 B2
R1206 B3 R1207 B3
R1208 C5 R1209 D4
R1210 D4 R1211 D4
R1212 D4 R1215 F4
R1219 E4 R1221 E4
R1223 F2 R1224 F2
R1225 F2 R1227 F3
R1228 F4 R1229 G3
R1230 G4 R1231 B5

C1228

330pF 50V

C1228

330pF 50V

CN1202A

JACK

CN1202A

JACK

2

1

4

3

6

5

FB1208 30R/700mAFB1208 30R/700mA

1

2

R1206

75R 1/16W 1%

R1206

75R 1/16W 1%

C1201 10N 50VC1201 10N 50V

R1229 10K 1/16W 5%R1229 10K 1/16W 5%

C1212

330pF 50V

C1212

330pF 50V

R1225

75R 1/16W 1%

R1225

75R 1/16W 1%

FB1206 30R/700mAFB1206 30R/700mA

1

2

R1230

12KOHM +-5% 1/16W

R1230

12KOHM +-5% 1/16W

R1203

68OHM 1/16W

R1203

68OHM 1/16W

R1211

10K 1/16W 5%

R1211

10K 1/16W 5%

C1202

10N 50V

C1202

10N 50V

FB1210

600R/200mA

FB1210

600R/200mA

1

2

C1204 10N 50VC1204 10N 50V

CN1201B

AV5-8.4-02-01(NC)

CN1201B

AV5-8.4-02-01(NC)

8

7

10

9

R1215

100R 1/16W 5%

R1215

100R 1/16W 5%

CN1201A

AV5-8.4-02-01(NC)

CN1201A

AV5-8.4-02-01(NC)

2

1

4

3

6

5

FB1205

600R/200mA

FB1205

600R/200mA

1 2

R1212

12KOHM +-5% 1/16W

R1212

12KOHM +-5% 1/16W

C1227

330pF 50V

C1227

330pF 50V

C1232

4700P 50V(NC)

C1232

4700P 50V(NC)

R1234

0R05 1/16W

R1234

0R05 1/16W

C1209

10N 50V

C1209

10N 50V

C1210

330pF 50V

C1210

330pF 50V

C1220

15PF50V

C1220

15PF50V

R1201

68OHM 1/16W

R1201

68OHM 1/16W

C1217

10N 50V

C1217

10N 50V

C1207

15PF50V

C1207

15PF50V

C1221

15PF50V

C1221

15PF50V

R1224

75R 1/16W 1%

R1224

75R 1/16W 1%

R1231

0R05OHM1/16W(NC)

R1231

0R05OHM1/16W(NC)

C1222

15PF50V

C1222

15PF50V

R1205

75R 1/16W 1%

R1205

75R 1/16W 1%

R1202

68OHM 1/16W

R1202

68OHM 1/16W

C1211

330pF 50V

C1211

330pF 50V

R1223

75R 1/16W 1%

R1223

75R 1/16W 1%

FB1204

600R/200mA

FB1204

600R/200mA

1

2

C1230

330pF 50V

C1230

330pF 50V

R1207

75R 1/16W 1%

R1207

75R 1/16W 1%

C1205

15PF50V

C1205

15PF50V

CN1203

5105-870-083-98(NC)

CN1203

5105-870-083-98(NC)

2

1

4

3

6

5

C1235

4700P 50V

C1235

4700P 50V

C1203

10N 50V

C1203

10N 50V

R1227 10K 1/16W 5%R1227 10K 1/16W 5%

C1214

330pF 50V

C1214

330pF 50V

C1208

10N 50V

C1208

10N 50V

FB1202 30R/700mAFB1202 30R/700mA

1 2

R1228

12KOHM +-5% 1/16W

R1228

12KOHM +-5% 1/16W

R1208

100R 1/16W 5%

R1208

100R 1/16W 5%

R1204

68OHM 1/16W

R1204

68OHM 1/16W

C1215

10N 50V

C1215

10N 50V

CN1202B

JACK

CN1202B

JACK

8

7

10

9

FB1203

30R/700mA

FB1203

30R/700mA

1

2

R1209

10K 1/16W 5%

R1209

10K 1/16W 5%

R1219

68OHM 1/16W

R1219

68OHM 1/16W

C1206

15PF50V

C1206

15PF50V

C1213

330pF 50V

C1213

330pF 50V

FB1201

30R/700mA

FB1201

30R/700mA

1 2

FB1209

600R/200mA

FB1209

600R/200mA

1

2

R1221

68OHM 1/16W

R1221

68OHM 1/16W

FB1207

30R/700mA

FB1207

30R/700mA

1 2

R1210

12KOHM +-5% 1/16W

R1210

12KOHM +-5% 1/16W

Circuit Diagrams and PWB Layouts

EN 41TPM4.1E LA 10.

2010-Jan-21

SSB: Scart

18870_503_100107.eps

100308

Scart

B03 B03

2010-01-14

C

715G3786

Scart

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B B

C C

D D

E E

F

F

G G

H H

SCT1_FB_IN

SCT1_CVBSIN

SCT2_SC_IN

SCT1_R_IN SCT1_G_IN SCT1_B_IN SCT1_FB_IN

SCT2_CVBSY_IN

SCT2_AURIN

SCT2_AULIN

SCT2_CVBSY_IN SCT2_SC_INSCT1_CVBSIN

+3V3_ESD

+3V3_ESD

SCT1_CVBS_IN 13

SCT1_AUR_IN 5

SCT1_AUL_IN 5

SCT1_AUL_OUT 8

SCT1_AUR_OUT 8

SCT2_AUL_OUT 8

SCT2_AUR_OUT 8

SCT1_B_IN 5

SCT1_R_IN 5

SCT1_G_IN 5

SCT2_CVBS_OUT 8

SOY1/FB1 5,13

SCT1_FS_IN 13

SCT1_CVBS_OUT 9

SCT2_FS_IN 13

SCT2_S_C_IN 13

SCT2_CVBS_Y_IN 13

SCT2_AUR_IN 16

SCT2_AUL_IN 16

SCT2_CVBS_OUT8

SCT2_AURIN

5

SCT2_AULIN

5

CST_AUL_OUT8

CST_AUR_OUT8

SCT1_CVBSIN

5

FULL SCART

HALF SCART

CVBS OUT

CN1301 B2 CN1302 B8
CN1303 D6 CN1304 C6
C1301 A4 C1302 A10
C1303 B3 C1305 A9
C1308 B10 C1310 B10
C1311 D8 C1312 D2
C1313 D1 C1315 E7
C1316 E9 C1317 F7
C1318 F9 C1320 F2
C1321 F3 C1322 F4
C1323 F5 C1324 E4
C1325 E3 D1304 F1
D1305 F2 D1306 F4
D1307 F5 D1308 E4
D1309 E2 D1310 E5
FB1301 A

3 FB1302 A9
FB1303 B9 FB1304 E7
FB1305 E7 R1301 A3
R1302 A3 R1303 A9
R1304 A9 R1305 B10
R1306 B9 R1307 D3
R1308 D8 R1309 D3
R1310 D8 R1311 D2
R1312 D3 R1313 E8
R1314 E8 R1315 E8
R1316 F8 R1317 C5
R1318 C5 R1319 C5

R1306

75R 1/16W 1%

R1306

75R 1/16W 1%

R1314

12KOHM +-5% 1/16W

R1314

12KOHM +-5% 1/16W

C1312

47pF 50V

C1312

47pF 50V

R1317

0R05 1/16W(NC)

R1317

0R05 1/16W(NC)

FB1304

600R/200mA

FB1304

600R/200mA

1 2

R1308

33K 1/16W

R1308

33K 1/16W

D1307

BAV99(NC)

D1307

BAV99(NC)

3

1 2

R1310

10K 1/16W 5%

R1310

10K 1/16W 5%

C1323

100N(NC)

C1323

100N(NC)

R1318

0R05 1/16W

R1318

0R05 1/16W

C1316

330pF 50V

C1316

330pF 50V

C1321

100N(NC)

C1321

100N(NC)

C1301

47N 16V

C1301

47N 16V

R1307

0R05 1/16W

R1307

0R05 1/16W

R1319

0R05 1/16W

R1319

0R05 1/16W

CN1301

SCART

CN1301

SCART

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22 23

D1305

BAV99(NC)

D1305

BAV99(NC)

3

1 2

C1311

47pF 50V

C1311

47pF 50V

R1304

75R 1/16W 1%

R1304

75R 1/16W 1%

FB1301

120R/500mA

FB1301

120R/500mA

1

2

C1303

47pF 50V

C1303

47pF 50V

D1304

BAV99(NC)

D1304

BAV99(NC)

3

1 2

C1305

47pF 50V

C1305

47pF 50V

C1302

47N 16V

C1302

47N 16V

C1310

47pF 50V

C1310

47pF 50V

D1308

BAV99(NC)

D1308

BAV99(NC)

3

1 2

R1316

12KOHM +-5% 1/16W

R1316

12KOHM +-5% 1/16W

D1306

BAV99(NC)

D1306

BAV99(NC)

3

1 2

FB1302

120R/500mA

FB1302

120R/500mA

1

2

CN1302

SCART

CN1302

SCART

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22 23

R1312

10K 1/16W 5%

R1312

10K 1/16W 5%

C1324

100N(NC)

C1324

100N(NC)

C1325

100N 16V(NC)

C1325

100N 16V(NC)

C1308

47N 16V

C1308

47N 16V

D1309

BAV99(NC)

D1309

BAV99(NC)

3

1 2

A

B

CN1303

JACK

A

B

CN1303

JACK

2

1

4

3

R1301

100R 1/16W 5%

R1301

100R 1/16W 5%

C1322

100N(NC)

C1322

100N(NC)

FB1305

600R/200mA

FB1305

600R/200mA

1

2

R1303

100R 1/16W 5%

R1303

100R 1/16W 5%

C1318

330pF 50V

C1318

330pF 50V

R1315 10K 1/16W 5%R1315 10K 1/16W 5%

R1305

100R 1/16W 5%

R1305

100R 1/16W 5%

D1310

BAV99(NC)

D1310

BAV99(NC)

3

1 2

CN1304

5105-870-083-98(NC)

CN1304

5105-870-083-98(NC)

2

1

4

3

6

5

FB1303

120R/500mA

FB1303

120R/500mA

1

2

C1315

330pF 50V

C1315

330pF 50V

C1313

47pF 50V

C1313

47pF 50V

R1309

33K 1/16W

R1309

33K 1/16W

R1313 10K 1/16W 5%R1313 10K 1/16W 5%

R1302

75R 1/16W 1%

R1302

75R 1/16W 1%

C1320

100N(NC)

C1320

100N(NC)

R1311

75R 1/16W 1%

R1311

75R 1/16W 1%

C1317

330pF 50V

C1317

330pF 50V

Circuit Diagrams and PWB Layouts

EN 42TPM4.1E LA 10.

2010-Jan-21

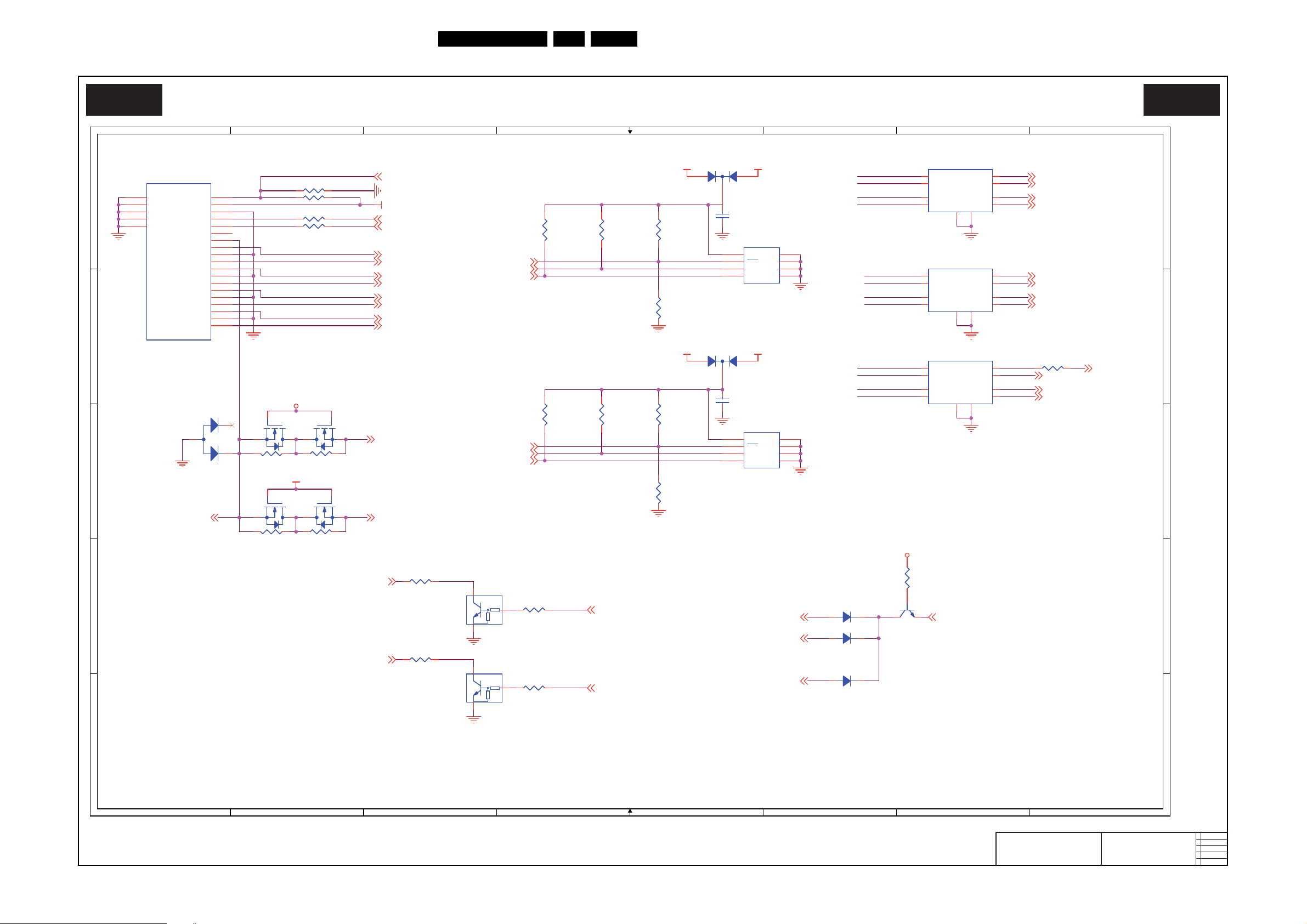

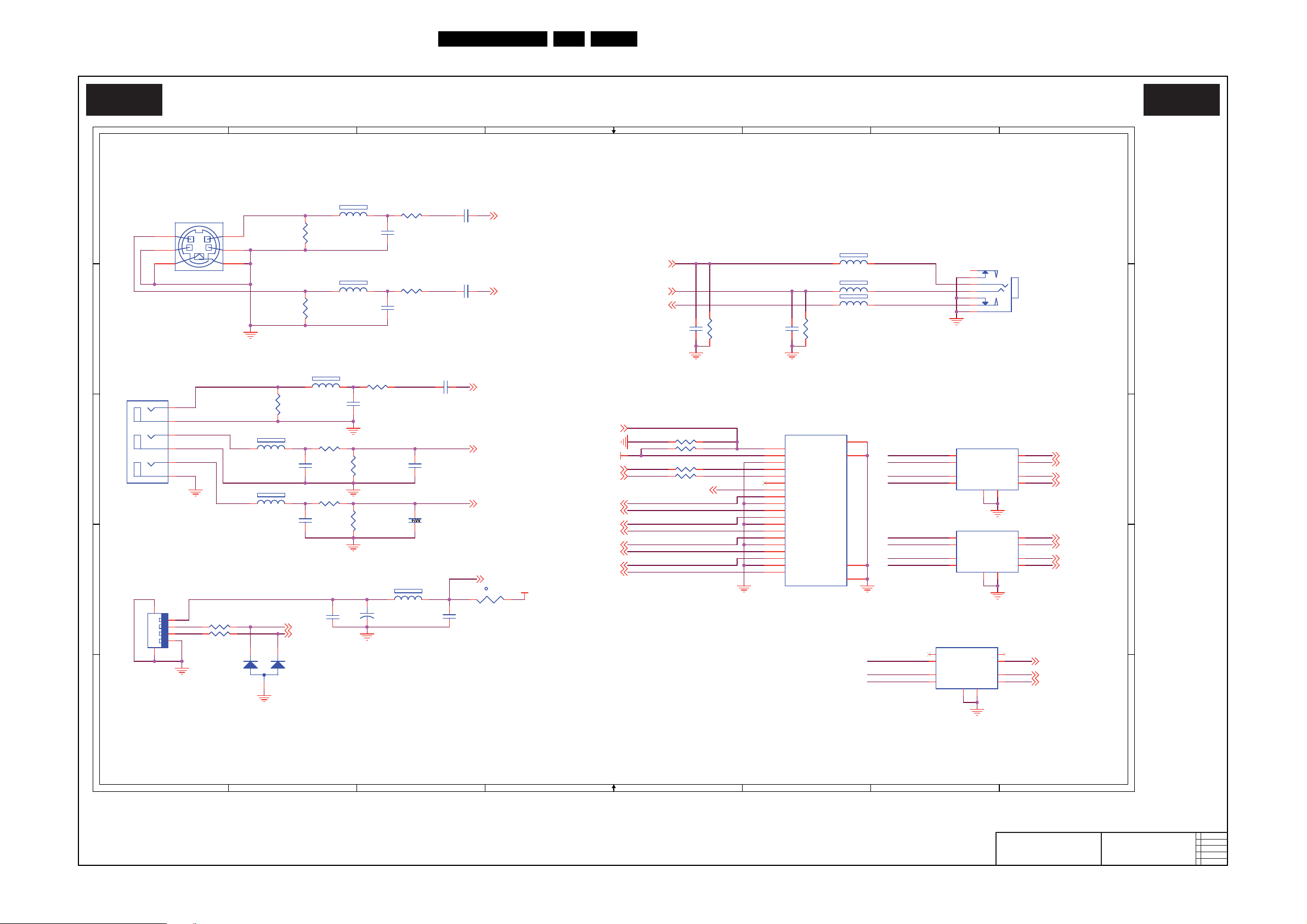

SSB: SIDE Input

18870_504_100107.eps

100308

Side Input

B04 B04

2010-01-14

C

715G3786

Side Input

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B

B

C C

D D

E E

HPLOUT

EARPDET

HPROUT

USB_5V

SVY1_IN

SVC1_IN

HDMI3_DDC_SCL

HDMI3_DDC_SDA
HDMI3_HPD

HDMI3_CK-

HDMI3_CK+

HDMI3_D0-

HDMI3_D0+

HDMI3_D1-

HDMI3_D1+

HDMI3_D2-

HDMI3_D2+

HDMI3_5V

+5V_ON

HP_LOUT

17

HP_ROUT

17

SIDE_CVBS_AUL_IN 16

SIDE_CVBS_AUR_IN 16

EARP_DET13

USB_OC 13

USB_DP 13

USB_DN 13

SIDE_CVBS_IN 13

HDMI3_HPD10,11

HDMI3_DDC_SDA10,11,13
HDMI3_DDC_SCL10,11,13

CEC10,11

HDMI3_CK+11,13

HDMI3_D0-11,13

HDMI3_D0+11,13

HDMI3_D1-11,13

HDMI3_D1+11,13

HDMI3_D2-11,13

HDMI3_D2+11,13

HDMI3_CK-11,13

SIDE_SVC_IN 13

SIDE_SVY_IN 1

3

HDMI3_CK- 7,13

HDMI3_D0- 7,13

HDMI3_D2+ 7,13

HDMI3_CK+ 7,13

HDMI3_HPD 7,10

HDMI3_DDC_SCL 7,10,13

HDMI3_D1- 7,13

HDMI3_D2- 7,13

HDMI3_D1+ 7,13

HDMI3_DDC_SDA 7,10,13

HDMI3_D0+ 7,13

CN1402 D1 CN1403 C6
CN1404 B7 CN1405 C1
CN1406 A1 C1401 A3
C1402 B3 C1403 C2
C1404 A3 C1405 D2
C1406 D3 C1407 B3
C1408 B3 C1409 D3
C1413 B6 C1414 C3
C1415 C2 C1416 C2
C1417 C3 C1418 B5
FB1401 A2 FB1402 D3
FB1403 B2 FB1404 B2
FB1405 C2 FB1406 C2
FB1407 A6 FB1408 B6
FB1409 B6 R1401 A2
R1402 A3 R1404 D1
R1405 B3 R1406 B2
R1407 B3 R1408 B2
R1409 C2 R1410 C2
R1411 C5 R1412 C5
R1413 C5 R1414 C2
R1415 C5 R1416 C2
R1417 D1 R1418 B5
R1419 B6 TH1401 D3
U1401 D2 U2107 C7
U2108 C7 U2109 D7

R1406

75R 1/16W 1%(NC)

R1406

75R 1/16W 1%(NC)

R1405

100R 1/16W 5%(NC)

R1405

100R 1/16W 5%(NC)

+

C1406

100uF 10V

+

C1406

100uF 10V

FB1406

600R/200mA

FB1406

600R/200mA

1 2

C1401

47pF 50V(NC)

C1401

47pF 50V(NC)

R1418

1K(NC)

R1418

1K(NC)

R1417

0R05 1/16W

R1417

0R05 1/16W

C1414

330pF 50V

C1414

330pF 50V

C1405

100N 16V

C1405

100N 16V

C1402

47pF 50V(NC)

C1402

47pF 50V(NC)

FB1405

600R/200mA

FB1405

600R/200mA

1

2

C1418

22N 16V(NC)

C1418

22N 16V(NC)

1234

CN1402

CONN

1234

CN1402

CONN

1
2

3

4

6 5

R1407

100R 1/16W 5%

R1407

100R 1/16W 5%

R1419

1K(NC)

R1419

1K(NC)

C1409

22U 10V(NC)

C1409

22U 10V(NC)

FB1402

120R/3000mA

FB1402

120R/3000mA

1 2

U2109 RClamp0524P.TCT(NC)U2109 RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

FB1408

600R/200mA(NC)

FB1408

600R/200mA(NC)

12

C1403

47pF 50V

C1403

47pF 50V

R1414 10K 1/16W 5%R1414 10K 1/16W 5%

FB1404

120R/500mA

FB1404

120R/500mA

1 2

CN1406

DIN JACK(NC)

CN1406

DIN JACK(NC)

4

2

3

5

1

6

C1404

47N 16V(NC)

C1404

47N 16V(NC)

R1404

0R05 1/16W

R1404

0R05 1/16W

R1416

12KOHM +-5% 1/16W

R1416

12KOHM +-5% 1/16W

U2107

RClamp0524P.TCT(NC)

U2107

RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

FB1409 600R/200mA(NC)FB1409 600R/200mA(NC)

12

CN1404

PHONEJACK(NC)

CN1404

PHONEJACK(NC)

1

7

6

2

3

4

5

R1409 10K 1/16W 5%R1409 10K 1/16W 5%

C1413

22N 16V(NC)

C1413

22N 16V(NC)

C1407

47N 16V(NC)

C1407

47N 16V(NC)

R1411

470K 1/16W 5%

R1411

470K 1/16W 5%

R1410

12KOHM +-5% 1/16W

R1410

12KOHM +-5% 1/16W

U2108 RClamp0524P.TCT(NC)U2108 RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

FB1407 600R/200mA(NC)FB1407 600R/200mA(NC)

12

R1413

1K1/16W

R1413

1K1/16W

C1415

330pF 50V

C1415

330pF 50V

C1417

330pF 50V

C1417

330pF 50V

A

B

C

CN1405

JACK

A

B

C

CN1405

JACK

2

1

4

3

5

6

C1416

330pF 50V

C1416

330pF 50V

CN1403

HDMI

CN1403

HDMI

TH1

20

TH2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

TH3

22

TH4

23

R1412 10R 1/16W 5%R1412 10R 1/16W 5%

C1408

47N 16V

C1408

47N 16V

U1401

RClamp0520B.TCT(NC)

U1401

RClamp0520B.TCT(NC)

3

1

2

FB1403

120R/500mA(NC)

FB1403

120R/500mA(NC)

1 2

R1415

10R 1/16W 5%

R1415

10R 1/16W 5%

FB1401

120R/500mA(NC)

FB1401

120R/500mA(NC)

1

2

t

TH1401

8V 0R4

t

TH1401

8V 0R4

1

2

R1401

75R 1/16W 1%(NC)

R1401

75R 1/16W 1%(NC)

R1408

75R 1/16W 1%

R1408

75R 1/16W 1%

R1402

100R 1/16W 5%(NC)

R1402

100R 1/16W 5%(NC)

Circuit Diagrams and PWB Layouts

EN 43TPM4.1E LA 10.

2010-Jan-21

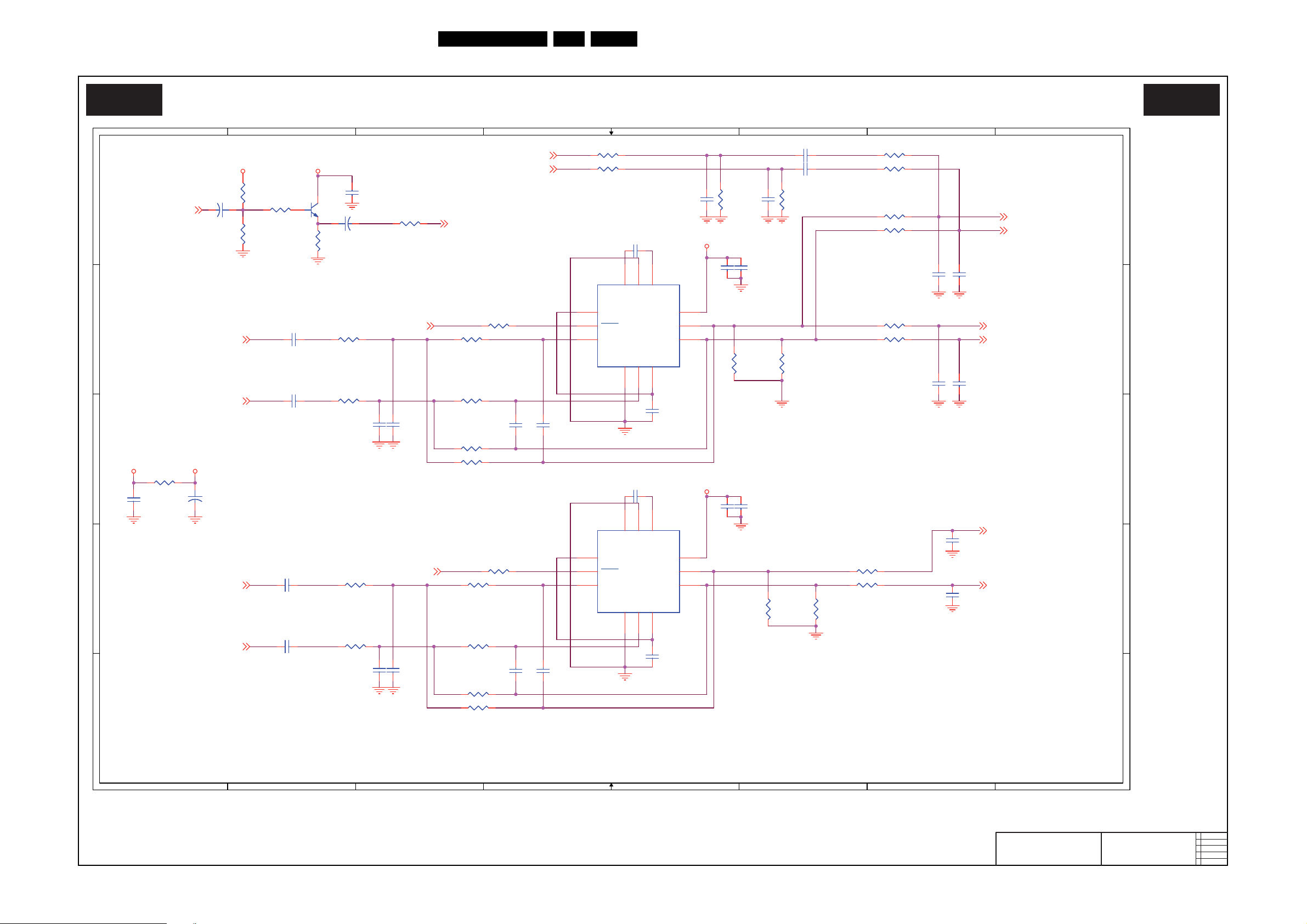

SSB: CVBS/ Audio Out

18870_505_100107.eps

100308

CVBS/Audio Out

B05 B05

2010-01-14

C

715G3786

CVBS/Audio Out

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B

B

C C

D D

E E

OP_5V+5V_ON

+5V_TUNER+5V_TUNER

OP_5V

OP_5V

AR213

AL213

AR313

AL313

SCT1_AUL_OUT 6

SCT1_AUR_OUT 6

SCT2_CVBS_OUT 6

CVBS_OUT13

POP_MUTE

17

POP_MUTE17

SCT2_AUL_OUT 6

SCT2_AUR_OUT 6

ITV_AUOutL13

ITV_AUOutR13

CST_AUL_OUT 6

CST_AUR_OUT 6

C1531C1531

1.8NF 50V

R1504

75R 1/16W 1%

R1504

75R 1/16W 1%

C1529

1.8NF 50V

C1529

1.8NF 50V

C1510

1UF 6.3V

C1510

1UF 6.3V

R1513

30KOHM 1/16W +/-5%

R1513

30KOHM 1/16W +/-5%

C1506

100N 16V

C1506

100N 16V

C1524

180P 50V

C1524

180P 50V

R1527

47KOHM(NC)

R1527

47KOHM(NC)

R1514

10K 1/16W 5%

R1514

10K 1/16W 5%

R1519 10OHM1/10WR1519 10OHM1/10W

C1505

1UF 6.3V

C1505

1UF 6.3V

C1526

1.8NF 50V

C1526

1.8NF 50V

R1528

47KOHM(NC)

R1528

47KOHM(NC)

R1515

30KOHM 1/16W +/-5%

R1515

30KOHM 1/16W +/-5%

C1527

180P 50V

C1527

180P 50V

C1539 1U(NC)C1539 1U(NC)

R1507 10OHM1/10WR1507 10OHM1/10W R1521 10OHM1/10WR1521 10OHM1/10W

R1522 10OHM1/10WR1522 10OHM1/10W

R1516

10K 1/16W 5%

R1516

10K 1/16W 5%

R1502

10K 1/16W 5%

R1502

10K 1/16W 5%

R1510

30KOHM 1/16W +/-5%

R1510

30KOHM 1/16W +/-5%

C1523

180P 50V

C1523

180P 50V

R1505

33K 1/16W

R1505

33K 1/16W

C1522

1.8NF 50V

C1522

1.8NF 50V

C1540

2200pF(NC)

C1540

2200pF(NC)

R1529

10K 1/16W 5%

R1529

10K 1/16W 5%

R1511

30KOHM 1/16W +/-5%

R1511

30KOHM 1/16W +/-5%

R1533 100R(NC)R1533 100R(NC)

R1530

10K 1/16W 5%

R1530

10K 1/16W 5%

C1511

1UF 6.3V

C1511

1UF 6.3V

R1518

10OHM1/10W

R1518

10OHM1/10W

R1508

10K1/16W

R1508

10K1/16W

R1525

47KOHM(NC)

R1525

47KOHM(NC)

C1525

1UF 6.3V

C1525

1UF 6.3V

R1531 10OHM1/10W(NC)R1531 10OHM1/10W(NC)

R1503

10R 1/16W 5%

R1503

10R 1/16W 5%

R1534 100R(NC)R1534 100R(NC)

C1541

2200pF(NC)

C1541

2200pF(NC)

+

C1507

470uF 10V

+

C1507

470uF 10V

R1509

10K 1/16W 5%

R1509

10K 1/16W 5%

R1501

0R05 1/10W

R1501

0R05 1/10W

R1506

75R 1/10W 1%

R1506

75R 1/10W 1%

Q1502
BC847C

Q1502
BC847C

C1514

1UF 6.3V

C1514

1UF 6.3V

R1532 10OHM1/10W(NC)R1532 10OHM1/10W(NC)C1538 1U(NC)C1538 1U(NC)

R1523

10K 1/16W 5%

R1523

10K 1/16W 5%

C1516

1UF 6.3V

C1516

1UF 6.3V

C1513

1.8NF 50V

C1513

1.8NF 50V

+

C1503

47uF 16V

+

C1503

47uF 16V

R1524

10K 1/16W 5%

R1524

10K 1/16W 5%

C1533

1UF 6.3V

C1533

1UF 6.3V

C1501

1UF 6.3V

C1501

1UF 6.3V

+

C1504

470uF 10V

+

C1504

470uF 10V

C1520

1U 25V

C1520

1U 25V

R1517 10OHM1/10WR1517 10OHM1/10W

U1501

MAX9728AETC+

U1501

MAX9728AETC+

PVss

4

C1N

3

OUTL

11

SVss

9

C1P

1

SGND

7

OUTR

10

SHDN

5

PGND

2

IN R

8

VDD

12

IN_L

6

U1502

MAX9728AETC+

U1502

MAX9728AETC+

PVss

4

C1N

3

OUTL

11

SVss

9

C1P

1

SGND

7

OUTR

10

SHDN

5

PGND

2

IN R

8

VDD

12

IN_L

6

R1535

22K(NC)

R1535

22K(NC)

R1512 10OHM1/10WR1512 10OHM1/10W

R1526

47KOHM(NC)

R1526

47KOHM(NC)

C1508

10uF 10V

C1508

10uF 10V

C1517

10uF 10V

C1517

10uF 10V

C1502

100N 16V

C1502

100N 16V

C1515C1515

1.8NF 50V

R1536

22K(NC)

R1536

22K(NC)

C1519

1.8NF 50V

C1519

1.8NF 50V

R1520 10OHM1/10WR1520 10OHM1/10W

C1528

1.8NF 50V

C1528

1.8NF 50V

C1530

1.8NF 50V

C1530

1.8NF 50V

C1537

1.8NF 50V

C1537

1.8NF 50V

C1518

1U 25V

C1518

1U 25V

C1521

180P 50V

C1521

180P 50V

C1501 B2 C1502 A2
C1503 A1 C1504 A2
C1505 A5 C1506 C1
C1507 C1 C1508 A5
C1510 C5 C1511 D5
C1513 B7 C1514 C5
C1515 B7 C1516 B2
C1517 C5 C1518 A5
C1519 B7 C1520 C5
C1521 C4 C1522 C3
C1523 E4 C1524 C4
C1525 D2 C1526 C3
C1527 E4 C1528 E3
C1529 E3 C1530 D7
C1531 B7 C1533 D2
C1537 D7 C1538 A6
C1539 A6 C1540 A5
C1541 A6 Q1502 A2
R1501 C1 R1502 A2
R1503 A2 R1504 A3
R1505 A2 R1506 A2
R1507 B4 R1508 B2
R1509 B2 R1510 C3
R1511 C3 R1512 D4
R1513 E3 R1514 D2
R1515 E3 R1516 D2
R1517 A7 R1518 A7
R1519 D6 R1520 D6
R1521 B7 R1522 B7
R1523 B3 R1524 B3
R1525 B6 R1526 B5
R1527 D6 R1528 D6
R1529 D3 R1530 D3
R1531 A7 R1532 A7
R1533 A4 R1534 A4
R1535 A5 R1536 A6
U1501 B4 U1502 C4

Circuit Diagrams and PWB Layouts

EN 44TPM4.1E LA 10.

2010-Jan-21

SSB: Tuner

18870_506_100107.eps

100308

Tuner

B06 B06

2010-01-14

C

715G3786

Tuner

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B

B

C C

D D

E E

TU_AVI

TU_AGC

VS_TUNER

TU_SCL

TU_SDA

TU_SIF

TU_SDA
TU_SCL

TU_CVBS

TU_AS

+5V_TUNER

+5V_ON

+5V_ON

+5V_ON

+5V_TUNER

+3V3

+3V3

+5V_TUNER

+5V_TUNER

+12V

+5V_TUNER

TV_CVBS 13

SIF_P 13

SIF_N 13

MT_SCL 12,13

MT_SDA 12,13

Tuner_CVBS_GND 13

SCT1_CVBS_OUT_CTL# 13

SCT1_CVBS_OUT 6

IIC LEVEL SHIFT

R1615

0R05 1/16W

R1615

0R05 1/16W

C1604

100N 16V

C1604

100N 16V

C1622

33P 50V

C1622

33P 50V

Q1604

2N7002

Q1604

2N7002

Q1602
BC847C

Q1602
BC847C

C1618

100N 16V

C1618

100N 16V

R1618

75R 1/16W 1%

R1618

75R 1/16W 1%

C1620 100N 16VC1620 100N 16V

FB1601

120R/6000mA(NC)

FB1601

120R/6000mA(NC)

1 2

R1626

4.7K1/16W

R1626

4.7K1/16W

R1628 15 OHM +-5% 1/4W(NC)R1628 15 OHM +-5% 1/4W(NC)TU1601

TUNER

TU1601

TUNER

NC

1

NC

2

GND

3

+B(5V)

4

RF AGC

5

GND

6

SDA

7

SCL

8

TU AS

9

NC

10

NC

11

NC

12

SIF

13

NC

14

AUDIO

15

VIDEO

16

TH117TH218TH319TH4

20

R1606

0R05 1/16W

R1606

0R05 1/16W

C1610

47N 16V

C1610

47N 16V

+

C1616

470uF 10V

+

C1616

470uF 10V

C1626

330N 25V(NC)

C1626

330N 25V(NC)

R1611

33K 1/16W

R1611

33K 1/16W

Q1601

2N7002

Q1601

2N7002

R1609

100R 1/16W 5%

R1609

100R 1/16W 5%

R1602

10K 1/16W 5%

R1602

10K 1/16W 5%

C1615

100N 16V

C1615

100N 16V

C1624

10uF 10V

C1624

10uF 10V

FB1602

120R/6000mA

FB1602

120R/6000mA

1 2

R1605

10R 1/16W 5%

R1605

10R 1/16W 5%

R1620

33K 1/16W

R1620

33K 1/16W

C1625

100N 25V(NC)

C1625

100N 25V(NC)

C1617

22P 50V

C1617

22P 50V

R1625 10R 1/16W 5%R1625 10R 1/16W 5%

R1627 0R(NC)R1627 0R(NC)

U1601

NC7SB3157P6X

U1601

NC7SB3157P6X

B1

1

GND

2

B03A

4

VCC

5

S

6

C1621

33P 50V

C1621

33P 50V

R1608

75R 1/16W 1%

R1608

75R 1/16W 1%

C1627

1UF 6.3V

C1627

1UF 6.3V

R1622

0R05 1/16W

R1622

0R05 1/16W

C1613

100N 16V

C1613

100N 16V

R1610

75R 1/16W 1%

R1610

75R 1/16W 1%

R1624 10R 1/16W 5%R1624 10R 1/16W 5%

R1619

2K2(NC)

R1619

2K2(NC)

C1612

47pF 50V

C1612

47pF 50V

R1613

10K 1/16W 5%

R1613

10K 1/16W 5%

+

C1609

47uF 25V

+

C1609

47uF 25V

C1619

1U 25V

C1619

1U 25V

Q1603
BC847C

Q1603
BC847C

+

C1603

1000uF 10V

+

C1603

1000uF 10V

R1607 15 OHM +-5% 1/4W(NC)R1607 15 OHM +-5% 1/4W(NC)

R1623

4.7K1/16W

R1623

4.7K1/16W

R1612

75R 1/10W 1%

R1612

75R 1/10W 1%

Q1606

2N7002

Q1606

2N7002

R1621

75R 1/16W 1%

R1621

75R 1/16W 1%

U1602
L7805CD2T-TR(NC)

U1602
L7805CD2T-TR(NC)

GND

2

OUT

3

IN

1

R1601

0R(NC)

R1601

0R(NC)

R1617

0R05 1/16W

R1617

0R05 1/16W

C1601

2U2 16V(NC)

C1601

2U2 16V(NC)

Q1605

2N7002

Q1605

2N7002

L1601

150uH(NC)

L1601

150uH(NC)

R1616

10R 1/16W 5%

R1616

10R 1/16W 5%

R1614 15 OHM +-5% 1/4W(NC)R1614 15 OHM +-5% 1/4W(NC)

C1601 A2 C1603 A4
C1604 A3 C1609 B3
C1610 B6 C1612 B5
C1613 C7 C1615 C4
C1616 C7 C1617 C3
C1618 C6 C1619 C6
C1620 C4 C1621 D5
C1622 D5 C1624 A4
C1625 A7 C1626 A6
C1627 B6 FB1601 A7
FB1602 A5 L1601 A5
Q1601 D6 Q1602 B4
Q1603 C7 Q1604 D7
Q1605 E6 Q1606 E7
R1601 A3 R1602 B3
R1605 B4 R1606 B3
R1607 A5 R1608 B5
R1609 B5 R1610 B5
R1611 B3 R1612 B4
R1613 C5 R1614 A5
R1615 C3 R1616 C7
R1617 C3 R1618 C7
R1619 C3 R1620 C5
R1621 C7 R1622 C3
R1623 D6 R1624 D5
R1625 D5 R1626 E6
R1627 D6 R1628 A5
TU1601 A1 U1601 C6

Circuit Diagrams and PWB Layouts

EN 45TPM4.1E LA 10.

2010-Jan-21

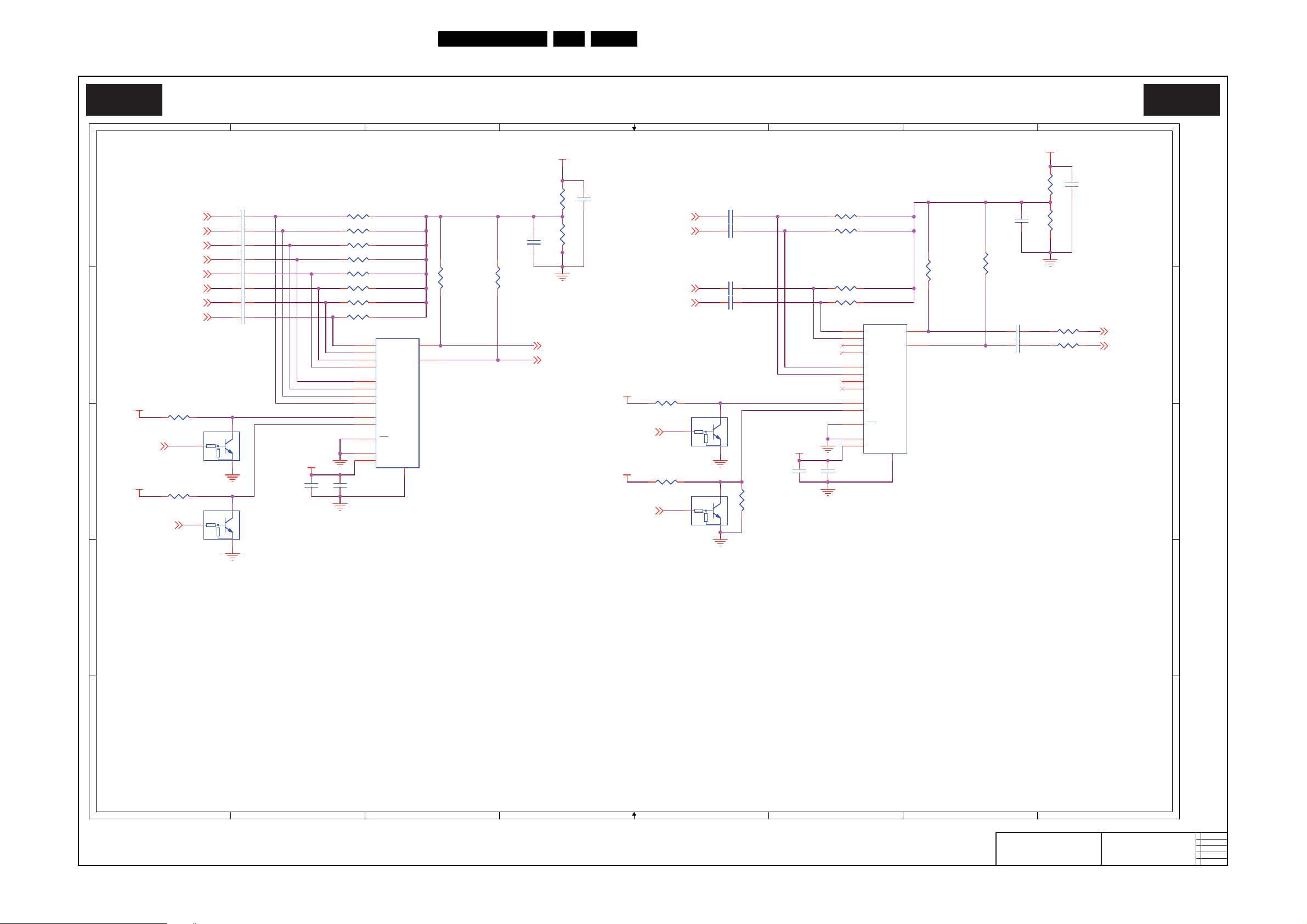

SSB: HDMI Input

18870_507_100203.eps

100203

HDMI Input

B07 B07

2010-01-14

C

715G3786

HDMI Input

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B B

C C

D D

E E

HDMI1_DDC_SCL

HDMI1_DDC_SDA
HDMI1_HPD

HDMI1_D2-

CEC_E

HDMI1_D2+

CEC_E

HDMI1_D1+

HDMI1_D0+
HDMI1_D0-

HDMI1_CK+
HDMI1_CK-

HDMI1_D1-

HDMI1_5V

+5V_STBY

+5V

+3V3

HDMI1_5V +5V

HDMI3_5V +5V

HDMI1_HPD 11

HDMI1_DDC_SDA 11,13
HDMI1_DDC_SCL 11,13

DDC_WP 13

HDMI1_DDC_SDA11,13

HDMI1_DDC_SCL11,13

HDMI1_CK+ 11,13

HDMI1_D0- 11,13
HDMI1_D0+ 11,13

HDMI1_D1- 11,13
HDMI1_D1+ 11,13

HDMI1_D2- 11,13
HDMI1_D2+ 11,13

HDMI1_CK- 11,13

DDCWP_PC4

HDMI1_HPD

11

HDMI3_HPD

7,11

HDMI1_HPD_CTL 13

DDCWP_HDMI3

DDCWP_HDMI1

DDCWP_HDMI1

MT_CEC 13

CEC7,11

MCU_CEC 12

HDMI3_DDC_SCL7,11,13

HDMI3_DDC_SDA

7,11,13

DDCWP_HDMI3

HDMI3_HPD_CTL 13

HDMI1_D0- 10,13

HDMI1_D2+ 10,13

HDMI1_CK+ 10,13
HDMI1_CK- 10,13

CEC 7,10

HDMI1_HPD 10

HDMI1_DDC_SCL 10,13

HDMI1_D1- 10,13

HDMI1_D2- 10,13

HDMI1_D1+ 10,13

HDMI1_DDC_SDA 10,13

HDMI1_D0+ 10,1

3

CN1701 A1 C1701 A5
C1703 B5 D1701 D6
D1702 D6 D1704 D6
D1705 A5 D1707 B5
Q1701 D6 Q1702 D3
Q1703 C2 Q1704 C2
Q1706 D3 Q1707 C2
Q1708 C2 R1701 A2
R1703 A2 R1704 A4
R1705 A4 R1706 A5
R1707 A2 R1708 A2
R1709 B5 R1710 D3
R1711 D4 R1717 C2
R1718 C2 R1719 D3
R1721 D4 R1726 B4
R1727 B4 R1728 B5
R1729 C5 R1730 C2
R1731 C2 R1732 D6
R2101 B8 U1701 C1
U1702 A5 U1704 C5
U2101 A7 U2102 A7

D1704 LS4148D1704 LS4148

D1707

BAT54C

D1707

BAT54C

1

3

2

R1726

47K1/16W

R1726

47K1/16W

R1729

100K(NC)

R1729

100K(NC)

R1701 470K 1/16W 5%R1701 470K 1/16W 5%

R1727

47K1/16W

R1727

47K1/16W

C1701

100N 16V

C1701

100N 16V

R1

R2

Q1706

PDTC114EU

R1

R2

Q1706

PDTC114EU

1

32

R1721 10R 1/16W 5%R1721 10R 1/16W 5%

D1702 LS4148D1702 LS4148

R1719 10R 1/16W 5%R1719 10R 1/16W 5%

R1

R2

Q1702

PDTC114EU

R1

R2

Q1702

PDTC114EU

1

32

R1705

47K1/16W

R1705

47K1/16W

Q1704

2N7002

Q1704

2N7002

R2101 0R05 1/16W(NC)R2101 0R05 1/16W(NC)

R1732

10K 1/16W 5%

R1732

10K 1/16W 5%

R1707 10R 1/16W 5%R1707 10R 1/16W 5%

Q1703 2N7002(NC)Q1703 2N7002(NC)

R1710 10R 1/16W 5%R1710 10R 1/16W 5%

R1709

100K(NC)

R1709

100K(NC)

C1703

100N 16V

C1703

100N 16V

R1704

47K1/16W

R1704

47K1/16W

U1702

M24C02-WDW6P

U1702

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

R1708

10R 1/16W 5%

R1708

10R 1/16W 5%

Q1707 2N7002(NC)Q1707 2N7002(NC)

R1718 0R(NC)R1718 0R(NC)

R1703 1K1/16WR1703 1K1/16W

R1730 0R(NC)R1730 0R(NC)

D1705

BAT54C

D1705

BAT54C

1

3

2

Q1708

2N7002

Q1708

2N7002

U2102 RClamp0524P.TCT(NC)U2102 RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R1717

0R05 1/16W

R1717

0R05 1/16W

R1706

10K 1/16W 5%

R1706

10K 1/16W 5%

R1728

10K 1/16W 5%

R1728

10K 1/16W 5%

U2101

RClamp0524P.TCT(NC)

U2101

RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

Q1701
BC847C

Q1701
BC847C

D1701 LS4148D1701 LS4148

R1731

0R05 1/16W

R1731

0R05 1/16W

U1701

RClamp0520B.TCT(NC)

U1701

RClamp0520B.TCT(NC)

3

1

2

U1704

M24C02-WDW6P

U1704

M24C02-WDW6P

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

CN1701
HDMI

CN1701
HDMI

TH1

20

TH2

21

D2+

1

D2 Shield

2

D2-

3

D1+

4

D1 Shield

5

D1-

6

D0+

7

D0 Shield

8

D0-

9

CK+

10

CK Shield

11

CK-

12

CE Remote

13

NC

14

DDC CLK

15

DDC DATA

16

GND

17

+5V

18

HP DET

19

TH3

22

TH4

23

TH5

24

U2103

RClamp0524P.TCT(NC)

U2103

RClamp0524P.TCT(NC)

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

OUT4

6

OUT3

7

GND

8

OUT2

9

OUT1

10

R1711 10R 1/16W 5%R1711 10R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 46TPM4.1E LA 10.

2010-Jan-21

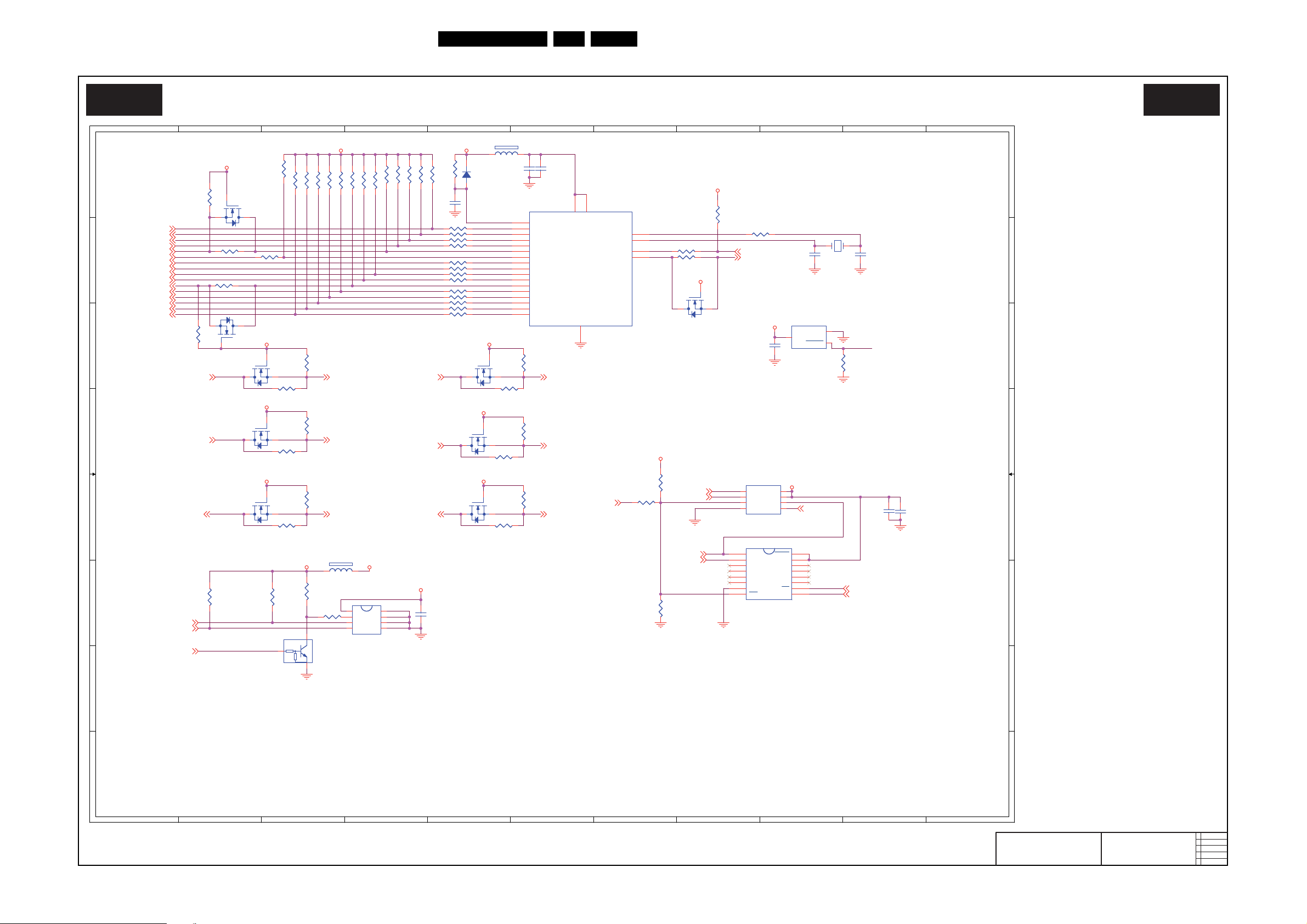

Circuit Diagrams and PWB Layouts

18870_508_100203.eps

100308

WT6703F (Stand-by MCU)

B08 B08

2010-01-14

C

715G3786

WT6703F (Stand-by MCU)

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B B

C C

D D

E E

F

F

G G

H H

OSCI

RESET_WT

RESET_WT

OSCO

+3V3_STBY

+3V3_STBY +3V3_STBY

+3V3_STBY

+3V3

+3V3_F

+3V3_F

+3V3_F

+3V3_F

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3 +3V3

KEY113,15

DC_ON_OFF 13,15
RST_MT8222 13

STANDBY13,19

LED2STBY13,15

5V_PWR_SW13,19

RC_IR_3V313,15

TXD115
RXD115

PC_HSYNC4

PC_VSYNC4

ISP1_SCL4
ISP1_SDA4

MCU_CEC10

MT_SCL

9,13

MT_SDA

9,13

SPI_SO13

SPI_CS#13
SPI_SI13

SDA20

SCL20

EEPROM_WP13

AUD_PWR_S

W

13,18

SPI_CS#13

SPI_SI13

SPISCK

13

SPI_SO13

FLASH_WR#13

PC_HSYNC4

PC_VSYNC4

MT_VSYNC 13

MT_HSYNC 13

MT_INT13

MT_TXD1 13,15

TXD115

MT_RXD1 13,15

RXD115

SCL20 MT_SCL 9,13SDA20

MT_SDA 9,13

System E2PROM

8M flash ROM

C4101 A6 C4102 C9
C4103 A6 C4104 A5
C4105 B9 C4106 B10
C4107 F4 C4108 E10
C4109 E10 D4101 A5
FB4101 A5 FB4103 E3
Q4101 F3 Q4102 B7
Q4103 C2 Q4104 D2
Q4105 C5 Q4106 D5
Q4107 E2 Q4108 E5
Q4109 A2 Q4110 C2
R4101 A3 R4102 C9
R4103 A5 R4104 A3
R4105 A3 R4106 A3
R4107 A3 R4108 A3
R4109 A3 R4110 A4
R4111 A4 R4112 A4
R4113 A4 R4114 A4
R4115 A4 R4116 A4
R4117 B5 R4118 B5
R4119 B5 R4120 A8
R4121 B5 R4122 B8
R4123 B2 R4124 B7
R4125 B2 R4126 B7
R4127 B5 R4128 B5
R4129 B5 R4130 B5
R4131 B2 R4132 B5
R4133 B5 R4134 B5
R4135 B5 R4136 C5
R4137 F2 R4138 F3
R4139 F3 R4140 D7
R4141 F3 R4142 F7
R4143 E7 R4145 C3
R4146 D3 R4147 C5
R4148 D5 R4149 E

3

R4150 E5 R4151 A2
R4152 C2 R4153 C3
R4154 D3 R4155 C6
R4156 D6 R4157 E3
R4158 E6 U4101 A6
U4102 C9 U4103 F4
U4104 E8 U4105 E8

R4129 47 OHM 1/16W(NC)R4129 47 OHM 1/16W(NC)

R4106 10K 1/16W 5%(NC)R4106 10K 1/16W 5%(NC)

Q4102

2N7002(NC)

Q4102

2N7002(NC)

R4156

10K 1/16W 5%(NC)

R4156

10K 1/16W 5%(NC)

Q4103

2N7002(NC)

Q4103

2N7002(NC)

R4122 33 OHM 1/16W(NC)R4122 33 OHM 1/16W(NC)

C4108

10uF 10V

C4108

10uF 10V

Q4108

2N7002(NC)

Q4108

2N7002(NC)

C4104

4.7uF 10V(NC)

C4104

4.7uF 10V(NC)

C4109

100N 16V

C4109

100N 16V

R4116 6K8 1/16W 5%(NC)R4116 6K8 1/16W 5%(NC)

R4135 47 OHM 1/16W(NC)R4135 47 OHM 1/16W(NC)

D4101

LS4148(NC)

D4101

LS4148(NC)

R4152

10K 1/16W 5%(NC)

R4152

10K 1/16W 5%(NC)

R4155

10K 1/16W 5%(NC)

R4155

10K 1/16W 5%(NC)

R4128

47 OHM 1/16W(NC)

R4128

47 OHM 1/16W(NC)

R4114 10K 1/16W 5%R4114 10K 1/16W 5%

U4103

AT24C32CN-SH-T

U4103

AT24C32CN-SH-T

A0

1

A1

2

A2

3

GND

4

SDA

5

SCL

6

WP

7

VCC

8

R4150

0R05OHM1/16W

R4150

0R05OHM1/16W

R4146

0R05OHM1/16W

R4146

0R05OHM1/16W

C4106

22P 50V(NC)

C4106

22P 50V(NC)

R4157

10K 1/16W 5%(NC)

R4157

10K 1/16W 5%(NC)

R4110 10K 1/16W 5%R4110 10K 1/16W 5%

X4101

32.768KHz(NC)

X4101

32.768KHz(NC)

1

2

Q4104

2N7002(NC)

Q4104

2N7002(NC)

R4132 47 OHM 1/16W(NC)R4132 47 OHM 1/16W(NC)

R4102

100K1/16W(NC)

R4102

100K1/16W(NC)

R4112 33K 1/16W(NC)R4112 33K 1/16W(NC)

R4127

47 OHM 1/16W(NC)

R4127

47 OHM 1/16W(NC)

R4154

10K 1/16W 5%(NC)

R4154

10K 1/16W 5%(NC)

R4120

33K 1/16W(NC)

R4120

33K 1/16W(NC)

R4142

10K(NC)

R4142

10K(NC)

R4105 10K 1/16W 5%R4105 10K 1/16W 5%

R4103

10K 1/16W 5%(NC)

R4103

10K 1/16W 5%(NC)

R4121 47 OHM 1/16W(NC)R4121 47 OHM 1/16W(NC)

FB4101

120R/3000mA(NC)

FB4101

120R/3000mA(NC)

12

Q4109

2N7002(NC)

Q4109

2N7002(NC)

C4107

100N 16V

C4107

100N 16V

R4143

33 OHM 1/16W

R4143

33 OHM 1/16W

/ACC

U4105

MX25L6405DMI-12G(NC)

/ACC

U4105

MX25L6405DMI-12G(NC)

HOLD

1

VCC

2

NC

3

NC

4

NC

5

NC

6

CS

7

SO/SIO1

8

WP

9

GND

10

NC

11

NC

12

NC

13

NC

14

SI/SIO0

15

SCLK

16

C4102

100N 16V(NC)

C4102

100N 16V(NC)

C4101

100N 16V(NC)

C4101

100N 16V(NC)

C4103

10U 6V3(NC)

C4103

10U 6V3(NC)

R4138

10K 1/16W 5%(NC)

R4138

10K 1/16W 5%(NC)

R4148

0R05OHM1/16W

R4148

0R05OHM1/16W

R4133 22R 1/16W 5%(NC)R4133 22R 1/16W 5%(NC)

R4151

10K 1/16W 5%(NC)

R4151

10K 1/16W 5%(NC)

U4104

W25Q32BVSSIG

U4104

W25Q32BVSSIG

/CS

1

DO

2

/WP

3

GND

4

VCC

8

/HOLD

7

CLK

6

DI

5

R4147

0R05OHM1/16W

R4147

0R05OHM1/16W

R4123

47R 1/16W 5%(NC)

R4123

47R 1/16W 5%(NC)

R4149

0R05OHM1/16W

R4149

0R05OHM1/16W

C4105

22P 50V(NC)

C4105

22P 50V(NC)

R4101 27K 1/16WR4101 27K 1/16W

U4102

AP1701FWL(NC)

U4102

AP1701FWL(NC)

GND

1

RESET

2

Vcc

3

R4153

10K 1/16W 5%(NC)

R4153

10K 1/16W 5%(NC)

R4107 10K 1/16W 5%(NC)R4107 10K 1/16W 5%(NC)

Q4107

2N7002(NC)

Q4107

2N7002(NC)

R4119 47 OHM 1/16W(NC)R4119 47 OHM 1/16W(NC)

R4134 22R 1/16W 5%(NC)R4134 22R 1/16W 5%(NC)

R4136 47 OHM 1/16W(NC)R4136 47 OHM 1/16W(NC)

R4124

47 OHM 1/16W(NC)

R4124

47 OHM 1/16W(NC)

R4137

10K 1/16W 5%(NC)

R4137

10K 1/16W 5%(NC)

R4140

1K 1/10W

R4140

1K 1/10W

R4145

0R05OHM1/16W

R4145

0R05OHM1/16W

R4108 10K(NC)R4108 10K(NC)

Q4105

2N7002(NC)

Q4105

2N7002(NC)

Q4106

2N7002(NC)

Q4106

2N7002(NC)

FB4103

120R/3000mA

FB4103

120R/3000mA

12

R4109 10K1/16WR4109 10K1/16W

R4118 47 OHM 1/16W(NC)R4118 47 OHM 1/16W(NC)

R4104 10K 1/16W 5%R4104 10K 1/16W 5%

R4131 47R 1/16W 5%(NC)R4131 47R 1/16W 5%(NC)

R4139

10K 1/16W 5%

R4139

10K 1/16W 5%

R4111 10K 1/16W 5%R4111 10K 1/16W 5%

R4130

47 OHM 1/16W(NC)

R4130

47 OHM 1/16W(NC)

R4125

100R 1/16W 5%

R4125

100R 1/16W 5%

R4113 10K 1/16W 5%(NC)R4113 10K 1/16W 5%(NC)

U4101

WT6703F-SG240WT(NC)

U4101

WT6703F-SG240WT(NC)

32KOSCI

2

32KOSCO

1

GPIOA0/AD0

22

GPIOA1/AD1

21

GPIOA2/AD2

20

GPIOA3/AD3/IR

19

GPIOC0/PWM0

6

GPIOC1/PWM1

5

VDD_RTC

24

GPIOB5/HIN

9

GPIOA4/SCL3

18

GPIOA5/SDA3

17

GPIOB6/IRQ2/TXD

8

GPIOB4/VIN

10

VDD

23

VSS

3

GPIOB2/IRQ0

12

GPIOB3/IRQ1

11

GPIOB7/IRQ3/RXD

7

NPST

4

GPIOB1/SDA2

13

GPIOB0/SCL2

14

GPIOA6/SCL1

16

GPIOA7/SDA1

15

R4117 47 OHM 1/16W(NC)R4117 47 OHM 1/16W(NC)

Q4110

2N7002(NC)

Q4110

2N7002(NC)

R4141

47 OHM 1/16W

R4141

47 OHM 1/16W

R4158

10K 1/16W 5%(NC)

R4158

10K 1/16W 5%(NC)

R4126 47R(NC)R4126 47R(NC)

R4115 10K 1/16W 5%R4115 10K 1/16W 5%

R1

R2

Q4101
PDTC114EU

R1

R2

Q4101
PDTC114EU

1

32

SSB: WT6703F (Stand-by MCU)

EN 47TPM4.1E LA 10.

2010-Jan-21

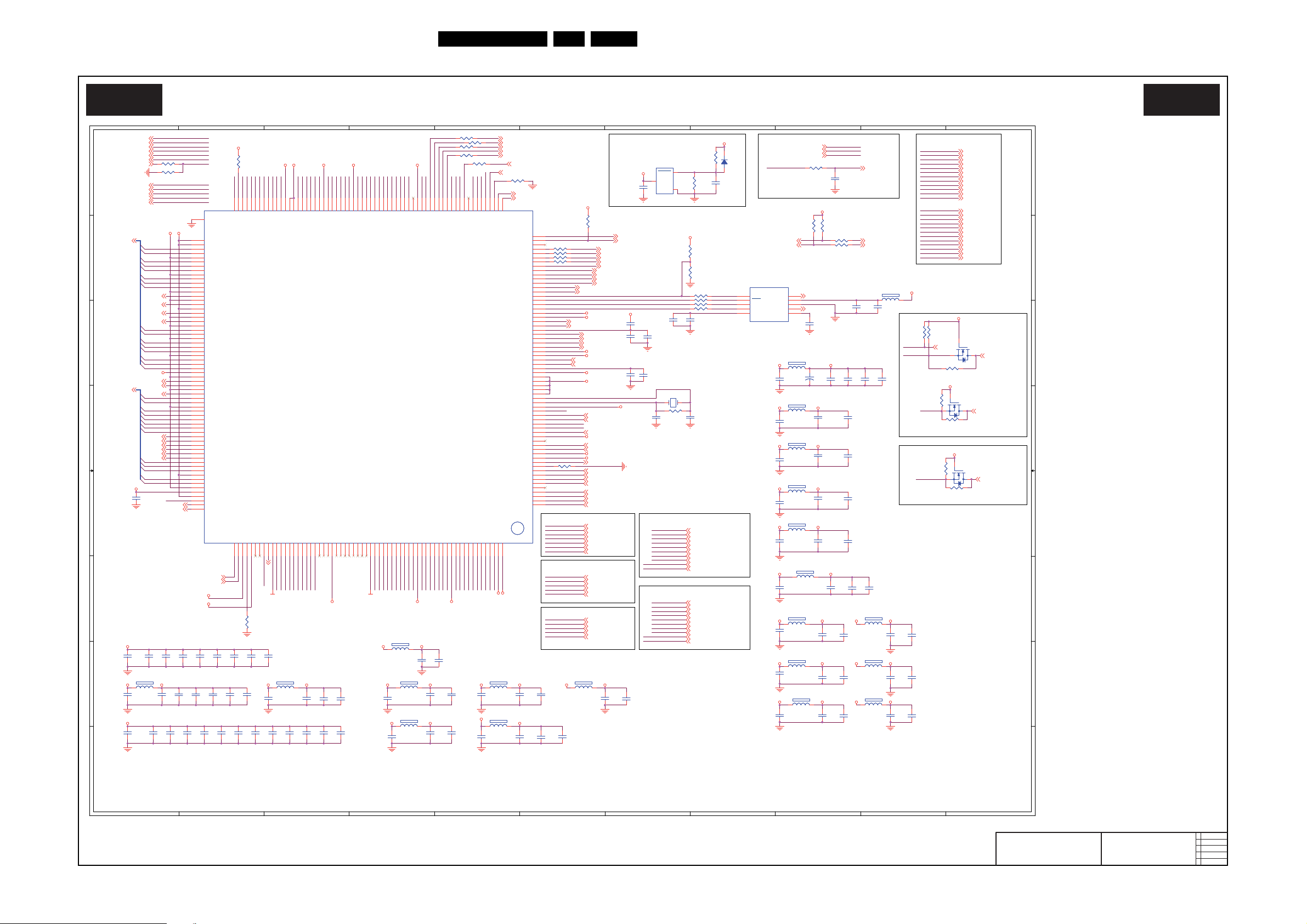

SSB: MTK8222

18870_509_100203.eps

100308

MTK8222

B09 B09

2010-01-14

C

715G3786

MTK8222

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A A

B B

C C

D D

E

E

F F

G

G

H H

AL2

AR2

AL3

AR3

DV10

UP31

UP35

GPIO_7

GPIO_8

DV33

U0TX

U0RX

ADIN5

MT_RC_3V3

AOMCLK

AV12A_RGB

AV12D_RGB

GPIO_4DV10

DV33

VGAHSYNC#

AV12_PLL

AV33_SIFDIG

GPIO_0

GPIO_9

GPIO_10

AV33_XTL

GPIO_1

AUD_L

AV33_ADC

E3P

AOLRCK

AOBCK

SPI_SO

E3N

SPI_SI

SPI_SCK

ADIN3

E0N

O0N

GPIO_22

ADIN2

ECKP

ECKN

AVICM

GPIO_23

ICE

GPIO_24

GPIO_11

E2P

E2N

E1P

E1N

GPIO_20

ADIN1
ADIN0

AV33_LVDS

UP30

E0P

GPIO_2

GPIO_5

GPIO_6

ADIN4

VGASOG

VGAGND

REDP

GRNP

BLUP

PR0P

YPBPR0_N

Y0P

PB0P

SOY0/FB0

YPBPR1_N

PR1P

Y1P

PB1P

O3P

O3N

OCKP

O2P

O2N

O1P

O1N

O0P

UP33

UP34

LED2_STBY

DV10

AV33_USB

DV33

XTALO

HDMI1_D0+

HDMI1_D0-

HDMI1_D1+

HDMI1_D1-

HDMI1_D2+

HDMI1_D2-

HDMI1_CK+

HDMI1_CK-

HDMI1_DDC_SCL

HDMI3_DDC_SCL

HDMI3_CK+

HDMI3_D1+

HDMI3_D1-

HDMI3_D0+

HDMI3_D2+

HDMI3_D2-

HDMI3_D0-

HDMI3_CK-

SPI_CS#

SPI_SO

SPI_SI

E3P

E3N

ECKP

ECKN

E2P

E2N

E1P

E1N

E0P

E0N

O3P

O3N

OCKP

OCKN

O2P

O2N

O1P

O1N

O0P

O0N

AV33_LVDS

HDMI1_DDC_SDA

HDMI3_DDC_SDA

OCKN

GPIO_25

AV33_ADCREF
AUD_R

AUD_VMID

XTALI

USBVRT

VGAVSYNC#

SOY1

DV10

RDQ1

RDQ3

RDQ2

RDQ6

RDQ5

RDQ4

RDQ7

RDQ8
RDQ9

RDQ10

RA9

RDQ11

DV33

RDQ12

RDQ13
RDQ14
RDQ15

RA12

RA11

RA8
RA7
RA6
RA5
RA4

RA10
RA0
RA1

RA2
RA3

RDQ0

VGAHSYNC#

VGAVSYNC#

PR0P

YPBPR0_N

Y0P

PB0P

YPBPR1_N

PR1P

Y1P

PB1P

VGASOG

VGAGND

REDP

GRNP

BLUP

SOY1

SOY0/FB0

HDMI3_D2+

HDMI3_DDC_SDA

HDMI3_D2­HDMI3_CK+
HDMI3_CK-

HDMI3_DDC_SCL

HDMI3_D0+
HDMI3_D0­HDMI3_D1+
HDMI3_D1-

HDMI1_D2+

HDMI1_DDC_SDA

HDMI1_D2­HDMI1_CK+
HDMI1_CK-

HDMI1_DDC_SCL

HDMI1_D0+
HDMI1_D0­HDMI1_D1+
HDMI1_D1-

RST_MT8222

GPIO_6

GPIO_7

GPIO_0

GPIO_2

GPIO_8

GPIO_5

GPIO_9

GPIO_4

GPIO_11

GPIO_10

GPIO_1

ADIN2

ADIN1

MT_RC_3V3

ADIN5

AOSDATA0

SPI_SCK

E4P

E4N

E4N
E4P

O4P

O4N

O4N

O4P

SPI_CS#

GPIO_3

AR1
AL1

GPIO_21

GPIO_3

MEM_VREF

AV33_DAC

AV12_PLL

AV33_CVBS

AV33_SIFDIG

AV33_XTL

AV33_ADCREF

AV33_USB

AV12_MEMPLL

AV12_USB

AV12A_RGBAV12D_RGB

DV10

DV33

DV10

DDRV

AV12_PLLAV12 AV12_LVDSAV12 AV12_HDMIAV12

AV33_USB+3V3

AV33_ADCREF+3V3

AV33_SIF

AV33_DAC

AV33_ADC

HDMI3_5V

AV33_HDMI

HDMI1_5V

AV12_HDMI AV33_VGA

AV12_LVDSPLLAV12_LVDSAV33_LVDSDV33

DDRV

AV12_LVDSPLL

AV12

AV12_MEMPLLAV12

AV12_USBAV12 AV12D_RGBAV12

AV12A_RGB

AV12

AV33_XTL+3V3

+3V3

AV33_SIFDIG

+3V3 AV33_ADC

+3V3

AV33_HDMI

AV33_LVDS+3V3

DV10

DV10

+3V3

AV33_CVBS+3V3

+3V3

AV33_DAC

+3V3

AV33_SIF

AV33_VGA

DV33

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

+3V3

OPS_5V

RDQ[15..0]14

RDQS0

14

RDQS114

RDQM014

RDQM1

14

RWE#14
RCAS#14
RRAS#14
RCS#14

VGA_SCL4

VGA_SDA4

RST_MT8222 12

USB_DN7
USB_DP7

SPI_SI12
SPI_SO12
SPI_CS#12

RXO0- 20

RXOC+ 20

RXO2- 20

RXO0+ 20
RXO1- 20
RXO1+ 20

RXO2+ 20
RXOC- 20

RXO3+20

RXO3-20

RXEC- 20
RXEC+ 20

RXE2- 20

RXE1- 20

RXE0- 20

RXE1+ 20

RXE3+20

RXE2+ 20

RXE3-20

RXE0+ 20

MT_SDA 9,12

MT_SCL 9,12

Tuner_CVB

S_GND 9

MT_CEC

10

RBA014
RBA114

RCKE14

RCLK0#14
RCLK014

RA[12..0]14

AC_OFF 17

SIF_P 9

TV_CVBS 9

SIF_N 9

CVBS_OUT 8

MT_VSYNC 12

MT_HSYNC 12

COMP1_Y_IN 5

SOY1/FB1 5,6

COMP1_GND 5
COMP1_PB_IN 5
COMP1_PR_IN 5

COMP2_Y_IN 5

COMP2_SOG 5

COMP2_GND 5
COMP2_PB_IN 5
COMP2_PR_IN 5

PC_GND 4

PC_R_IN 4

PC_SOG 4
PC_G_IN 4
PC_B_IN 4

HDMI3_D0- 7,11

HDMI3_D0+ 7,11

HDMI3_DDC_SDA 7,10,11

HDMI3_DDC_SCL 7,10,11

HDMI3_D1+ 7,11

HDMI3_D1- 7,11

HDMI3_D2+ 7,11

HDMI3_D2- 7,11

HDMI3_CK+ 7,11

HDMI3_CK- 7,11

HDMI1_D0- 10,11

HDMI1_D0+ 10,11

HDMI1_DDC_SDA 10,11

HDMI1_DDC_SCL 10,11

HDMI1_D1+ 10,11

HDMI1_D1- 10,11

HDMI1_D2+ 10,11

HDMI1_D2- 10,11

HDMI1_CK+ 10,11

HDMI1_CK- 10,11

AR2 8
AL2

8

AR38
AL38

BRIGHTNESS_PWM 19

EEPROM_WP 12

AMP_EN 18

AMP_GAIN0 18

AMP_GAIN1 18

AUD_L 16

AUD_R 16

SCT2_CVBS_Y_IN 6
SCT2_S_C_IN 6

SCT1_CVBS_IN 6

SIDE_CVBS_IN 7

SCT1_FS_IN 6

SCT2_FS_IN 6

LIGHT_SENSOR 15

AUD_PWR_SW12,18

LED2STBY 12,15

STANDBY 12,19

5V_PWR_SW 12,19

AUDIN_SEL1 16

OP_MUTE 17

FLASH_WR# 12

DDC_WP10

SCT1_CVBS_OUT_CTL#9

HDMI1_HPD_CTL10

PANEL_PWR_CTL19

HDMI3_HPD_CTL10

MT_INT12

ODSEL

20

EARP_DET

7

LED1_ON15

USB_OC7

INVERTER_ON_OFF19

KEY2 15

KEY1 12,15

MT_TXD1 12,15

U0TX4,15
U0RX4,15

MT_TXD1 12,15
MT_RXD1 12,15

MT_RXD1 12,15

AUDIN_SEL2 16

AUDIN_SEL3 16

AUDIN_SEL4 16

MAIN_AOR 17

MAIN_AOL 17

RC_IR_3V3 12,15

DC_ON_OFF 12,15

SPISCK 12

RXE4- 20
RXE4+ 20

RXO4- 20
RXO4+ 20

ITV_AUOutR 8
ITV_AUOutL 8

SIDE_SVY_IN 7
SIDE_SVC_IN 7

PWR_OK 19

TCON_SEL20,4

Serial Flash IF

Close to MT8222 As possible

COMP1 input

VGA input

COMP2 input

HDMI

KEYBOARD

SIDE HDMI

Reset IC

IR/LED

C4201 A8 C4202 A7 C4203 C7 C4204 C7
C4205 C7 C4206 C8 C4207 C7 C4208 C7
C4209 C9 C4210 C9 C4211 C9 C4212 C9
C4213 C10 C4214 D7 C4215 D7 C4216 D9
C4217 D8 C4218 D9 C4219 D9 C4220 D9
C4221 D8 C4222 E8 C4223 E1 C4224 E9
C4225 E9 C4226 E8 C4227 E9 C4228 E9
C4229 F8 C4230 F9 C4231 F9 C4232 F9
C4233 F9 C4234 F9 C4235 F10 C4236 F8
C4237 F10 C4238 G4 C4239 G1 C4240 G1
C4241 G1 C4242 G1 C4243 G2 C4244 G2
C4245 G4 C4246 G2 C4247 G2 C4248 G2
C4249 G8 C4250 G9 C4251 G9 C4252 G10
C4253 G10 C4254 G1 C4255 G1 C4256 G1
C4257 G2 C4258 G2 C4259 G2 C4260 G2
C4261 G2 C4262 G4 C4263 G5 C4264 G5
C4265 G5 C4266 G6 C4267 G3 C4268 G3
C4269 G3 C4270 G4 C4271 G6 C4272 G7
C4273 G8 C4274 G9 C4275 G9 C4276 G10
C4277 G10 C4278 G1 C4279 G1 C4280 G1
C4281 G2 C4282 G2 C4283 G2 C42

84 G2
C4285 G2 C4286 G3 C4287 G3 C4288 H4
C4289 H5 C4290 H5 C4291 H6 C4292 H6
C4293 G3 C4294 G3 C4295 G3 C4296 G4
C4297 G5 C4298 C7 C4299 C7 C4300 C9
C4301 C9 C4302 C10 C4303 A9 D4201 A8
FB4201 F4 FB4202 C9 FB4203 D9 FB4204 D9
FB4205 E9 FB4206 E9 FB4207 F9 FB4208 F9
FB4209 F9 FB4210 G9 FB4211 G9 FB4212 G1
FB4213 G3 FB4214 G4 FB4215 G5 FB4216 G6
FB4217 G9 FB4218 G9 FB4219 G4 FB4220 G5
FB4221 B10 Q4201 C11 Q4202 D10 Q4203 D10
R4202 A2 R4204 A8 R4205 A9 R4206 A7
R4207 A5 R4210 B6 R4211 B6 R4212 B7
R4213 C10 R4214 B9 R4215 B9 R4216 B7
R4217 D7 R4219 D6 R4220 B9 R4221 F2
R4222 A1 R4223 B6 R4224 B6 R4226 A1
R4227 B9 R4228 B7 R4229 A6 R4230 C10
R4231 B7 R4232 B7 R4233 C7 R4235 A5
R4236 A5 R4237 E10 R4238 A5 R4239 A5
R4240 A5 R4241 D10 R4242 D10 R4243 D10
R4248 C10 U4201 A2 U4202 A7 U4203 B

8

C4278

4.7UF 10V

C4278

4.7UF 10V

R4222

100K 1/10W

R4222

100K 1/10W

C4236

10uF 10V

C4236

10uF 10V

R4236 0R05OHM1/16WR4236 0R05OHM1/16W

C4297

100N 16V

C4297

100N 16V

C4282

100N 16V

C4282

100N 16V

FB4205

120R/3000mA

FB4205

120R/3000mA

1 2

C4237

100N 16V

C4237

100N 16V

R4207

1K1/16W

R4207

1K1/16W

C4246

100N 16V

C4246

100N 16V

U4202

AP1701FWL

U4202

AP1701FWL

VCC

3

GND

1

RESET

2

C4238

10uF 10V

C4238

10uF 10V

R4231 22R 1/16W 5%R4231 22R 1/16W 5%

C4260

3N3 50V

C4260

3N3 50V

R4238 0R05OHM1/16WR4238 0R05OHM1/16W

C4250

10uF 10V

C4250

10uF 10V

FB4203

120R/3000mA

FB4203

120R/3000mA

1 2

FB4219

120R/3000mA

FB4219

120R/3000mA

1 2

C4300

10uF 10V

C4300

10uF 10V

R4235 10R 1/16W 5%R4235 10R 1/16W 5%

C4256

100N 16V

C4256

100N 16V

C4239

4.7UF 10V

C4239

4.7UF 10V

FB4213

120R/3000mA

FB4213

120R/3000mA

1 2

R4230

0R05OHM1/16W

R4230

0R05OHM1/16W

C4245

100N 16V

C4245

100N 16V

C4281

100N 16V

C4281

100N 16V

R4242

10K 1/16W 5%

R4242

10K 1/16W 5%

C4266

100N 16V

C4266

100N 16V

C4202

100N 16V

C4202

100N 16V

R4240 0R05OHM1/16WR4240 0R05OHM1/16W

C4265

4.7UF 10V

C4265

4.7UF 10V

C4269

100N 16V

C4269

100N 16V

C4248

100N 16V

C4248

100N 16V

C4233

10uF 6.3V

C4233

10uF 6.3V

FB4210

120R/3000mA

FB4210

120R/3000mA

1 2

FB4217

120R/3000mA

FB4217

120R/3000mA

1

2

FB4202

120R/3000mA

FB4202

120R/3000mA

1 2

R4216

10K 1/16W 5%

R4216

10K 1/16W 5%

C4277

100N 16V

C4277

100N 16V

C4240

100N 16V

C4240

100N 16V

R4221

5K1 1/10W 1%

R4221

5K1 1/10W 1%

U4203

CS4344-CZZ

U4203

CS4344-CZZ

SDIN

1

DEM/SCLK

2

LRCK

3

MCLK

4

VQ

5

FILT+

6

AOUTL

7

GND

8

VA

9

AOUTR

10

C4264

4.7UF 10V

C4264

4.7UF 10V

C4280

100N 16V

C4280

100N 16V

FB4208

120R/3000mA

FB4208

120R/3000mA

1

2

C4262

4.7UF 10V

C4262

4.7UF 10V

FB4221

120R/3000mA

FB4221

120R/3000mA

1 2

C4272

100N 16V

C4272

100N 16V

R4213

3K3 1/16W 1%

R4213

3K3 1/16W 1%

C4268

100N 16V

C4268

100N 16V

C4216

10uF 6.3V

C4216

10uF 6.3V

C4275

100N 16V

C4275

100N 16V

R4223 10R 1/16W 5%R4223 10R 1/16W 5%

Q4202

2N7002(NC)

Q4202

2N7002(NC)

FB4214

120R/3000mA

FB4214

120R/3000mA

1 2

C4235

4.7UF 10V

C4235

4.7UF 10V

C4215

27P 50V

C4215

27P 50V

R4226

51K 1/16W 5%

R4226

51K 1/16W 5%

C4288

4.7UF 10V

C4288

4.7UF 10V

C4242

100N 16V

C4242

100N 16V

FB4218

120R/3000mA

FB4218

120R/3000mA

1 2

C4279

100N 16V

C4279

100N 16V

C4207

10uF 6.3V

C4207

10uF 6.3V

C4217

4.7UF 10V

C4217

4.7UF 10V

C4291

100N 16V

C4291

100N 16V

FB4215

120R/3000mA

FB4215

120R/3000mA

1 2

C4206

4.7UF 10V

C4206

4.7UF 10V

C4298

100N 16V

C4298

100N 16V

C4295

100N 16V

C4295

100N 16V

C4219

10uF 6.3V

C4219

10uF 6.3V

R4241

0R05OHM1/16W

R4241

0R05OHM1/16W

FB4209

120R/3000mA

FB4209

120R/3000mA

1 2

R4239 0R05OHM1/16WR4239 0R05OHM1/16W

R4232 22R 1/16W 5%R4232 22R 1/16W 5%

C4253

100N 16V

C4253

100N 16V

C4227

10uF 6.3V

C4227

10uF 6.3V

FB4220

120R/3000mA

FB4220

120R/3000mA

1 2

C4232

100N 16V

C4232

100N 16V

C4254

4.7UF 10V

C4254

4.7UF 10V

R4224 10R 1/16W 5%R4224 10R 1/16W 5%

FB4201

120R/3000mA

FB4201

120R/3000mA

1 2

C4258

100N 16V

C4258

100N 16V

C4244

100N 16V

C4244

100N 16V

C4263

100N 16V

C4263

100N 16V

R4227

0R(NC)

R4227

0R(NC)

R4212

10K(NC)

R4212

10K(NC)

C4294

100N 16V

C4294

100N 16V

C4221

4.7UF 10V

C4221

4.7UF 10V

C4210

100N 16V

C4210

100N 16V

C4301

100N 16V

C4301

100N 16V

C4261

4.7UF 10V

C4261

4.7UF 10V

R4211 10R 1/16W 5%R4211 10R 1/16W 5%

C4292

3N3 50V

C4292

3N3 50V

C4289

4.7UF 10V

C4289

4.7UF 10V

C4257

100N 16V

C4257

100N 16V

C4249

10uF 10V

C4249

10uF 10V

FB4207

120R/3000mA

FB4207

120R/3000mA

1 2

+

C4209

100uF/25V

+

C4209

100uF/25V

R4220 0R(NC)R4220 0R(NC)

C4211

100N 16V

C4211

100N 16V

C4302

10uF 10V

C4302

10uF 10V

C4204

4.7UF 10V

C4204

4.7UF 10V

C4225

100N 16V

C4225

100N 16V

C4273

4.7UF 10V

C4273

4.7UF 10V

C4290

10uF 10V

C4290

10uF 10V

C4296

4.7UF 10V

C4296

4.7UF 10V

C4293

100N 16V

C4293

100N 16V

R4229

10K 1/16W 5%

R4229

10K 1/16W 5%

C4247

100N 16V

C4247

100N 16V

C4299

10uF 10V

C4299

10uF 10V

D4201

LS4148(NC)

D4201

LS4148(NC)

R4237 0R05OHM1/16WR4237 0R05OHM1/16W

C4271

4.7UF 10V

C4271

4.7UF 10V

C4226

4.7UF 10V

C4226

4.7UF 10V

FB4206

120R/3000mA

FB4206

120R/3000mA

1 2

C4274

10uF 6.3V

C4274

10uF 6.3V

R4243

10K 1/16W 5%

R4243

10K 1/16W 5%

C4214

33P 50V

C4214

33P 50V

Q4201

2N7002(NC)

Q4201

2N7002(NC)

C4303

5PF 50V

C4303

5PF 50V

C4287

100N 16V

C4287

100N 16V

R4248

3K3 1/16W 1%

R4248

3K3 1/16W 1%

C4212

100N 16V

C4212

100N 16V

U4201

MT8222AMMU/A

U4201

MT8222AMMU/A

CVBS_SC1

1

CVBS_SY1

2

CVBS_SC0

3

CVBS_SY0

4

CVBS3P

5

CVBS2P

6

CVBS1P

7

CVBS0N

8

CVBS0P

9

CVBS_BYPASS0

10

CVBS_BYPASS1

11

AVDD33_CVBS

12

AVDD33_SIF

13

MPX2_P

14

MPX2_N

15

MPX1

16

AVDD33_DIG

17

ADIN0

18

ADIN1

19

ADIN2

20

ADIN3

21

ADIN4

22

ADIN5

23

AVDD33_XTAL

24

XTALO

25

XTALI

26

AVDD12_DMPLL

27

AVDD12_PSPLL

28

AVDD12_ADCPLL

29

AVDD12_SYSPLL

30

AVDD12_APLL

31

AVDD33_AADC

32

VMID

33

AIN_L

34

AIN_R

35

AVDD33_REFP_AADC

36

AVDD33_ADAC

37

AL3

38

AR3

39

AL2

40

AR2

41

AVICM2

42

AL1

43

AR1

44

DVDD10_3

45

VDD33_1

46

I2S_AOMCLK

47

I2S_AOLRCK

48

I2S_AOBCLK

49

I2S_AOSDATA0

50

I2S_ADIN

51

GPIO20

52

GPIO21

53

GPIO22

54

GPIO23

55

GPIO24

56

GPIO25

57

HW_SDA

58

HW_SCL

59

RXD1

60

TXD1

61

SPDIF_OUT

62

PWM0

63

PWM1

64

VGA_SCL

192

VGA_SDA

191

VDD33_2

190

DVDD10_2

189

RVREF0

188

VCC2IO_1

187

RA3

186

RA2

185

DVDD10

184

RA1

183

RA0

182

RA10

181

RBA1

180

RBA0

179

RCS#

178

RRAS#

177

RCAS#

176

RWE#

175

RA4

174

RA5

173

RA6

172

RA7

171

RA8

170

RA9

169

VCC2IO_2

168

RA11

167

RA12

166

RCKE

165

VCC2IO_2

164

RCLK0

163

RCLK0#

162

VCC2IO_1

161

AVDD12_MEMPLL_1

160

RDQ15

159

RDQ14

158

RDQ13

157

VCC2IO_2

156

RDQ12

155

RDQ11

154

RDQ10

153

VCC2IO_2

152

RDQ9

151

RDQ8

150

VCC2IO_2

149

RDQS1

148

VCC2IO_2

147

RDQM1

146

DVDD10_2

145

RDQM0

144

VCC2IO_2

143

RDQS0

142

VCC2IO_3

141

RDQ7

140

RDQ6

139

RDQ5

138

VCC2IO_2

137

RDQ4

136

RDQ3

135

RDQ2

134

VCC2IO_2

133

RDQ1

132

RDQ0

131

DVDD10_2

130

DVDD10_2

129

AVDD12_RGB

256

AVDD12_DIG_RGB

255

PR0P

254

PB0P

253

COM0

252

Y0P

251

SOY0

250

PR1P

249

PB1P

248

COM1

247

Y1P

246

SOY1

245

AVDD33_VGA

244RP243

COM

242GP241

SOG

240BP239

HSYNC

238

VSYNC

237

AVDD12_HDMI_3

236

RX0_2

235

RX0_1

233

RX0_2B

234

RX0_1B

232

RX0_0

231

RX0_C

229

RX0_0B

230

RX0_CB

228

HDMI_SCL0

227

HDMI_SDA0

226

PWR5V_0

225

RX1_2

224

RX1_1

222

RX1_2B

223

RX1_1B

221

RX1_0

220

RX1_C

218

RX1_0B

219

RX1_CB

217

AVDD33_HDMI

216

HDMI_SCL1

215

HDMI_SDA1

214

PWR5V_1

213

RX2_2

212

RX2_1

210

RX2_2B

211

RX2_1B

209

RX2_0

208

RX2_C

206

RX2_0B

207

RX2_CB

205

HDMI_SCL2

204

HDMI_SDA2

203

PWR5V_2

202

HDMI_CEC

201

DVDD10

200

USB_DP1

199

USB_DM1

198

AVDD12_USB

197

USB_VRT

196

AVDD33_USB

195

USB_DP0

194

USB_DM0

193

PWM265PWM3

66

ICE

67

PRST#

68

SPI_CS0

69

SPI_SO

70

SPI_SI

71

SPI_SCK

72

SPI_CS1

73

INT0_

74

IR_

75

RXD0

76

TXD0

77

UP3078UP3179UP3380UP3481UP35

82

VDD33_1

83

DVDD10_4

84

AVDD12_VPLL

85

TP

86

E4P

87

E4N

88

E3P

89

E3N

90

ECKP

91

ECKN

92

AVDD33_LVDSB

93

E2P

94

E2N

95

E1P

96

E1N

97

E0P

98

E0N

99

AVDD12_LVDS

100

O4P

101

O4N

102

O3P

103

O3N

104

OCKP

105

OCKN

106

AVDD33_LVDSA

107

O2P

108

O2N

109

O1P

110

O1N

111

O0P

112

O0N

113

DVDD10_3

114

DVDD10_3

115

VDD33_2

116

GPIO0

117

GPIO1

118

GPIO2

119

GPIO3

120

GPIO4

121

GPIO5

122

GPIO6

123

GPIO7

124

GPIO8

125

GPIO9

126

GPIO10

127

GPIO11

128

TH1

257

C4228

100N 16V

C4228

100N 16V

R4228 22R 1/16W 5%R4228 22R 1/16W 5%

R4217

820K 1/10W 5%

R4217

820K 1/10W 5%

R4204

10K 1/16W 5%

R4204

10K 1/16W 5%

C4276

4.7UF 10V

C4276

4.7UF 10V

C4267

10uF 10V

C4267

10uF 10V

FB4216

120R/3000mA

FB4216

120R/3000mA

1 2

C4201

1U 25V

C4201

1U 25V

C4230

10uF 10V

C4230

10uF 10V

C4205

100N 16V

C4205

100N 16V

R4214

10K 1/16W 5%(NC)

R4214

10K 1/16W 5%(NC)

R4205 100R 1/16W 5%R4205 100R 1/16W 5%

C4223

100N 16V

C4223

100N 16V

C4224

10uF 6.3V

C4224

10uF 6.3V

R4210 10R 1/16W 5%R4210 10R 1/16W 5%

C4241

100N 16V

C4241

100N 16V

C4252

4.7UF 10V

C4252

4.7UF 10V

C4284

100N 16V

C4284

100N 16V

R4233 22R 1/16W 5%R4233 22R 1/16W 5%

C4213

100N 16V

C4213

100N 16V

R4215

10K 1/16W 5%(NC)

R4215

10K 1/16W 5%(NC)

C4286

100N 16V

C4286

100N 16V

C4220

100N 16V

C4220

100N 16V

X4201

27MHz

X4201

27MHz

12

C4259

3N3 50V

C4259

3N3 50V

C4229

4.7UF 10V

C4229

4.7UF 10V

C4234

100N 16V

C4234

100N 16V

FB4211

120R/3000mA

FB4211

120R/3000mA

1 2

R4206

100K1/16W

R4206

100K1/16W

C4203

4.7UF 10V

C4203

4.7UF 10V

C4208

100N 16V

C4208

100N 16V

C4218

100N 16V

C4218

100N 16V

R4219

0R05 1/16W

R4219

0R05 1/16W

C4231

100N 16V

C4231

100N 16V

C4243

100N 16V

C4243

100N 16V

C4283

100N 16V

C4283

100N 16V

FB4204

120R/3000mA

FB4204

120R/3000mA

1 2

C4285

100N 16V

C4285

100N 16V

C4222

4.7UF 10V

C4222

4.7UF 10V

C4270

4.7UF 10V

C4270

4.7UF 10V

Q4203

2N7002(NC)

Q4203

2N7002(NC)

C4255

4.7UF 10V

C4255

4.7UF 10V

C4251

100N 16V

C4251

100N 16V

R4202

10K 1/16W 5%

R4202

10K 1/16W 5%

FB4212

120R/3000mA

FB4212

120R/3000mA

1 2

LVDS

Circuit Diagrams and PWB Layouts

EN 48TPM4.1E LA 10.

2010-Jan-21

SSB: DDR1 Memory

18870_510_100203.eps

100308

DDR1 Memory

B10 B10

2010-01-14

C

715G3786

DDR1 Memory

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A

A

B B

C C

D

D

E

E

F F

G G

H H

I I

J J

K

K

MEM_DQ6

MEM_DQ14

MEM_DQ12

MEM_DQ1

MEM_DQ3

MEM_DQ4

MEM_DQ0

MEM_DQ13

MEM_DQ11

MEM_DQ8

MEM_DQ10

MEM_DQ9

MEM_DQ2

MEM_DQ5

MEM_DQ7

MEM_DQ15

MEM_DQS0
MEM_DQM0
MEM_DQM1
MEM_DQS1

RDQS0
RDQM0
RDQM1
RDQS1

RDQ0
RDQ1
RDQ2
RDQ3

RDQ4
RDQ5
RDQ6
RDQ7

RDQ8
RDQ9
RDQ10
RDQ11

RDQ12
RDQ13
RDQ14
RDQ15

RCLK0

RCLK0#

RA0

RA8

RA1
RA2
RA3

RA4
RA5
RA6
RA7

RA9

RA11

RA12

RWE#
RCAS#
RRAS#

RCS#
RBA0
RBA1
RA10MEM_ADDR10

MEM_RAS#

MEM_CS#

MEM_ADDR3

MEM_ADDR12

MEM_BA1

MEM_ADDR11

MEM_ADDR1
MEM_ADDR2

MEM_ADDR7

MEM_ADDR0

MEM_CAS#

MEM_ADDR4

MEM_WE#

MEM_ADDR5

MEM_ADDR9

MEM_ADDR6

MEM_ADDR8

MEM_BA0

MEM_CLK0#

MEM_CLK0

MEM_CLKEN RCKE

MEM_VREF

MEM_DQ11

MEM_CLKEN
MEM_BA0
MEM_BA1

MEM_DQ6

MEM_DQ10

MEM_ADDR4

MEM_CS#

MEM_DQ7

MEM_DQ8

MEM_ADDR10 MEM_DQ9

MEM_ADDR5

MEM_ADDR11

MEM_DQ1

MEM_ADDR0
MEM_ADDR1
MEM_ADDR2
MEM_ADDR3

MEM_ADDR12

MEM_DQ0

MEM_WE#

MEM_ADDR6

MEM_CAS#

MEM_DQ2

MEM_ADDR7

MEM_RAS#

MEM_ADDR8

MEM_VREF

MEM_DQ15

MEM_DQS0

MEM_DQ3

MEM_ADDR9

MEM_DQ14

MEM_DQS1

MEM_CLK0#

MEM_DQ13

MEM_DQM0

MEM_DQ4

MEM_CLK0

MEM_DQ12

MEM_DQM1

MEM_DQ5

VTT

DDRV

VTT

DDRV

VTT

MEM_VREF

DDRV

MEM_VREF

RDQ[15..0] 13

RDQS013
RDQM0 13
RDQM1 13
RDQS113

RWE# 13
RCAS#13
RRAS#13

RCS#13
RBA0 13
RBA1 13

RA[12..0 13

RCLK0# 13

RCKE 13

RCLK0 13

+

C5124

100uF 10V

+

C5124

100uF 10V

C5130

4.7UF 10V

C5130

4.7UF 10V

C5109

100N 16V

C5109

100N 16V

+

C5129

100uF 10V

+

C5129

100uF 10V

C5126

100N 16V

C5126

100N 16V

C5114

100N 16V

C5114

100N 16V

C5122

100N 16V

C5122

100N 16V

RP5105

150R 1/16W 5%

RP5105

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5110

3N3 50V

C5110

3N3 50V

RP5102

47 OHM 1/16W 5%

RP5102

47 OHM 1/16W 5%

1

2

3

4

8

7

6

5

R5112

22R 1/16W 5%

R5112

22R 1/16W 5%

R5110

22R 1/16W 5%

R5110

22R 1/16W 5%

RP5110

22 OHM +-5% 1/16W

RP5110

22 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

RP5118

22 OHM +-5% 1/16W

RP5118

22 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

R5103 22R 1/16W 5%R5103 22R 1/16W 5%

RP5117

150R 1/16W 5%

RP5117

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5117

10uF 6.3V

C5117

10uF 6.3V

C5118

3N3 50V

C5118

3N3 50V

RP5103

150R 1/16W 5%

RP5103

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5104

3N3 50V

C5104

3N3 50V

+

C5108

100uF 10V

+

C5108

100uF 10V

RP5107

150R 1/16W 5%

RP5107

150R 1/16W 5%

1

2

3

4

8

7

6

5

R5109 22R 1/16W 5%R5109 22R 1/16W 5%

R5113

22R 1/16W 5%

R5113

22R 1/16W 5%

RP5116

22 OHM +-5% 1/16W

RP5116

22 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

R5111

100R 1/16W 1%

R5111

100R 1/16W 1%

RP5101

150R 1/16W 5%

RP5101

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5120

3N3 50V

C5120

3N3 50V

C5106

3N3 50V

C5106

3N3 50V

RP5114

22 OHM +-5% 1/16W

RP5114

22 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

C5102

4.7UF 10V

C5102

4.7UF 10V

C5127

100N 16V

C5127

100N 16V

C5105

100N 16V

C5105

100N 16V

C5131

3N3 50V

C5131

3N3 50V

RP5108

47 OHM 1/16W 5%

RP5108

47 OHM 1/16W 5%

1

2

3

4

8

7

6

5

RP5109

150R 1/16W 5%

RP5109

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5116

3N3 50V

C5116

3N3 50V

RP5111

150R 1/16W 5%

RP5111

150R 1/16W 5%

1

2

3

4

8

7

6

5

R5107

22R 1/16W 5%

R5107

22R 1/16W 5%

C5121

100N 16V

C5121

100N 16V

R5108

150OHM 1/16W +/-5%

R5108

150OHM 1/16W +/-5%

R5106 150OHM 1/16W +/-5%R5106 150OHM 1/16W +/-5%

R5104 150OHM 1/16W +/-5%R5104 150OHM 1/16W +/-5%

RP5112

22 OHM +-5% 1/16W

RP5112

22 OHM +-5% 1/16W

1

2

3

4

8

7

6

5

U5101

W9425G6EH-4

U5101

W9425G6EH-4

A0

29

A1

30

A2

31

A3

32

A4

35

A5

36

A6

37

A7

38

A8

39

A9

40

A10/AP

28

A11

41

DQ0

2

DQ1

4

DQ2

5

DQ3

7

DQ4

8

DQ5

10

DQ6

11

DQ7

13

DQ8

54

DQ9

56

DQ10

57

DQ11

59

DQ12

60

DQ13

62

DQ14

63

DQ15

65

BA0

26

BA1

27

CS

24

RAS

23

CAS

22

WE

21

LDM

20

UDM

47

LDQS

16

UDQS

51

CKE

44

CLK

45

CLK

46

MVDD

1

MVDD

18

MVDD

33

VDDQ

3

VDDQ

9

VDDQ

15

VDDQ

55

VDDQ

61

VSS

34

VSS

48

VSS

66

VSSQ

6

VSSQ

12

VSSQ

58

VSSQ

64

VREF

49

VSSQ

52

NC

14

NC

17

NC

19

NC

25

NC

43

NC

53

NC

50

A12

42

R5101 4.7K 1/10WR5101 4.7K 1/10W

RP5106

47 OHM 1/16W 5%

RP5106

47 OHM 1/16W 5%

1

2

3

4

8

7

6

5

U5102

LP2996MRX

U5102

LP2996MRX

GND

1

SD

2

VSENSE

3

VREF

4

VDDQ

5

AVIN

6

PVIN

7

VTT

8

HS

9

C5103

100N 16V

C5103

100N 16V

C5107

4.7UF 10V

C5107

4.7UF 10V

C5128

100N 16V

C5128

100N 16V

RP5113

150R 1/16W 5%

RP5113

150R 1/16W 5%

1

2

3

4

8

7

6

5

C5112

100N 16V

C5112

100N 16V

R5105 22R 1/16W 5%R5105 22R 1/16W 5%

C5123

3N3 50V

C5123

3N3 50V

RP5104

47 OHM 1/16W 5%

RP5104

47 OHM 1/16W 5%

1

2

3

4

8

7

6

5

C5119

3N3 50V

C5119

3N3 50V

C5111

4.7UF 10V

C5111

4.7UF 10V

C5113

100N 16V

C5113

100N 16V

C5101

100N 16V

C5101

100N 16V

C5125

10uF 6.3V

C5125

10uF 6.3V

RP5115

150R 1/16W 5%

RP5115

150R 1/16W 5%

1

2

3

4

8

7

6

5

R5102 150OHM 1/16W +/-5%R5102 150OHM 1/16W +/-5%

C5115

100N 16V

C5115

100N 16V

C5101 C3 C5102 A4
C5103 A5 C5104 B5
C5105 C5 C5106 D5
C5107 E5 C5108 E4
C5109 E5 C5110 E5
C5111 F1 C5112 F2
C5113 F2 C5114 F2
C5115 F3 C5116 F3
C5117 F1 C5118 F3
C5119 F3 C5120 F3
C5121 F5 C5122 G2
C5123 G5 C5124 G1
C5125 G2 C5126 H5
C5127 H2 C5128 H3
C5129 H3 C5130 I4
C5131 I5 RP5101 A5
RP5102 A6 RP5103 B5
RP5104 B6 RP5105 D5
RP5106 D6 RP5107 D5
RP5108 D6 RP5109 E5
RP5110 E6 RP5111 F5
RP5112 F6 RP5113 G5
RP5114 G6 RP5115 H5
RP5116 H6 RP5117 H5
RP5118 H6 R5101 G2
R5102 C5 R5103 C6
R5104 C5 R5105 C6
R5106 C5 R5107 C6
R5108 C5 R5109 C6
R5110 I6 R5111 I6
R5112 J6 R5113 J6
U5101 A2 U5102 H2

Circuit Diagrams and PWB Layouts

EN 49TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

18870_511_100203.eps

100308

KEYBOARD, IR/LED & ComPair I/F

B11 B11

2010-01-14

C

715G3786

Key, IR/LED & ComPair I/F

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B B

C C

D D

E E

TX0

RX0

PWR_ON_OFF_IN

RC_IR_OUT

+3V3_STBY +3V3_STBY +5V_STBY

+5V_STBY

+5V_STBY

+3V3_STBY +5V_ON

LIGHT_SENSOR13

LED2STBY

12,13

LED1_ON13

RC_IR_3V312,13

DC_ON_OFF

12,13

U0RX

4,13

U0TX4,13

MT_TXD112,13

MT_RXD112,13

KEY112,13
KEY213

RC_IR_5V

RXD112
TXD112

RC_IR_5V

ComPair I/F

IR & KEYBOARD I/F

PORT for iTV Level 1

CN5306 D4 CN5401 B5
CN5402 A8 C5333 D2
C5401 C3 C5402 C3
C5403 C4 C5404 C3
C5405 C3 C5406 C4
C5407 C4 C5408 C4
C5409 C4 C5410 C4
FB5401 A4 FB5402 A5
Q5303 D2 Q5401 A2
R5323 D2 R5326 D2
R5327 D2 R5330 D2
R5336 D2 R5402 B2
R5403 A7 R5404 B2
R5405 A7 R5406 A7
R5412 B4 R5413 B4
R5414 A3 R5416 B2
R5417 B2 R5418 B2
R5419 A7 TH5301 D3
ZD5301 D3 ZD5302 D3
ZD5303 D3 ZD5304 D3
ZD5401 C2 ZD5402 C3
ZD5403 B7 ZD5404 B7

R5403

22R 1/16W 5%(NC)

R5403

22R 1/16W 5%(NC)

t

TH5301

8V 0R4

t

TH5301

8V 0R4

12

C5406100N 16V(NC) C5406100N 16V(NC)

ZD5401

BZX84-C5V6(NC)

ZD5401

BZX84-C5V6(NC)

1 3

R5414 47 OHM 1/16WR5414 47 OHM 1/16W

ZD5303

BZX84-C5V6

ZD5303

BZX84-C5V6

1 3

R5326 100R 1/16W 5%R5326 100R 1/16W 5%

ZD5302

BZX84-C5V6

ZD5302

BZX84-C5V6

1 3

R5404 4.7 OHM +-5% 1/16WR5404 4.7 OHM +-5% 1/16W

ZD5404

BZX84-C5V6

ZD5404

BZX84-C5V6

1 3

C5401100N 16V C5401100N 16V

C5408100N 16V(NC) C5408100N 16V(NC)

ZD5403

BZX84-C5V6

ZD5403

BZX84-C5V6

1 3

R5416 100R 1/16W 5%R5416 100R 1/16W 5%

FB5401

600R/200mA(NC)

FB5401

600R/200mA(NC)

12

ZD5301

BZX84-C5V6

ZD5301

BZX84-C5V6

1 3

C5402100N 16V C5402100N 16V

R5406

22R 1/16W 5%

R5406

22R 1/16W 5%

C5410100N 16V C5410100N 16V

R5402 4.7 OHM +-5% 1/16WR5402 4.7 OHM +-5% 1/16W

CN5402

CONN

CN5402

CONN

1
2

3

R5417 100R 1/16W 5%R5417 100R 1/16W 5%

R5419

22R 1/16W 5%

R5419

22R 1/16W 5%

C540533P 50V C540533P 50V

C5409100N 16V(NC) C5409100N 16V(NC)

R5405

22R 1/16W 5%(NC)

R5405

22R 1/16W 5%(NC)

C5407100N 16V(NC) C5407100N 16V(NC)

C5404100N 16V C5404100N 16V

R5413

47K(NC)

R5413

47K(NC)

R5418 100R 1/16W 5%R5418 100R 1/16W 5%

R5327

100R 1/16W 5%

R5327

100R 1/16W 5%

ZD5304

BZX84-C5V6(NC)

ZD5304

BZX84-C5V6(NC)

1 3

FB5402

600R/200mA

FB5402

600R/200mA

1 2

CN5401

CONN

CN5401

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

ZD5402

BZX84-C5V6(NC)

ZD5402

BZX84-C5V6(NC)

1 3

R5323

100R 1/16W 5%

R5323

100R 1/16W 5%

CN5306

CONN

CN5306

CONN

1
2

3

4
5

Q5303

BC857C

Q5303

BC857C

C5403100N 16V(NC) C5403100N 16V(NC)

R5330

10K 1/16W 5%

R5330

10K 1/16W 5%

R5412

47K(NC)

R5412

47K(NC)

C5333

100N 16V(NC)

C5333

100N 16V(NC)

Q5401

2N7002

Q5401

2N7002

R5336

10K 1/16W 5%

R5336

10K 1/16W 5%

SSB: KEYBOARD, IR/LED & ComPair I/F

EN 50TPM4.1E LA 10.

2010-Jan-21

SSB: Audio Switch

18870_512_100203.eps

100308

Audio Switch

B12 B12

2010-01-14

C

715G3786

Audio Switch

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B

B

C C

D D

E E

+5V_ON

+5V_ON

+5V_ON

+5V_ON

+5V_ON

+5V_ON

+5V_ON

+5V_ON

AUDIN_SEL213

SCT2_AUR_IN6

SIDE_CVBS_AUR_IN7

AUD_MUX_R

SIDE_CVBS_AUL_IN7

AUD_MUX_L

AUDIN_SEL113

PC_AUL_IN

4

PC_AUR_IN

4

SCT2_AUL_IN6

COMP2_AUL_IN5

COMP2_AUR_IN5

AUDIN_SEL413

AUD_R 13

AUD_L 13

AUDIN_SEL3

13

COMP1_AUR_IN5

COMP1_AUL_IN5

AUD_MUX_L

AUD_MUX_R

C6101 A4 C6102 A2
C6103 A2 C6104 A2
C6105 A7 C6106 A2
C6107 A2 C6108 B2
C6109 B2 C6110 B2
C6111 A4 C6112 A8
C6113 A5 C6114 A5
C6117 B5 C6118 B5
C6119 C2 C6121 C6
C6122 C6 C6123 C2
C6124 B7 C6125 B7
Q6101 C1 Q6102 C5
Q6103 C1 Q6105 C5
R6101 A4 R6102 A7
R6103 A4 R6104 A7
R6111 A7 R6112 A7
R6113 A3 R6114 A2
R6115 A3 R6118 A2
R6119 A2 R6120 A2
R6122 A6 R6123 A6
R6125 C1 R6126 B5
R6127 C1 R6128 C5
R6129 A2 R6130 B2
R6131 B2 R6132 B2
R6133 C5 R6135 B6
R6136 B6 R6137 B8
R6138 B8 U6101 B3

R6101

2K2 1/16W 5%

R6101

2K2 1/16W 5%

R6114 470K 1/16W 5%R6114 470K 1/16W 5%

C6114 1UF 6.3VC6114 1UF 6.3V

C6113 1UF 6.3VC6113 1UF 6.3V

R6131 470K 1/16W 5%R6131 470K 1/16W 5%

R1

R2

Q6102

PDTC114EU

R1

R2

Q6102

PDTC114EU

1

32

C6122

100N 16V

C6122

100N 16V

C6124

10uF 6.3V

C6124

10uF 6.3V

R6137

0R05 1/16W

R6137

0R05 1/16W

R6133

0R05OHM1/16W

R6133

0R05OHM1/16W

C6112

1UF 6.3V

C6112

1UF 6.3V

R6135 470K 1/16W 5%R6135 470K 1/16W 5%

R6120 470K 1/16W 5%R6120 470K 1/16W 5%

R6122 470K 1/16W 5%R6122 470K 1/16W 5%

C6118 1UF 6.3VC6118 1UF 6.3V

C6117 1UF 6.3VC6117 1UF 6.3V

U6101

74HC4052D

U6101

74HC4052D

X0

12

X1

14

X2

15

X3

11

Y0

1

Y1

5

Y2

2

Y3

4

EN

6

A

10

B

9

X

13

Y

3

VDD

16

GND

8

VEE

7

C6110 1UF 6.3VC6110 1UF 6.3V

C6109 1UF 6.3VC6109 1UF 6.3V

C6125 10uF 6.3VC6125 10uF 6.3V

C6108 1UF 6.3VC6108 1UF 6.3V

R6128 10K 1/16W 5%(NC)R6128 10K 1/16W 5%(NC)

C6107

1UF 6.3V

C6107

1UF 6.3V

C6106

1UF 6.3V

C6106

1UF 6.3V

C6123

100N 16V

C6123

100N 16V

C6104

1UF 6.3V

C6104

1UF 6.3V

C6103 1UF 6.3VC6103 1UF 6.3V

R6125 10K 1/16W 5%R6125 10K 1/16W 5%

R1

R2

Q6105

PDTC114EU(NC)

R1

R2

Q6105

PDTC114EU(NC)

1

32

R6130 470K 1/16W 5%R6130 470K 1/16W 5%

R6119 470K 1/16W 5%R6119 470K 1/16W 5%

R6111

470K 1/16W 5%

R6111

470K 1/16W 5%

R6113

470K 1/16W 5%

R6113

470K 1/16W 5%

R6102

2K2 1/16W 5%

R6102

2K2 1/16W 5%

C6102

1UF 6.3V

C6102

1UF 6.3V

R6103

2K2 1/16W 5%

R6103

2K2 1/16W 5%

C6111

1UF 6.3V

C6111

1UF 6.3V

C6119

22uF 10V

C6119

22uF 10V

R6132 470K 1/16W 5%R6132 470K 1/16W 5%

R6115

470K 1/16W 5%

R6115

470K 1/16W 5%

R6104

2K2 1/16W 5%

R6104

2K2 1/16W 5%

R6126 10K 1/16W 5%R6126 10K 1/16W 5%

U6102

74HC4052D

U6102

74HC4052D

X0

12

X1

14

X2

15

X3

11

Y0

1

Y1

5

Y2

2

Y3

4

EN

6

A

10

B

9

X

13

Y

3

VDD

16

GND

8

VEE

7

R6127

10K 1/16W 5%

R6127

10K 1/16W 5%

C6121

22uF 10V

C6121

22uF 10V

R6136

470K 1/16W 5%

R6136

470K 1/16W 5%

R6138

0R05 1/16W

R6138

0R05 1/16W

R6112

470K 1/16W 5%

R6112

470K 1/16W 5%

R1

R2

Q6101

PDTC114EU

R1

R2

Q6101

PDTC114EU

1

32

C6101

1UF 6.3V(NC)

C6101

1UF 6.3V(NC)

C6105

1UF 6.3V(NC)

C6105

1UF 6.3V(NC)

R6129 470K 1/16W 5%R6129 470K 1/16W 5%

R6123 470K 1/16W 5%R6123 470K 1/16W 5%R6118 470K 1/16W 5%R6118 470K 1/16W 5%

R1

R2

Q6103

PDTC114EU

R1

R2

Q6103

PDTC114EU

1

32

Circuit Diagrams and PWB Layouts

EN 51TPM4.1E LA 10.

2010-Jan-21

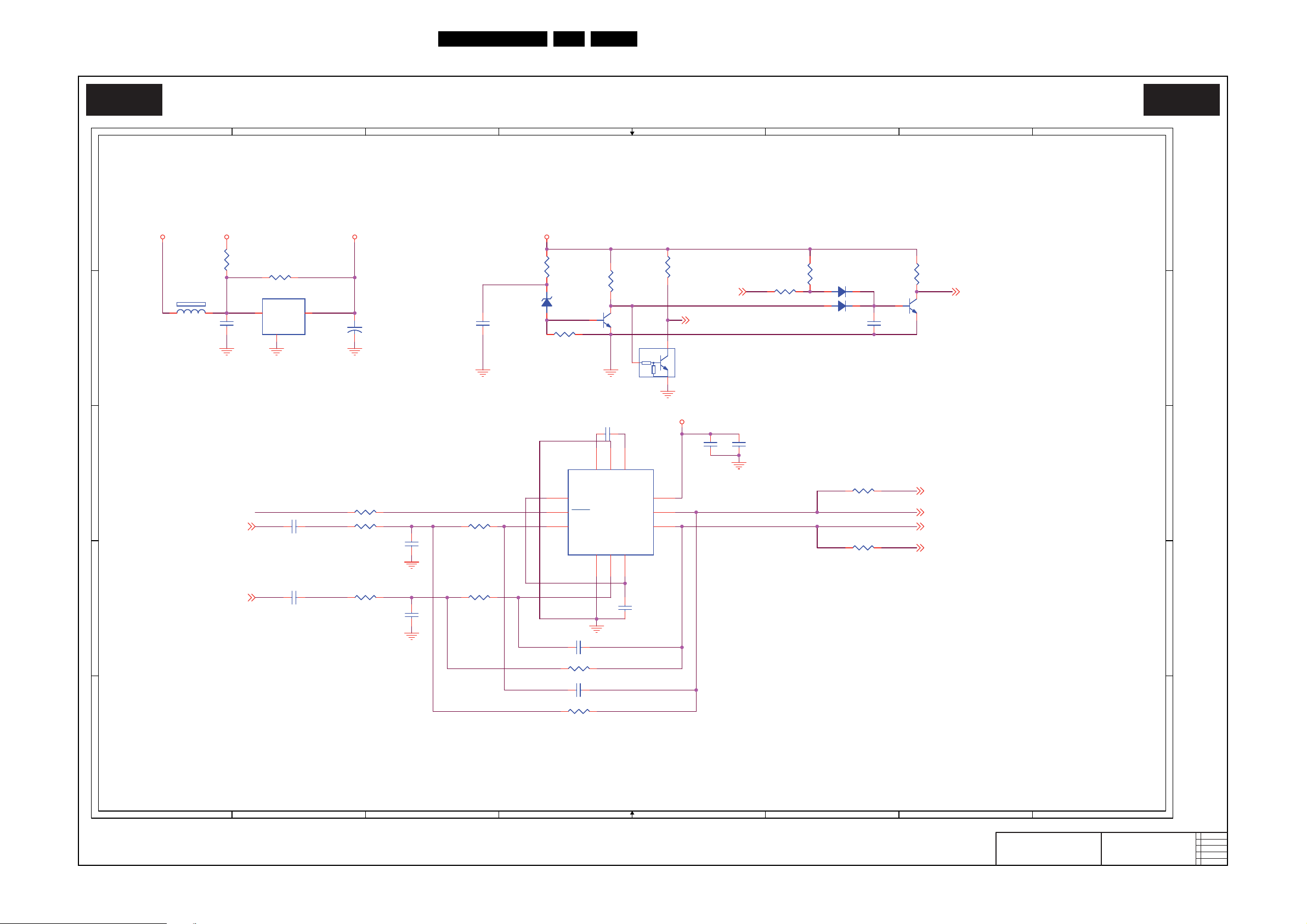

SSB: AUDIO Preamplifier

18870_513_100204.eps

100204

Audio Preamplifier

B13 B13

2010-01-14

C

715G3786

Audio Preamplifier

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B B

C C

D D

E E

POP_MUTE

+5V_ON

OPS_5V

OPS_5V

+24V_SW

+5V_ON

MAIN_AOR13

MAIN_AOL

13

AUD_LOUT 18

AUD_ROUT 18

HP_LOUT 7

HP_ROUT 7

OP_MUTE13

POP_MUTE 8

AC_OFF 13

C6201 B2 C6203 B6
C6204 B3 C6205 C5
C6206 C4 C6207 C2
C6208 D4 C6209 C5
C6210 C3 C6211 D3
C6212 D4 C6213 D4
C6214 B1 C6215 D2
D6201 B6 D6202 B6
FB6201 B1 Q6201 B4
Q6202 B6 Q6203 B5
R6202 A4 R6203 A4
R6204 B6 R6205 B4
R6207 A6 R6209 C2
R6210 C2 R6211 C6
R6212 D2 R6213 D4
R6214 C6 R6215 E4
R6216 A7 R6217 C3
R6218 D3 R6219 A5
R6220 A1 R6221 A2
U6201 B2 U6202 C4

C6211

1.8NF 50V

C6211

1.8NF 50V

R6215 30KOHM 1/16W +/-5%R6215 30KOHM 1/16W +/-5%

C6212 47pF 50VC6212 47pF 50V

Q6202
BC847C

Q6202
BC847C

C6209

1U 25V

C6209

1U 25V

R6221

0R05 1/10W

R6221

0R05 1/10W

C6210

1.8NF 50V

C6210

1.8NF 50V

C6205

10uF 10V

C6205

10uF 10V

D6201 LS4148D6201 LS4148

C6206

1UF 6.3V

C6206

1UF 6.3V

C6213 47pF 50VC6213 47pF 50V

C6207 1UF 6.3VC6207 1UF 6.3V

D6202 LS4148D6202 LS4148

R6203

1.8KOHM 1/10W

R6203

1.8KOHM 1/10W

R6210

10K 1/16W 5%

R6210

10K 1/16W 5%

R6205

470OHM +-5% 1/10W

R6205

470OHM +-5% 1/10W

C6203

100N(NC)

C6203

100N(NC)

R6202

100 OHM 1/10W

R6202

100 OHM 1/10W

FB6201

120R/3000mA(NC)

FB6201

120R/3000mA(NC)

1

2

Q6201

BC847C

Q6201

BC847C

R6220

0R05 1/10W

R6220

0R05 1/10W

R6216

10K 1/16W 5%

R6216

10K 1/16W 5%

C6204

10uF 10V

C6204

10uF 10V

ZD6201

BZX84C3V6

ZD6201

BZX84C3V6

1 3

R6213 30KOHM 1/16W +/-5%R6213 30KOHM 1/16W +/-5%

R6217

10K 1/16W 5%

R6217

10K 1/16W 5%

R6219

10K 1/16W 5%

R6219

10K 1/16W 5%

R6204

100 OHM 1/10W

R6204

100 OHM 1/10W

R6207

1.8KOHM 1/10W

R6207

1.8KOHM 1/10W

C6214

1U 25V

C6214

1U 25V

U6202

MAX9728AETC+

U6202

MAX9728AETC+

PVss

4

C1N

3

OUTL

11

SVss

9

C1P

1

SGND

7

OUTR

10

SHDN

5

PGND

2

IN R

8

VDD

12

IN_L

6

R1

R2

Q6203
PDTC114EU

R1

R2

Q6203
PDTC114EU

1

32

U6201

L78L05ACU-TR(NC)

U6201

L78L05ACU-TR(NC)

IN

3

OUT

1

GND

2

R6211 0R05 1/10W(NC)R6211 0R05 1/10W(NC)

C6208

1UF 6.3V

C6208

1UF 6.3V

C6215 1UF 6.3VC6215 1UF 6.3V

+

C6201

470uF 10V

+

C6201

470uF 10V

R6212

10K 1/16W 5%

R6212

10K 1/16W 5%

R6209

10OHM1/10W

R6209

10OHM1/10W

R6214 0R05 1/10W(NC)R6214 0R05 1/10W(NC)

R6218

10K 1/16W 5%

R6218

10K 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 52TPM4.1E LA 10.

2010-Jan-21

SSB: Audio Amplifier

18870_514_100204.eps

100204

Audio Amplifier

B14 B14

2010-01-14

C

715G3786

Audio Amplifier

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B

B

C C

D D

E E

LOUT-

ROUT-

LOUT+

ROUT+

+24V_SW

+24V

+3V3

+5V_ON

+24V_AMP

+3V3

+24V_AMP

+24V_AMP

+24V_AMP

+24V_SW

+5V_ON

AUD_PWR_SW12,13

AMP_EN

13

AMP_GAIN013

AMP_GAIN113

AUD_LOUT17

AUD_ROUT17

POP_MUTE13

item

42" 32"

C6311

C6319

C6324

C6328

100nF 2.2uF

2.2uF

2.2uF

2.2uF

100nF

100nF

100nF

CN6301 C6 C6301 A1 C6302 A6 C6303 A7
C6304 A8 C6305 B4 C6306 B4 C6307 B4
C6308 B4 C6309 B5 C6310 B6 C6311 B3
C6312 B4 C6313 C5 C6314 C6 C6315 C4
C6316 C4 C6317 C3 C6318 C3 C6319 C2
C6320 C2 C6321 C4 C6322 C5 C6323 C6
C6324 D2 C6325 C4 C6326 D2 C6327 D2
C6328 D3 C6329 D5 C6330 D6 C6331 D4
C6332 D4 C6333 E4 C6334 E4 C633

5 E4
D6301 A2 D6302 A8 D6303 A3 FB6301 A1
FB6302 A7 FB6303 B5 FB6304 C5 FB6305 C5
FB6306 D5 L6301 B5 L6302 C5 L6303 C5
L6304 D5 Q6301 B1 Q6302 A7 Q6303 B2
Q6304 A6 Q6305 A5 R6301 A1 R6302 A6
R6303 A6 R6304 A5 R6305 A6 R6306 B1
R6307 A7 R6308 B2 R6309 B1 R6310 B2
R6311 B4 R6312 B2 R6313 B2 R6314 C2
R6315 C2 R6316 C2 R6317 C4 R6318

C1
R6319 D1 R6320 C4 R6321 D3 R6322 D2
R6323 D4 R6324 A1 R6325 A1 R6326 C1

R6303

470K 1/16W 5%(NC)

R6303

470K 1/16W 5%(NC)

FB6306 120R/6000mA(NC)FB6306 120R/6000mA(NC)

1

2

C6321

220N 25V

C6321

220N 25V

L6303

47uH

L6303

47uH

+

C6301

470uF 35V

+

C6301

470uF 35V

R6314 0R(NC)R6314 0R(NC)

C6325

1N 50V

C6325

1N 50V

R6319

10OHM1/16W

R6319

10OHM1/16W

R6307

10K 1/16W 5%(NC)

R6307

10K 1/16W 5%(NC)

C6320

33P 50V(NC)

C6320

33P 50V(NC)

Q6301
BC847C(NC)

Q6301
BC847C(NC)

R6306

470 OHM 1/10W(NC)

R6306

470 OHM 1/10W(NC)

C6314

470N 50V

C6314

470N 50V

FB6303

120R/6000mA(NC)

FB6303

120R/6000mA(NC)

1

2

C6302

470N 50V(NC)

C6302

470N 50V(NC)

C6326

33P 50V(NC)

C6326

33P 50V(NC)

C6331

220N 25V

C6331

220N 25V

C6315

220N 25V

C6315

220N 25V

FB6305 120R/6000mA(NC)FB6305 120R/6000mA(NC)

1

2

+

C6335

470uF 35V

+

C6335

470uF 35V

R1

R2

Q6304
PDTC114EU(NC)

R1

R2

Q6304
PDTC114EU(NC)

1

32

R6316

10 OHM +-5% 1/4W

R6316

10 OHM +-5% 1/4W

R6302

56K 1/10W 5%(NC)

R6302

56K 1/10W 5%(NC)

C6312

1N 50V

C6312

1N 50V

R6327

10K1/16W

R6327

10K1/16W

U6301

TPA3110D2

U6301

TPA3110D2

SDZ

1

FAULTZ

2

LINP

3

LINN

4

GAIN0

5

GAIN1

6

AVCC

7

AGND

8

GVDD

9

PLIMIT

10

RINN

11

RINP

12

NC

13

PBTL

14

PVCCL

28

PVCCL

27

BSPL

26

OUTPL

25

PGND

24

OUTNL

23

BSNL

22

BSNR

21

OUTNR

20

PGND

19

OUTPR

18

BSPR

17

PVCC

16

PVCC

15

Thermal Pad

29

R6309

47K 1/10W 5%(NC)

R6309

47K 1/10W 5%(NC)

R6311

10OHM1/16W

R6311

10OHM1/16W

C6311

100N 50V

C6311

100N 50V

C6316

1N 50V

C6316

1N 50V

FB6304 120R/6000mA(NC)FB6304 120R/6000mA(NC)

1

2

L6302

47uH

L6302

47uH

FB6302

120R/6000mA

FB6302

120R/6000mA

1

2

R6304

47K 1/10W 5%(NC)

R6304

47K 1/10W 5%(NC)

C6307

100N 50V

C6307

100N 50V

C6323

470N 50V

C6323

470N 50V

C6309

1N 50V

C6309

1N 50V

R6323

10OHM1/16W

R6323

10OHM1/16W

C6319

100N 50V

C6319

100N 50V

C6328

100N 50V

C6328

100N 50V

Q6302

SI4835DDY(NC)

Q6302

SI4835DDY(NC)

2

3

4 5

7
6

81

+

C6306

470uF 35V

+

C6306

470uF 35V

C6313

1N 50V

C6313

1N 50V

R6318

10OHM1/16W

R6318

10OHM1/16W

R6325

0R05 1/10W(NC)

R6325

0R05 1/10W(NC)

ZD6301

BZX84-C20(NC)

ZD6301

BZX84-C20(NC)

1 3

C6332

1N 50V

C6332

1N 50V

R6317

10OHM1/16W

R6317

10OHM1/16W

C6333

100N 50V

C6333

100N 50V

R6310 10R 1/16W 5%R6310 10R 1/16W 5%

L6304

47uH

L6304

47uH

C6329

1N 50V

C6329

1N 50V

R6305

18K 1/10W 5%(NC)

R6305

18K 1/10W 5%(NC)

R6301

330 OHM 1/10W(NC)

R6301

330 OHM 1/10W(NC)

C6327

1U 25V

C6327

1U 25V

C6310

470N 50V

C6310

470N 50V

R1

R2

Q6305

PDTC114EU(NC)

R1

R2

Q6305

PDTC114EU(NC)

1

32

L6301

47uH

L6301

47uH

R6313 10K(NC)R6313 10K(NC)

C6324 100N 50VC6324 100N 50V

D6303

LS4148

D6303

LS4148

D6301

LS4148

D6301

LS4148

C6322

1N 50V

C6322

1N 50V

Q6303
BC847C(NC)

Q6303
BC847C(NC)

C6330

470N 50V

C6330

470N 50V

D6302

S3B

D6302

S3B

C6334

100N 50V

C6334

100N 50V

R6312 10K(NC)R6312 10K(NC)

C6308

220N 25V

C6308

220N 25V

R6322

6K8 1/10W 1%

R6322

6K8 1/10W 1%

C6304

100N 50V

C6304

100N 50V

R6326

10K1/16W

R6326

10K1/16W

C6305

100N 50V

C6305

100N 50V

FB6301

120R/6000mA

FB6301

120R/6000mA

1 2

R6324

0R05 1/10W(NC)

R6324

0R05 1/10W(NC)

R6308

1.8K OHM 1/10W 5%

R6308

1.8K OHM 1/10W 5%

CN6301

CONN

CN6301

CONN

1
2

3

4

R6315 0R(NC)R6315 0R(NC)

C6317

100N 50V

C6317

100N 50V

R6321

6K8 1/10W 1%

R6321

6K8 1/10W 1%

+

C6318

47uF 50V

+

C6318

47uF 50V

R6320

10OHM1/16W

R6320

10OHM1/16W

+

C6303

10UF/50V(NC)

+

C6303

10UF/50V(NC)

Diversity

Circuit Diagrams and PWB Layouts

EN 53TPM4.1E LA 10.

2010-Jan-21

SSB: DC/DC Power

18870_515_100204.eps

100204

DC/DC Power

B15 B15

2010-01-14

C

715G3786

DC/DC Power

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B B

C C

D D

E E

F

F

G G

H H

+24V

+12V

DDRV

DV10

+5V

+5V_STBY

+5V_ON

+5V+5V_STBY

+5V_ON

PANEL_VCC

+12V

+3V3_STBY

+3V3_STBY

+5V_STBY

+5V_STBY

+3V3

AV12

+3V3

+5V_ON

+5V

+3V3

+5V_STBY

+12V

+5V_ON

STANDBY 12,13

PANEL_PWR_CTL13

5V_PWR_SW12,13

BRIGHTNESS_PWM 13

INVERTER_ON_OFF 13

PWR_OK 13

LED_ON_OUT 20

FROM
POWER BOARD

CN7101 B2 C7102 A2
C7103 C8 C7104 C8
C7105 C9 C7106 C9
C7107 B4 C7108 B3
C7109 B10 C7110 B3
C7111 B9 C7112 B5
C7113 B5 C7114 D2
C7115 C3 C7116 B2
C7117 B3 C7123 E1
C7124 E2 C7125 E3
C7126 E4 C7127 E4
C7128 E4 C7129 E3
C7137 F3 C7138 D7
C7139 D9 C7140 D7
C7141 D8 C7142 C3
C7143 E7 C7146 E10
C7147 E10 C7149 H2
C7153 H2 C7154 F8
C7155 F7 C7156 F9
C7157 F9 C7158 G5
C7159 H5 C7160 H2
FB7101 B2 FB7102 C7
FB7103 A8 FB7104 A9
FB7105 B10 FB7106 B4
FB7107 C2 FB7111 F7
FB7112 F4 FB7113 F5
FB7114 D6 FB7115 E10
FB7116 G1 FB7119 E4
L7101 D3 L7104 E9
Q7101 A3 Q7102 A9
Q7103 B8 Q7106 F4
Q7107 F3 Q7108 F2
R7103 A4 R7104 A4
R7105 A8 R7106 B9
R7107 C8 R7108 C8
R7109 B10 R7117 D5
R7119 E3 R7120 E3
R7121 A3 R7126 F3
R7129 F2 R7130 F3
R7131 F4 R7132 D7
R7133 D7 R7134 D8
R7135 D9 R7137 E8
R7138 E10 R7139 G2
R7140 H2 R7141 H4
R7142 G4 R7144 G2
R7145 A4 R7146 A3
R7152 F2 R7153 B6
R7154 B6 R7155 C4
R7156 C4 U7101 D2
U7102 C8 U7104 F8
U7105 D9 U7106 G3
ZD7103 E9 ZD7104 F3

C7143

100N 50V

C7143

100N 50V

R7140

10K 1/10W

R7140

10K 1/10W

C7111

220N 25V

C7111

220N 25V

R7139

10K 1/10W

R7139

10K 1/10W

R7145

470OHM +-5% 1/10W

R7145

470OHM +-5% 1/10W

C7156

100N 50V

C7156

100N 50V

FB7115

120R/6000mA

FB7115

120R/6000mA

1

2

C7146

100N 50V

C7146

100N 50V

+

C7155

100uF 10V

+

C7155

100uF 10V

FB7107

120R/6000mA

FB7107

120R/6000mA

1 2

C7149

100N 16V

C7149

100N 16V

R7130

100K 1/10W

R7130

100K 1/10W

FB7112

120R/6000mA(NC)

FB7112

120R/6000mA(NC)

1 2

FB7119

120R/6000mA

FB7119

120R/6000mA

1 2

R7129

15K 1/10W(NC)

R7129

15K 1/10W(NC)

FB7116

120R/6000mA

FB7116

120R/6000mA

1 2

U7105

AME5106AIHAADJZ

U7105

AME5106AIHAADJZ

FB

1

EN

2

OCSET

3

IN

4

SW

5

SW

6

GND

7

GND

8

C7159

100N 16V

C7159

100N 16V

L7101

35uH(NC)

L7101

35uH(NC)

R7134

820R 1/10W 1%

R7134

820R 1/10W 1%

C7107

4U7(NC)

C7107

4U7(NC)

U7106

G973-120ADJF11U

U7106

G973-120ADJF11U

GND

1

ADJ

2

VO

3

VO

4

VEN

8

POK

7

VPP

6

VIN

5

TH1

9

C7127

100N 16V(NC)

C7127

100N 16V(NC)

C7112

100N 50V

C7112

100N 50V

R7153

10K 1/16W 1%

R7153

10K 1/16W 1%

+

C7128

47uF 25V(NC)

+

C7128

47uF 25V(NC)

R7120

100K 1/16W 1%(NC)

R7120

100K 1/16W 1%(NC)

C7125

33P 50V(NC)

C7125

33P 50V(NC)

R7121

1K 1/10W

R7121

1K 1/10W

R7156

5K1 1/16W 5%(NC)

R7156

5K1 1/16W 5%(NC)

C7126

10uF 10V(NC)

C7126

10uF 10V(NC)

C7104

100N 50V

C7104

100N 50V

+

C7147

470uF 10V

+

C7147

470uF 10V

R7135

5.1K 1/10W

R7135

5.1K 1/10W

+

C7142

470uF 10V

+

C7142

470uF 10V

FB7101

120R/6000mA

FB7101

120R/6000mA

1

2

R7141

1.5K +-1% 1/10W

R7141

1.5K +-1% 1/10W

C7114

100N 50V

C7114

100N 50V

R1

R2

Q7103
PDTC114EU

R1

R2

Q7103
PDTC114EU

1

32

R7131

10K 1/10W

R7131

10K 1/10W

R7154

3.9K 1/16W

R7154

3.9K 1/16W

R7152

0R05OHM1/16W

R7152

0R05OHM1/16W

FB7106

120R/6000mA

FB7106

120R/6000mA

1 2

FB7114

120R/6000mA

FB7114

120R/6000mA

1 2

+

C7106

470uF 10V

+

C7106

470uF 10V

R7132

100K 1/10W

R7132

100K 1/10W

R7119

0R05 1/16W(NC)

R7119

0R05 1/16W(NC)

U7102U7102

VIN3VOUT

2

ADJ

1

C7109

100N 50V

C7109

100N 50V

C7116

100N 50V

C7116

100N 50V

+

C7138

470uF 10V

+

C7138

470uF 10V

C7141

100N 50V

C7141

100N 50V

C7160

10uF 16V

C7160

10uF 16V

C7154

100N 50V

C7154

100N 50V

C7115

100N 50V

C7115

100N 50V

R7155

10K 1/16W 1%(NC)

R7155

10K 1/16W 1%(NC)

FB7111

120R/6000mA

FB7111

120R/6000mA

1 2

C7124

4U7 10V(NC)

C7124

4U7 10V(NC)

Q7106

SI4835DDY

Q7106

SI4835DDY

2

3

4

5

7
6

81

R1

R2

Q7107
PDTC114EU

R1

R2

Q7107
PDTC114EU

1

32

R7106

100K 1/10W

R7106

100K 1/10W

C7105

100N 50V

C7105

100N 50V

C7140

100N 50V

C7140

100N 50V

Q7102

SI4835DDY

Q7102

SI4835DDY

2

3

4 5

7
6

81

R7144

10K 1/10W

R7144

10K 1/10W

ZD7103

SSA34-E3

ZD7103

SSA34-E3

1 2

R7109

10K 1/10W

R7109

10K 1/10W

R7107

100R 1/10W 1%

R7107

100R 1/10W 1%

+

C7157

100uF 10V

+

C7157

100uF 10V

+

C7123

47uF 25V(NC)

+

C7123

47uF 25V(NC)

+

C7158

47uF 25V

+

C7158

47uF 25V

+

C7113

470uF 35V

+

C7113

470uF 35V

+

C7108

470uF 25V

+

C7108

470uF 25V

L7104
35uH

L7104
35uH

U7101

TPS62203DBVRG4(NC)

U7101

TPS62203DBVRG4(NC)

IN

1

GND

2

EN

3

FB

4

SW

5

R7137

2K2 1/10W 1%

R7137

2K2 1/10W 1%

R7105

3.3KOHM 1/10W

R7105

3.3KOHM 1/10W

C7117

100N 50V

C7117

100N 50V

R7117

0R05 1/10W

R7117

0R05 1/10W

R1

R2

Q7108
PDTC114EU(NC)

R1

R2

Q7108
PDTC114EU(NC)

1

32

R7142 4K7 OHM 1/10W 1%R7142 4K7 OHM 1/10W 1%

C7139

100N 50V

C7139

100N 50V

R7108

110R 1/10W 1%

R7108

110R 1/10W 1%

R7138

1.5K +-1% 1/10W

R7138

1.5K +-1% 1/10W

R7146

2KOHM 1/10W

R7146

2KOHM 1/10W

+

C7103

100uF 10V

+

C7103

100uF 10V

R7133

3KOHM 1/10W

R7133

3KOHM 1/10W

FB7102

120R/6000mA

FB7102

120R/6000mA

1 2

C7129

180P 50V(NC)

C7129

180P 50V(NC)

R7126

1K 1/10W

R7126

1K 1/10W

C7110

100N 50V

C7110

100N 50V

R7104 10OHM1/10WR7104 10OHM1/10W

ZD7104

BAT54

ZD7104

BAT54

1 3

R7103

47K 1/10W 5%

R7103

47K 1/10W 5%

C7137

470N 10V

C7137

470N 10V

FB7104

120R/6000mA(NC)

FB7104

120R/6000mA(NC)

12

FB7113

120R/6000mA

FB7113

120R/6000mA

1 2

U7104U7104

VI3VO

2

GND

1

FB7105

120R/6000mA

FB7105

120R/6000mA

12

Q7101
BC847C

Q7101
BC847C

+

C7153

47uF 25V

+

C7153

47uF 25V

FB7103

120R/6000mA

FB7103

120R/6000mA

12

CN7101

CONN

CN7101

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

C7102

100N 50V

C7102

100N 50V

ZD7105

BAT54(NC)

ZD7105

BAT54(NC)

1 3

Circuit Diagrams and PWB Layouts

EN 54TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

18870_516_100204.eps

100308

TCON, LCD Panel I/F

B16 B16

2010-01-14

C

715G3786

TCON, LCD Panel I/F

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

11

11

A

A

B

B

C C

D D

E E

F F

G G

H H

PANEL_HIGH

RXE3-RXE3+

RXEC+

RXE4-

RXE2+

RXEC-

RXOC-

RXO4+
RXO3+

RXE0+

RXE1+

RXO2+

RXO0+

RXO1+

RXO3-

RXO4-

RXE4+

PANEL_HIGH

RXOC+

RXE2-

RXE0-

RXE1-

RXO0-

RXO1-

RXO2-

PANEL_VCC

+1V8

VCC

VCC

PANEL_VCC

+1V8

+1V8

VCC

VCC

VCC

+3V3VCC

OPC_EN

R1AM13
R1AP13
R1BM13
R1BP13

R1CLKM

13

R1CLKP13

R1CM

13

R1CP13

R1DM13

R1EM13
R1EP13

R1DP13

R2BM

13

R2BP13

R2CM13

R2CLKM13
R2CLKP13

R2CP

13

R2DM13

R2EM13

R2DP13

R2EP13

R2AM13
R2AP13

C10S8
FSEL
RBF

ODC_BYPASS

VCORES

RESET21DPM

21

FLK

22

GVST

22

GVDD_ODD

22

GVDD_EVEN

22

GCLK122GCLK222GCLK3

22

GCLK4

22

GCLK522GCLK6

22

EEP_SIZE

GIP_EN

RMLV2N 23
RMLV2P 23

RMLV5N 23

RMLV1N 23
RMLV1P 23

RMLV5P 23

RMLV4N 23

RMLV0N 23
RMLV0P 23

RMLV4P 23

RMLV3N23
RMLV3P23
RMCLKN 23
RMCLKP 23

LMLV2N 23
LMLV2P 23

LMLV5N 23

LMLV1N 23
LMLV1P 23

LMLV5P 23

LMLV4N 23

LMLV0N 23
LMLV0P 23

LMLV4P 23
LMLV3N23
LMLV3P23

LMCLKN 23
LMCLKP 23

DISN

TCON_SCL

22

TCON_SDA

22

REVERSE

WP2

I2C_EN

SOE_A

23

POL_A

23

H_CONV

23

OPT_N

23

TCON_SCL 22
TCON_SDA 22

DISN

I2C_EN

ODC_BYPASS

GIP_EN

EEP_SIZE

FSEL

C10S8

ODSEL 13
RXE4- 13
RXE3-13

RXEC- 13

RXE2- 13
RXE1- 13
RXE0- 13

RXO4- 13
RXO3-13

RXOC- 13

RXO2- 13
RXO1- 13
RXO0- 13

RXE4+13
RXE3+

13

RXEC+

13

RXO4+13
RXO3+13

RXOC+13

RXE2+

13

RXE1+13
RXE0+

13

RXO2+13
RXO1+13
RXO0+

13

RXE4+

13

RXE3+13

RXEC+13

RXO4+

13

RXO3+13

RXOC+13

RXE2+13

RXE1+

13

RXE0+

13

RXO2+13

RXO1+13

RXO0+13

RXO3-13

RXOC-13

RXO2-13

RXE4-13

RXO1-13

RXO0-13

RXE3-13

RXEC-

13

RXE2-

13

RXE1-13

RXE0-13

RXO4-13

R1AM 13

R1AP 13

R1BM 13

R1BP 13

R1CLKM 13

R1CLKP 13
R1CM 13

R1CP 13

R1EM 13

R1EP 13
R1DM 13

R1DP 13

R2BM 13

R2BP 13
R2AM 1

3

R2CLKM 13

R2CLKP 13
R2CM 13

R2CP 13

R2EM 13

R2EP 13
R2DM 13

R2DP 13

R2AP 13

VCORES

LED_ON

WP1

WP2

MODE_0

MODE_1

MODE_1

MODE_0

TCON_SDA

22

TCON_SCL22

WP1

LED_ON

LED_ON_OUT 19

RBF

OPC_EN

REVERSE

I2C_EN

TCON_SEL 13,4

ASIC Option

CN7201 B10 CN7202 F11 C7201 A9 C7202 A10
C7203 E2 C7204 G1 C7205 G2 C7206 G2
C7207 G2 C7208 G2 C7209 G3 C7210 G3
C7211 G3 C7212 G3 C7213 G3 C7214 G4
C7215 G4 C7216 G4 C7217 G4 C7218 G4
C7219 G5 C7220 G5 C7221 G5 C7222 G5
C7223 G6 C7224 H1 C7225 H2 C7226 H2
C7227 H2 C7228 H2 C7229 H3 C7230 H3
C7231 H3 C7232 H3 C7233 H3 C7234 H4
C7235 H4 C7236 H4 C7237 H4 C7238 H4
C7239 H5 C7240 H5 C7242 A8 C7243 A8
D7201 F9 Q7201 G10 R7201 A10 R7202 A10
R7203 A8 R7204 C9 R7205 D9 R7206 D9
R7207 D9 R7208 E9 R7209 E9 R7210 C10
R7211 D10 R7212 D10 R7213 D10 R7214 E10
R7215 E10 R7216 E7 R7217 E3 R7218 E3
R7221 D1 R7222 F1 R7223 F1 R7225 F1
R7228 C1 R7229 D1 R7230 D1 R7231 D1
R7232 D1 R7233 E1 R7234 E1 R72

35 G7
R7236 H7 R7237 G7 R7238 G7 R7241 B11
R7242 B11 R7244 E1 R7245 E2 R7246 G7
R7247 G7 R7248 A2 R7249 A2 R7250 B2
R7251 B2 R7255 E2 R7256 F10 R7257 F10
R7258 F10 R7259 G9 U7201 B5 U7202 G6

C7238

100N 16V

C7238

100N 16V

R7258

10R 1/16W 5%

R7258

10R 1/16W 5%

R7215

100R 1/16W 1%

R7215

100R 1/16W 1%

C7217

100N 16V

C7217

100N 16V

C7231

100N 16V

C7231

100N 16V

R7232 1K 1/16W(NC)R7232 1K 1/16W(NC)

R7204

100R 1/16W 1%

R7204

100R 1/16W 1%

R7230 1K 1/16W(NC)R7230 1K 1/16W(NC)

C7240

100N 16V

C7240

100N 16V

R7222

1K 1/16W(NC)

R7222

1K 1/16W(NC)

R7218

0R05OHM1/16W

R7218

0R05OHM1/16W

C7218

100N 16V

C7218

100N 16V

C7211

100N 16V

C7211

100N 16V

R7231

1K 1/16W(NC)

R7231

1K 1/16W(NC)

R7202

2.7K(NC)

R7202

2.7K(NC)

C7230

100N 16V

C7230

100N 16V

R7214

100R 1/16W 1%

R7214

100R 1/16W 1%

R7233

1K 1/16W(NC)

R7233

1K 1/16W(NC)

R7245

4.7K1/16W(NC)

R7245

4.7K1/16W(NC)

R7223

1K 1/16W(NC)

R7223

1K 1/16W(NC)

C7223

100N 16V

C7223

100N 16V

D7201

BAT54C

D7201

BAT54C

1

3

2

R7208

100R 1/16W 1%

R7208

100R 1/16W 1%

C7205

100N 16V

C7205

100N 16V

R7257

10R 1/16W 5%

R7257

10R 1/16W 5%

C7216

100N 16V

C7216

100N 16V

R7228

1K 1/16W(NC)

R7228

1K 1/16W(NC)

C7212

100N 16V

C7212

100N 16V

C7229

100N 16V

C7229

100N 16V

R7217

1K 1/16W(NC)

R7217

1K 1/16W(NC)

R7250

1K 1/16W 5%(NC)

R7250

1K 1/16W 5%(NC)

C7242

22P 50V

C7242

22P 50V

R7234 1K 1/16W(NC)R7234 1K 1/16W(NC)

R7225 1K 1/16W(NC)R7225 1K 1/16W(NC)

R7213

100R 1/16W 1%

R7213

100R 1/16W 1%

C7210

100N 16V

C7210

100N 16V

CN7202

CONN

CN7202

CONN

1
2

3

4

R7207

100R 1/16W 1%

R7207

100R 1/16W 1%

C7222

100N 16V

C7222

100N 16V

C7233

100N 16V

C7233

100N 16V

R7236

10K1/16W(NC)

R7236

10K1/16W(NC)

C7206

100N 16V

C7206

100N 16V

R7242

0R05 1/16W(NC)

R7242

0R05 1/16W(NC)

R7205

100R 1/16W 1%

R7205

100R 1/16W 1%

R7259

0R05OHM1/16W

R7259

0R05OHM1/16W

R7212

100R 1/16W 1%

R7212

100R 1/16W 1%

C7232

100N 16V

C7232

100N 16V

R7248

1K 1/16W 5%

R7248

1K 1/16W 5%

R7238 1K 1/16W 5%R7238 1K 1/16W 5%

C7224

100N 16V

C7224

100N 16V

R7221 1K 1/16W 5%R7221 1K 1/16W 5%

C7234

100N 16V

C7234

100N 16V

C7220

100N 16V

C7220

100N 16V

R7241

0R05 1/16W(NC)

R7241

0R05 1/16W(NC)

R7251

1K 1/16W 5%(NC)

R7251

1K 1/16W 5%(NC)

C7204

100N 16V

C7204

100N 16V

C7221

100N 16V

C7221

100N 16V

R7237 10R 1/16W 5%R7237 10R 1/16W 5%

R7206

100R 1/16W 1%

R7206

100R 1/16W 1%

+

C7201

47uF 25V

+

C7201

47uF 25V

R7211

100R 1/16W 1%

R7211

100R 1/16W 1%

C7214

100N 16V

C7214

100N 16V

R7256 10R 1/16W 5%R7256 10R 1/16W 5%

R7246

4.7K1/16W

R7246

4.7K1/16W

C7236

100N 16V

C7236

100N 16V

R7216

13K 1/16W 1%

R7216

13K 1/16W 1%

C7219

100N 16V

C7219

100N 16V

C7215

100N 16V

C7215

100N 16V

C7225

100N 16V

C7225

100N 16V

R7247

4.7K1/16W

R7247

4.7K1/16W

R7255

4.7K1/16W(NC)

R7255

4.7K1/16W(NC)

C7208

100N 16V

C7208

100N 16V

R7201

10K(NC)

R7201

10K(NC)

R7203

1M 1/10W 1%

R7203

1M 1/10W 1%

R1

R2

Q7201
PDTC114EU

R1

R2

Q7201
PDTC114EU

1

32

R7235

33K 1/16W 5%

R7235

33K 1/16W 5%

C7237

100N 16V

C7237

100N 16V

C7213

100N 16V

C7213

100N 16V

C7209

100N 16V

C7209

100N 16V

R7249

1K 1/16W 5%

R7249

1K 1/16W 5%

CN7201

60949(NC)

CN7201

60949(NC)

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

39

41 42

U7202

AT24C32CN-SH-T

U7202

AT24C32CN-SH-T

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

R7210

100R 1/16W 1%

R7210

100R 1/16W 1%

C7227

100N 16V

C7227

100N 16V

C7203

1uF 25V(NC)

C7203

1uF 25V(NC)

C7235

100N 16V

C7235

100N 16V

C7202

100N 16V(NC)

C7202

100N 16V(NC)

C7207

100N 16V

C7207

100N 16V

R7229 1K 1/16W 5%R7229 1K 1/16W 5%

C7228

100N 16V

C7228

100N 16V

C7243

27P 50V

C7243

27P 50V

C7239

100N 16V

C7239

100N 16V

U7201
TL2428MC

U7201
TL2428MC

OGND

1

OVDD

2

PWM_TIN

3

PWM_TOUT

4

OPC_EN

5

CVDD

6

CGND

7

LGND

8

LVDD

9

R1AM

10

R1AP

11

R1BM

12

R1BP

13

LVDD

14

R1CM

15

R1CP

16

R1CLKM

17

R1CLKP

18

LGND

19

R1DM

20

R1DP

21

R1EM

22

R1EP

23

R2AM

24

R2AP

25

R2BM

26

R2BP

27

LVDD

28

R2CM

29

R2CP

30

R2CLKM

31

R2CLKP

32

LGND

33

R2DM

34

R2DP

35

R2EM

36

R2EP

37

CGND

38

CVDD

39

BIT_SEL

40

FSEL

41

RBF

42

OVDD

43

OGND

44

MODE[0]45MODE[1]46ODC_BYPASS47EIVSS48EIVDD49CVDD50CGND51OVDD52OGND53TEST C54TEST D55VCORES56EIVSS57EIVSS58RESET59EIVDD60EIVSS61CVDD62CGND63DPM64FLK165EIVDD66EIVSS67VST(GSP)68VDD_ODD(GSC)69VDD_EVEN(GOE)

70

CVDD71CGND72GCLK1(GSP_R)73GCLK274GCLK375GCLK4(OPT_P)76OVDD77OGND78NC79NC80GCLK581GCLK682NC83EEP_SIZE84CVDD85CGND86TESTA87TESTB

88

MPVDD

89

MPVSS

90

RMLVDS

91

MLVSS

92

MLVDD

93

LLV6-

94

LLV6+

95

LLV5-

96

LLV5+

97

MLVSS

98

LLV4-

99

LLV4+

100

LLV3-

101

LLV3+

102

MLVDD

103

LLV2-

104

LLV2+

105

LLV1-

106

LLV1+

107

MLVSS

108

LLV0-

109

LLV0+

110

MLVDD

111

RLV6-

112

RLV6+

113

MLVSS

114

RLV5-

115

RLV5+

116

RLV4-

117

RLV4+

118

MLVDD

119

RLV3-

120

RLV3+

121

RLV2-

122

RLV2+

123

MLVSS

124

RLV1-

125

RLV1+

126

MLVDD

127

RLV0-

128

RLV0+

129

MPVDD

130

MPVSS

131

GIP_EN

132

XIN

133

XOUT

134

EOVDD

135

EOVSS

136

OPT_N

137

H_CONV

138

EOVDD

139

EOVSS

140

POL

141

SOE

142

CVDD

143

CGND

144

EOVDD

145

EOVSS

146

CVDD

147

CGND

148

EIVSS

149

EIVDD

150

I2C_EN

151

NC

152

WP

153

EOVSS

154

EOVDD

155

OVDD

156

OGND

157

CVDD

158

CGND

159

WPWM

160

REFMODE

161

LEDON

162

EOVDD

163

EOVSS

164

REVERSE

165

CVDD

166

CGND

167

OVDD

168

OGND

169

EOVSS

170

EOVDD

171

SDA

172

SCL

173

DISM

174

CVDD

175

CGND

176

GND

177

R7209

100R 1/16W 1%

R7209

100R 1/16W 1%

C7226

100N 16V

C7226

100N 16V

X7201 10MHzX7201 10MHz

1

2

R7244

4.7K1/16W(NC)

R7244

4.7K1/16W(NC)

SSB: T-CON, LCD Panel I/F

EN 55TPM4.1E LA 10.

2010-Jan-21

SSB: T-CON DC/DC

18870_517_10020.eps

100308

TCON DC/DC

B17 B17

2010-01-14

C

715G3786

TCON DC/DC

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

A A

B B

C C

D

D

E

E

VCC

VCC

VDD

VCC

VDD

VGL

VGH

VGL

VGL

VGL

VGH

PANEL_VCC

VGH

VGHVDD

DISCHG

VGL_I 23VGI_P 23 VGI_N 23

FLK20

FLK_IN

GVST20

GVST_I 23

GVDD_ODD20

GVDD_ODD_I

GVDD_EVEN

20

GVDD_EVEN_I

GCLK620

GCLK6_I

GCLK520

GCLK5_I

GCLK420

GCLK4_I

GCLK320

GCLK3_I

GCLK220

GCLK2_I

GCLK1

20

GCLK1_I

GVDD_ODD_I
GVDD_EVEN_I
GVST_I

23

GCLK1_I
GCLK2_I
GCLK3_I
GCLK4_I
GCLK5_I
GCLK6_I

VDD_ODD 23
VDD_EVEN 23
VST23
CLK1 23
CLK2 23
CLK3 23
CLK4 23CLK523

CLK623

DISCHG

FLK_IN

VCOMR 23

VCOML 23

VCOM_OP

VCOM_PG

TCON_SDA20

TCON_

SCL20

VCOM_PG

GMA16 23
GMA15 23

GMA13 23
GMA12 23
GMA7 23
GMA6 23
GMA4 23

GMA3 23

VCOMLFB

23

VCOMRFB

23

VCOM_FB

VCOM_FB

VCOM_FB
VCOM_PG

VCOM_OP

LEVEL SHIFTER

PGMA

item

42" 32"

1K1.6KR7433

C7401 A5
C7402 A5
C7403 B4
C7404 B6
C7405 B6
C7406 C1
C7407 E6
C7408 E6
C7409 E6
C7410 E3
C7411 E3
C7412 E4
C7413 E4
C7414 E5
C7415 E4
C7416 E5
C7417 E6
C7418 B2
C7419 D3
C7420 D4
C7421 D7
R7401 A5
R7402 A2
R7403 A3
R7404 B2
R7405 B3
R7406 A2
R7407 A2
R7408 C1
R7409 C1
R7410 C3
R7411 C4
R7412 C5
R7413 C3
R7414 C4
R7415 C5
R7416 D1
R7417 D6
R7418 D1
R7419 D1
R7420 D6
R7421 D1
R7422 D1
R7423 D4
R7424 D3
R7425 D1
R7426 D4
R7427 D4
R7428 D4
R7429 E1
R7430 E1
R7431 E1
R7432 A1
R7433 B5
R7434 B5
R7435 B1
R7436 B1
R7437 B3
R7438

B2
R7439 D4
R7440 D7
R7441 D6
U7401 A5
U7402 D5
U7403 B2
ZD7401 D3
ZD7402 D4

R7431

0R05OHM1/16W

R7431

0R05OHM1/16W

C7401

100N 50V

C7401

100N 50V

R7435

430R 1/16W 1%(NC)

R7435

430R 1/16W 1%(NC)

C7414

1uF 16V

C7414

1uF 16V

R7428

10OHM1/16W(NC)

R7428

10OHM1/16W(NC)

U7403

MAX9650ATA+(NC)

U7403

MAX9650ATA+(NC)

N.C

1

INA-

2

INA+

3

GND4N.C

5

OUTA

6

VDD

7

N.C

8

Thermal Pad

9

R7407

1K 1/16W 1%

R7407

1K 1/16W 1%

R7404

0R05OHM1/16W

R7404

0R05OHM1/16W

R7436

0R05OHM1/16W(NC)

R7436

0R05OHM1/16W(NC)

R7433

1.6KOHM 5% 1/16W

R7433

1.6KOHM 5% 1/16W

R7440

3K1/16W

R7440

3K1/16W

R7427

10OHM1/16W

R7427

10OHM1/16W

C7406

1uF 6.3V(NC)

C7406

1uF 6.3V(NC)

R7419

0R05OHM1/16W

R7419

0R05OHM1/16W

C7410

100N 50V

C7410

100N 50V

R7432

0R05OHM1/16W(NC)

R7432

0R05OHM1/16W(NC)

C7409

10uF 16V

C7409

10uF 16V

ZD7401

UDZSNP9.1B(NC)

ZD7401

UDZSNP9.1B(NC)

12

R7439

20ohm +-1% 1/16W

R7439

20ohm +-1% 1/16W

R7410

0R05OHM1/16W

R7410

0R05OHM1/16W

R7418

0R05OHM1/16W

R7418

0R05OHM1/16W

+

C7402

10UF/50V

+

C7402

10UF/50V

ZD7402

UDZSNP9.1B(NC)

ZD7402

UDZSNP9.1B(NC)

12

R7441 3K1/16WR7441 3K1/16W

R7424

10OHM1/16W

R7424

10OHM1/16W

C7412

100N 50V

C7412

100N 50V

R7438

1K 1/16W 5%(NC)

R7438

1K 1/16W 5%(NC)

C7416

100nF 25V

C7416

100nF 25V

R7423

20ohm +-1% 1/16W

R7423

20ohm +-1% 1/16W

C7419

100N 50V

C7419

100N 50V

C7421

100N 16V(NC)

C7421

100N 16V(NC)

C7417

100nF 25V

C7417

100nF 25V

R7416

0R05OHM1/16W

R7416

0R05OHM1/16W

R7434

0R05OHM1/16W

R7434

0R05OHM1/16W

R7420 560R 1/16W 5%R7420 560R 1/16W 5%

R7413

0R05OHM1/16W(NC)

R7413

0R05OHM1/16W(NC)

C7420

1uF 50V

C7420

1uF 50V

U7401

MAX9668ETP+

U7401

MAX9668ETP+

SDA

1

A0

2

DVDD

3

AGND_AMP

4

VCOM

5

VCOM_FB6AVDD_AMP

7

AVDD8N.C.9GMA1

10

GMA2

11

GMA3

12

GMA4

13

GMA5

14

GMA6

15

AVDD

16

N.C.

17

GMA718GMA8

19

SCL

20

Thermal Pad

21

R7406

1K 1/16W 1%

R7406

1K 1/16W 1%

R7409

10R 1/16W 5%(NC)

R7409

10R 1/16W 5%(NC)

U7402

TPS65192RHDR

U7402

TPS65192RHDR

IN9

1

IN8

2

IN7

3

IN6

4

IN5

5

IN4

6

IN3

7

IN2

8

IN1

9

VGH1

10

VGL

11

VGH2

12

OUT1

13

OUT214OUT3

15

OUT4

16

OUT5

17

OUT6

18

OUT7

19

OUT8

20

OUT9

21

DISCHARGE

22

GND

23

RE

24

FLK3

25

FLK2

26

FLK1

27

VSENSE

28

Thermal Pad

29

C7415

1uF 16V

C7415

1uF 16V

R7412

0R05OHM1/16W(NC)

R7412

0R05OHM1/16W(NC)

C7413

1uF 50V

C7413

1uF 50V

R7417

100OHM1/16W

R7417

100OHM1/16W

R7437

0R05OHM1/16W(NC)

R7437

0R05OHM1/16W(NC)

C7403

100N 16V

C7403

100N 16V

R7405

0R05OHM1/16W

R7405

0R05OHM1/16W

R7401

10R 1/8W 5%

R7401

10R 1/8W 5%

R7422

0R05OHM1/16W

R7422

0R05OHM1/16W

R7425

0R05OHM1/16W

R7425

0R05OHM1/16W

R7403

0R05OHM1/16W

R7403

0R05OHM1/16W

C7407

100N 16V

C7407

100N 16V

R7414

0R05OHM1/16W(NC)

R7414

0R05OHM1/16W(NC)

C7411

1uF 50V

C7411

1uF 50V

C7418

1uF 25V(NC)

C7418

1uF 25V(NC)

C7404

100N 50V

C7404

100N 50V

C7408

1uF 16V

C7408

1uF 16V

R7429

0R05OHM1/16W

R7429

0R05OHM1/16W

R7402

0R05OHM1/16W(NC)

R7402

0R05OHM1/16W(NC)

R7408

4.7K1/16W

R7408

4.7K1/16W

R7430

0R05OHM1/16W

R7430

0R05OHM1/16W

R7426

10OHM1/16W

R7426

10OHM1/16W

R7421

0R05OHM1/16W

R7421

0R05OHM1/16W

R7415

0R05OHM1/16W

R7415

0R05OHM1/16W

R7411

0R05OHM1/16W

R7411

0R05OHM1/16W

C7405

100N 50V

C7405

100N 50V

Diversity

Circuit Diagrams and PWB Layouts

EN 56TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

18870_518_10020.eps

100308

TCON TGMA, Level-shifter

B18 B18

2010-01-14

C

715G3786

TCON TGMA, Level-shifter

1

1

2

2

3

3

4

4

5

5

A A

B

B

C C

D D

VCC

PANEL_VCC

VCC

VCC

+1V8

PANEL_VCC

VCC

VDD

VDD

VGH

VGL

VL

PANEL_VCC

H_VDD

VDD

DPM20

EN2

EN1

VGH_FB

VGL_FB

REF

EN2

REF

VGL_FB

EN1

VGH_FB

RESET20

EN2

EN2

FB_HVDD

FB_HVDD

VGH
32"=+27.19V
42"=+23.19V

VGL
32"=-4.94V
42"=-5.3V

VDD
32"=+16.03V
42"=+16.5V

VCC=+3.3V

TCON LDO +1.8V

H_VDD
32"=+8.01V
42"=+8.0V

HVDD

VL=+5V

Item

Diversity

R7337

R7339

42" 32"

R7310

R7337

R7321

R7326

R7331

R7355

56K

150K

16K

348K

16K

1K

10K

0

187K

36K

150K

27K

39K 43K

150K 187K

C7304 A4 C7305 A4
C7306 A4 C7307 A1
C7308 A1 C7309 A4
C7310 A4 C7311 A2
C7312 A3 C7313 A4
C7314 B3 C7315 A4
C7316 A4 C7317 B4
C7318 B4 C7319 B3
C7320 B4 C7321 B3
C7322 A4 C7323 B4
C7324 B3 C7325 C1
C7326 C1 C7327 C2
C7328 A1 C7329 C2
C7330 B4 C7331 C3
C7332 A1 C7333 C4
C7334 C5 C7335 C5
C733

6 C4 C7337 C3
C7338 C4 C7339 C3
C7340 C4 C7342 C4
C7343 C4 C7344 C4
C7345 C1 C7346 C1
C7347 C1 C7348 C1
C7349 D4 C7350 D4
C7351 D4 C7352 D4
C7353 A2 C7354 A2
D7301 B3 D7303 B3
D7304 C3 D7305 B1
D7306 C3 D7307 A5
L7301 A2 L7302 B4
L7303 C4 R7301 A5
R7302 A1 R7303 A1
R7304 A3 R7305 A

3

R7306 A4 R7307 A2
R7308 B1 R7309 B1
R7310 A3 R7311 A3
R7312 A2 R7314 B2
R7315 B3 R7316 B3
R7317 D3 R7318 B4
R7319 D3 R7320 C3
R7321 B1 R7322 B2
R7323 B1 R7324 C3
R7325 C4 R7326 C1
R7327 C4 R7328 C2
R7329 C3 R7330 C4
R7331 C1 R7332 C3
R7333 C5 R7334 C4
R7335 C3 R7336 C5
R7337 C4 R7338 D3
R7339 D4 R7340 D4
R7341 C1 R7342 C1
R7343 C2 R7344 A4
R7345 B2 R7346 A2
R7347 D1 R7348 D1
R7349 D1 R7350 D2
R7351 D2 R7352 D2
R7353 D3 R7354 D3
R7355 C1 R7356 B4
R7357 A1 R7358 A1
TH7301 B2 U7301 A2
U7302 B3 U7303 C1
ZD7302 B4 ZD7303 A2

R7326

150K 1/16W 1%

R7326

150K 1/16W 1%

+

C7343

100uF 16V

+

C7343

100uF 16V

R7328

0R05OHM1/16W

R7328

0R05OHM1/16W

C7330

1N 50V

C7330

1N 50V

C7346

100N 50V

C7346

100N 50V

C7314

1500P50V

C7314

1500P50V

R7319

360 OHM 1/16W(NC)

R7319

360 OHM 1/16W(NC)

C7353

10nF 50V

C7353

10nF 50V

C7313

1uF 25V

C7313

1uF 25V

C7323

0.1UF50V

C7323

0.1UF50V

C7354

4N7 50V

C7354

4N7 50V

R7357

1.5K 1/16W

R7357

1.5K 1/16W

R7349
0R05 1/10W

R7349
0R05 1/10W

R7356

2.2R 1%

R7356

2.2R 1%

R7353
0R05 1/10W

R7353
0R05 1/10W

C7335

100nF 25V

C7335

100nF 25V

R7305

18Kohm 1/16W +/-1%(NC)

R7305

18Kohm 1/16W +/-1%(NC)

R7301

0R051/8W

R7301

0R051/8W

U7301

G5795F11U

U7301

G5795F11U

BS

1

IN

2

LX

3

GND4FB

5

COMP

6

EN

7

SS

8

GND

9

C7327

1uF 50V

C7327

1uF 50V

L7302

22uH

L7302

22uH

C7324

1uF 50V(NC)

C7324

1uF 50V(NC)

C7310

0.1UF50V

C7310

0.1UF50V

R7330

1K1/16W(NC)

R7330

1K1/16W(NC)

R7350
0R05 1/10W

R7350
0R05 1/10W

R7354
0R05 1/10W

R7354
0R05 1/10W

D7305
BAV99

D7305
BAV99

3

1

2

C7345

1UF16V

C7345

1UF16V

R7320

0R05OHM1/16W

R7320

0R05OHM1/16W

C7306

100nF 25V

C7306

100nF 25V

C7319

1uF Z 10V

C7319

1uF Z 10V

R7346

15K 1/16W(NC)

R7346

15K 1/16W(NC)

C7340

150pF 50V

C7340

150pF 50V

R7339

27K 1/16W 1%

R7339

27K 1/16W 1%

C7315

10uF 25V

C7315

10uF 25V

R7343

0R05OHM1/16W

R7343

0R05OHM1/16W

R7308

21K 1% 1/16W()NC)

R7308

21K 1% 1/16W()NC)

C7308

100nF 25V

C7308

100nF 25V

C7312

1uF 50V(NC)

C7312

1uF 50V(NC)

+

C7307

47uF/25V

+

C7307

47uF/25V

R7331

10K 1/16W 1%

R7331

10K 1/16W 1%

U7302

PF57

U7302

PF57

THR

1

DRVP

2

GND2

3

SRC

4

GON

5

DRN

6

MODE

7

DLP

8

FBP

9

CPGND

10

CTL11DRVN12AGND13FBN14REF15DEL116FB217BST18LX219LX2

20

OUT

21

IN2

22

IN2

23

VIN

24

FSEL

25

EN1

26

DEL2

27

VL

28

EN2

29

PGND

30

PGND

31

LX132LX1

33

SWI

34

SWO

35

FB1

36

COMP

37

PGOOD

38

CRST

39

AGND

40

Thermal Pad

41

+

C7348

100uF 10V

+

C7348

100uF 10V

R7324

1K 1/16W 5%

R7324

1K 1/16W 5%

C7331

1uF 50V

C7331

1uF 50V

R7315

10K1/16W

R7315

10K1/16W

R7312

9K1 1/16W 5%

R7312

9K1 1/16W 5%

D7301

LS4148(NC)

D7301

LS4148(NC)

R7333

0 OHM +-5% 1/8W

R7333

0 OHM +-5% 1/8W

D7304
BAV99

D7304
BAV99

3

1

2

R7340

3K6 1/16W 1%

R7340

3K6 1/16W 1%

R7334

5.1K 1/16W 1%

R7334

5.1K 1/16W 1%

C7336

100N 50V

C7336

100N 50V

R7309

11K OHM 1/16W 1%

R7309

11K OHM 1/16W 1%

C7339

1uF 25V

C7339

1uF 25V

R7355

0R05OHM1/16W

R7355

0R05OHM1/16W

C7316

1uF 25V

C7316

1uF 25V

R7323

0 OHM +-5% 1/8W

R7323

0 OHM +-5% 1/8W

ZD7302

SSA34-E3

ZD7302

SSA34-E3

12

R7302

220K 1%(NC)

R7302

220K 1%(NC)

+

C7332

47UF 25V

+

C7332

47UF 25V

R7335

0R05OHM1/16W

R7335

0R05OHM1/16W

R7316

10K1/16W

R7316

10K1/16W

R7304

150K 1/16W 1%

R7304

150K 1/16W 1%

R7322

0R05OHM1/16W

R7322

0R05OHM1/16W

R7341

18K +-5% 1/8W

R7341

R7310

39K 1/16W 1%

R7310

39K 1/16W 1%

R7358

1.5K 1/16W

R7358

1.5K 1/16W

U7303U7303

VI3VO

2

GND14

4

+

C7318

100uF 25V

+

C7318

100uF 25V

R7336

0 OHM +-5% 1/8W

R7336

0 OHM +-5% 1/8W

R7325 0R05OHM1/16WR7325 0R05OHM1/16W

R7347
0R05 1/10W

R7347
0R05 1/10W

R7344

18K +-5% 1/8W

R7344

18K +-5% 1/8W

C7309

1uF 25V(NC)

C7309

1uF 25V(NC)

C7352

220N 25V

C7352

220N 25V

R7329

0R05OHM1/16W(NC)

R7329

0R05OHM1/16W(NC)

C7322

10uF 25V

C7322

10uF 25V

R7311

18Kohm 1/16W +/-1%

R7311

18Kohm 1/16W +/-1%

D7303
BAV99

D7303
BAV99

3

1

2

C7338

100N 50V

C7338

100N 50V

R7318

10R 1/16W 5%

R7318

10R 1/16W 5%

R7342

18K +-5% 1/8W

R7342

18K +-5% 1/8W

L7303

22uH

L7303

22uH

C7328

100nF 25V

C7328

100nF 25V

C7337

100nF 25V(NC)

C7337

100nF 25V(NC)

R7348
0R05 1/10W

R7348
0R05 1/10W

C7333

1uF 25V

C7333

1uF 25V

D7307
BAV99

D7307
BAV99

3

1

2

C7304

1uF 25V(NC)

C7304

1uF 25V(NC)

R7327

1K1/16W

R7327

1K1/16W

R7317

360 OHM 1/16W

R7317

360 OHM 1/16W

C7325

100N 50V

C7325

100N 50V

C7351

100nF 25V

C7351

100nF 25V

C7321

150pF 50V

C7321

150pF 50V

C7329

1uF 50V(NC)

C7329

1uF 50V(NC)

C7317

100nF 25V

C7317

100nF 25V

C7350

10uF 16V

C7350

10uF 16V

R7338

0R05OHM1/16W(NC)

R7338

0R05OHM1/16W(NC)

R7337

150K 1/16W 1%

R7337

150K 1/16W 1%

C7342

100nF 25V

C7342

100nF 25V

R7307

47K1/16W

R7307

47K1/16W

R7351
0R05 1/10W

R7351
0R05 1/10W

R7306

15K 1/8W 1%

R7306

15K 1/8W 1%

ZD7305

SSA34-E3

ZD7305

SSA34-E3

1 2

C7344

0.1UF50V

C7344

0.1UF50V

C7349

1uF 16V

C7349

1uF 16V

C7347

100N 50V

C7347

100N 50V

+

C7305

22UF 50V

+

C7305

22UF 50V

R7332 0R05OHM1/16WR7332 0R05OHM1/16W

R7321

56K 1%

R7321

56K 1%

D7306
BAV99

D7306
BAV99

3

1

2

L7301

22uH

L7301

22uH

R7314

15K 1/16W

R7314

15K 1/16W

R7352
0R05 1/10W

R7352
0R05 1/10W

R7303

84.5K1/16W 0.5%

R7303

84.5K1/16W 0.5%

C7320

2200pF 50V

C7320

2200pF 50V

ZD7303

SSA34-E3(NC)

ZD7303

SSA34-E3(NC)

1 2

+

C7334

100uF 25V

+

C7334

100uF 25V

C7326

4.7uF 50V

C7326

4.7uF 50V

t

TH7301

8V 0R4(NC)

t

TH7301

8V 0R4(NC)

12

R7345

47K +-1% 1/16W

R7345

47K +-1% 1/16W

C7311 100nF 25VC7311 100nF 25V

SSB: T-CON TGMA , Level-Shifter

EN 57TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

18870_519_10020.eps

100204

TCON Mini-LVDS I/F

B19 B19

2010-01-14

C

715G3786

TCON Mini-LVDS I/F

1

1

2

2

3

3

4

4

5

5

A A

B B

C C

D

D

VCC VDD

VDDVCC

H_VDD

H_VDD

LMLV5N20
LMLV5P20
LMLV4N20
LMLV4P20 LMLV3N20

GMA1
GMA322
GMA422
GMA622

GMA9
GMA10
GMA12

22

GMA1322
GMA1522
GMA16

22

GMA18

GMA7

22

OPT_N

20

H_CONV_I

GVST_I22

POL
SOE

RMLV5N20

CLK622

CLK5

22

CLK422

CLK3

22

CLK222

CLK122

Z_OUT

RMLV5P20
RMLV4N20
RMLV4P20
RMLV3N20
RMLV3P20
RMCLKN20
RMCLKP20
RMLV2N

20

RMLV2P20

VCOML

22

VCOMLFB

22

VST

22

VGL_I22

VDD_EVEN

22

VDD_ODD22

VGI_P

22

VGI_N

22

LMLV

3P20

LMCLKN 20

LMCLKP 20

GMA1
GMA3 22
GMA4 22
GMA6 22

GMA9
GMA10
GMA12 22
GMA13 22
GMA15 22
GMA16 22
GMA18

GMA7 22

POL
SOE

OPT_N 20

H_CONV_I

GVST_I 22

LMLV1N 20

LMLV1P 20

LMLV0N 20

LMLV0P 20

LMLV2N 20

LMLV2P 20

VST22

VGL_I 22

VDD_EVEN 22

VDD_ODD 22

VGI_P 22

VGI_N 22

CLK6 22

CLK5 22

CLK4 22

CLK3 22

CLK2 22

CLK1 22

Z_OUT

VCOMR 22

VCOMRFB 22

RMLV0N 20

RMLV0P 20

RMLV1N 20

RMLV1P 20

SOE_A

20

SOE

H_CONV20

H_CONV_I

POL_A20

POL

RightLeft

CN7501 B1 CN7502 B3
C7501 A1 C7502 A1
C7503 A1 C7504 A1
C7505 A3 C7506 A3
C7507 A3 C7508 A3
C7509 B4 C7510 B4
C7511 B3 C7512 C4
C7513 C1 R7501 B4
R7502 B4 R7503 B4

C7510

15PF50V(NC)

C7510

15PF50V(NC)

R7501

10R 1/16W 5%

R7501

10R 1/16W 5%

C7504

100nF 25V

C7504

100nF 25V

C7511

10U 16V

C7511

10U 16V

C7501

10nF 50V

C7501

10nF 50V

CN7501

CONN

CN7501

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32
31

6162

C7512

15PF50V(NC)

C7512

15PF50V(NC)

C7507

10uF 25V

C7507

10uF 25V

C7506

100nF 25V

C7506

100nF 25V

C7502

100nF 25V

C7502

100nF 25V

R7502

0R05OHM1/16W

R7502

0R05OHM1/16W

CN7502

CONN

CN7502

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40

39
38
37
36
35
34
33
32
31

6162

C7509

15PF50V

C7509

15PF50V

C7505

10nF 50V

C7505

10nF 50V

C7508

100nF 25V

C7508

100nF 25V

C7513

10U 16V

C7513

10U 16V

C7503

10uF 25V

C7503

10uF 25V

R7503

0R05OHM1/16W

R7503

0R05OHM1/16W

SSB: T-CON Mini-LVDS I/F

EN 58TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

18870_523_100208.eps

100308

C6302

C6321

C6304

C7107

C7110

C7108

C7112 C7115

C1539 C1538

D1308

D1101

D1102

D1103

D1104

D6302

FB6302

FB6301

FB7114

FB7104

FB7101 FB7106 FB7107

L7101

Q1703

Q1704

Q6302

Q7106

Q7102

Q5401

R4137

R4139

R1407

R1103

R1106

R1104

R1107

R1108

R1101

R1109

R1113

R1112

R1110

R1122

R1123

R1120

R1121

R1105

R1124

R1125

R1126

R1127

R4122

R4124 R4120

R4136

R4135

R4134

R4133

R4132

R4131

R4123

R4119

R4118

R4117

R4121

R4109

R4108

R4107

R4106

R4105

R4104

R4112

R4113

R4114

R4115

R4116

R4101

R4103

R4125

R4217

R4207

R4210

R4213

R6304

R6302

R6305

R6318

R6319

R6301R6309

R6310

R6312

R6313

R6314

R6315

R7109

R7121

R7103

R7104

R5402

R5404

R5414

R5416

R5417

R5418

R5403

R5405

R5413

R5327

R5326

R5323

R1533

R1534R1535R1536

R7206

U4102

U4202

U4103

U4105

X4101

ZD1101

ZD1103

ZD1104

ZD1105

ZD1102

ZD6301

ZD5402

ZD5401

ZD5404

ZD5403

ZD5304

ZD5302

ZD5301

ZD5303

U7101

C7124

C7126

R1308

R1310

D1310

FB1404

FB1407

FB1408

FB1102FB1103

FB1104

FB1105

FB1106

FB4101

FB4202

C6314

C6330

C6323

ZD7103

C1418

C1506

C4102

C4214

C1403

C1415

C1102

C1106C1107

C1101

C1103

C1104C1105

C1116

C1305

C4101

C4105 C4106

C4202

C4205

C4220

C5402

C5401

C5405

C5404

C5333

C4107

C1325

C1310

C1311

C1624

U1601

R6322

FB7111

R7250

R1305

C4215

C4207

C4219

C4227

C7109

C1117

C1119

X4201

U1701

C1302

C1627

C1315

C1318

C1324

C1408

C1416

C1413

C1502

C4208

C4225

C4228

C4234

C4253

C4275

C4277

C7125

C7127

C7129

C4103

C4104

C7102

C7104

C7105

C6309

C6329

C7154

C7137

C7139

C7140

C7141

C7143C7146

C7147

FB1302

FB1303

FB1304

FB1305

FB1405

FB1406

FB1409

FB4103

FB7102

FB7103

FB7105

FB6305

FB7112

FB7113

FB7115

FB7116

L7104

R1119

R1132R1133

R1134

R1135

R1208

R1215

R1303

R1313

R1314

R1315

R1316

R1503

R4102

R4110

R4111

R4127

R4128

R4129

R4130

R4138

R4141

R4142

R4204

R4202

R6133

R4206

R4211

R4212

R4216

R4219

R4227

R4220

R4226

R1129

R5412

R7119 R7120

R1619

R4140

R6202

R6205

R7105

R7106

R7107R7108

R7117

R7139

R7126

R7140

R7141

R7129

R7130

R7131

R7132

R7133

R7134

R7135

R7137

R7138

TH1401

U6101

U7105

ZD6201

Q1601

Q1604

Q1605

Q1606

Q1707

Q1708

U1401

U1704

C1108

C1109

C1110

C1111

C1112

C1113

C1114

C1115

C1201

C1202

C1203

C1204

C1208

C1209

C1405

C1215

C1235

C1217

C1232

C1317

C1703

C6312

C7149

C6332

C6325

C1316

C7159

FB1101

R1111

R1114

R1115

R1201

R1202

R1203

R7420

R1204

R1219

R1221

R1234

R1231

R1404

R1411

R1413

R1717R1718

R1719R1721

R1726

R1727

R1728

R1729

R1731

R1730

U7104

R1412

R1415

R1417

R4143

C4242

C4279

C4283

C4286

C4247

C4285

C4295

C4294

C4293

C5111

C5114

C4244

C4280

C4282

C5115

C5101

C5112

C5113

C5127

C5128

C4278

C5125

C5130

C5102

C5107

C5121

C5103

C5126

C5109

C5105

C5123

C5106

C5104

C5131

C5117

C5118

C5119

C5122

C5110

C5116

R5103

R5105

R5107

R5109

R5113

R5110

R5111

R5112

R5102

R5104

R5106

R5108

RP5102

RP5104

RP5106

RP5108

RP5110

RP5112

RP5114

RP5116

RP5118

RP5101

RP5103

RP5105

RP5107

RP5109

RP5111

RP5113

RP5115

RP5117

C1612

C1613

C1615

C1618

C1620

C4223

C4281

C4284

C4287

C1617

R1602

R1606

R1609

R1613

R1617

R1622

R1623 R1626

R7142

R4248

R4223

R4224

Q4201

C6204

R1601

R1615

R1627

C4299

C6203

C6208

C4298

C1540

C1541

C6101

R1116

R1117

R1118

R1304

R1306

R1408

R1418

R1419

R1502

R1504

R1505

R1515

R1514

R1513

R1524

R1509

R6101

R6103

R6113

R6115

R6210

R6215

R6213

R6212

C4301

R4229

R4230

R7145

C6121

U6102

C6122

C4300

C4302

R4228

R4231

R4232

R4233

R7144

U4203

R4235

R4236

R4237

R4238

R4239

CN5306

U1702

R1701

R1732

R1703

R1704

R1705

R1706

R1709

C1701

R1707

R1708

R1710

R1711

R7402

R7404

C1118

CN1405

Q5303

R5330R5336

C5124

C7123

C7103

C6303

C7153

C7128

C7157

C7201

C7155

C5108

C5129

C7158

R1137

R4145

R4146

R4147

R4148

R4149

R4150

R1140

R4240

R6216

Q4103 Q4104

Q4105 Q4106

Q4107Q4108

R6214

R6211

R6306

R6207

U6202

C6206

R1516

R6203

R6209

R6308

R6204

U7102

R1605

C1609

C1308

C1610

C1619

C1601

FB1402

L1601

R5101

R1608

R1610

R1618

R1621

R6303

R6307

TH5301

C4201

U4101

C7111

Q4109

D1705

D1707

C6207

C6215

C1505

C6212 C6213

C6326

C6320

C1517

C1508

C1529

C6211

R1510

R1529

R4151

R4153

R4154

R4155 R4156

R4157

R4158

R6217R6218

C6124

C6125

R6137

R6138

U2107

U2108

U2109

U2101

U2102

U2103

C1528

C1510

ZD7104

ZD7105

C1520

C1522

FB4221

R2101

R7230

R7232

R1501

R7146

U6201

U1101

R5406

R5419

CN1302 CN1301

CN1403

R1523

R1530

R1611

R1616

R1620

R1624 R1625

C1518

C1501

C1521

C1511

C1516

C1524

C1525

C1527

C1533

C1523

U1501

U1502

C1514

C1526

R1508

R1511

R1507

R1512

C1621 C1622

D1701

D1702

D1704

D4101

D6201

D6202

D6301

R4222

C1616

C6201

C7106

C7138

C7142

C1603

C1604

U4201

C1406

C1409

C7160

R4205

R6219

C1625

C1626

FB1601

R1607

R1614

R1628

U1602

CN7202

CN7502

CN7501

CN1404

CN1102

CN1402

CN7201

CN1101

U6301

FB7119

FB5402

D4201

U7401

D7301

C5407

C6316

C7202

C7328

C7306

C7308

C7317

C7319

C7335

C7337

C7342

C7351

C7416

C7509

C7510

C7512

C6319

C6308

C6324

C6315

C6331

C6313

C6322

C7203

C7304

C7309

C7310

C7418

C7313

C7314

C7316

C7320

C7321

C7323

C7325

C7333

C7339

C7340

C7344

C7345

C7346

C7347

C7349

C7352

C7410

C7412

C7415

C1515

C1531

C6305

C6307

C6327

C6317

C6333

C6334

C7350

C6310

C7315

C7326

C7332

C7307

C7343

C7348

C6318

C7318

C7334

X7201

FB5401

FB6303

FB6304

FB6306

U7402

U7302

R6311

R6323

R6320

R6317

R7152

R7201

R7202

R7204

R7205

R7207

R7208

R7209

R7210

R7211

R7212

R7213

R7214

R7215

R7216

R7217

R7218

R7221

R7222

R7223

R7225

R7228

R7229

R7233

R7234

R7235

R7236

R7237

R7238

R7242

R7244

R7245

R7246

R7247

R7248

R7249

R7251

R7257

R7256

R7302

R7303

R7304

R7305

R7308

R7309

R7310

R7311

R7437

R7315

R7316

R7317

R7319

R7320

R7321

R7322

R7325

R7326

R7327

R7329

R7330

R7331

R7332

R7334

R7335

R7337

R7338

R7339

R7340

R7403

R7405

R7407

R7406

R7421

R7422

R7423

R7424

R7425

R7426

R7427

R7428

R7429

R7430

R7431

R7501

R7502

R7503

R1521

R1522

R1531R1532

R6321

R6221

R7203

R7301

R7323

R7333

R7336

R6316

ZD7302

ZD7305

ZD7401

U7303

C6301

C7113

C6306

C6335

CN1406

C1401

C1402

C1404 C1407

FB1401

FB1403

R1317

R1318

R1319

R1401

R1402 R1405

R1406

R7153

R7154

R7255

CN1201

U7106

U5102

R7341

C7114

R7342

R1506

R1612

CN1203

CN1304

C1504

C1507

C7402

C1503

U7301

R7401

R7314

R7328

R7306

C4303

C7353

C7354

C7419

C7322

R7307

R7324

R7343

R7346

R7432

R7433

R7434

R7435

R7436

R7438

R7439

R7440

R7344

ZD7402

U7403

U7201

Q1502

Q1602

Q1603

Q1701

Q6201

Q6202

Q6301

Q6303

Q7101

U5101

C7336

C7338

C7305

R7312

D7303D7304

D7305

D7306

D7307

U7202

D6303

C7242 C7243

C7311

R1138

R1139

R1141

R7258

D7201

Q1101

Q1102

Q1103

Q1104

R1142

CN6301

R6324R6325

R1143

R1144

R7259

CN1701

CN1303

CN1202

C7401

C7404

C7405

C6311

C6328

C4209

L6301

L6302

L6303

L6304

L7301

L7302

L7303

R7241

Q1702

Q1706

Q4101

Q6203

Q6304

Q6305

Q7103

Q7107

Q7108

Q7201

ZD7303

U4104

C5403

C5406

C5408

C5409

C5410

FB1602

TH7301

C4254

R7318

C6111

C6112

C7330

R7345

R7355

R7356

R7357

R7358

R7441

R7347

R7348

R7349

R7350

R7351

R7352

R7353

R7354

C7312

C7324

C7327

C7329

C7331

C7411

C7413

C7420

TU1601

CN5401

CN7101

CN5402

R6326

R6327

Layout Small Signal Board (Overview Top Side)

EN 59TPM4.1E LA 10.

2010-Jan-21

Circuit Diagrams and PWB Layouts

FD4

FD9

FD10

FD12

D1304

D1305

D1306

D1307

D1309

R1209

R1210

R4126

R1311

R4215

R4214

C4108

R1301

R1309

R1312

FB1206

FB1207

FB1203

FB1201

FB1202

FB4201

FB4203

FB4204

FB4205

FB4207

FB4210

FB4209

C4259
C4260

C4297

C4210

C4211

C4212

C4213

C4218

C4232

C4241

C4256

C4109

C1212

C1303

C1301

C1312

C1313

R1228

C4203

C4204

C4229

C4233

C4206

C4216

C1210

C1214

C1227

C1230

C1320

C1321

C1322

C1323

C1414

C1417

C4231

C4237

C4243

C4245

C4246

C4248

C4251

C4263

C4266

C4268

C4269

C4272

C4291

C4292

C4221

C4224

C4252

C7156

C4274

C4276

C6119

FB1204FB1205

FB1208

FB1209

FB1210

FB1301

FB4206

FB4208

FB4211

FB4212

FB4213

FB4214

FB4215

FB4216

FB4217

FB4218

FB4219

FB4220

R1211

R1212

R1227

R1229

R1230

R1307

R1409

R1410

R1414

R1416

R4221

C1205

C1206

C1207

C1220

C1221

C1222

C1211

C1213

C1228

C7206

C5120

C4240

C4239

C6102

C6103

C6104

C6106

C6107

C6108

C6109

C6110

C6123

R1205

R1206

R1207

R1223

R1224

R1225

R1302

R6114

R6118

R6119

R6120

R6129

R6130

R6131

R6132

R6125

R6127

C6113

C6114

C7221

C6117

C6118

C6105

R6128

R6104

R6122

R6123

R6111

R6112

R6135

R6136

R6102

R6126

Q4202

R4241

Q4102

Q4203

C6214

C6205 C6209

C4257

C4258

Q4110

C6210

R1528

R4152

R4242

R4243

FB6201

R1526

R1525

R1527

C1513

C1519

C1530C1537

R1517

R1518

R1520R1519

C4249

C4261

C4262

C4270

C4288

R6220

C7204

C7205

C7207

C7208

C7209

C7210

C7211

C7212

C7213

C7214

C7215

C7216

C7217

C7218

C7219

C7220

C7222

C7223

C7224

C7225

C7226

C7227

C7228

C7229

C7230

C7231

C7232

C7233

C7234

C7235

C7236

C7237

C7238

C7239

C7240

C7403

C7407

C7417

C7502

C7504

C7506

C7508

C7406

C7408

C7414

C7501

C7505

C7409

C7511

C7513

R7231

R7408

R7409

R7410
R7411

R7412

R7413
R7414

R7415

R7416

R7417

R7418

R7419

C7503

C7507

Q6101

Q6102

Q6103

Q6105

C7116

C7117

R7155
R7156

C4217

C4222

C4226

C4230

C4235

C4236

C4238

C4250

C4255

C4264

C4265

C4267

C4271

C4273

C4289

C4290

C4296

C7421

18870_524_100208.eps

100308

Layout Small Signal Board (Overview Bottom Side)

EN 60TPM4.1E LA 10.

2010-Jan-21

IR/LED Board

18870_520_100208.eps

100616

IR/LED Board

J01 J01

2010-02-08

A

715G3815

IR/LED Board

CN0201 C1 CN0202 C1
C0201 C3 C0202 C3
C0203 C2 C0204 C2
C0205 C5 FB0201 B2
FB0202 B2 FB0203 C2
FB0204 C2 FB0205 C2
FB0206 C2 FB0207 C2
ED0201 A4 ED0202 A3
Q0201 B3 Q0202 B4
R0201 A3 R0202 A4
R0204 B3 R0205 B3
R0206 B4 R0207 B4
R0208 B4 R0209 B5
U0201 C5 ZD0201 C5

1

1

2

2

3

3

4

4

5

5

A

A

B B

C

C

D

D

LED2_STBY

LED_ON

VCC_STBY

VCC_STBY

VCC_STBY

RW

Q0202

BC847C

Q0202

BC847C

Q0201

BC847C

Q0201

BC847C

LED0201

LED

LED0201

LED

12

C0201

100N 16V

C0201

100N 16V

ZD0201

BZX84-C5V1

ZD0201

BZX84-C5V1

1 3

R0208

2K7 1/16W 5%

R0208

2K7 1/16W 5%

LED0202

LED

LED0202

LED

12

U0201

TSOP34336SB1

U0201

TSOP34336SB1

VS

3

OUT

1

GND

2

C0204

100N 16V

C0204

100N 16V

R0206

10K1/16W

R0206

10K1/16W

C0203

100P 50V

C0203

100P 50V

CN0202

CONN

CN0202

CONN

1

2

3

4

R0204

4K7 1/16W 5%

R0204

4K7 1/16W 5%

R0207

4K7 1/16W 5%

R0207

4K7 1/16W 5%

R0202

10K1/16W

R0202

10K1/16W

C0202

100N 16V

C0202

100N 16V

R0205

10K1/16W

R0205

10K1/16W

FB0207

600R/200mA

FB0207

600R/200mA

1 2

R0201

3.9K 1/16W

R0201

3.9K 1/16W

FB0206

600R/200mA

FB0206

600R/200mA

1

2

CN0201

CONN

CN0201

CONN

1
2

3

4
5
6
7

8

910

FB0202

600R/200mA

FB0202

600R/200mA

1 2

FB0204

600R/200mA

FB0204

600R/200mA

1 2

FB0201 600R/200mAFB0201 600R/200mA

1 2

FB0203

600R/200mA

FB0203

600R/200mA

1 2

FB0205

600R/200mA

FB0205

600R/200mA

1 2

C0205

1UF 10V

C0205

1UF 10V

R0209

220 OHM 1/16W

R0209

220 OHM 1/16W

Circuit Diagrams and PWB Layouts

EN 61TPM4.1E LA 10.

2010-Jan-21

U0201

FB0205

FB0206

FB0203

FB0204

FB0201

FB0202

C0203

Q0202

R0208

R0201

R0202

R0207

C0201

C0202

C0204

FB0207

R0204

R0205

R0206

R0209

ZD0201

Q0201

LED0202

LED0201

C0205

18870_521_100208.eps

100308

CN0202

CN0201

18870_522_100208.eps

100308

Personal Notes:

10000_012_090121.eps

090121

Circuit Diagrams and PWB Layouts

Layout IR/LED Board (Top Side)

Layout IR/LED Board (Bottom Side)

EN 62TPM4.1E LA 10.

2010-Jan-21

18850_800_100309.eps

100309

DALI 32"

Pos No. Description Remarks

31 FRONT CABINET
40 REAR COVER
50 STA N D A SSY
90 STAND NECK
1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

31

50

40

90

11. Styling Sheets

Styling Sheet 32"

Styling Sheets

EN 63TPM4.1E LA 11.

2010-Jan-21

18850_801_100309.eps

100309

DALI 42"

Pos No. Description Remarks

31 FRONT CABINET
40 REAR COVER
50 STA N D A SSY
90 STAND NECK
1176 REMOTE CONTROL

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

31

50

40

90

Styling Sheet 42"

Styling Sheets

EN 64TPM4.1E LA 11.

2010-Jan-21
