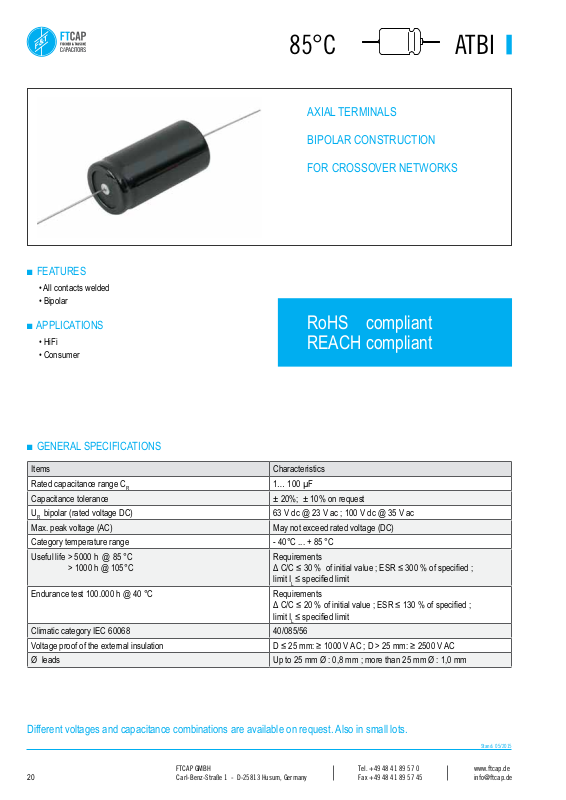

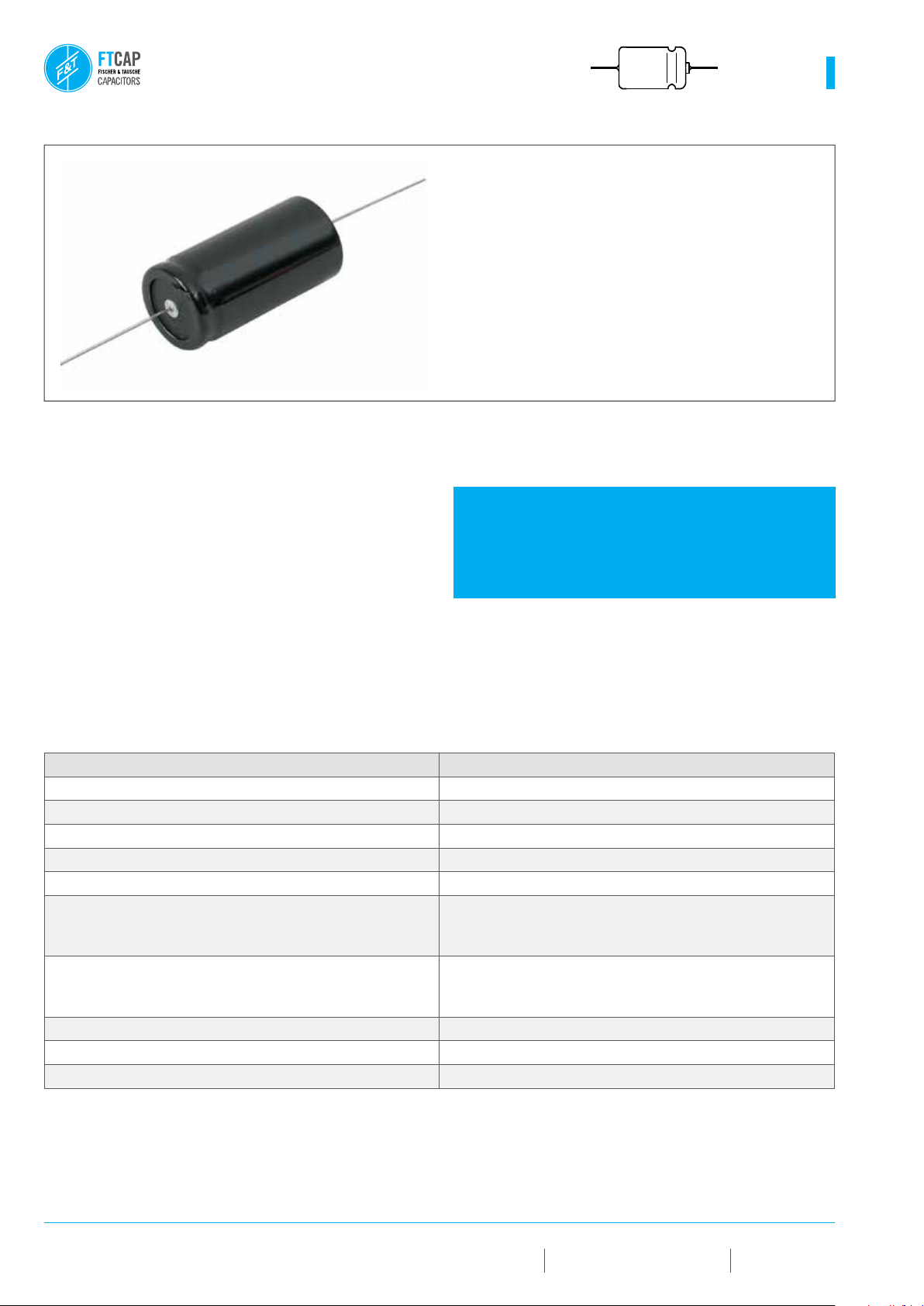

Page 1
■ FEATURES
• All contacts welded
• Bipolar
85°C ATBI
AXIAL TERMINALS
BIPOLAR CONSTRUCTION
FOR CROSSOVER NETWORKS
■ APPLICATIONS
• HiFi
• Consumer
RoHS compliant
REACH compliant
■ GENERAL SPECIFICATIONS
Items Characteristics
Rated capacitance range C
Capacitance tolerance ± 20%; ± 10% on request
U
bipolar (rated voltage DC) 63 V dc @ 23 V ac ; 100 V dc @ 35 V ac
R
Max. peak voltage (AC) May not exceed rated voltage (DC)
Category temperature range - 40°C ... + 85 °C
Useful life > 5000 h @ 85 °C
> 1000 h @ 105°C
Endurance test 100.000 h @ 40 °C Requirements
Climatic category IEC 60068 40/085/56
Voltage proof of the external insulation D ≤ 25 mm: ≥ 1000 V AC ; D > 25 mm: ≥ 2500 V AC
Ø leads Up to 25 mm Ø : 0,8 mm ; more than 25 mm Ø : 1,0 mm
R
1… 100 µF
Requirements
δ C/C ≤ 30 % of initial value ; ESR ≤ 300 % of specied ;
limit I
≤ specied limit
L
δ C/C ≤ 20 % of initial value ; ESR ≤ 130 % of specied ;
limit I
≤ specied limit
L
Different voltages and capacitance combinations are available on request. Also in small lots.
20
FTCAP GMBH
Carl-Benz-Straße 1 - D-25813 Husum, Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
Stand: 05/2015
www.ftcap.de
[email protected]
Page 2
85°C ATBI
■ ELECTRICAL DATA AND ORDERING CODE FOR SERIES AG
Rated voltage
U
R
[V]
23 Vac
@ 50 Hz
Rated capacitance
(other values available on request)
C
R
[µF]
1,0 10x20 1,002310020
2,2 10x20 2,202310020
3,3 10x20 3,302310020
4,7 10x20 4,702310020
6,8 10x20 6,802310020
10 10x30 10002310030
15 10x30 15002310030
22 12x30 22002312030
33 12x30 33002312030
47 14x37 47002314037
68 16x39 68002316039
100 18x39 10102318039
220 25x38 22102325038
Case size
D x L [mm]
Order code
ATBI...
35 Vac
@ 50 Hz
330 25x38 33102325038
470 25x38 47102325038
560 25x38 56102325038
680 25x38 68102325038
880 25x49 80102325049
1000 25x49 10202325049
1,0 10x20 1,003510020
2,2 10x30 2,203510030
3,3 10x30 3,303510030
4,7 10x30 4,703510030
6,8 10x30 6,803510030
10 10x30 10003510030
15 10x30 15003510030
22 12x30 22003512030
33 12x30 33003512030
47 14x37 47003514037
68 16x39 68003516039
100 18x39 10103518039
220 25x38 2203525038
FTCAP GMBH
Carl-Benz-Straße 1 - D-25813 Husum, Germany
Tel. +49 48 41 89 57 0
Fax +49 48 41 89 57 45
www.ftcap.de
[email protected]
Stand: 05/2015
