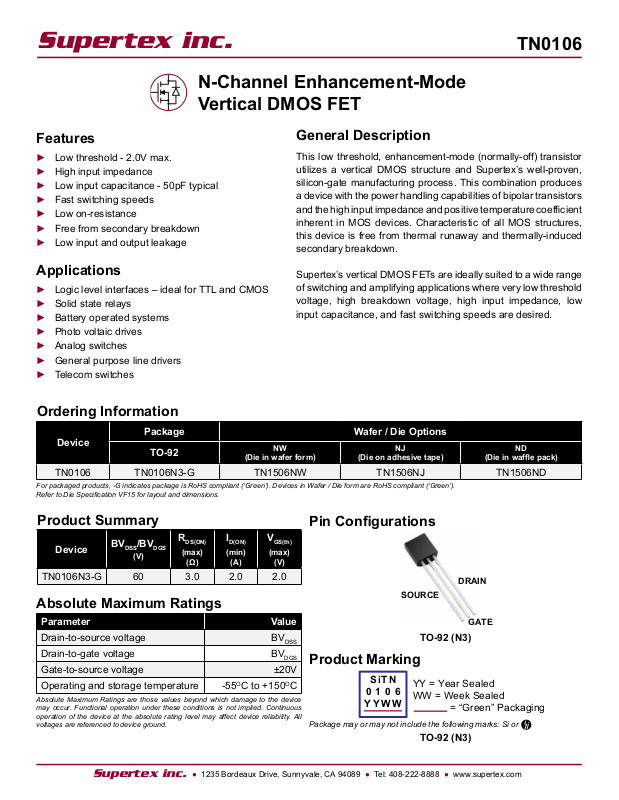

Supertex inc.
N-Channel Enhancement-Mode Vertical DMOS FET
TN0106
Features
► Low threshold - 2.0V max. ► High input impedance ► Low input capacitance - 50pF typical ► Fast switching speeds ► Low on-resistance ► Free from secondary breakdown ► Low input and output leakage
Applications
► Logic level interfaces – ideal for TTL and CMOS ► Solid state relays ► Battery operated systems ► Photo voltaic drives ► Analog switches ► General purpose line drivers ► Telecom switches
Ordering Information
General Description
This low threshold, enhancement-mode (normally-off) transistor utilizes a vertical DMOS structure and Supertex’s well-proven, silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors
and the high input impedance and positive temperature coefcient
inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally-induced secondary breakdown.
Supertex’s vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where very low threshold voltage, high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired.
Package Wafer / Die Options
Device
TO-92
NW
(Die in wafer form)
(Die on adhesive tape)
NJ
(Die in wafe pack)
TN0106 TN0106N3-G TN1506NW TN1506NJ TN1506ND
For packaged products, -G indicates package is RoHS compliant (‘Green’). Devices in Wafer / Die form are RoHS compliant (‘Green’).
Refer to Die Specication VF15 for layout and dimensions.
Product Summary
R
Device
BV
DSS
/BV
(V)
DGS
DS(ON)
(max)
(Ω)
TN0106N3-G 60 3.0 2.0 2.0
I
D(ON)
(min)
(A)
V
GS(th)
(max)
(V)
Pin Congurations
DRAIN
SOURCE
Absolute Maximum Ratings
Parameter Value
Drain-to-source voltage BV
Drain-to-gate voltage BV
DSS
DGS
Gate-to-source voltage ±20V
Operating and storage temperature -55OC to +150OC
Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied. Continuous operation of the device at the absolute rating level may affect device reliability. All voltages are referenced to device ground.
TO-92 (N3)
Product Marking
SiTN
0106
YYWW
Package may or may not include the following marks: Si or
YY = Year Sealed WW = Week Sealed = “Green” Packaging
TO-92 (N3)
GATE
ND
Supertex inc. ● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
Page 2
Thermal Characteristics
V
Package
TO-92 350 2.0 1.0 125 170 350 2.0
Notes:
(continuous) is limited by max rated Tj .
† I
D
(continuous)
I
D
(mA)
TN0106
I
†
D
(pulsed)
(A)
Power Dissipation
@TC = 25OC
(W)
θ
jc
(OC/W)
θ
ja
(OC/W)
I
DR
(mA)
†
I
DRM
(A)
Electrical Characteristics (T
= 25OC unless otherwise specied)
A
Sym Parameter Min Typ Max Units Conditions
BV
V
GS(th)
ΔV
GS(th)
I
GSS
I
DSS
I
D(ON)
R
DS(ON)
ΔR
DS(ON)
G
C
C
OSS
C
RSS
t
d(ON)
t
t
d(OFF)
t
V
t
Notes:
1. All D.C. parameters 100% tested at 25OC unless otherwise stated. (Pulse test: 300µs pulse, 2% duty cycle.)
2. All A.C. parameters sample tested.
Drain-to-source breakdown voltage 60 - - V VGS = 0V, ID = 1.0mA
DSS
Gate threshold voltage 0.6 - 2.0 V VGS = VDS, ID= 0.5mA
Change in V
with temperature - -3.2 -5.0 mV/OC VGS = VDS, ID= 1.0mA
GS(th)
Gate body leakage - - 100 nA VGS = ± 20V, VDS = 0V
= 0V, VDS = Max Rating
V
GS
V
= 0.8 Max Rating,
DS
VGS = 0V,TA = 125°C
VGS = 5.0V, VDS = 25V
Zero Gate voltage drain current
On-state drain current
- - 10 µA
- - 500
0.75 1.4 ­A
2.0 3.4 - VGS = 10V, VDS = 25V
Static drain-to-source on-state resistance
- 2.0 4.5
VGS = 4.5V, ID = 250mA
Ω
- 1.6 3.0 VGS = 10V, ID = 500mA
Change in R
Forward transductance 225 400 - mmho VDS = 25V, ID = 500mA
FS
Input capacitance - 50 60
ISS
Common source output capacitance - 25 35
Reverse transfer capacitance - 4.0 8.0
with temperature - 0.6 1.1 %/OC VGS = 10V, ID = 500mA
DS(ON)
VGS = 0V,
pF
VDS = 25V, f = 1.0MHz
Turn-on delay time - 2.0 5.0
Rise time - 3.0 5.0
r
Turn-off delay time - 6.0 7.0
Fall time - 3.0 6.0
f
Diode forward voltage drop 1.0 1.5 V VGS = 0V, ISD = 500mA
SD
Reverse recovery time - 400 - ns VGS = 0V, ISD = 500mA
rr
ns
VDD = 25V, ID = 1.0A,
R
GEN
= 25Ω
Switching Waveforms and Test Circuit
10V
INPUT
OUTPUT
0V
VDD
0V
10%
t
d(ON)
t
(ON)
10%
90%
t
r
Supertex inc. ● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
90%
t
d(OFF)
t
(OFF)
t
f
90%
10%
DD
R
Pulse
Generator
R
GEN
INPUT
2
L
OUTPUT
D.U.T.
Page 3
Typical Performance Curves
TN0106
5.0
4.0
3.0
(amperes)
2.0
D
I
1.0
0
0 10 20 30 40 50
0.5
0.4
Output Characteristics
V
(volts)
DS
Transconductance vs. Drain Current
TA = -55OC
TA = 25OC
0.3
(siemens)
FS
0.2
G
T
= 10V
V
GS
8V
6V
4V
2V
= 150OC
A
5.0
4.0
3.0
(amperes)
2.0
D
I
1.0
0
2.0
1.0
(watts)
D
P
Saturation Characteristics
= 10V
V
GS
0 2.0 4.0 6.0 8.0 10
V
(volts)
DS
Power Dissipation vs. Case Temperature
TO-92
8V
6V
4V
2V
0.1
V
0
0 0.6 1.2 1.8 2.4 3.0
DS
ID (amperes)
Maximum Rated Safe Operating Area
10
TC = 25OC
TO-92 (pulsed)
1.0
(amperes)
D
TO-92 (DC)
I
0.1
0.01
1.0 10 100 1000
V
(volts)
DS
= 25V
0
0 25 50 75 100 125 150
TC (OC)
Thermal Response Characteristics
1.0
0.8
0.6
0.4
0.2
Thermal Resistance (normalized)
0
0.001 0.01 0.1 1.0 10
T
C
TO-92
= 25OC
P
= 1W
D
tp (seconds)
Supertex inc. ● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
3
Page 4
Typical Performance Curves (cont.)
BV
Variation with Temperature
1.3
1.2
DSS
On-Resistance vs. Drain Current
5.0
V
= 5.0V
4.0
GS
TN0106
V
= 10V
GS
1.0
(normalized)
1.0
DSS
BV
0.9
0.8
-50 0 50 100 150
Tj (OC)
3.0
2.4
1.8
(amperes)
1.2
D
I
0.6
Transfer Characteristics
V
= 25V
DS
T
A
= -55OC
O
25
150OC
3.0
(ohms)
2.0
DS(ON)
R
1.0
0
0 1.0 2.0 3.0 4.0 5.0
ID (amperes)
V
and R
(th)
1.4
1.2
C
1.0
(normalized)
0.8
GS(th)
V
0.6
Variation with Temperature
DS
@ 0.5mA
V
(th)
@ 10V, 0.5A
R
DS(ON)
1.4
1.2
1.0
0.8
0.6
(normalized)
DS(ON)
R
0
0 2.0 4.0 6.0 8.0 10
Capacitance vs. Drain-to-Source Voltage
100
75
50
f = 1.0MHz
V
GS
(volts)
C (picofarads)
25
0
0 10 20 30 40
V
(volts)
DS
C
ISS
C
OSS
C
RSS
0.4
-50 0 50 100 150
Tj (OC)
Gate Drive Dynamic Characteristics
10
V
= 10V
55pF
DS
V
= 40V
DS
8.0
6.0
(volts)
GS
V
4.0
2.0
0
0 1.0 2.0 3.0 4.0 5.0
50pF
QG (nanocoulombs)
Supertex inc. ● 1235 Bordeaux Drive, Sunnyvale, CA 94089 ● Tel: 408-222-8888 ● www.supertex.com
4
0.4
Page 5
Supertex inc.
94089
.supertex.com
3-Lead TO-92 Package Outline (N3)
D
Seating Plane
1 2 3
L
TN0106
A
e1
Front View
E1
1
Bottom View
Symbol A b c D E E1 e e1 L
MIN .170 .014
Dimensions
(inches)
NOM - - - - - - - - -
MAX .210 .022
JEDEC Registration TO-92.
* This dimension is not specied in the JEDEC drawing.
† This dimension differs from the JEDEC drawing.
Drawings not to scale. Supertex Doc.#: DSPD-3TO92N3, Version E041009.
†
†
b
c
e
Side View
E
3
2
†
.014
.022
.175 .125 .080 .095 .045 .500
†
.205 .165 .105 .105 .055 .610*
(The package drawing(s) in this data sheet may not reect the most current specications. For the latest package outline
information go to http://www.supertex.com/packaging.html.)
Supertex inc. does not recommend the use of its products in life support applications, and will not knowingly sell them for use in such applications unless it receives
an adequate “product liability indemnification insurance agreement.” Supertex inc. does not assume responsibility for use of devices described, and limits its liability to the replacement of the devices determined defective due to workmanship. No responsibility is assumed for possible omissions and inaccuracies. Circuitry and specifications are subject to change without notice. For the latest product specifications refer to the Supertex inc. (website: http//www.supertex.com)
©2011 Supertex inc. All rights reserved. Unauthorized use or reproduction is prohibited.
1235 Bordeaux Drive, Sunnyvale, CA
