Datasheet TMC2193 Datasheet (Fairchild Semiconductor)

TMC2193

10 Bit Encoder

www.fairchildsemi.com

Features

• Multiple input formats
– 24 bit RGB
– 20 bit CCIR601
– 10 bit CCIR656
– 10 bit Digital Composite

• Synchronization modes
– Master
– Slave
– Genlock
– CCIR656

• Subcarrier modes
– Free-run
– Subcarrier reset
– Genlock
– DRS-lock

• Ancillary Data Control (ANC)

• Pixel rates from 10 MHz to 15 MHz

• Programmable horizontal timing

• Programmable vertical blanking interval (VBI)

• Line-by-line pedestal enable

• Programmable pedestal height from -20 IRE to 20 IRE

• Programmable burst amplitude and phase

• Controlled edge rates for
– Sync
– Burst
– Active video

• Programmable color space matrix

• 8:8:8 video reconstruction

• Four 10 bit D/A’s with independent trim

• Individual power down modes for each D/A

• Multiple output formats
– RGB
–Y PB P

R

– Betacam
– S-video
– Composite
– Digital composite output

• Pin-driven and data-driven, window keying

• Closed Caption waveform generation (13.5 MHz only)

• Sin(X)/X compensation filter

• 5 bit VBI line counter

• 3 bit field counter

• Internal test pattern generation
– 100% Color Bars
– 75% Color Bars
– Modulated Ramp

Applications

• Broadcast Television

• Nonlinear Video Processing

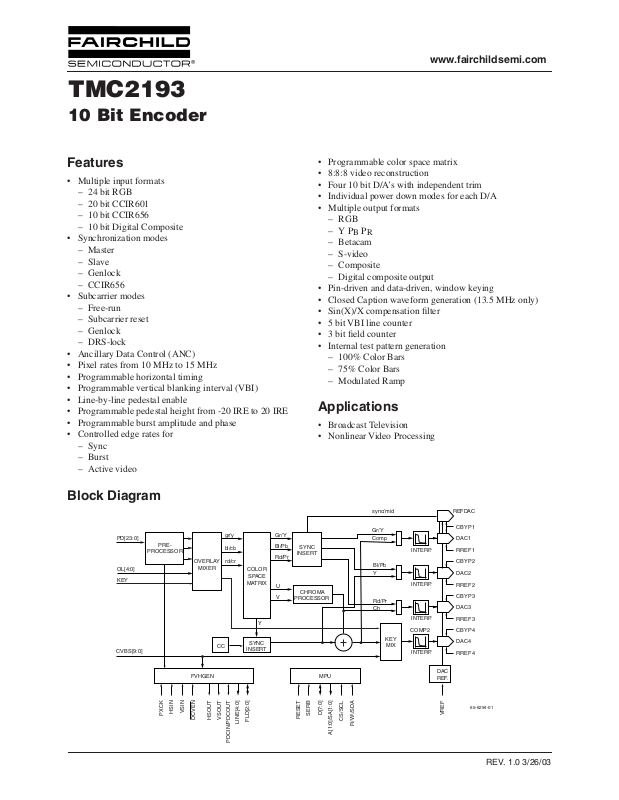

Block Diagram

PD[23:0]

PROCESSOR

OL[4:0]

KEY

CVBS[9:0]

PRE-

PXCK

gr/y

bl/cb

OVERLAY

rd/cr

MIXER

CC

FVHGEN MPU

VSIN

HSIN

DCVEN

VSOUT

HSOUT

LINE[4:0]

PDCIN/PDCOUT

COLOR

SPACE

MATRIX

Y

SYNC

INSERT

FLD[2:0]

Gr/Y

Bl/Pb

Rd/Pr

U

V

SYNC

INSERT

CHROMA

PROCESSOR

D[7:0]

SERB

RESET

CS/SCL

R/W\/SDA

A[1:0]/SA[1:0]

sync/mid

Gr/Y
Comp

Bl/Pb
Y

Rd/Pr
Ch

KEY
MIX

INTERP.

INTERP.

INTERP.

COMP2

INTERP.

DAC
REF.

VREF

REFDAC

CBYP1

DAC1

RREF1

CBYP2

DAC2

RREF2

CBYP3

DAC3

RREF3

CBYP4

DAC4

RREF4

65-6294-01

REV. 1.0 3/26/03

TMC2193 PRODUCT SPECIFICATION

Table of Contents

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Applications. . . . . . . . . . . . . . . . . . . . . . . . .1

Block Diagram . . . . . . . . . . . . . . . . . . . . . . .1

10 Bit Encoder . . . . . . . . . . . . . . . . . . . . . . .1

LIst of Figures . . . . . . . . . . . . . . . . . . . . . . .3

LIst of Tables . . . . . . . . . . . . . . . . . . . . . . . .3

Pin Assignments . . . . . . . . . . . . . . . . . . . . .4

Pin Definitions . . . . . . . . . . . . . . . . . . . . . . .4

Functional Description . . . . . . . . . . . . . . . .7

Input Formats. . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Gamma Correction . . . . . . . . . . . . . . . . . . . . . . 9

Color Space Matrix . . . . . . . . . . . . . . . . . . . . . . 9

Synchronization Modes . . . . . . . . . . . . . . . . . 12

Propagation Delay . . . . . . . . . . . . . . . . . . . . . . 12

Blanking Control . . . . . . . . . . . . . . . . . . . . . . . 13

Pixel Data Control . . . . . . . . . . . . . . . . . . . . . . 13

Edge Shaping. . . . . . . . . . . . . . . . . . . . . . . . . . 13

Horizontal Programming. . . . . . . . . . . . . . . . . 14

Vertical Timing . . . . . . . . . . . . . . . . . . . . . . . . . 17

Chrominance Processor . . . . . . . . . . . . . . . . . 23

Subcarrier Programming. . . . . . . . . . . . . . . 23

NTSC Subcarrier . . . . . . . . . . . . . . . . . 23

PAL Subcarrier . . . . . . . . . . . . . . . . . . . 23

PAL-M Subcarrier . . . . . . . . . . . . . . . . . 23

Subcarrier Synchronization. . . . . . . . . . . . . 24

SCH Phase Error Correction. . . . . . . . . . . . 24

Burst Envelope . . . . . . . . . . . . . . . . . . . . . . 25

Color-Difference Low-Pass Filters. . . . . . . . 25

Sync and Pedestal Insertion. . . . . . . . . . . . . . 25

Pedestal Enable . . . . . . . . . . . . . . . . . . . . . 25

Pedestal Height. . . . . . . . . . . . . . . . . . . . . . 26

Sync and Blank Insertion . . . . . . . . . . . . . . 26

Interpolation Filters . . . . . . . . . . . . . . . . . . . . . 27

x/Sin(x) Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Output Data Formats. . . . . . . . . . . . . . . . . . . . 27

Digital Composite Output . . . . . . . . . . . . . . . . 28

Ancillary Data. . . . . . . . . . . . . . . . . . . . . . . . . . 28

Operating Modes. . . . . . . . . . . . . . . . . . . . . 29

Layering Engine. . . . . . . . . . . . . . . . . . . . . . . . 30

Overlay Mixer . . . . . . . . . . . . . . . . . . . . . . . 30

Hardware Keying . . . . . . . . . . . . . . . . . . . . . . . 31

Data Keying . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Parallel Microprocessor Interface . . . . . . . . . 31

Serial Control Port (R-Bus). . . . . . . . . . . . . . . 33

Data Transfer via Serial Interface . . . . . . . . 33

Serial Interface Read/Write Examples . . . . 34

Control Register Map . . . . . . . . . . . . . . . . 35

Control Register Definitions . . . . . . . . . . 37

Absolute Maximum Ratings. . . . . . . . . . .62

Operating Conditions . . . . . . . . . . . . . . . . 62

Electrical Characteristics . . . . . . . . . . . . .64

Switching Characteristics . . . . . . . . . . . .64

System Performance Characteristics . . . 65

Applications Discussion . . . . . . . . . . . . . 65

Layout Considerations . . . . . . . . . . . . . . . . . . 66

Output Low-Pass Filters . . . . . . . . . . . . . . . . . 69

Mechanical Dimensions . . . . . . . . . . . . . . 70

100-Lead MQFP . . . . . . . . . . . . . . . . . . . . . . . . 70

Ordering Information . . . . . . . . . . . . . . . .72

Life Support Policy . . . . . . . . . . . . . . . . . . 72

Closed Caption Insertion . . . . . . . . . . . . . . . . 26

Line Selection . . . . . . . . . . . . . . . . . . . . . . . 26

Parity Generation . . . . . . . . . . . . . . . . . . . . 26

Operating Sequence . . . . . . . . . . . . . . . . . . 26

2 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

List of Figures

Figure 1. Input Formats . . . . . . . . . . . . . . . . . . . . . .7

Figure 2. 24 bit Input Format . . . . . . . . . . . . . . . . . .7

Figure 3. CCIR656 Input Format . . . . . . . . . . . . . . .8

Figure 4. 10 bit Input Format . . . . . . . . . . . . . . . . . .8

Figure 5. 20 bit 4:2:2 Input Format . . . . . . . . . . . . .8

Figure 6. 20 bit 4:4:4 Input Format . . . . . . . . . . . . .8

Figure 7. Gamma Curves . . . . . . . . . . . . . . . . . . . .9

Figure 8. Propagation Delay through the

Encoder . . . . . . . . . . . . . . . . . . . . . . . . .12

Figure 9. Horizontal Timing . . . . . . . . . . . . . . . . . .15

Figure 10. Horizontal Timing – Vertical Blanking . . .15

Figure 11. Horizontal Timing – 1st Half-line. . . . . . .16

Figure 12. Horizontal Timing – 2nd Half-line . . . . . .16

Figure 13. NTSC Vertical Interval . . . . . . . . . . . . . .17

Figure 14. PAL Vertical Interval . . . . . . . . . . . . . . . .19

Figure 15. PAL-M Vertical Interval . . . . . . . . . . . . . .21

Figure 16. Burst Envelope . . . . . . . . . . . . . . . . . . . .25

Figure 17. Gaussian Filter Response . . . . . . . . . . .25

Figure 18. Interpolation Filter. . . . . . . . . . . . . . . . . .27

Figure 19. Interpolation Filter – Passband

Detail . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Figure 20. X/SIN(X) Filter . . . . . . . . . . . . . . . . . . . .27

Figure 21. Layering Engine . . . . . . . . . . . . . . . . . . .30

Figure 22. Overlay Outputs . . . . . . . . . . . . . . . . . . .31

Figure 23. Data Keying . . . . . . . . . . . . . . . . . . . . . .31

Figure 24. Microprocessor Parallel Port –

Write Timing . . . . . . . . . . . . . . . . . . . . . .32

Figure 25. Microprocessor Parallel Port –

Read Timing . . . . . . . . . . . . . . . . . . . . . .32

Figure 26. Serial Port Read/Write Timing . . . . . . . .33

Figure 27. Serial Interface – Typical Byte

Transfer. . . . . . . . . . . . . . . . . . . . . . . . . .34

Figure 28. Serial Interface – Chip Address . . . . . . .34

Figure 29. Typical Analog Reconstruction Filter . . .65

Figure 30. Overall Response . . . . . . . . . . . . . . . . . .65

Figure 31. Typical Layout . . . . . . . . . . . . . . . . . . . . .67

Figure 32. ST-163E Layout . . . . . . . . . . . . . . . . . . .68

Figure 33. Pass Band . . . . . . . . . . . . . . . . . . . . . . .69

Figure 34. Stop Band. . . . . . . . . . . . . . . . . . . . . . . .69

Figure 35. 2T Pulse . . . . . . . . . . . . . . . . . . . . . . . . .69

Figure 36. Group Delay . . . . . . . . . . . . . . . . . . . . . .69

List of Tables

Table 1. CSM Coefficient Range . . . . . . . . . . . . 10

Table 2. Expected Output Values for the

CSM with YCBCR Inputs . . . . . . . . . . . 11

Table 3. Expected Output Values for the

CSM with RGB Inputs. . . . . . . . . . . . . . 11

Table 4. Coefficient sets YCBCR inputs . . . . . . . 11

Table 5. Coefficient sets YCBCR inputs . . . . . . . 11

Table 6. PDC Edge Control . . . . . . . . . . . . . . . . 13

Table 7. Horizontal Line Equations. . . . . . . . . . . 14

Table 8. Horizontal Timing Specifications. . . . . . 15

Table 9. Vertical Interval Timing

Specifications . . . . . . . . . . . . . . . . . . . . 16

Table 10. Default Horizontal Timing

Parameters . . . . . . . . . . . . . . . . . . . . . . 17

Table 11. NTSC Field/Line Sequence and

Identification . . . . . . . . . . . . . . . . . . . . . 18

Table 12. PAL Field/Line Sequence and

Identification . . . . . . . . . . . . . . . . . . . . . 20

Table 13. PAL-M Field/Line Sequence and

Identification . . . . . . . . . . . . . . . . . . . . . 22

Table 14. Standard Subcarrier Parameters . . . . . 24

Table 15. Line by Line Pedestal Enable . . . . . . . . 25

Table 16. Closed Caption Line Selection . . . . . . . 26

Table 17. D/A Outputs . . . . . . . . . . . . . . . . . . . . . 27

Table 18. Ancillary Data Format . . . . . . . . . . . . . . 28

Table 19. Ancillary Data Control – Phase . . . . . . 29

Table 20. Ancillary Data Control Frequency. . . . . 29

Table 21. Field Identification and Subcarrier

Reset Modes . . . . . . . . . . . . . . . . . . . . 29

Table 22. Layering and Keying Modes . . . . . . . . . 30

Table 23. Overlay Address Map . . . . . . . . . . . . . . 31

Table 24. Parallel Port Control . . . . . . . . . . . . . . . 32

Table 25. Serial Port Addresses. . . . . . . . . . . . . . 33

Table 26. Control Register Map . . . . . . . . . . . . . . 35

REV. 1.0 3/26/03 3

TMC2193 PRODUCT SPECIFICATION

Pin Assignments

100 81

1

30

31 50

80

51

65-6294-14

Pin

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

Function

VDDA
DAC4
CBYP4
AGND
DAC3
CBYP3
VDDA
RREF3
AGND
DAC2
CBYP2
VDDA
RREF2
AGND
DAC1
CBYP1
VDDA
RREF1
REFDAC
KEY
OL4
OL3
OL2
OL1
OL0
DGND
PD23
PD22
PD21
PD20

Pin

31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Function

PD19
PD18
PD17
PD16
PD15
PD14
PD13
PD12
VDD
DGND
PD11
PD10
PD9
PD8
PD7
PD6
PD5
PD4
PD3
PD2

Pin

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

Function

PD1
PD0
DGND
VDD
VSIN
HSIN
DCVEN
SER
CSVSCL
R/WVSDA
A1/SA1
A0/SA0
D7
D6
D5
D4
D3
D2
D1
D0
DGND
VDD
PDC
HSOUT
VSOUT
LINE4
LINE3
LINE2
LINE1
LINE0

Pin

81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100

Function

FLD2
FLD1
FLD0
CVBS9
CVBS8
CVBS7
CVBS6
CVBS5
CVBS4
CVBS3
CVBS2
CVBS1
CVBS0
RESET
PXCK
VDD
DGND
VREF
RREF4
AGND

Pin Definitions

Pin Name Pin Number Value Description

CLOCK, SYNC, & CONTROL INPUTS (6 pins)

DCVEN

HSIN

KEY 20 TTL Hard Key selection. When the control register bit HKEN is set

4 REV. 1.0 3/26/03

57 TTL Digital CVBS Output Enable. When DCVEN is LOW, the

Comp2 output prior to the D/A is routed to D7-0, FLD2-1
providing a digital composite output. When DCVEN is HIGH,
D7-0 and FLD2-1 operate in their normal mode.

56 TTL Horizontal Sync Input. When operating in slave, Genlock, or

DRS-Lock the TMC2193 will start a new horizontal line with
each falling edge of HSIN.

HIGH and the hardware KEY pin is high, the video data
considered to be the foreground. is routed to the COMP2
output. This control signal is data aligned so that the pixel that is
present on the PD port when KEY signal is latched is at the
midpoint of the key transition. When HKEN is LOW, Key is
ignored.

PRODUCT SPECIFICATION TMC2193

Pin Definitions (continued)

Pin Name Pin Number Value Description

PXCK 95 TTL Pixel Clock Input. PXCK is a clock signal that period is twice

the sample rate of the pixel data. The operating range is 20 to
30 MHz. The clock is internally divided by 2 to generate the
internal pixel clock, PCK. PXCK drives the entire TMC2193
except the asynchronous microprocessor interface.

RESET

VSIN

SYNC & CONTROL OUTPUTS (11 pins)

FLD[2:0] 81–83 TTL Field Identifier. Field Identifier outputs the current field number.

HSOUT 74 TTL Horizontal Sync Output. The alignment of HSOUT to the pixel

LINE[4:0] 76–80 TTL Vertical Blanking Interval Line Identifier. LINE identifies the

PDC 73 TTL Pixel Data Control.

94 TTL Master Chip Reset. When LOW, All outputs are tri-stated and

the internal state machines and control registers are reset. At
rising edge of RESET, all outputs are active, the preset values
will be loaded into the control registers and the internal states
machines start to operate.

55 TTL Vertical Sync Input. When operating in slave, Genlock, or

DRS-Lock the TMC2193 will start a new vertical field with each
falling edge of VSIN that is coincident with HSIN.

For all video standards the field identifier will cycle through the
eight counts.

data port or DCVBS port is controlled by control register
TSOUT.

current line number for the first 31 lines. If the line count is
greater than 31 then LINE is 11111b. The first line with a vertical
serration is considered to be line 0.

When PDCDIR = LOW: At a rising edge, The next pixel starts a
controlled ramp of the PD data. At a falling edge, the pixel prior
is the last PD used in the ramp. The rising edge is determined
by the PDCCNT control register, the falling edge of PDC is
determined by the horizontal timing registers.

When PDCDIR = HIGH: PDCIN is used to override the internal
PDC. When HIGH, the internal PDC controls the blank and
unblank window. When LOW, the video remains blanked
regardless of the internal PDC. All edges have the same ramp
control as the internal PDC.

VSOUT 75 TTL Vertical Sync Output. The alignment of VSOUT to the pixel

data port or DCVBS port is controlled by control register
TSOUT.

DATA INPUTS (39 pins)

CVBS[9:0] 84–93 TTL Composite Data Input

OL[4:0] 21–25 TTL Overlay Control

PD[23:0] 27–38, 41–52 TTL Component Data Input

ANALOG INTERFACE – Video Out (5 pins)

Ref. DAC 19 0.675Vp-p Selectable sync only or midpoint reference D/A

DAC1 15 1.35Vp-p Composite or Green D/A

DAC2 10 1.35Vp-p Luma or Blue D/A

DAC3 5 1.35Vp-p Chroma or Red D/A

DAC4 2 1.35Vp-p Composite D/A with optional keying

REV. 1.0 3/26/03 5

TMC2193 PRODUCT SPECIFICATION

Pin Definitions (continued)

Pin Name Pin Number Value Description

ANALOG INTERFACE – Support (9 pins)

C

BYP1

C

BYP2

C

BYP3

C

BYP4

R

REF1

R

REF2

R

REF3

R

REF4

V

REF

MPU INTERFACE (13 pins)

A[1:0]/SA[1:0] 61, 62 TTL When SER (HIGH), OLUT/control/pointer address.

CS/SCL 59 TTL/R-BUS When SER (HIGH), microprocessor port clock.

D[7:0] 63–70 TTL Bi-directional Data Bus.

RW/SDA 60 TTL/R-BUS When SER (HIGH), read/write control.

SER 58 TTL Microprocessor Select. When LOW, the serial interface is

POWER & GROUND (17 pins)

A

GND

D

V

V

GND

DD

DDA

26, 40, 53, 71, 97 0.0V Digital ground

16 0.1 µF Reference Bypass Capacitor for DAC1 and Reference DAC.

Connection point for 0.1 µF Capacitor.

11 0.1 µF Reference Bypass Capacitor for DAC2. Connection point for

0.1 µF Capacitor.

6 0.1 µF Reference Bypass Capacitor for DAC3. Connection point for

0.1 µF Capacitor.

3 0.1 µF Reference Bypass Capacitor for DAC4. Connection point for

0.1 µF Capacitor.

18 1210 Ohm Current Setting Resistor. Connection point for external current

setting resistor for DAC1. The resistor is connected between
R
to the value of R

13 1210 Ohm Current Setting Resistor. Connection point for external current

setting resistor for DAC2. The resistor is connected between
R
to the value of R

8 1210 Ohm Current Setting Resistor. Connection point for external current

setting resistor for DAC3. The resistor is connected between
R
to the value of R

99 1210 Ohm Current Setting Resistor. Connection point for external current

setting resistor for DAC4. The resistor is connected between
R
to the value of R

98 1.235 V Voltage Reference Input. External voltage reference input,

internal voltage reference output, nominally 1.235V.

When SER (LOW), SA[1:0] of serial chip address SA[6:0].

When SER (LOW), serial bus clock.

When SER (LOW), serial bus bi-directional data.

enabled. When HIGH, the parallel interface is enabled.

4, 9, 14, 100 0.0V Analog ground

39, 54, 72, 96 +5.0V Digital positive power supply

1, 7, 12, 17 +5.0V Analog positive power supply

and GND. Output video levels are inversely proportional

REF1

and GND. Output video levels are inversely proportional

REF2

and GND. Output video levels are inversely proportional

REF3

and GND. Output video levels are inversely proportional

REF4

REF1

REF2

REF3

REF4

.

.

.

.

6 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Functional Description

Demuxing of multiplexed data streams depends on which
synchronization mode the encoder is operating in. For slave

Input Formats

Control Registers for this section

Address Bit(s) Name

0x05 7 D1OFF

0x05 6-4 INMODE

0x06 0 TSOUT

The TMC2193 supports both RGB and YCBCR component
sources on the pixel data port. For RGB sources the
TMC2193 will accept a 24 bit RGB source with a sample
rate of 4:4:4. YC
4:2:2, 20 bit 4:2:2, 20 bit 4:4:4, and 24 bit 4:4:4. In the 4:2:2
cases the color difference components are linearly interpo­lated to 4:4:4 internally.

INMODE

x00

101

110

111

input sources are supported in 10 bit

BCR

23 PD

7C

B/BLUE CR/RED Y/GREEN07

16 15

14

9YCBCR 0

9CBCR

9CBCR

0

0

Figure 1. Input Formats

and genlock modes the falling edge of HSIN
prior to the CB data in order to demux the data correctly. For
master mode synchronization the falling edge of HSOUT
must be LOW prior to the Y data in order to demux the data
correctly. Finally, in 656 mode the demuxing of the data
stream is determined by the TRS codes, the first sample after
the TRS is considered a C
packet.

The control register D1OFF controls the formatting of the
incoming luminance data at the pixel data port. When
D1OFF is HIGH a blanking level of 64
the luminance and when D1OFF is LOW the incoming the
pixel data is passed through. The inversion of the MSB’s on
the CB and CR components is controlled by the INMODE
control register.

9

1

1

1. INMODE = 000 or 100, PD[7:0] = Y/G, PD[23:16] = CB/B, PD[15:8] = CR/R

0

0

099

must be LOW

sample of the CB Y CR YI

B

is subtracted from

10

78

7

Y

Y

0

0

2

2

65-6294-02

PXCK

PD[7:0]

PD[23:16]

PD[15:8]

HSIN

HSOUT

(TSOUT = 1)

(Y/G)

(C /B)

B

(C /R)

R

(Y/G)

n-1

n-1

n-1

(C /B)

B

(C /R)

R

n

n

n

(Y/G)

0

(C /B)

0

B

(C /R)

0

R

t

SP

t

DO

Figure 2. 24 Bit Input Format

2. INMODE = 101, PD[23:14] = YCBCR running at 27MHz.

The PD port is clocked at twice the pixel rate, with the data
organized as CB Y CR Y, with the cosited Y's following the
CB's. In its CCIR-656 time base mode, the demuxed CB, Y,
and CR data is synchronized to the SAV preamble. The first

t

DO

x = (SY+BR+BU+CBP)*2

t

S

(Y/G)

(C /B)

B

(C /R)

R

t

H

(Y/G)

x

(C /B)

x

B

(C /R)

x

R

(Y/G)

x+1

x+1

x+1

(C /B)

B

(C /R)

R

65-6294-03

x+2

x+2

x+2

1280n = (SY+BR+BU+CBP+AV)*2

data value, after the SAV preamble, is treated as a CB data
point in the multiplexed CB, Y, CR Y , D1 data stream.

Note: Figure 3, pixel numbering, reflects the SMPTE-125M
pixel numbering.

REV. 1.0 3/26/03 7

TMC2193 PRODUCT SPECIFICATION

PXCK

PD[23:14]

Y

C

718

B718

Y

C

719

R718

00

FF

FV

00

1

EAV

HSOUT

(TSOUT = 1)

n = (SY+BR+BU+CBP+AV)*2

PXCK

PD[23:14]

Y

C

Bn

Y

C

n

n+1

Rn

HSIN

HSOUT

(TSOUT = 1)

3. INMODE = 111, PD[9:0] = Y, PD[23:14] = CB/CR

n = (SY+BR+BU+CBP+AV)*2

PXCK

PD[9:0]

Y

Y

n

n+1

0

C

Y

B736

736

t

DO

128

t

t

HS

DO

Figure 3. CCIR656 Input Format

0

C

Y

B0

0

t

SP

t

DO

t

HP

Figure 4. 10 bit Input Format

0

Y

0

Y

1

(SY+BR+BU+CBP)*2

t

t

S

H

Y

FF

00

00

C

FV

B0

0

0

Y

C

R0

1

Y

C

2

B2

SAV

65-6294-04

128

t

DO

128

x = (SY+BR+BU+CBP)*2

t

S

C

Bx

x = (SY+BR+BU+CBP)*2

t

S

Y

t

H

Y

C

Y

x

Rx

x+1

t

H

Y

x

x+1

C

Bx+2

65-6294-05

Y

x+2

Y

x+2

PD[23:14]

C

C

Bn

Rn

C

B0

t

SP

C

R0

HSIN

t

HSOUT

(TSOUT = 1)

DO

t

HS

Figure 5. 20 bit 4:2:2 Input Format

4. INMODE = 110, PD[9:0] = Y at PCK, PD[23:14] = CB-CR at PXCK

n = (SY+BR+BU+CBP+AV)*2

PXCK

PD[9:0]

PD[23:14]

C

B

n

HSIN

HSOUT

(TSOUT = 1)

Y

n

Y

n+1

C

C

C

n

n+1

R

B

Rn+1

0

Y

0

C

C

B

0

0

R

t

SP

t

DO

Figure 6. 20 bit 4:4:4 Input Format

C

t

DO

128

t

DO

x = (SY+BR+BU+CBP)*2

t

S

t

S

C

B

x

C

Bx

Y

x

Rx

t

H

t

H

C

x

R

C

Bx+2

65-6294-06

65-6294-07

8 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Gamma Correction

Control Registers for this section

Address Bit(s) Name

0x04 7 GAMENG

0x04 6 GAMENC

0x04 5 GAMSELG

0x04 4 GAMSELC

Inherent in all CRT displays is a non-linearity between the
voltage applied to the electron guns and the CRT phosphor
brightness. Traditionally this non-linearity, gamma, is com­pensated at the camera. However, many sources today are
mixed in the digital domain and do not contain any gamma
correction.

For this reason the TMC2193 contains optional gamma cor­rection process. The TMC2193 contains two independent
gamma circuits, one for the Green data path and the other for
the Blue and Red data path. Each gamma processor has two
(2) gamma compensation curves, one for NTSC and one for
PAL, that can be applied to the incoming video data.

The formulas for the gamma curves are:

PAL: Y = X
NTSC: Y = 4.5 * X for 0 ≤ X ≤ 6

1024

896

768

640

512

384

256

RGB Outputs (0 to 1023)

128

0

1/2.8

Y = 1.099 * X

PAL Gamma Curve

0 32 64 96 128 160 192 224 256

1/2.22

– 0.099 for 7 ≤ X ≤ 255

NTSC Gamma Curve

RGB Inputs (0 to 255)

Figure 7. Gamma Curves

for 0 ≤ X ≤ 255

Color Space Matrix

Control Registers for this section

Address Bit(s) Name

0x30 7-0 MCF1L

0x31 7-0 MCF2L

0x32 7-0 MCF3L

0x33 7-0 MCF4L

0x34 7-0 MCF5L

0x35 7-0 MCF6L

0x36 7-0 MCF7L

0x37 7-0 MCF8L

0x38 7-0 MCF9L

0x39 7-0 MCF10L

0x3A 7-4 MCF1M

0x3A 3-0 MCF2M

0x3B 7-4 MCF3M

0x3B 2-0 MCF4M

0x3C 7-4 MCF5M

0x3C 2-0 MCF6M

0x3D 7-4 MCF7M

0x3D 3-0 MCF8M

0x3E 7-4 MCF9M

0x3E 3-0 MCF10M

0x3F 2 NMEH

0x3F 1-0 CSMFMT

The color space matrix (CSM) has four modes of operation,
which are controlled by CSMFMT. The CSMFMT bits con­figures the color space matrix to produce the desired outputs
from the input source. The inputs for the CSM can be either
RGB or YC
generation will always be one set of component outputs of
the CSM. The other set of components outputs can be either

65-6294-08

RGB or YPBPR.

• CSMFMT = 00 , YCBCR input source with YUV and

YPBPR outputs.

Matrix configuration:

Y

composite

U = MCF4 * C

V = MCF6 * C

Y

component

PB = MCF9 * C

PR = MCF10 * C

. In all four modes YUV for the composite

BCR

= MCF1 * Y

= MCF8 * Y

in

B

R

in

B

R

REV. 1.0 3/26/03 9

TMC2193 PRODUCT SPECIFICATION

• CSMFMT = 01 , YCBCR input source with YUV and
RGB outputs.

Matrix configuration:

Y

composite

U = MCF4 * C

V = MCF6 * C

G = MCF8 * (MCF1 * Y

B = MCF9 * (MCF1 * Y

R = MCF10 * (MCF1 * Y

= MCF1 * Y

+ MCF3 * C

in

B

R

+ MCF2 * CB

in

)

R

+ MCF5 * CB)

in

+

in

MCF7 * CR)

• CSMFMT = 10 , RGB input source with YUV and
YP

BPR

outputs.

Matrix configuration:

Y

composite

U = MCF4 * Bin + MCF5 * Y

V = MCF6 * Rin + MCF7 * Y

= MCF1 * Gin + MCF2 * Bin +

MCF3 * R

in

composite

composite

Table 1. CSM Coefficient Range

Y = MCF8 * Y

P

B

P

R

= MCF9 * U

= MCF10 * V

composite

• CSMFMT = 11 , RGB input source with YUV and RGB
outputs.

Matrix configuration:

Y

composite

U = MCF4 * Bin + MCF5 * Y

V = MCF6 * Rin + MCF7 * Y

G = MCF8 * G

B = MCF9 * B

R = MCF10 * R

= MCF1 * Gin + MCF2 * Bin +

MCF3 * R

in

composite

composite

in

in

in

The color space matrix consists of 10 multipliers with inde­pendently adjustable coefficients, and a resolution of

0.00049 (1/2048). The amount of gain varies among coeffi-

cients, Table 1 summarizes the gain for each coefficient.

Coefficient Gain Range Comment

MCF1 0 to 2

MCF2 -1 to 1 Must be loaded in 2’s comp format.

MCF3 -1 to 1 Must be loaded in 2’s comp format.

MCF4 0 to 1 11 bit coefficient.

MCF5 -2 to 2 Negative values are enabled when CSMFMT is 1x, only the 12 LSB’s

are required to be loaded into the control registers. Must be loaded in 2’s
comp format.

MCF6 0 to 1 11 bit coefficient.

MCF7 -2 to 2 Negative values are enabled when CSMFMT is 1x, only the 12 LSB’s

are required to be loaded into the control registers. Must be loaded in 2’s
comp format.

MCF8 0 to 2

MCF9 0 to 2

MCF10 0 to 2

To aid in the programming of the color space matrix Table 2
and Table 3 provide a set of default input and output values
for 100% color bars. The component values given will be
after the preprocessing block and prior to the sync and ped-

estal insertion. The blank, pedestal, and sync values are
given as a reference. Table 4 and Table 5 give the default
coefficients values for the CSM in all modes and standard
video formats.

10 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Table 2. Expected Output Values for the CSM with YCBCR Inputs

Inputs 5:2 Outputs 7:3 Outputs

Color

White 876 0 0 536 0 0 568 0 0 568 0 0 568 568 568

Yellow 776 -448 73 475 -235 54 503 -249 57 514 -284 46 568 0 568

Cyan 614 151 448 376 79 -332 407 84 -351 407 96 -284 568 568 0

Green 514 -297 -375 315 -156 -278 340 -165 -294 340 -189 -238 568 0 0

Magenta 362 297 375 222 156 278 240 165 294 240 189 238 0 568 568

Red 262 -151 448 160 -79 332 173 -84 351 173 -96 284 0 0 568

Blue 100 448 -73 61 235 -54 66 249 -57 66 284 -46 0 568 0

Black 000000000000000

Blank 64 240 256 256 256 256 256

Pedestal 44 0 0

Sync 8 12 12 12

Table 3. Expected Output Values for the CSM with RGB Inputs

Color

White 1020 1020 1020 536 0 0 568 0 0 568 0 0 568 568 568

Yellow 1020 0 1020 475 -235 54 503 -249 57 514 -284 46 568 0 568

Cyan 1020 1020 0 376 79 -332 407 84 -351 407 96 -284 568 568 0

Green 1020 0 0 315 -156 -278 340 -165 -294 340 -189 -238 568 0 0

Magenta 0 1020 1020 222 156 278 240 165 294 240 189 238 0 568 568

Red 0 0 1020 160 -79 332 173 -84 351 173 -96 284 0 0 568

Blue 0 1020 0 61 235 -54 66 249 -57 66 284 -46 0 568 0

Black 000000000000000

YC

Inputs 5:2 Outputs 7:3 Outputs

GBRYUVYUVYP

C

B

YUVYUVYPBP

R

GBR

R

P

B

GBR

R

Table 4. Coefficient sets YCBCR inputs

YP

NTSC

-EIA

MCF1 54C 4E5 530 54C 4E5 530

MCF2 000 000 000 E34 E57 E3D

MCF3 000 000 000 C4E C96 C62

MCF4 48b 433 473 48B 433 473

MCF5 000 000 000 92D 87B 8FC

MCF6 668 5EC 646 668 5EC 646

MCF7 000 000 000 742 6B5 71C

MCF8 54C 54C 54C 800 8A8 800

MCF9 514 514 514 800 8A8 800

MCF10 514 514 514 800 8A8 800

REV. 1.0 3/26/03 11

outputs RGB Outputs

BPR

NTSC

-M PAL-I

NTSC

-EIA

NTSC

-M PAL-I

Table 5. Coefficient sets YCBCR inputs

YP

NTSC

-EIA

MCF1 2AC 278 29E 2AC 278 29E

MCF2 085 07B 082 085 07B 082

MCF3 15C 142 155 15C 142 155

MCF4 240 215 234 240 215 234

MCF5 C09 C09 C09 C09 C09 C09

MCF6 404 3B7 3EF 404 3B7 3EF

MCF7 8F2 8F2 8F2 8F2 8F2 8F2

MCF8 800 8A8 800 48D 48D 474

MCF9 8F2 9AB 920 48D 48D 474

MCF10 654 6D8 679 48D 48D 474

outputs RGB Outputs

BPR

NTSC

-M PAL-I

NTSC

-EIA

NTSC

-M PAL-I

TMC2193 PRODUCT SPECIFICATION

Synchronization Modes

Control Registers for this section

Address Bit(s) Name

0x06 5-3 MODE

0x06 1 TOUT

0x06 0 TSOUT

The TMC2193 offers a variety of synchronization modes;
these are master, slave, genlock, 656 mode, and DRS-Lock.
In master mode, the TMC2193 generates its own timing and
the synchronization is supplied externally by HSOUT and
VSOUT
derives its timing from the input pins HSIN, VSIN. In 656
mode the timing is driven by the synchronization codes
embedded into the data stream.

Master

The TMC2193 drives the output pins HSOUT and VSOUT
to synchronize the incoming video. A new color frame starts
at the rising edge of RESET. The encoder always starts at the
1st vertical serration in field 8 and will freerun the field and
line sequence. The control register bit SRESET can be used
to synchronize the start of the field and line sequence in mas­ter mode by resetting the FVHGEN state machine. Output
synchronization signal VSOUT can operate in a traditional
sync mode or in a MPEG style field toggle mode.

Slave

The TMC2193 is driven by the input synchronization pins
HSIN and VSIN. When the falling edge of HSIN and VSIN
occurs at the same rising edge of PXCK the TMC2193 will
start a new field.VSIN can be either a traditional pulse or the
MPEG style field toggle. In both cases the TMC2193 will
flywheel through fields 2, 4, 6, and 8 synchronizing only to
fields 1, 3, 5, and 7.

signals. In slave and genlock modes the TMC2193

CCIR656

The TMC2193 derives all synchronization from the embed­ded TRS (timing reference signals) information. Blanking of
selected lines is determined by the v bit of the TRS. However
the control registers VBIENx can override and blank the
active video portion of VBI lines regardless of the state of the
v-bit.

Genlock

The TMC2193 is driven by the input synchronization pins
HSIN

and VSIN. When the falling edge of HSIN and VSIN
occurs at the same rising edge of PXCK the TMC2193 will
start a new field.VSIN

can be either a traditional pulse or the
MPEG style field toggle. In both cases the TMC2193 will
flywheel through fields 2, 4, 6, and 8 synchronizing only to
fields 1, 3, 5, and 7. The TMC2193 collects GRS data and
resets its subcarrier phase and frequency to the data embed­ded in the GRS stream. The GRS detection occurs only on
the CBVS port.

DRS

The TMC2193 is driven by the input synchronization pins
HSIN and VSIN. When the falling edge of HSIN and VSIN
occurs at the same rising edge of PXCK the TMC2193 will
start a new field.VSIN can be either a traditional pulse or the
MPEG style field toggle. In both cases the TMC2193 will
flywheel through fields 2, 4, 6, and 8 synchronizing only to
fields 1, 3, 5, and 7. Subcarrier phase adjustment is deter­mined by the DRS data. The DRS detection can occur on
either the CBVS port or the pixel data port.

Propagation Delay

The propagation delay from the pixel data (PD) input to the
D/A output is 64 PXCK’s. Figure 8 shows the propagation
delay for both master and slave synchronization modes. For
CCIR656 data streams, pixel 736 (pixel 0 in Figure 8) is the
midpoint of sync and is 32 PXCK’s (24 PXCK’s in PAL)
after the EAV TRS.

n = (SY+BR+BU+CBP+AV)*2

PXCK

C

PD[23:14]

HSIN

HSOUT

(TSOUT = 1)

DACx

(ANALOG)

DCVBS

(D[7:0],FLD[2:1])

Bn

Y

C

n

Y

n+1

Rn

Midpoint of the
Falling Edge of Sync

0

C

Y

B0

0

63 65

t

DO

COMP

0

COMP

128

t

DO

1

65-6294-09

Figure 8. Propagation Delay through the Encoder

12 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Blanking Control

Control Registers for this section

Address Bit(s) Name

0x04 1-0 PDRM

0x06 2 PDCDIR

0x18 4-0 VBIENF1

0x19 4-0 VBIENF2

0x1F 7-0 PDCCNT

The content of VBIENFx[4:0] selects the first line to contain
an active video region in each field, all subsequent lines for
the remainder of the field are active. To blank an entire field,
the user zeroes the VBIENFx[4:0] control register. In
CCIR656 slave mode, the user can selectively blank any
enabled line by setting its TRS V bit HIGH. For 525-line
systems, NTSC line numbering is employed, with the first
vertical serration starting on line 4. PAL line numbering is
used with 625-line systems, with each field's line 1 being the
start of the first vertical serration.

Any line(s) enabled by the closed caption control are auto­matically unblanked for the closed caption waveform, irre­spective of the corresponding values of VBIENF.

Pixel Data Control

The pixel data control has two modes of operation, as an
input or as an output. The mode of operation is determined
by the PDCDIR control register. When PDC is an input the
internally generated PDC is ANDed with the PDC pin. This
allows the user to blank any active video regions. When PDC
is an output, the internally generated PDC is the output for
the PDC pin.

The internal PDC control will toggle to a logic HIGH at the
pixel specified by PDCNT and toggle to a logic LOW four
pixels prior to the end of the active video region. The starting
point and ending point of the active video region (VA) are
determined by the control registers 10h to 1Fh. When PDC is
used as an input, the sloped edge of the active video region
will occur on the next four pixels following the toggle point.

Edge Shaping

The TMC2193 has three modes of sloped edges on the active
video region and are controlled by PDRM control register.

Table 6. PDC Edge Control

PDRM[1:0] Slope type at PDC (HIGH) Slope type at PDC (LOW)

00 The following four pixels have the weighting of

1/8, 1/2, 7/8 and 1 for NTSC and 1/8, 3/8, 5/8,
and 7/8 for PAL.

01 The fifth pixel is sampled and scaled 1/8, 1/2,

7/8 and 1 over the next four pixels for NTSC
and 1/8, 3/8, 5/8, and 7/8 over the next four
pixels for PAL.

1x Slope is off, edge control is dictated by the PD

stream from active video start

The following four pixels have the weighting of
1, 7/8, 1/2, and 1/8 for NTSC and 7/8, 5/8, 3/8,
and 1/8 for PAL.

The fifth pixel is sampled and scaled 1, 7/8,
1/2 and 1/8 over the next four pixels for NTSC
and 7/8, 5/8, 3/8, and 1/8 over the next four
pixels for PAL.

Slope is off, edge control is dictated by the PD
stream to active video end

REV. 1.0 3/26/03 13

TMC2193 PRODUCT SPECIFICATION

Horizontal Programming

Control registers for this section

Address Bit(s) Name

0x06 7-6 FORMAT

0x19 7 SHORT

0x19 6 T512

0x19 5 HALFEN

0x20 7-0 SY

0x21 7-0 BR

0x22 7-0 BU

0x23 7-0 CBP

0x24 7-0 XBP

0x25 7-0 VA

0x26 7-0 VC

0x27 7-0 VB

0x28 7-0 EL

0x29 7-0 EH

0x2A 7-0 SL

0x2B 7-0 SH

0x2C 7-0 FP

0x2D 7-6 XBP (MSB’s)

0x2D 5-4 VA (MSB’s)

0x2D 3-2 VB (MSB’s)

0x2D 1-0 VC (MSB’s)

Horizontal interval timing is fully programmable and is
established by loading the timing registers with the duration
of each horizontal element. The duration is expressed in
PCK clock cycles. In this way, any pixel clock rate between
10 MHz and 15 MHz can be accommodated, and any desired
standard or non-standard horizontal video timing may be
produced.

Horizontal timing parameters can be calculated as follows:

t = N x ( PCK period )

= N x ( 2 x PXCK period )

where N is the value loaded into the appropriate timing
register, and PCK is the pixel clock period.

When programming horizontal timing, subtract 5 PCK
periods from the calculated values of CBP and add 5 PCK
periods to the calculated value for VA. The control register
HALFEN
NTSC, PAL-M and line 23 for all other PAL standards when
it is LOW.

enables the 1st half line (UBV) on line 283 for

Table 7. Horizontal Line Equations

Line Type Line ID Line Length Equals

EE 00 EL + EH + EL + EH

SE 02 SL + SH + EL + EH

SS 03 SL + SH + SL + SH

ES 01 EL + EH + SL + SH

EB 10 EL + EH + EL + EH

UBB, -BB 0D, 05 SY + BR + BU + CBP + VA + FP

UVV, -VV 0F, 07 SY + BR + BU + CBP + VA + FP

UVE, -VE 0C, 04 SY + BR + BU + CBP + VC + FP + EL + EH

UBV 0E SY + BR + BU + XBP + VB + FP

14 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

SY

BR BU CBP VA FP

Figure 9. Horizontal Timing

Table 8. Horizontal Timing Specifications

Parameter

NTSC-M

(µs)

PAL-I

(µs)

PAL-M

(µs)

FP 1.5 1.65 1.9

SY 4.7 4.7 4.95

BR 0.6 0.9 0.9

BU 2.5 2.25 2.25

CBP 1.6 2.55 1.8

VA 52.6556 51.95 51.692

H 63.5556 64.0 63.492

Vertical interval timing is also fully programmable, and is
established by loading the timing registers with the dura­tion’s of each vertical timing element, the duration expressed
in PCK clock cycles. In this way as with horizontal program-

65-6294-10

ming, any pixel rate between 10 and 15 Mpps can be accom­modated, and any desired standard or non-standard vertical
video timing may be produced.

Like horizontal timing parameters, vertical timing parame­ters are calculated as follows:

t = N x ( PCK period )

= N x ( 2 x PXCK period )

where N is the value loaded into the appropriate timing reg­ister, and PCK is the pixel clock period.

The vertical interval comprises several different line types
based upon H, the Horizontal line time.

H = (2 x SL) + (2 x SH) [Vertical sync pulses]

= (2 x EL) + (2 x EH) [Equalization pulses]

H

H/2

EL

EH SL SH

65-6294-11

Figure 10. Horizontal Timing – Vertical Blanking

The VB and VC control registers are added to produce the
half-lines needed in the vertical interval at the beginning and
end of some fields. These must properly mate with compo­nents of the normal lines.

REV. 1.0 3/26/03 15

TMC2193 PRODUCT SPECIFICATION

H/2

SY

SY

BR BU XBP

Figure 11. Horizontal Timing – 1st Half-line

BR

Figure 12. Horizontal Timing – 2nd Half-line

Table 9. Vertical Interval Timing Specifications

NTSC-M

Parameter

(µs)

H 63.5556 64 63.492

EH 29.4778 29.65 29.45

EL 2.3 2.35 2.3

SH 4.7 4.7 4.65

SL 27.1 27.3 27.1

PAL-I

(µs)

H/2

BU

CBP VC FP

PAL-M

(µs)

EL

VB FP

65-6924-12

EH

65-6294-13

16 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Table 10. Default Horizontal Timing Parameters

Field

Horizontal

Standard

NTSC sqr. pixel 59.94 15.734266 12.27 24.54 3A 07 1F 0F 23 8B 05 77 1C 6A 4C 3A 12 65 52

NTSC CCIR-601 59.94 15.734266 13.50 27.00 40 08 22 11 44 CB 1E 98 1F 8E 6D 40 14 65 59

NTSC 4x F

PAL sqr. pixel 50.00 15.625000 14.75 29.50 45 0D 21 21 6D 03 2B B7 23 B5 93 45 19 75 61

PAL CCIR-601 50.00 15.625000 13.50 27.00 40 0C 1E 22 4D BE 0E 93 20 90 70 40 16 65 59

PAL 15 Mpps 50.00 15.625000 15.00 30.00 46 0D 22 21 73 11 31 BF 23 BD 9A 47 19 75 62

PAL-M sqr.pixel 60.00 15.750000 12.50 25.01 3E 0B 1C 13 26 86 FE 8B 1D 70 53 3A 18 61 52

PAL-M CCIR-601 60.00 15,750000 13.50 27.00 44 0C 1E 13 26 Bf 12 99 1F 8E 6E 3F 1A 65 57

PAL-M 4x F

SC

Rate

(Hz)

59.94 15.734266 14.32 28.64 43 09 24 12 54 F7 30 B5 21 A6 84 43 15 65 5F

60.00 15,750000 14.30 28.60 47 0D 20 15 4C E8 22 AC 21 A5 84 42 1B 65 5D

SC

Freq.
(KHz)

Pixel

Rate

(Mpps)

PXCK

SY BR BU CBP XBP VA VC VB EL EH

Freq.

20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2F

(MHz)

Timing Register (hex)

2SL2

SH FP Note CBL

Notes:

1. XBP, VA, VC, and VB are 10 bit values. The 2 MSBs for these four variables are in Timing Register 2D.

2. EH and SL are 9 bit values. A most significant "1" is forced by the TMC2193 since EH and SL must range from 256 to 511.
EH and SL may be extended to 767. Only the eight LSBs are stored in Timing Registers 29 and 2A.

3. Every calculated timing parameter has a minimum value of 5 except EH and SL which have minimum values of 256.

Vertical Timing

The vertical timing is controlled by the FORMAT control
register, which dictates the field and line sequence.

524

525

FIELDS 1 AND 3

22

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

UVV

UVVEEEEEEEEESEESSSSSSSSSESSEEEEEEEEEBEE

262

UVV

263

26412652266326742685269627072718272

UVE

FIELDS 2 AND 4

Figure 13. NTSC Vertical Interval

•••

9

UBB

27310•••

UBB

19

UBB

UBB

282

UBB

UVV

UVV

2832028421285

UVV

UBV

65-6294-15

UVV

REV. 1.0 3/26/03 17

TMC2193 PRODUCT SPECIFICATION

Table 11. NTSC Field/Line Sequence and Identification

Field 1

FIELD ID = x00

Line ID LTYPE Line ID LTYPE Line ID LTYPE Line ID LTYPE

4 SS 03 266 ES 01 4 SS 03 266 ES 01

5 SS 03 267 SS 03 5 SS 03 267 SS 03

6 SS 03 268 SS 03 6 SS 03 268 SS 03

7 EE 00 269 SE 02 7 EE 00 269 SE 02

8 EE 00 270 EE 00 8 EE 00 270 EE 00

9 EE 00 271 EE 00 9 EE 00 271 EE 00

10 UBB 0D 272 EB 10 10 UBB 0D 272 EB 10

… UBB 0D 273 UBB 0D … UBB 0D 273 UBB 0D

19 UBB 0D … UBB 0D 19 UBB 0D … UBB 0D

20 UBB 0D 282 UBB 0D 20 UBB 0D 282 UBB 0D

21 UVV 0F 283 UBV 0E 21 UVV 0F 283 UBV 0E

22 UVV 0F 284 UVV 0F 22 UVV 0F 284 UVV 0F

… UVV 0F … UVV 0F … UVV 0F … UVV 0F

262 UVV 0F 524 UVV 0F 262 UVV 0F 524 UVV 0F.

263 UVE 0C 525 UVV 0F 263 UVE 0C 525 UVV 0F

264 EE 00 1 EE 00 264 EE 00 1 EE 00

265 EE 00 2 EE 00 265 EE 00 2 EE 00

Field 2

FIELD ID = x01

3EE00 3EE00

FIELD ID = x10

Field 3

Field 4

FIELD ID = x11

EE Equalization pulse
SE Half-line vertical sync pulse, half-line equalization pulse
SS Vertical sync pulse
ES Half-line equalization pulse, half-line vertical sync pulse
EB Equalization broad pulse
UBB Black burst
UVV Active video
UVE Half-line video, half-line equalization pulse
UBV half-line black, half-line video

18 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

623

622

UVV

309 310

UVV

622

FIELDS 1 AND 5

624 625 1

-VE EE EE SS SS SE EE EE -BB

FIELDS 2 AND 6

311 312 313

-VV EE EE ES SS SS EE EE EB

623

FIELDS 3 AND 7

23

314 315

45 67

UBB

316 317 318 319

UBB

•••

•••

320

23

24

22

UBVUBB UVV UVV

UVV

•••

334 335

•••

UBBUBB UVV UVV

UBB

23

24

25 26

336 337

25 26

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

624 625 1

-VV -VE EE EE SS SS SE EE EE UBB UBB

309 310

UVV

UVV EE EE ES SS SS EE EE EB

FIELDS 4 AND 8

311 312 313 314 315 316 317

23

45 67

318

319

-BB

Figure 14. PAL Vertical Interval

•••

22

•••

320 334 335

UBVUBB UVV UVV

UVV

•••

•••

UBBUBB UVV UVV

UBB

336 337

65-6294-16

REV. 1.0 3/26/03 19

TMC2193 PRODUCT SPECIFICATION

Table 12. PAL Field/Line Sequence and Identification

Field 1 & 5

FIELD ID = 000, 100

Field 2 & 6

FIELD ID = 001, 111

Field 3 & 7

FIELD ID = 010, 110

Field 4 & 8

FIELD ID = 011, 111

Line ID LTYPE Line ID LTYPE Line ID LTYPE Line ID LTYPE

1 SS 03 313 ES 01 1 SS 03 313 ES 01

2 SS 03 314 SS 03 2 SS 03 314 SS 03

3 SE 02 315 SS 03 3 SE 02 315 SS 03

4 EE 00 316 EE 00 4 EE 00 316 EE 00

5 EE 00 317 EE 00 5 EE 00 317 EE 00

6 -BB 05 318 EB 10 6 UBB 0D 318 EB 10

7 UBB 0D 319 UBB 0D 7 UBB 0D 319 -BB 05

… UBB 0D 320 UBB 0D … UBB 0D 320 UBB 0D

22 UBB 0D … UBB 0D 22 UBB 0D … UBB 0D

23 UBV 0E 334 UBB 0D 23 UBV 0E 334 UBB 0D

24 UVV 0F 335 UBB 0D 24 UVV 0F 335 UVV 0F.

25 UVV 0F 336 UVV 0F 25 UVV 0F 336 UVV 0F

26 UVV 0F 337 UVV 0F 26 UVV 0F 337 UVV 0F

… UVV 0F … UVV 0F … UVV 0F … UVV 0F

309 UVV 0F 622 -VV 07 309 UVV 0F 622 UVV 0F

310 -VV 07 623 -VE 04 310 UVV 0F 623 -VE 04

311 EE 00 624 EE 00 311 EE 00 624 EE 00

312 EE 00 625 EE 00 312 EE 00 625 EE 00

EE Equalization pulse
SE Half-line vertical sync pulse, half-line equalization pulse
SS Vertical sync pulse
ES Half-line equalization pulse, half-line vertical sync pulse
EB Equalization broad pulse
UBB Black burst

-BB Black burst with color burst suppressed

UVV Active video

-VV Active video with color burst suppressed

UVE Half-line video, half-line equalization pulse

-VE Half-line video, half-line equalization pulse, color burst suppressed.

UBV half-line black, half-line video

20 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

521 522 FIELDS 1 AND 5

523524525123456

UVV UVV EE EE EE SS SS SS EE EE EE

260 FIELDS 2 AND 6

259

261 262 263 264 265 266 267 268 269

UVV -VE EE EE ES SS SS SE EE EE EB

521 522 FIELDS 3 AND 7

523524525123456

18

789•••

-BB UBB-BB UBB UVV

270 •••

271 279

-BB UBB UBB UBV UVV

789•••

•••

17

•••

280 281

18

17

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

HSOUT

VSOUT

(TOUT = 1)

VSOUT

(TOUT = 0)

UVV -VV EE EE EE SS SS SS EE EE EE

260 FIELDS 4 AND 8

259258

261 262 263 264 265 266 267 268 269 270 •••

-VVUVV -VE EE EE ES SS SS SE EE EE EB

Figure 15. PAL-M Vertical Interval

-BB UBBUBB UBB UVV

271 279

UBB UBB UBB UBV UVV

•••

280 281

•••

65-6294-17

REV. 1.0 3/26/03 21

TMC2193 PRODUCT SPECIFICATION

Table 13. PAL-M Field/Line Sequence and Identification

Field 1 & 5

FIELD ID = 000, 100

Field 2 & 6

FIELD ID = 001, 111

Field 3 & 7

FIELD ID = 010, 110

Field 4 & 8

FIELD ID = 011, 111

Line ID LTYPE Line ID LTYPE Line ID LTYPE Line ID LTYPE

1 SS 03 263 ES 01 1 SS 03 263 ES 01

2 SS 03 264 SS 03 2 SS 03 264 SS 03

3 SS 03 265 SS 03 3 SS 03 265 SS 03

4 EE 00 266 SE 02 4 EE 00 266 SE 02

5 EE 00 267 EE 00 5 EE 00 267 EE 00

6 EE 00 268 EE 00 6 EE 00 268 EE 00

7 -BB 05 269 EB 10 7 -BB 05 269 EB 10

8 -BB 05 270 -BB 05 8 UBB 05 270 UBB 05

9 UBB 0D 271 UBB 1D 9 UBB 0D 271 UBB 1D

………………………………

17 UBB 0D 279 UBB 0D 17 UBB 0D 279 UBB 0D

18 UVV 0F 280 UBV 0E. 18 UVV 0F 280 UBV 0E.

………281 UVV 0F … UVV 0F 281 UVV 0F

259 UVV 0F ………258 UVV 0F ………

260 -VE 04 521 UVV 0F 259 -VV 07 521 UVV 0F

261 EE 00 522 -VV 07 260 -VE 04 522 UVV 0F

262 EE 00 523 EE 00. 261 EE 00 523 EE 00

524 EE 00 262 EE 00 524 EE 00

525 EE 00 525 EE 00

EE Equalization pulse
SE Half-line vertical sync pulse, half-line equalization pulse
SS Vertical sync pulse
ES Half-line equalization pulse, half-line vertical sync pulse
EB Equalization broad pulse
UBB Black burst

-BB Black burst with color burst suppressed

UVV Active video

-VV Active video with color burst suppressed

UVE Half-line video, half-line equalization pulse

-VE Half-line video, half-line equalization pulse, color burst suppressed.

UBV half-line black, half-line video

22 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Chrominance Processor

Control registers for this section:

Address Bit(s) Name

0x06 7-6 FORMAT

0x06 5-3 MODE

0x07 5 DDSRST

0x11 7 DRSSEL

0x18 6 GLKCTL1

0x18 5 GLKCTL0

0x3F 3 GAUSS_BYP

0x40 7-0 FREQL

0x41 7-0 FREQ3

0x42 7-0 FREQ2

0x43 7-0 FREQM

0x44 7-4 SYSPHL

0x45 3-0 SYSPHM

0x46 7-4 BURPHL

0x47 3-0 BURPHM

0x48 7-4 BRSTFULL

0x49 3-0 BRST1

0x4A 7-4 BRST2

Subcarrier Programming

The color subcarrier is produced by an internal 32 bit digital
frequency synthesizer which is completely programmable in
frequency and phase. Separate registers, FREQx, SYSPHx,
BSTPHx, are provided for phase adjustment of the color
burst and of the active video, permitting external delay com­pensation, color adjustment, etc. FREQx is the subcarrier
phase step per pixel and SYSPHx is phase offset at field 1,
line 1 (line 4 for NTSC), pixel 1.

NTSC Subcarrier

For NTSC encoding, the subcarrier synthesizer frequency
has a simple relationship to the pixel clock period, repeating
over 2 lines: The decimal value for the subcarrier phase step
is:

455 2⁄

FREQx

Where the number of pixels/line is:

pixels line⁄

This value must be converted to binary and split into four 8
bit registers, FREQM, FREQ2, FREQ3, and FREQL.

PAL Subcarrier

The PAL relationship is more complex, repeating only once
in 8 fields (the well-known 25 Hz offset):

FREQx

This value must be converted to binary and split as described
previously for NTSC. The number of pixels/line is found as
in NTSC.

PAL-M Subcarrier

FREQ

SYSPHx establishes the appropriate phase relationship
between the internal synthesizer and the chroma modulator.
The nominal value for SYSPHx is zero.

Other values for SYSPHx must be converted to binary and
split into two 8 bit registers, SYSPHM and SYSPHL.

Burst Phase (BURPHx) sets up the correct relative NTSC
modulation angle. The value for BURPH is:

--------------------------­pixels line⁄

PXCK Frequency

------------------------------------------=

1135 4⁄()1 625⁄()+

--------------------------------------------------­pixels line⁄

909 4⁄

--------------------------­pixels line⁄

232×=

H Period

232×=

32

×=

2

BURPHx = SYSPHx

This value must be converted to binary and split into two 8
bit registers, BURPHM and BURPHL.

REV. 1.0 3/26/03 23

TMC2193 PRODUCT SPECIFICATION

Table 14. Standard Subcarrier Parameters

Field

Horizontal

Standard

NTSC sqr. pixel 59.94 15.734266 12.27 24.54 3.57954500 00 00 00 00 4A AA AA AB

NTSC CCIR-601 59.94 15.734266 13.50 27.00 3.57954500 00 00 00 00 43 E0 F8 3E

NTSC 4x F

PAL sqr. pixel 50.00 15.625000 14.75 29.50 4.43361875 00 00 00 00 4C F3 18 19

PAL CCIR-601 50.00 15.625000 13.50 27.00 4.43361875 00 00 00 00 54 13 15 96

PAL 15 Mpps 50.00 15.625000 15.00 30.00 4.43361875 00 00 00 00 4B AA C6 A1

PAL-M sqr.pixel 60.00 15.750000 12.50 25.01 3.57561149 00 00 00 00 49 45 00 51

PAL-M CCIR-601 60.00 15,750000 13.50 27.00 3.57561149 00 00 00 00 43 DF 3F D7

PAL-M 4x F

Subcarrier Synchronization

SC

Rate

(Hz)

59.94 15.734266 14.32 28.64 3.57954500 00 00 00 00 40 00 00 00

60.00 15,750000 14.30 28.60 3.57561149 00 00 00 00 40 10 66 F5

SC

Freq.
(kHz)

There are 5 modes of subcarrier synchronization in the
TMC2193, freerun, subcarrier reset, Genlock, DRS-lock and
Ancillary Data Control (ANC).

• Freerun

At the rising edge of RESET the DDS starts to generate the
subcarrier reference and will continue to freerun the subcar­rier. When setting the control register DDSRST is HIGH, the
TMC2193 will reset the DDS to the SYSPH value on the
next field 1, line 1 (line 4 for NTSC), pixel 1 occurrence and
will reset this bit to be LOW. This allows the encoder to start
with the correct SCH relationship. The phase of the subcar-

Pixel

Rate

(Mpps)

PXCK

Freq.
(MHz)

Subcarrier

Freq.

(MHz)

BURPHM BURPHL SYSPHM SYSPHL FREQM FREQ2 FREQ3 FREQL

47 46 45 44 43 42 41 40

the TMC22x5y. The TMC22x5y produces a decoder refer­ence signal (DRS) which contains field identification, PAL­ODD status, relative phase and relative frequency of the
composite or S-video input. The DRS is sampled on either
the CVBS bus or the PD port, depending on DRSSEL, 60
PXCK’s after the falling edge of HSIN. The phase and fre­quency values are used to update the DDS on a line to line
basis, thus synchronizing the subcarrier to an external com­posite reference.

• Ancillary Data Control (ANC)

Subcarrier synchronization in ANC mode is covered in the
Ancillary Data Control section of this data sheet.

Subcarrier Register (hex)

rier reference will drift over time since a 32 bit accumulator
has a error of ±0.5 Hz when generating the subcarrier refer­ence for NTSC 13.5 MHz.

SCH Phase Error Correction

SCH refers to the timing relationship between the 50% point
of the leading edge of horizontal sync and the positive or

• Subcarrier Reset

negative zero-crossing of the color burst subcarrier refer­ence. SCH error is usually expressed in degrees of subcarrier

At the rising edge of RESET the DDS starts to generate the
subcarrier reference and will reset the DDS to the SYSPH
value every field 1, line 1 (line 4 for NTSC), pixel 1 occur­rence. This enables the encoder to maintain the proper SCH
relationship.

• Genlock

The Genlock mode allows the TMC2193 to lock to a com­posite reference when used in conjunction with the
TMC22071A Genlocking Video Digitizer. The TMC22071A
produces a genlock reference signal (GRS) which contains
field identification, PALODD status, relative phase and rela­tive frequency of the composite reference. The GRS is sam­pled on the CVBS bus 60 PXCK’s after the falling edge of
HSIN. The phase and frequency values are used to update
the DDS on a line to line basis, thus synchronizing the sub­carrier to an external composite reference.

• DRS-Lock

phase. In PAL, SCH is defined for line 1 of field 1, but since
there is no color burst on line 1, SCH is usually measured at
line 7 of field 1. The need to specify SCH relative to a partic­ular line in PAL is due to the 25 Hz offset of PAL subcarrier
frequency. Since NTSC has no such 25 Hz offset, SCH
applies to all lines.

The SCH relationship is important in the TMC2193 when
two video sources are being combined or if the composite
video output is externally combined with another video
source. In these cases, improper SCH phasing will result in a
noticeable horizontal jump of one image with respect to
another and/or a change in hue proportional to the SCH error
between the two sources.

SCH phasing can be adjusted by modifying BURPH and
SYSPH values by equal amounts. SCH is advanced/delayed
by one degree by increasing/decreasing the value of BURPH
and SYSPH by approximately B6h. An SCH error of 15o is
corrected with SYSPH and BURPH offsets of AAAh.

The DRS-Lock mode allows the TMC2193 to lock its com­posite output to the decoded composite or S-video input of

24 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

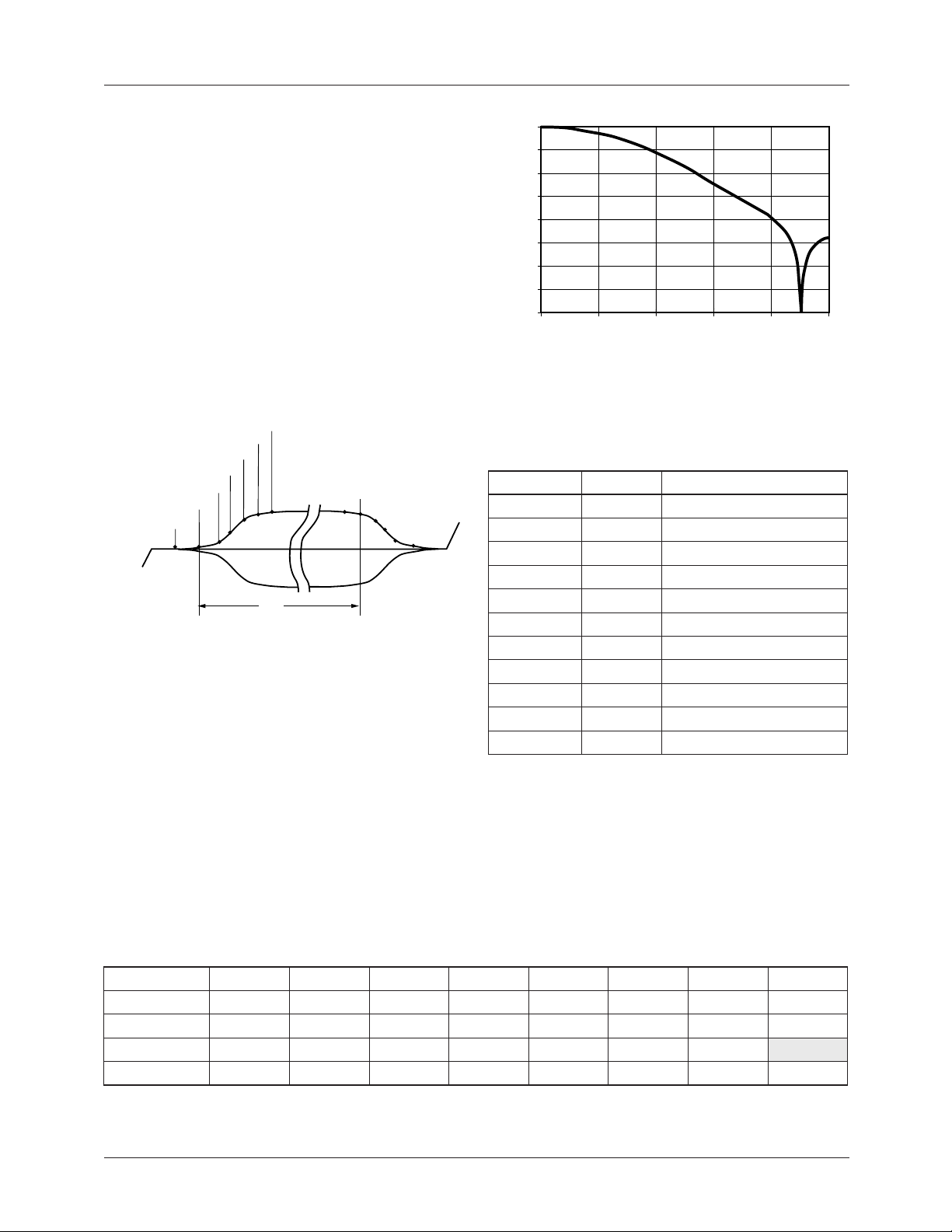

Burst Envelope

The TMC2193 includes the ability to adjust the burst ampli­tude and the shape of the burst. The Control Registers
BRSTFULL, BRST1 and BRST2 hold the magnitude of the
burst vector. BRSTFULL is the maximum amplitude of the
burst vector. BRST1 and BRST2 determine the intermediate
values of the burst vector for the burst envelope shaping. A 5
pixel burst envelope shaping occurs at the rising and falling
edges of burst. At the rising edge of burst the next 5 pixels
have the following weighting; BRSTFULL – BRST1,
BRSTFULL – BRST2, BRSTFULL/2, BRST2, and BRST1.
At the falling edge of burst the next 5 pixels have the follow­ing weighting; BRST1, BRST2, BRSTFULL/2, BRSTFULL
– BRST2, and BRSTFULL – BRST1. With this flexibility
the user determine the shape, amplitude and width of the
burst signal.

BRSTFULL

BRST1

BRST2

BRSTFULL/2

BRSTFULL - BRST2

BRSTFULL - BRST1

BLANK

BU

Figure 16. Burst Envelope

Color-Difference Low-Pass Filters

65-6294-18

The chrominance portion of a composite video signal must
be sufficiently bandlimited to avoid cross-color and cross­luminance distortion, and to preclude exceeding the allow­able bandwidth of a video channel.

The color-difference low-pass filters on the TMC2193
establish chrominance bandwidths which meet the specifica­tions outlined in CCIR Report 624-3, Table II, Item 2.6, for
system I over a range of pixel rates from 12.27 Mpps to

14.75 Mpps. Equal bandwidth is established for both color­difference channels.

0

-10

-20

-30

-40

-50

Attenuation (db)

-60

-70

-80
0 0.1 0.2 0.3 0.4 0.5

Normalized Frequency (Pixel rate)

Figure 17. Gaussian Filter Response

Sync and Pedestal Insertion

Control Registers for this section

Address Bit(s) Name

0x06 7-6 MODE

0x10 1-0 OUTMODE

0x11 5 COMP2DB

0x14 7-0 VBIPEDEM

0x15 7-0 VBIPEDEL

0x16 7-0 VBIPEDOM

0x17 7-0 VBIPENOL

0x1A 6-0 PEDHGT1

0x3F 3 C2DB_OFF

0x4B 7-0 NMBD

0x4B 7-4 PEDHGT2

Pedestal Enable

The TMC2193 has the ability to independently select lines
for pedestal insertion during the vertical blanking interval
(VBI). For 525-line systems and using the NTSC line num­bering convention, in which the first vertical serration is on
line 4 for field 1 and line 266 for field 2, the vertical interval
lines map to the control registers VBIPEDxy as shown in
Table 15.

65-6294-19

Table 15. Line by Line Pedestal Enable

Bit 76543210

VBIPEDEL 17 16 15 14 13 12 11 10

VBIPEDEM 25* 24 23 22 21 20 19 18

VBIPEDOL 279 278 277 276 275 274 273

VBIPEDOM 287* 286 285 284 283 282 281 280

REV. 1.0 3/26/03 25

TMC2193 PRODUCT SPECIFICATION

Enabling the pedestal on line 25 enables it for the remainder
of field 1, to line 262. Likewise, enabling the pedestal on line
288 enables it for the remainder of field 2.

Pedestal Height

There are two control registers that set the pedestal height,
PEDHGT1, and PEDHGT2. PEDHGT1 determines the
height of the pedestal for the luminance channel on the com­posite path and PDEHGT2 determines the height of the ped­estal for the luminance channel on the component path. This
allows for independent pedestal control of the composite and
component paths. In both cases the range of the pedestal
height is from -22.1 to 21.74 IRE in .345 IRE increments.

Sync and Blank Insertion

The control register NBMD selects the sync and blank levels
for the component path, so that the correct ratio of sync to
blank and blank to 100% white for both a 5:2 and 7:3 stan­dards are meet. If NBMD is LOW the component blank level
is a D/A code of 256 (314 mV), this is added to the lumi­nance data for YPbPr or all three components for RGB out­puts. The component sync level is a D/A code of 12 (14 mV)
which is added to the luminance data for YPbPr or to the
Green component for RGB outputs. If NBMD is HIGH the
component blank level is a D/A code of 240 (295 mV), this
is added to the luminance data for YPbPr or all three compo­nents for RGB outputs. The component sync level is a D/A
code of 8 (9 mV) which is added to the luminance data for
YPbPr or to the Green component for RGB outputs. The
selection of which components have sync and blank codes
added to them is controlled by the OUTMODE control regis­ter. Which can select from YPbPr, RGB with sync on green
or RGB with external sync.

For the composite path the blank and sync D/A codes are
determined by the FORMAT control register. For NTSC and
PAL-M formats the blank D/A code is 240 (295 mV) and the
sync D/A code is 8 (9 mV). For all other PAL formats the
blank D/A code is 256 (314 mV) and the sync D/A code is
12 (14 mV).

In all cases the sync edges are sloped to insure the proper rise
and fall times in all video standards.

The TMC2193 includes a flexible closed-caption processor.
It may be programmed to insert a closed caption signal on
any line within a range of 16 lines on ODD and/or EVEN
fields. Closed Caption insertion overrides all other configura­tions of the encoder: if it is specified on an active video line,
it takes precedence over the video data and removes NTSC
setup if setup has been programmed for the active video
lines. Closed Caption is only available when the TMC2193
is in a 13.5 MHz pixel rate.

Closed caption is turned on by setting CCON HIGH. When­ever the encoder begins producing a line specified by
CCFLD and CCLINE, it will insert a closed caption line in
its place. If CCRTS is HIGH, the data contained in CCDx
will be sent. IF CCRTS is LOW, Null bytes (hex 00 with
ODD parity) will be sent.

Line Selection

The line to contain CC data is selected by a combination of
the CCFLD bit and the CCLINE bits. CCLINE is added to
the offset shown in Table 16 to specify the line.

Table 16. Closed Caption Line Selection

Standard Offset Field Lines

525 12 ODD 12-27

274 EVEN 274-289

625 16 ODD 16-31

328 EVEN 328-343

Parity Generation

Standard Closed-Caption signals employ ODD parity, which
may be automatically generated by setting CCPAR HIGH.
Alternatively, parity may be generated externally as part of
the bytes to be transmitted, and, with CCPAR LOW, the
entire 16 bits loaded into the CCDx registers will be sent
unchanged.

Operating Sequence

A typical operational sequence for closed-caption insertion
on line xx is:

Closed Caption Insertion

Control Registers for this section

Address Bit(s) Name

0x1C 7-6 CCD1

0x1D 1-0 CCD2

0x1E 7 CCON

0x1E 6 CCRTS

0x1E 5 CCPAR

0x1E 4 CCFLD

0x1E 3–0 CCLINE

26 REV. 1.0 3/26/03

Read Register 1E and check that bit 7 is LOW, indicat­ing that the CCDx registers are ready to accept data.

If ready, write two bytes of CC data into registers 1C
and 1D.

Write into register 1E the proper combination of
CCFLD and CCLINE. CCPAR may be written as
desired. Set CCRTS HIGH.

The CC data is transmitted during the specified line.

As soon as CCDx s transferred into the CC processor (and
CCRTS goes LOW), new data may be loaded into registers
1C and 1D. This allows the user to transmit CC data on sev­eral consecutive lines by loading data for line n+1 while data
is being sent on line n.

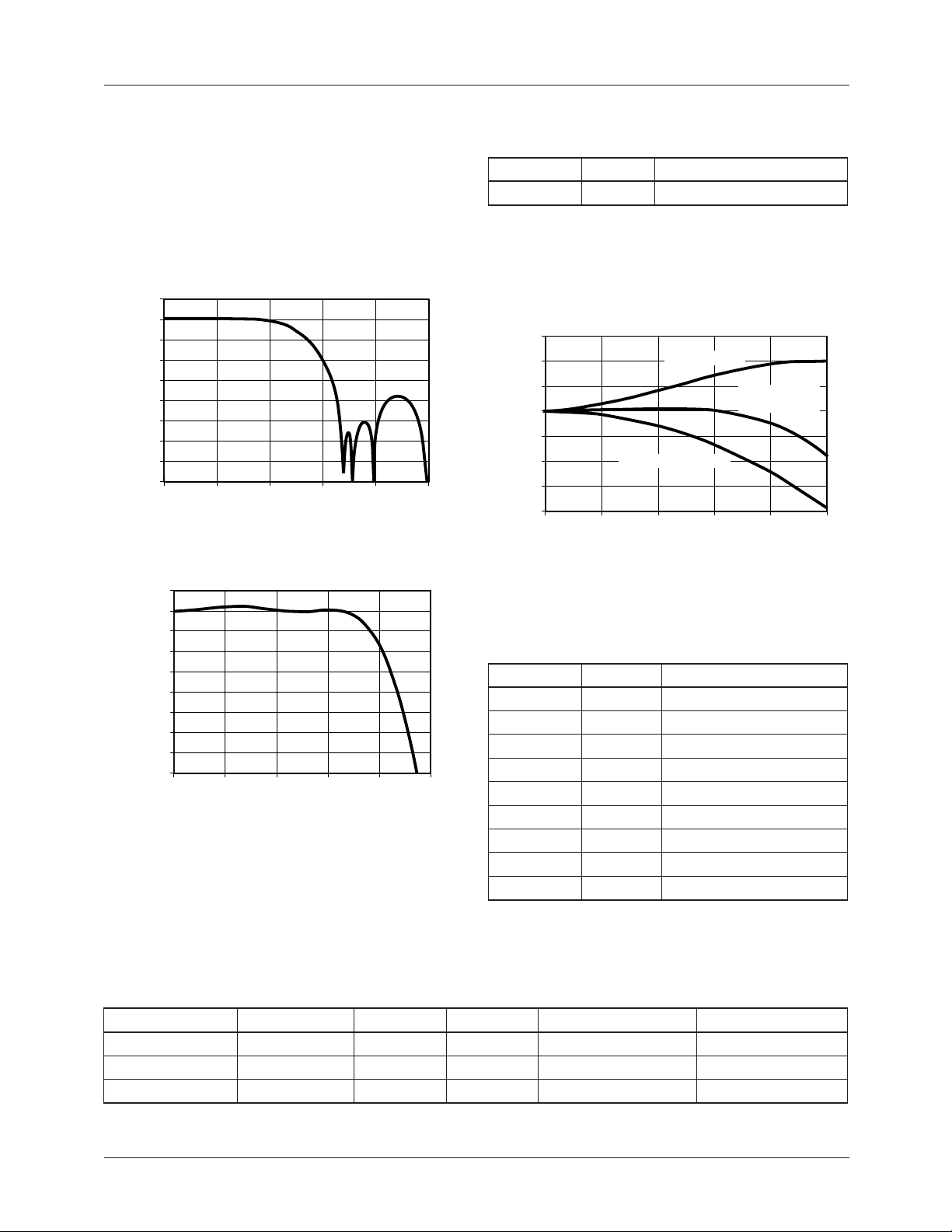

PRODUCT SPECIFICATION TMC2193

Interpolation Filters

Each video output on the TMC2193 is digitally filtered with
sharp-cutoff low-pass interpolation filters. These filters
ensure that the frequency band above base-band video and
below the pixel frequency (fS/4 to 3fS/4, where fS is the
PXCK frequency) are sufficiently suppressed.

Since these are fixed-coefficient digital filters, their filter
characteristics depend upon clock rate.

10

0

-10

-20

-30

-40

-50

Attenuation (db)

-60

-70

-80
0 0.2 0.4 0.6 0.8 1

Frequency (Pixel rate)

Figure 18. Interpolation Filter

0.5

0

-0.5

-1

-1.5

-2

-2.5

Attenuation (db)

-3

-3.5

-4
0 0.1 0.2 0.3 0.4 0.5

Frequency (Pixel rate)

Figure 19. Interpolation Filter – Passband Detail

65-6294-21

65-6294-20

x/Sin(x) Filter

Control Registers for this section

Address Bit(s) Name

0x11 4 SINEN

The TMC2193 contains a selectable X/sin(X) filter prior to
each DAC. The X/sin(X) filter boosts the high frequency
data to negate the sin(X)/X roll-off associated with D/A con­verters.

1.5

1

0.5

0

-0.5

-1

Attenuation (db)

-1.5

-2
0 0.1 0.2 0.3 0.4 0.5

Normalized Frequency (PXCK)

Figure 20. X/SIN(X) Filter

X/Sin(x) Filter

Compensated

D/A Output

Sin(x)/x D/A Roll-Off

Output Data Formats

Control Registers for this section

Address Bit(s) Name

0x10 7 DAC4DIS

0x10 6 DAC3DIS

0x10 5 DAC2DIS

0x10 4 DAC1DIS

0x10 1-0 OUTMODE

0x11 6 OFMT

0x11 3 REFSEL

0x3F 7 SEL_CLK

0x3F 4 SEL_PIX

65-6294-22

The selection of the output format is determined by the
OUTMODE control register.

Table 17. D/A Outputs

Description Ref. DAC DAC1 DAC2 DAC3 DAC4

RGB ref. Green Blue Red Comp2/overlay

Y PB P

R

ref. Y P

B

P

R

Comp2/overlay

S-VIDEO ref. Comp1 Y Chroma Comp2/overlay

REV. 1.0 3/26/03 27

TMC2193 PRODUCT SPECIFICATION

Analog outputs of the TMC2193 are driven by four 10 bit
D/A converters and separate 9 bit reference D/A converter,
operating at twice the pixel rate. The outputs drive standard
video levels into 37.5 or 75 Ohm loads. An internal voltage
reference is used to provide reference current for the D/A
converters. For more accurate levels, an external fixed or
variable voltage reference source is accommodated. The
video signal levels from the TMC2193 may be adjusted by
varying the common Vref or the four independent Rrefs.
Each video D/A converter has an independent reference

Ancillary Data

Control Registers for this section

Address Bit(s) Name

0x07 2 ANCFREN

0x07 1 ANCPHEN

0x07 0 ANCTREN

0x08 7-0 ANCID

resistor that can adjust the output gain, with the exception of
the reference D/A whose reference resistor is shared with
DAC1. D/A Matching is achieved by trimming the each
external reference resistor of each D/A.

The TMC2193 is designed to accept 15 words of ancillary
data after the active video pixels at the end of each horizontal
line. Ancillary data may occur once per line, once per field,
once per eight fields, on random lines, or not al all. The

Digital Composite Output

In addition, the TMC2193 supplies a 10 bit digital composite

TMC2193 does not assume ancillary data is present on a reg-

ular basis.
signal on pins D[7:0] and FLD[2:1]. The digital composite
output can be either an interpolated signal on a non-interpo­lated signal, this controlled by the control register
SEL_CLK.

Table 18. Ancillary Data Format

Word ID Description B

ANC2 Ancillary Data Header (Timing

ANC1 11111111

Reference Signal)

00000000

B

7

B

6

B

5

B

4

B

3

B

2

1

ANC0 11111111

TT Data Type TT6 TT5 TT4 TT3 TT2 TT1 TT0 P

MM Word 0 D11 D10 D9 D8 D7 D6 P

LL Count 0 D5 D4 D3 D2 D1 D0 P

FIELD Field ID/Synchronous Video Flag x x x SVF F2 F1 F0 P

reserved xxxxxxxP

PH1 Subcarrier Phase PHV PH

PH0 PH

PH

6

FR4 Subcarrier Frequency FRV x x FR

FR3 FR

FR2 FR

FR1 FR

FR0 FR

Note:

1. P = odd parity bit, x = reserved bit will be ignored

27

20

13

FR

FR

FR

FR

6

12

26

19

12

PH

PH

5

FR

FR

FR

FR

5

11

25

18

11

PH

PH

4

FR

FR

FR

FR

4

10

31

24

17

10

PH

PH

3

FR

FR

FR

FR

FR

3

30

23

16

PH

9

PH

2

FR

FR

FR

FR

9

FR

2

29

22

15

8

1

PH

8

1

PH

FR

FR

FR

FR

FR

7

0

28

21

14

7

0

B

0

P

P

P

P

P

P

P

The first three words of ancillary data comprise the TRS sig­nal (ANC2-0) which indicates the end of active video. Also

ancillary data will be processed. If there is no match, the

TMC2193 ignores ancillary data.
known as the Ancillary data header, the TRS signal is a 00h,
FFh, FFh sequence. Except for the TRS words, ancillary data
bit 0 (B0, LSB) is odd parity for B

7-1

.

The data type word (TT) is used to specify the ancillary data
type. The TMC2193 compares this 7 bit value with the con­tents of the ANCID control register. If there is a match, the

The word count data (D

packet indicate the number of words in ancillary data.

Ancillary phase data is used to program the MSBs of the

PHASE register. ANCPHEN and PHV determine how ancil-

lary phase data is used. When ancillary data is not present,

in MM, LL) in the ancillary data

11-0

the TMC2193 assumes PHV = LOW.

28 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Table 19. Ancillary Data Control – Phase

ANCPHEN PHV Description

0 x Ignore ancillary phase data,

set PHASE = 0

ancillary frequency data is used. When ancillary data is not

present, the TMC2193 assumes FRV = LOW.

Table 20. Ancillary Data Control Frequency

ANCFREN FRV Description

1 0 Ignore ancillary phase data,

no change to PHASE

1 1 Load ancillary phase data into

PHASE registers

Ancillary frequency data is used to program the 32 bits of the
FREQ3-0 registers. ANCFREN and FRV determine how

Table 21. Field Identification and Subcarrier Reset Modes

ANCTREN SVF F

2

F

1

F

F (EAV) Field ID / Subcarrier Reset Mode

0

Basic Mode

0 xxxx 0Odd field, reset subcarrier every 8 fields

0 xxxx 1Even field

Genlocking Mode

1 1 x x x 0 Odd field, subcarrier free run

1 1xxx 1Even field

Field Sequence Mode

1 0000 0Field 1, reset subcarrier at field 1

1 0001 1Field 2

1 0010 0Field 3

1 0011 1Field 4

1 0100 0Field 5

1 0101 1Field 6

1 0110 0Field 7

1 0111 1Field 8

Note:

1. The F bit is part of the EAV timing reference code and tracks the F0 bit.

0 x Ignore ancillary frequency

data

1 0 Ignore ancillary frequency

data

1 1 Load ancillary frequency data

into FREQ3-0 registers

Operating Modes

The field number bits (F

) from the ancillary data packet

2-0

FIELD word, are used to program the encoder’s field counter
depending upon the state of the synchronous video flag
(SVF) and the ANCTREN bit in the control register.

In the basic operating mode (ANCTREN = LOW), all timing
is found in the F bit of EAV. F

and SVF are ignored and

2-0

the encoder subcarrier synthesizer is reset to the PHASE
value every eight fields (when the field counter transitions
from 111 (field 8) to 000 (field 1).

In the basic mode, ANCFREN and ANCPHEN are typically
set LOW, ignoring ancillary frequency and phase data. If
ANCFREN and ANCPHEN are HIGH, the TMC2193 uses
the incoming ancillary frequency and phase data on a line-

In genlocking mode (ANCTREN and SVF = HIGH), the

subcarrier synthesizer is allowed to free run, with phase and

frequency being set from the ancillary data packet PH

and FR

data. The field counter increments just like it

31-0

12-0

does in basic mode.

Field sequence mode (ANCTREN = HIGH and SVF =

LOW), is the same as basic mode except that the field

counter is set by the F

bits in the FIELD word of ancillary

2-0

data. If ancillary data is not present on a line, the field

counter will continue to count as it does in basic mode.

When ancillary data is present, the contents of the field

counter are loaded with field data (F

). In this way, the

2-0

TMC2193 may be synchronized with an external source by

sending field data only once.

by-line basis.

REV. 1.0 3/26/03 29

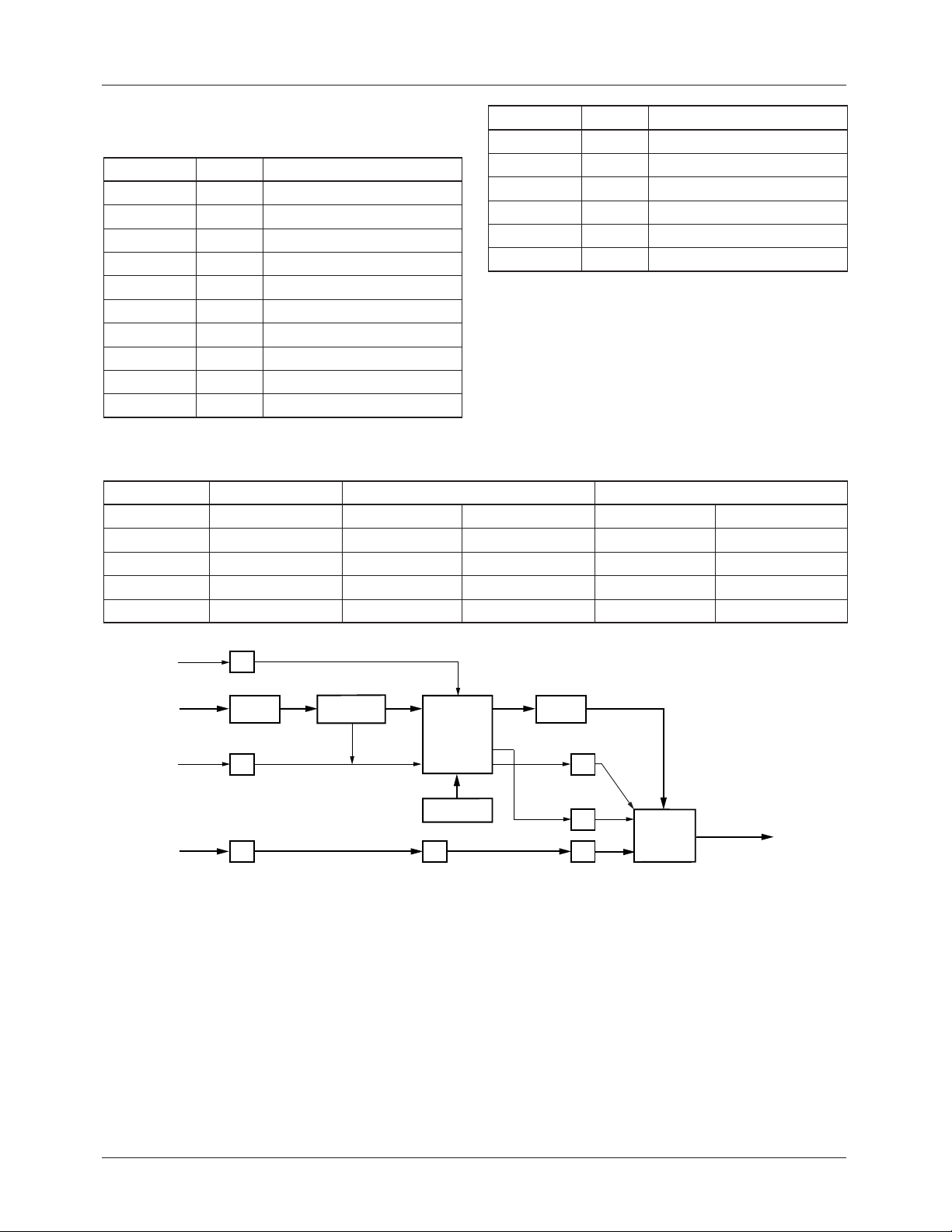

TMC2193 PRODUCT SPECIFICATION

Layering Engine

Control Registers for this section

Address Bit(s) Name

0x04 2 SKEN

0x05 3-2 OMIX

0x07 6 SKFLIP

0x09 7 HKEN

0x09 6 BUKEN

0x09 5 SKEXT

0x09 4 DKDIS

0x09 3 EKDIS

0x09 2 FKDIS

0x09 1-0 LAYMODE

Table 22. Layering and Keying Modes

LAYMODE BACKGROUND MIDGROUND FOREGROUND

Image Source Image Source Keying Control Image Source Keying Control

0 PD OVERLAY OL4-0 CVBS KEY or Data Key

1 PD CVBS KEY or Data Key OVERLAY OL4-0

2 CVBS OVERLAY OL4-0 PD KEY or Data Key

3 CVBS PD KEY or Data Key OVERLAY OL4-0

Address Bit(s) Name

0x0A 7-0 DKEYMAX

0x0B 7-0 DKEYMIN

0x0C 7-0 EKEYMAX

0x0D 7-0 EKEYMIN

0x0E 7-0 FKEYMAX

0x0F 7-0 FKEYMIN

The TMC2193 features a robust layering engine with three

possible input layers controlled by two keying controls. The

layer assignments are shown in Table 22, along with the key-

ing control. The keying controls, KEY pin or OL4-0 are

aligned with the incoming pixel data stream and are then

delayed throughout the chip to be continuously aligned with

the input video streams. A generic overview of the keying

and layering features is shown in Figure 21.

OL4-0

PD

KEY

CVBS

Overlay Mixer

dT

LOGIC LOGIC

dT

dT dT dT

DATA KEY

OVERLAY

MIXER

OLUT

Figure 21. Layering Engine

The OL[4:0] bus provides the ability to overlay 30 different
24 bit values onto the pixel data path. The 24 bit overlay col­ors must be the same format as the incoming Pixel data. For
Y,Cb,Cr input formats the range of Y values spans the entire
range of the format, 1 to 254, this enables super whites and
super blacks in the overlay palette.

When OL[4:0] is equal to 00h the pixel data port to be the
output of the overlay mixer. If OL[4:0] is in the range of 1 to
31 then the output source is one of 30 possible overlay col-

PD

1/2AMP

dT

dT

YC

KEYING

MIXER

COMP2

65-6294-23

ors, see Table 22. Overlay Address Map. When OL4-0 equal

to 16, the overlay mixer produces a pixel data output with

half the luminance magnitude and chrominance magnitude.

Any OL4-0 value greater than 16 will result in a overlay mix

with a full amplitude overlay and the pixel data with half

amplitude pixel data (PD) or half amplitude CVBS data as its

values. This allows for transparent overlays or produce

shadow boxes around overlaid text.

The midpoint of the rising and falling edges on the mixed

output is determined by the transition of the OL[4:0] pins in

30 REV. 1.0 3/26/03

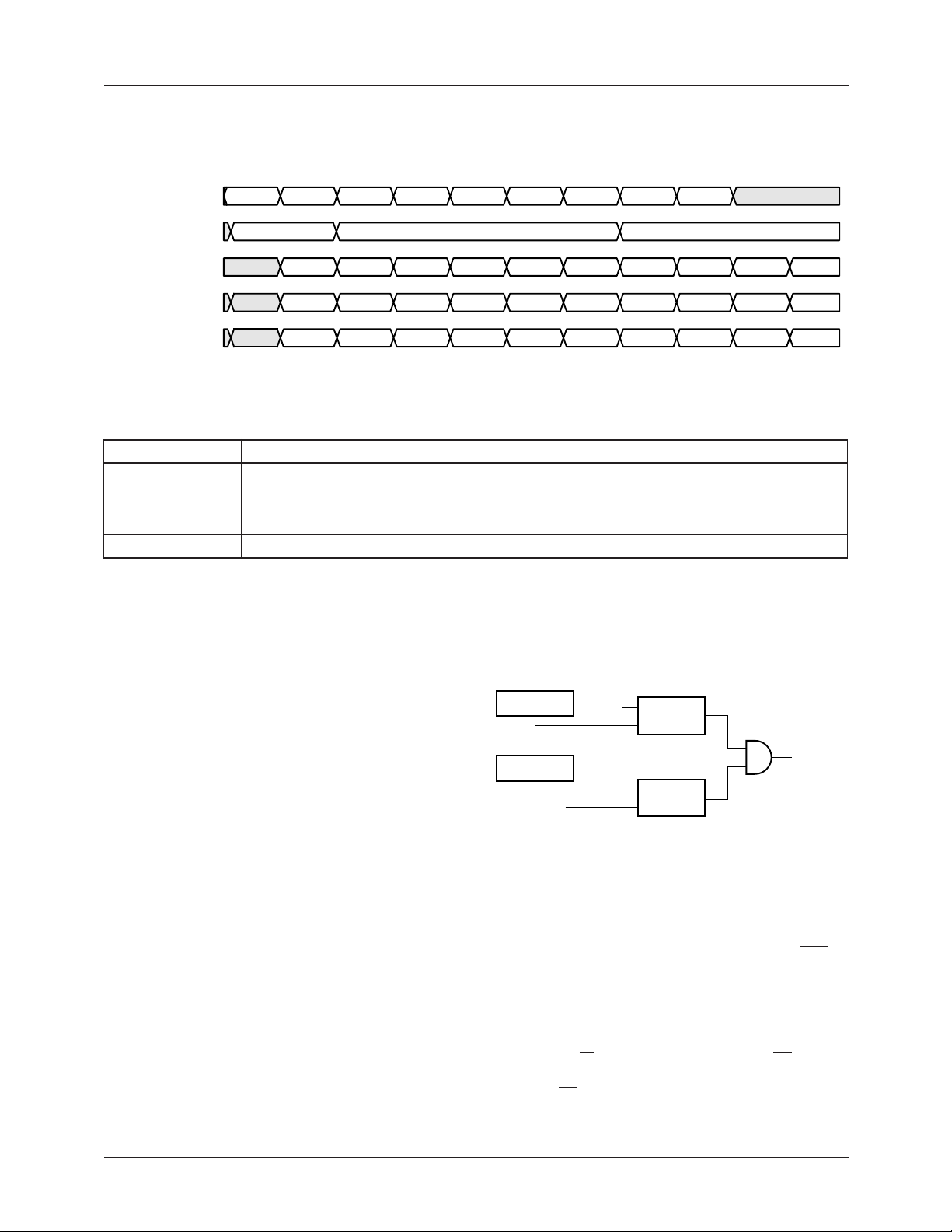

PRODUCT SPECIFICATION TMC2193

relation to the PD port. Control register OMIX chooses
among the following set of coefficients; either 0 1/8 1/2 7/8

lay color. The timing diagram in Figure 22 identifies the

three possible output formats that the mixer can produce.
1, 0 1/2 1 , or 0 1 to switch between the PD port and the over-

PDx

MixOUT (OMIX = 3)

MixOUT (OMIX = 2)

MixOUT (OMIX = 1)

A

BCDEFGH I

A>0 0OL[4:0]

A 7/8B, 1/8OL 1/2C, 1/2OL 1/8D, 7/8OL OL I1/8F, 7/8OL 1/2G, 1/2OL 7/8H, 1/8OL

AB1/2C, 1/2OL OL OL IOL 1/2G, 1/2OL H

A B OL OL OL IOL OL H

Figure 22. Overlay Outputs

Table 23. Overlay Address Map

OL4-0 Result

0 Pixel data is passed through overlay mixer.

1-15 Overlay is mixed with PD or CVBS at the transitions.

16 Half amplitude PD or half amplitude CVBS is the output of COMP2.

17-31 Overlay is mixed with half amplitude PD or half amplitude CVBS at the transitions.

65-6294-24

Hardware Keying

The KEY input switches the input to the Comp2 data path
between the composite video generated from the PD port and
the CVBS data bus on a pixel-by-pixel basis. This is a “soft”
switch is executed over 3 PCK periods to minimize out-of­band transients. Keying is accomplished in the digital com­posite video domain. The coefficients for the mix are 0, 1/8,
1/2, 7/8, and 1 . The COMP2 output is the final output for all
overlay functions. The other three D/As will continue to
present PD port data when CVBS is active.

Hardware keying is enabled by the key Control Register
HKEN. Normally, keying is only effective during the active
video portion of the encoded video line (as determined by
Control Register VA). That is, the horizontal blanking inter­val is generated by the encoder even if the KEY signal is
held HIGH through horizontal blanking. However, it is pos­sible to allow digital horizontal blanking to be passed
through from the CVBS bus to the COMP2 output by setting
key Control Register BUKEN HIGH. In this mode, KEY is
always active, and may be exercised at will.

The KEY input is registered into the encoder just as Pixel
data is clocked into the PD port. It is internally pipelined, so
the midpoint of the KEY transition occurs at the output of
the pixel that was input at the same time at the KEY signal.

Data Keying

Data Keying occurs just prior to the gamma block. Data key­ing for each channel Green/Y, Blue/Cb, and Red/Cr, is sepa­rately enabled or disabled by the control registers

DKEYDIS, EKEYDIS, and FKEYDIS. On each channel the

eight (8) MSBs of the pixel data are compared against a

maximum key value and a minimum key value. If the pixel

data is greater than xKEYMIN and less than or equal to

xKEYMAX, then a key match is signaled for that channel.

xKEYMAX

xKEYMIN

xCHANNEL

Figure 23. Data Keying

A

A<=B

B

KEY
MATCH

A

A<=B

B

65-6294-25

By allowing a window of possible key values on each chan-

nel the TMC2193 opens a key cube in the color space.

Parallel Microprocessor Interface

The parallel microprocessor interface is active when SER is

HIGH and employs a 12-line interface; an 8 bit data bus and

2 bit address location, 1 bit read/write select, and a chip

select controlling the timing. Two addresses are required for

device programming, one to the pointer and one to the data

location. When writing, the address is presented along with a

LOW on the R/W

bits of data are presented on D7-0 during the subsequent ris-

ing edge of CS

pin during the falling edge of CS. Eight

.

REV. 1.0 3/26/03 31

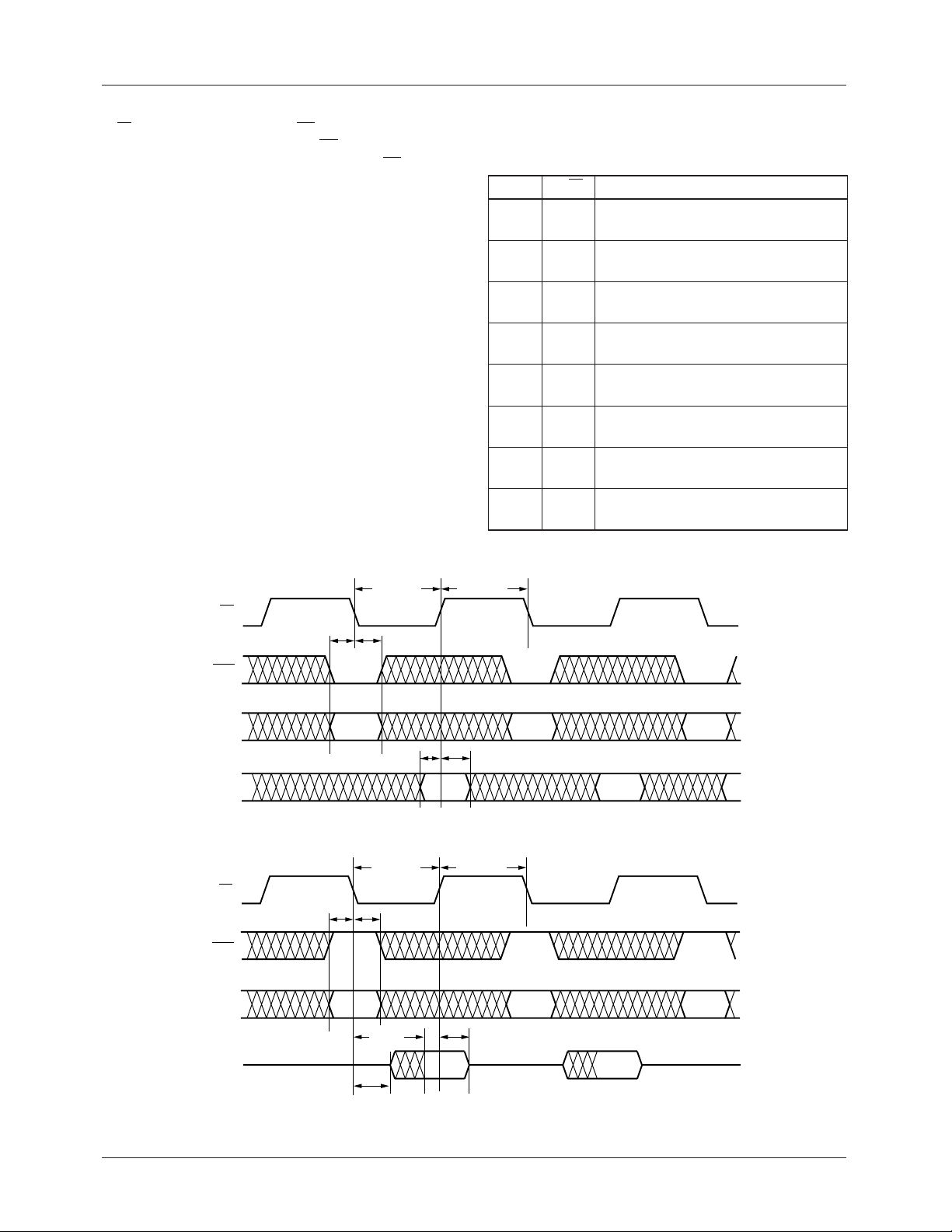

TMC2193 PRODUCT SPECIFICATION

In read mode, the address is accompanied by a HIGH on the
R/W pin during a falling edge of CS. The data output pins go
to a low-impedance state t
present on D7-0 t

after the falling edge of CS. Because

DOM

after CS falls. Valid data are

DOZ

this port operates asynchronously with the pixel timing,
there is an uncertainty in this data valid output delay of one
PXCK period. This uncertainty does not apply to t

DOZ

.

Writing data to specific control registers of the TMC2193
requires that the 8 bit address of the control register of inter­est be written prior to the data. This control register address
is the base address for subsequent write operations. The base
address auto increments by one for each byte of data written
after the data byte intended for the base address. If more
bytes are transferred than there are available addresses, the
address will not increment and remain at its maximum value
of 4Ch.

Writing data to specific OLUT location of the TMC2193
requires that the 8 bit address of the OLUT location of inter­est be written prior to the data sequence. This OLUT loca­tion address is the base address for subsequent write
operations. The base address auto increments by one for
each sequence of three (3) bytes of data written after the data
byte intended for the base address. The sequence of data
transfer is Y or Green, C

or Blue, Cr or Red, after the Cr or

b

Red byte is transferred the base address will increment by

one (1).

Table 24. Parallel Port Control

A

00 0 Load D

R/W Action

1-0

into Control Register

7-0

pointer (block 0)

00 1 Read Control Register pointer on

D

7-0

01 0 Load D

into addressed OLUT

7-0

Location pointer (block 0)

01 1 Read addressed OLUT Location

pointer on D

10 0 Write D

7-0

.

7-0

to addressed Control

Register

10 1 Read addressed Control Register

on D

7-0

11 0 Write D

to addressed OLUT

7-0

Location

11 1 Read addressed OLUT Location on

D

7-0

t

CS

t

SA

R/W

ADR

D

7-0

Figure 24. Microprocessor Parallel Port – Write Timing

CS

t

SA

R/W

ADR

PWLCS

t

HA

t

PWLCS

t

HA

t

DOM

t

SD

t

PWHCS

t

HD

t

PWHCS

t

HOM

65-6294-26

D

7-0

t

DOZ

Figure 25. Microprocessor Parallel Port – Read Timing

65-6294-27

32 REV. 1.0 3/26/03

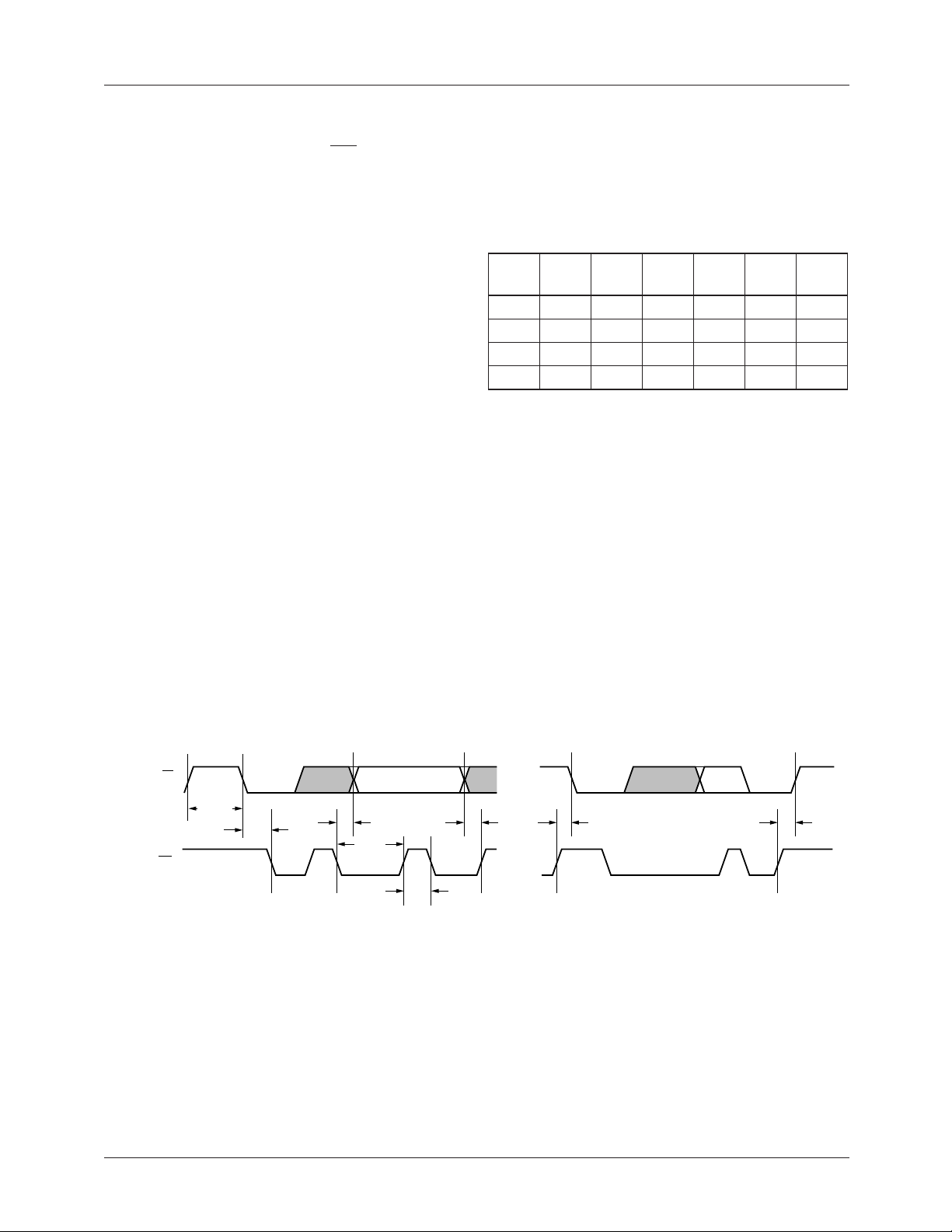

PRODUCT SPECIFICATION TMC2193

Serial Control Port (R-Bus)

In addition to the 12-wire parallel port, a 2-wire serial con­trol interface is provided, active when SER
port alone can control the entire chip. Up to four TMC2193
devices may be connected to the 2-wire serial interface with
each device having a unique address.

The 2-wire interface comprises a clock (SCL) and a bi-direc­tional data (SDA) pin. The encoder acts as a slave for receiv­ing and transmitting data over the serial interface. When the
serial interface is not active, the logic levels on SCL and
SDA need to be pulled HIGH by external pull-up resistors.

Data received or transmitted on the SDA line must be stable
for the duration of the positive-going SCL pulse. Data on
SDA must change only when SCL is LOW. If SDA changes
state while SCL is HIGH, the serial interface interprets that
action as a start or stop sequence.

There are six components to serial bus operation:

• Start signal

• Slave address byte

• Block Pointer

• Offset Pointer

• Data byte to read or write

• Stop signal

is LOW. Either

bit indicates the direction of data transfer, read from or write

to the slave device. If the transmitted slave address matches

the address of the device (set by the state of the SA1-0 input

pins in Table 24), the TMC2193 acknowledges by bringing

SDA LOW on the 9th SCL pulse. If the addresses do not

match, the TMC2193 will not acknowledge.

Table 25. Serial Port Addresses

A6 A5 A4 A3 A2A1(SA1)A0(SA0)

1010100

1010101

1010110

1010111

Data Transfer via Serial Interface

For each byte of data read or written, the MSB is the first bit

of the sequence.

If the TMC2193 does not acknowledge the master device

during a write sequence, the SDA remains HIGH so the mas-

ter can generate a stop signal. If the master device does not

acknowledge the TMC2193 during a read sequence, the

encoder interprets this as “end of data”.

When the serial interface is inactive (SCL and SDA are
HIGH) communications are initiated by sending a start sig­nal. The start signal is a HIGH-to-LOW transition on SDA
while SCL is HIGH. This signal alerts all slaved devices that
a data transfer sequence is coming.

The first eight bits of data transferred after a start signal com­prise a seven bit slave address and a single R/W bit. The R/W

SDA / R/W

t

SCL / CS

t

STAH

BUFF

t

DHO

t

DSU

t

DAL

Figure 26. Serial Port Read/Write Timing

Data are read from the control registers of the TMC2193 in a
similar manner. Reading requires two data transfer opera­tions:

The base address must be written with the R/W bit of the
slave address byte LOW to set up a sequential read opera­tion.

Writing data to specific control registers of the TMC2193

requires that the 8 bit address of the control register of inter-

est be written after the slave address has been established.

This control register address is the base address for subse-

quent write operations. The base address auto increments by

one for each byte of data written after the data byte intended

for the base address.

t

BAH

t

STASU

t

STOSU

Reading (the R/W bit of the slave address byte HIGH)

begins at the previously established base address. The

address of the read register auto increments after each byte is

transferred.

To terminate a write sequence to the TMC2193, a stop signal

must be sent. A stop signal comprises a LOW-to-HIGH tran-

sition of SDA while SCL is HIGH. To terminate a read

65-6294-28

REV. 1.0 3/26/03 33

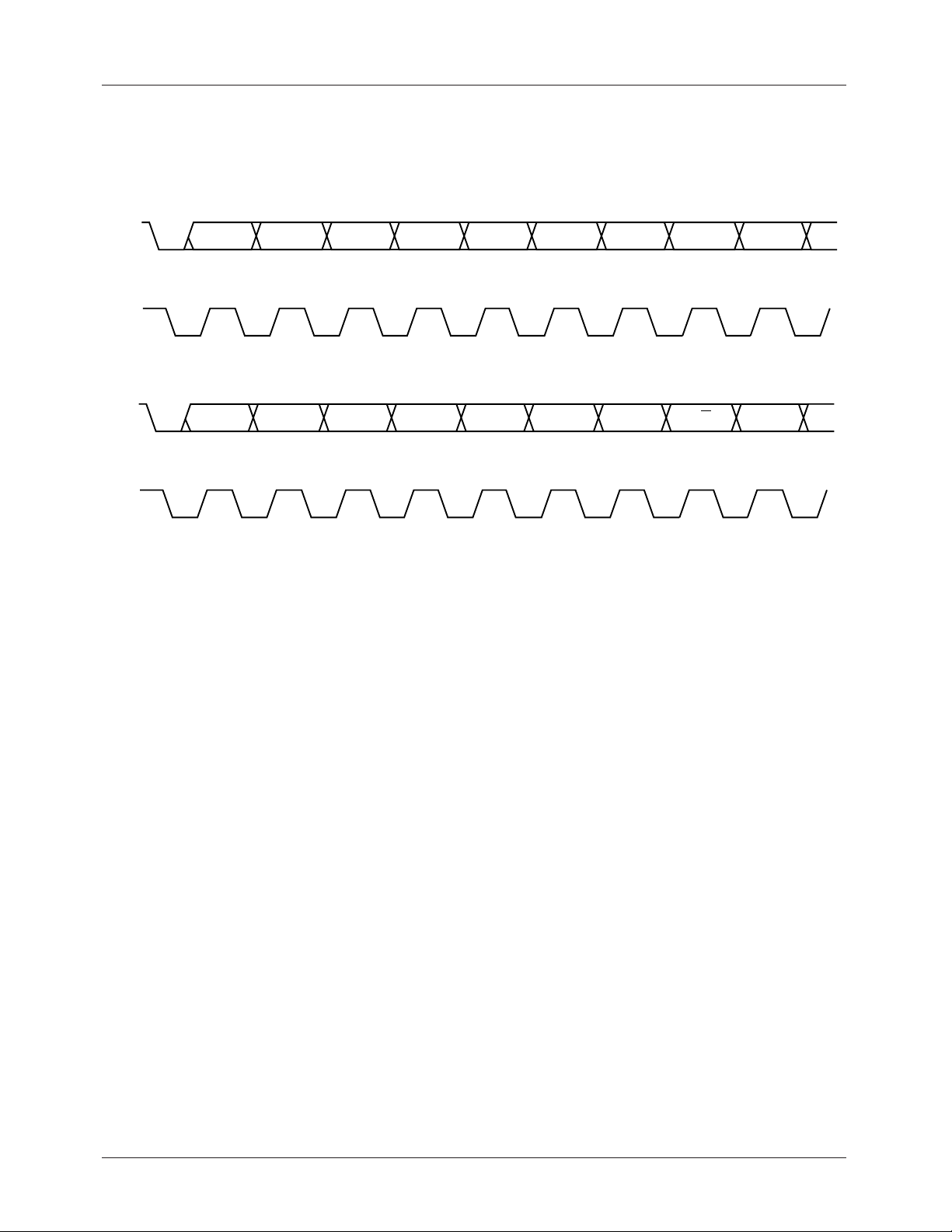

TMC2193 PRODUCT SPECIFICATION

sequence simply do not acknowledge (NOACK) the last byte
received and the TMC2193 will terminate the sequence.

A repeated start signal occurs when the master device driv­ing the serial interface generates a start signal without first

SDA

SCL

SDA

SCL

Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 ACK

Figure 27. Serial Interface – Typical Byte Transfer

A

6

A

5

A

4

Figure 28. Serial Interface – Chip Address

A

3

generating a stop signal to terminate the current communica-

tion. This is used to change the mode of communication

(read, write) between the slave and master without releasing

the serial interface lines.

65-6294-29

A

2

SA

1

SA

0

R/W ACK

65-6294-30

Serial Interface Read/Write Examples

Write to one control register

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (00)

• Offset Pointer

• Data byte to base address

• Stop signal

Write to four consecutive control registers

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (00)

• Offset Pointer

• Data byte to base address

• Data byte to (base address + 1)

• Data byte to (base address + 2)

• Data byte to (base address + 3)

• Stop signal

Write to one OLUT location

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (01)

• Offset Pointer (base address)

• Data byte to base address (Y or Green)

• Data byte to base address (Cb or Blue)

• Data byte to base address (Cr or Red)

• Stop signal

Write to four consecutive OLUT locations

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (01)

• Offset Pointer (base address)

• Data byte to base address (Y or Green)

• Data byte to base address (Cb or Blue)

• Data byte to base address (Cr or Red)

• Data byte to base address +1 (Y or Green)

• Data byte to base address +1 (Cb or Blue)

• Data byte to base address +1 (Cr or Red)

• Data byte to base address +2 (Y or Green)

• Data byte to base address +2 (Cb or Blue)

• Data byte to base address +2 (Cr or Red)

• Data byte to base address +3 (Y or Green)

• Data byte to base address +3 (Cb or Blue)

• Data byte to base address +3 (Cr or Red)

• Stop signal

Read from one control register

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (00)

• Offset Pointer

• Stop signal

• Start signal

• Slave Address byte (R/W bit = HIGH)

• Data byte from base address

•NOACK

34 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Read from four consecutive control registers

• Start signal

• Slave Address byte (R/W bit = LOW)

• Block Pointer (00)

• Offset Pointer

• Stop signal

• Start signal

Control Register Map

Table 26. Control Register Map

Reg Bit Mnemonic Function

TMC2193 Identification Registers (Read only)

00 7-0 PARTID2 Reads back 97h

01 7-0 PARTID1 Reads back 21h

02 7-0 PARTID0 Reads back 93h

03 7-0 REVID Silicon revision #

Gamma Filters Register

04 7 GAMENG Gamma Filter Enable – Green

04 6 GAMENC Gamma Filter Enable – Blue Red

04 5 GAMSELG Gamma Filter Selection – Green

04 4 GAMSELC Gamma Filter Selection – Blue

Red

04 3 SRESET

04 2 SKEN Data KEY Enable

04 1-0 PDRM Pixel Data Ramping Mode

Input Format Register

05 7 D1OFF YCBCR Input Formatting

05 6-4 INMODE Input Mode Select

05 3-2 OMIX Overlay Mixer Select

05 1-0 SOURCE Video Input Select

General Control Register

06 7-6 FORMAT Video Format

06 5-3 MODE Video Mode

06 2 PDCDIR PDC Directional Control

06 1 TOUT External Sync Output Control

06 0 TSOUT External Sync Delay Control

Horizontal Ancillary Data Control Register

07 7 LDFID Field Lock Select

07 6 SKFLIP Soft Key Inversion

07 5 DDSRST DDS Reset

07 4-3 Reserved

07 2 ANCFREN Ancillary Frequency Enable

07 1 ANCPHEN Ancillary Phase Enable

07 0 ANCTREN Ancillary Timing Enable

Software RESET

• Slave Address byte (R/W bit = HIGH)

• Data byte from base address

• Data byte from (base address + 1)

• Data byte from (base address + 2)

• Data byte from (base address + 3)

•NOACK

Table 26. Control Register Map (continued)

Reg Bit Mnemonic Function

Ancillary Data ID Register

08 7-0 ANCID Ancillary Data Identification

Keying/Overlay Engine

09 7 HKEN Hardware KEY Enable

09 6 BUKEN Burst KEY Enable

09 5 SKEXT Data KEY Operation Select

09 4 DKDIS Green/Y Data KEY Disable

09 3 EKDIS Blue/C

09 2 FKDIS Red/CR Data KEY Disable

09 1-0 LAYMODE Layer Assignment Select

Key Value Registers

0A 7-0 DKEYMAX Green/Y Maximum Data Key

0B 7-0 DKEYMIN Green/Y Minimum Data Key

0C 7-0 EKEYMAX Blue/C

0D 7-0 EKEYMIN Blue/CB Minimum Data Key

0E 7-0 FKEYMAX Red/CR Maximum Data Key

0F 7-0 FKEYMIN Red/CR Minimum Data Key

DAC Control Registers

10 7 DAC4DIS D/A #4 Disable

10 6 DAC3DIS D/A #3 Disable

10 5 DAC2DIS D/A #2 Disable

10 4 DAC1DIS D/A #1 Disable

10 3 Reserved Set to 0.

10 2 OLUTDIS Overlay LUT Disable

10 1-0 OUTMODE Output Modes

Data KEY Disable

B

Value

Value

Maximum Data Key

B

Value

Value

Value

Value

REV. 1.0 3/26/03 35

TMC2193 PRODUCT SPECIFICATION

Table 26. Control Register Map (continued)

Reg Bit Mnemonic Function

11 7 DRSSEL DRS Selection

11 6 OFMT Component Data Formatting

11 5 COMP2DB Composite 2 Overflow Control

11 4 SINEN X/Sin(x) Filter Enable

11 3 REFSEL Reference DAC Output Selection

11 2 LUMDIS Luma Disable

11 1 CHRMDIS Chroma Disable

11 0 BURSTDIS Burst Disable

VBI Ped Enable Registers

14 7-0 VBIPEDEM VBI Pedestal Enable, Even Fields

15 7-0 VBIPEDEL VBI Pedestal Enable, Even Fields

16 7-0 VBIPEDOM VBI Pedestal Enable, Odd Fields

17 7-1 VBIPEDOL VBI Pedestal Enable, Odd Fields

17 0 HVA Horizontal and Vertical Sync

Alignment

Vertical Blanking Interval Enable Registers

18 7 Reserved

18 6 GLKCTL1 Genlock Control Register 1

18 5 GLKCTL0 Genlock Control Register 0

18 4-0 VBIENF1 VBI Active Video Enable, Field 1

19 7 SHORT Test Register

19 6 T512 EH/SL Offset Control Bit

19 5 HALFEN

19 4-0 VBIENF2 VBI Active Video Enable, Field 2

Pedestal Height Register

1A 7 Reserved

1A 6-0 PEDHGT1 Composite Pedestal Height

Closed Caption Registers

1C 7-0 CCD1 First Byte of CC Data

1D 7-0 CCD2 Secons Byte of CC Data

1E 7 CCON Enable CC Data Packet

1E 6 CCRTS Request to Send Data

1E 5 CCPAR Auto Parity Generation

1E 4 CCFLD CC Field Select

1E 3-0 CCLINE CC Line Select

1F 7-0 PDCNT Pixel Data Control Start

20 7-0 SY Horizontal Sync Tip Duration

21 7-0 BR Breezeway Duration

22 7-0 BU Burst Duration

23 7-0 CBP Color Back Porch Duration

Half Line Enable

Timing Registers

Table 26. Control Register Map (continued)

Reg Bit Mnemonic Function

24 7-0 XBP Extended Color Back Porch

Duration

25 7-0 VA Active Video Region Duration

26 7-0 VC Active Video Region 2nd Half

Line Duration

27 7-0 VB Active Video Region 1st Half

Line Duration

28 7-0 EL Equalization Pulse Low Duration

29 7-0 EH Equalization Pulse High

Duration

2A 7-0 SL Vertical Sync Pulse Low

Duration

2B 7-0 SH Vertical Sync Pulse High

Duration

2C 7-0 FP Front Proch Duration

2D 7-6 XBP Extended Color Back Porch

Duration

2D 5-4 VA Active Video Duration

2D 3-2 VB Active Video Region 1st Half

Line Duration

2D 1-0 VC Active Video Region 2nd Half

Line Duration

2E 7-5 FIELD Fiele Identification (read only)

2E 4-0 LTYPE Line Type Identification (read

only)

2F 7-0 CBL Color Bar Duration

Color Space Matrix Registers

30 7-0 MCF1L Matrix Coefficient #1

31 7-0 MCF2L Matrix Coefficient #2

32 7-0 MCF3L Matrix Coefficient #3

33 7-0 MCF4L Matrix Coefficient #4

34 7-0 MCF5L Matrix Coefficient #5

35 7-0 MCF6L Matrix Coefficient #6

36 7-0 MCF7L Matrix Coefficient #7

37 7-0 MCF8L Matrix Coefficient #8

38 7-0 MCF9L Matrix Coefficient #9

39 7-0 MCF10L Matrix Coefficient #10

3A 7-4 MCF1M Matrix Coefficient #1

3A 3-0 MCF2M Matrix Coefficient #2

3B 7-4 MCF3M Matrix Coefficient #3

3B 3 Reserved Set to 0.

3B 2-0 MCF4M Matrix Coefficient #4

36 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Table 26. Control Register Map (continued)

Reg Bit Mnemonic Function

3C 7-4 MCF5M Matrix Coefficient #5

3C 3 Reserved Set to 0.

3C 2-0 MCF6M Matrix Coefficient #6

3D 7-4 MCF7M Matrix Coefficient #7

3D 3-0 MCF8M Matrix Coefficient #8

3E 7-4 MCF9M Matrix Coefficient #9

3E 3-0 MCF10M Matrix Coefficient #10

3F 7 SEL_CLK DCVBS Clock Select

3F 6 RGB_CLIP RGB Limit Control

3F 5 GAUSS_BVP Gaussian Bypass Select

3F 4 SEL_PIX DCVBS Output Selection

3F 3 C2DB_OFF COMP2DB Offset Selection

3F 2 NMEH NTSC-M Component

Enhancement

3F 1-0 CSMFMT Color Space Matrix

Configuration

Subcarrier Registers

40 7-0 FREQL Subcarrier Frequency

41 7-0 FREQ3 Subcarrier Frequency

Table 26. Control Register Map (continued)

Reg Bit Mnemonic Function

42 7-0 FREQ2 Subcarrier Frequency

43 7-0 FREQM Subcarrier Frequency

44 7-0 SYSPHL System Phase

45 7-0 SYSPHM System Phase

46 7-0 BURPHL Burst Phase

47 7-0 BURPHM Burst Phase

48 7-0 BRSTFULL Burst Height – Maximum

Amplitude

49 7-0 BRST1 Burst Height – 1st Intermediate

Value

4A 7-0 BRST2 Burst Height – 2nd Intermediate

Value

Pedestal Height Register

4B 7 NBMD Component Blank and Sync

Level Selection

4B 6-0 PEDHGT2 Component Pedestal Height

Note:

1. For each register listed above, all bits not specified are
reserved and should be set to logic LOW to ensure proper
operation.

Control Register Definitions

Part Identification Register (0x00)

76543210

PARTID2

Reg Bit Name Description

00 7-0 PARTID2 (Read Only) 0x97

Part Identification Register (0x01)

76543210

PARTID1

Reg Bit Name Description

01 7-0 PARTID1 (Read Only) 0x21

REV. 1.0 3/26/03 37

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Part Identification Register (0x02)

76543210

PARTID0

Reg Bit Name Description

02 7-0 PARTID0 (Read Only) 0x93

Revision Identification Register (0x03)

76543210

REVID0

Reg Bit Name Description

03 7-0 REVID0 Reads back the revision number of the part.

Gamma Filters Register (0x04)

76543210

GAMENG GAMENC GAMSELG GAMSELC SRESET

SKEN PDRM

Reg Bit Name Description

04 7 GAMENG Gamma Filter Enable – Green.

When is GAMENG is LOW, gamma filter on the Green path is bypassed.
When is GAMENG is HIGH, gamma filter on the Green path is enabled.

04 6 GAMENC Gamma Filter Enable – Blue Red.

When GAMENC is LOW, gamma filter on the Blue and Red path is
bypassed. When GAMENC is HIGH, gamma filter on the Blue and Red path
is enabled.

04 5 GAMSELG Gamma Filter Selection – Green.

When GAMSELG is LOW, Green = (Green)
When GAMSELG is HIGH, Green = (Green)

04 4 GAMSELC Gamma Filter Selection – Blue Red.

When GAMSELC is LOW, Blue = (Blue)
When GAMSELC is HIGH, Blue = (Blue)

04 3 SRESET Software RESET.

When LOW, resets internal state machines and disables outputs.
When HIGH, state machines are active and outputs are enabled.

04 2 SKEN Data KEY Enable.

When SKEN is LOW, Data keying is disabled.
When SKEN is HIGH, Data keying is enabled.

04 1-0 PDRM Pixel Data Ramping Mode. Pixel Data weighting for the rising edge of

active video.

NTSC: 0 0 1/8 1/2 7/8 1 1
PAL: 0 1/8 3/8 5/8 7/8 1 1

00 Pixels are weighted on the edge.
01 Sample and hold the 5th pixel for the slope weighting
1X Hard switch 000111

1/2.8

1/2.2

1/2.8

, Red = (Red)

1/2.2

,Red = (Red)

1/2.8

1/2.2

38 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Input Format Register (0x05)

76543210

D10FF INMODE OMIX SOURCE

Reg Bit Name Description

05 7 D1OFF YCBCR Input Formatting.

When D1OFF is HIGH, 64 is subtracted from Y data path of the PD port.
When D1OFF is LOW, pixel data is passed through.

05 6-4 INMODE Input Mode Select.

000 24 bit GBR PD[7:0] = G PD[23:16] = B PD[15:8] = R
100 24 bit YC
101 10 bit D1 (YCBCR) PD[23:14] = YCBCR at 27MHz
110 20 bit YCBCR (4:4:4) PD[9:0] = Y PD[23:14] = CBCR (at 27MHz)
111 20 bit YCBCR (4:2:2) PD[9:0] = Y PD[23:14] = CBCR

05 3-2 OMIX Overlay Mixer Select.

00 No mix – PD data is always passed
01 Hard mix – mixer performs a hard switch between PD and Overlay
10 Set1 mix – the pixel data has the following weighting on the

transition; 0, 1/2, 1

11 Set2 mix – the pixel data has the following weighting on the

transition; 0, 1/8, 1/2, 7/8, 1

05 1-0 SOURCE Video Input Select. Chooses from internal test patterns or pixel data port.

00 PD PORT
01 Modulated Ramp
10 INTERNAL COLOR BAR (75%)
11 INTERNAL COLOR BAR (100%)

(4:4:4) PD[7:0] = Y PD[23:16] = CB PD[15:8] = C

BCR

R

REV. 1.0 3/26/03 39

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

General Control Register (0x06)

76543210

FORMAT MODE PDCDIR TOUT TSOUT

Reg Bit Name Description

06 7-6 FORMAT Video Format.

00 NTSC
01 PAL – B,G,H,I,N
10 PAL – M
11 Reserved

06 5-3 MODE Video Mode.

000 MASTER with free-running subcarrier
001 SLAVE with free-running subcarrier
010 CCIR656 with free-running subcarrier
011 GENLOCK with subcarrier phase and frequency locked to the GRS

information.
100 MASTER with subcarrier phase reset every 8 fields
101 SLAVE with subcarrier phase reset every 8 fields
110 CCIR656 with subcarrier phase reset every 8 fields.
111 DRS-Lock with subcarrier phase and frequency locked to the DRS

information.

06 2 PDCDIR PDC Directional Control.

06 1 TOUT External Sync Output Control.

06 0 TSOUT External Sync Delay Control.

When PDC is LOW, the PDC pin is an output.
When PDCDIR is HIGH, the PDC pin is an input that can override the
internally generated PDC and blank the active video of a line.

When TOUT = LOW, a MPEG style field toggle is the output on pin VSOUT
When TOUT = HIGH, a traditional vertical sync is the output on pin VSOUT.

When the TSOUT is LOW, HSOUT, VSOUT are delayed to match
propagation delay through the chip. When TSOUT is HIGH, HSOUT,
VSOUT are aligned with the incoming data on the PD port.

.

40 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Horizontal Ancillary Data Control Register (0x07)

76543210

LDFID SKFLIP DDSRST Reserved ANCFREN ANCPHEN ANCTREN

Reg Bit Name Description

07 7 LDFID Field Lock Select. When LDFID is HIGH, the FLD[2:0] pins are used as

inputs to lock the field the that the TMC2193 is encoding. 5 PXCK’s after
the falling edge of HSIN the FLD[2:0] pins are sampled. When LDFID is
LOW, the FLD[2:0] pins output the current field that is being encoded.

07 6 SKFLIP Soft Key Inversion.

When SKFLP is LOW, the key generated by the data keying is a normal
state. When SKFLP is HIGH, the key generated by the data keying is a
inverted state.

07 5 DDSRST DDS Reset. By inserting a logic HIGH into this register the DDS

accumulator is reset to SYSPH value at the start of the next field 1 and
DDSRST is reset LOW. This enables the DDS to be reset when the
encoder is operating with a free running subcarrier.

07 4-3 Reserved

07 2 ANCFREN Ancillary Frequency Enable.

When HIGH, the encoder gets subcarrier frequency data (FREQ3-0) from
incoming ancillary data (in accordance with FRV bit). When LOW,
FREQ3-0 registers contain the subcarrier frequency data.

07 1 ANCPHEN Ancillary Phase Enable.

When HIGH, the encoder gets subcarrier phase offset data (SCHPHL and
SCHPHM) from incoming ancillary data (in accordance with PHV bit).
When LOW, a default value of 0000h is used for subcarrier phase.

07 0 ANCTREN Ancillary Timing Enable.

When HIGH, the encoder decodes incoming ancillary data to determine
video timing (FIELD and SVF). When LOW, the ancillary timing reference
data is ignored.

Ancillary Data ID Register (0x08)

76543210

ANCID

Reg Bit Name Description

08 7-0 ANCID Ancillary Data Identification.

Bits 7-0 determine the ancillary data identification. Bit 0 is an odd parity bit.
The value in this register must match that of the incoming ancillary data.

REV. 1.0 3/26/03 41

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Keying/Overlay Engine Register (0x09)

76543210

HKEN BUKEN SKEXT DKDIS EKDIS FKDIS LAYMODE

Reg Bit Name Description

09 7 HKEN Hardware KEY Enable.

When LOW, the KEY pin is ignored.
When HIGH, the KEY pin is enabled.

09 6 BUKEN Burst KEY Enable.

When LOW, the output video burst is generated internally.
When HIGH, the output video burst is taken from the CVBS port.

09 5 SKEXT Data KEY Operation Select.

When LOW, data keying is allowed only during active video window.
When HIGH, data keying is allowed during frame.

09 4 DKDIS Green/Y Data KEY Disable.

When LOW, Green/Y input data is enabled for data keying.
When HIGH, Green/Y input data is ignored for data keying.

09 3 EKDIS Blue/C

When LOW, Blue/CB input data is enabled for data keying.
When HIGH, Blue/CB input data is ignored for data keying.

09 2 FKDIS Red/CR Data KEY Disable.

09 1-0 LAYMODE Layer Assignment Select.

When LOW, Red/CR input data is enabled for data keying.
When HIGH, Red/CR input data is ignored for data keying.

Data KEY Disable.

B

BACKGND

Mode

Source

0 PD OVERLAY 0L4-0 CVBS KEY

1 PD CVBS KEY OVERLAY OL4-0

2 CVBS OVERLAY OL4-0 PD KEY

3 CVBS PD KEY OVERLAY OL4-0

MIDGND
Source Key

FOREGND
Source Key

42 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Key Value Register (0x0A)

76543210

DKEYMAX

Reg Bit Name Description

0A 7-0 DKEYMAX Green/Y Maximum Data Key Value.

DKEYMAX is compared against the 8 MSB’s of Green/Y channel. If
DKEYMAX is greater or equal to Green/Y and DKEYMIN less than Green/Y
then a match is signaled.

Key Value Register (0x0B)

76543210

DKEYMIN

Reg Bit Name Description

0B 7-0 DKEYMIN Green/Y Minimum Data Key Value.

DKEYMIN is compared against the 8 MSB’s of Green/Y channel. If
DKEYMAX is greater or equal to Green/Y and DKEYMIN less than Green/Y
then a match is signaled.

Key Value Register (0x0C)

76543210

EKEYMAX

Reg Bit Name Description

0C 7-0 EKEYMAX Blue/C

EKEYMAX is compared against the 8 MSB’s of Blue/CB channel. If
EKEYMAX is greater or equal to Blue/CB and EKEYMIN less than Blue/CB
then a match is signaled.

Maximum Data Key Value.

B

Key Value Register (0x0D)

76543210

EKEYMIN

Reg Bit Name Description

0D 7-0 DKEYMIN Blue/CB Minimum Data Key Value.

EKEYMIN is compared against the 8 MSB’s of Blue/CB channel. If
EKEYMAX is greater or equal to Blue/CB and EKEYMIN less than Blue/CB
then a match is signaled

REV. 1.0 3/26/03 43

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Key Value Register (0x0E)

76543210

FKEYMAX

Reg Bit Name Description

0E 7-0 FKEYMAX Red/CR Maximum Data Key Value.

FKEYMAX is compared against the 8 MSB’s of Red/C
FKEYMAX is greater or equal to Red/C
then a match is signaled.

and FKEYMIN less than Red/CR

R

channel. If

R

Key Value Register (0x0F)

76543210

FKEYMIN

Reg Bit Name Description

0F 7-0 FKEYMIN Red/C

FKEYMIN is compared against the 8 MSB’s of Red/CR channel. If
FKEYMAX is greater or equal to Red/CR and FKEYMIN less than Red/CR
then a match is signaled.

Minimum Data Key Value.

R

44 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

DAC Control Register (0x10)

76543210

DAC4DIS DAC3DIS DAC2DIS DAC1DIS Reserved OLUTDIS OUTMODE

Reg Bit Name Description

10 7 DAC4DIS D/A #4 Disable.

When DAC4DIS is LOW, the COMPOSITE D/A is enabled.
When DAC4DIS is HIGH, the COMPOSITE D/A is disabled.

10 6 DAC3DIS D/A #3 Disable.

When DAC3DIS is LOW, the CHROMA /P
When DAC3DIS is HIGH, the CHROMA /P

10 5 DAC2DIS D/A #2 Disable.

When DAC2DIS is LOW, the LUMA/PB/B D/A is enabled.
When DAC2DIS is HIGH, the LUMA/PB/B D/A is disabled.

10 4 DAC1DIS D/A #1 Disable.

When DAC1DIS is LOW, the COMP/Y/G and reference D/A is enabled.
When DAC1DIS is HIGH, the COMP/Y/G and reference D/A is disabled.

10 3 Reserved Set to 0.

10 2 OLUTDIS Overlay LUT Disable.

When OLUTDIS is LOW, the olut is enabled.
When OLUTDIS is HIGH, the olut is disabled.

10 1-0 OUTMODE Output Modes.

Bit[1:0] DAC1 DAC2 DAC3 DAC4

00 Y P
01 Comp1 Y C Comp2
10 (ext. sync) Green Blue Red Comp2
11 (sync on G) Green Blue Red Comp2

B

/R D/A is enabled.

R

/R D/A is disabled.

R

P

R

Comp2

REV. 1.0 3/26/03 45

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

DAC Control Register (0x11)

76543210

DRSSEL OFMT COMP2DB SINEN REFSEL LUMDIS CHRMDIS BURSTDIS

Reg Bit Name Description

11 7 DRSSEL DRS Selection.

When DRSSEL is HIGH, PD[7:0] is routed to the DRS detection block.
When DRSSEL is LOW, CVBS[9:2] is routed to the DRS detection block.

11 6 OFMT Component Data Formatting.

When OFMT is LOW, the MSB’s of blue and red component data paths are
inverted to center the data around a D\A code of 512.

11 5 COMP2DB. Composite 2 Overflow Control.

When COMP2DB is HIGH, the digital range of the composite sumer is 0 to
2047 with half the digital resolution. When COMP2DB is LOW, the digital
output of the composite summer is 0 to 1023, all values exceeding 1023 or
below 0 are clipped.

11 4 SINEN X/Sine(X) Filter Enable.

When SINEN is LOW, the X/Sin(X) filter is bypassed.
When SINEN is HIGH, the X/Sin(X) filter is used to compensate for the
DAC roll-off at high frequencies.

11 3 REFSEL Reference DAC Output Selection.

When REFSEL is LOW, a composite sync is the output of the REFDAC.

11 2 LUMDIS Luma Disable.

11 1 CHRMDIS Chroma Disable.

11 0 BURSTDIS Burst Disable.

When REFSEL is HIGH, a reference level equal to the DAC1’s midpoint is
the output of the REFDAC.

When LUMDIS is LOW, the luminance data on the composite data path is
enabled. When LUMDIS is HIGH, the luminance data on the composite
data path is disabled.

When CHRMDIS is LOW, the chrominance data on the composite data
path is enabled. When CHRMDIS is HIGH, the chrominance data on the
composite data path is disabled.

When BURSTDIS is LOW, the burst is enabled.
When BURSTDIS is HIGH, the burst is disabled.

46 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

VBI Ped Enable Register (0x14)

76543210

VBIPEDEM

Reg Bit Name Description

14 7-0 VBIPEDEM VBI Pedestal Enable, Even Fields.

VBIPEDEM is the bits 15-8 of VBIPEDE[15:0]. VBIPEDE controls the
addition of pedestal on a line by line basis from line 10 in NTSC
(VBIPEDE[0] = HIGH) to line 24 (VBIPEDE[14] = HIGH) in the EVEN field
of NTSC. VBIPEDE[15] controls the pedestal from line 25 to line 263
inclusive.

VBI Ped Enable Register (0x15)

76543210

VBIPEDEL

Reg Bit Name Description

15 7-0 VBIPEDEL VBI Pedestal Enable, Even Fields.

VBIPEDEL is the bits 7-0 of VBIPEDE[15:0]. VBIPEDE controls the
addition of pedestal on a line by line basis from line 10 in NTSC
(VBIPEDE[0] = HIGH) to line 24 (VBIPEDE[14] = HIGH) in the EVEN field
of NTSC. VBIPEDE[15] controls the pedestal from line 25 to line 263
inclusive.

VBI Ped Enable Register (0x16)

76543210

VBIPEDOM

Reg Bit Name Description

16 7-0 VBIPEDOM VBI Pedestal Enable, Odd Fields.

VBIPEDOM is the bits 14-7 of VBIPEDO[14:0]. VBIPEDO controls the
addition of pedestal on a line by line basis from line 273 (VBIPEDE[0] =
HIGH) to line 286 (VBIPEDE[13] = HIGH) in the ODD field of NTSC.
VBIPEDO[14] controls the pedestal from line 287 to line 525 inclusive.

REV. 1.0 3/26/03 47

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

VBI Ped Enable Register (0x17)

76543210

VBIPEDOL HVA

Reg Bit Name Description

17 7-1 VBIPEDOM VBI Pedestal Enable, Odd Fields.

VBIPEDOL is the bits 6-0 of VBIPEDO[14:0]. VBIPEDO controls the
addition of pedestal on a line by line basis from line 273 (VBIPEDE[0] =
HIGH) to line 286 (VBIPEDE[13] = HIGH) in the ODD field of NTSC.
VBIPEDO[14] controls the pedestal from line 287 to line 525 inclusive.

17 0 HVA Horizontal and Vertical Sync Alignment.

When HVA is LOW, the falling edge of HSIN
to the rising edge of PXCK to start an field 1. When HVA is HIGH, VSIN is
allowed to vary from HSIN by ±32 pixels.

and VSIN must occur just prior

Vertical Blanking Interval Enable Register (0x18)

76543210

Reserved GLKCTL1 GLKCTL0 VBIENF1

Reg Bit Name Description

18 7 Reserved

18 6 GLKCTL1 Genlock Control Register 1.

When GLKCTL1 is LOW, the PALODD bit of the GRS stream is ignored.
When GLKCTL1 is HIGH, the PALODD bit of the GRS stream controls the
PALODD flip of the subcarrier.

18 5 GLKCTL0 Genlock Control Register 0.

When GLKCTL0 is LOW, the Color Frame bit of the GRS stream is ignored.
When GLKCTL0 is HIGH, the Color Frame bit of the GRS stream controls
the field sequence in the FVHGEN.

18 4-0 VBIENF VBI Active Video Enable, Field 1.

The value of VBIENF1 determines which line blanking stops and active line
for EVEN fields in NTSC starting from line 4 to line 35 or an ODD fields for
PAL starting from line 1 to line 32.

48 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Vertical Blanking Interval Enable Register (0x19)

76543210

SHORT T512 HALFEN

Reg Bit Name Description

19 7 SHORT Test Register. Program LOW.

19 6 T512 EH/SL Offset Control Bit.

When LOW, the true value of EH and SL is offset by 256.
When HIGH, the true value of EH and SL is offset by 512.

19 5 HALFEN Half Line Enable.

When LOW, half-line blanking occurs on line 283 (NTSC) or line 23 (PAL).
When HIGH, line 283 (NTSC) or line 23 (PAL) is treated as a full line of
active video.

19 4-0 VBIENF2 VBI Active Video Enable, Field 2.

The value of VBIENF2 determines which line blanking stops and active line
for ODD fields in NTSC starting from line 4 to line 35 or an EVEN fields for
PAL starting from line 1 to line 32.

VBIENF2

Pedestal Height Register (0x1A)

Reg Bit Name Description

1A 7 Reserved

1A 6-0 PEDHGT1 Composite Pedestal Height.

76543210

Reserved PEDHGT1

PEDHGT1 is a 2’s comp value producing a pedestal height from -22.1 IRE
to 21.7 IRE with .345 IRE steps on the composite data path. The default 7.5
IRE pedestal for NTSC-M results from a hex code of 0010110b.

Closed Caption Register (0x1C)

76543210

CCD1

Reg Bit Name Description

1C 7-0 CCD1 First Byte of CC Data.

Bit 0 is the LSB. The MSB will be overwritten by an ODD Parity Bit if
CCPAR is HIGH.

REV. 1.0 3/26/03 49

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Closed Caption Register (0x1D)

76543210

CCD2

Reg Bit Name Description

1D 7-0 CCD2 Second Byte of CC Data.

Bit 0 is the LSB. The MSB will be overwritten by an ODD Parity Bit if
CCPAR is HIGH

Closed Caption Register (0x1E)

76543210

CCON CCRTS CCPAR CCFLD CCLINE

Reg Bit Name Description

1E 7 CCON Enable CC Data Packet.

Command the CC data generator to send either CC data or a NULL byte
whenever the specified line is transmitted.

1E 6 CCRTS Request To Send Data.

This bit is set HIGH by the user when bytes 0x1C and 0x1D have been

1E 5 CCPAR Auto Parity Generation.

1E 4 CCFLD CC Field Select.

1E 3-0 CCLINE CC Line Select.

loaded with the next two bytes to be sent. When the encoder’s line count
reaches preceding the line specified in bits 4-0 of this register the data will
be transferred from registers 0x1C and 0x1D, and RTS will be RESET
LOW. A new pair of bytes may then be loaded into registers 0x1C and
0x1D. If CCON = 1 and CCRTS = 0 when the CC line is to be sent, NULL
bytes will be sent.

When set HIGH, the encoder replaces the MSB of bytes 0x1C and 0x1D
with a calculated ODD parity. When set LOW, the CC processor transmits
the 16 bits exactly as loaded into registers 0x1C and 0x1D.

When LOW, CC data is transmitted on the selected line of ODD fields.
When HIGH, it is sent on EVEN fields.

Defines (with an offset) the line on which CC data are transmitted.

Timing Register (0x1F)

76543210

PDCNT

Reg Bit Name Description

1F 7-0 PDCNT Pixel Data Control Start.

PDCNT determines the number of pixels (PCK’s) from the midpoint of the
falling edge of horizontal sync to the rising edge of PDC on active video
lines.

50 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Timing Register (0x20)

76543210

SY

Reg Bit Name Description

20 7-0 SY Horizontal Sync Tip Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Timing Register (0x21)

76543210

BR

Reg Bit Name Description

21 7-0 BR Breezeway Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Timing Register (0x22)

76543210

BU

Reg Bit Name Description

22 7-0 BU Burst Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Timing Register (0x23)

76543210

CBP

Reg Bit Name Description

23 7-0 CBP Color Back Porch Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Timing Register (0x24)

76543210

XBP

Reg Bit Name Description

24 7-0 CBP Extended Color Back Porch Duration.

This 8 bit register holds the LSB’s of a 10 bit value extending from 0 to 1023
PCK cycles.

REV. 1.0 3/26/03 51

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Timing Register (0x25)

76543210

VA

Reg Bit Name Description

25 7-0 VA Active Video Region Duration.

This 8 bit register holds the LSB’s of a 10 bit value extending from 0 to 1023
PCK cycles.

Timing Register (0x26)

76543210

VC

Reg Bit Name Description

nd

26 7-0 VC Active Video Region 2

This 8 bit register holds the LSB’s of a 10 bit value extending from 0 to 1023
PCK cycles.

Half Line Duration.

Timing Register (0x27)

76543210

VB

Reg Bit Name Description

27 7-0 VB Active Video Region 1st Half Line Duration.

This 8 bit register holds the LSB’s of a 10 bit value extending from 0 to 1023
PCK cycles.

Timing Register (0x28)

76543210

VB

Reg Bit Name Description

28 7-0 EL Equalization Pulse Low Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

52 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Timing Register (0x29)

76543210

EH

Reg Bit Name Description

29 7-0 EH Equalization Pulse High Duration.

This 8 bit register holds 8 LSB’s of EH, The addition of 256 or 512 is
controlled by T512. The range is either 256 to 511 PCK cycles or 512 to
767 PCK cycles.

Timing Register (0x2A)

76543210

SL

Reg Bit Name Description

2A 7-0 SL Vertical Sync Pulse Low Duration.

This 8 bit register holds 8 LSB’s of SL, The addition of 256 or 512 is
controlled by T512. The range is either 256 to 511 PCK cycles or 512 to
767 PCK cycles.

Timing Register (0x2B)

76543210

SH

Reg Bit Name Description

2B 7-0 SH Vertical Sync Pulse High Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Timing Register (0x2C)

76543210

FP

Reg Bit Name Description

2C 7-0 FP Front Porch Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

REV. 1.0 3/26/03 53

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Timing Register (0x2D)

76543210

XBP VA VB VC

Reg Bit Name Description

2D 7-6 XBP Extended Color Back Porch Duration.

2 MSB’s of the 10 bit XBP, extending from 0 to 1023 PCK cycles.

2D 5-4 VA Active Video Duration.

2 MSB’s of the 10 bit VA, extending from 0 to 1023 PCK cycles.

2D 3-2 VB Active Video Region 1st Half Line Duration.

2 MSB’s of a 10 bit VB, extending from 0 to 1023 PCK cycles.

nd

2D 1-0 VC Active Video Region 2

2 MSB’s of a 10 bit VC, extending from 0 to 1023 PCK cycles.

Half Line Duration.

Timing Register (0x2E)

76543210

FIELD LTYPE

Reg Bit Name Description

2E 7-5 FIELD Field Identification. (READ ONLY)

These three bits are updated 12 PXCK periods after each vertical sync.
They allow the user to determine field type on a continuous basis

2E 4-0 LTYPE LineType Identification (READ ONLY)

These three bits are updated 5 PXCK periods after each horizontal sync.
They allow the user to determine line type on a continuous basis.

Timing Register (0x2F)

76543210

CBL

Reg Bit Name Description

2F 7-0 CBL Color Bar Duration.

This 8 bit register holds a value extending from 0 to 255 PCK cycles.

Color Space Matrix Register (0x30)

76543210

MCF1L

Reg Bit Name Description

30 7-0 MCF1L Matrix Coefficient #1.

Bits 7-0 of MCF1.

54 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Color Space Matrix Register (0x31)

76543210

MCF2L

Reg Bit Name Description

31 7-0 MCF2L Matrix Coefficient #2.

Bits 7-0 of MCF2.

Color Space Matrix Register (0x32)

76543210

MCF3L

Reg Bit Name Description

32 7-0 MCF3L Matrix Coefficient #3.

Bits 7-0 of MCF3.

Color Space Matrix Register (0x33)

76543210

MCF4L

Reg Bit Name Description

33 7-0 MCF4L Matrix Coefficient #4.

Bits 7-0 of MCF4.

Color Space Matrix Register (0x34)

76543210

MCF5L

Reg Bit Name Description

34 7-0 MCF4L Matrix Coefficient #5.

Bits 7-0 of MCF5.

Color Space Matrix Register (0x35)

76543210

MCF6L

Reg Bit Name Description

35 7-0 MCF6L Matrix Coefficient #6.

Bits 7-0 of MCF6.

REV. 1.0 3/26/03 55

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Color Space Matrix Register (0x36)

76543210

MCF7L

Reg Bit Name Description

36 7-0 MCF7L Matrix Coefficient #7.

Bits 7-0 of MCF7.

Color Space Matrix Register (0x37)

76543210

MCF8L

Reg Bit Name Description

37 7-0 MCF8L Matrix Coefficient #8.

Bits 7-0 of MCF8.

Color Space Matrix Register (0x38)

76543210

Reg Bit Name Description

38 7-0 MCF9L Matrix Coefficient #9.

Bits 7-0 of MCF9.

Color Space Matrix Register (0x39)

76543210

Reg Bit Name Description

39 7-0 MCF10L Matrix Coefficient #10.

Bits 7-0 of MCF10.

Color Space Matrix Register (0x3A)

76543210

MCF1M MCF2M

MCF9L

MCF10L

Reg Bit Name Description

3A 7-4 MCF1M Matrix Coefficient #1.

Bits 11-8 of MCF1.

3A 3-0 MCF2M Matrix Coefficient #2.

Bits 11-8 of MCF2.

56 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Color Space Matrix Register (0x3B)

76543210

MCF3M Reserved MCF4M

Reg Bit Name Description

3B 7-4 MCF3M Matrix Coefficient #3.

Bits 11-8 of MCF3.

3B 3 Reserved Set to 0.

3B 2-0 MCF4M Matrix Coefficient #4.

Bits 10-8 of MCF4.

Color Space Matrix Register (0x3C)

76543210

MCF5M Reserved MCF6M

Reg Bit Name Description

3C 7-4 MCF5M Matrix Coefficient #5.

Bits 11-8 of MCF5.

3C 3 Reserved Set to 0.

3C 2-0 MCF6M Matrix Coefficient #6.

Bits 10-8 of MCF6.

Color Space Matrix Register (0x3D)

76543210

MCF7M MCF8M

Reg Bit Name Description

3D 7-4 MCF7M Matrix Coefficient #7.

Bits 11-8 of MCF7.

3D 3-0 MCF8M Matrix Coefficient #8.

Bits 11-8 of MCF8.

Color Space Matrix Register (0x3E)

76543210

MCF9M MCF10M

Reg Bit Name Description

3E 7-4 MCF9M Matrix Coefficient #9.

Bits 11-8 of MCF9.

3E 3-0 MCF10M Matrix Coefficient #10.

Bits 11-8 of MCF10.

REV. 1.0 3/26/03 57

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Color Space Matrix Register (0x3F)

76543210

SEL_CLK RGB_CLIP GAUSS_BYP SEL_PIX C2DB_OFF NMEH CSMFMT

Reg Bit Name Description

3F 7 SEL_PIX DCVBS Output Selection.

When SEL_PIX is HIGH, the interpolated pixel data is selected as the
output for the DCVBS port. When SEL_PIX is LOW, the non-interpolated
pixel data is selected as the output for the DCVBS port.

3F 6 RGB_CLIP RGB Limit Control.

When RGB_CLIP is LOW, the RGB outputs are not limited.
When RGB_CLIP is HIGH, the RGB outputs are limited to a range of 256 to
1023 at the DAC outputs.

3F 5 GAUSS_BYP Gaussian Bypass Select.

When GAUSS_BYP is LOW, the gaussian filter is enabled.
When GAUSS_BYP is HIGH, the gaussian filter is bypassed.

3F 4 SEL_CLK DCVBS Clock Select.

When SEL_CLK is LOW, the DCVBS output is clocked at the PXCK.
When SEL_CLK is HIGH, the DCVBS output is clocked at the PCK.

3F 3 C2DB_OFF COMP2DB Offset Selection.

When C2DB_OFF is HIGH an offset of 256 is added to the COMP2 output
allowing the chrominance data that extends below the sync level to be

3F 2 NMEH NTSC-M Component Enhancement.

3F 1-0 CSMFMT Color Space Matrix Configuration.

passed through the outputs.

When NMEH is LOW, the CSM performs the normal rounding operation on
multipliers 8, 9 , and 10. When NMEH is HIGH, the CSM extends the
number of rounding bits on multipliers 8, 9, and 10. This is recommended if
the input source is YC

CSMFMT Input Component Output

00 YCBC
01 YCBC
10 RGB YPBP
11 RGB RGB

and the component output is RGB.

BCR

R
R

YPBP
RGB

R

R

Subcarrier Register (0x40)

76543210

FREQL

Reg Bit Name Description

40 7-0 FREQL Subcarrier Frequency.

Bits 7-0 of the subcarrier frequency FREQL[31:0].

58 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Subcarrier Register (0x41)

76543210

FREQ3

Reg Bit Name Description

41 7-0 FREQ3 Subcarrier Frequency.

Bits 15-8 of the subcarrier frequency FREQL[31:0].

Subcarrier Register (0x42)

76543210

FREQ2

Reg Bit Name Description

42 7-0 FREQ2 Subcarrier Frequency.

Bits 23-16 of the subcarrier frequency FREQL[31:0].

Subcarrier Register (0x43)

76543210

FREQM

Reg Bit Name Description

43 7-0 FREQM Subcarrier Frequency.

Bits 31-24 of the subcarrier frequency FREQL[31:0].

Subcarrier Register (0x44)

76543210

SYSPHL

Reg Bit Name Description

44 7-0 SYSPHL System Phase.

Bits 7-0 of the video phase offset SYSPH[15:0].

Subcarrier Register (0x45)

76543210

SYSPHM

Reg Bit Name Description

45 7-0 SYSPHM System Phase.

Bits 15-8 of the video phase offset SYSPH[15:0].

REV. 1.0 3/26/03 59

TMC2193 PRODUCT SPECIFICATION

Control Register Definitions (continued)

Subcarrier Register (0x46)

76543210

BURPHL

Reg Bit Name Description

46 7-0 BURPHL Burst Phase.

Bits 7-0 of the burst phase offset BURPH[15:0].

Subcarrier Register (0x47)

76543210

BURPHM

Reg Bit Name Description

47 7-0 BURPHM Burst Phase.

Bits 15-8 of the burst phase offset BURPH[15:0].

Burst Height Register (0x48)

76543210

BRSTFULL

Reg Bit Name Description

48 7-0 BRSTFULL Burst Height – Maximum Amplitude.

The 8 bit value assigned to U burst component in NTSC and to the U and V
components in PAL for the maximum burst amplitude. The burst envelopes
midpoint is derived from BRSTFULL. The value programmed into
BRSTFULL needs to be .707 of the magnitude of the burst vector.

Burst Height Register (0x49)

76543210

BRST1

Reg Bit Name Description

49 7-0 BRST1 Burst Height – 1st Intermediate Value.

The 8 bit value assigned to U burst component in NTSC and to the U and V
components in PAL for the first intermediate value of the burst envelope.
The value programmed into BRST1 needs to be .707 of the magnitude of
the burst vector.

60 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Control Register Definitions (continued)

Subcarrier Register (0x4A)

76543210

BRST2

Reg Bit Name Description

4A 7-0 BRST2 Burst Height – 2nd Intermediate Value.

The 8 bit value assigned to U burst component in NTSC and to the U and V
components in PAL for the second intermediate value of the burst
envelope. The value programmed into BRST2 needs to be .707 of the
magnitude of the burst vector.

Pedestal Height Register (0x4B)

76543210

NBMD PEDHGT2

Reg Bit Name Description

4B 7 NBMD Component Blank and Sync Level Selection.

When NBMD is LOW, the blank level for Y or RGB is 256 and the sync level
is 12. When NMBD is HIGH, the blank level for Y or RGB is a D/A code of
240 and the sync level is a D\A code of 8.

4B 6-0 PEDGHT2 Component Pedestal Height.

PEDHGT2 is a 2’s comp value producing a pedestal height from -22.1 IRE
to 21.7 IRE with .345 IRE steps of the luminance data of the YP
component output.

BPR

REV. 1.0 3/26/03 61

TMC2193 PRODUCT SPECIFICATION

Absolute Maximum Ratings (beyond which the device may be damaged)

Parameter Min. Max. Unit

Power Supply Voltage -0.5 7.0 V

Digital Inputs

Applied Voltage

Forced Current

Digital Outputs

Applied Voltage

Forced Current

Short Circuit Duration (Single Output in HIGH state to GND) 1 second

Analog Output Short Circuit Duration (Single output to GND) Infinite

Temperature

Operating, Ambient -20 +110 °C

Operating, Junction, Plastic package +150 °C

Lead, Soldering (10 seconds) +300 °C

Vapor Phase Soldering (1 minute) +220 °C

Storage -65 +150 °C

Notes:

1. Absolute maximum ratings are limiting values applied individually while all other parameters are within specified operating
conditions. Functional operation under any of these conditions is NOT implied.

2. Applied voltage must be current limited to specified range, and measured with respect to GND.

3. Forcing voltage must be limited to specified range.

4. Current is specified as conventional current, flowing into the device.

2

3,4

2

3,4

-0.5 VDD + 0.5 V

-20.0 20.0 mA

-0.5 VDD + 0.5 V

-20.0 20.0 mA

Operating Conditions

Parameter Min. Nom. Max. Units

V

DD

V

IH

V

IL

I

OH

I

OL

V

REF

I

REF

R

REF

R

OUT

T

A

Pixel Interface

f

PXL

f

PXCK

t

PWHPX

t

PWLPX

Power Supply Voltage 4.75 5.0 5.25 V

Input Voltage, Logic HIGH TTL Compatible Inputs 2.0 V

CMOS Compatible Inputs 0.7V

DD

DD

V

DD

Input Voltage, Logic LOW TTL Compatible Inputs GND 0.8 V

CMOS Compatible Inputs GND 0.3V

DD

Output Current, Logic HIGH -2.0 mA

Output Current, Logic LOW 4.0 mA

External Reference Voltage 1.235 V

D/A Converter Reference Current (I
flowing out of the R

Reference Resistor, V

pin)

REF

= Nom. 1210 Ω

REF

REF

= V

REF

/ R

REF

,

1.020 mA

Total Output Load Resistance 37.5 Ω

Ambient Temperature, Still Air 0 70 °C

Pixel Rate 10 15 Mpps

Master Clock Rate, 2x pixel rate 20 30 MHz

PXCK Pulse Width, HIGH 15 ns

PXCK Pulse Width, LOW 17.5 ns

V

V

V

62 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

Operating Conditions (continued)

Parameter Min. Nom. Max. Units

t

SP

t

HP

Parallel Microprocessor Interface

t

PWLCS

t

PWHCS

t

SA

t

HA

t

SD

t

HD

t

SR

t

HR

Serial Interface

t

D/AL

t

D/AH

t

STAH

t

STASU

t

STOSU

t

BUFF

t

DSU

t

DHO

Setup Time 16 ns

Hold Time 0 ns

CS Pulse Width, LOW 4 PXCK

CS Pulse Width, HIGH 6 PXCK

Address Setup Time 17 ns

Address Hold Time 0 ns

Data Setup Time (write) 16 ns

Data Hold Time (write) 0 ns

RESET Setup Time 12 ns

RESET Hold Time 2 ns

SCL Pulse Width, LOW 1.3 µs

SCL Pulse Width, HIGH 0.6 µs

SDA Start Hold Time 0.6 µs

SCL to SDA Setup Time (Stop) 0.6 µs

SCL to SDA Setup Time (Start) 0.6 µs

SDA Stop Hold Time Setup 1.3 µs

SDA to SCL Data Setup Time 300 ns

SDA to SCL Data Hold Time 300 ns

REV. 1.0 3/26/03 63

TMC2193 PRODUCT SPECIFICATION

Electrical Characteristics

Symbol Parameter Conditions Min. Typ. Max. Units

I

DD

I

DDQ

V

RO

I

BR

I

IH

I

IL

V

OH

V

OL

I

OZH

I

OZL

C

I

C

O

V

OC

R

OUT

C

OUT

Notes:

1. Typical I

2. Timing reference points are at the 50% level.

Power Supply Current VDD = Max., f

Power Supply Current

VDD = Max., f

= 27MHz 335 375 mA

PXCK

= 27MHz 15 25 mA

PXCK

(D/A disabled)

Voltage Reference Output 1.235 V

Input Bias Current, V

REF

Input Current, Logic HIGH V

Input Current, Logic LOW V

V

= Nom. 50 µA

REF

= Max., VIN = V

DD

= Max., VIN = GND -10 µA

DD

DD

10 µA

Output Voltage, Logic HIGH IOH = Max. 2.4 V

Output Voltage, Logic LOW IOL = Max. 0.4 V

Hi-Z Leakage current, HIGH VDD = Max., VIN = V

DD

10 µA

Hi-Z Leakage current, LOW VDD = Max., VIN = GND -10 µA

Digital Input Capacitance TA = 25°C, f = 1MHz 4 10 pF

Digital Output Capacitance TA = 25°C, f = 1MHz 10 pF

Video Output Compliance

-0.3 2.0 V

Voltage

Video Output Resistance 15 kΩ

Video Output Capacitance I

with VDD = +5.0 Volts and TA = 25°C.

DD

= 0 mA, f = 1 MHz 15 25 pF

OUT

Switching Characteristics

Parameter Conditions Min. Typ. Max. Units

PIPES Pipeline Delay PD to Analog Out

PD to DCVBS

t

DOZ

t

DOM

t

HOM

t

DO

Output Delay, CS to low-Z 4 15 ns

Output Delay, CS to Data Valid 15 ns

Output Hold Time, CS to hi-Z 10 ns

Output Delay PXCK to HSOUT, VSOUT,

PDC, LINE, FLD

t

R

t

F

t

DOV

Notes:

1. Timing reference points are at the 50% level.

2. Analog C

3. Pipeline delay, with respect to PXCK, is a function of the phase relationship between the internally generated PCK (PXCK/2)
and PXCK, as established by the hardware RESET

D/A Output Current Risetime 10% to 90% of full-scale 2 ns

D/A Output Current Falltime 90% to 10% of full-scale 2 ns

Analog Output Delay 10 ns

LOAD

<10 pF, D

load <40 pF.

7-0

.

64
66

PXCK

Periods

15 ns

64 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

System Performance Characteristics

Parameter Conditions Min. Typ. Max. Units

RES D/A Converter Resolution 10 10 10 Bits

E

LI

E

LD

E

G

dp Differential Phase PXCK = 27.00 MHz,40 IRE Ramp 0.5 degree

dg Differential Gain PXCK = 27.00 MHz,40 IRE Ramp 0.9 %

SKEW CHROMA to LUMA Output

PSRR Power Supply Rejection

Notes:

1. TTL input levels are 0.0 and 3.0 Volts, 10%-90% rise and fall times <3 ns.

2. Analog CLOAD <10 pF, D7-0 load <40 pF.

Integral Linearity Error 0.25 %

Differential Linearity Error

0.10 %

(monotonic)

Gain Error ±7.5 %FS

01 ns

Skew

f=1kHz 0.5 %/%V

Ratio

DD

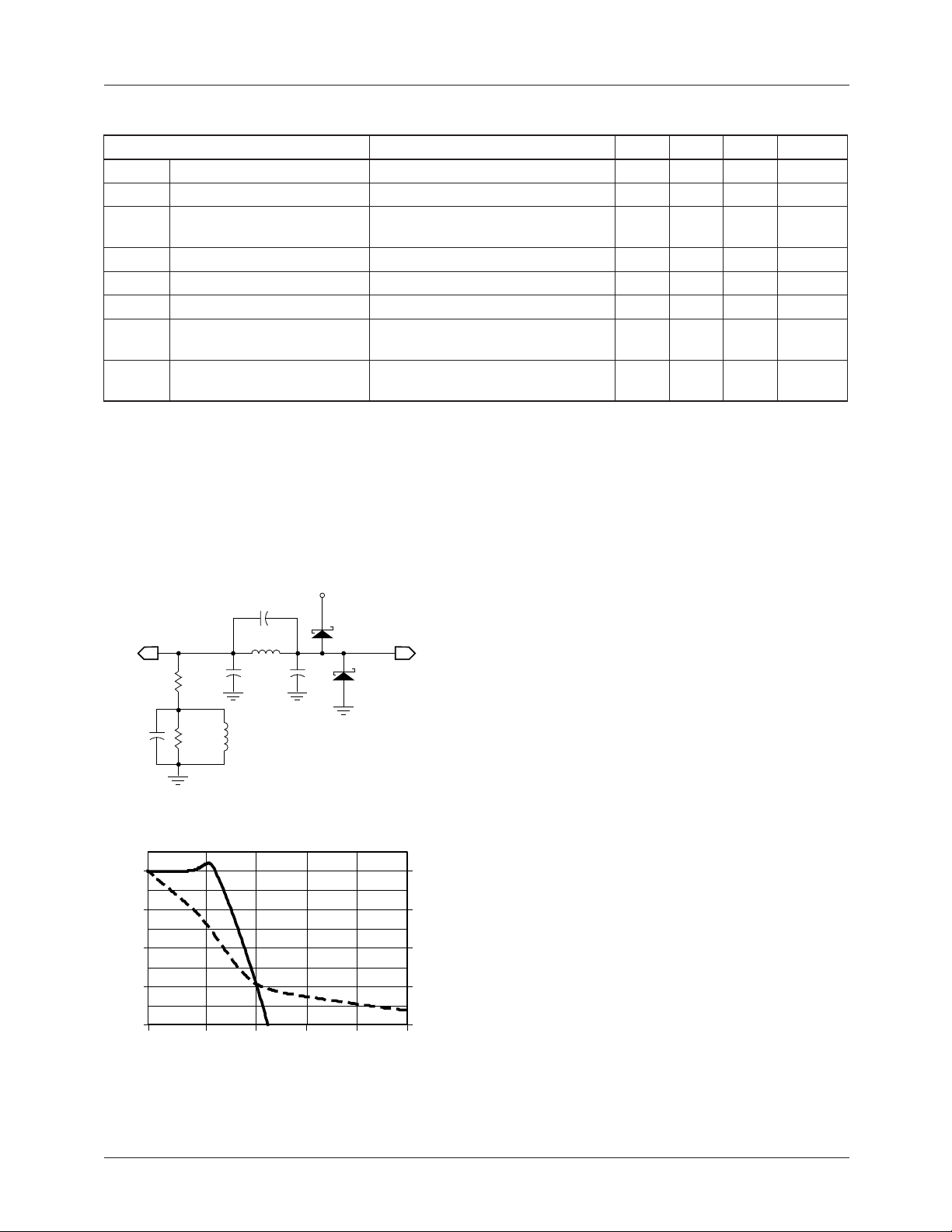

Applications Discussion

The suggested output reconstruction filter is shown in Figure

29. The phase and frequency response for the encoder and

the reconstruction filter is shown in Figure 30.

C6

27pF

A_IN A_OUT

R8

330pF

75Ω

C8

100pF

Figure 29. Typical Analog Reconstruction Filter

0

-10

R9
75Ω

C7

L5 1.8µH

L6

1.0µH

C7

330pF

D1
DIODE
SCHOTTKY

D2
DIODE
SCHOTTKY

65-6294-31

0

90

Phase (deg)

The circuit in Figure 31 shows the connection of power sup­ply voltages, output reconstruction filters and the external
voltage reference. All VDD pins should be connected to the
same power source.

The full-scale output voltage level for each D/A:

V

OUTx

= I

OUTx

= K x (V

x RLx = K x I

REF/RREFx

) x R

REFx

Lx

x R

Lx

where:

•I

is the full-scale output current sourced by the D/A

OUTx

converter.

•RLx is the resistive load on the D/A output pin.

• K is a constant for the TMC2193 D/A converters (approx­imately equal to 34).

•I

is the reference current flowing out of the R

REFx

REFx

pin to ground.

•V

•R

is the voltage measured on the V

REF

is the total resistance connected between the

REFx

R

pin and ground.

REFx

REF

pin.

-20

-30

Attenuation (dB)

-40
0 5 10 15 20 25

Frequency (MHz)

180

270

360

65-6294-32

The reference voltage in Figure 31 is from an LM185 1.2
Volt band-gap reference. The suggested trim is designed to
give ±10% of trim around 5K Ohms. This R
"gain" for that D/A converter. Varying R

REFx

sets the

REFx

±10% will
cause the full-scale output voltage on the D/A to vary by
±10%.

An alternative output reconstruction filter is the SMA-163E,
which contains 4 independent reconstruction filter. The

Figure 30. Overall Response

phase and frequency response of this filter is shown in the
Output Low-Pass Filters Section of this data sheet.

REV. 1.0 3/26/03 65

TMC2193 PRODUCT SPECIFICATION

Layout Considerations

Designing with high-performance mixed-signal circuits
demands printed circuits with ground planes. Wire-wrap is
not an option. Overall system performance is strongly influ­enced by the board layout. Capacitive coupling from digital
to analog circuits may result in poor picture quality. Con­sider the following suggestions when doing the layout:

• Keep analog traces (C
short and far from all digital signals as possible. The
TMC2193 should be located near the board edge, close
to the analog output connectors.

• The power plane for the TMC2193 should be separate
from that which supplies other digital circuitry. A single
power plane should be used for all of the V
the power supply for the TMC2193 is the same for the
system's digital circuitry, power to the TMC2193 should
be filtered with ferrite beads and 0.1µF capacitors to
reduce noise.

• The ground plane should be solid, not cross-hatched.
Connections to the ground plane should be very short.

BYPx

, V

REF

, R

REF

, DACx) as

pins. If

DD

• Decoupling capacitors should be applied liberally to
pins. For best results, use 0.1µF capacitors. Lead lengths
should be minimized. Ceramic chip capacitors are the
best choice.

• If there is dedicated digital power plane, it should not
overlap the TMC2193 footprint, the voltage reference,
or the analog outputs. Capacitive coupling of digital
power supply noise from this layer to the TMC2193 and
its related analog circuitry can have an adverse effect on
performance.

• The PXCK should be handled carefully. Jitter and noise
on this clock or its ground reference will translate to
noise on the video outputs. Terminate the clock line
carefully to eliminate overshoot and ringing.

• Connect all unused inputs to the TMC2193 to either
ground or VDD. Do not leave them unconnected.

66 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

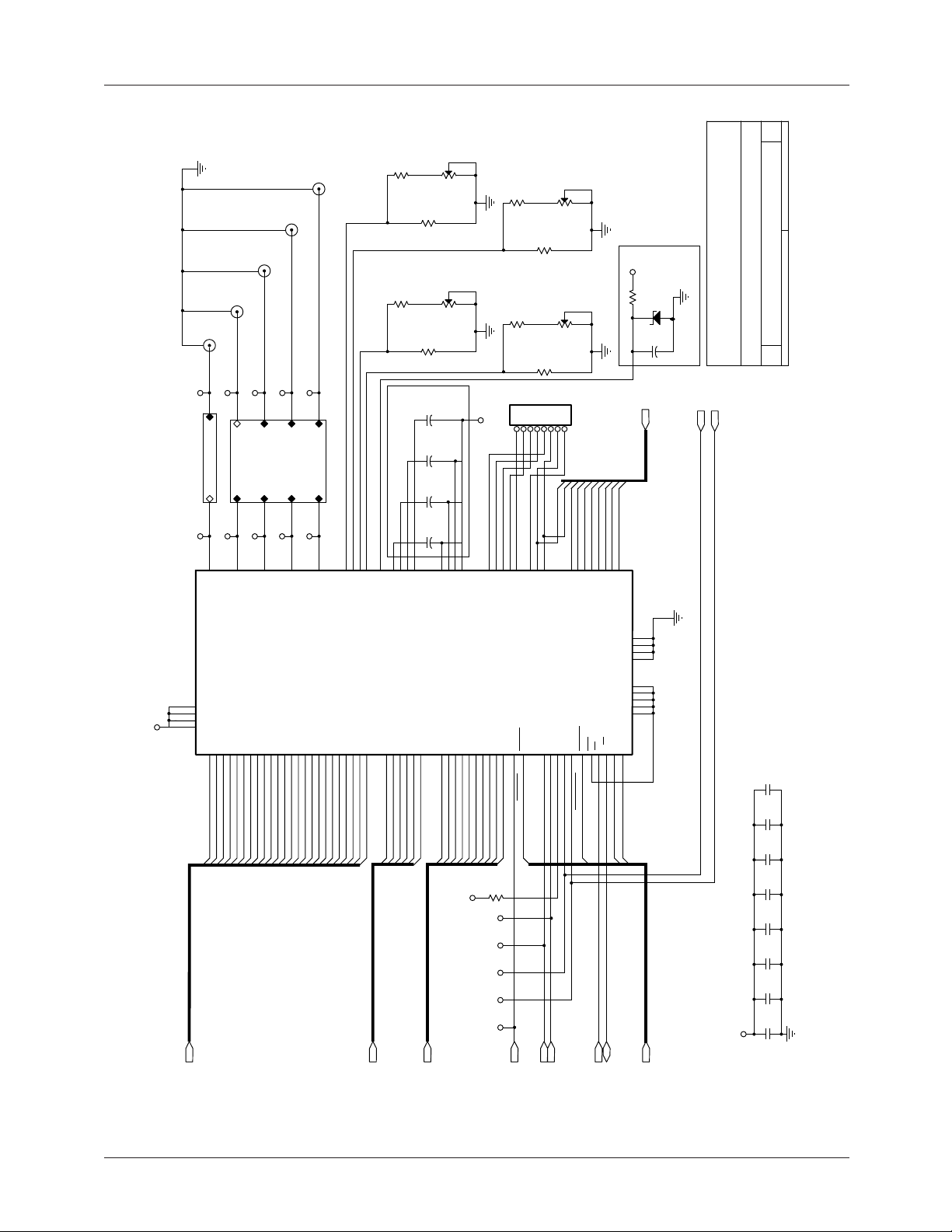

Rev

65-6294-33

of

512Thursday, September 04, 1997

TMB2193 0.9.0

B

Size Document Number

Date: Sheet

J2

2

1

TP17

ORDA

A_IN A_OUT

LPF {Schematic}

2

RDAC

TP19

ST-163E

J3

1

ODA1

AOUT

AIN

2

DAC1

TP21

J4

1

ODA2

DOUT

DIN

2

DAC2

TP23

J5

1

ODA3

BOUT

BIN

DAC3

2

TP25

J6

1

ODA4

COUTCIN

DAC4

{Schematic}

2

R39

10K Pot

R31

10K Ω

1

R35

8.25KΩ

2

R37

10K Pot

R29

10K Ω

1

R33

8.25KΩ

C58

0.1µF

C57

0.1µF

CONNECT Cx TO VDDA PIN

AND CBYPy PIN DIRECTLY

C56

0.1µF

3

R30

3

R28

JP13

VDD

R38

10K Ω

R34

8.25KΩ

R36

10K Ω

R32

8.25KΩ

1234567

2

10K Pot

1

2

10K Pot

1

3

VDD

3.3K Ohm

R27

D4

1.235V

2

3

8

1

C54

DCVBS[0..9]

DCVBS[0..9]

0.1µF

STUFF EITHER C54 OR D4

Raytheon Electronics - Semiconductor Division

5580 Morehouse Dr.

San Diego, CA 92121

Title

VSOUT

HSOUT

TMC2193.SCH

VCC

TP16

U8

96
72
54
39

PD[0..23]

RDA

19

REFDAC

VDD
VDD
VDD
VDD

PD0

PD0

51

PD1

PD1

TP18

PD2

PD2

DA1

PD3

PD3

TP20

15

COMP/G/Y

PD4

PD5

PD6

PD4

PD5

PD6

PD7

PD7

DA2

10

Y/B/P_B

PD8

PD8

PD9

PD9

TP22

PD10

PD10

PD11

4142434445464748495052

PD11

DA3

5

38

PD12

TP24

CH/R/P_R

PD14

PD13

PD12

PD14

PD13

PD15

DA4

2

PD15

PD16

COMP2

PD16

PD17

PD18

PD17

PD18

PD19

99

PD19

PD20

8

13

R_REF3

R_REF2

R_REF4

PD22

PD20

PD21

PD22

PD21

18

98

V_REF

R_REF1

PD23

OL0

2728293031323334353637

25

PD23

OLENG0

OLENG[0..5]

3

6

11

C_BYB4

C_BYB3

OL1

OL2

OLENG1

OLENG2

OLENG3

16

C_BYB2

C_BYB1

OL4

OL3

2021222324

OLENG4

OLENG5

C55

0.1µF

1

KEY

ECVBS0

ECVBS[0..9]

7

12

17

VDDA

VDDA

VDDA

CVBS093CVBS192CVBS291CVBS390CVBS489CVBS588CVBS687CVBS786CVBS885CVBS9

ECVBS1

ECVBS3

ECVBS2

VDDA

ECVBS4

ECVBS5

VDD

LINE080LINE179LINE2

ECVBS8

ECVBS6

ECVBS7

R40

VSIN

TP30

HSIN

TP29

TP28

HSOUT

TP27

VSOUT

TP26

PXCK

77

78

84

95

ECVBS9

4K7

LINE476LINE3

RESET

RESET

94

EMCU0 ERESET

81

FLD083FLD182FLD2

56

DCVBS3

DCVBS1

DCVBS2

DCVBS0

70

69

D0

VSIN55HSIN

PDC73HSOUT74VSOUT75DCVEN

HSOUT

VSOUT

DCVBS4

DCVBS5

SER

58

57

EDCVBSENEMCU1

DCVBS6

DCVBS9

DCVBS7

DCVBS8

63

D7

D664D565D466D367D268D1

AGND
AGND
AGND
AGND

DGND
DGND
DGND
DGND
DGND

CS/SCL59R/W/SDA60A1/SA161A0/SA0

62

ESA0EMCU3

ESA1EMCU2

SCL

SDA

TMC2193KHC

100

14
9
4

97
71
53
40
26

EMCU[0..3]

VCC

C68

C67

C66

C65

C64

C63

C62

C61

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

0.1µF

SCL

PD[0..23]

OLENGI[0..5]

ECVBS[0..9]

EPXCK

HSIN

VSIN

SDA

EMCU[0..3]

Figure 31. Typical Layout

REV. 1.0 3/26/03 67

TMC2193 PRODUCT SPECIFICATION

AOUTAIN

5

20

AOUT

AIN

U9

1

24

R62

10K

DOUT

17

DOUT

DIN

13

8

COUT

CIN

12

BOUT

BOUT

BIN

A2X4C2X16B2X9D2X

21

NC17NC2

18

JP23

JUMPER

JP22

JUMPER

JP21

JUMPER

JP20

JUMPER

ST-163E

R48

R47

R46

R45

75

65-6294-34

75

ALL 1%

712Thursday, September 04, 1997

75

75

TMB2193 0.9.0

ST-163E

A

Title

Size Document Number Rev

Date: Sheet of

VCC

R61

R60

R59

R58

R57

10K

10K

10K

10K

10K

DIN

CIN COUT

A2XEN

JP14

BIN

JUMPER

R42 R43 R44

R41

DDDD

B2XEN

JP15

JUMPER

JP16

D IS150 OHM (1%)

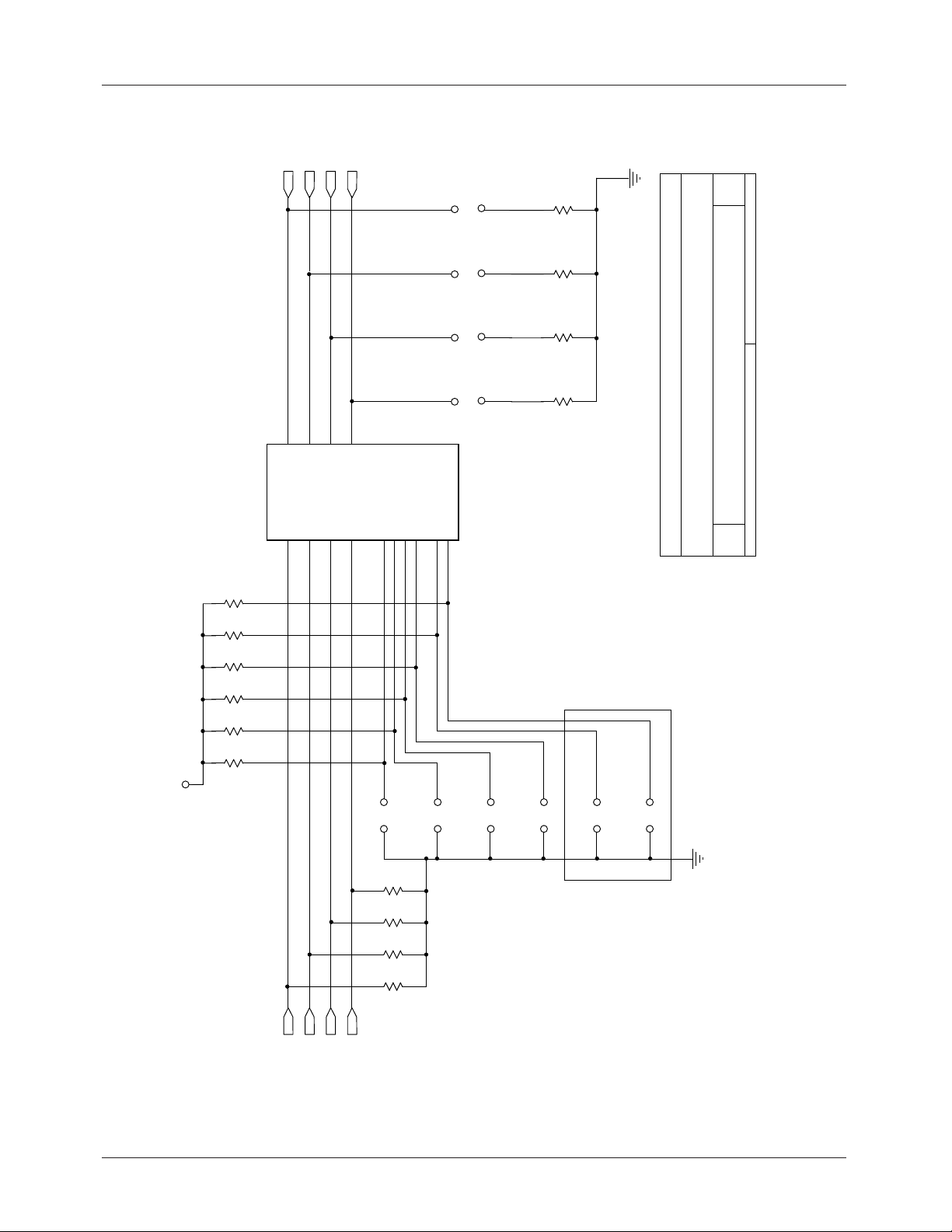

Figure 32. ST-163E Layout

C2XEN

D2XEN

JUMPER

JP17

NC1EN

JUMPER

JP18

NC2EN

JUMPER

JP19

DO NOT STUFF

JUMPER

68 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

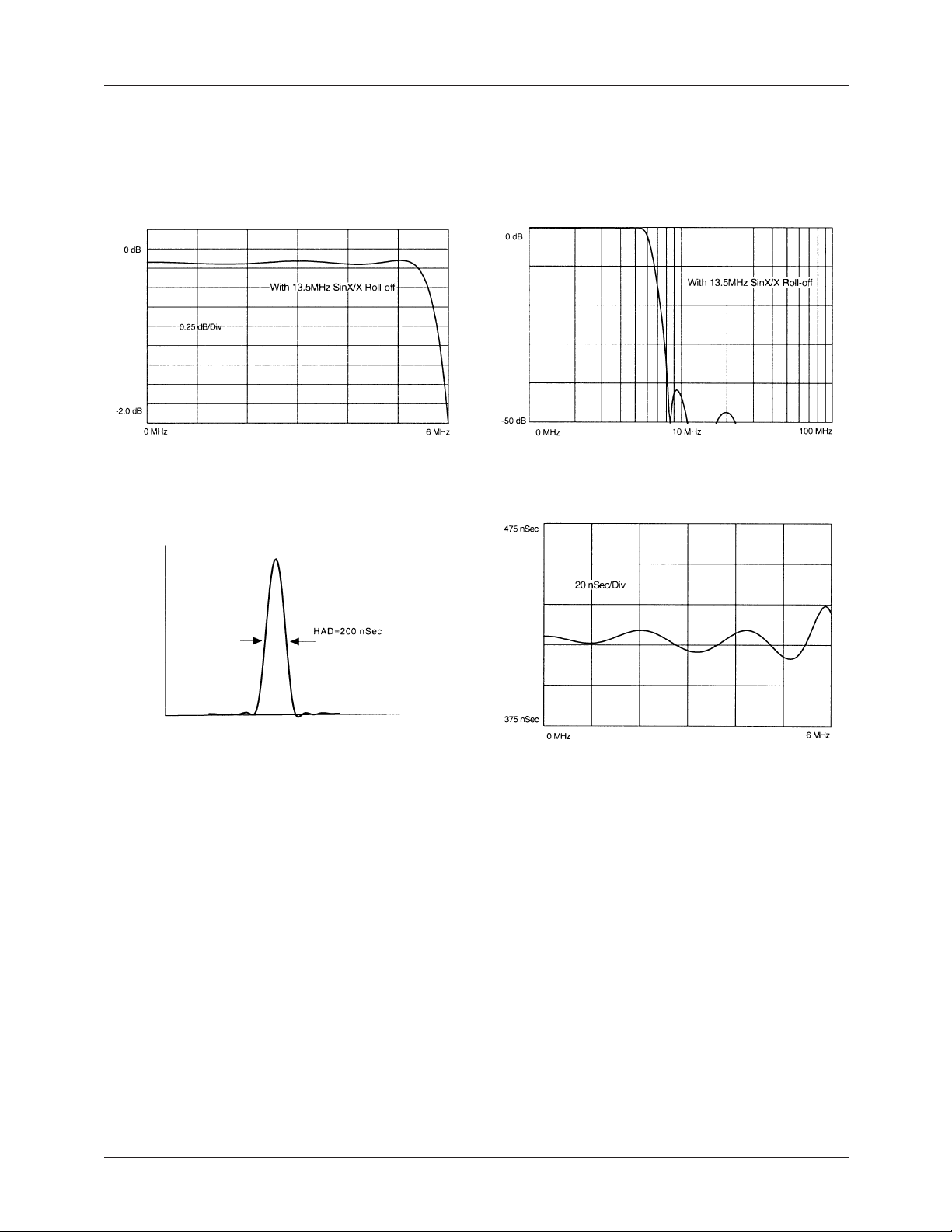

Output Low-Pass Filters

The response at 5.0MHz typically varies < ±0.25dB with
supplies of ±5V to ±8V. When operating in the 0dB gain

Figure 33. Pass Band

mode, pin 6 must be well isolated from ground planes. When
operating in the +6dB gain mode, pin 6 must have a low
resistance path to ground.

Figure 34. Stop Band

Figure 35. 2T Pulse Figure 36. Group Delay

REV. 1.0 3/26/03 69

TMC2193 PRODUCT SPECIFICATION

Notes:

70 REV. 1.0 3/26/03

PRODUCT SPECIFICATION TMC2193

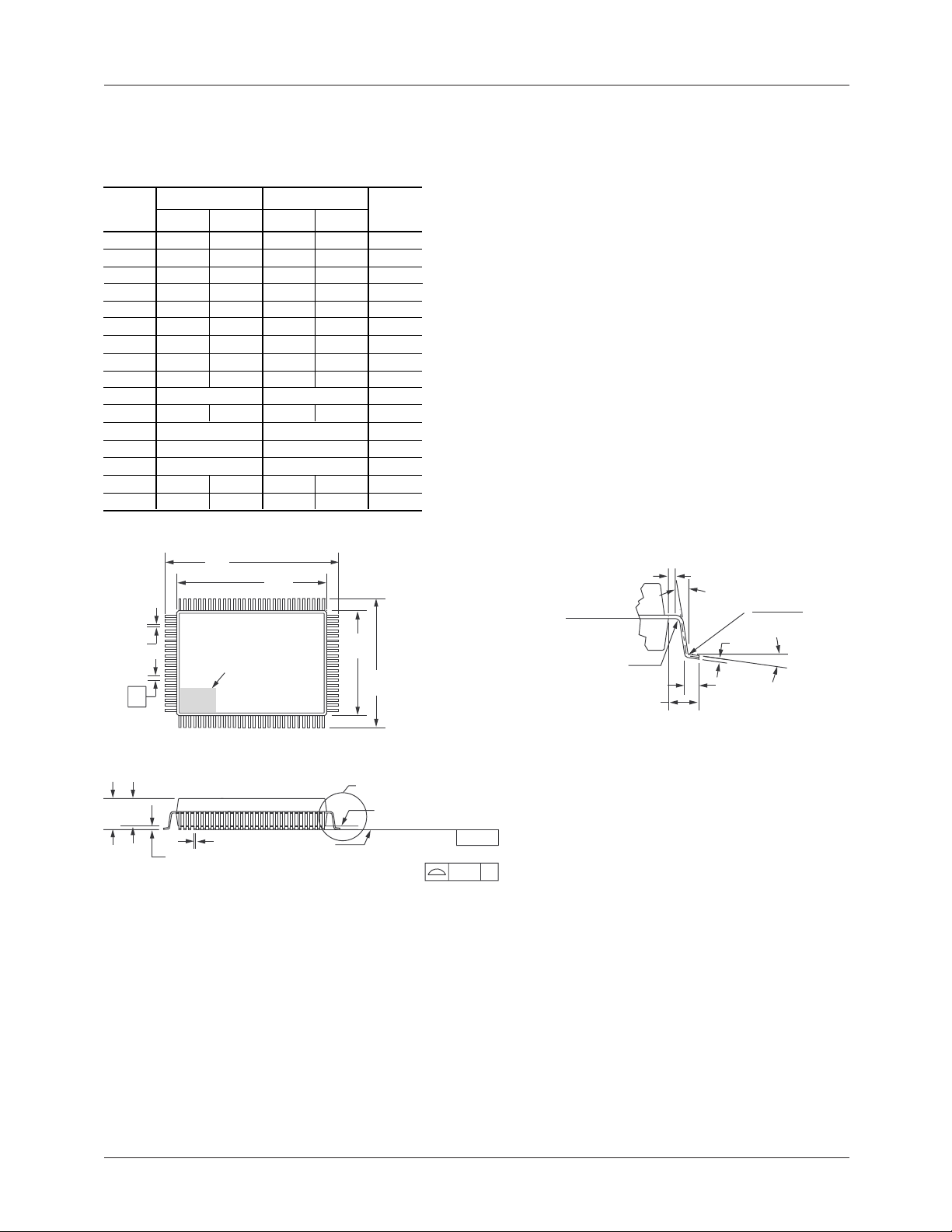

Mechanical Dimensions

100-Lead MQFP

Symbol

A — .134 — 3.40

A1 .010 — .25 —
A2 .100 .120 2.55 3.05
B .008 3, 5

C .005 .13
D .904 .923 22.95 23.45

D1 .783 .791 19.90 20.10

E .667 .687 16.95 17.45

E1 .547 .555 13.90 14.10
e

L .028 .040 .73 1.03

N

ND
NE

α 0° 7° 0° 7°

ccc

B

e

Inches

Min. Max. Min. Max.

.015 .38

.009 .23

.0256 BSC .65 BSC

100 100

30 30
20 20

— .004 — .12

D

Pin 1 Indentifier

Millimeters

.22

D1

Notes

E1

E

Notes:

1.

All dimensions and tolerances conform to ANSI Y14.5M-1982.

2.

Controlling dimension is millimeters.

3.

Dimension "B" does not include dambar protrusion. Allowable
dambar protrusion shall be .08mm (.003in.) maximum in excess of
the "B" dimension. Dambar cannot be located on the lower radius
or the foot.

4.

5

4

"L" is the length of terminal for soldering to a substrate.

5.

"B" & "C" includes lead finish thickness.

.20 (.008) Min.

0° Min.

Datum Plane

.13 (.005) R Min.

0.076" (1.95mm) Ref

L

Lead Detail

.13 (.30)
.005 (.012)

C

R

α

See Lead Detail

AA2

A1

B

Seating Plane

Base Plane

-C-

Lead Coplanarity

ccc C

REV. 1.0 3/26/03 71

TMC2193 PRODUCT SPECIFICATION

Ordering Information

Product Number Temperature Range Screening Package Package Marking

TMC2193KJC TA = 0°C to 70°C Commercial 100-pin MQFP TMC2193

Life Support Policy

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:

1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body,
or (b) support or sustain life, and (c) whose failure to
perform when properly used in accordance with
instructions for use provided in the labeling, can be
reasonably expected to result in a significant injury of the
user.

2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.

www.fairchildsemi.com

3/26/03 0.0m 003

 2003 Fairchild Semiconductor Corporation

Stock#DS30002193
