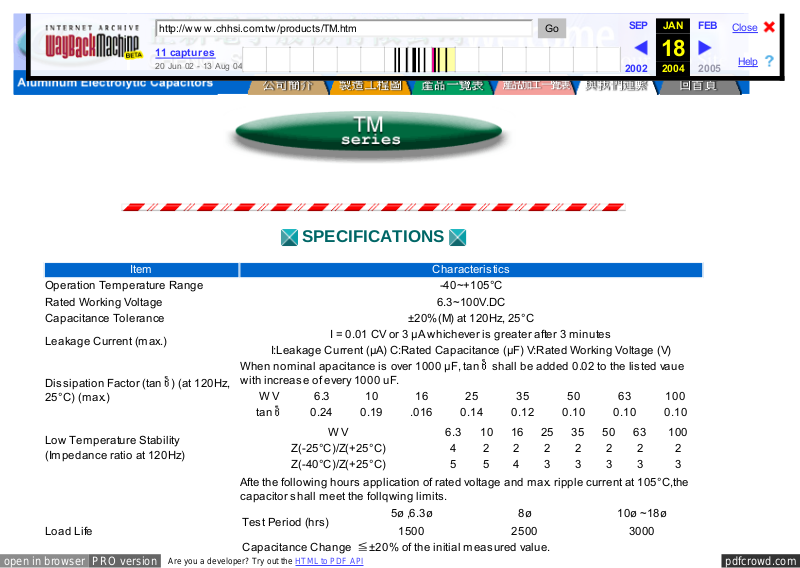

SPECIFICATIONS
Item Characteris tics
Operation Temperature Range 40~+105°C
Rated Working Voltage 6.3~100V.DC
Capacitance Tolerance ±20%(M) at 120Hz, 25°C
Leakage Current (max.)
I = 0.01 CV or 3 µA whichever is greater after 3 minutes
I:Leakage Current (µA) C:Rated Capacitance (µF) V:Rated Working Voltage (V)
Dis sipation Factor (tan ) (at 120Hz,
25°C) (max.)
When nominal apacitance is over 1000 µF, tan shall be added 0.02 to the lis ted vaue
with increas e of every 1000 uF.
W V 6.3 10 16 25 35 50 63 100
tan 0.24 0.19 .016 0.14 0.12 0.10 0.10 0.10
Low Temperature Stability
(Impedance ratio at 120Hz)
W V 6.3 10 16 25 35 50 63 100
Z(25°C)/Z(+25°C) 4 2 2 2 2 2 2 2
Z(40°C)/Z(+25°C) 5 5 4 3 3 3 3 3
Load Life
Afte the following hours application of rated voltage and max. ripple current at 105°C,the
capacitor shall meet the follqwing lim its.
Test Period (hrs )
5ø ,6.3ø 8ø 10ø ~18ø
1500 2500 3000
Capacitance Change ≦±20% of the initial measured value.
http://w w w .chhsi.com.tw /products/TM.htm
Go
SEP JAN FEB
18
2002 2004 2005
11 captures
20 Jun 02 13 Aug 04
Close
Help
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 2
Capacitance Change ≦±20% of the initial measured value.
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
Shelf Life (105°C)
At 105°C no voltage applied after 1000 hours , the capacitor shall meet the following lim its.
Capacitance Change ≦±20% of the initial measured value.
Dis sipation Factor ≦200% of initial specified value.
Leakage Current ≦the initial specified value.
Reference Standard JIS C5141

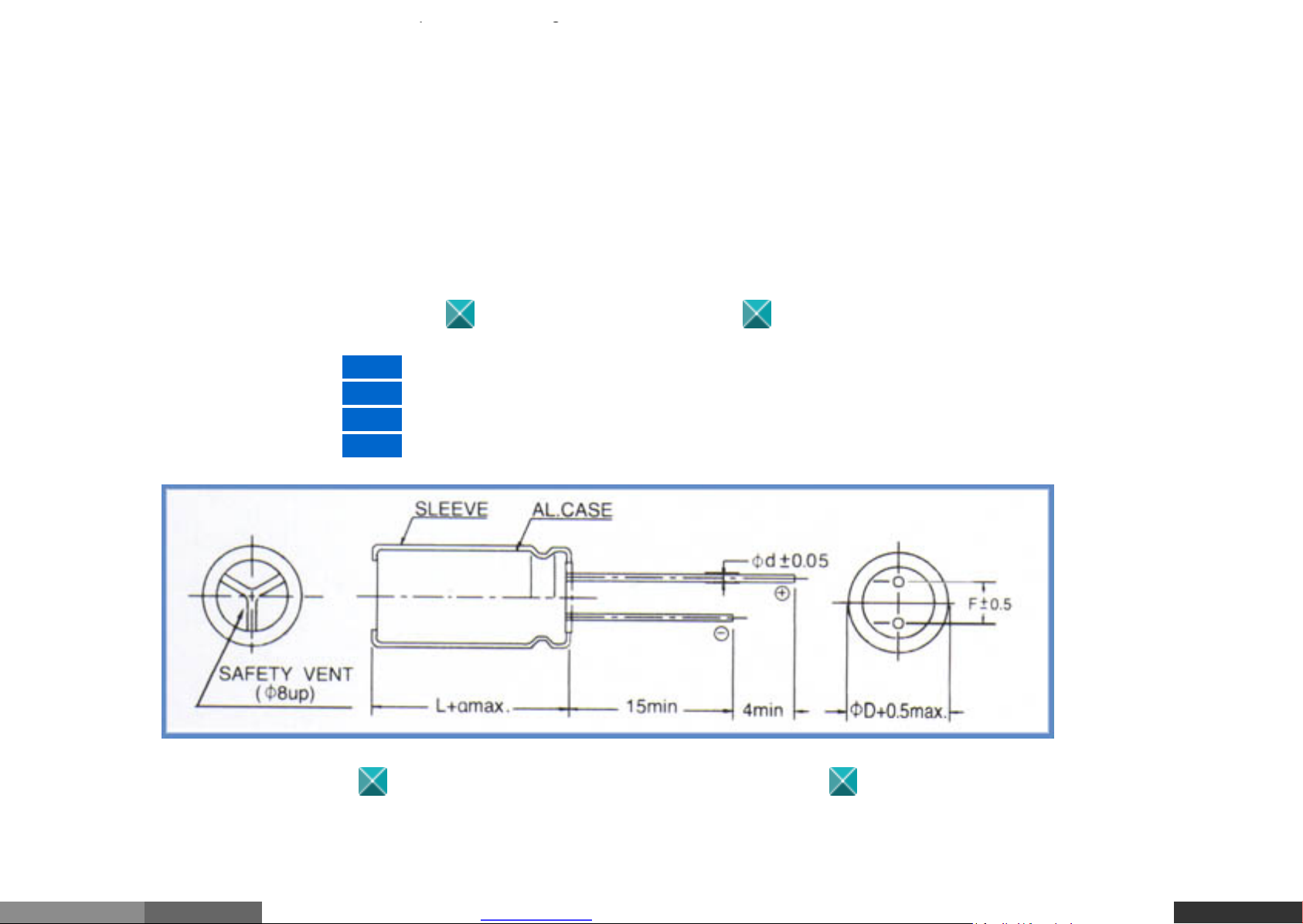

DRAWING:(UNIT=mm)
øD 5 6.3 8 10 13 16 18
F 2.0 2.5 3.5 5.0 5.0 7.5 7.5
ød 0.5 0.5 0.6 0.6 0.6 0.8 0.8
α 1.0 1.5
MULTIPLIER FOR RIPPLE CURRENT
Frequency Multipliers Temperature Multipliers
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 3
50Hz 120Hz 1kHz 10KHz 100KHz≦
22~33 0.45 0.55 0.75 0.90 1.00
39~330 0.60 0.70 0.85 0.95 1.00
390~1000 0.65 0.75 0.90 0.98 1.00
1200~6800 0.75 0.80 0.95 1.00 1.00
Temp.(°C) 40 60 70 85 105
Coefficient 2.4 2.1 1.78 1.65 1.00
DIMENSIONS IMPEDANCE & MAXIMUM PERMISSIBLE RIPPLE CURRENT
6.3 10
Capacitance ImpedanceΩ(MAX.) Ripple current (mArm s ) Capacitance ImpedanceΩ(MAX.) Ripple current(mArms)
(µF) (25°C/100KHz) (105°C/100KHz) (µF) (25°C/100KHz) (105°c/100KHz)
5x11 150 0.46 235 100 0.46 235
6.3x11 270 0.25 350 220 0.22 400
8x12 470 0.17 460 330 0.17 460
8x16 680 0.12 650 470 0.12 650
8x20 1000 0.069 800 680 0.069 800
10x16 1200 0.065 1015 1000 0.065 950
10x20 1500 0.055 1250 1200 0.055 1250
10x22 1800 0.043 1300 1500 0.045 1440
13x21 2700 0.038 1690 2200 0.038 1620
13x26 3900 0.030 1950 2700 0.030 1950
16x26 5600 0.028 2100 3900 0.028 2100
13x32 8200 0.024 2550 5600 0.025 2350
16x36 10000 0.023 2800 6800 0.022 2550
18x36 12000 0.021 2900 8200 0.021 2900
DIMENSIONS IMPEDANCE & MAXIMUM PERMISSIBLE RIPPLE CURRENT
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 4
16 25
Capacitance ImpedanceΩ(MAX.) Ripple current(mArm s ) Capacitance ImpedanceΩ(MAX.) Ripple current(mArms)
(µF) (25°C/100KHz) (105°C/100KHz) (µF) (25°C/100KHz) (105°C/100KHz)
5x11 68 0.55 205 47 0.55 205
6.3x11 150 0.25 345 100 0.25 350
8x12 220 0.20 460 150 0.20 460
8x16 330 0.12 650 220 0.12 650
8x20 470 0.069 800 330 0.069 800
10x16 560 0.064 950 390 0.064 950
10x20 820 0.055 1250 560 0.055 1250
10x22 1000 0.048 1300 680 0.048 1300
13x21 1200 0.042 1400 1000 0.042 1600
13x26 1500 0.038 1550 1200 0.038 1700
13x26 1800 0.034 1700 1500 0.032 1900
16x26 2700 0.028 2100 1800 0.028 2100
13x32 3900 0.025 2350 2700 0.023 2350
16x36 4700 0.022 2550 3300 0.022 2550
18x36 5600 0.021 2800 3900 0.021 2800
DIMENSIONS IMPEDANCE & MAXIMUM PERMISSIBLE RIPPLE CURRENT
35 50
Capacitance ImpedanceΩ (MAX.) Ripple current(mArm s ) Capacitance ImpedanceΩ(MAX.) Ripple current(mArms)
(µF) (25°C/100KHz) (105°C/100KHz) (µF) (25°C/100KHz) (105°C/100KHz)
5x11 4.7 1.20 115 4.7 2.50 90
5x11 10 0.90 140 10 2.00 110
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 5
5x11 22 0.80 190 15 1.30 155
5x11 33 0.55 205 22 0.80 190
6.3x11 68 0.25 340 47 0.52 310
8x12 100 0.14 460 68 0.35 410
8x16 150 0.12 650 100 0.25 500
8x20 220 0.075 800 150 0.16 670
10x16 270 0.074 950 180 0.14 800
10x20 330 0.065 1250 270 0.095 1040
10x22 470 0.046 1300 330 0.080 1200
13x21 680 0.038 1400 470 0.070 1400
13x26 1000 0.030 1700 560 0.060 1650
16x26 1500 0.024 2100 1000 0.041 2000
16x32 2200 0.022 2550 1200 0.031 2200
18x36 2700 0.021 2900 1800 0.025 2500
DIMENSIONS IMPEDANCE & MAXIMUM PERMISSIBLE RIPPLE CURRENT
63 100
Capacitance ImpedanceΩ(MAX.) Ripple current(mArm s ) Capacitance ImpedanceΩ(MAX.) Ripple current(mArms)
(µF) (250°C/100KHz) (105°C/100KHz) (µF) (250°C/100KHz) (105°C/100KHz)
5X11 18 1.6 140 5.6 2.7 120
6.3X11 33 0.90 200 12 1.4 170
8X12 68 0.52 275 22 0.81 230
8X16 82 0.34 360 27 0.64 295
8X20 120 0.21 510 39 0.36 400
10X16 150 0.20 525 47 0.35 420
10X20 220 0.15 765 68 0.24 630
10X22 270 0.12 840 82 0.21 700
13X21 330 0.10 960 100 0.15 800
13X26 470 0.064 1200 150 0.11 920
Are you a developer? Try out the HTML to PDF API
pdfcrowd.comopen in browser PRO version
Page 6
16X26 680 0.052 1500 220 0.071 1100
16X32 1000 0.042 1750 330 0.049 1490
16X36 1200 0.036 1920 390 0.043 1630
18X36 1500 0.033 2000 470 0.038 1700
