TLRY4420
Datasheet (Telefunken)
9 pgs109.61 Kb0

Datasheet TLRY4420, TLRO4420, TLRH4420, TLRG4420 Datasheet (Telefunken)

Download
Vishay Telefunken
Resistor LED for 12 V Supply Voltage
High efficiency red TLRH4420 GaAsP on GaP 30
Soft orange TLRO4420 GaAsP on GaP 30
Yellow TLRY4420 GaAsP on GaP 30 Green TLRG4420 GaP on GaP 30
TLR.442.
±
ö
° ° ° °

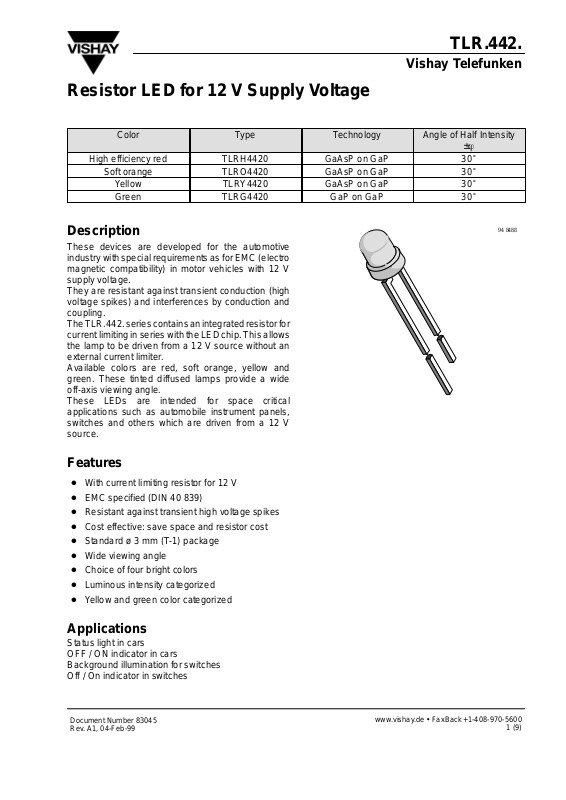

Description
These devices are developed for the automotive industry with special requirements as for EMC (electro magnetic compatibility) in motor vehicles with 12 V supply voltage. They are resistant against transient conduction (high voltage spikes) and interferences by conduction and coupling. The TLR.442. series contains an integrated resistor for current limiting in series with the LED chip. This allows the lamp to be driven from a 12 V source without an external current limiter. Available colors are red, soft orange, yellow and green. These tinted diffused lamps provide a wide off-axis viewing angle. These LEDs are intended for space critical applications such as automobile instrument panels, switches and others which are driven from a 12 V source.
Features
D
With current limiting resistor for 12 V
D
EMC specified (DIN 40 839)
D
Resistant against transient high voltage spikes
D
Cost effective: save space and resistor cost
D
Standard ø 3 mm (T-1) package
D
Wide viewing angle
D
Choice of four bright colors
D
Luminous intensity categorized
D
Yellow and green color categorized
94 8488
Applications
Status light in cars OFF / ON indicator in cars Background illumination for switches Off / On indicator in switches
Document Number 83045 Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
1 (9)
TLR.442.
Vishay Telefunken
Absolute Maximum Ratings
T
= 25_C, unless otherwise specified
amb
TLRH4420 ,TLRO4420 ,TLRY4420 ,TLRG4420 ,
Parameter Test Conditions Symbol Value Unit Reverse voltage V Forward voltage T Power dissipation T
≤ 65°C V
amb
≤ 65°C P
amb
Junction temperature T Storage temperature range T Soldering temperature t ≤ 5 s, 2 mm from body T Thermal resistance junction/ambient R
R F V
j
stg
sd
thJA
Optical and Electrical Characteristics
T
= 25_C, unless otherwise specified
amb
High efficiency red (TLRH4420 )
Parameter Test Conditions Type Symbol Min Typ Max Unit Luminous intensity VF = 12 V I Dominant wavelength VF = 12 V Peak wavelength VF = 12 V
V
l
d
l
p
Angle of half intensity VF = 12 V ϕ ±30 deg Forward current VS = 12 V I Breakdown voltage IR = 10 mA V
F
BR
Junction capacitance VR = 0, f = 1 MHz C
1.6 4 mcd
612 625 nm
6 70 V
j
6 V
16 V 240 mW 100
–55 to +100
260 150 K/W
635 nm
10 12 mA
50 pF
°
C
°
C
°
C
Soft orange (TLRO4420 )
Parameter Test Conditions Type Symbol Min Typ Max Unit Luminous intensity VF = 12 V I Dominant wavelength VF = 12 V Peak wavelength VF = 12 V
V
l
d
l
p
4 10 mcd
598 611 nm
605 nm Angle of half intensity VF = 12 V ϕ ±30 deg Forward current VS = 12 V I Breakdown voltage IR = 10 mA V Junction capacitance VR = 0, f = 1 MHz C
F
BR
6 70 V
j
10 12 mA
50 pF
Yellow (TLRY4420 )
Parameter Test Conditions Type Symbol Min Typ Max Unit Luminous intensity VF = 12 V I Dominant wavelength VF = 12 V Peak wavelength VF = 12 V
V
l
d
l
p
1.6 4 mcd
581 594 nm
585 nm Angle of half intensity VF = 12 V ϕ ±30 deg Forward current VS = 12 V I Breakdown voltage IR = 10 mA V Junction capacitance VR = 0, f = 1 MHz C
F
BR
6 70 V
j
10 12 mA
50 pF
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83045 2 (9)
Rev. A1, 04-Feb-99
TLR.442.
Vishay Telefunken
Green (TLRG4420 )
Parameter Test Conditions Type Symbol Min Typ Max Unit Luminous intensity VF = 12 V I Dominant wavelength VF = 12 V Peak wavelength VF = 12 V
V
l
d
l
p
Angle of half intensity VF = 12 V ϕ ±30 deg Forward current VS = 12 V I Breakdown voltage IR = 10 mA V
F
BR
Junction capacitance VR = 0, f = 1 MHz C
1.6 4 mcd
562 575 nm
565 nm
10 12 mA
6 70 V
j
50 pF
Typical Characteristics (T
20
High Efficiency Red
18 16 14 12 10
8 6 4
F
I – Forward Current ( mA )
2 0
0 2 4 6 8 101214161820
VF – Forward Voltage ( V )95 11434
Figure 1 Forward Current vs. Forward Voltage
1.5 High Efficiency Red
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
I – Relative Forward Current
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11435
amb
Figure 2 Relative Forward Current vs.
Ambient Temperature
VS = 12 V
= 25_C, unless otherwise specified)
amb
1.5 High Efficiency Red
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
V – Relative Forward Voltage
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11436
amb
Figure 3 Relative Forward Voltage vs.
Ambient Temperature
1.4 High Efficiency Red
1.2
1.0
0.8
0.6
0.4
0.2
Vrel
I – Relative Luminous Intensity
0
0246810121416
VF – Forward Voltage ( V )95 11456
Figure 4 Relative Luminous Intensity vs. Forward Voltage
IF = 10 mA
Document Number 83045 Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
3 (9)

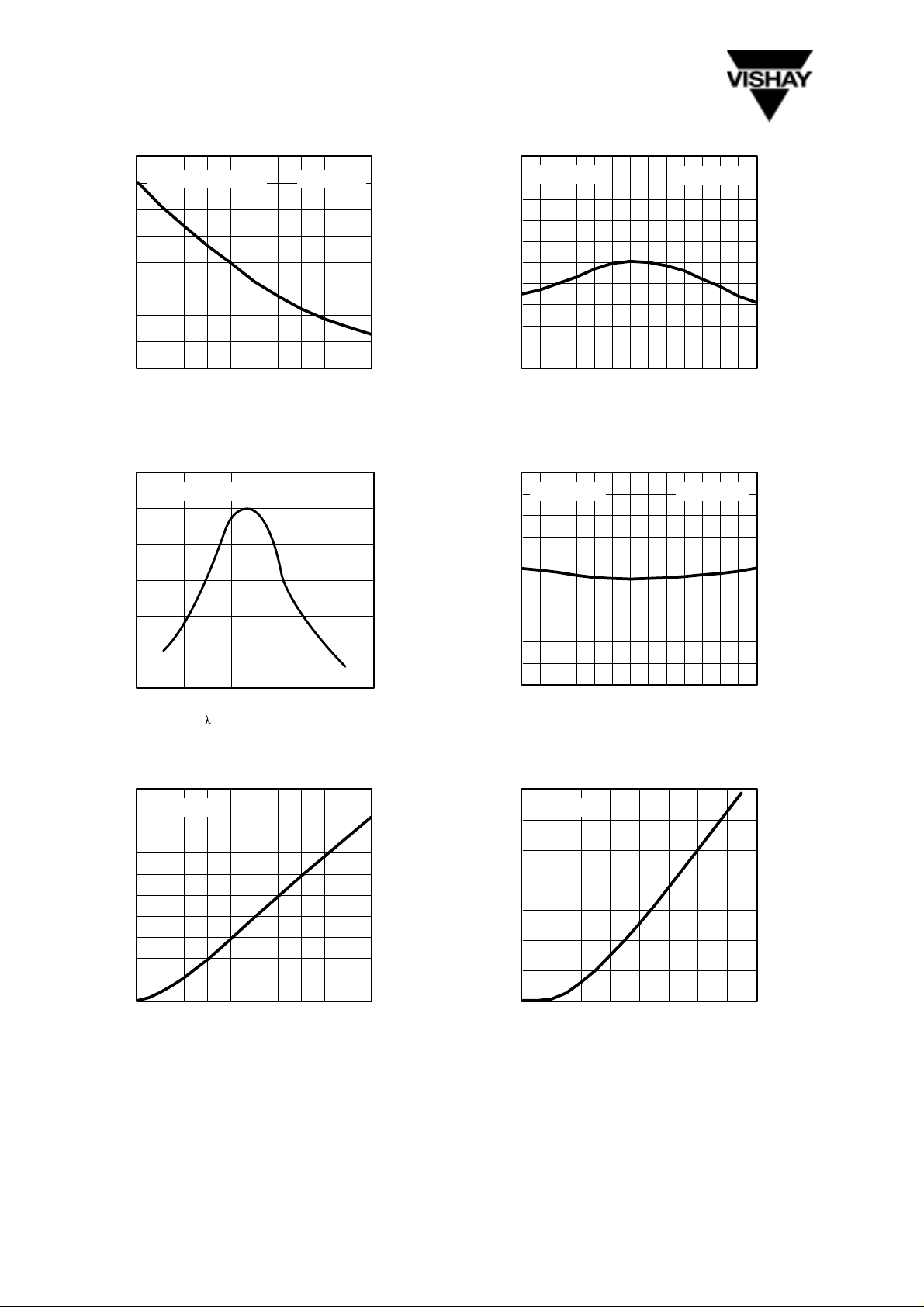

TLR.442.
Vishay Telefunken
1.6
1.4
1.2
1.0
0.8
0.6
0.4
Vrel
0.2
I – Relative Luminous Intensity
0
0 102030405060708090100
T
– Ambient Temperature ( °C )95 11437
amb
VS = 12 VHigh Efficiency Red
Figure 5 Rel. Luminous Intensity vs.
Ambient Temperature
1.2 High Efficiency Red
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10040
0
590 610 630 650 670
l
– Wavelength ( nm )
690
Figure 6 Relative Luminous Intensity vs. Wavelength
1.5 Soft Orange
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
I – Relative Forward Current
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 10835
amb
VS = 12 V
Figure 8 Relative Forward Current vs.
Ambient Temperature
1.5 Soft Orange
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
V – Relative Forward Voltage
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 10836
amb
IF = 10 mA
Figure 9 Relative Forward Voltage vs.
Ambient Temperature
20
Soft Orange
18 16 14 12 10
8 6 4
F
I – Forward Current ( mA )
2 0
0 2 4 6 8 101214161820
VF – Forward Voltage ( V )95 10834
Figure 7 Forward Current vs. Forward Voltage
1.4
Soft Orange
1.2
1.0
0.8
0.6
0.4
0.2
Vrel
I – Relative Luminous Intensity
0
0246810121416
VF – Forward Voltage ( V )95 10837
Figure 10 Relative Luminous Intensity vs.
Forward Voltage
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83045 4 (9)
Rev. A1, 04-Feb-99
TLR.442.
Vishay Telefunken
1.6
1.4
1.2
1.0
0.8
0.6
0.4
Vrel
0.2
I – Relative Luminous Intensity
0
0 102030405060708090100
T
– Ambient Temperature ( °C )95 10838
amb
VS = 12 VSoft Orange
Figure 11 Rel. Luminous Intensity vs.
Ambient Temperature
1.2 Soft Orange
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10324
0
570 590 610 630 650
l
– Wavelength ( nm )
670
Figure 12 Relative Luminous Intensity vs. Wavelength
1.5 Yellow
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
I – Relative Forward Current
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11439
amb
VS = 12 V
Figure 14 Relative Forward Current vs.
Ambient Temperature
1.5 Yellow
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
V – Relative Forward Voltage
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11457
amb
IF = 10 mA
Figure 15 Relative Luminous Intensity vs.
Forward Voltage
20
Yellow
18 16 14 12 10
8 6 4
F
I – Forward Current ( mA )
2 0
0 2 4 6 8 101214161820
VF – Forward Voltage ( V )95 11438
Figure 13 Forward Current vs. Forward Voltage
Document Number 83045 Rev. A1, 04-Feb-99
1.4
Yellow
1.2
1.0
0.8
0.6
0.4
0.2
Vrel
I – Relative Luminous Intensity
0
0246810121416
VF – Forward Voltage ( V )95 11458
Figure 16 Relative Luminous Intensity vs.
Forward Voltage
www.vishay .de • FaxBack +1-408-970-5600
5 (9)
TLR.442.
Vishay Telefunken
1.6 Yellow VS = 12 V
1.4
1.2
1.0
0.8
0.6
0.4
Vrel
0.2
I – Relative Luminous Intensity
0
0 102030405060708090100
T
– Ambient Temperature ( °C )95 11440
amb
Figure 17 Rel. Luminous Intensity vs.
Ambient Temperature
1.2
Yellow
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10039
0
550 570 590 610 630
l
– Wavelength ( nm )
650
Figure 18 Relative Luminous Intensity vs. Wavelength
1.5 Green
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
I – Relative Forward Current
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11442
amb
VS = 12 V
Figure 20 Relative Forward Current vs.
Ambient Temperature
1.5 Green
1.4
1.3
1.2
1.1
1.0
0.9
0.8
0.7
Frel
V – Relative Forward Voltage
0.6
0.5
–30–20–10 0 10 20 30 40 50 60 70 80 90 100
T
– Ambient Temperature ( °C )95 11443
amb
IF = 10 mA
Figure 21 Relative Forward Voltage vs.
Ambient Temperature
20
Green
18 16 14 12 10
8 6 4
F
I – Forward Current ( mA )
2 0
0 2 4 6 8 101214161820
VF – Forward Voltage ( V )95 11441
Figure 19 Forward Current vs. Forward Voltage
1.4 Green
1.2
1.0
0.8
0.6
0.4
0.2
Vrel
I – Relative Luminous Intensity
0
0246810121416
VF – Forward Voltage ( V )95 11444
Figure 22 Relative Luminous Intensity vs.
Forward Voltage
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83045 6 (9)
Rev. A1, 04-Feb-99

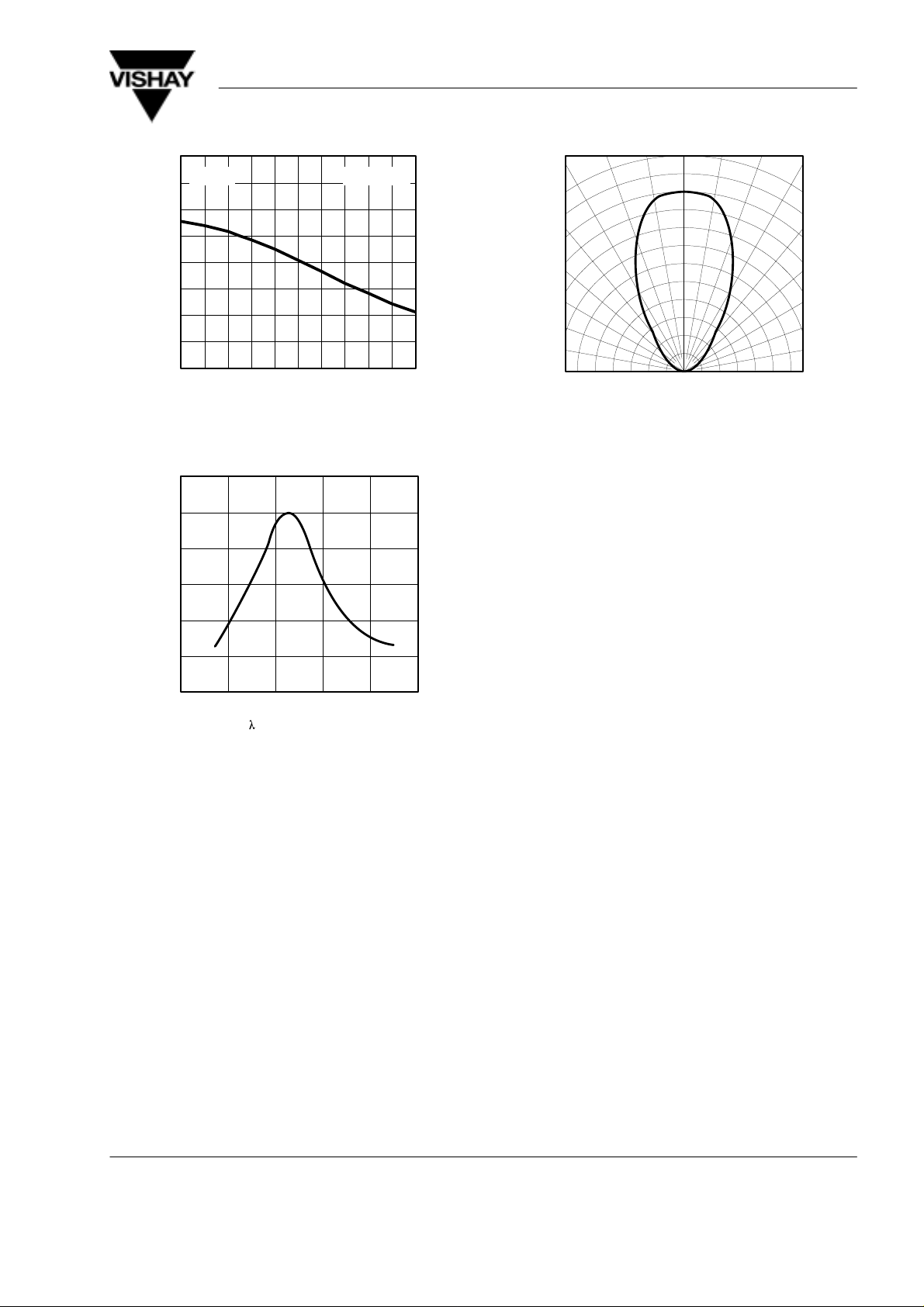

1.6
1.4
1.2
1.0
0.8
0.6
0.4
Vrel
0.2
I – Relative Luminous Intensity
0
0 102030405060708090100
T
– Ambient Temperature ( °C )95 11445
amb
Figure 23 Rel. Luminous Intensity vs.
Ambient Temperature
1.2 Green
1.0
TLR.442.
Vishay Telefunken
0°
10°20
°
VS = 12 VGreen
1.0
0.9
0.8
0.7
v rel
I – Relative Luminous Intensity
0.4 0.2 0 0.2 0.4
0.6
95 10042
Figure 25 Rel. Luminous Intensity vs.
Angular Displacement
30°
40°
50°
60° 70°
80°
0.6
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10038
0
520 540 560 580 600
l
– Wavelength ( nm )
620
Figure 24 Relative Luminous Intensity vs. Wavelength
Document Number 83045 Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
7 (9)
TLR.442.
Vishay Telefunken
Dimensions in mm
95 10913
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83045 8 (9)
Rev. A1, 04-Feb-99
TLR.442.
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating systems with respect to their impact on the health and safety of our employees and the public, as well as their
impact on the environment. It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs). The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer application
by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized application, the
buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out of, directly or
indirectly , any claim of personal damage, injury or death associated with such unintended or unauthorized use.
Document Number 83045 Rev. A1, 04-Feb-99
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 (0)7131 67 2831, Fax number: 49 (0)7131 67 2423
www.vishay .de • FaxBack +1-408-970-5600
9 (9)
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
