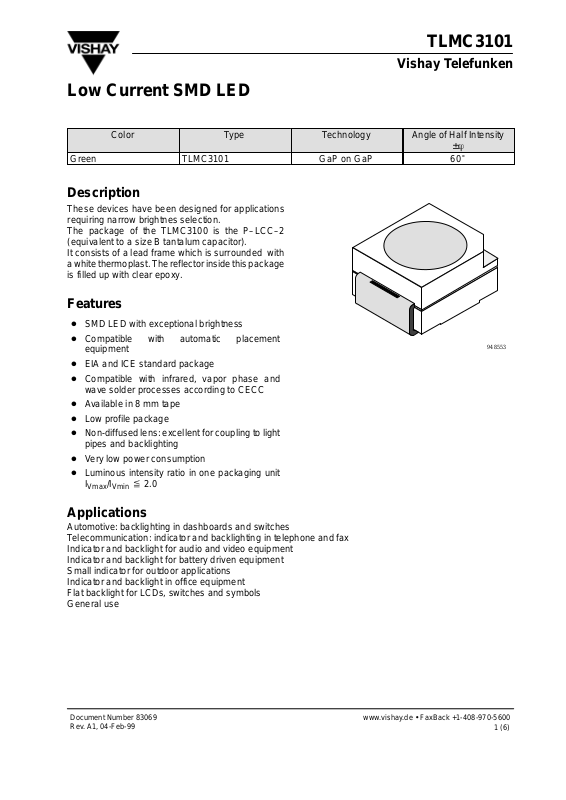

Page 1
TLMC3101
Vishay Telefunken
Low Current SMD LED
Color Type Technology Angle of Half Intensity
Green TLMC3101 GaP on GaP 60
Description
These devices have been designed for applications
requiring narrow brightnes selection.
The package of the TLMC3100 is the P–LCC–2
(equivalent to a size B tantalum capacitor).
It consists of a lead frame which is surrounded with
a white thermoplast. The reflector inside this package
is filled up with clear epoxy.
Features
±
ö
°
D
SMD LED with exceptional brightness
D
Compatible with automatic placement
equipment
D
EIA and ICE standard package
D
Compatible with infrared, vapor phase and
wave solder processes according to CECC
D
Available in 8 mm tape
D
Low profile package
D
Non-diffused lens: excellent for coupling to light
pipes and backlighting
D
Very low power consumption
D
Luminous intensity ratio in one packaging unit
I
Vmax/IVmin
x 2.0
Applications
Automotive: backlighting in dashboards and switches
Telecommunication: indicator and backlighting in telephone and fax
Indicator and backlight for audio and video equipment
Indicator and backlight for battery driven equipment
Small indicator for outdoor applications
Indicator and backlight in office equipment
Flat backlight for LCDs, switches and symbols
General use
94 8553
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600Document Number 83069
1 (6)
Page 2
TLMC3101
Vishay Telefunken
Absolute Maximum Ratings
T
= 25_C, unless otherwise specified
amb
TLMC3101
Parameter Test Conditions Symbol Value Unit
Reverse voltage V
DC forward current I
Surge forward current tp ≤ 10 ms I
Power dissipation T
Junction temperature T
Operating temperature range T
Storage temperature range T
Soldering temperature t ≤ 5 s T
Thermal resistance junction/ambient mounted on PC board
Optical and Electrical Characteristics
T
= 25_C, unless otherwise specified
amb
Green (TLMC3101 )
≤ 90°C P
amb
(pad size > 16 mm
2
)
R
R
F
FSM
V
amb
stg
sd
thJA
6 V
7 mA
0.5 A
20 mW
j
100
–40 to +100
–55 to +100
260
°
C
°
C
°
C
°
C
500 K/W
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 2 mA I
Dominant wavelength IF = 2 mA
Peak wavelength IF = 2 mA
V
l
d
l
p
1 1.6 mcd
563 575 nm
565 nm
Angle of half intensity IF = 2 mA ϕ ±60 deg
Forward voltage IF = 2 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
2.2 2.9 V
6 15 V
50 pF
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83069
2 (6)
Rev. A1, 04-Feb-99
Page 3
TLMC3101
Vishay Telefunken
Typical Characteristics (T
25
20
15
10
V
5
P – Power Dissipation ( mW )
0
020406080
T
95 10841
– Ambient Temperature ( °C )
amb
= 25_C, unless otherwise specified)
amb
100
Figure 1 Power Dissipation vs. Ambient Temperature
10
8
6
4
100
Green
10
1
F
I – Forward Current ( mA )
tp/T=0.001
t
=10ms
p
95 10056
0.1
01234
V
– Forward Voltage ( V )
F
Figure 4 Forward Current vs. Forward Voltage
1.6
Green
1.2
0.8
5
F
I – Forward Current ( mA )
2
95 10842
0
020406080
T
– Ambient Temperature ( °C )
amb
100
Figure 2 Forward Current vs. Ambient Temperature
0°
10°20
°
30°
1.0
0.9
0.8
0.7
v rel
I – Relative Luminous Intensity
0.4 0.2 0 0.2 0.4
0.6
95 10319
40°
50°
60°
70°
80°
0.6
Figure 3 Rel. Luminous Intensity vs.
Angular Displacement
0.4
v rel
I – Relative Luminous Intensity
95 10057
IF=2mA
0
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
100
Figure 5 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
Green
2.0
1.6
1.2
0.8
0.4
v rel
I – Specific Luminous Intensity
0
95 10263
10 20 50 100 200
IF – Forward Current ( mA )
500
Figure 6 Specific Luminous Intensity vs. Forward Current
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600Document Number 83069
3 (6)
Page 4
TLMC3101
Vishay Telefunken
100
Green
10
1
0.1
v rel
I – Relative Luminous Intensity
95 10059
0.01
0.1 1 10
IF – Forward Current ( mA )
100
Figure 7 Relative Luminous Intensity vs. Forward Current
Dimensions in mm
1.2
Green
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10038
0
520 540 560 580 600
l
– Wavelength ( nm )
620
Figure 8 Relative Luminous Intensity vs. Wavelength
95 11314
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83069
4 (6)
Rev. A1, 04-Feb-99
Page 5

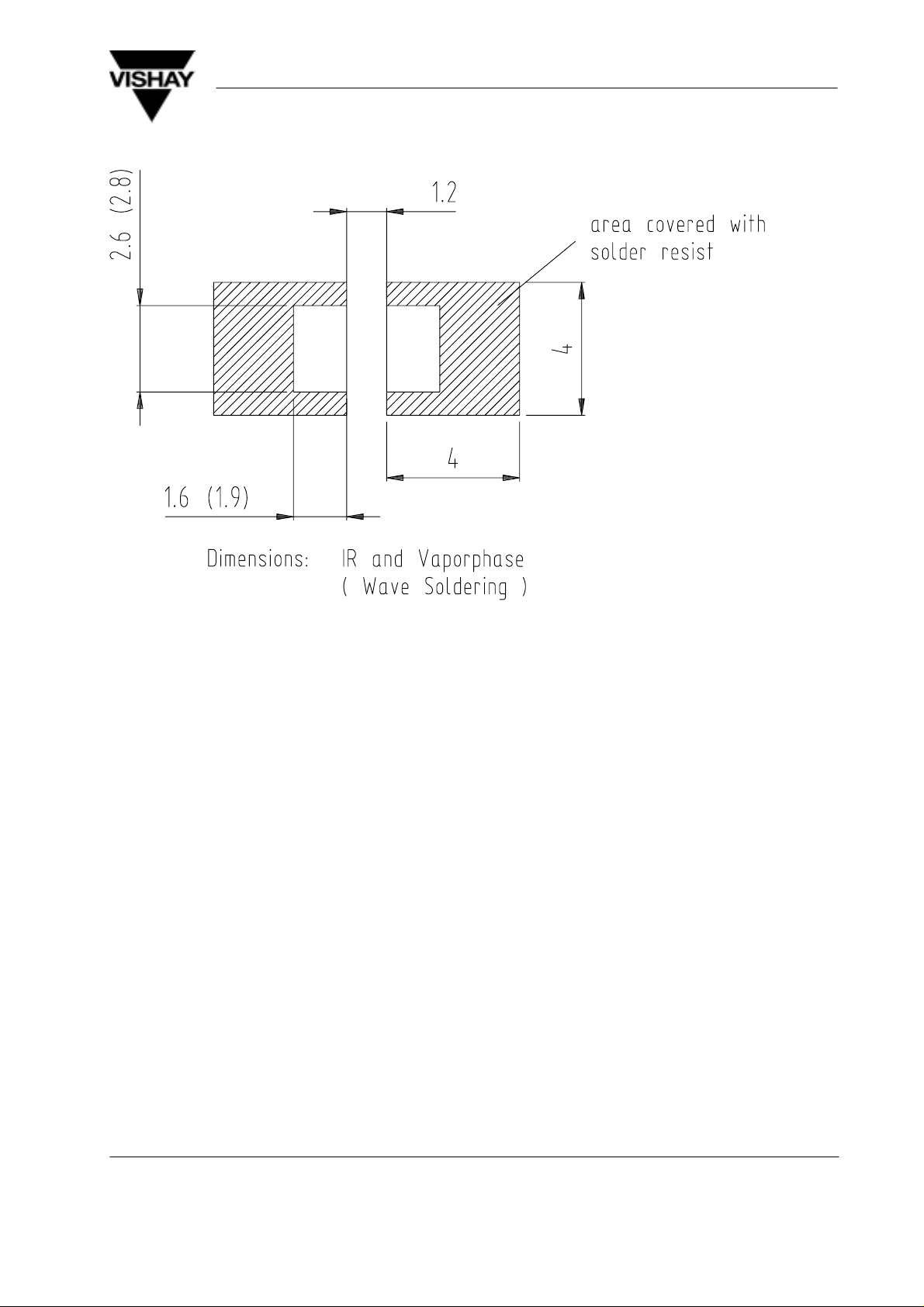

PCB Layout in mm
TLMC3101
Vishay Telefunken
95 10966
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600Document Number 83069
5 (6)
Page 6
TLMC3101
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as their
impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known
as ozone depleting substances (ODSs).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use
of ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer
application by the customer. Should the buyer use V ishay-Telefunken products for any unintended or unauthorized
application, the buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out
of, directly or indirectly , any claim of personal damage, injury or death associated with such unintended or
unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 (0)7131 67 2831, Fax number: 49 (0)7131 67 2423
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83069
6 (6)
Rev. A1, 04-Feb-99
