TLMC3100
Vishay Telefunken
Low Current SMD LED
Color Type Technology Angle of Half Intensity
Green TLMC3100 GaP on GaP 60
Description
These new devices have been designed to meet the
increasing demand for low current SMD LEDs.
The package of the TLMC3100 is the P–LCC–2
(equivalent to a size B tantalum capacitor).
It consists of a lead frame which is surrounded with a
white thermoplast. The reflector inside this package is
filled up with clear epoxy.
Features
±
ö
°
D
SMD LED with exceptional brightness
D
Compatible with automatic placement equipment
D
EIA and ICE standard package
D
Compatible with infrared, vapor phase and wave
solder processes according to CECC
D
Available in 8 mm tape
D
Low profile package
D
Non-diffused lens: excellent for coupling to light
pipes and backlighting
D
Very low power consumption
D
Luminous intensity ratio in one packaging unit
I
Vmax/IVmin
x 2.0
Applications
Automotive: backlighting in dashboards and switches
Telecommunication: indicator and backlighting in telephone and fax
Indicator and backlight for audio and video equipment
Indicator and backlight for battery driven equipment
Small indicator for outdoor applications
Indicator and backlight in office equipment
Flat backlight for LCDs, switches and symbols
General use
94 8553
Document Number 83036
Rev. A2, 06-Jun-00
www.vishay .de • FaxBack +1-408-970-5600
1 (6)
Page 2
TLMC3100
Vishay Telefunken
Absolute Maximum Ratings
T
= 25_C, unless otherwise specified
amb
TLMC3100
Parameter Test Conditions Symbol Value Unit
Reverse voltage V
DC forward current I
Surge forward current tp ≤ 10 ms I
Power dissipation T
Junction temperature T
Operating temperature range T
Storage temperature range T
Soldering temperature t ≤ 5 s T
Thermal resistance junction/ambient mounted on PC board
Optical and Electrical Characteristics
T
= 25_C, unless otherwise specified
amb
Green (TLMC3100 )
≤ 90°C P
amb
(pad size > 16 mm
2
)
R
R
F
FSM
V
amb
stg
sd
thJA
6 V
7 mA
0.5 A
20 mW
j
100
–40 to +100
–55 to +100
260
°
C
°
C
°
C
°
C
500 K/W
Parameter Test Conditions T ype Symbol Min Typ Max Unit
Luminous intensity IF = 2 mA I
Dominant wavelength IF = 2 mA
Peak wavelength IF = 2 mA
l
l
0.63 1.6 mcd
V
d
p
563 575 nm
565 nm
Angle of half intensity IF = 2 mA ϕ ±60 deg
Forward voltage IF = 2 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
Typical Characteristics (T
25
20
15
10
V
5
P – Power Dissipation ( mW )
= 25_C, unless otherwise specified)
amb
10
8
6
4
F
I – Forward Current ( mA )
2
F
R
j
2.2 2.9 V
6 15 V
50 pF
0
020406080
T
95 10841
Figure 1 Power Dissipation vs. Ambient Temperature
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83036
2 (6)
– Ambient Temperature ( °C )
amb
100
0
020406080
T
95 10842
Figure 2 Forward Current vs. Ambient Temperature
– Ambient Temperature ( °C )
amb
Rev. A2, 06-Jun-00
100
Page 3
TLMC3100
Vishay Telefunken
0°
10°20
°
30°
2.4
Green
2.0
1.0
0.9
0.8
0.7
v rel
I – Relative Luminous Intensity
0.4 0.2 0 0.2 0.4
0.6
95 10319
Figure 3 Rel. Luminous Intensity vs.
Angular Displacement
100
Green
10
1
F
I – Forward Current ( mA )
0.1
01234
V
95 10056
– Forward Voltage ( V )
F
tp/T=0.001
t
=10ms
p
0.6
40°
50°
60°
70°
80°
1.6
1.2
0.8
0.4
v rel
I – Specific Luminous Intensity
0
95 10263
10 20 50 100 200
IF – Forward Current ( mA )
500
Figure 6 Specific Luminous Intensity vs. Forward Current
100
Green
10
1
0.1
v rel
I – Relative Luminous Intensity
5
95 10059
0.1 1 10
IF – Forward Current ( mA )
0.01
100
Figure 4 Forward Current vs. Forward Voltage
1.6
Green
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
IF=2mA
0
0
20 40 60 80
95 10057
T
– Ambient Temperature ( °C )
amb
Figure 5 Rel. Luminous Intensity vs.
Ambient Temperature
Document Number 83036
Rev. A2, 06-Jun-00
100
Figure 7 Relative Luminous Intensity vs. Forward Current
1.2
Green
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
620
95 10038
520 540 560 580 600
l
– Wavelength ( nm )
Figure 8 Relative Luminous Intensity vs. Wavelength
www.vishay .de • FaxBack +1-408-970-5600
3 (6)
Page 4
TLMC3100
Vishay Telefunken

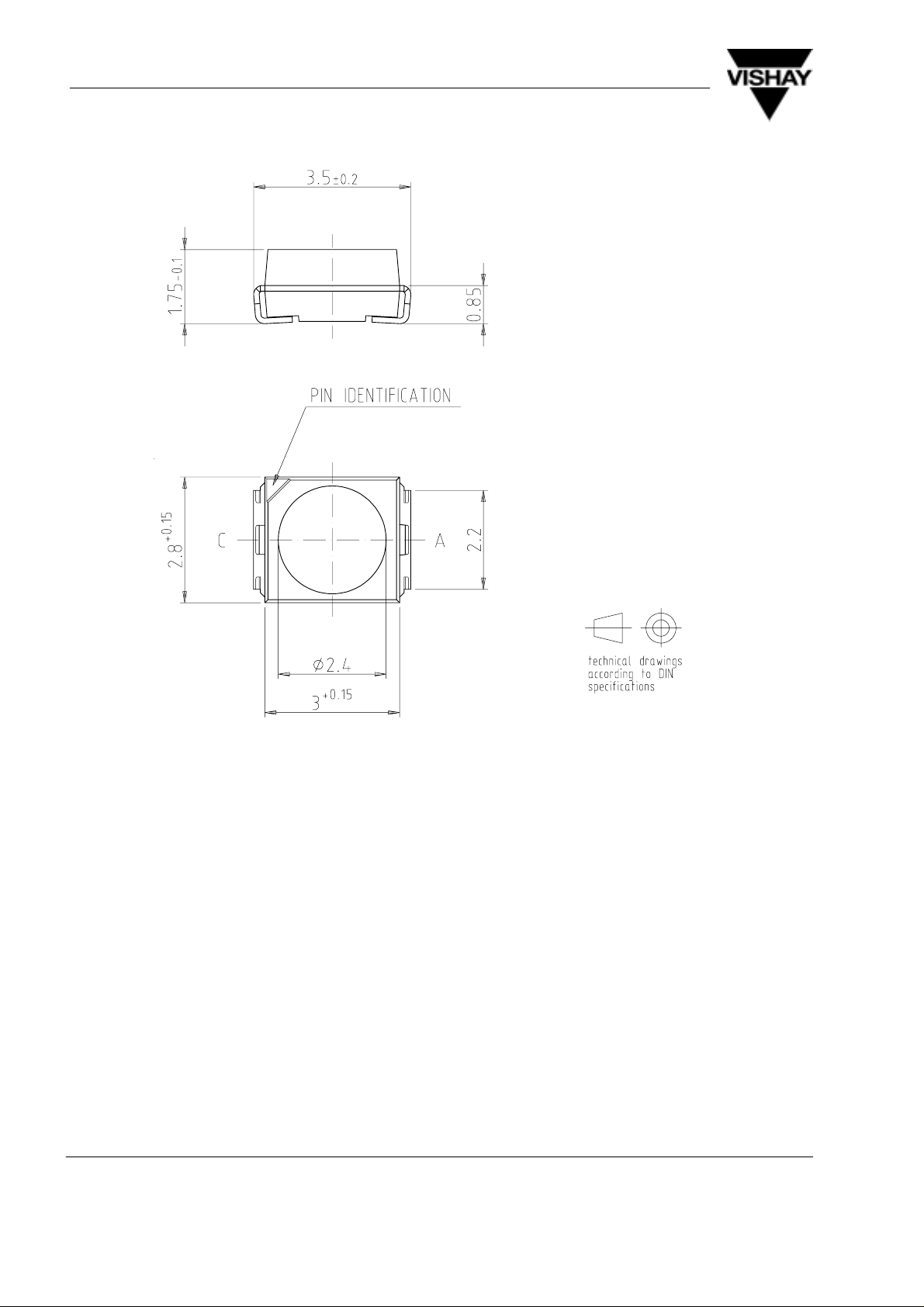

Dimensions in mm
95 11314
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83036
4 (6)
Rev. A2, 06-Jun-00
Page 5

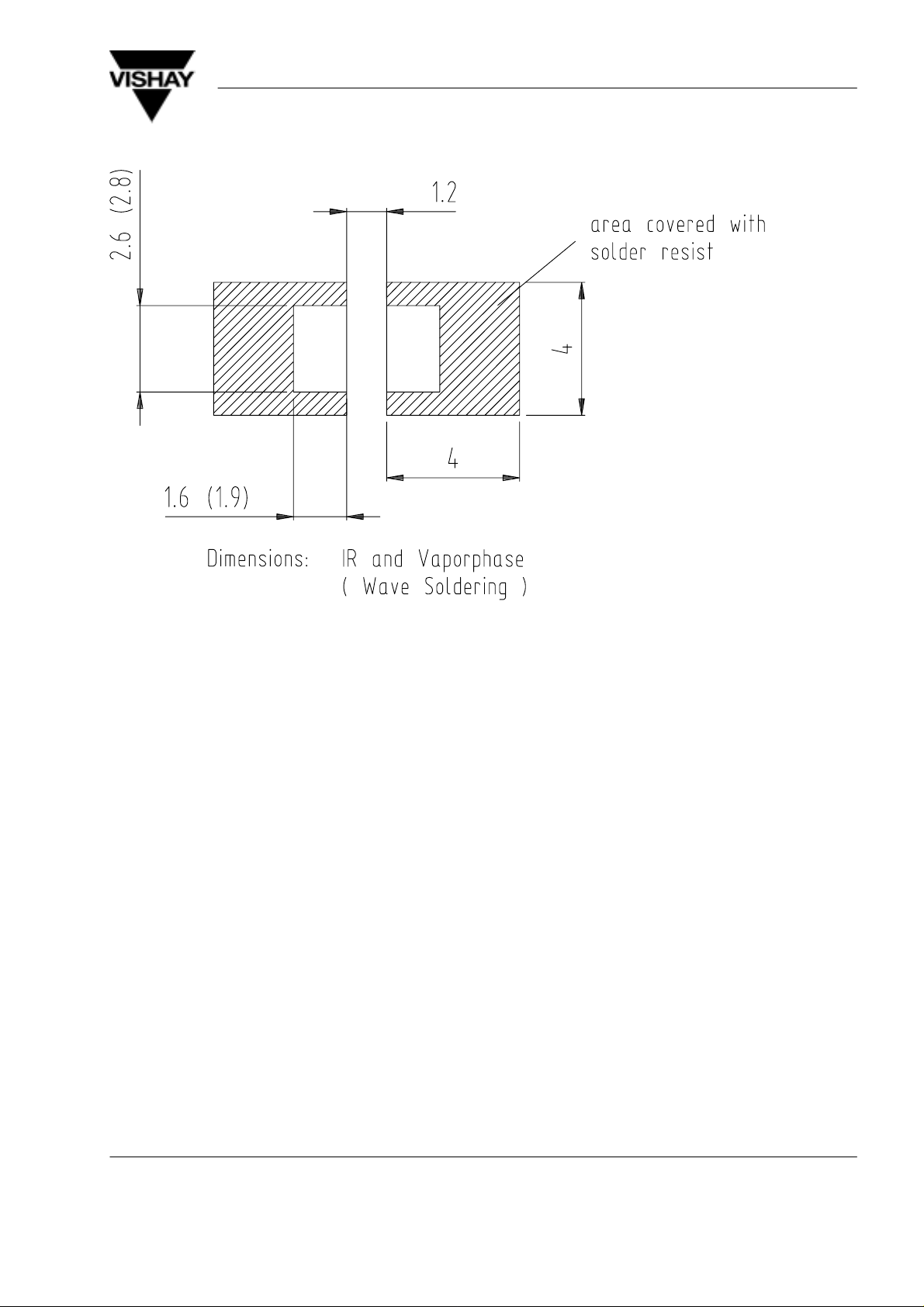

PCB Layout in mm
TLMC3100
Vishay Telefunken
95 10966
Document Number 83036
Rev. A2, 06-Jun-00
www.vishay .de • FaxBack +1-408-970-5600
5 (6)
Page 6
TLMC3100
Vishay Telefunken
Ozone Depleting Substances Policy Statement
