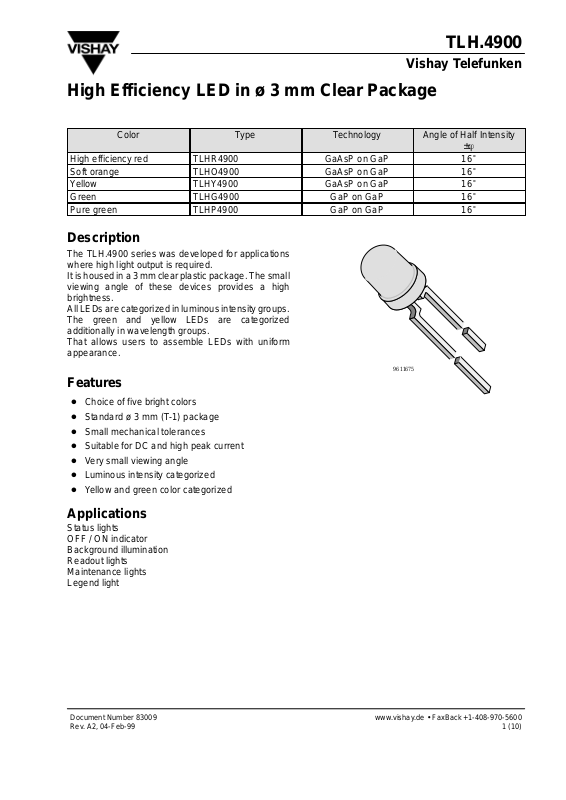

Page 1
TLH.4900
Vishay Telefunken
High Efficiency LED in ø 3 mm Clear Package
Color Type Technology Angle of Half Intensity
High efficiency red TLHR4900 GaAsP on GaP 16
Soft orange TLHO4900 GaAsP on GaP 16
Yellow TLHY4900 GaAsP on GaP 16
Green TLHG4900 GaP on GaP 16
Pure green TLHP4900 GaP on GaP 16
Description
The TLH.4900 series was developed for applications
where high light output is required.
It is housed in a 3 mm clear plastic package. The small
viewing angle of these devices provides a high
brightness.
All LEDs are categorized in luminous intensity groups.
The green and yellow LEDs are categorized
additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
96 11675
Features
±
ö
°
°
°
°
°
D
Choice of five bright colors
D
Standard ø 3 mm (T-1) package
D
Small mechanical tolerances
D
Suitable for DC and high peak current
D
Very small viewing angle
D
Luminous intensity categorized
D
Yellow and green color categorized
Applications
Status lights
OFF / ON indicator
Background illumination
Readout lights
Maintenance lights
Legend light
www.vishay .de • FaxBack +1-408-970-5600Document Number 83009
1 (10)Rev. A2, 04-Feb-99
Page 2
TLH.4900
Vishay Telefunken
Absolute Maximum Ratings
T
= 25_C, unless otherwise specified
amb
TLHR4900 ,TLHO4900 ,TLHY4900 ,TLHG4900 ,TLHP4900
Parameter Test Conditions Symbol Value Unit
Reverse voltage V
DC forward current T
Surge forward current tp ≤ 10 ms I
Power dissipation T
Junction temperature T
Operating temperature range T
Storage temperature range T
Soldering temperature t ≤ 5 s, 2 mm from body T
Thermal resistance junction/ambient R
Optical and Electrical Characteristics
T
= 25_C, unless otherwise specified
amb
High efficiency red (TLHR4900 )
≤ 60°C I
amb
≤ 60°C P
amb
R
F
FSM
V
amb
stg
sd
thJA
6 V
30 mA
1 A
100 mW
j
100
–20 to +100
–55 to +100
260
°
C
°
C
°
C
°
C
400 K/W
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Vmin/IVmax
≥ 0.5 I
V
l
d
l
p
6.3 13 mcd
612 625 nm
635 nm
Angle of half intensity IF = 10 mA ϕ ±16 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
6 15 V
2 3 V
50 pF
Soft orange (TLHO4900 )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Vmin/IVmax
≥ 0.5 I
V
l
d
l
p
10 26 mcd
598 611 nm
605 nm
Angle of half intensity IF = 10 mA ϕ ±16 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
2.4 3 V
6 15 V
50 pF
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83009
2 (10) Rev. A2, 04-Feb-99
Page 3
TLH.4900
Vishay Telefunken
Yellow (TLHY4900 )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Vmin/IVmax
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Angle of half intensity IF = 10 mA ϕ ±16 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
Green (TLHG4900 )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Vmin/IVmax
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Angle of half intensity IF = 10 mA ϕ ±16 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
≥ 0.5 I
≥ 0.5 I
V
l
d
l
p
F
R
V
l
d
l
p
F
R
10 26 mcd
581 594 nm
585 nm
2.4 3 V
6 15 V
j
50 pF
16 37 mcd
562 575 nm
565 nm
2.4 3 V
6 15 V
j
50 pF
Pure green (TLHP4900 )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Vmin/IVmax
≥ 0.5 I
V
l
d
l
p
4 13 mcd
555 565 nm
555 nm
Angle of half intensity IF = 10 mA ϕ ±16 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
2.4 3 V
6 15 V
50 pF
www.vishay .de • FaxBack +1-408-970-5600Document Number 83009
3 (10)Rev. A2, 04-Feb-99
Page 4
TLH.4900
Vishay Telefunken
Typical Characteristics (T
125
100
75
50
V
25
P – Power Dissipation ( mW )
0
020406080
T
95 10904
– Ambient Temperature ( °C )
amb
= 25_C, unless otherwise specified)
amb
100
Figure 1 Power Dissipation vs. Ambient Temperature
60
50
40
30
0°
10°20
°
30°
1.0
0.9
0.8
0.7
v rel
I – Relative Luminous Intensity
0.4 0.2 0 0.2 0.4
0.6
95 10044
40°
50°
60°
70°
80°
0.6
Figure 4 Rel. Luminous Intensity vs. Angular Displacement
1000
High Efficiency Red
100
tp/T=0.001
t
=10ms
10
p
20
F
I – Forward Current ( mA )
10
95 10905
0
020406080
T
– Ambient Temperature ( °C )
amb
100
Figure 2 Forward Current vs. Ambient Temperature
10000
T
v
65°C
amb
1000
tp/T=0.01
100
1
10
F
I – Forward Current ( mA )
1
0.01 0.1 1 10
95 10047
0.5
tp – Pulse Length ( ms )
0.2
0.02
0.05
0.1
100
Figure 3 Forward Current vs. Pulse Length
1
F
I – Forward Current ( mA )
0.1
02468
95 10026 V
– Forward Voltage ( V )
F
10
Figure 5 Forward Current vs. Forward Voltage
1.6
High Efficiency Red
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10027
IF=10mA
0
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
100
Figure 6 Rel. Luminous Intensity vs. Ambient Temperature
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83009
4 (10) Rev. A2, 04-Feb-99
Page 5
TLH.4900
Vishay Telefunken
2.4
High Efficiency Red
2.0
1.6
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
0
(mA)
500
I
F
/T
t
p
95 10321
10 20 50 100 200
0.5 0.2 0.1 0.05 0.021
Figure 7 Rel. Lumin. Intensity vs. Forw. Current/Duty Cycle
10
High Efficiency Red
1
0.1
100
Soft Orange
10
1
F
I – Forward Current ( mA )
0.1
01234
V
95 9990
– Forward Voltage ( V )
F
Figure 10 Forward Current vs. Forward Voltage
2.0
Soft Orange
1.6
1.2
0.8
5
v rel
I – Relative Luminous Intensity
0.01
100
95 10029
110
I
– Forward Current ( mA )
F
Figure 8 Relative Luminous Intensity vs. Forward Current
1.2
High Efficiency Red
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
690
95 10040
590 610 630 650 670
l
– Wavelength ( nm )
Figure 9 Relative Luminous Intensity vs. Wavelength
0.4
v rel
I – Relative Luminous Intensity
0
020406080
95 9994
T
– Ambient Temperature ( °C )
amb
Figure 11 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
Soft Orange
2.0
1.6
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
0
10 20 50 100 200
95 10259
0.5 0.2 0.1 0.05 0.021
Figure 12 Rel. Lumin. Intensity vs.
Forw. Current/Duty Cycle
500
100
I
F
(mA)
/T
t
p
www.vishay .de • FaxBack +1-408-970-5600Document Number 83009
5 (10)Rev. A2, 04-Feb-99
Page 6
TLH.4900
Vishay Telefunken
10
Soft Orange
1
0.1
v rel
I – Relative Luminous Intensity
0.01
100
95 9997
110
I
– Forward Current ( mA )
F
Figure 13 Relative Luminous Intensity vs. Forward Current
1.2
Soft Orange
1.0
0.8
0.6
1.6
Yellow
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10031
0
IF=10mA
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
Figure 16 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
Yellow
2.0
1.6
1.2
100
0.4
0.2
v rel
I – Relative Luminous Intensity
0
670
95 10324
570 590 610 630 650
l
– Wavelength ( nm )
Figure 14 Relative Luminous Intensity vs. Wavelength
1000
Yellow
100
tp/T=0.001
t
=10ms
10
1
F
I – Forward Current ( mA )
p
0.1
02468
95 10030 V
– Forward Voltage ( V )
F
10
Figure 15 Rel. Luminous Intensity vs.
Ambient Temperature
0.8
0.4
v rel
I – Relative Luminous Intensity
0
I
500
(mA)
F
t
p
/T
95 10260
10 20 50 100 200
0.5 0.2 0.1 0.05 0.021
Figure 17 Rel. Lumin. Intensity vs.
Forw. Current/Duty Cycle
10
Yellow
1
0.1
v rel
I – Relative Luminous Intensity
0.01
100
95 10033
110
I
– Forward Current ( mA )
F
Figure 18 Relative Luminous Intensity vs. Forward Current
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83009
6 (10) Rev. A2, 04-Feb-99
Page 7
TLH.4900
Vishay Telefunken
1.2
Yellow
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
650
95 10039
550 570 590 610 630
l
– Wavelength ( nm )
Figure 19 Relative Luminous Intensity vs. Wavelength
1000
Green
100
10
tp/T=0.001
t
=10ms
1
F
I – Forward Current ( mA )
p
0.1
02468
95 10034 V
– Forward Voltage ( V )
F
10
Figure 20 Forward Current vs. Forward Voltage
2.4
Green
2.0
1.6
1.2
0.8
0.4
v rel
I – Specific Luminous Intensity
0
95 10263
10 20 50 100 200
IF – Forward Current ( mA )
500
Figure 22 Specific Luminous Intensity vs. Forward Current
10
Green
1
0.1
v rel
I – Relative Luminous Intensity
0.01
100
95 10037
110
I
– Forward Current ( mA )
F
Figure 23 Relative Luminous Intensity vs. Forward Current
1.6
Green
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10035
0
IF=10mA
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
Figure 21 Rel. Luminous Intensity vs.
Ambient Temperature
100
1.2
Green
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
620
95 10038
520 540 560 580 600
l
– Wavelength ( nm )
Figure 24 Relative Luminous Intensity vs. Wavelength
www.vishay .de • FaxBack +1-408-970-5600Document Number 83009
7 (10)Rev. A2, 04-Feb-99
Page 8
TLH.4900
Vishay Telefunken
100
Pure Green
10
1
F
I – Forward Current ( mA )
0.1
01234
V
95 9988
– Forward Voltage ( V )
F
Figure 25 Forward Current vs. Forward Voltage
2.0
Pure Green
1.6
1.2
0.8
10
Pure Green
1
0.1
v rel
I – Relative Luminous Intensity
0.01
5
95 9998
110
I
– Forward Current ( mA )
F
100
Figure 28 Relative Luminous Intensity vs. Forward Current
1.2
Pure Green
1.0
0.8
0.6
0.4
0.4
v rel
I – Relative Luminous Intensity
0
100
95 9991
020406080
T
– Ambient Temperature ( °C )
amb
Figure 26 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
Pure Green
2.0
1.6
1.2
0.8
0.4
v rel
I – Specific Luminous Intensity
0
95 10261
10 20 50 100 200
IF – Forward Current ( mA )
500
Figure 27 Specific Luminous Intensity vs. Forward Current
0.2
v rel
I – Relative Luminous Intensity
0
600
95 10325
500 520 540 560 580
l
– Wavelength ( nm )
Figure 29 Relative Luminous Intensity vs. Wavelength
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83009
8 (10) Rev. A2, 04-Feb-99
Page 9

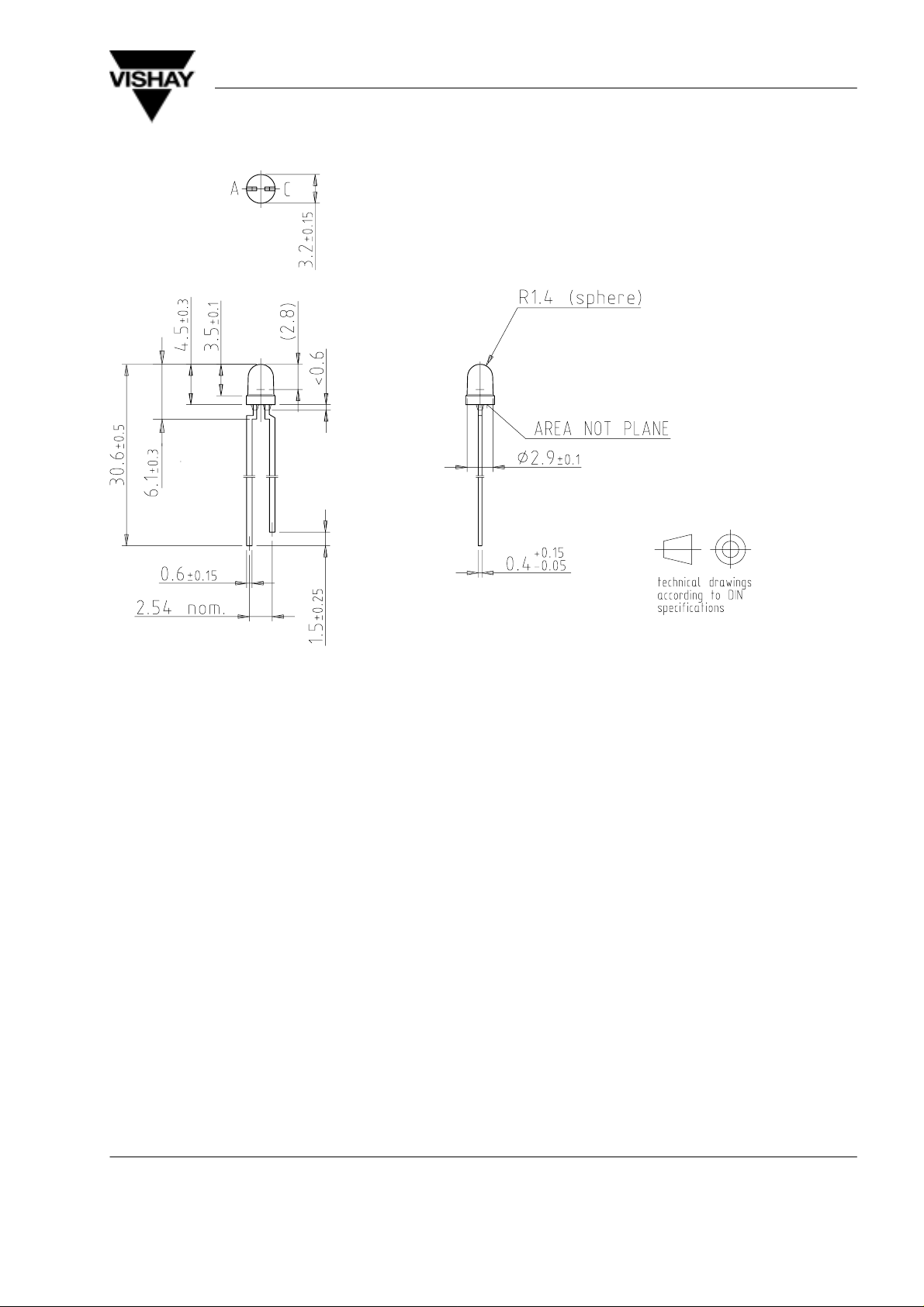

Dimensions in mm
TLH.4900
Vishay Telefunken
95 10914
www.vishay .de • FaxBack +1-408-970-5600Document Number 83009
9 (10)Rev. A2, 04-Feb-99
Page 10
TLH.4900
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as their
impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer application
by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized application, the
buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out of, directly or
indirectly , any claim of personal damage, injury or death associated with such unintended or unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 (0)7131 67 2831, Fax number: 49 (0)7131 67 2423
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83009
10 (10) Rev. A2, 04-Feb-99
Loading...
