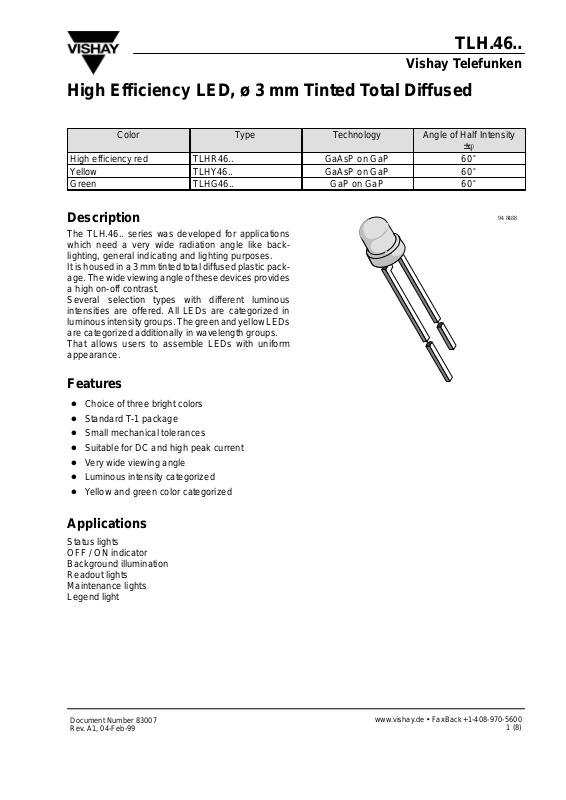

Page 1
TLH.46..
Vishay Telefunken
High Efficiency LED, ø 3 mm Tinted Total Diffused
Color Type Technology Angle of Half Intensity
±
High efficiency red TLHR46.. GaAsP on GaP 60
Yellow TLHY46.. GaAsP on GaP 60
Green TLHG46.. GaP on GaP 60
ö
°
°
°
Description
The TLH.46.. series was developed for applications
which need a very wide radiation angle like backlighting, general indicating and lighting purposes.
It is housed in a 3 mm tinted total diffused plastic package. The wide viewing angle of these devices provides
a high on-off contrast.
Several selection types with different luminous
intensities are offered. All LEDs are categorized in
luminous intensity groups. The green and yellow LEDs
are categorized additionally in wavelength groups.
That allows users to assemble LEDs with uniform
appearance.
Features
D
Choice of three bright colors
D
Standard T-1 package
D
Small mechanical tolerances
D
Suitable for DC and high peak current
D
Very wide viewing angle
D
Luminous intensity categorized
D
Yellow and green color categorized
94 8488
Applications
Status lights
OFF / ON indicator
Background illumination
Readout lights
Maintenance lights
Legend light
Document Number 83007
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
1 (8)
Page 2
TLH.46..
y
F Vmin Vmax
y
F Vmin Vmax
Vishay Telefunken
Absolute Maximum Ratings
T
= 25_C, unless otherwise specified
amb
TLHR46.. ,TLHY46.. ,TLHG46.. ,
Parameter Test Conditions Symbol Value Unit
Reverse voltage V
DC forward current T
Surge forward current tp ≤ 10 ms I
Power dissipation T
Junction temperature T
Operating temperature range T
Storage temperature range T
Soldering temperature t ≤ 5 s, 2 mm from body T
Thermal resistance junction/ambient R
Optical and Electrical Characteristics
T
= 25_C, unless otherwise specified
amb
High efficiency red (TLHR46.. )
≤ 60°C I
amb
≤ 60°C P
amb
R
F
FSM
V
amb
stg
sd
thJA
6 V
30 mA
1 A
100 mW
j
100
–20 to +100
–55 to +100
260
°
C
°
C
°
C
°
C
400 K/W
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Vmin/IVmax
TLHR4600 I
≥ 0.5 TLHR4601 I
TLHR4605 I
V
V
V
l
d
l
p
1 2 mcd
1.6 3.5 mcd
2.5 6 mcd
612 625 nm
635 nm
Angle of half intensity IF = 10 mA ϕ ±60 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
6 15 V
2 3 V
50 pF
Yellow (TLHY46.. )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Vmin/IVmax
TLHY4600 I
≥ 0.5 TLHY4601 I
TLHY4605 I
l
l
0.63 2 mcd
V
V
V
d
p
1 3.5 mcd
2.5 5 mcd
581 594 nm
585 nm
Angle of half intensity IF = 10 mA ϕ ±60 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
F
R
j
2.4 3 V
6 15 V
50 pF
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83007
2 (8)
Rev. A1, 04-Feb-99
Page 3
TLH.46..
y
F Vmin Vmax
Vishay Telefunken
Green (TLHG46.. )
Parameter Test Conditions Type Symbol Min Typ Max Unit
Luminous intensity IF = 10 mA, I
Vmin/IVmax
Dominant wavelength IF = 10 mA
Peak wavelength IF = 10 mA
Angle of half intensity IF = 10 mA ϕ ±60 deg
Forward voltage IF = 20 mA V
Reverse voltage IR = 10 mA V
Junction capacitance VR = 0, f = 1 MHz C
≥ 0.5 TLHG4600 I
TLHG4601 I
TLHG4605 I
V
V
V
l
d
l
p
F
R
1 2 mcd
1.6 3.5 mcd
4 6 mcd
562 575 nm
565 nm
2.4 3 V
6 15 V
j
50 pF
Typical Characteristics (T
125
100
75
50
V
25
P – Power Dissipation ( mW )
0
020406080
T
95 10904
– Ambient Temperature ( °C )
amb
= 25_C, unless otherwise specified)
amb
100
Figure 1 Power Dissipation vs. Ambient Temperature
60
50
40
30
10000
T
amb
F
I – Forward Current ( mA )
95 10047
1000
tp/T=0.01
100
1
10
1
0.01 0.1 1 10
0.5
t
0.02
0.2
– Pulse Length ( ms )
p
0.1
Figure 3 Forward Current vs. Pulse Length
0°
10°20
1.0
0.9
v
0.05
65°C
°
100
30°
40°
50°
F
I – Forward Current ( mA )
95 10905
Figure 2 Forward Current vs. Ambient Temperature
Document Number 83007
Rev. A1, 04-Feb-99
20
10
0
020406080
T
– Ambient Temperature ( °C )
amb
100
0.8
0.7
v rel
I – Relative Luminous Intensity
0.4 0.2 0 0.2 0.4
0.6
95 10043
Figure 4 Rel. Luminous Intensity vs.
Angular Displacement
www.vishay .de • FaxBack +1-408-970-5600
60°
70°
80°
0.6
3 (8)
Page 4
TLH.46..
Vishay Telefunken
1000
High Efficiency Red
100
tp/T=0.001
t
=10ms
10
1
F
I – Forward Current ( mA )
p
0.1
02468
95 10026 V
– Forward Voltage ( V )
F
Figure 5 Forward Current vs. Forward Voltage
1.6
High Efficiency Red
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10027
IF=10mA
0
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
Figure 6 Rel. Luminous Intensity vs.
Ambient Temperature
10
100
10
High Efficiency Red
1
0.1
v rel
I – Relative Luminous Intensity
0.01
100
95 10029
110
I
– Forward Current ( mA )
F
Figure 8 Relative Luminous Intensity vs. Forward Current
1.2
High Efficiency Red
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
690
95 10040
590 610 630 650 670
l
– Wavelength ( nm )
Figure 9 Relative Luminous Intensity vs. Wavelength
2.4
1000
High Efficiency Red
2.0
Yellow
100
1.6
1.2
10
tp/T=0.001
t
=10ms
p
0.8
1
F
0.4
v rel
I – Relative Luminous Intensity
0
10 20 50 100 200
95 10321
0.5 0.2 0.1 0.05 0.021
Figure 7 Rel. Lumin. Intensity vs.
500
I
(mA)
F
t
p
/T
I – Forward Current ( mA )
0.1
02468
95 10030 V
– Forward Voltage ( V )
F
Figure 10 Forward Current vs. Forward Voltage
10
Forw. Current/Duty Cycle
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83007
4 (8)
Rev. A1, 04-Feb-99
Page 5
TLH.46..
Vishay Telefunken
1.6
Yellow
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10031
0
IF=10mA
20 40 60 80
0
T
– Ambient Temperature ( °C )
amb
Figure 11 Rel. Luminous Intensity vs.
Ambient Temperature
2.4
Yellow
2.0
1.6
1.2
100
1.2
Yellow
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
0
650
95 10039
550 570 590 610 630
l
– Wavelength ( nm )
Figure 14 Relative Luminous Intensity vs. Wavelength
1000
Green
100
10
0.8
0.4
v rel
I – Relative Luminous Intensity
0
10 20 50 100 200
95 10260
0.5 0.2 0.1 0.05 0.021
Figure 12 Rel. Lumin. Intensity vs.
Forw. Current/Duty Cycle
10
Yellow
1
0.1
v rel
I – Relative Luminous Intensity
0.01
110
I
95 10033
– Forward Current ( mA )
F
Figure 13 Relative Luminous Intensity vs.
Forward Current
500
I
F
100
(mA)
/T
t
p
1
F
I – Forward Current ( mA )
0.1
02468
95 10034 V
– Forward Voltage ( V )
F
Figure 15 Rel. Luminous Intensity vs.
Ambient Temperature
1.6
Green
1.2
0.8
0.4
v rel
I – Relative Luminous Intensity
95 10035
0
IF=10mA
0
20 40 60 80
T
– Ambient Temperature ( °C )
amb
Figure 16 Rel. Luminous Intensity vs.
Ambient Temperature
tp/T=0.001
t
=10ms
p
10
100
Document Number 83007
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
5 (8)
Page 6
TLH.46..
Vishay Telefunken
2.4
Green
2.0
1.6
1.2
0.8
0.4
v rel
I – Specific Luminous Intensity
0
10 20 50 100 200
95 10263
IF – Forward Current ( mA )
Figure 17 Specific Luminous Intensity vs.
Forward Current
10
Green
1
500
1.2
Green
1.0
0.8
0.6
0.4
0.2
v rel
I – Relative Luminous Intensity
95 10038
0
520 540 560 580 600
l
– Wavelength ( nm )
620
Figure 19 Relative Luminous Intensity vs. Wavelength
0.1
v rel
I – Relative Luminous Intensity
0.01
110
I
95 10037
– Forward Current ( mA )
F
Figure 18 Relative Luminous Intensity vs.
Forward Current
100
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83007
6 (8)
Rev. A1, 04-Feb-99
Page 7

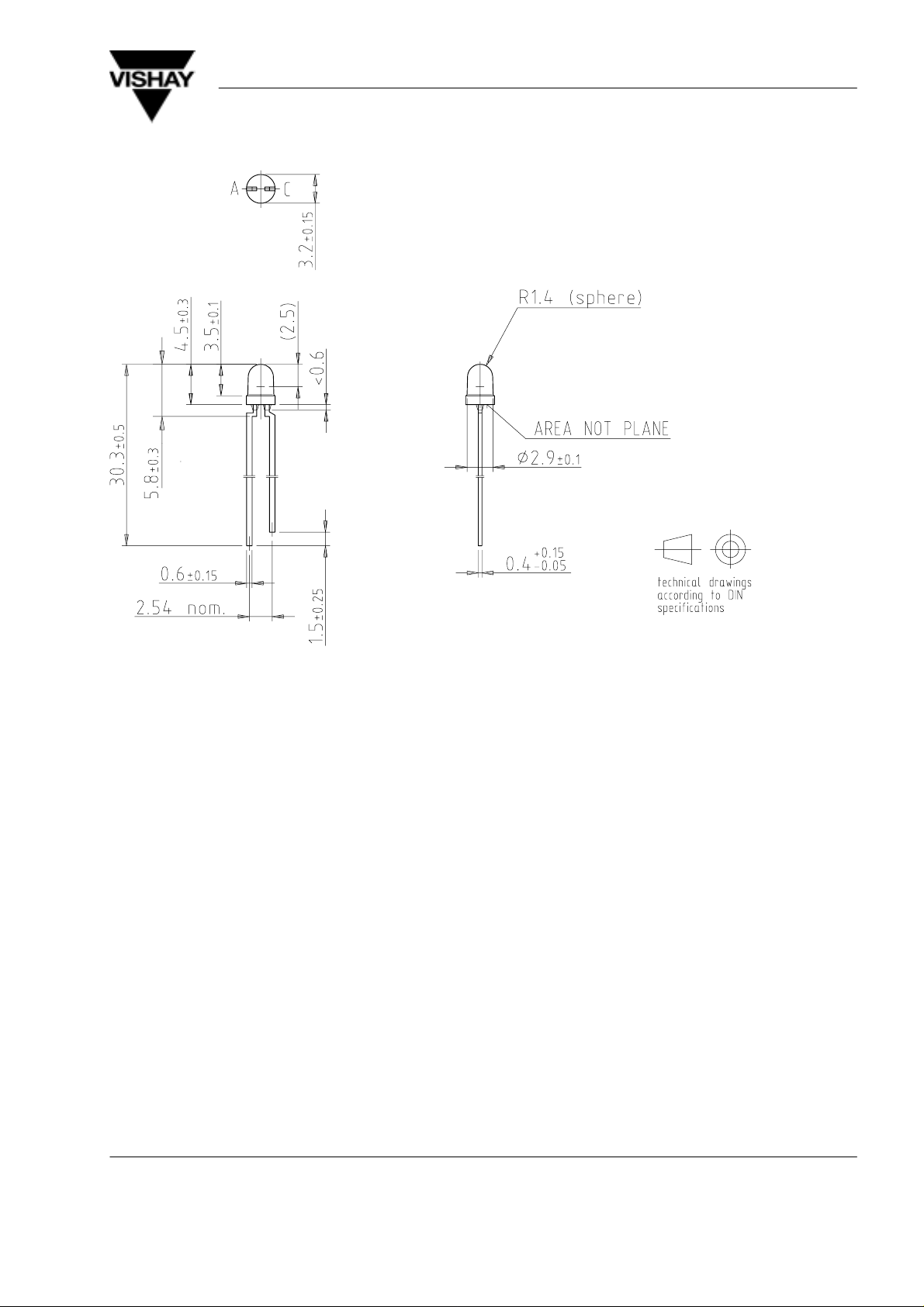

Dimensions in mm
TLH.46..
Vishay Telefunken
95 10913
Document Number 83007
Rev. A1, 04-Feb-99
www.vishay .de • FaxBack +1-408-970-5600
7 (8)
Page 8
TLH.46..
Vishay Telefunken
Ozone Depleting Substances Policy Statement
It is the policy of Vishay Semiconductor GmbH to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as their
impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known as
ozone depleting substances (ODSs).
The Montreal Protocol (1987) and its London Amendments (1990) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. V arious national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH has been able to use its policy of continuous improvements to eliminate the use of
ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2. Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency (EPA) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C (transitional substances) respectively.
Vishay Semiconductor GmbH can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer application
by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized application, the
buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out of, directly or
indirectly , any claim of personal damage, injury or death associated with such unintended or unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 (0)7131 67 2831, Fax number: 49 (0)7131 67 2423
www.vishay .de • FaxBack +1-408-970-5600 Document Number 83007
8 (8)
Rev. A1, 04-Feb-99
