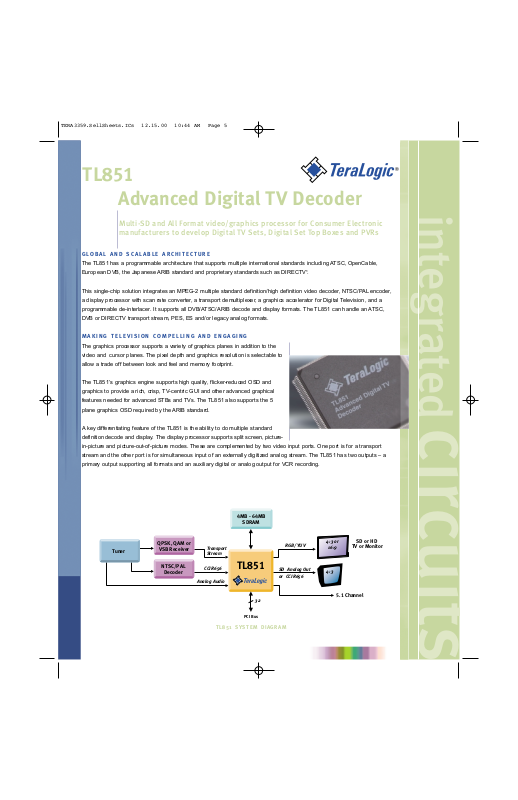

Page 1
GLOBAL AND SCALABLE ARCHITECTURE
The TL851 has a programmable architecture that supports multiple international standards including ATSC, OpenCable,
European DVB, the Japanese ARIB standard and proprietary standards such as DIRECTV
®
.
This single-chip solution integrates an MPEG-2 multiple standard definition/high definition video decoder, NTSC/PAL encoder,
a display processor with scan rate converter, a transport demultiplexer, a graphics accelerator for Digital Television, and a
programmable de-interlacer. It supports all DVB/ATSC/ARIB decode and display formats. The TL851 can handle an ATSC,
DVB or DIRECTV transport stream, PES, ES and/or legacy analog formats.
MAKING TELEVISION COMPELLING AND ENGAGING
The graphics processor supports a variety of graphics planes in addition to the
video and cursor planes. The pixel depth and graphics resolution is selectable to
allow a trade off between look and feel and memory footprint.
The TL851’s graphics engine supports high quality, flicker-reduced OSD and
graphics to provide a rich, crisp, TV-centric GUI and other advanced graphical
features needed for advanced STBs and TVs. The TL851 also supports the 5
plane graphics OSD required by the ARIB standard.
A key differentiating feature of the TL851 is the ability to do multiple standard
definition decode and display. The display processor supports split screen, picture-
in-picture and picture-out-of-picture modes. These are complemented by two video input ports. One port is for a transport
stream and the other port is for simultaneous input of an externally digitized analog stream. The TL851 has two outputs – a
primary output supporting all formats and an auxiliary digital or analog output for VCR recording.
Multi-SD and All Format video/graphics processor for Consumer Electronic
manufacturers to develop Digital TV Sets, Digital Set Top Boxes and PVRs
Transport
Stream
CCIR656
QPSK, QAM or
VSB Receiver
NTSC/PAL
Decoder
PCI Bus
4MB - 64MB
SDRAM
TL851
Tuner
RGB/YUV
SD Analog Out
or CCIR656
!
!
SD or HD
TV or Monitor
5.1 Channel
Analog Audio
4:3 or
16:9
4:3
32

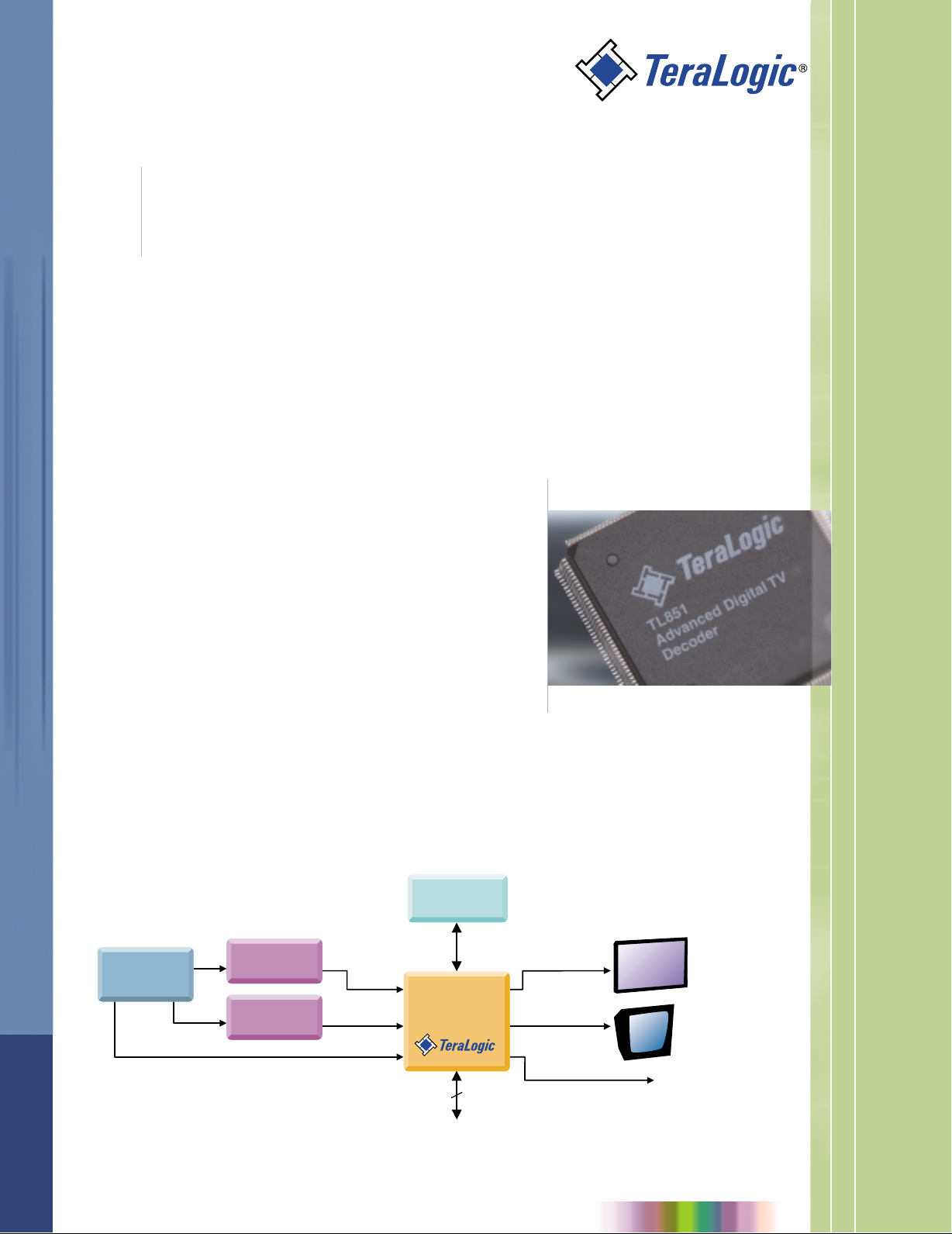

TL851 SYSTEM DIAGRAM
integrated circuits
TL851
Advanced Digital TV Decoder
Page 2
Copyright 2000. TeraLogic, Inc. All rights reserved worldwide. TeraLogic and the TeraLogic logo are registered trademarks of TeraLogic, Inc. Janus is a
trademark of TeraLogic, Inc. All other trademarks are properties of their respective owners and are acknowledged. 11/00 - 5K
TeraLogic, Inc. 1240 Villa Street Mountain View CA 94041
tel 650.526.2000 fax 650.526.2006 www.teralogic.tv
circuits
APPLICATIONS
• Digital TV Sets
• Standard Definition Digital Set-top Boxes
• Personal Video Recorders
• High Definition Digital Set-top Boxes
SUPPORTING TERALOGIC PRODUCTS
• TL81x STB/PVR Controller ICs
• Cougar Development Platform
HIGH PERFORMANCE DIGITAL
VIDEO DECODER
• MPEG-2 decoder (Dual MP@ML or single
MP@HL)
• ATSC/DVB/ARIB/DIRECTV compliant
• Decodes 1 HD or multiple SD streams
simultaneously
ADVANCED DISPLAY PROCESSOR
• Standard definition and all 18 ATSC formats
supported
• Letterbox and pan-and-scan options for
displaying 16:9 video on 4:3 TVs
• Frame rate conversion for 3:2 pulldown
• Multiple video services displayed on the
same screen including picture-in-picture
(PIP) and picture-out-of-picture (POP) applications
• Graphics overlay plane with up to 24 bits
per pixel and 8-bit alpha channel
• Cursor plane with 32x32 pixel cursor with 4-bit
AUDIO PROCESSING
• Digital audio inputs supporting up to six
channel sources (
I
2
S compatible)
• Audio capture to memory or bypass
to output
• Audio mix, cross-fade and attenuate
between sources
• Six channel audio output
• IEC-958 formatted output supported
• Provides audio rate buffer
• Provides audio and video PTS
synchronization
MEMORY CONTROLLER
• Programmable clock generator
• Up to 64 Mbytes addressing range
• Advanced Memory Reduction (AMR)
mode supports HD decode in
8 Mbytes of memory
PROGRAMMABLE TRANSPORT
DEMULTIPLEXER
• ATSC/ARIB/DVB/DIRECTV compliant
• Transport or PES can be fed through
PCI bus or dedicated input
ACCELERATED 2-D GRAPHICS
• Hardware BLT engine
• Up to 32 bpp graphics in RGB color
space
• Full alpha blend support
• Alpha channel arithmetic engine
• Hardware color expansion and reduction
• Hardware flicker reduction for interlaced
display
PCI BUS INTERFACE
• 32-bit interface (master or slave)
• 50 MHz or 33 MHz bus clock
TECHNOLOGY
• 2.5 V core, 3.3 V I/O, 0.25µ CMOS
• 348-pin ball grid array package
index (16 colors with 8-bit alpha blending)
• Analog RGB (EIA-770) or YCrCb output
for HDTV display or SD display in downconversion mode
• 16- or 24-bit digital video output
• Programmable I to P conversion option
(requires custom support)
• Enables ARIB 5 plane graphics option
NTSC/PAL ENCODER
• Macrovision 7.1
• Supports all variations of NTSC/PAL
encoding
• Advanced trick play features including
zoom, smooth scan
FLEXIBLE FORMAT CONVERTER
• High-quality scan conversion from ATSC
source formats to output display formats
• Many nonstandard output and source
formats supported
• High quality up-conversion and downconversion of source video to selected
display format
NTSC VIDEO INTEGRATION
• Video capture port for NTSC/PAL digital
video (CCIR656 compatible)
• Supports analog VCR recording of off-air
programming
• Analog inputs upscaled to HD resolutions
TL851 Advanced
Digital TV Decoder
2D Graphics
• 32 bit engine
• Anti-alias filter
• Alpha blending
• ARIB Graphics support
Memory 4/8/16 MB
PCI Bus
TL851
NTSC/PAL Encoder
PCI Controller
SD/HD Transport
Stream
Digital Video
CCIR656
Audio In
Digital HD
Video
Analog HD Out
(RGB/YP
b
P
r
)
Audio Out
(I
2
S and IEC958)
CCIR656
SD Video
Transport
Demultiplexer
• ATSC
• ARIB
• DVB
• DIRECTV
Advanced Display Processor
• Program
m
able I to P and
P to I conversions
• Program
m
able G
raphics Scaler
Audio
Processor/
Mixer
32
Digital Video Decoder
• M
P@
HL M
PEG
2
• Decodes all 18 ATSC form
ats
• 1 HD or 4 SD stream
s
• D
ecodes DVD
video
• ATSC, DVB, ARIB and
DirecTV com
pliant
Video Scaler
• 19 tap H/V filters
• Line doubler
• High quality
up/dow
n conversion
• I to P and P to I conversions
• Aspect ratio conversion
• All form
ats
• 1080i, 720p,
480p, 480i
Display
Processor
Memory Controller

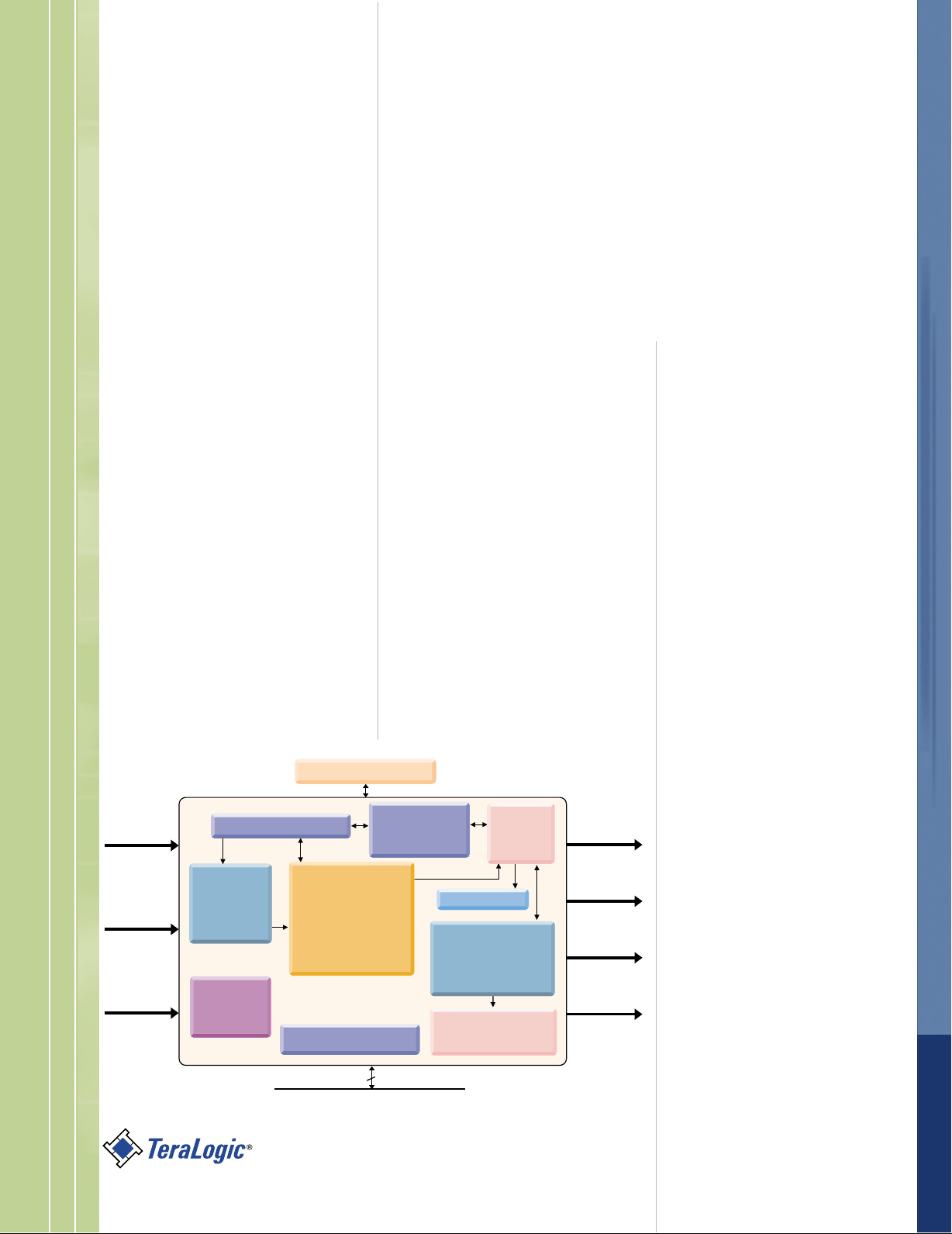

TL851 BLOCK DIAGRAM
