TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Pin Compatible With ST16C2550 With
Additional Enhancements
D
Supports Up to 3.125 Mbps Baud Rate
– Up to 2.1875 Mbps Baud Rate When
Using Crystal (35 MHz Input Clock)
– Up to 3.125 Mbps Baud Rate When Using
Oscillator or Clock Source (50 MHz Input
Clock)
D
64-Byte Transmit FIFO
D
64-Byte Receive FIFO With Error Flags
D
Programmable and Selectable Transmit and
Receive FIFO Trigger Levels for DMA and
Interrupt Generation
D
Programmable Receive FIFO Trigger Levels
for Software/Hardware Flow Control
D
Software/Hardware Flow Control
– Programmable Xon/Xoff Characters
– Programmable Auto-RTS
and Auto-CTS
D
Software Flow Control Turned Off
Optionally by Any Xon Rx Character
D
DMA Signalling Capability for Both
Received and Transmitted Data
D
Supports 3.3-V Operation
D
Software Selectable Baud Rate Generator
Prescaleable Clock Rates of 1X and 4X
D
Fast Access Time 2 Clock Cycle IOR/IOW
Pulse Width
D
Programmable Sleep Mode
D
Programmable Serial Interface
Characteristics
– 5, 6, 7, or 8Bit Characters
– Even, Odd, or No Parity Bit Generation
and Detection
– 1, 1.5, or 2 Stop Bit Generation
D
False Start Bit Detection
D
Complete Status Reporting Capabilities in
Both Normal and Sleep Mode
D
Line Break Generation and Detection
D
Internal Test and Loopback Capabilities
D
Fully Prioritized Interrupt System Controls
D
Modem Control Functions (CTS, RTS, DSR,
DTR
, RI, and CD)
14 15
RESET
DTRB
DTRA
RTSA
OPA
RXRDYA
INTA
INTB
A0
A1
A2
NC
36
35
34
33
32
31
30
29
28
27
26
25
16
1
2
3
4
5
6
7
8
9
10
11
12
D5
D6
D7
RXB
RXA
TXRDYB
TXA
TXB
OPB
CSA
CSB
NC
17 18 19 20
RIA
CDA
DSRA
CTSA
47 46 45 44 4348 42
D4D3D2D1D0
RTSB
CTSB
NC
IOW
GND
RXRDYB
IOR
DSRB
RIB
40 39 3841
21
22 23 24
37
13
NC
TXRDYA
XTAL2
XTAL1
CDB
PACKAGE
(TOP VIEW)
V
CC
NC – No internal connection
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Page 2
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
description
The TL16C752 is a dual universal asynchronous receiver/transmitter (UART) with 64-byte FIFOs, automatic
hardware/software flow control, and data rates up to 3.125 Mbps. The ’752 offers enhanced features. It has a
transmission control register (TCR) that stores received FIFO threshold level to start/stop transmission during
hardware and sofware flow control. With the FIFO RDY register, the software gets the status of TXRDY/RXRDY
for all four ports in one access. Onboard status registers provide the user with error indications and operational
status, modem interface control. System interrupts may be tailored to meet user requirements. An internal
loopback capability allows onboard diagnostics.
The UART transmits data sent to it from the peripheral 8-bit bus on the TX signal and receives characters on
the RX signal. Characters can be programmed to be 5, 6, 7, or 8 bits. The UART has a 64-byte receive FIFO
and transmit FIFO and can be programmed to interrupt at different trigger levels. The UART generates its own
desired baud rate based upon a programmable divisor and its input clock. It can transmit even, odd, or no parity
and 1, 1.5, or 2 stop bits. The receiver can detect break, idle, or framing errors, FIFO overflow, and parity errors.
The transmitter can detect FIFO underflow. The UART also contains a software interface for modem control
operations, and has software flow control and hardware flow control capabilities.
The TL16C752 is available in a 48-pin PT (LQFP) package. The 48-pin version offers three state interrupt
control and provides constant active interrupt outputs.
Terminal Functions
TERMINAL
NAME NO.
I/O
DESCRIPTION
A0 28 I Address 0 select bit. Internal registers address selection.
A1 27 I Address 1 select bit. Internal registers address selection.
A2 26 I Address 2 select bit. Internal registers address selection.
CDA, CDB 40, 16 I
Carrier detect (active low). These inputs are associated with individual UART channels A through D. A 0 on
these pins indicates that a carrier has been detected by the modem for that channel.
CSA, CSB 10, 11 I
Chip select A and B (active low). These pins enable data transfers between the user CPU and the TL16C752
for the channel(s) addressed. Individual UART sections (A, B) are addressed by providing a 0 on the
respective CS A
and CS B pins.
CTSA, CTSB 38, 23 I
Clear to send (active low). These inputs are associated with individual UART channels A and B. A logic 0 on
the CTS pins indicates the modem or data set is ready to accept transmit data from the 752. Status can be
tested by reading MSR bit 4. These pins only affect the transmit and receive operations when auto CTS
function is enabled through the enhanced feature register (EFR) bit 7, for hardware flow control operation.
D0–D4
D5–D7
44–48,
1–3
I/O
Data bus (bidirectional). These pins are the eight bit, three state-data bus for transferring information to or
from the controlling CPU. D0 is the least significant bit and the first data bit in a transmit or receive serial data
stream.
DSRA, DSRB 39, 20 I
Data set ready (active low). These inputs are associated with individual UART channels A and B. A logic 0
on these pins indicates the modem or data set is powered on and is ready for data exchange with the UART .
These pins have no effect on the UART transmit or receive operation.
DTRA, DTRB 34, 35 O
Data terminal ready (active low). These outputs are associated with individual UART channels A and B. A
logic 0 on these pins indicates that the 752 is powered on and ready. These pins can be controlled through
the modem control register . W riting a 1 to MCR bit 0 sets the DTR
output to 0, enabling the modem. These
pins are a logic 1 after writing a 0 to MCR bit 0, or after a reset. These pins have no effect on the UART transmit
or receive operation.
GND 17 Pwr Signal and power ground
INTA, INTB 30, 29 O
Interrupt A and B (active high). These pins provide individual channel interrupts, INT A and B. INT A and B
are enabled when MCR bit 3 is set to a logic 1, interrupts are enabled in the interrupt enable register (IER),
and when an interrupt condition exists. Interrupt conditions include: receiver errors, available receiver buffer
data, transmit buffer empty, or when a modem status flag is detected.
IOR 19 I
Read input (active low strobe). A high to low transition on IOR will load the contents of an internal register
defined by address bits A0–A2 onto the TL16C752 data bus (D0–D7) for access by an external CPU.
Page 3
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Terminal Functions (Continued)
TERMINAL
NAME NO.
I/O
DESCRIPTION
IOW 15 I
Write input (active low strobe). A high to low transition on IOW will transfer the contents of the data bus (D0–D7)
from the external CPU to an internal register that is defined by address bits A0–A2 and CSA
and CSB
OPA, OPB 32, 9 0
User defined outputs. This function is associated with individual channels A and B. The state at these pins is
defined by the user and through the software settings of the MCR register, bit 3. INT A–B are set to active mode
and OP to a logic 0 when the MCR–3 is set to a logic 1. INTA–B are set to the thru state mode and OP is set
to a logic 0. See bit 3, Modem Control Register (MCR bit 3).
RESET 36 I
Reset. RESET will reset the internal registers and all the outputs. The UART transmitter output and the
receiver input will be disabled during reset time. See TL16C752 external reset conditions for initialization
details.
RIA, RIB 41, 21 I
Ring indicator (active low). These inputs are associated with individual UART channels A and B. A logic 0 on
these pins indicates the modem has received a ringing signal from the telephone line. A logic 1 transition on
these input pins generates an interrupt.
RTSA, RTSB 33, 22 O
Request to send (active low). These outputs are associated with individual UART channels A and B. A logic
0 on the RTS
pins indicates the transmitter has data ready and waiting to send. Writing a 1 in the modem control
register (MCR bit 1) sets these pins to 0, indicating data is available. After a reset, these pins are set to 1. These
pins only affects the transmit and receive operation when auto RTS function is enabled through the enhanced
feature register (EFR) bit 6, for hardware flow control operation.
RXA, RXB 5, 4 I
Receive data input. These inputs are associated with individual serial channel data to the 752. During the local
loopback mode, these RX input pins are disabled and TX data is internally connected to the UART RX input
internally .
RXRDYA,
RXRDYB
31, 18 O
Receive ready (active low). RXRDY A and B goes low when the trigger level has been reached or a timeout
interrupt occurs. They goes high when the RX FIFO is empty and there is an error in RX FIFO.
TXA, TXB 7, 8 O
Transmit data. These outputs are associated with individual serial transmit channel data from the 752. During
the local loopback mode, the TX input pin is disabled and TX data is internally connected to the UART RX input.
TXRDYA,
TXRDYB
43, 6 O
Transmit ready (active low). TXRDY A and B go low when there trigger level numbers of spares available. They
go high when the TX buffer is full.
V
CC
42 I Power supply inputs.
XTAL1 13 I
Crystal or external clock input. XTAL1 functions as a crystal input or as an external clock input. A crystal can
be connected between XTAL1 and XTAL2 to form an internal oscillator circuit (see Figures 9 and 10).
Alternatively , an external clock can be connected to XTAL1 to provide custom data rates.
XTAL2 14 O
Output of the crystal oscillator or buffered clock. See also XT AL1. XT AL2 is used as a crystal oscillator output
or buffered a clock output.
Page 4
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional block diagram
Control Signals
Modem Control Signals
Divisor
Bus
Interface
Control
and
Status Block
Status Signals
Control Signals
Status Signals
Baud-Rate
Generator
UART_CLK
Receiver Block
Logic
Receiver FIFO
64-Byte
Vote
Logic
Transmitter Block
Logic
Transmitter FIFO
64-Byte
RX
RX
TX
TX
NOTE: The Vote logic determines whether the RX data is a logic 1 or 0. It takes three samples of the RX line, and uses a majority vote to determine
the logic level received. The Vote logic operates on all bits received.
functional description
The TL16C752 UART is pin compatible with the ST16C2550 UART. It provides more enhanced features. All
additional features are provided through a special enhanced feature register.
The UART will perform serial-to-parallel conversion on data characters received from peripheral devices or
modems and parallel-to-parallel conversion on data characters transmitted by the processor. The complete
status of each channel of the TL16C752 UART can be read at any time during functional operation by the
processor.
The TL16C752 can be placed in an alternate mode (FIFO mode) relieving the processor of excessive software
overhead by buffering received/transmitted characters. Both the receiver and transmitter FIFOs can store up
to 64 bytes (including three additional bits of error status per byte for the receiver FIFO) and have selectable
or programmable trigger levels. Primary outputs RXRDY
and TXRDY allow signalling of DMA transfers.
The TL16C752 will have selectable hardware flow control and software flow control. Hardware flow control
significantly reduces software overhead and increases system efficiency by automatically controlling serial data
flow using the RTS
output and CTS input signals. Software flow control automatically controls data flow by using
programmable Xon/Xoff characters.
The UART will include a programmable baud rate generator that can divide the timing reference clock input by
a divisor between 1 and (2
16
–1).
Page 5
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
trigger levels
The TL16C752 provides independent selectable and programmable trigger levels for both receiver and
transmitter DMA and interrupt generation. After reset, both transmitter and receiver FIFOs are disabled and so,
in effect, the trigger level is the default value of one byte. The selectable trigger levels are available via the FCR.
The programmable trigger levels are available via the TLR.
hardware flow control
Hardware flow control is composed on auto-CTS
and auto-RTS. Auto-CTS and auto-RTS can be enabled/
disabled independently by programming EFR[7:6].
With auto-CTS
, CTS must be active before the UART can transmit data.
Auto-RTS
only activates the RTS output when there is enough room in the FIFO to receive data and deactivates
the RTS output when the RX FIFO is sufficiently full. The HALT and RESTORE trigger levels in the TCR
determine the levels at which RTS is activated/deactivated.
If both auto-CTS
and auto-RTS are enabled, when RTS is connected to CTS, data transmission does not occur
unless the receiver FIFO has empty space. Thus, overrun errors are eliminated during hardware flow control.
If not enabled, overrun errors occur if the transmit data rate exceeds the receive FIFO latency.
auto-RTS
Auto-RTS data flow control originates in the receiver block (see functional block diagram). Figure 1 shows RTS
functional timing. The receiver FIFO trigger levels used in Auto-RTS are stored in the TCR. RTS is active if the
RX FIFO level is below the HAL T trigger level in TCR[3:0]. When the receiver FIFO HALT trigger level is reached,
RTS
is deasserted. The sending device (e.g., another UART) may send an additional byte after the trigger level
is reached (assuming the sending UART has another byte to send) because it may not recognize the
deassertion of RTS
until it has begun sending the additional byte. RTS is automatically reasserted once the
receiver FIFO reaches the RESUME trigger level programmed via TCR[7:4]. This reassertion allows the
sending device to resume transmission.
RX
RTS
IOR
Start Byte N Stop Start Byte N+1 Stop Start
1 2 N N+1
NOTES: 1. N = receiver FIFO trigger level
2. The two blocks in dashed lines cover the case where an additional byte is sent as described in Auto-RTS
.
Figure 1. RTS Functional Timing
Page 6
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
auto-CTS
The transmitter circuitry checks CTS before sending the next data byte. When CTS is active, the transmitter
sends the next byte. To stop the transmitter from sending the following byte. CTS
must be deasserted before
the middle of the last stop bit that is currently being sent. The auto-CTS
function reduces interrupts to the host
system. When flow control is enabled, the CTS
state changes and need not trigger host interrupts because the
device automatically controls its own transmitter. Without auto-CTS
, the transmitter sends any data present in
the transmit FIFO and a receiver overrun error can result. Figure 2 shows CTS
functional timing, and Figure 3
shows an example of autoflow control.
Byte 0–7 StopStart Byte 0–7 StopStart
TX
CTS
NOTES: A. When CTS is low, the transmitter keeps sending serial data out
B. When CTS
goes high before the middle of the last stop bit of the current byte, the transmitter finishes sending the current byte but
it does not send the next byte.
C. When CTS
goes from high to low, the transmitter begins sending data again.
Figure 2. CTS Functional Timing
Serial to
Parallel
Flow
Control
Parallel to
Serial
Flow
Control
RX
FIFO
TX
FIFO
Parallel to
Serial
Flow
Control
Serial to
Parallel
Flow
Control
TX
FIFO
RX
FIFO
D7–D0 D7–D0
UART 1 UART 2
RX
RTS
TX
CTS
TX
CTS
RX
RTS
Figure 3. Autoflow Control (Auto-RTS and Auto-CTS) Example
Page 7
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
software flow control
Software flow control is enabled through the enhanced feature register and the modem control register. Different
combinations of software flow control can be enabled by setting different combinations of EFR[3–0]. Table 1
shows software flow control options.
There are two other enhanced features relating to S/W flow control:
– Xon Any Function [MCR950: Operation will resume after receiving any character after recognizing the
Xoff character.
NOTE:
It is possible that an Xon1 character is recognized as an Xon Any character which could
cause an Xon2 character to be written to the RX FIFO.
– Special Character [EFR(5)]: Incoming data is compared to Xoff2. Detection of the special character
sets the Xoff interrupt {IIR(4)] but does not halt transmission. The Xoff interrupt is cleared by a read of the
IIR. The special character is transferred to the R FIFO.
Table 1. Software Flow Control Options EFR[0:3]
BIT 3 BIT 2 BIT 1 BIT 0 Tx, Rx SOFTWARE FLOW CONTROLS
0 0 X X No transmit flow control
1 0 X X Transmit Xon1, Xoff1
0 1 X X Transmit Xon2, Xoff2
1 1 X X Transmit Xon1, Xon2: Xoff1, Xoff2
X X 0 0 No receive flow control
X X 1 0 Receiver compares Xon1, Xoff1
X X 0 1 Receiver compares Xon2, Xoff2
1 0 1 1 Transmit Xon1, Xoff1
Receiver compares Xon1 and Xon2, Xoff1 and Xoff2
0 1 1 1 Transmit Xon2, Xoff2
Receiver compares Xon1 and Xon2, Xoff1 and Xoff2
1 1 1 1 Transmit Xon1, Xon2: Xoff1, Xoff2Xoff1
Receiver compares Xon1 and Xon2: Xoff1 and Xoff2
0 0 1 1 No transmit flow control
Receiver compares Xon1 and Xon2: Xoff1 and Xoff2
RX
When software flow control operation is enabled, the TL16C752 will compare incoming data with Xoff1/2
programmed characters (in certain cases Xoff1 and Xoff2 must be received sequentially
1
). When the correct
Xoff characters are received, transmission is halted after completing transmission of the current character . Xoff
detection also sets IIR[4] (if enabled via IER[5]) and causes INT to go high.
To resume transmission an Xon1/2 character must be received (in certain cases Xon1 and Xon2 must be
received sequentially). When the correct Xon characters are received IIR[4] is cleared and the Xoff interrupt
disappears.
NOTE:
If a Parity, Framing or Break error occurs while receiving a software flow control character, this
character will be treated as normal data and will be written to the RCV FIFO.
1. When pairs of Xon/Xoff characters are programmed to occur sequentially, received Xon1/Xoff1 characters must be written to the Rx FIFO
if the subsequent character is not Xon2/Xoff2.
Page 8
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
TX
Xoff1/2 characters are transmitted when the RX FIFO has passed the programmed trigger level TCR[3:0].
Xon1/2 characters are transmitted when the RX FIFO reaches the trigger level programmed via TCR[7:4].
An important note here is that if, after an xoff character has been sent, software flow control is disabled the UART
will transmit Xon characters automatically to enable normal transmission to proceed. A feature of the TL16C752
UART design is that if the software flow combination (EFR[3:0]) changes after an Xoff has been sent, the
originally programmed Xon is automatically sent. If the RX FIFO is still above the trigger level, the newly
programmed Xoff1/2 will be transmitted.
The transmission of Xoff/Xon(s) follows the exact same protocol as transmission of an ordinary byte from the
FIFO. This means that even if the word length is set to be 5, 6, or 7 characters then the 5, 6, or 7 least significant
bits of Xoff1,2/Xon1,2 will be transmitted. (Note that the transmission of 5, 6, or 7 bits of a character is seldom
done, but this functionality is included to maintain compatibility with earlier designs.)
It is assumed that software flow control and hardware flow control will never be enabled simultaneously . Figure 4
shows an example of software flow control.
UART 1
Parallel to Serial
Serial to Parallel
Xon-1 Word
Xon-2 Word
Xoff-1 Word
Xoff-1 Word
Transmit
FIFO
Serial to Parallel
Parallel to Serial
Xon-1 Word
Xoff-1 Word
Xoff-2 Word
Receive
FIFO
Data
Xoff – Xon – Xoff
Compare
Programmed
Xon–Xoff
Characters
UART 2
Xon-2 Word
Figure 4. Software Flow Control Example
Page 9
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
reset
Table 2 summarizes the state of registers after reset.
Table 2. Register Reset Functions
REGISTER
RESET
CONTROL
RESET STATE
Interrupt enable register RESET All bits cleared
Interrupt identification register RESET Bit 0 is set. All other bits cleared.
FIFO control register RESET All bits cleared
Line control register RESET Reset to 00011101 (1D hex).
Modem control register RESET All bits cleared
Line status register RESET Bits 5 and 6 set. All other bits cleared.
Modem status register RESET Bits 0–3 cleared. Bits 4–7 input signals.
Enhanced feature register RESET All bits cleared
Receiver holding register RESET Pointer logic cleared
Transmitter holding register RESET Pointer logic cleared
Transmission control register RESET All bits cleared
Trigger level register RESET All bits cleared
NOTE: Registers DLL, DLH, SPR, Xon1, Xon2, Xoff1, Xoff2 are not reset by the top-level reset signal
RESEST, i.e., they hold their initialization values during reset.
Table 3 summarizes the state of registers after reset.
Table 3. Signal Reset Functions
SIGNAL
RESET
CONTROL
RESET STATE
TX RESET High
RTS RESET High
DTR RESET High
RXRDY RESET High
TXRDY RESET Low
interrupts
The TL16C752 has interrupt generation and prioritization (6 prioritized levels of interrupts) capability. The
Interrupt enable register (IER) enables each of the 6 types of interrupts and the INT signal in response to an
interrupt generation. The IER can also disable the interrupt system by clearing bits 0–3, 5–7. When an interrupt
is generated, the IIR indicates that an interrupt is pending and provides the type of interrupt through IIR[5–0].
Table 4 summarizes the interrupt control functions.
Page 10
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
10
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
Table 4. Interrupt Control Functions
IIR[5–0]
PRIORITY
LEVEL
INTERRUPT
TYPE
INTERRUPT SOURCE INTERRUPT RESET METHOD
000001 None None None None
000110 1 Receiver line
status
OE, FE, PE, or BI errors occur in characters in
the RX FIFO
FE< PE< BI: All erroneous characters are read
from the RX FIFO.
OE: Read LSR
001100 2 RX timeout Stale data in RX FIFO Read RHR
000100 2 RHR interrupt DRDY (data ready)
(FIFO disable)
RX FIFO above trigger level (FIFO enable)
Read RHR
000010 3 THR interrupt TFE (THR empty)
(FIFO disable)
TX FIFO passes below trigger level (FIFO
enable)
Read IIR OR a write to the THR
000000 4 Modem status MSR[3:0]/= 0 Read MSR
010000 5 Xoff interrupt Receive Xoff character(s)/special character Receive Xon character(s)/Read of IIR
100000 6 CTS, RTS RTS pin or CTS pin change state from active
(low) to inactive (high)
Read IIR
It is important to note that for the receiver line status interrupt, it is LSR[7] which generates the interrupt.
LSR[4–2] are set when an erroneous character is read from the RX FIFO and they are cleared on a read of the
LSR. LSR[7] is set when there is an error anywhere in the RX FIFO and is cleared only when there are no more
errors remaining in the FIFO.
For the Xoff interrupt, if an Xoff flow character detection caused the interrupt, the interrupt is cleared by an Xon
flow character detection. If a special character detection caused the interrupt, the interrupt is cleared by a read
of the ISR.
interrupt mode operation
In FIFO interrupt mode (FCR=1, IER[3:0] = 1) the processor is informed of the status of the receiver and
transmitter by an interrupt signal, INT. Therefore, it is not necessary to continuously poll the line stats register
(LSR) to see if any interrupts need to be serviced. Figure 5 shows FIFO interrupt mode operation.
1111
IER
IIR
THR RHR
IOW/IOR
INTProcessor
Figure 5. FIFO Interrupt Mode Operation
Page 11
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
11
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
FIFO polled mode operation
In FIFO polled mode (FCR=1, IER[3:0] = 0) the status of the receiver and transmitter can then be checked by
polling the line status register (LSR). This mode is an alternative to the FIFO interrupt mode of operation where
the status of the receiver and transmitter is automatically known by means of interrupts sent to the CPU. Figure
6 shows FIFO polled mode operation.
0000
LSR
IER
THR RHR
IOW/IOR
Processor
Figure 6. FIFO Polled Mode Operation
DMA signalling
There are two modes of DMA operation: DMA mode 0 or 1, selected by FCR[3].
In DMA mode 0 or FIFO disable (FCR[0]=0) DMA occurs in single character transfers. In DMA mode 1 multi-
character (or block) DMA transfers are catered for to relieve the processor for longer periods of time.
single DMA transfers (DMA mode0/FIFO disable)
Transmitter: When empty, the TXRDY signal becomes active. TXRDY will go inactive after one character has
been loaded into it.
Receiver: RXRDY
is active when there is at least one character in the FIFO. It becomes inactive when the
receiver is empty.
Figure 7 shows TXRDY
and RXRDY in DMA mode0/FIFO disable.
FIFO Empty
TXRDY
wrptr
TXRDY
wrptr
At Least One
Location Filled
TX
FIFO Empty
RXRDY
rdptr
RXRDY
rdptr
At Least One
Location Filled
RX
Figure 7. TXRDY and RXRDY in DMA Mode 0/FIFO Disable
Page 12
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
12
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
block DMA transfers (DMA mode 1)
Transmitter: TXRDY is active when there is a trigger level number of spaces available. It becomes inactive when
the FIFO is full.
Receiver: RXRDY
becomes active when the trigger level has been reached OR when a timeout interrupt occurs.
It will go inactive when the FIFO is empty OR an error in the RX FIFO is flagged by LSR(7)

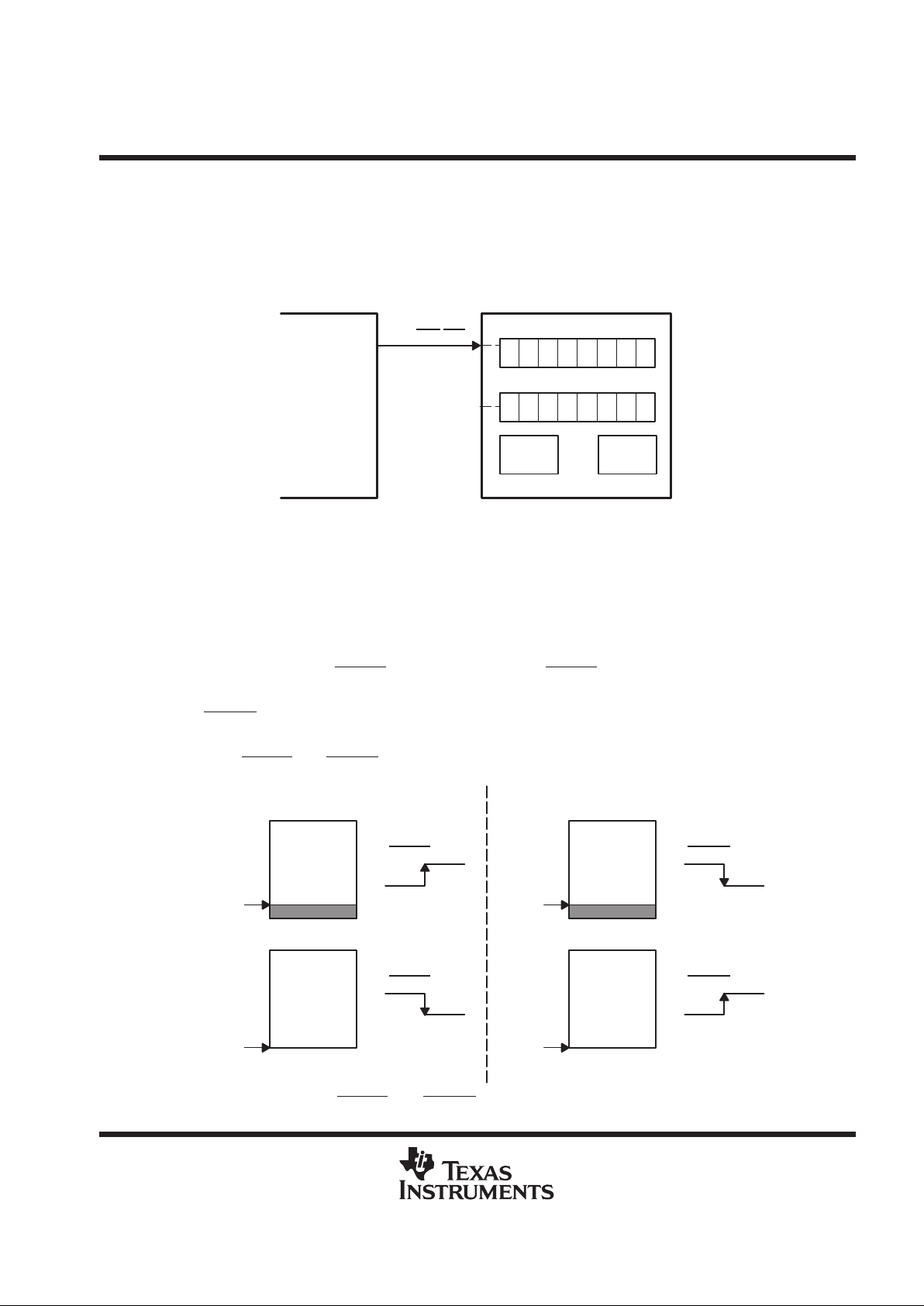

Figure 8 shows TXRDY
and RXRDY in DMA mode 1.
TXRDY
wrptr
TXRDY
wrptr
FIFO Full
TX
FIFO Empty
RXRDY
rdptr
RXRDY
rdptr
At Least One
Location Filled
RX
Trigger
Level
Trigger
Level
Figure 8. TXRDY and RXRDY in DMA Mode 1
sleep mode
Sleep mode is an enhanced feature of the TL16C752 UART . It is enabled when EFR[4], the enhanced functions
bit is set AND when IER[4] is set. Sleep mode is entered when
– The serial data input line, RX, is idle (see break and time-out conditions).
– The TX FIFO and TX shift register are empty
– There are no interrupts pending except THR and timeout interrupts.
NOTE:
Sleep mode will not be entered if there is data in the RX FIFO.
In sleep mode the UART clock and baud rate clock are stopped. Since most registers are clocked using these
clocks, the power consumption is greatly reduced. The UART will wake up when any change is detected on the
RX line, when there is any change in the state of the modem input pins, or if data is written to the TX FIFO.
NOTE:
Writing to the divisor latches, DLL and DLH, to set the baud clock, MUST NOT be done during sleep
mode. Therefore it is advisable to disable sleep mode using IER[4] before writing to DLL or DLH.
break and timeout conditions
An RX idle condition is detected when the receiver line, RX, has been high for a time equivalent to (4X
programmed word length)+12 bits. The receiver line is sampled midway through each bit.
When a break condition occurs the TX line is pulled low. A break condition is activated by setting LCR[6].
Page 13
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
13
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
functional description (continued)
programmable baud rate generator
The TL16C752 UART contains a programmable baud generator that takes any clock input and divides it by a
divisor in the range between 1 and (2
16
–1). Register bit MCR[7], can be used to select the 1X or 1X/4 clock to
the internal baud rate generator. The output frequency of the baud rate generator is 16x the baud rate. The
formula for the divisor is:
divisor = (XT AL1 crystal input frequency/prescaler) / (desired baud rate × 16)
Where:
prescaler
+
ȥ
ȡ
Ȣ
1, when MCR[7] is set to 0 after reset (1X clock selected)
4, when MCR[7] is set to 1 after reset (1Xń4 clock selected)
Figure 9 shows the internal prescaler and baud rate generator circuitry.
Prescaler Logic
(Divide By 1)
Prescaler Logic
(Divide By 4)
Internal
Oscillator
Logic
Bandrate
Generator
Logic
XTAL1
XTAL2
Internal
Bandrate Clock
For Transmitter
and Receiver
MCR[7] = 0
MCR[7] = 1

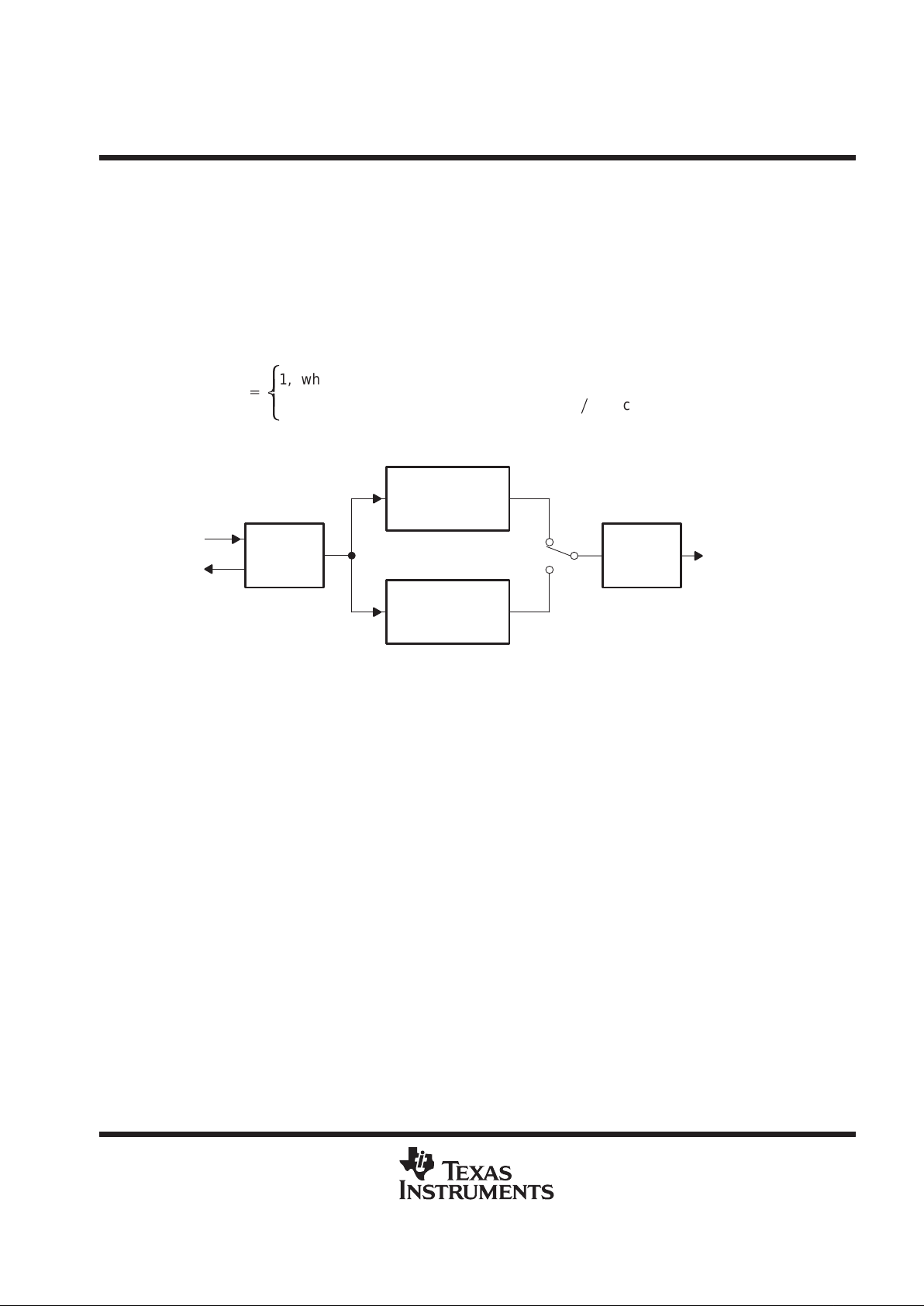

Figure 9. Prescaler and Baud Rate Generator Block Diagram
DLL and DLH must be written to in order to program the baud rate. DLL and DLH are the least significant and
most significant byte of the baud rate divisor.
Writing to the divisor registers, DLL or DLH, may result in wait states being inserted during the write access while
the baud rate generator is loaded with the new value. Note that if DLL and DLH are both zero, the UART is
effectively disabled, as no baud clock will be generated.
NOTE:
The programmable baud rate generator is provided to select both the transmit and receive clock
rates.
Table 5 and Table 6 show the baud rate and divisor correlation for crystal with frequency 1.8432 MHz and
3.072 MHz respectively.
Figure 10 and Figure 11 show the crystal clock circuit reference.
Page 14
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
14
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
programmable baud rate generator (continued)
Table 5. Baud Rates Using a 1.8432-MHz Crystal
DESIRED
BAUD RATE
DIVISOR USED
TO GENERATE
16 × CLOCK
PERCENT ERROR
DIFFERENCE BETWEEN
DESIRED AND ACTUAL
50 2304
75 1536
110 1047 0.026
134.5 857 0.058
150 768
300 384
600 192
1200 96
1800 64
2000 58 0.69
2400 48
3600 32
4800 24
7200 16
9600 12
19200 6
38400 3
56000 2 2.86
Table 6. Baud Rates Using a 3.072-MHz Crystal
DESIRED
BAUD RATE
DIVISOR USED
TO GENERATE
16 × CLOCK
PERCENT ERROR
DIFFERENCE BETWEEN
DESIRED AND ACTUAL
50 3840
75 2560
110 1745 0.026
134.5 1428 0.034
150 1280
300 640
600 320
1200 160
1800 107 0.312
2000 96
2400 80
3600 53 0.628
4800 40
7200 27 1.23
9600 20
19200 10
38400 5
Page 15
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
15
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
programmable baud generator (continued)
Driver
Optional
Driver
External
Clock
Optional
Clock
Output
Oscillator Clock
to Baud Generator
Logic
XTAL1
XTAL2
V
CC
Crystal
XTAL1
RX2
V
CC
XTAL2
C1
R
P
C2
Oscillator Clock
to Baud Generator
Logic
TYPICAL CRYSTAL OSCILLATOR NETWORK
CRYSTAL
R
P
RX2 C1 C2
3.072 MHz 1 MΩ 1.5 kΩ 10–30 pF 40–60 pF
1.8432 MHz 1 MΩ 1.5 kΩ 10–30 pF 40–60 pF
Figure 10. Typical Crystal Clock Circuits
†
†
For crystal with fundamental frequency from 1 MHz to 20 MHz
Oscillator
Cell
R1
L1
1000 pF
C2L2
C1
XTAL2XTAL1
Crystal
Recommended Trial Value for Third-Overtune Frequency Operation
FREQUENCY
(MHz)
C1
(pF)
C2
(pF)
L1
(mH)
L1
(pF)
R1
(kΩ)
25 5 15 3.9 15 18
30 6 15 2.7 10 18
35 6 15 3.3 8.2 18
Figure 11. Typical Third-Overtune Crystal Clock Circuits
†
†
Recommend to use a series-mode crystal with series resistance no larger than 40 Ω.
Page 16
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
16
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
absolute maximum ratings over operating free-air temperature (unless otherwise noted)
†
Supply voltage range, V
CC
–0.5 V to 3.6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
–0.5 V to VCC +0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage range, V
O
–0.5 V to VCC +0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature range, T
A
–40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, T
stg
–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
recommended operating conditions
low voltage (3.3 V nominal)
MIN NOM MAX UNIT
Supply voltage, V
CC
2.7 3.3 3.6 V
Input voltage, V
I
0 V
CC
V
High-level input voltage, VIH (see Note 3) 0.7 V
CC
V
CC
V
Low-level input voltage, VIL (see Note 3) 0.3 V
CC
V
Output voltage, VO (see Note 4) 0 V
CC
V
p
IOH = –8 mA, See Note 6 VCC–0.8
High-level output current, V
OH
IOH = –4 mA, See Note 7 VCC–0.8
V
p
IOL = –8 mA, See Note 6 0.5
Low-level output current, V
OL
IOL = 4 mA, See Note 7 0.5
V
Input capacitance, C
I
18 pF
Operating free-air temperature, T
A
–40 25 85 °C
Virtual junction temperature range, TJ (see Note 5) 0 25 125 °C
Oscillator/clock speed (see Note 8) 50 MHz
Clock duty cycle 50%
pp
50 MHz, 3.6 V 22
Supply current, I
CC
5 MHz, 3.6 V 6
mA
NOTES: 3. Meets TTL levels, V
IO(min)
= 2 V and V
IH(max)
= 0.8 V on nonhysteresis inputs.
4. Applies for external output buffers.
5. These junction temperatures reflect simulated conditions. Absolute maximum junction temperature is 150°C. The customer is
responsible for verifying junction temperature.
6. These parameters apply for D7–D0.
7. These parameters apply for DTRA
, DTRB, INIA, INTB, RTSA, RTSB, RXRDYA, RXRDYB, TXRDYA, TXRDYB, TXA, TXB.
8. The internal oscillator cell can only support up to 35 MHz clock frequency to make the crystal oscillating when crystal is used. If
external oscillator or other on board clock source is used, the TL16C752 can work for input clock frequency up to 50 MHz.
Page 17
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
17
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
timing requirements TA = –40°C to 85°C, VCC = 3.3 V ± 10% (unless otherwise noted)
(see Figures 12–19)
LIMITS
PARAMETER
TEST CONDITIONS
MIN MAX
UNIT
t
d1
IOR delay from chip select 10 ns
t
d2
Read cycle delay 2t
p(I)
‡
ns
t
d3
Delay from IOR to data 28.5 ns
t
d4
Data disable time 15 ns
t
d5
IOW delay from chip select 10 ns
t
d6
Write cycle delay 2t
p(I)
‡
ns
t
d7
Delay from IOW to output 100 pF load 50 ns
t
d8
Delay to set interrupt from MODEM input 100 pF load 70 ns
t
d9
Delay to reset interrupt from IOR 100 pF load 70 ns
t
d10
Delay from stop to set interrupt 1
Rclk
†
t
d11
Delay from IOR to reset interrupt 100 pF load 70 ns
t
d12
Delay from stop to interrupt 100 ns
t
d13
Delay from initial INT reset to transmit start 8 24
†
t
d14
Delay from IOW to reset interrupt 70 ns
t
d15
Delay from stop to set RXRDY 1 Clock
t
d16
Delay from IOR to reset RXRDY 1 µs
t
d17
Delay from IOW to set TXRDY 70 ns
t
d18
Delay from start to reset TXRDY 16
†
t
h1
Chip select hold time from IOR 0 ns
t
h2
Chip select hold time from IOW 0 ns
t
h3
Data hold time 15 ns
tp1, t
p2
Clock pulse duration 10 ns
t
p3
Oscillator/Clock speed VCC = 3 V 50 MHz
t
su1
Address setup time 10 ns
t
su2
Data setup time 16 ns
t
su3
Address setup time 10 ns
t
w1
IOR strobe width 2t
p(I)
‡
ns
t
w2
IOW strobe width
§
2t
p(I)
‡
ns
†
Baudrate
‡
t
p(I)
= input clock period
§
The IOW
strobe width for the DLL and DLH accesses must be two clock periods.
Page 18
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
18
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Valid
Active
Active
Data
t
su1
t
d1
t
h1
t
w1
t
d2
t
d3
t
d4
A0–A2
CS
(A–B)
IOR
D0–D7

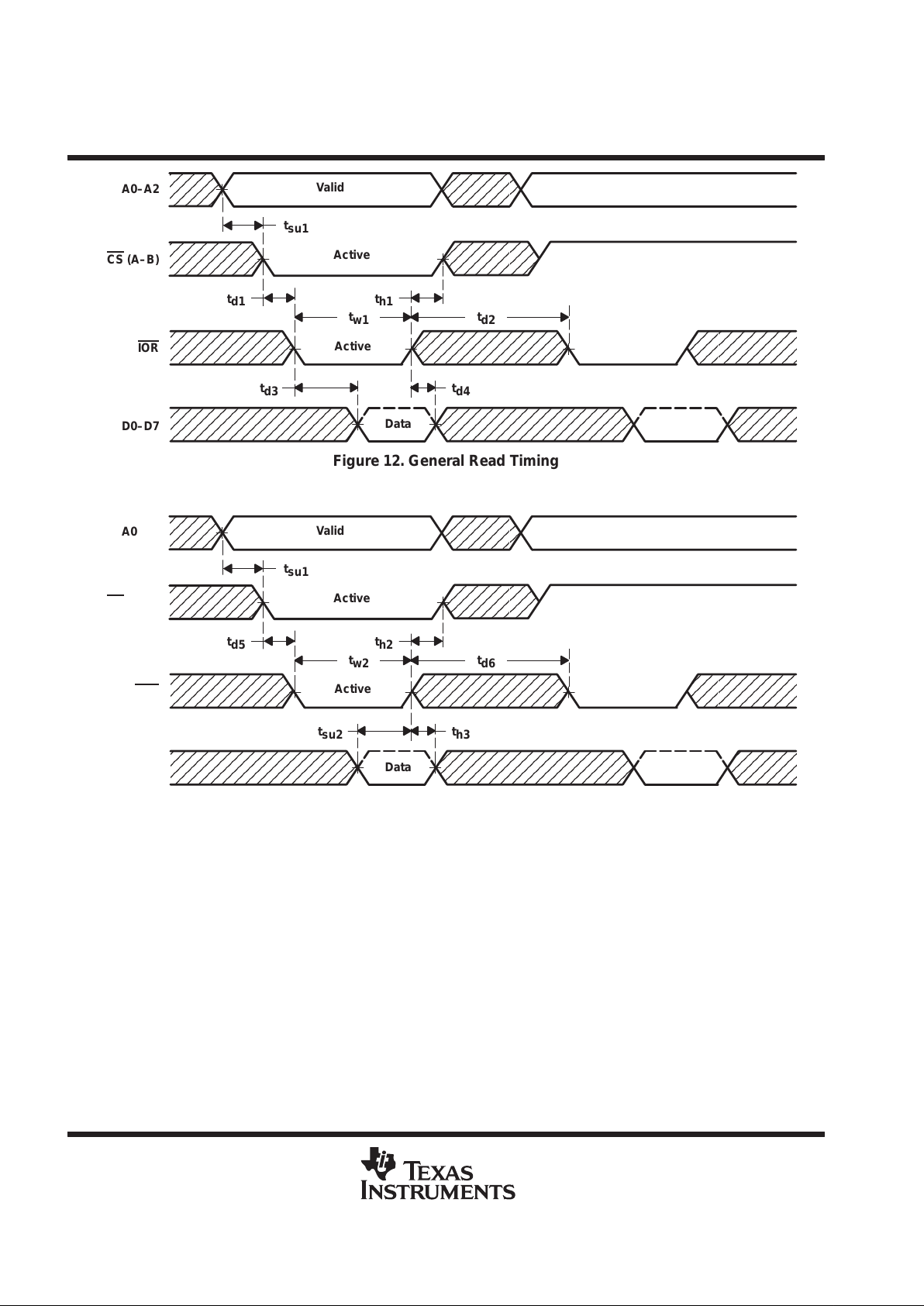

Figure 12. General Read Timing
Valid
Active
Active
Data
t
su1
t
d5
t
h2
t
w2
t
d6
t
su2
t
h3
A0–A2
CS
(A–B)
IOW
D0–D7
Figure 13. General Write Timing
Page 19
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
19
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Active
Active Active Active
Active Active Active
Change of State Change of State
t
d7
t
d8
t
d8
t
d9
t
d8
IOW
RTS (A–B)
DTR
(A–B)
CD
(A–B)
CTS
(A–B)
DSR
(A–B)
INT (A–B)
IOR
RI (A–B) Change of State
Change of State
Figure 14. Modem Input/Output Timing
Start
Bit
Parity
Bit
Stop
Bit
Next
Data
Start
Bit
Data Bits (5–8)
t
d15
t
d16
RX (A–B)
RXRDY
(A–B)
RXRDY
IOR
D0 D1 D2 D3 D4 D5 D6 D7
Active
Data
Ready
Active

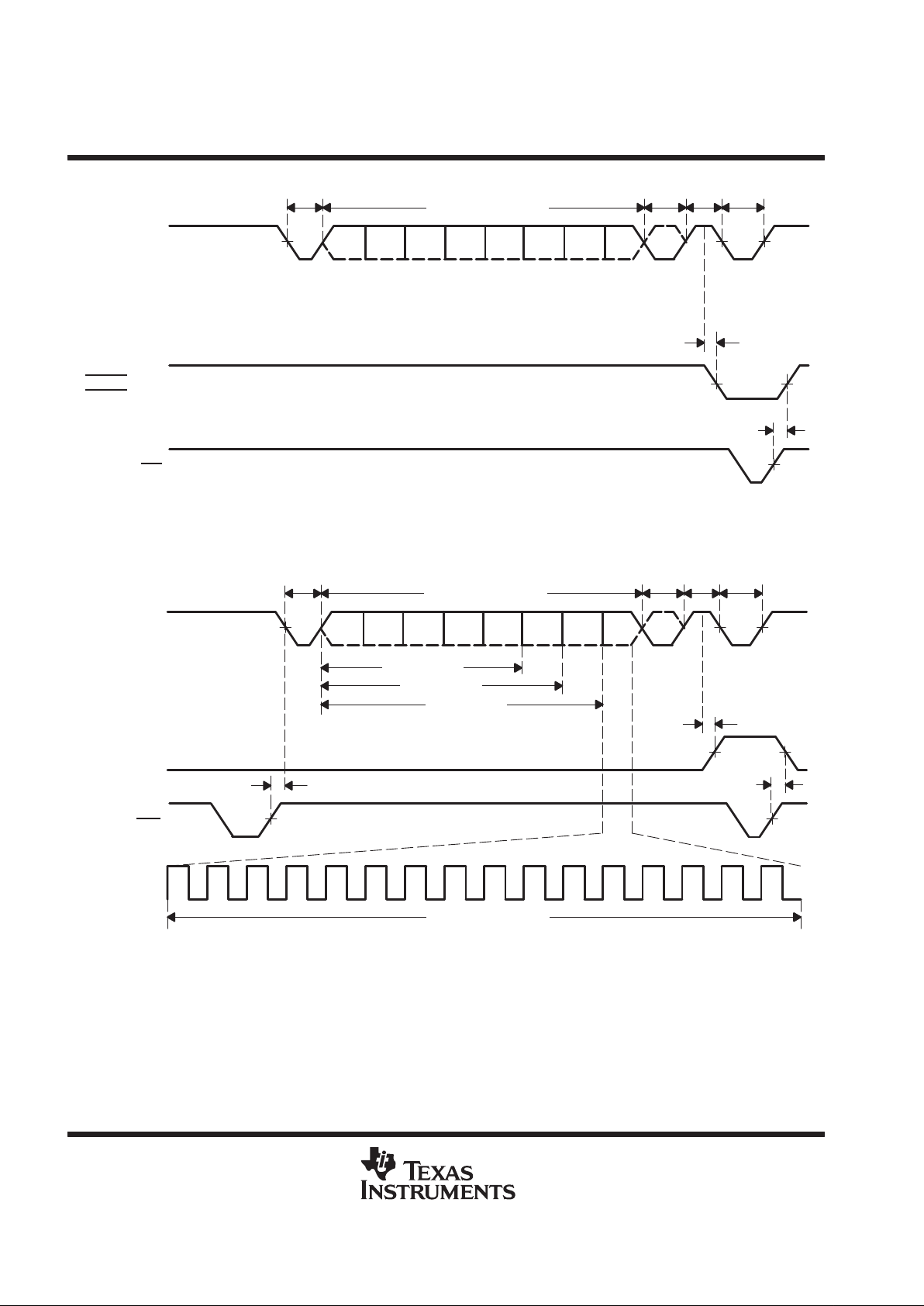

Figure 15. Receive Ready Timing in None FIFO Mode
Page 20
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
20
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Start
Bit
Parity
Bit
Stop
Bit
First Byte
That Reaches
The Trigger
Level
Data Bits (5–8)
t
d15
t
d16
RX (A–B)
RXRDY (A–B)
RXRDY
IOR
D0 D1 D2 D3 D4 D5 D6 D7
Active
Data
Ready
Active
Figure 16. Receive Timing in FIFO Mode
Start
Bit
5 Data Bits
6 Data Bits
7 Data Bits
Parity
Bit
Stop
Bit
Next
Data
Start
Bit
Data Bits (5–8)
t
d12
t
d14
16 Baud Rate Clock
TX (A–B)
INT (A–B)
IOW
D0 D1 D2 D3 D4 D5 D6 D7
Active
Tx Ready
Active
t
d13
Active
Figure 17. Transmit Timing
Page 21
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
21
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
Start
Bit
Parity
Bit
Stop
Bit
Next
Data
Start
Bit
Data Bits (5–8)
t
d17
t
d18
TX (A–B)
TXRDY
(A–B)
IOW
D0 D1 D2 D3 D4 D5 D6 D7
Active
Transmitter
Not Ready
Byte 1
Active
Transmitter Ready
D0–D7
Figure 18. Transmit Ready Timing in None FIFO Mode
t
d17
t
d18
TXRDY
(A–B)
IOW
Active
Trigger
Lead
Byte 32D0–D7
Start
Bit
5 Data Bits
6 Data Bits
7 Data Bits
Parity
Bit
Stop
Bit
Data Bits (5–8)
TX (A–B)
D0 D1 D2 D3 D4 D5 D6 D7
Figure 19. Transmit Ready Timing in FIFO Mode
Page 22
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
22
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
register map
†
Each register is selected using it’s own combination of address lines A[0], A[1], A[2]. The programming
combinations for register selection are shown in Table 7.
Table 7. Register Map – Read/Write Properties
A[2] A[1] A[0] READ MODE WRITE MODE
0 0 0 Receive holding register (RHR) Transmit holding register (THR)
0 0 1 Interrupt enable register (IER) Interrupt enable register
0 1 0 Interrupt identification register (IIR) FIFO control register (FCR)
0 1 1 Line control register (LCR) Line control register
1 0 0 Modem control register (MCR) Modem control register
1 0 1 Line status register (LSR)
1 1 0 Modem status register (MSR)
1 1 1 Scratch register (SPR) Scratch register (SPR)
0 0 0 Divisor latch LSB (DLL) Divisor latch LSB (DLL)
0 0 1 Divisor latch MSB (DLH) Divisor latch MSB (DLH
0 1 0 Enhanced feature register (EFR) Enhanced feature register
1 0 0 Xon-1 word Xon-1 word
1 0 1 Xon-2 word Xon-2 word
1 1 0 Xoff-1 word Xoff-1 word
1 1 1 Xoff-2 word Xoff-2 word
1 1 0 Transmission control register (TCR) Transmission control register
1 1 1 Trigger level register (TLR) Trigger level register
1 1 1 FIFO ready register
†
DLL and DLH are accessible only when LCR bit-7, is 1.
Enhanced feature register , Xon1, 2 and Xoff1, 2 are accessible only when LCR is set to 101 11111 (8hBF).
Transmission control register and trigger level register are accessible only when EFR[4] = 1 and MCR[6] = 1, i.e.. EFR[4] and MCR[6] are
read/write enables.
FIFORdy register is accessible only when CSA and CSB = 0, MCR [bit 2] = 1 and loopback is disabled.
Page 23
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
23
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
Table 8 lists and describes the TL16C752 internal registers.
Table 8. TL16C752A Internal Registers
Addr REGISTER BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0
READ/
WRITE
000 RHR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read
000 THR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Write
001 IER 0/CTS
interrupt
enable
†
0/RTS
interrupt
enable
†
0/Xoff
sleep
mode
†
0/X Sleep
mode
†
Modem
status
interrupt
Rx line
status
interrupt
THR
empty
interrupt
Rx data
available
interrupt
Read/Write
010 FCR Rx trigger
level
Rx trigger
level
0/TX
trigger
level
†
0/TX
trigger
level
†
DMA
mode
select
Resets
Tx FIFO
Resets
Rx FIFO
Enables
FIFOs
Write
010 IIR FCR(0) FCR(0) 0/CTS,
RTS
†
0/Xoff
†
Interrupt
priority
Bit 2
Interrupt
priority
Bit 1
Interrupt
priority
Bit 0
Interrupt
status
Read
011 LCR DLAB and
EFR
enable
Break
control bit
Sets parity Parity type
select
Parity
enable
No. of stop
bits
Word
length
Word
length
Read/Write
100 MCR 1x or 1x/4
clock
TCR and
TLR
enable
0/Xon Any 0/Enable
loopback
IRQ
enable
FIFO Rdy
enable
RTS DTR Read/Write
101 LSR 0/Error in
Rx FIFO
THR and
TSR empty
THR
empty
Break
interrupt
Framing
error
Parity
error
Over-run
error
Data in
receiver
Read
110 MSR CD RI DSR CTS ∆CD ∆RI ∆DSR ∆CTS Read
111 SPR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
000 DLL bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
001 DLH bit 15 bit 14 bit 13 bit 12 bit 11 bit 10 bit 9 bit 8 Read/Write
010 EFR Auto-CTS Auto-RTS Special
character
detect
Enable
enhanced
functions
†
S/W flow
control
Bit 3
S/W flow
control
Bit 2
S/W flow
control
Bit 1
S/W flow
control
Bit 0
Read/Write
100 Xon1 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
101 Xon2 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
110 Xoff1 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
111 Xoff2 bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
110 TCR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
111 TLR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/Write
111 FIFO Rdy 0 0 RX FIFO
B status
RX FIFO
A status
0 0 TX FIFO
B status
TX FIFO
A status
Read
†
The shaded bits in the above table can only be modified if register bit EFR[4] is enabled, i.e., if enhanced functions are enabled.
Page 24
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
24
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
receiver holding register (RHR)
The receiver section consists of the receiver holding register (RHR) and the receiver shift register (RSR). The
RHR is actually a 64-byte FIFO. The RSR receives serial data from RX terminal. The data is converted to parallel
data and moved to the RHR. The receiver section is controlled by the line control register. If the FIFO is disabled
location zero of the FIFO is used to store the characters. (NOTE: In this case characters are overwritten if
overflow occurs.)
transmit holding register (THR)
The transmitter section consists of the transmit holding register (THR) and the transmit shift register (TSR). The
transmit holding register is actually a 64-byte FIFO. The THR receives data and shifts it into the TSR where it
is converted to serial data and moved out on the TX terminal. If the FIFO is disabled the FIFO is still used to
store the byte. (NOTE: In this case characters are overwritten if overflow occurs.)
FIFO control register (FCR)
This is a write-only register which is used for enabling the FIFOs, clearing the FIFOs, setting transmitter and
receiver trigger levels and selecting the type of DMA signalling. T able 9 shows FIFO control register bit settings.
Table 9. FIFO Control Register (FCR) Bit Settings
BIT NO. BIT SETTINGS
0 0 = Disable the transmit and receive FIFOs
1 = Enable the transmit and receive FIFOs
1 0 = No change
1 = Clears the receive FIFO and resets it’s counter logic to zero. Will return to zero after clearing FIFO.
2 0 = No change
1 = Clears the transmit FIFO and resets it’s counter logic to zero. Will return to zero after clearing FIFO.
3 0 = DMA Mode 0
1 = DMA MOde 1
5:4 Sets the trigger level for the TX FIFO:
00 – 8 spaces
01 – 16 spaces
10 – 32 spaces
11 – 56 spaces
7:6 Sets the trigger level for the RX FIFO:
00 – 8 characters
01 – 16 characters
10 – 56 characters
11 – 60 characters
NOTE: FCR[5–4] can only be modified and enabled when EFR[4] is set. This is because the transmit trigger level is regarded as an enhanced
function.
Page 25
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
25
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
line control register (LCR)
This register controls the data communication format. The word length, number of stop bits, and parity type are
selected by writing the appropriate bits to the LCR. Table 10 shows line control register bit settings.
Table 10. Line Control Register (LCR) Bit Settings
BIT NO. BIT SETTINGS
1:0 Specifies the word length to be transmitted or received.
00 – 5 bits
01 – 6 bits
10 – 7 bits
11 – 8 bits
2 Specifies the number of stop bits:
0 – 1 stop bits (Word length = 5, 6, 7, 8)
1 – 1.5 stop bits (Word length = 5)
1 – 2 stop bits (Word length = 6, 7, 8)
3 0 = No parity
1 = A parity bit is generated during transmission and the receiver checks for received parity.
4 0 = Odd parity is generated (if LCR(3) = 1)
1 = Even parity is generated (if LCR(3) = 1)
5 Selects the forced parity format (if LCR(3) = 1)
If LCR(5) = 1 and LCR(4) = 0 = the parity bit is forced to 1 in the transmitted and received data.
If LCR(5) = 1 and LCR(4) = 1 = the parity bit is forced to 0 in the transmitted and received data.
6 Break control bit.
0 = Normal operating condition
1 = Forces the transmitter output to go low to alert the communication terminal.
7 0 = Normal operating condition
1 = Divisor latch enable
Page 26
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
26
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
line status register (LSR)
Table 11 shows line status register bit settings.
Table 11. Line Status Register (LSR) Bit Settings
BIT NO. BIT SETTINGS
0 0 = No data in the receive FIFO
1 = At least one character in the RX FIFO
1 0 = No overrun error
1 = Overrun error has occurred.
2 0 = No parity error in data being read from RX FIFO
1 = Parity error in data being read from RX FIFO.
3 0 = No framing error in data being read from RX FIFO
1 = Framing error occurred in data being read from RX FIFO (i.e., received data did not have a valid stop bit)
4 0 = No break condition
1 = A break was detected while the data being read from the RX FIFO was being received. (i.e., RX i/p was low for one character
time frame).
5 0 = Transmit hold register is NOT empty
1 = Transmit hold register is empty. The processor can now load up to 64 bytes of data into the THR if the TX FIFO is enabled.
6 0 = T ransmitter hold AND shift registers are not empty.
1 = Transmitter hold AND shift registers are empty .
7 0 = Normal operation
1 = At least one parity error , framing error or break indication in the receiver FIFO. BIt 7 is cleared when no more errors are present
in the FIFO.
When the LSR is read, LSR[4:2] reflect the error bits [BI, FE, PE] of the character at the top of the RX FIFO (next
character to be read). The LSR[4:2] registers don’t physically exist as the data read from the RX FIFO is output
directly onto the output data-bus, DI[4:2], when the LSR is read. Therefore errors in a character are identified
by reading the LSR and then reading the RHR.
LSR[7] is set when there is an error anywhere in the RX FIFO and is cleared only when there are no more errors
remaining in the FIFO.
NOTE:
Reading the LSR does not cause an increment of the RX FIFO read pointer. The RX FIFO read
pointer is incremented by reading the RHR. Reading the RX FIFO when it is empty could cause
LSR[7] to be set, which can only be reset by clearing the RX FIFO via FCR[1]. It is strongly
recommended that the RX FIFO be read only when data is present.
Page 27
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
27
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
modem control register (MCR)
The MCR controls the interface with the modem, data set or peripheral device that is emulating the modem.
Table 12 shows modem control register bit settings.
Table 12. Modem Control Register (MCR) Bit Settings
BIT NO. BIT SETTINGS
0 0 = Force DTR output to inactive (high)
1 = Force DTR
output to active (low).
In loopback controls MSR[5].
1 0 = Force RTS output to inactive (high)
1 = Force RTS
output to active (low).
In loopback controls MSR[4].
If Auto-RTS
is enabled the RTS output is controlled by hardware flow control
2 0 Disables the FIFO Rdy register
1 Enable the FIFO Rdy register.
In loopback controls MSR[6].
3 0 = Forces the IRQ(A-D) outputs to 3-state
1 = Forces the IRQ(A-D) outputs to the active state.
In loopback controls MSR[7].
4 0 = Normal operating mode
1 = Enable local loopback mode (internal)
In this mode the MCR[3:0] signals are looped back into MSR[3:0] and the TX output is looped back to the RX input internally.
5 0 = Disable Xon Any function
1 = Enable Xon Any function
6 0 = No action
1 = Enable access to the TCR and TLR registers.
7 0 = Normal or divide by one clock input (CLKSEL)
1 = Divide by four clock input
NOTE: MCR[7:5] can only be modified when EFR[4] is set i.e., EFR[4] is a write enable.
modem status register (MSR)
This 8-bit register provides information about the current state of the control lines from the modem, data set or
peripheral device to the processor. It also indicates when a control input from the modem changes state.
Table 13 shows modem status register bit settings.
Table 13. Modem Status Register (MSR) Bit Settings
BIT NO. BIT SETTINGS
0 Indicates that CTS input (or MCR[1] in loopback) has changed state. Cleared on a read.
1 Indicates that DSR input (or MCR[0] in loopback) has changed state. Cleared on a read.
2 Indicates that RI input (or MCR[2] in loopback) has changed state from low to high. Cleared on a read.
3 Indicates that CD input (or MCR[3] in loopback) has changed state. Cleared on a read.
4 This bit is equivalent to MCR[1] during local loop-back mode. It is the compliment to the CTS input.
5 This bit is equivalent to MCR[0] during local loop-back mode. It is the compliment to the DSR input.
6 This bit is equivalent to MCR[2] during local loop-back mode. It is the compliment to the RI input.
7 This bit is equivalent to MCR[3] during local loop-back mode. It is the compliment to the CD input.
NOTE: The primary inputs RI, CD, CTS, DSR are all active low but their registered equivalents in the MSR and MCR (in loopback) registers are
active high.
Page 28
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
28
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
interrupt enable register (IER)
The interrupt enable register (IER) enables each of the six types of interrupt, receiver error, RHR interrupt, THR
interrupt, Xoff received or CTS/RTS change of state from low to high. The INT output signal is activated in
response to interrupt generation. Table 14 shows interrupt enable register bit settings.
Table 14. Interrupt Enable Register (IER) Bit Settings
BIT NO. BIT SETTINGS
0 0 = Disable the RHR interrupt
1 = Enable the RHR interrupt
1 0 = Disable the THR interrupt
1 = Enable the THR interrupt
2 0 = Disable the receiver line status interrupt
1 = Enable the receiver line status interrupt
3 0 = Disable the modem status register interrupt
1 = Enable the modem status register interrupt
4 0 = Disable sleep mode
1 = Enable sleep mode
5 0 = Disable the Xoff interrupt
1 = Enable the Xoff interrupt.
6 0 = Disable the RTS interrupt
1 = Enable the RTS
interrupt
7 0 = Disable the CTS interrupt
1 = Enable the CTS
interrupt
NOTE: IER[7:4] can only be modified if EFR[4] is set, i.e., EFR[4] is a write enable.
Re-enabling IER[1] will not cause a new interrupt until new data has been
written to the TX FIFO.
interrupt identification register (IIR)
The IIR is a read-only 8-bit register which provides the source of the interrupt in a prioritized manner. Table 15
shows interrupt identification register bit settings.
Table 15. Interrupt Identification Register (IIR) Bit Settings
BIT NO. BIT SETTINGS
0 0 = A interrupt is pending
1 = No interrupt is pending
3:1 3-Bit encoded interrupt. See Table 14.
4 1 = Xoff/Special character has been detected.
5 CTS/RTS low to high change of state.
7:6 Mirror the contents of FCR[0]
Page 29
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
29
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
interrupt identification register (IIR) (continued)
The interrupt priority list is illustrated in Table 16.
Table 16. Interrupt Priority List
PRIORITY
LEVEL
BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0 INTERRUPT SOURCE
1 0 0 0 1 1 0 Receiver line status error.
2 0 0 1 1 0 0 Receiver timeout interrupt
2 0 0 0 1 0 0 RHR interrupt
3 0 0 0 0 1 0 THR interrupt
4 0 0 0 0 0 0 Modem interrupt
5 0 1 0 0 0 0 Received Xoff signal/special character
6 1 0 0 0 0 0 CTS, RTS change of state from active (low) to inactive (high).
enhanced feature register (EFR)
This 8-bit register enables or disables the enhanced features of the UART . T able 17 shows the enhanced feature
register bit settings.
Table 17. Enhanced Feature Register (EFR) Bit Settings
BIT NO. BIT SETTINGS
3:0 Combinations of software flow control can be selected by programming bit 3–bit 0. See Table 1.
4 Enhanced functions enable bit.
0 = Disables enhanced functions and writing to IER bits 4–7, FCR bits 4–5, MCR bits 5–7.
1 = Enables the enhanced function IER bits 4–7, FCR bit 4–5, and MCR bits 5–7 can be modified, i.e., this bit is therefore a
write enable.
5 0 = Normal operation
1 = Special character detect. Received data is compared with Xoff-2 data. If a match occurs the received data is transferred to
FIFO and IIR bit 4 is set to 1 to indicate a special character has been detected.
6 RTS flow control enable bit
0 = Normal operation
1 = RTS
flow control is enabled i.e., RTS pin goes high when the receiver FIFO HALT trigger level TCR[3:0] is reached, and
goes low when the receiver FIFO RESTORE transmission trigger level TCR[7:4] is reached.
7 CTS flow control enable bit
0 = Normal operation
1 = CTS
flow control is enabled i.e., transmission is halted when a high signal is detected on the CTS pin.
divisor latches (DLL, DLH)
These are two 8-bit registers which store the 16-bit divisor for generation of the baud clock in the baud rate
generator. DLH, stores the most significant part of the divisor . DLL stores the least significant part of the division.
Note that DLL and DLH can only be written to before sleep mode is enabled (i.e., before IER[4] is set).
transmission control register (TCR)
This 8-bit register is used to store the receive FIFO threshold levels to start/stop transmission during
hardware/software flow control. Table 18 shows transmission control register bit settings.
Page 30
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
30
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
Table 18. Transmission Control Register (TCR) Bit Settings
BIT NO. BIT SETTINGS
3:0 RCV FIFO trigger level to HALT transmission (0–60)
7:4 RCV FIFO trigger level to REST ORE transmission (0–60)
TCR trigger levels are available from 0–60 bytes with a granularity of four.
NOTE:
TCR can only be written to when EFR[4] = 1 and MCR[6] = 1. The programmer must program the
TCR such that TCR[3:0] > TCR[7:4]. There is no built-in hardware check to make sure this condition
is met. Also, the TCR must be programmed with this condition before Auto-RTS
or software flow
control is enabled to avoid spurious operation of the device.
trigger level register (TLR)
This 8-bit register is pulsed to store the transmit and received FIFO trigger levels used for DMA and interrupt
generation. Trigger levels from 4–60 can be programmed with a granularity of 4. Table 19 shows trigger level
register bit settings.
Table 19. Trigger Level Register (TLR) Bit Settings
BIT NO. BIT SETTINGS
3:0 Transmit FIFO trigger levels (4–60)
7:4 RCV FIFO trigger levels (4–60)
NOTE:
TLR can only be written to when EFR[4] = 1 and MCR[6] = 1. If TLR[3:0] or TLR[7:4] = 1, the
selectable trigger levels using the FIFO control register (FCR) are used for the transmit and receive
FIFO trigger levels. Trigger levels from 4–60 bytes are available with a granularity of four . The TLR
should be programmed for N/4, where N is the desired trigger level.
FIFO ready register
The FIFO ready register provides real-time status of the transmit and receive FIFOs. T able 20 shows the FIFO
ready register bit settings.
Table 20. FIFO Ready Register
BIT NO. BIT SETTINGS
3:0 0 = There are less than a TX trigger level number of spaces available in the TX FIFO.
1 = There are at least a TX trigger level number of spaces available in the TX FIFO
7:4 0 = There are less than a RX trigger level number of characters in the RX FIFO.
1 = The RX FIFO has more than a RX trigger level number of characters available for reading OR a timeout condition has occurred.
The FIFORdy register is a read only register and can be accessed when any of the two UARTs are selected
CAS A-B = 0, MCR[2] (FIFO Rdy Enable) is a logic 1 and loopback is disabled. The address space is 111.
110 TCR bit 7 bit 6 bit 5 bit 4 bit 3 bit 2 bit 1 bit 0 Read/W rite
Page 31
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
31
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PRINCIPLES OF OPERATION
TL16C752 programmer’s guide
The base set of registers that is used during high speed data transfer have a straightforward access method.
The extended function registers require special access bits to be decoded along with the address lines. The
following guide will help with programming these registers. Note that the descriptions below are for individual
register access. Some streamlining through interleaving can be obtained when programming all the registers.
Set baud rate to VALUE1, VALUE2 Read LCR (03), save in temp
Set LCR (03) to 80
Set DLL (00) to VALUE1
Set DLM (01) to VALUE2
Set LCR (03) to temp
Set Xoff1, Xon1 to V ALUE1, VALUE2 Read LCR (03), save in temp
Set LCR (03) to BF
Set Xoff1 (06) to VALUE1
Set Xon1 (04) to VALUE2
Set LCR (03) to temp
Set Xoff2, Xon2 to V ALUE1, VALUE2 Read LCR (03), save in temp
Set LCR (03) to BF
Set Xoff2 (07) to VALUE1
Set Xon2 (05) to VALUE2
Set LCR (03) to temp
Set software flow control mode to VALUE Read LCR (03), save in temp
Set LCR (03) to BF
Set EFR (02) to VALUE
Set LCR (03) to temp
Set flow control threshold to VALUE Read LCR (03), save in temp1
Set LCR (03) to BF
Read EFR (02), save in temp2
Set EFR (02) to 10 + temp2
Set LCR (03) to 00
Read MCR (04), save in temp3
Set MCR (04) to 40 + temp3
Set TCR (06) to VALUE
Set LCR (03) to BF
Set EFR (02) to temp2
Set LCR (03) to temp1
Set MCR (04) to temp3
Set xmt and rcv FIFO thresholds to VALUE Read LCR (03), save in temp1
Set LCR (03) to BF
Read EFR (02), save in temp2
Set EFR (02) to 10 + temp2
Set LCR (03) to 00
Read MCR (04), save in temp3
Set MCR (04) to 40 + temp3
Set TLR (07) to VALUE
Set LCR (03) to BF
Set EFR (02) to temp2
Set LCR (03) to temp1
Set MCR (04) to temp2
Read FIFORdy register Read MCR (04), save in temp1
Set temp2 = temp1 × EF
Set MCR (04) = 04 + temp2
Read FRR (07), save in temp2
Pass temp2 back to host
Set MCR (04) to temp1
Page 32
TL16C752
3.3-V DUAL UART WITH 64-BYTE FIFO
SLLS305 – MA Y 1999
32
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
MECHANICAL DATA
PT (S-PQFP-G48) PLASTIC QUAD FLATPACK
4040052/C 11/96
0,13 NOM
0,17
0,27
25
24
SQ
12
13
36
37
6,80
7,20
1
48
5,50 TYP
0,25
0,45
0,75
0,05 MIN
SQ
9,20
8,80
1,35
1,45
1,60 MAX
Gage Plane
Seating Plane
0,10
0°–7°
0,50
M
0,08
NOTES: A. All linear dimensions are in millimeters.
B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-026
D. This may also be a thermally enhanced plastic package with leads conected to the die pads.
Page 33
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1999, Texas Instruments Incorporated
Loading...
