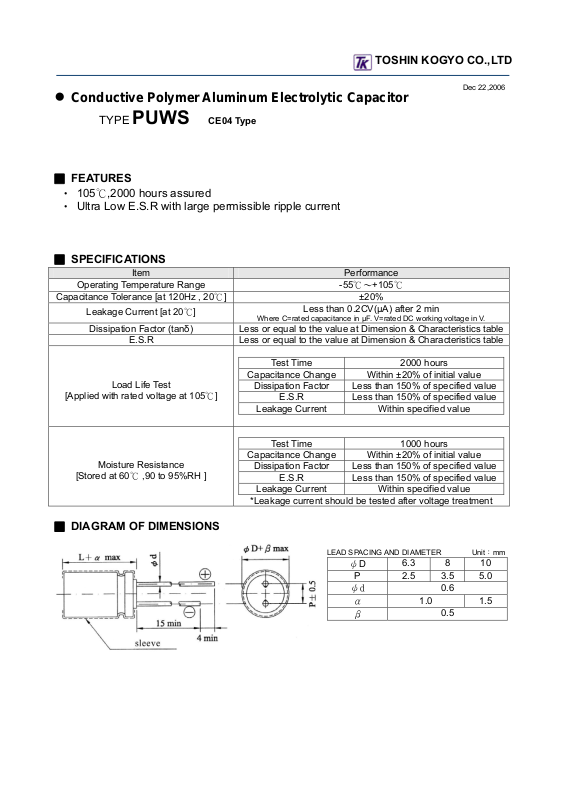

Page 1
TOSHIN KOGYO CO.,LTD
Dec 22,2006
● Conductive Polymer Aluminum Electrolytic Capacitor
TYPE PUWS CE04 Type
▓ FEATURES
‧ 105℃,2000 hours assured
‧ Ultra Low E.S.R with large permissible ripple current
▓ SPECIFICATIONS
Item Performance
Operating Temperature Range
Capacitance Tolerance [at 120Hz , 20℃] ±20%
Leakage Current [at 20℃]
Dissipation Factor (tanδ) Less or equal to the value at Dimension & Characteristics table
E.S.R Less or equal to the value at Dimension & Characteristics table
Load Life Test
[Applied with rated voltage at 105℃]
Where C=rated capacitance in μF. V=rated DC working voltage in V.
Test Time 2000 hours
Capacitance Change Within ±20% of initial value
Dissipation Factor Less than 150% of specified value
Leakage Current Within specified value
Less than 0.2CV(μA) after 2 min
E.S.R Less than 150% of specified value
-55℃～+105℃
Moisture Resistance
[Stored at 60 ,90 to 95%RH℃ ]
Test Time 1000 hours
Capacitance Change Within ±20% of initial value
Dissipation Factor Less than 150% of specified value
E.S.R Less than 150% of specified value
Leakage Current Within specified value
*Leakage current should be tested after voltage treatment

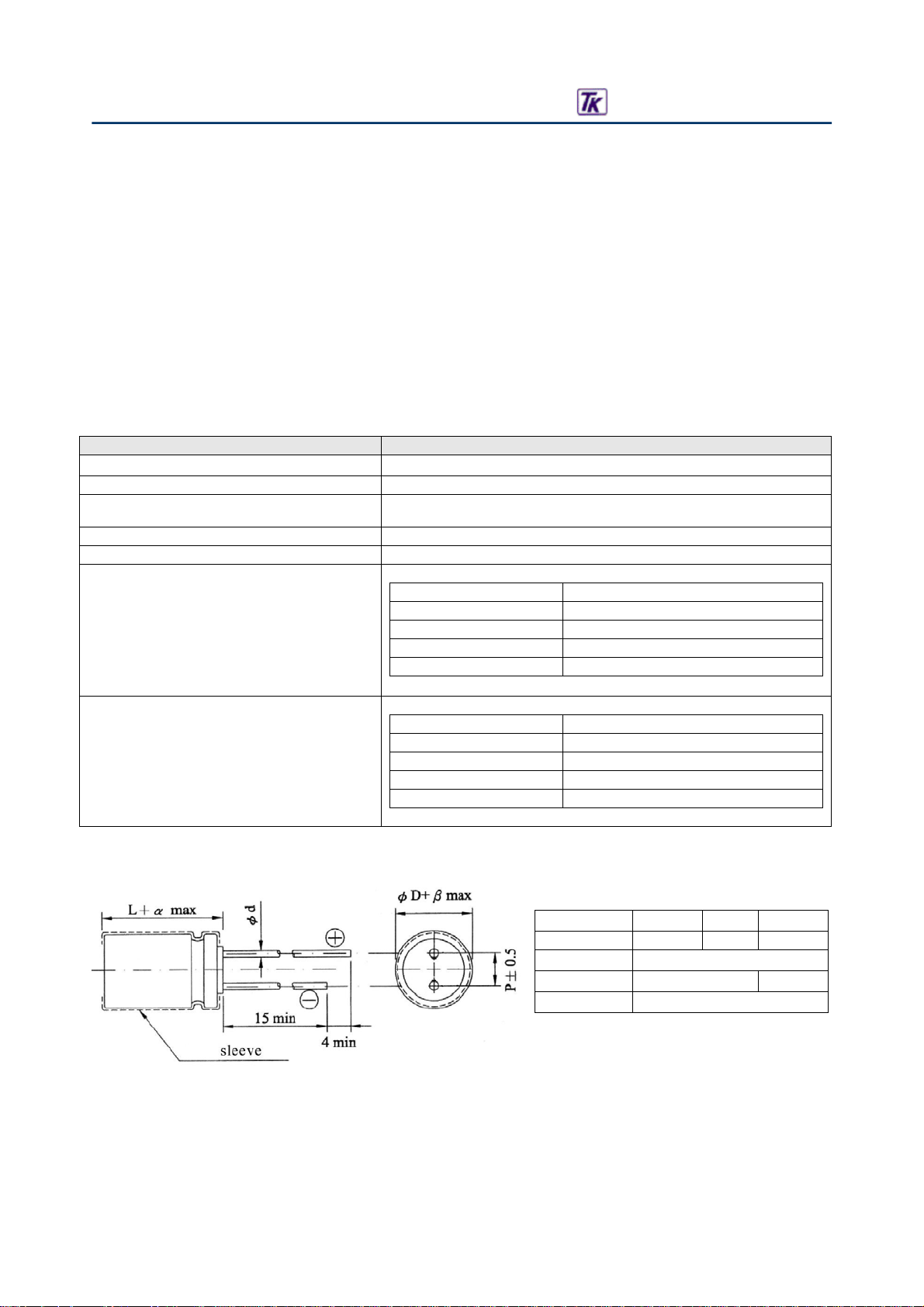

▓ DIAGRAM OF DIMENSIONS
LEAD SPACING AND DIAMETER Unit：mm
ψD
P 2.5 3.5 5.0
ψd
α
β
6.3 8 10
0.6
1.0 1.5
0.5
Page 2
▓ DIMENSIONS & CHARACTERISTICS
W.V. (V) Capacitance
(μF)
560 8X8 0.10 280 7 4700
2.5
4.0
6.3
10
16
820 8X8 0.10 410 7 6100
1000 10X12.5 0.10 500 7 5560
1500 10X12.5 0.10 750 7 5560
2700 10X12.5 0.10
560 8X8 0.10 448 7 6100
680 8X11.5 0.10 544 7 6100
820 8X11.5 0.10 656 7 6100
1000 10X12.5 0.10 800 10 5560
1500 10X12.5 0.10
390 8X8 0.10 491 8 5700
470 8X8 0.10 592 8 5700
680 10X12.5 0.10 857 7 6640
1500 10X12.5 0.10
330 8X11.5 0.10 660 10 5000
470 10X12.5 0.10
100 6.3 X 0.10 320 24 2820
270 8X11.5 0.10 864 10 5000
330 10X12.5 0.10 1056 10 6100
470 10X12.5 0.10
Size
ψD*L(mm)
Ta nδ
[120Hz , 20℃]
TOSHIN KOGYO CO.,LTD
April 1,2005
L.C.
(μA max.)
E.S.R.
[100k～300kHz, 20℃]
(mΩ max)
Rated R.C.
[at 100k, 105℃]
(mA rms)
1350 10 5560
1200 10 5560
1890 10 5560
940 10 6100
1504 10 6100
