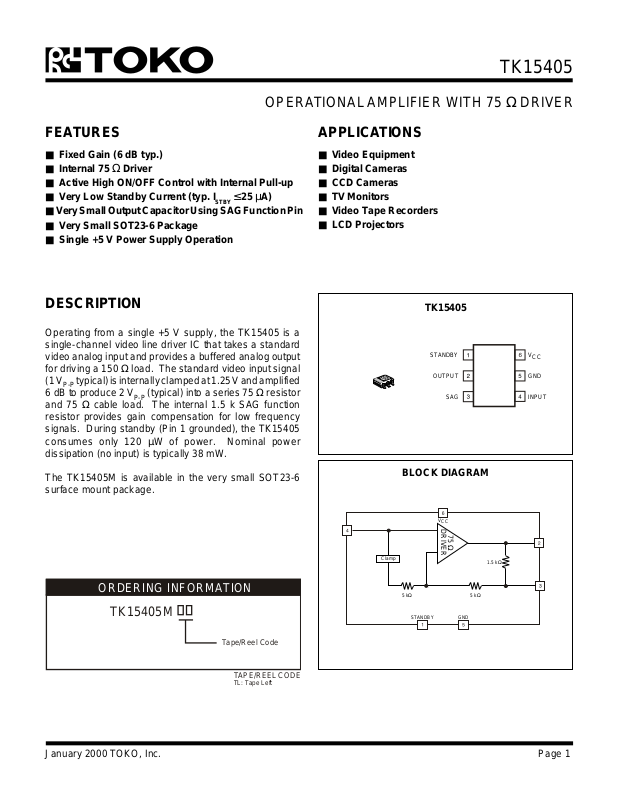

Datasheet TK15405MTL Datasheet (TOKO)

TK15405

OPERATIONAL AMPLIFIER WITH 75 Ω DRIVER

FEATURES

■ Fixed Gain (6 dB typ.)

■ Internal 75 Ω Driver

■ Active High ON/OFF Control with Internal Pull-up

■ Very Low Standby Current (typ. I

STBY

≤ 25 µA)

■ Very Small Output Capacitor Using SAG Function Pin

■ Very Small SOT23-6 Package

■ Single +5 V Power Supply Operation

DESCRIPTION

Operating from a single +5 V supply, the TK15405 is a
single-channel video line driver IC that takes a standard
video analog input and provides a buffered analog output
for driving a 150 Ω load. The standard video input signal
(1 V

typical) is internally clamped at 1.25 V and amplified

P-P

6 dB to produce 2 V
and 75 Ω cable load. The internal 1.5 k SAG function
resistor provides gain compensation for low frequency
signals. During standby (Pin 1 grounded), the TK15405
consumes only 120 µW of power. Nominal power
dissipation (no input) is typically 38 mW.

(typical) into a series 75 Ω resistor

P-P

APPLICATIONS

■ Video Equipment

■ Digital Cameras

■ CCD Cameras

■ TV Monitors

■ Video Tape Recorders

■ LCD Projectors

TK15405

STANDBY

1S

0

OUTPUT

SAG

V

CC

GND

INPUT

The TK15405M is available in the very small SOT23-6

BLOCK DIAGRAM

surface mount package.

V

CC

DRIVER

75 Ω

ORDERING INFORMATION

TK15405M

Tape/Reel Code

TAPE/REEL CODE

TL: Tape Left

Clamp

5 kΩ 5 kΩ

STANDBY

1.5 kΩ

GND

January 2000 TOKO, Inc. Page 1

TK15405

TK15405M ABSOLUTE MAXIMUM RATINGS

Supply Voltage ........................................................... 6 V

Operating Voltage ......................................... 4.5 to 5.5 V

Storage Temperature Range ................... -55 to +150 °C

Operating Temperature Range ...................-25 to +85 °C

Power Dissipation (Note 1) ............................... 150 mW

TK15405M ELECTRICAL CHARACTERISTICS

Test conditions: V

LOBMYSRETEMARAPSNOITIDNOCTSETNIMPYTXAMSTINU

I

CC

I

YBTS

I

SO

V

LHT

V

HLT

V

PMC

AVGniaGegatloVf

GDniaGlaitnereffiDtupnilangisesacriatS0.3-6.0-0.3+%

= 5.0 V, VIN = 1.0 V

CC

tnerruCylppuStupnioN5.70.01Am

)woLothgiH(

)hgiHotwoL(

egatloVpmalClanimrettupnI4niP50.152.154.1V

, RL = 150 Ω, TA = 25 °C unless otherwise specified.

P-P

tnerruCylppuSybdnatSdednuorG1niP0.420.05Aµ

tnerruClanimreTybdnatSedomybdnatSni1niP0.420.05Aµ

egatloVdlohserhTybdnatS

edom

egatloVdlohserhTybdnatS

edom

ni

zHM1=4.59.54.6Bd

ybdnatSotgnitarepO1niP

gnitarepOotybdnatS1niP

DNG1.03.0V

8.10.2VCCV

PDesahPlaitnereffiDtupnilangisesacriatS0.3-2.0-0.3+ged

rfesnopseRycneuqerFf

Note 1: Power dissipation is 150 mW in free air. Derate at 1.2 mW/°C for operation above 25°C.

NI

zHM5/zHM1=5.0-Bd

Page 2 January 2000 TOKO, Inc.

TEST CIRCUIT

V

CC

+

VCC = 5.0 V

33 µF

TP2

Output

V

= 2.0 V

+Input

TP1

75 Ω

4.7 µF

+

Standby GND

+

33 µF

+

33 µF

MEASUREMENT METHOD

1. Supply Current (ICC)
The Pin 6 current is measured with no input signal and the Standby Pin (Pin 1) open.

OUT

75 Ω

75 Ω

TK15405

P-P

TP3

2. Standby Supply Current (I
The Pin 6 current is measured when the Standby Pin (Pin 1) is connected to ground.

STBY

)

3. Standby Terminal Current (IOS)
The Pin 1 current is measured when Pin 1 is connected to ground.

4. Threshold Voltage (High to Low) (V
The Pin 1 voltage is measured at the point which changes the device from operating mode into standby mode.

5. Threshold Voltage (Low to High) (V
The Pin 1 voltage is measured at the point which changes the device from standby mode into operating mode.

6. Clamp Voltage (V
The DC voltage at Pin 4 is measured with no input signal.

CMP

)

THL

TLH

)

)

7. Voltage Gain (GVA)
The voltage gain equation is as follows:
GVA = 20 log10 V2/V1
Where V1 is the input voltage at TP1 and V2 is the measured output voltage at TP2.

8. Differential Gain (DG)
The differential gain is measured at TP3 when a staircase waveform of 10 steps is applied to TP1.

9. Differential Phase (DP)
The differential phase is measured at TP3 when a staircase waveform of 10 steps is applied to TP1.

10. Frequency Response (fr)
The frequency response equation is as follows:
fr = 20 log10 V2/V1
Where V1 is the measured TP3 voltage when the TP1 input frequency is set to 1 MHz and V2 is the measured TP3 voltage
when the TP1 input frequency is set to 5 MHz.

January 2000 TOKO, Inc. Page 3

TK15405

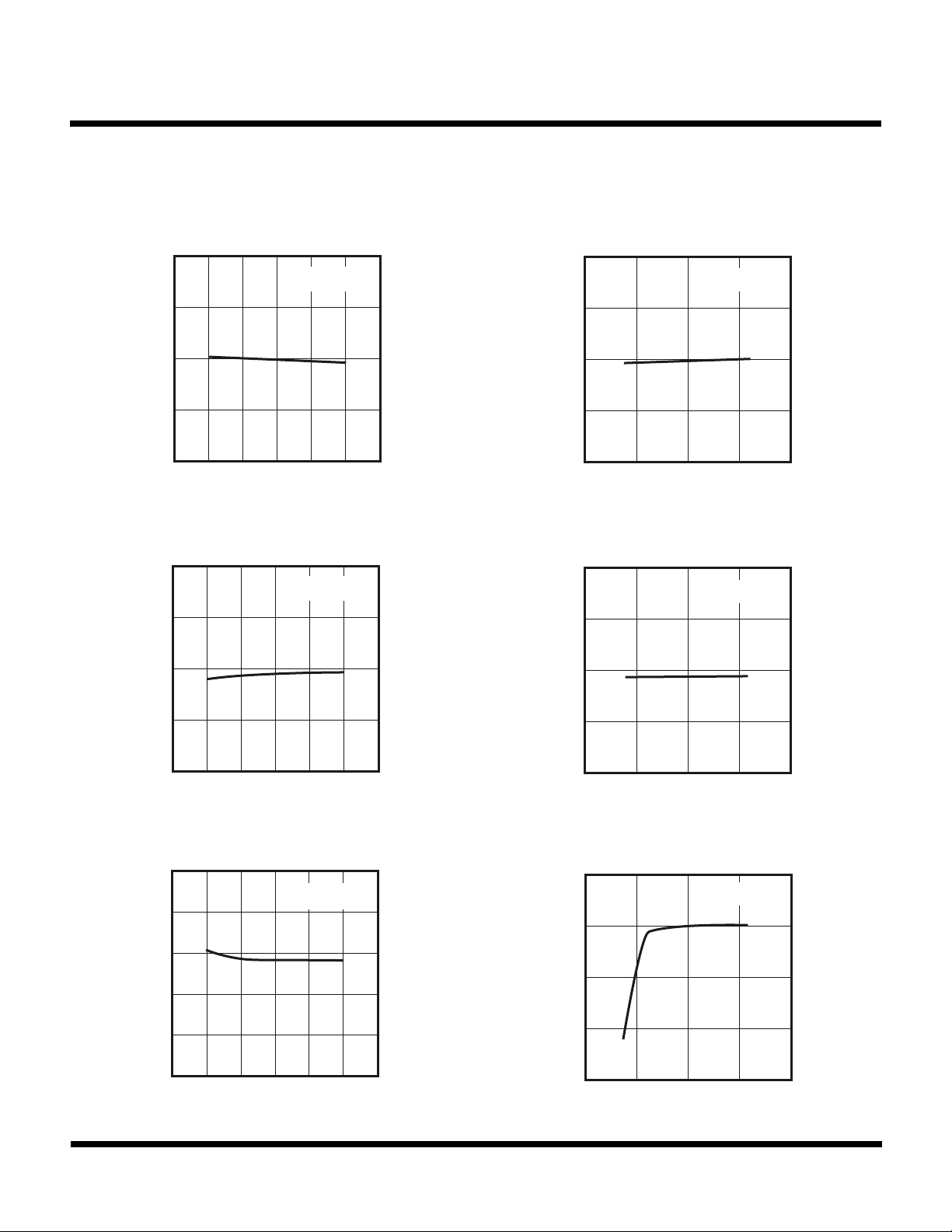

TYPICAL PERFORMANCE CHARACTERISTICS

SUPPLY CURRENT

VS.

TEMPERATURE

10

VCC = 5.0 V,

9

No Input

8

(mA)

CC

7

I

6

5

-50 0 50 100
TA (°C)

STANDBY SUPPLY CURRENT

TEMPERATURE

50

VCC = 5.0 V,

40

30

(µA)

Pin 1 = GND

VS.

SUPPLY CURRENT

VS.

SUPPLY VOLTAGE

10

TA = 25 °C,

9

No Input

8

(mA)

CC

7

I

6

5

4.0 4.5 5.0 5.5 6.0
V

(V)

CC

STANDBY SUPPLY CURRENT

SUPPLY VOLTAGE

50

TA = 25 °C,

40

30

(µA)

Pin 1 = GND

VS.

20

STBY

I

10

0

-50 0 50 100
TA (°C)

VOLTAGE GAIN

VS.

TEMPERATURE

8.0

VCC = 5.0 V,
fin = 1 MHz,

VIN = 1 V

7.0

P-P

6.0

GVA (dB)

5.0

4.0

-50 0 50 100

TA (°C)

20

STBY

I

10

0

4.0 4.5 5.0 5.5 6.0
V

(V)

CC

VOLTAGE GAIN

SUPPLY VOLTAGE

VS.

8.0

TA = 25 °C,
fin = 1 MHz,

7.0

VIN = 1 V

6.0

GVA (dB)

5.0

4.0

4.0 4.5 5.0 5.5 6.0

V

(V)

CC

P-P

Page 4 January 2000 TOKO, Inc.

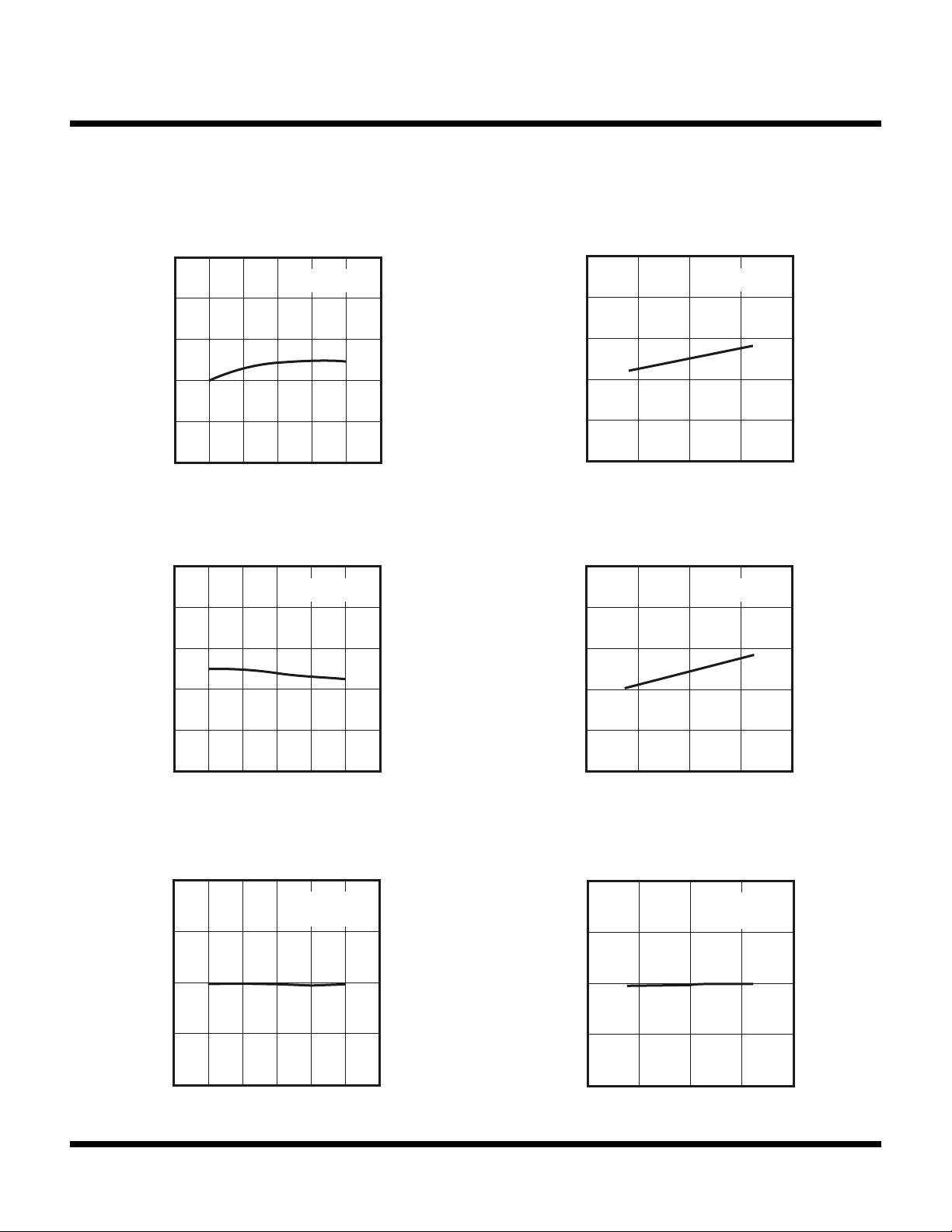

TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)

TK15405

FREQUENCY RESPONSE

TEMPERATURE

0.5

fin = 1/5 MHz,
VIN = 1 V

0.0

-0.5

fr (dB)

-1.0

-1.5

-50 0 50 100
TA (°C)

CLAMP VOLTAGE

TEMPERATURE

VS.

1.5

V

= 5 V

CC

1.4

(V)

1.3

CMP

V

1.2

P-P

VS.

FREQUENCY RESPONSE

SUPPLY VOLTAGE

0.5

fin = 1/5 MHz,
VIN = 1 V

0.0

-0.5

fr (dB)

-1.0

-1.5

4.0 4.5 5.0 5.5 6.0
V

(V)

CC

CLAMP VOLTAGE

SUPPLY VOLTAGE

VS.

1.5

TA = 25°C

1.4

(V)

1.3

CMP

V

1.2

VS.

P-P

1.1

-50 0 50 100
TA (°C)

DIFFERENTIAL GAIN

VS.

TEMPERATURE

4

VCC = 5.0 V,
VIN = 1 V

2

P-P

1.1

4.0 4.5 5.0 5.5 6.0
V

(V)

CC

DIFFERENTIAL GAIN

SUPPLY VOLTAGE

VS.

10

TA = 25 °C
VIN = 1 V

P-P

0

0

-10

DG (%)

-2

-4

-6

-50 0 50 100
TA (°C)

DG (%)

-20

-30

4.0 4.5 5.0 5.5 6.0
V

(V)

CC

January 2000 TOKO, Inc. Page 5

TK15405

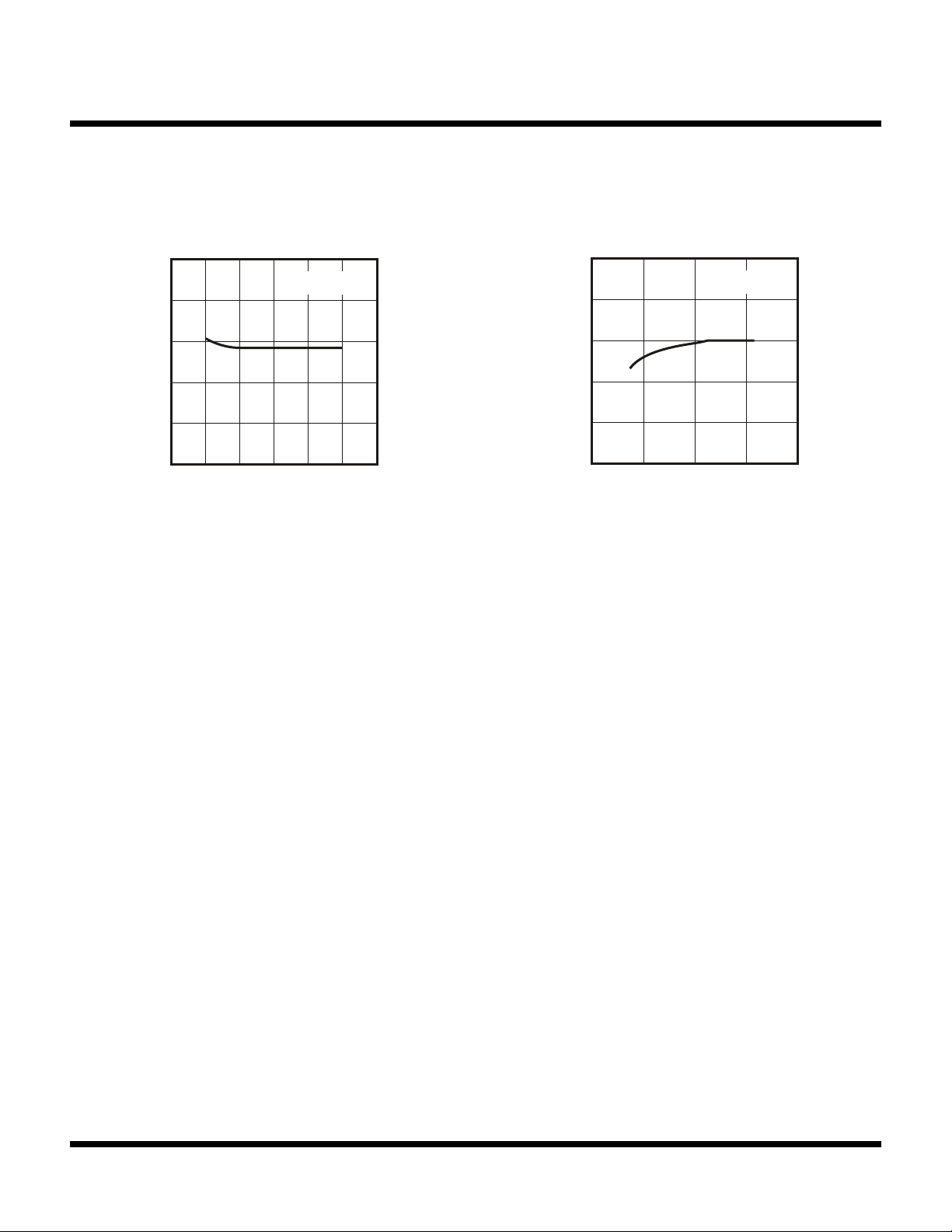

TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)

DIFFERENTIAL PHASE

4

2

0

DP (deg)

-2

-4

-6

-50 0 50 100

TEMPERATURE

TA (°C)

VCC = 5.0 V,
VIN = 1 V

P-P

VS.

DIFFERENTIAL PHASE

4

2

0

-2

DP (deg)

-4

-6

4.0 4.5 5.0 5.5 6.0

SUPPLY VOLTAGE

TA = 25 °C,
VIN = 1 V

V

(V)

CC

P-P

VS.

Page 6 January 2000 TOKO, Inc.

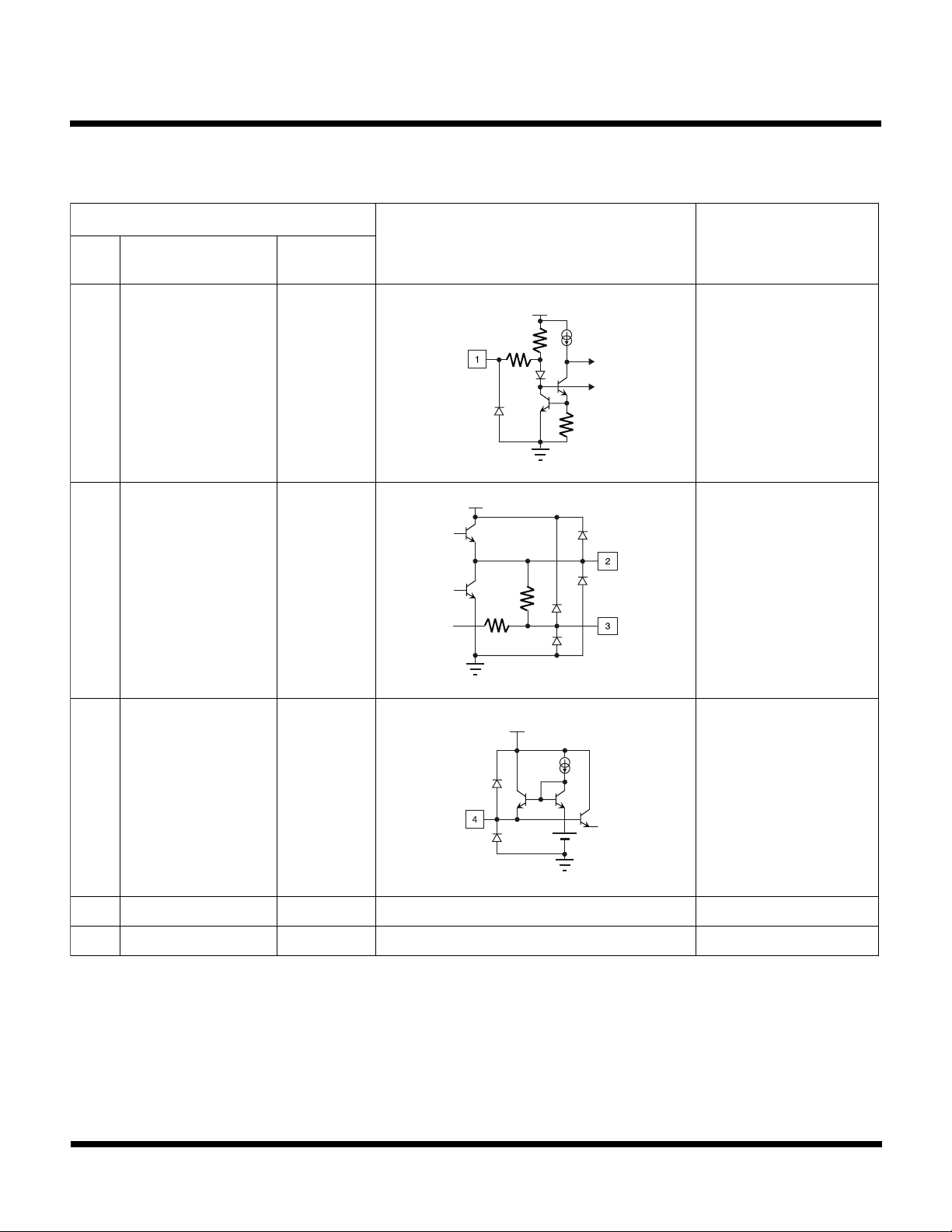

PIN FUNCTION DESCRIPTION

LANIMRET

NIP

.ON

LOBMYSEGATLOV

TK15405

TIUCRICTNELAVIUQELANRETNINOITPIRCSED

1YBDNATSV4.1 .lanimreTcigoLybdnatS

2
3

TUPTUO

GAS

V52.1

V

CC

V52.1

4TUPNIV52.1.lanimreTtupnI

5 k

200 k

5 k

V

CC

V

1.5 k

CC

ehtnisiecivedehT

niPnehwedomybdnats

.woLotdetcennocsi1

ehtnisiecivedehT

nehwedomgnitarepo

otdetcennocsi1niP

.nepOrohgiH

.lanimreTtuptuO:2niP

otelbaliavasi2niP

57aevird Ω 57+ Ω

.daol

.lanimreTGAS:3niP

tupniecnanimulehT

tadepmalcsilangis

.V52.1

1.25 V

5DNGDNGlanimreTDNG
6V

CC

V

CC

lanimreTylppuSrewoP

January 2000 TOKO, Inc. Page 7

TK15405

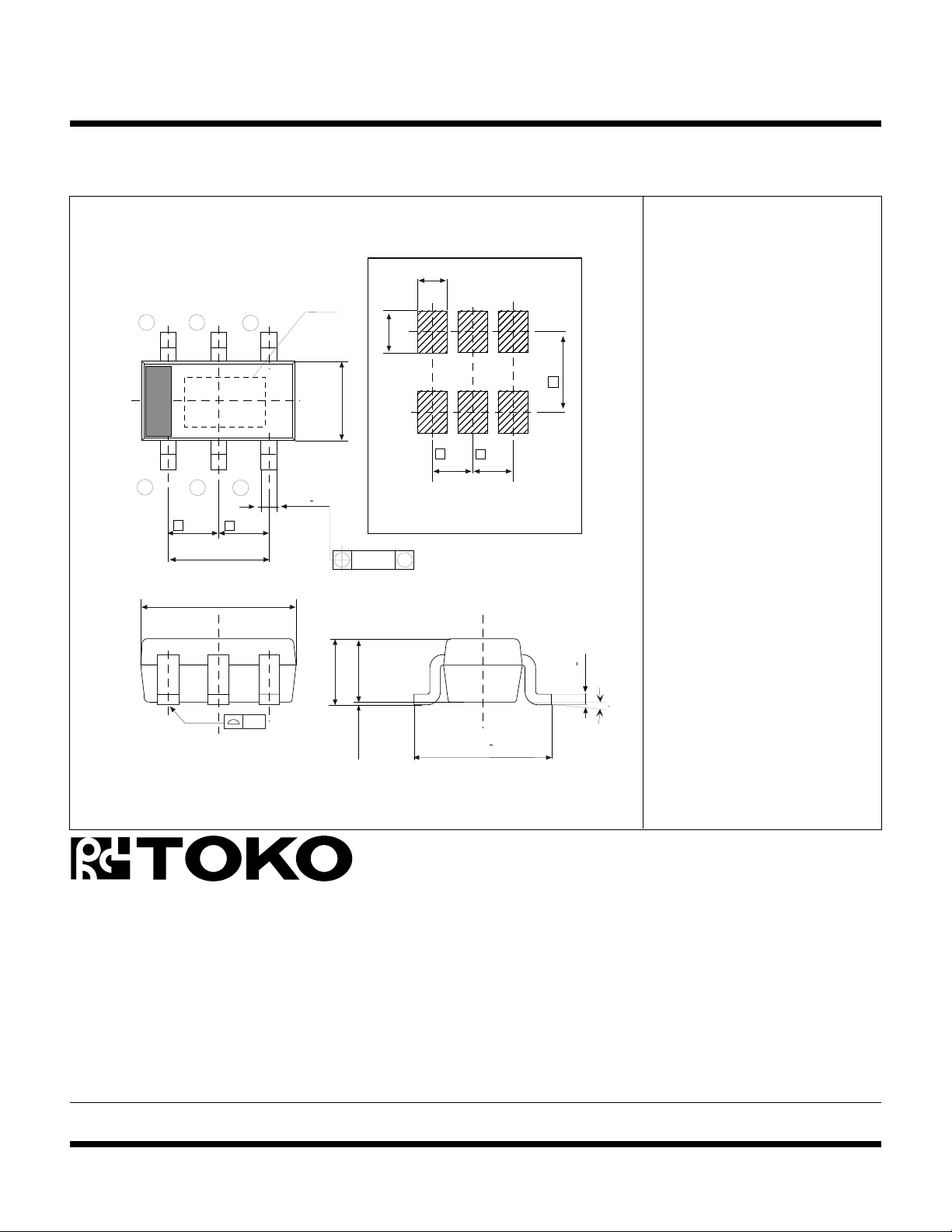

PACKAGE OUTLINE

SOT23-6

6

1

Marking Information

0.7

Marking

5

2

e

(1.9)

4

1.6

3

0.950.95

e

2.9

0.15

+

0.3

0.05

1.4 max

1.0

2.4

1

e

e

e

0.95

0.95

Recommended Mount Pad

M

0.1

0.15+0.05

1.1

0.13

Marking
TK15405 405

0.1

Dimensions are shown in millimeters
Tolerance: x.x = ± 0.2 mm (unless otherwise specified)

0 ~ 0.1

+

0.3

2.8

15 max
