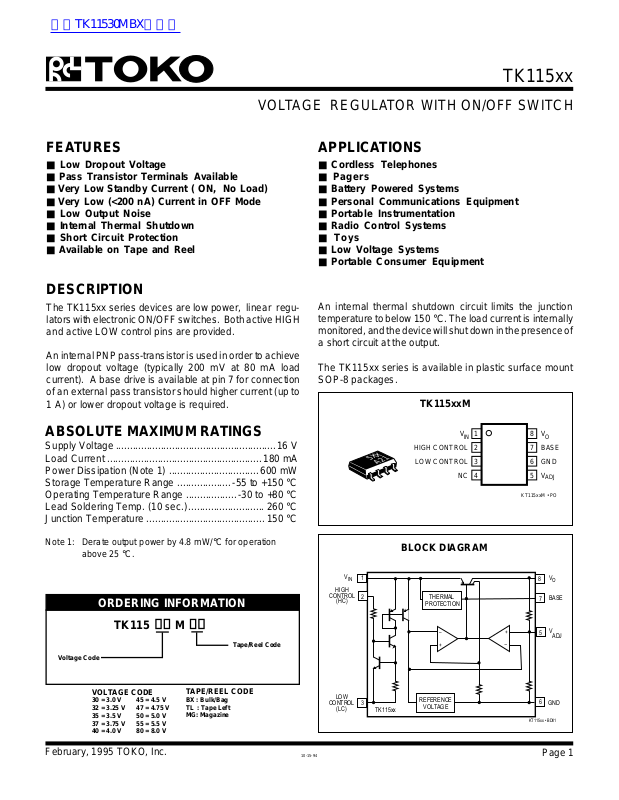

TK115xx
VOLTAGE REGULATOR WITH ON/OFF SWITCH
FEATURES
■ Low Dropout Voltage
■ Pass Transistor Terminals Available
■ Very Low Standby Current ( ON, No Load)
■ Very Low (<200 nA) Current in OFF Mode
■ Low Output Noise
■ Internal Thermal Shutdown
■ Short Circuit Protection
■ Available on Tape and Reel
DESCRIPTION
The TK115xx series devices are low power, linear regulators with electronic ON/OFF switches. Both active HIGH
and active LOW control pins are provided.
An internal PNP pass-transistor is used in order to achieve
low dropout voltage (typically 200 mV at 80 mA load
current). A base drive is available at pin 7 for connection
of an external pass transistor should higher current (up to
1 A) or lower dropout voltage is required.
ABSOLUTE MAXIMUM RATINGS
Supply Voltage .........................................................16 V
Load Current .......................................................180 mA
Power Dissipation (Note 1) ................................ 600 mW
Storage Temperature Range ...................-55 to +150 °C
Operating Temperature Range ..................-30 to +80 °C
Lead Soldering Temp. (10 sec.)........................... 260 °C
Junction Temperature .......................................... 150 °C
APPLICATIONS
■ Cordless Telephones
■ Pagers
■ Battery Powered Systems
■ Personal Communications Equipment
■ Portable Instrumentation
■ Radio Control Systems
■ Toys
■ Low Voltage Systems
■ Portable Consumer Equipment
An internal thermal shutdown circuit limits the junction
temperature to below 150 °C. The load current is internally
monitored, and the device will shut down in the presence of
a short circuit at the output.
The TK115xx series is available in plastic surface mount
SOP-8 packages.
TK115xxM
5XX
A21
Note 1: Derate output power by 4.8 mW/°C for operation
February, 1995 TOKO, Inc.
Voltage Code
above 25 °C.
ORDERING INFORMATION
TK115 M
VOLTAGE CODE
30 = 3.0 V 45 = 4.5 V
32 = 3.25 V 47 = 4.75 V
35 = 3.5 V 50 = 5.0 V
37 = 3.75 V 55 = 5.5 V
40 = 4.0 V 80 = 8.0 V
TAPE/REEL CODE
BX : Bulk/Bag
TL : Tape Left
MG: Magazine
Tape/Reel Code
10-15-94
V
HIGH
CONTROL
(HC)
LOW
CONTROL
(LC)
BLOCK DIAGRAM
S
S
S
TK115xx
S S
S
S
S
S
REFERENCE
THERMAL
PROTECTION
–
+
VOLTAGE
S
S
S
S
1
IN
2
3
S
V
8
O
BASE
7
S
+
–
V
5
S
6
GND
KT115xx • BD01
ADJ
Page 1
Page 2
TK115xx
TEST CIRCUIT 1
V
S
ON/OFF
ON/OFF
S
NC
IN
1
2
3
4
V
IN
A
V
IN
S
+
0.1 F
m
+
_
TK11530 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
8
7
6
5
V
O
BASE
GND
V
ADJ
10 F m
S
I
OUT
SSSS
KT115xx • TC01
V
OUT
V
S
+
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 4.0 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 2.5 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 4.0 V, |O = 30 mA 2.9 3.0 3.1 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 2.7 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 4V→9 V 5.0 30 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 4.0 V (Note 1) 18 50 mV
IO = 0 to 60 mA, VIN = 4.0 V (Note 1) 36 80 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 4.5 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 4.5 V, IO = 10 mA, ±0.3 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 4.0 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
Page 2
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
February, 1995 TOKO, Inc.
IN
IN
V
V
Page 3
TK115xx
TK11532 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 4.2 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 2.5 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 4.2 V, |O = 30 mA 3.15 3.25 3.35 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current V O = 2.95 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 4.2 V → 9.2 V 6.0 30 mV
LoaReg Load Regulation IO = 0 to 30 mA, VIN = 4.2 V (Note 1) 20 50 mV
IO = 0 to 60 mA, VIN = 4.2 V (Note 1) 40 80 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 4.7 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 4.7 V, IO = 10 mA, ±0.3 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 4.2 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
February, 1995 TOKO, Inc.
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
IN
IN
V
V
Page 3
Page 4
TK115xx
TK11535 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 4.5 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 2.5 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 4.5 V, |O = 30 mA 3.38 3.5 3.62 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 3.2 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 4.5 V → 9.5 V 6.0 30 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 4.5 V (Note 1) 20 55 mV
IO = 0 to 60 mA, VIN = 4.5 V (Note 1) 40 95 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 5.0 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 5.0 V, IO = 10 mA, ±0.3 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 4.5 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
IN
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
Page 4
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
February, 1995 TOKO, Inc.
IN
V
V
Page 5
TK115xx
TK11537 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 4.75 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 3.3 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 4.75 V, |O = 30 mA 3.625 3.75 3.88 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 3.45 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 4.75 V → 9.75 V 6.0 30 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 4.75 V (Note 1) 20 55 mV
IO = 0 to 60 mA, VIN = 4.75 V (Note 1) 40 95 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 5.25 V, IO = 10 mA
∆VO/∆T
VO Temperature VIN = 5.25 V, IO = 10 mA, ±0.3 mV/°C
A
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 4.75 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
February, 1995 TOKO, Inc.
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
IN
IN
V
V
Page 5
Page 6
TK115xx
TK11540 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 5.0 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 3.0 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 5.0 V, |O = 30 mA 3.88 4.0 4.12 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 3.7 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 5.0 V → 10.0 V 8.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 5.0 V (Note 1) 24 60 mV
IO = 0 to 60 mA, VIN = 5.0 V (Note 1) 48 100 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 5.5 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 5.5 V, IO = 10 mA, ±0.4 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 5.0 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
IN
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
Page 6
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
February, 1995 TOKO, Inc.
IN
V
V
Page 7
TK115xx
TK11545 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 5.5 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 3.5 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 5.5 V, |O = 30 mA 4.36 4.5 4.64 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 4.2 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 5.5 V → 10.5 V 8.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 5.5 V (Note 1) 25 65 mV
IO = 0 to 60 mA, VIN = 5.5 V (Note 1) 55 110 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 6.0 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 6.0 V, IO = 10 mA, ±0.5 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 5.5 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
February, 1995 TOKO, Inc.
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
IN
IN
V
V
Page 7
Page 8
TK115xx
TK11547 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 5.7 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 3.7 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 5.7 V, |O = 30 mA 4.6 4.75 4.9 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 4.45 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 5.7 V → 10.7 V 8.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 5.7 V (Note 1) 25 70 mV
IO = 0 to 60 mA, VIN = 5.7 V (Note 1) 50 120 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 6.2 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 6.2 V, IO = 10 mA, ±0.6 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 5.7 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
IN
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
Page 8
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
February, 1995 TOKO, Inc.
IN
V
V
Page 9
TK115xx
TK11550 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 6.0 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 4.0 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 6.0 V, |O = 30 mA, TA = 25 °C 4.85 5.0 5.15 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 4.7 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 6.0 V → 11 V 8.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 6.0 V (Note 1) 25 70 mV
IO = 0 to 60 mA, VIN = 6.0 V (Note 1) 50 120 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 6.5 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 6.5 V, IO = 10 mA, ±0.6 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 6.0 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
February, 1995 TOKO, Inc.
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
IN
IN
V
V
Page 9
Page 10
TK115xx
TK11555 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 6.5 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 4.5 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 6.5 V, |O = 30 mA 5.225 5.5 5.665 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 5.2 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 6.5 V → 11.5 V 8.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 6.5 V (Note 1) 25 70 mV
IO = 0 to 60 mA, VIN = 6.5 V (Note 1) 50 120 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 7.0 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 7.0 V, IO = 10 mA, ±0.6 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 6.5 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
Page 10
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
February, 1995 TOKO, Inc.
IN
IN
V
V
Page 11
TK115xx
TK11580 ELECTRICAL CHARACTERISTICS
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
I
CC1
I
CC2
I
CCS
V
O
V
DROP
I
O
I
OR
Supply Current 1 VIN = 9.0 V, |O = 0 mA 500 900 µA
Supply Current 2 VIN = 7.0 V, |O = 0 mA 1.4 2.5 mA
Standby Supply Current VIN = 14 V, Output Off 0.2 2.0 µA
Output Voltage VIN = 9.0 V, |O = 30 mA 7.76 8.0 8.24 V
Voltage Dropout |O = 60 mA 0.13 0.35 V
Output Current VO = 7.7 V 100 130 mA
Recommended 100 mA
Output Current
LinReg Line Regulation VIN = 9.0 V → 14.0 V 16.0 40 mV
LoaReg Load Regulation
IO = 0 to 30 mA, VIN = 9.0 V (Note 1) 35 110 mV
IO = 0 to 60 mA, VIN = 9.0 V (Note 1) 70 200 mV
RR Ripple Regulation 100 mVrms, f = 400 Hz, 55 dB
VIN = 9.5 V, IO = 10 mA
∆VO/∆TAVO Temperature VIN = 9.5 V, IO = 10 mA, ±1.0 mV/°C
Coefficient -20 °C ≤ TA ≤ 75 °C
V
NO
I
B
Output Noise Voltage 10 Hz ≤ f ≤ 100 kHz, IO = 10 mA 180 µVrms
Base Terminal Current VIN = 9.0 V 6 14 35 mA
Active High Control Terminal
I
V
V
HC
HC1
HC2
HC Terminal Current Output On, Connect LC & GND 2 40 µA
HC Terminal Voltage 1 Output On, Connect LC & GND 2.4 V
HC Terminal Voltage 2 Output Off, Connect LC & GND 0 0.6 V
Active Low Control Terminal
I
LC
V
LC1
V
LC2
Note 1: This is a pulse measurement where TJ is constant. The output change due to temperature is not included.
February, 1995 TOKO, Inc.
LC Terminal Current Output On, Connect HC & GND 35 120 µA
LC Terminal Voltage 1 Output On, Connect HC & GND 0 VIN-2.5 V
LC Terminal Voltage 2 Output Off, Connect HC & GND VIN-0.2 V
10-15-94
IN
IN
V
V
Page 11
Page 12
TK115xx
TK115xx • TPC97
C
FB
1 pF 1000 pF 0.1 µF
100 µV
NOISE LEVEL vs
FEEDBACK CAPACITOR
275 µV
0
10 pF 100 pF .01 µF
TEST CIRCUIT 3
I = 60 mA
O
LOW PASS FIL = 100 kHz
TK11580
TK11520
200 µV
NOISE
V
1
2
3
4
8
7
6
5
4.7 F+m
S
S
C
FB
V
O
I
O
V
IN

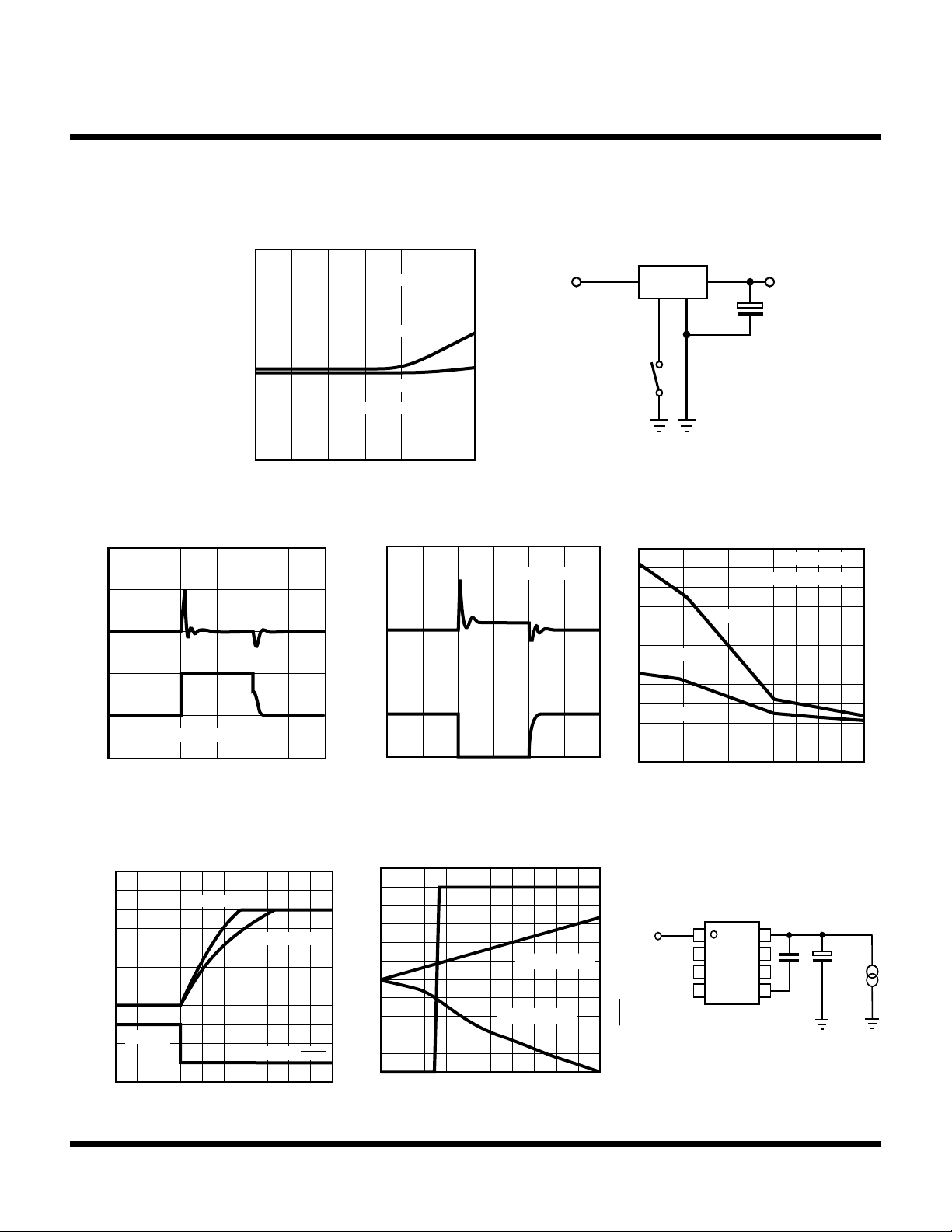

TYPICAL PERFORMANCE CHARACTERISTICS
COMMON CHARACTERISTICS
0
TA = 25 °C unless otherwise specified
RIPPLE REJECTION vs
FREQUENCY
TEST CIRCUIT 2
O
V
50 mV/DIV
IN
V
1 V/DIV
–50
RIPPLE REJECTION (dB)
–100
0.100 10 100
LINE
TRANSIENT RESPONSE
V (OM) = V +1 V
IN
O
5 µs/DIV
TK115xx • TPC71
V = V +1.5 V
IN O
I = 5 mA
I = 0 mA
O
TEST CIRCUIT 2
1
FREQUENCY (kHz)
O
V
100 mV/DIV
O
I
50 mA/DIV
IN
4.5V
O
RIPPLE REJECTION TEST CIRCUIT
TK115xx • TPC74
LOAD TRANSIENT RESPONSE
V = V +1 V
IN
O
5 µs/DIV
TK115xx • TPC72
TK115xx
S
S
+
4.7 F
KT115xx • TC02
OUT
m
TURN ON
TRANSIENT RESPONSE
I = 10 mA
5
O
O
V (t) (V)
0
SW
V (t)
Page 12
V
SW
t (50 µs/DIV)
V = V – V
SW ON/OFF
I = 100 mA
O
IN
TK115xx ¥ TPC73
CONTROL PIN CHARACTERISTICS
5
4
3
O
V (V)
2
V
O
IS=Vcont,HC
IS=Vcont2,LC
1
0
035
12 4
V ; -V
ON/OFF ON/OFF
10-15-94
+100
0
–100
TK115xx • TPC75
ON/0FF
I
ON/0FF
I
TEST CIRCUIT 3
NOISE LEVEL TEST CIRCUIT
February, 1995 TOKO, Inc.
Page 13
TK115xx

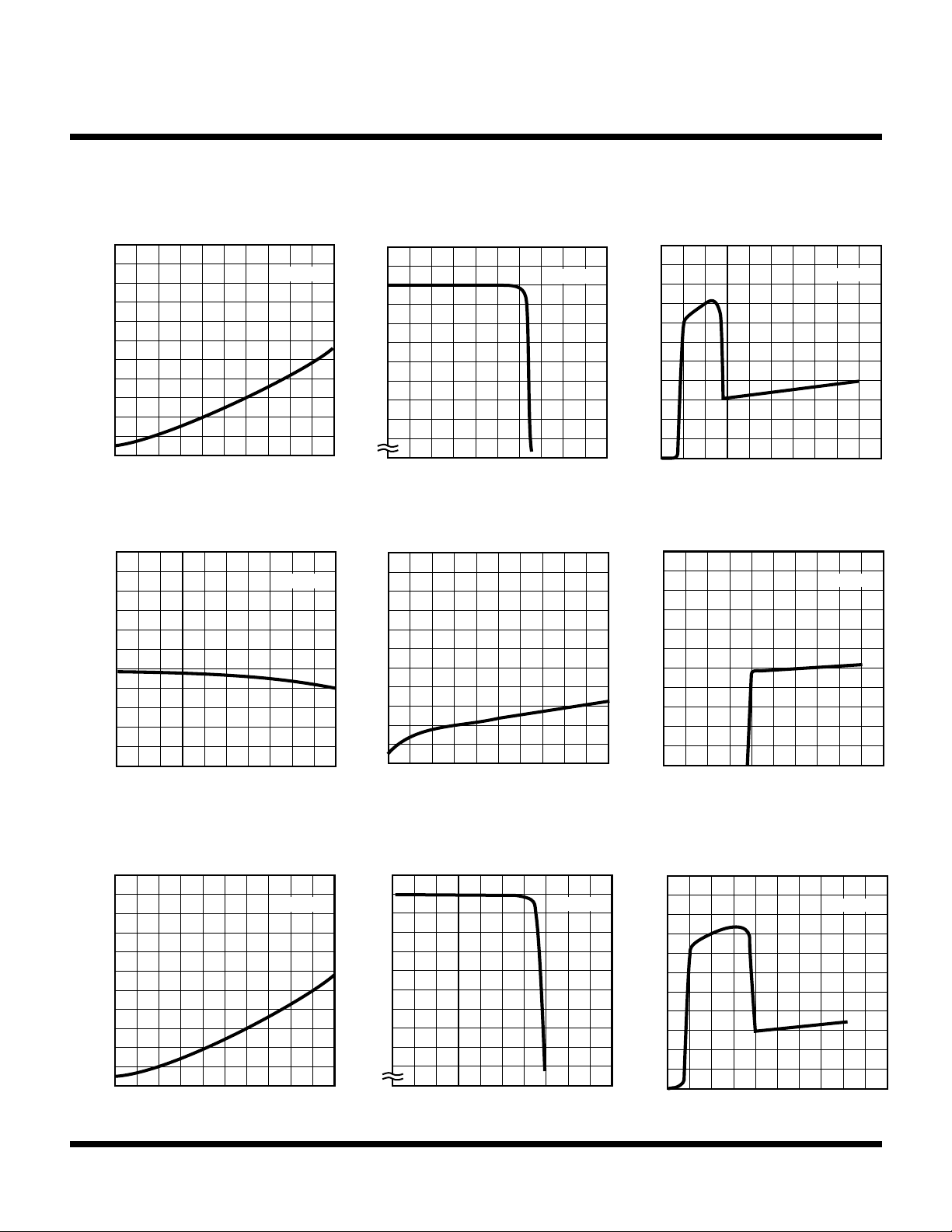

COMMON CHARACTERISTICS WITH EXTERNAL CURRENT BOOST TRANSISTOR (NEC 2SA733 OR TOSHIBA 2SA1244)
TA = 25 °C unless otherwise specified
DROPOUT VOLTAGE vs
LOAD CURRENT
VO+ 0.2 V

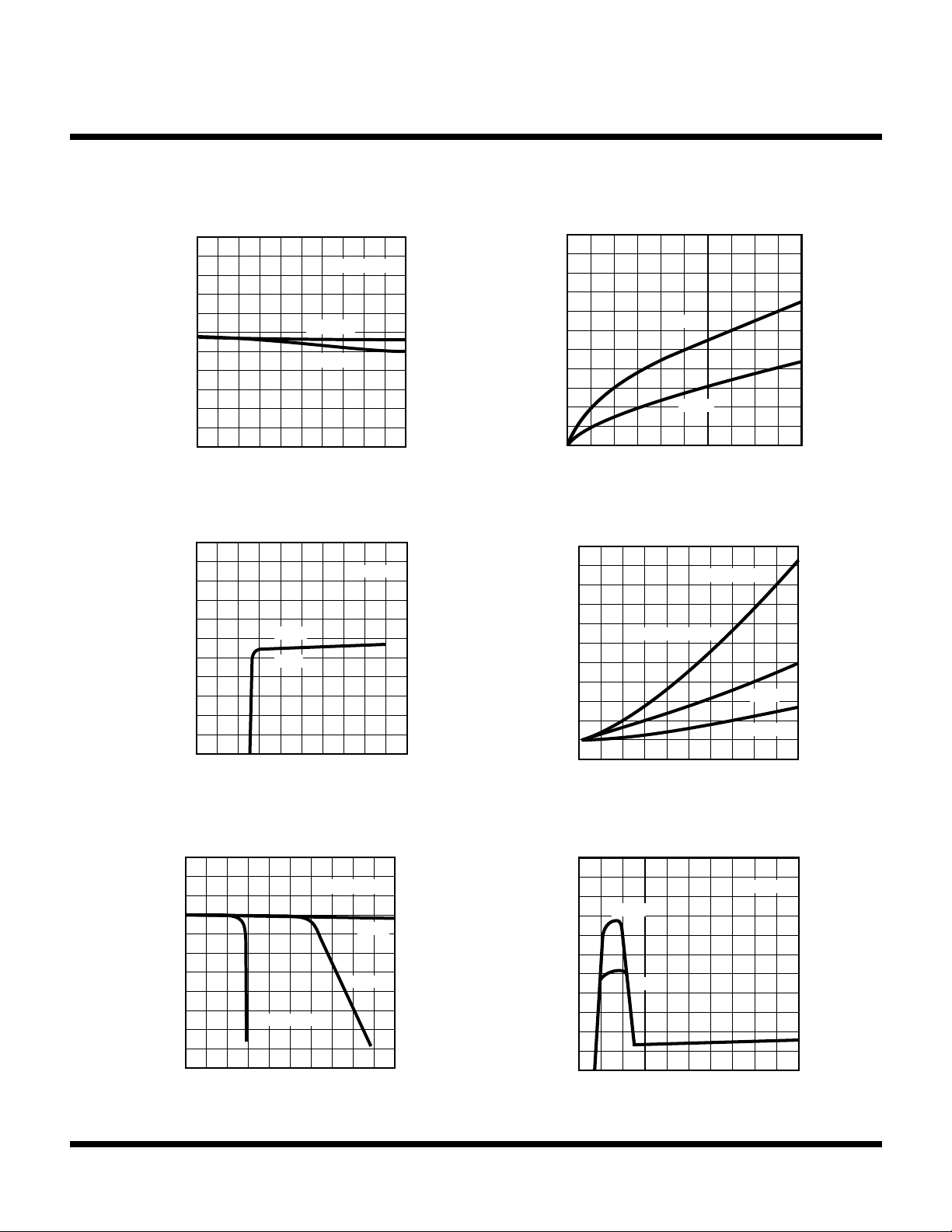

OUTPUT VOLTAGE vs
OUTPUT CURRENT
V = V + 1 V
IN O
0.2
O
V
V (V)
VO – 0.2 V
VO+ 0.2 V
O
O
V (V)
VO – 0.2 V
2SA1244
O
0 50 100
I (mA)
O
2SA733
TK115xx • TPC77

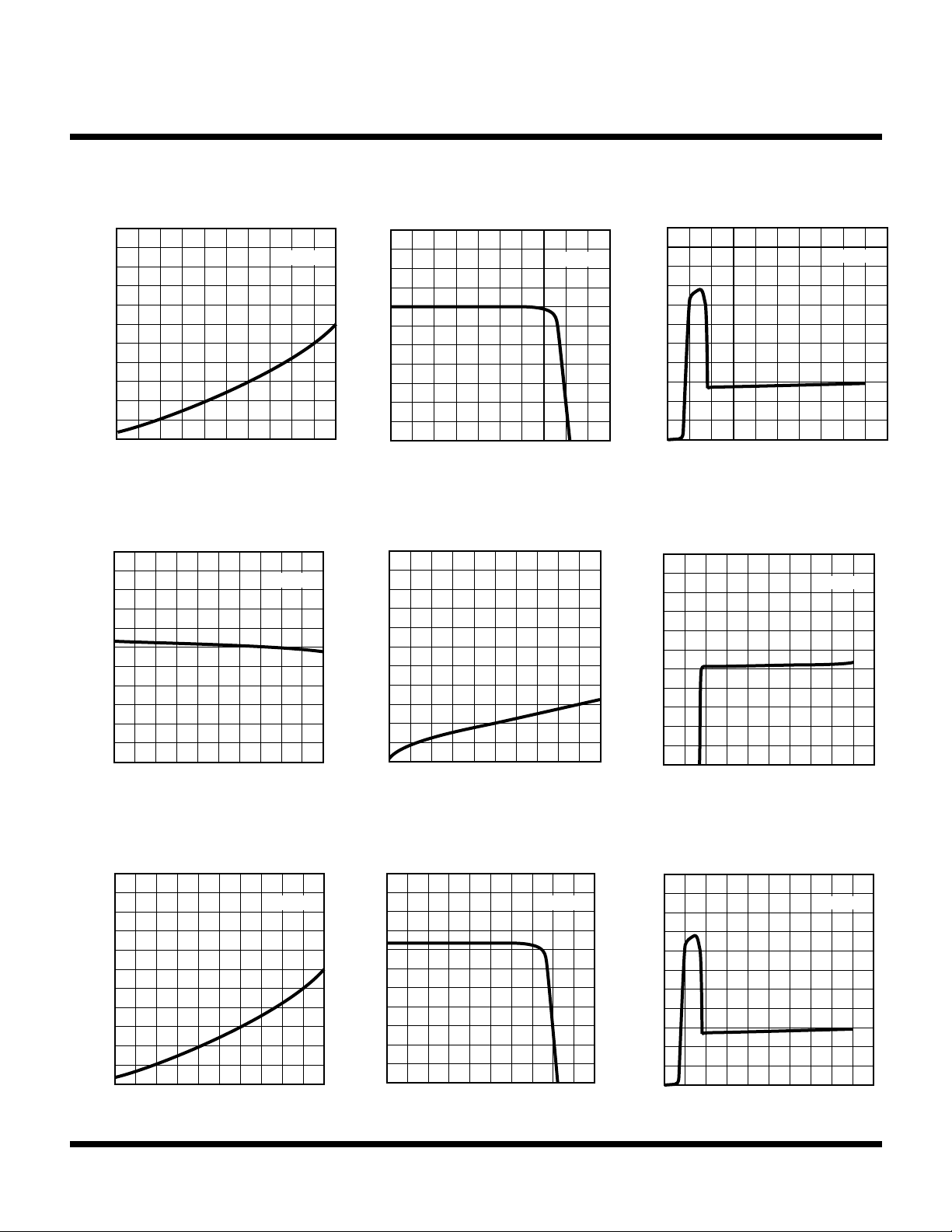

OUTPUT VOLTAGE vs
INPUT VOLTAGE
I = 0
O
A1244
V
O
01020
A733
V (V)
IN
TK115xx • TPC79
A733
DROP
V (V)
0.1
A1244
0
0 50 100

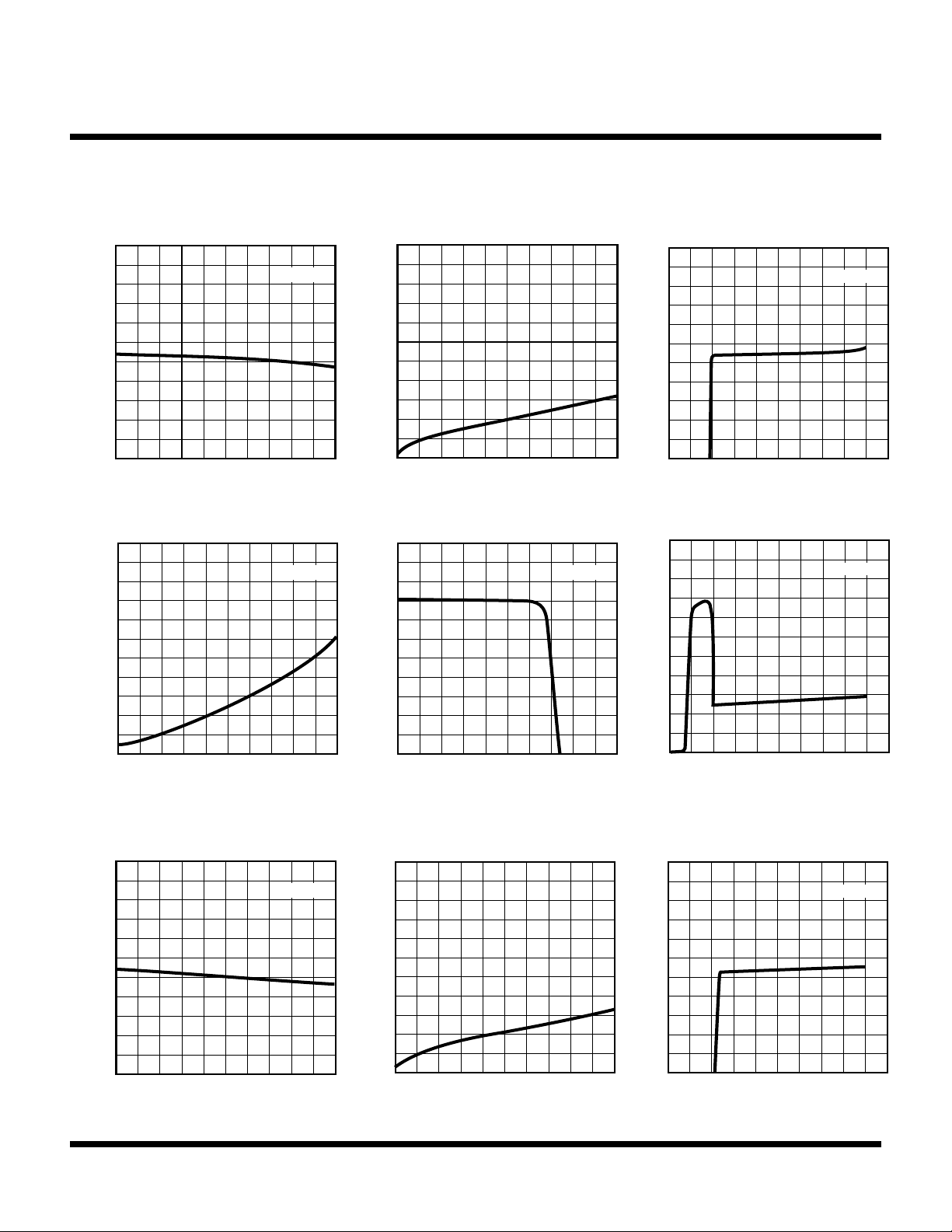

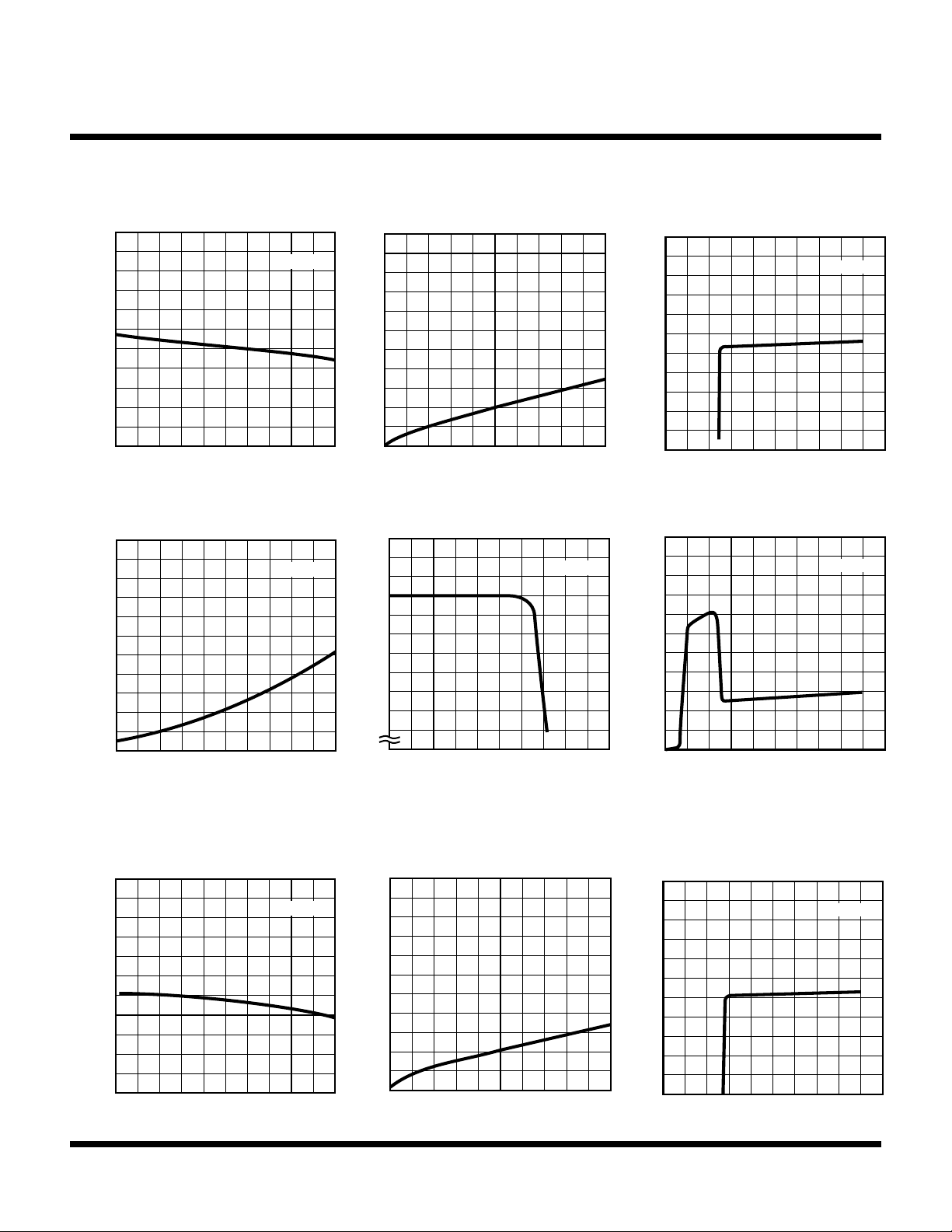

QUIESCENT CURRENT vs
LOAD CURRENT
5
4
3
Q
I (mA)
NO EXT. BOOST
2
1
0
0 50 100
V = V + 1 V
I (mA)
O
IN O
A733
A1244
TK115xx • TPC80
SHORT CIRCUIT PROTECTION
V
O
O
V (V)
NO EXT. BOOST
0 200 500
100 300 400
February, 1995 TOKO, Inc.
I (mA)
O
V = V + 1 V
IN O
A1244
A733
TK115xx • TPC81
10-15-94
4
2
IN
I (V)
0
INPUT CURRENT vs
INPUT VOLTAGE
A1244
A733
V (V)
IN
I = 0
O
TK115xx • TPC82
Page 13
Page 14
TK115xx

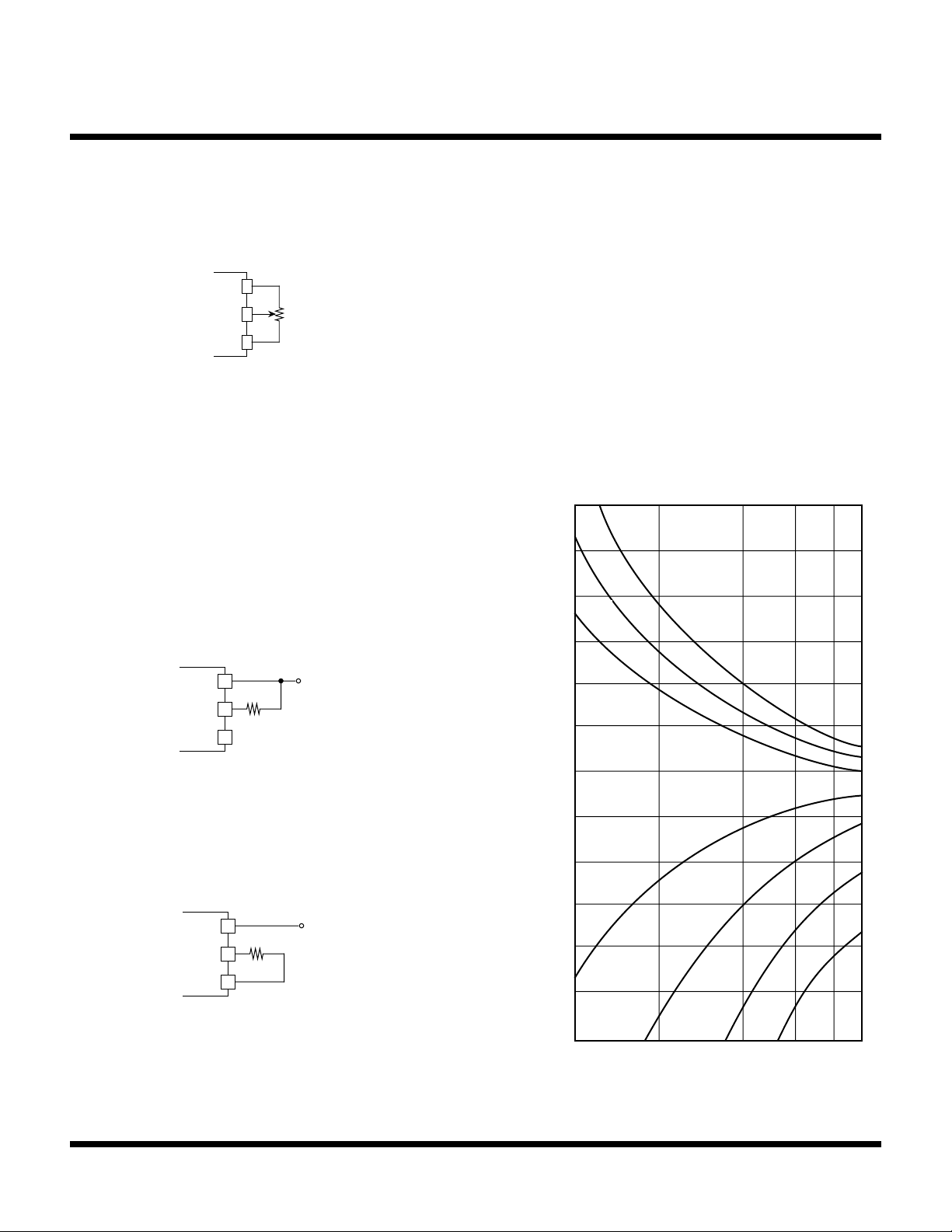

VOLTAGE ADJUSTMENT
V
OUT
V
ADJ
GND
For small changes in output voltage use R1 to increase
the output voltage or R2 to decrese the output voltage.
The graph at right shows the approximate resistance
values. The initial output voltage is indicated on the
graph. (3 V = TK11530 etc.)
50 kΩ
For large adjustment range use a 50 K potentiometer.
This method gives good results when a voltage lower
than the rated output is needed.
R1
0.5 M 1 M 2 M 3 M 4 M
+100 mV
V
V
GND
V
V
OUT
ADJ
OUT
ADJ
GND
R1
R2
0
–100 mV
4 V
3 V
3 V
5 V, 8 V
4 V
5 V
8 V
Page 14
10-15-94
0.5 M 1 M 2 M 3 M 4 M
R2
February, 1995 TOKO, Inc.
Page 15
TK115xx INTERNAL
PASS TRANSISTOR
TK115xx
TA = 25 °C unless otherwise specified
20

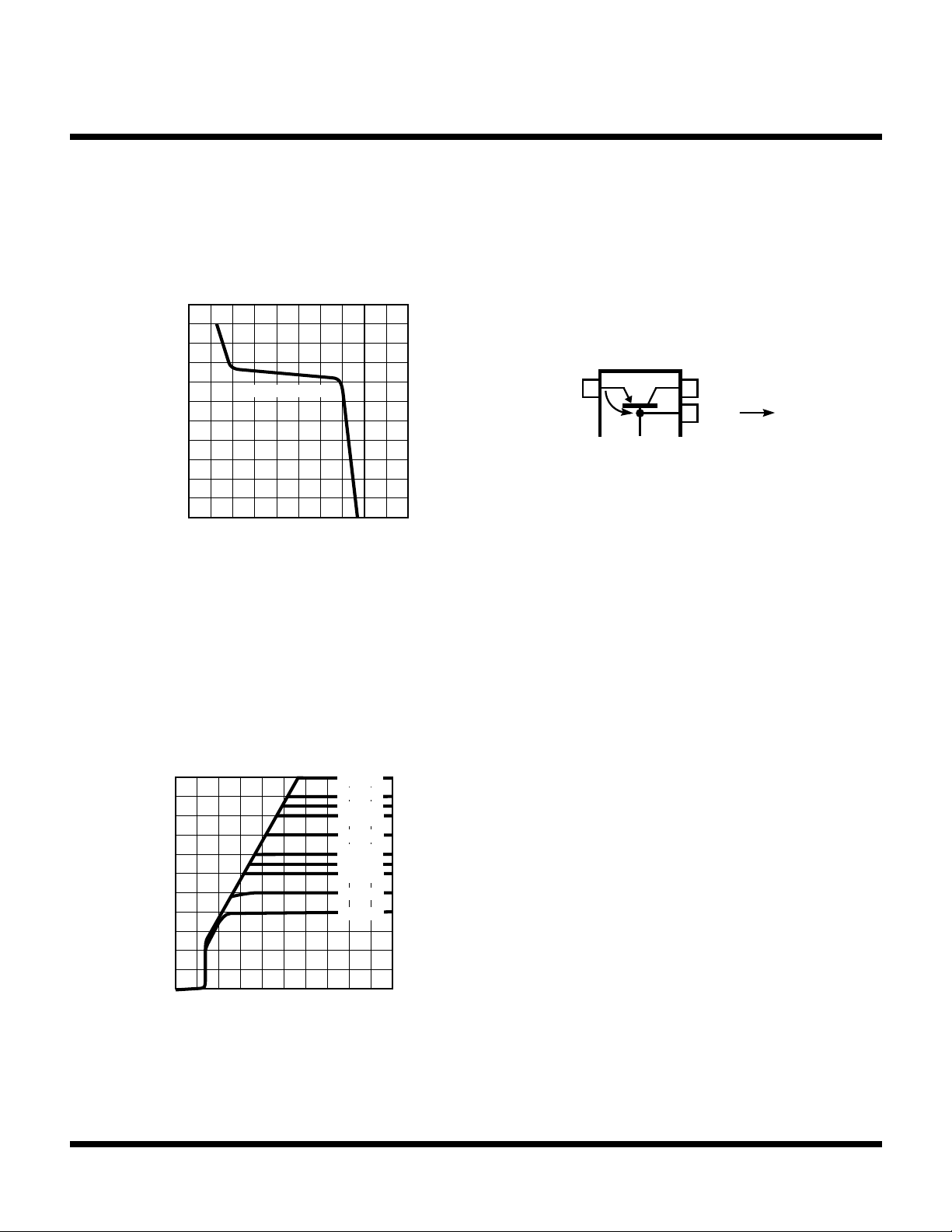

TEST CIRCUIT 4
10
B
I (mA)
0
-1.2 -0.8 0.8
-1.6 0 1.2
V
B
INPUT OUTPUT CHARACTERISTICS
(SWITCH ON)
5
4
3
O
V (V)
2
TK115xx • TPC83
TK11555
TK11550
TK11547
TK11545
TK11540
TK11535
TK11532
TK11530
TK11525
TK11520
TEST CIRCUIT 4
1 8
V
IN
V
B
TK115xx
V = V – V
B IN BASE
V
O
S
7 BASE
KT115xx • TC03
I
B
1
0
0510
February, 1995 TOKO, Inc.
V (V)
IN
TK115xx • TPC76
10-15-94
Page 15
Page 16
TK115xx
3.3
3.5
TK115xx • TPC65
TK11535
OUTPUT VOLTAGE vs
TEMPERATURE
3.7
V (V)
O
–20
T ( °C)
A
20 8004060
V = V +1 V
IN
I = 10 mA
O
O
5.3
5.5
TK115xx • TPC70
TK11555
OUTPUT VOLTAGE vs
TEMPERATURE
5.7
V (V)
O
–20
T ( °C)
A
20 8004060
V = V +1 V
IN
I = 10 mA
O
O
4.3
4.5
TK115xx • TPC67
TK11545
OUTPUT VOLTAGE vs
TEMPERATURE
4.7
V (V)
O
–20
T ( C)°
A
20 80
IN
I = 10 mA
O
04060
V = 5.5 V

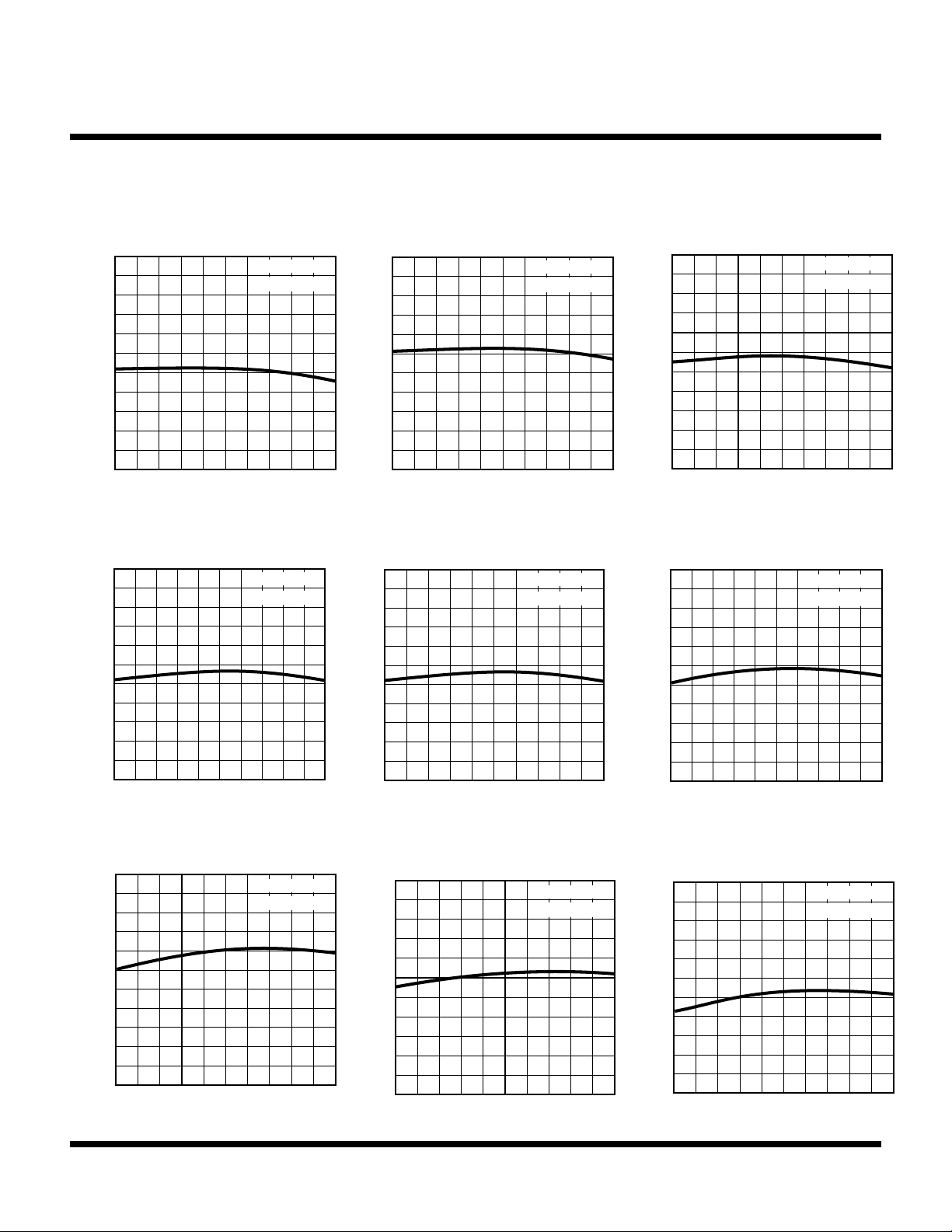

TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TEMPERATURE CHARACTERISTICS
TK11530
OUTPUT VOLTAGE vs
TEMPERATURE
V = V +1 V
IN
O
I = 10 mA
3.2
O
3.0
V (V)
2.8
3.9
–20
20 8004060
T ( °C)
A
TK11537
OUTPUT VOLTAGE vs
TEMPERATURE
O
TK115xx • TPC63
V = V +1 V
IN O
I = 10 mA
O
TA = 25 °C unless otherwise specified
TK11532
OUTPUT VOLTAGE vs
TEMPERATURE
V = V +1 V
IN
O
I = 10 mA
3.4
O
3.2
V (V)
3.0
4.2
–20
OUTPUT VOLTAGE vs
TEMPERATURE
20 8004060
T ( °C)
A
TK11540
O
TK115xx • TPC64
V = V +1 V
IN
O
I = 10 mA
O
O
V (V)
3.7
3.5
–20
20 8004060
OUTPUT VOLTAGE vs
TEMPERATURE
4.9
O
4.7
V (V)
4.5
–20
04060
T ( C)°
A
TK115xx • TPC98
TK11547
V = V +1 V
O
IN
I = 10 mA
O
20 80
T ( °C)
A
TK115xx • TPC68
O
4.0
V (V)
3.8
O
V (V)
5.2
5.0
4.8
–20
–20
20 8004060
T ( C)°
A
TK115xx • TPC66
TK11550
OUTPUT VOLTAGE vs
TEMPERATURE
V = V +1 V
IN
O
I = 10 mA
O
20 80
04060
T ( °C)
A
TK115xx • TPC69
Page 16
10-15-94
February, 1995 TOKO, Inc.
Page 17

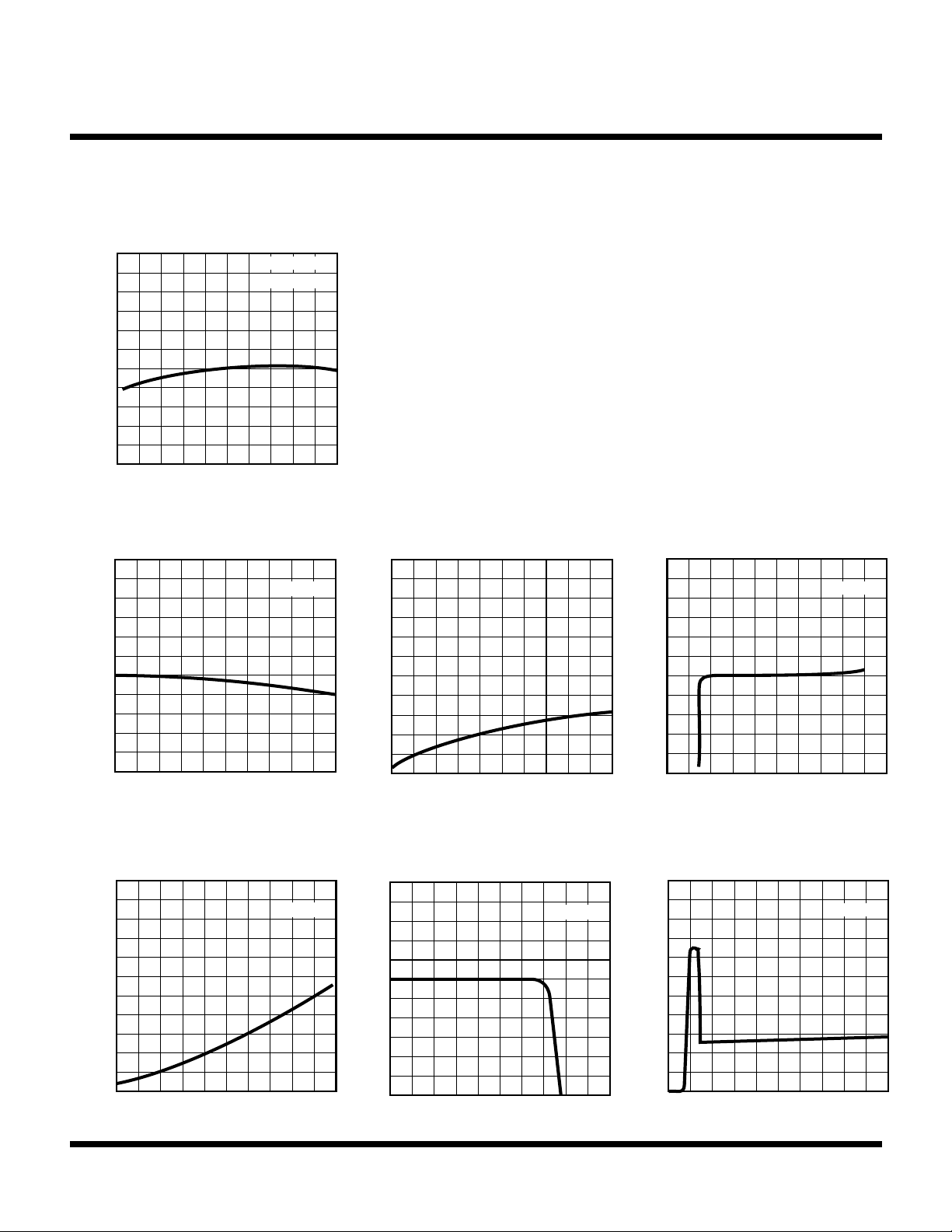

TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TK115xx1 • TPC15
V (V)
O
01020
2.8
3.0
OUTPUT VOLTAGE vs
INPUT VOLTAGE
3.2
V (V)
IN
I = 0
O
TEMPERATURE CHARACTERISTICS (CONT.)
TK115xx
8.2
O
8.0
V (V)
7.8
–20
TK11530
3.2
TK11580
OUTPUT VOLTAGE vs
TEMPERATURE
V = V +1 V
IN
I = 10 mA
O
20 8004060
T (°C)
A
OUTPUT VOLTAGE vs
OUTPUT CURRENT
O
TK115xx • TPC96
V = 4 V
IN
TA = 25 °C unless otherwise specified
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
O
3.0
V (V)
2.8
0 50 100
I (mA)
O
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
0
0 50 100
I (mA)
O
TK115xx • TPC13
V = 4 V
IN
TK115xx • TPC16
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
1
0
0 100 200
I (mA)
O
TK115xx • TPC14
V = 4 V
IN
TK115xx • TPC17
INPUT CURRENT vs
INPUT VOLTAGE
2
1
IN
I (mA)
0
01020
V (V)
IN
I = 0
O
TK115xx • TPC18
February, 1995 TOKO, Inc.
10-15-94
Page 17
Page 18
TK115xx
TK115xx • TPC24
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC21
V (V)
O
01020
3.0
3.2
OUTPUT VOLTAGE vs
INPUT VOLTAGE
3.4
I = 0
O
V (V)
IN
TK115xx • TPC27
V (V)
O
01020
3.3
3.5
OUTPUT VOLTAGE vs
INPUT VOLTAGE
3.7
V (V)
IN
I = 0
O
TK11532
OUTPUT VOLTAGE vs
OUTPUT CURRENT

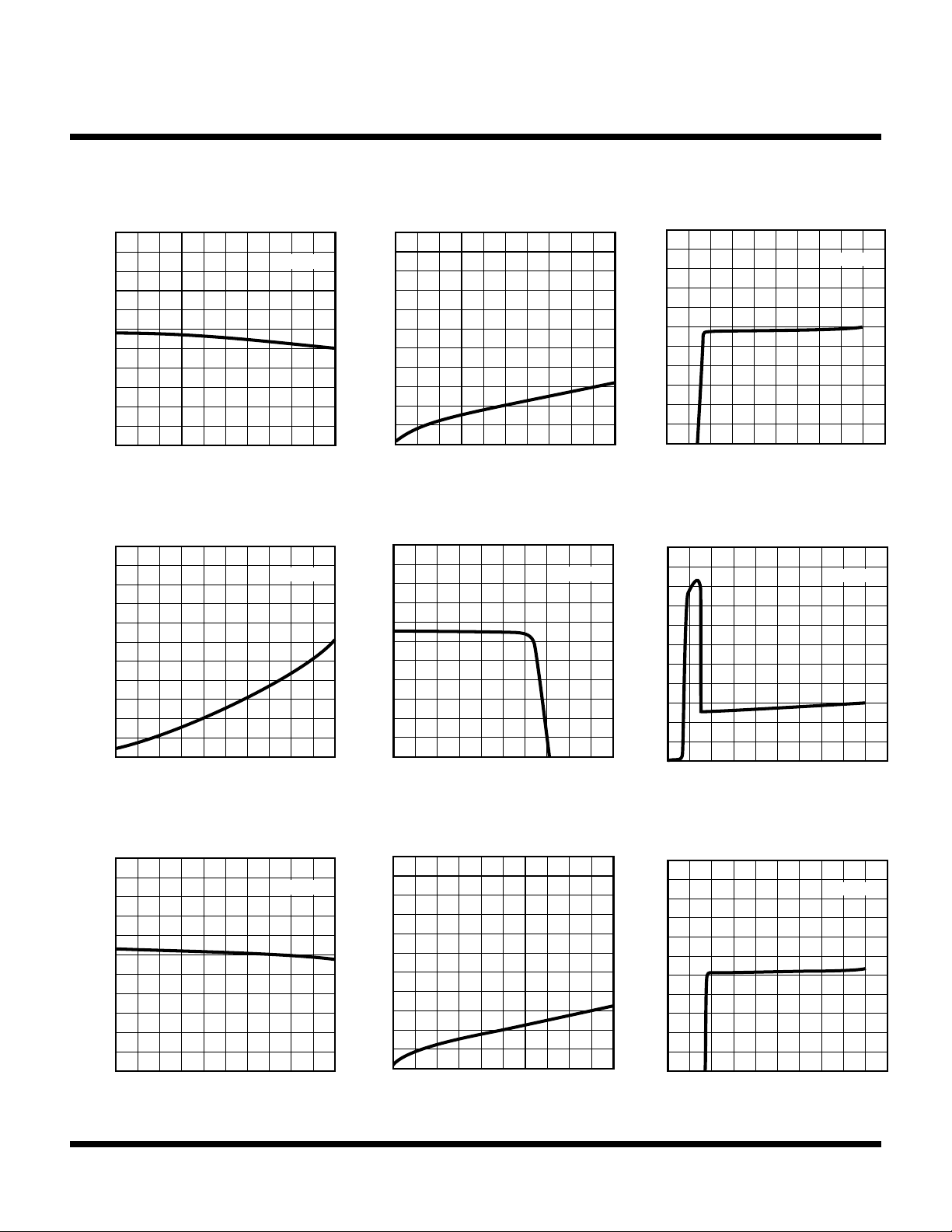

TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
DROPOUT VOLTAGE vs
LOAD CURRENT
3.4
O
3.2
V (V)
3.0
0 50 100
I (mA)
O
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
V = 4.2 V
IN
TK115xx • TPC19
V = 4.2 V
IN
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
TK115xx • TPC20
V = 4.2 V
IN
0
0 50 100
I (mA)
O
TK115xx • TPC22
TK11535
OUTPUT VOLTAGE vs
OUTPUT CURRENT
V (V)
3.7
3.5
O
3.3
0 50 100
I (mA)
O
V = 4.5 V
IN
TK115xx • TPC25
Page 18
1
0
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
10-15-94
TK115xx • TPC23
TK115xx • TPC26
February, 1995 TOKO, Inc.
Page 19
TK11535 (CONT.)
TK115xx • TPC30
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC89
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC86
V (V)
O
01020
3.5
3.7
OUTPUT VOLTAGE vs
INPUT VOLTAGE
3.9
V (V)
IN
I = 0
O
QUIESCENT CURRENT vs
LOAD CURRENT
TK115xx
TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
SHORT CIRCUIT
PROTECTION
10
5
Q
I (mA)
0
0 50 100
I (mA)
O
TK11537
OUTPUT VOLTAGE vs
OUTPUT CURRENT
3.9
3.7
O
V (V)
V = 4.5 V
IN
TK115xx • TPC28
V = 4.5 V
IN
5
4
3
O
V (V)
2
1
0
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
V = 4.5 V
IN
TK115xx • TPC29
3.5
0 50 100
I (mA)
O
TK115xx • TPC84
QUIESCENT CURRENT vs
LOAD CURRENT
I (mA)
10
Q
5
0
0 50 100
I (mA)
O
V = 4.5 V
IN
TK115xx • TPC87
February, 1995 TOKO, Inc.
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
1
0
0 100 200
I (mA)
O
10-15-94
TK115xx • TPC85
V = 4.7 V
IN
TK115xx • TPC88
Page 19
Page 20

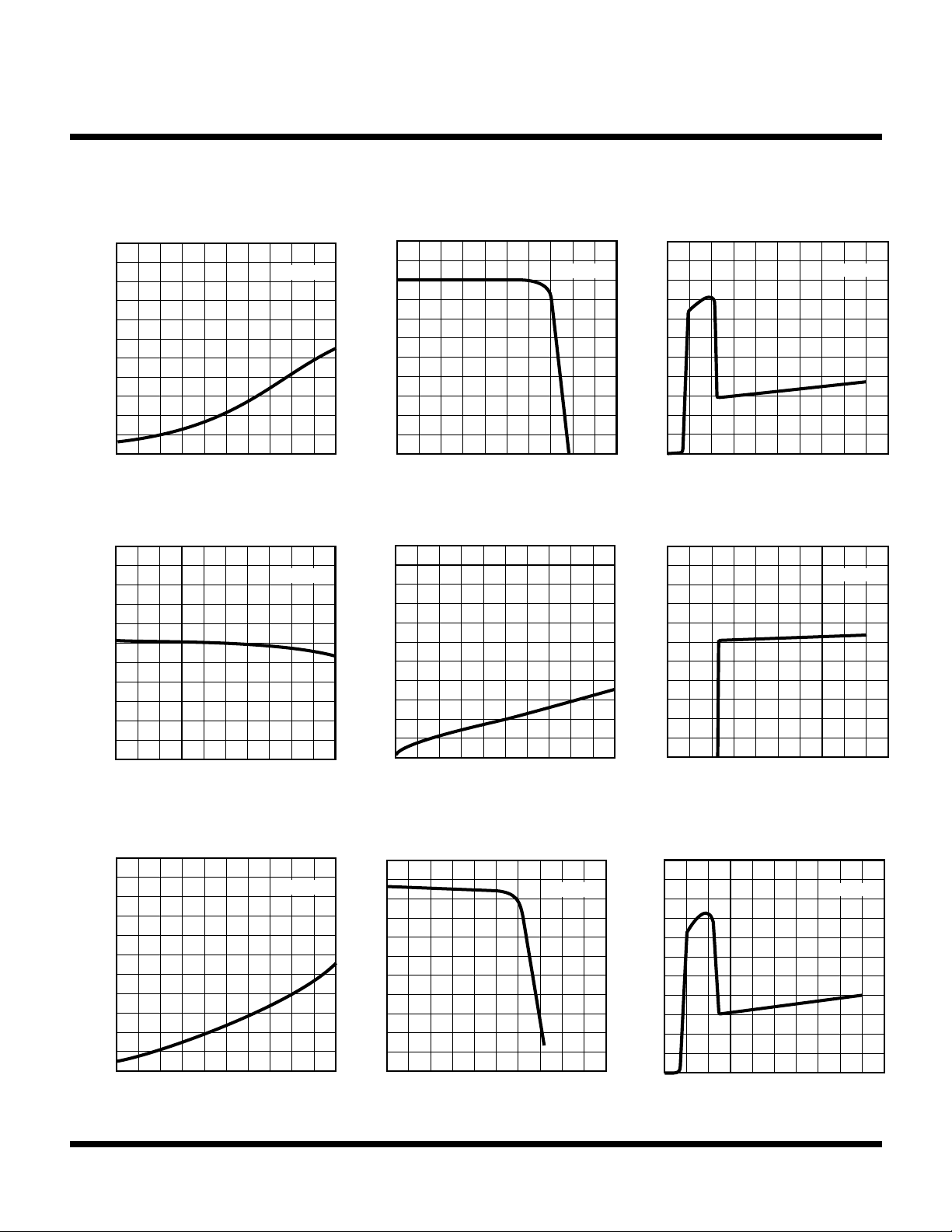

TK115xx
TK115xx • TPC36
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx1 • TPC39
V (V)
O
01020
4.3
4.5
OUTPUT VOLTAGE vs
INPUT VOLTAGE
4.7
V (V)
IN
I = 0
O
TK115xx • TPC33
V (V)
O
01020
3.8
4.0
OUTPUT VOLTAGE vs
INPUT VOLTAGE
4.2
V (V)
IN
I = 0
O
TK11540
TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
OUTPUT VOLTAGE vs
OUTPUT CURRENT
4.2
O
4.0
V (V)
3.8
0 50 100
I (mA)
O
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
V = 5 V
IN
TK115xx • TPC31
V = 5 V
IN
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
TK115xx • TPC32
V = 5 V
IN
0
0 50 100
I (mA)
O
TK115xx • TPC34
TK11545
OUTPUT VOLTAGE vs
OUTPUT CURRENT
V = 5.5 V
IN
TK115xx • TPC37
O
V (V)
4.7
4.5
4.3
0 50 100
I (mA)
O
Page 20
1
0
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
10-15-94
TK115xx • TPC35
TK115xx • TPC38
February, 1995 TOKO, Inc.
Page 21
TK11545 (CONT.)
TK115xx • TPC45
V (V)
O
01020
4.5
4.7
OUTPUT VOLTAGE vs
INPUT VOLTAGE
4.9
V (V)
IN
I = 0
O
TK115xx • TPC48
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC42
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx
TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
0
0 50 100
I (mA)
TK11547
O
OUTPUT VOLTAGE vs
OUTPUT CURRENT
4.9
O
4.7
V (V)
V = 5.5 V
IN
TK115xx • TPC40
V = 5.7 V
IN
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
1
0
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
V = 5.5 V
IN
TK115xx • TPC41
4.5
0 50 100
I (mA)
O
TK115xx • TPC43
QUIESCENT CURRENT vs
LOAD CURRENT
I (mA)
10
5
Q
0
0 50 100
I (mA)
O
V = 5.7 V
IN
TK115xx • TPC46
February, 1995 TOKO, Inc.
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
5
4
3
O
V (V)
2
1
0 100 200
I (mA)
O
10-15-94
TK115xx • TPC44
V = 5.7 V
IN
TK115xx • TPC47
Page 21
Page 22
TK115xx
TK115xx • TPC54
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC57
V (V)
O
01020
5.3
5.5
OUTPUT VOLTAGE vs
INPUT VOLTAGE
5.7
V (V)
IN
I = 0
O
TK115xx1 • TPC51
V (V)
O
01020
4.8
5.0
OUTPUT VOLTAGE vs
INPUT VOLTAGE
5.2
V (V)
IN
I = 0
O
TK11550
OUTPUT VOLTAGE vs
OUTPUT CURRENT
TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
DROPOUT VOLTAGE vs
LOAD CURRENT
5.2
O
5.0
V (V)
4.8
0 50 100
I (mA)
O
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
V = 6.5 V
IN
TK115xx • TPC49
V = 6.5 V
IN
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
6
5
4
O
V (V)
3
TK115xx • TPC50
V = 6.5 V
IN
0
0 50 100
I (mA)
O
TK115xx • TPC52
TK11555
OUTPUT VOLTAGE vs
OUTPUT CURRENT
V = 6.5 V
IN
TK115xx • TPC55
V (V)
5.7
O
5.5
5.3
0 50 100
I (mA)
O
Page 22
2
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
0.1
0
0 50 100
I (mA)
O
10-15-94
TK115xx • TPC53
TK115xx • TPC56
February, 1995 TOKO, Inc.
Page 23
TK11555 (CONT.)
TK115xx • TPC92
V (V)
O
01020
7.8
8.0
8.25
V (V)
IN
OUTPUT VOLTAGE vs
INPUT VOLTAGE
I = 0
O
TK115xx • TPC95
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx • TPC60
V (V)
IN
I (mA)
IN
01020
1
INPUT CURRENT vs
INPUT VOLTAGE
2
0
I = 0
O
TK115xx
TYPICAL PERFORMANCE CHARACTERISTICS (CONT.)
TA = 25 °C unless otherwise specified
QUIESCENT CURRENT vs
LOAD CURRENT
10
5
Q
I (mA)
0
0 50 100
I (mA)
TK11580
O
OUTPUT VOLTAGE vs
OUTPUT CURRENT
8.25
O
8.0
V (V)
V = 6.5 V
IN
TK115xx • TPC58
V = 9 V
IN
SHORT CIRCUIT
PROTECTION
6
5
4
O
V (V)
3
2
0 100 200
I (mA)
O
DROPOUT VOLTAGE vs
LOAD CURRENT
0.5
0.4
0.3
DROP
V (V)
0.2
V = 6.5 V
IN
TK115xx • TPC59
7.8
0 50 100
I (mA)
O
TK115xx • TPC90
QUIESCENT CURRENT vs
LOAD CURRENT
I (mA)
10
5
Q
0
0 50 100
I (mA)
O
V = 9 V
IN
TK115xx • TPC93
February, 1995 TOKO, Inc.
0.1
0
0 50 100
I (mA)
O
SHORT CIRCUIT
PROTECTION
8
7
6
O
V (V)
5
4
0 100 200
I (mA)
O
10-15-94
TK115xx • TPC91
V = 9 V
IN
TK115xx • TPC94
Page 23
Page 24
TK115xx

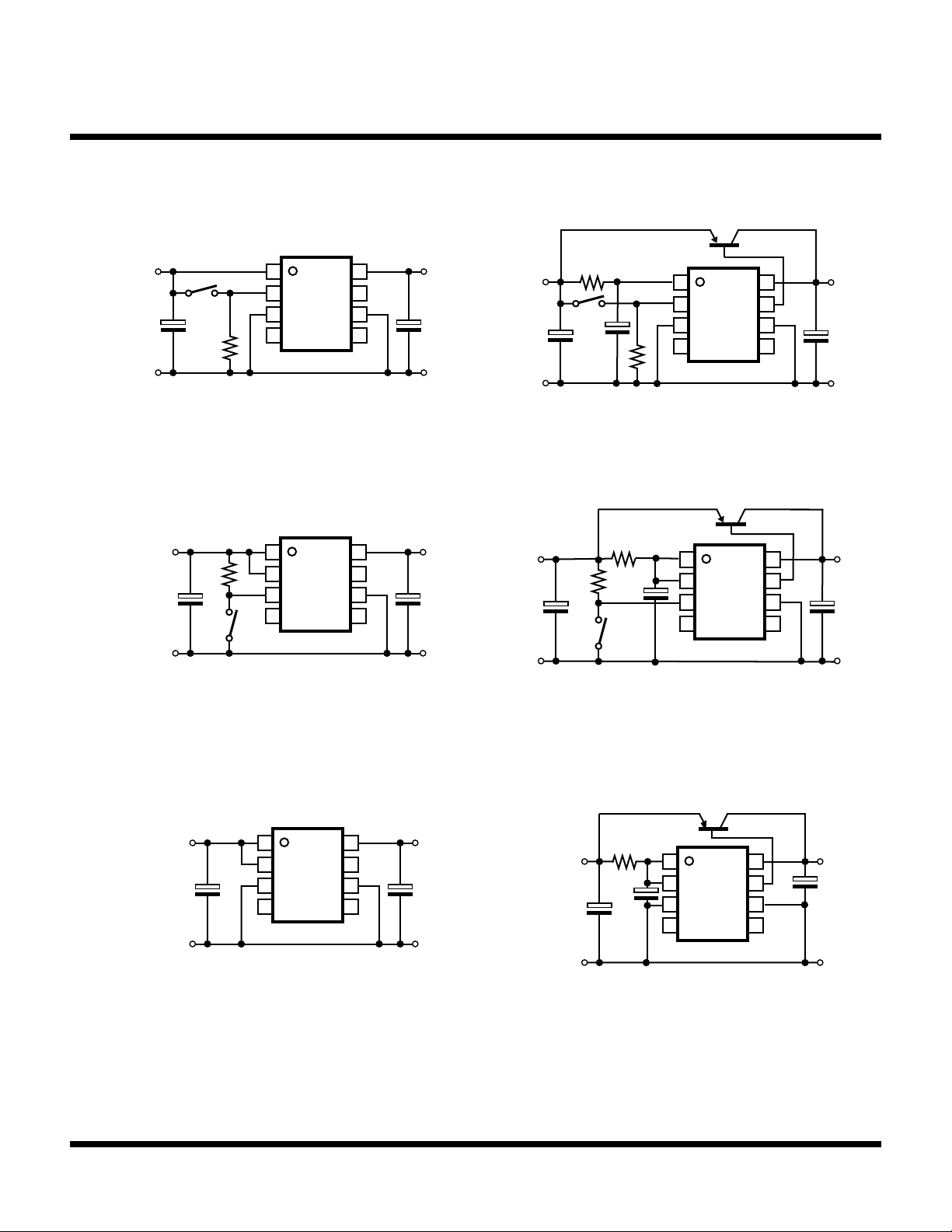

TYPICAL APPLICATIONS
V
S
IN
+ +
1 µF
100K
1
SS
2
3
4
S
ACTIVE HIGH CONTROL
V
S SS
IN
100K
+ +
V
IN
1 µF
1
2
S
3
4
ACTIVE LOW CONTROL ACTIVE LOW CONTROL WITH CURRENT BOOST
8
7
6
5
8
7
6
5
S
SSSS
KT115xx • TA01
S
SSSS
KT115xx • TA03
V
4.7 µF
V
4.7 µF
OUT
OUT
V
S
IN
S
+
S
S
+
C1
S
1
S
2
3
R
4
S
S
8
7
6
5
S
+
SS
KT115xx • TA02
V
OUT
C2
ACTIVE HIGH CONTROL WITH CURRENT BOOST
3.9 Ω
V
S
IN
V
OUT
+
S
3.9 Ω
S
R
S
C1
S
S
1
S
+
2
3
4
S
8
7
6
5
S
+
SS
KT115xx • TA04
V
OUT
C2
Page 24
V
S S
IN
+
C1
NO SWITCH CONTROL
V
1
2
3
4
8
7
6
5
S
+
SSSS
KT115xx • TA05
OUT
V
IN
C2
3.9 Ω
S
+
C1
S
1 µF
S
1
+
S
2
S
3
4
8
7
6
5
KT115xx • TA06
V
S
OUT
+
C2
S
SS
NO SWITCH CONTROL WITH CURRENT BOOST
10-15-94
February, 1995 TOKO, Inc.
Page 25
TYPICAL APPLICATIONS (CONT.)
TK115xx
39 Ω
S
+
S
S
+
V
IN
_
GND
100K
+
V
_
S
S
SW
1
1 Fµ
2
3
4
8
7
6
5
S
S
R
S
+
4.7 F
S
µ
SS
V
3
S
KT115xx • TA07
V
O
R =
I
O
Z
CURRENT MODE REGULATOR WITH ON/OFF CONTROL AND CURRENT BOOST
3.9 Ω
S
S
S
S
+
S
S
100K
S
1
1 Fµ
2
3
4
8
7
6
5
S
R
S
S
+
µ
4.7 F
S
+
_
S
+
_
Transistor On/Off control
S S
KT115xx • TA08

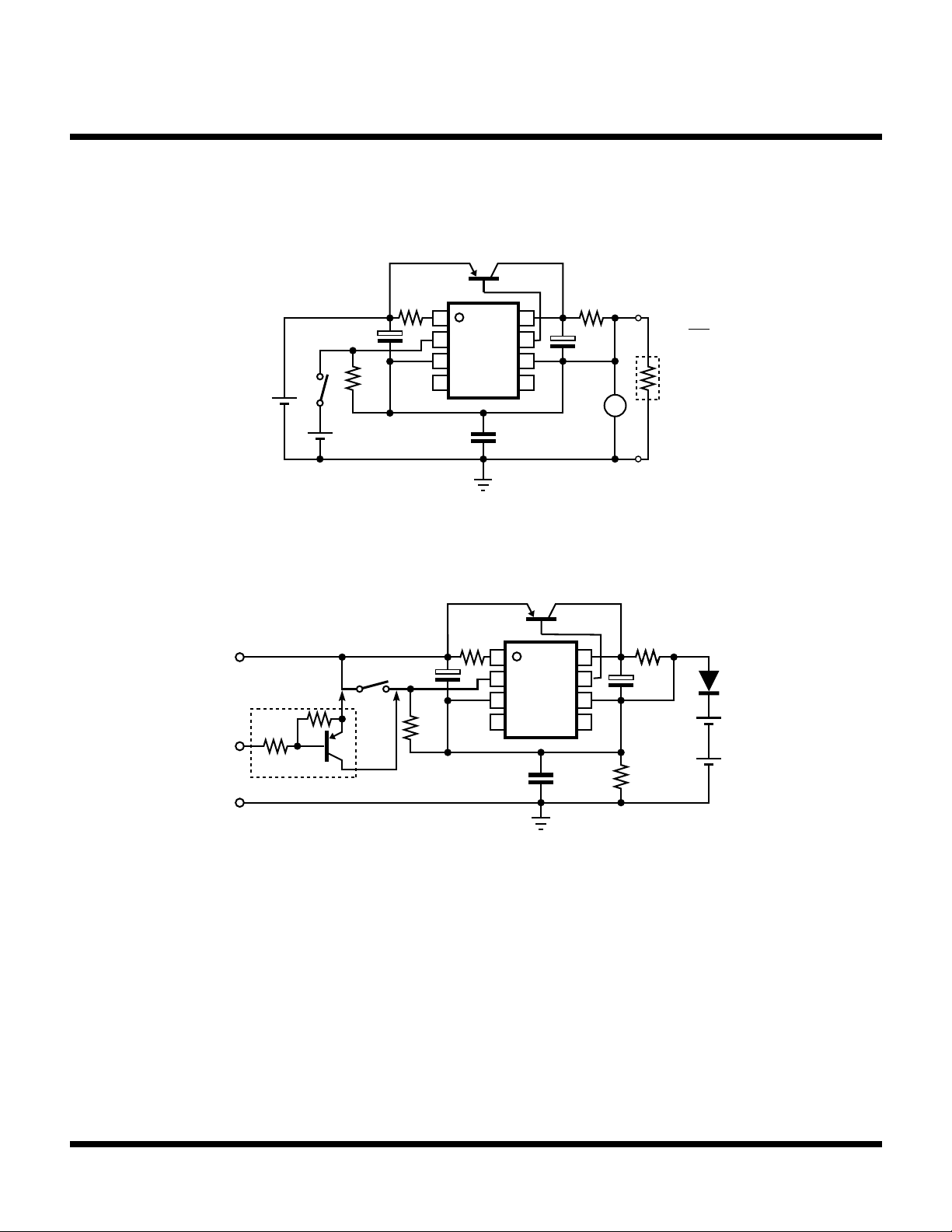

BATTERY CHARGER WITH ON/OFF CONTROL AND CURRENT BOOST
APPLICATION HINTS
Maximize copper foil area connecting to all IC pins for
optimum performance. Place input and output bypass
capacitors close to the GND pin. For best transient
behavior and lowest output impedance, use as large a
capacitor value as possible. The temperature coefficient
of the capacitance and Equivalent Series Resistance
February, 1995 TOKO, Inc.
(ESR) should be taken into account. These parameters
can influence power supply noise and ripple rejection. In
extreme cases, oscillation may occur. In order to maintain
stability, the output bypass capacitor value should be
minimum 1 µF for Tantalum electrolytic or 4.7 µF for
Aluminum electrolytic at T
10-15-94
=
A
25 oC.
Page 25
Page 26
TK115xx
8 5
1 4
±
0.2
4.89
+0.1
-0.05
0.42 1.27
0.12
M
e
0.1
Marking Information
0.2
±
3.9
0.2
±
1.45
1.64
0.25max

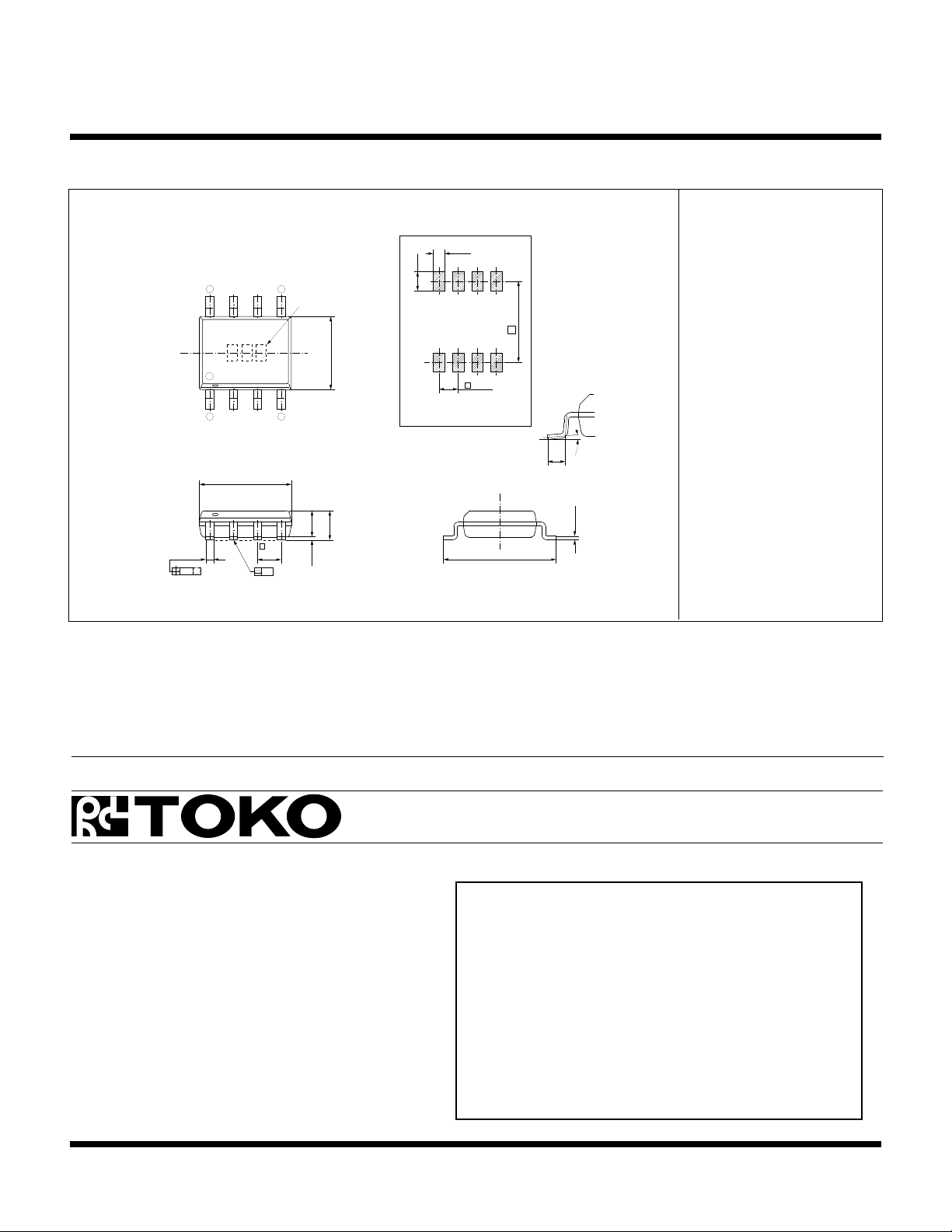

PACKAGE OUTLINE
SOP-8
0.76
1.27
5.4
e1
e
1.27
Recommended Mount Pad
±
0.2
0.5
+0.1
0.3
±
6.07
Marking Information
TK11530 530
TK11532 532
TK11535 535
TK11537 537
TK11540 540
TK11545 545
TK11547 547
0°~10°
TK11550 550
TK11555 555
TK11580 580
-0.05
0.2
Unit:mm
The information furnished by TOKO, Inc. is believed to be accurate and reliable. However, TOKO reserves the right to make changes or improvements in the design, specification or manufacture of its products without further notice. TOKO
does not assume any liability arising from the application or use of any product or circuit described herein, nor for any infringements of patents or other rights of third parties which may result from the use of its products. No license is granted
by implication or otherwise under any patent or patent rights of TOKO, Inc.
YOUR LOCAL REPRESENTATIVE IS:
TOKO, Inc.
1-17, Higashi-yukigaya 2-chome
Ohta-ku, Tokyo
145 Japan
Tel: (03) 3727-1161
Fax: (03) 3728-4690, 4697
Page 26
© 1993 Toko America, Inc.
All Rights Reserved
10-15-94
IC-106-TK115
February, 1995 TOKO, Inc.
Printed in U.S.A.
Loading...
