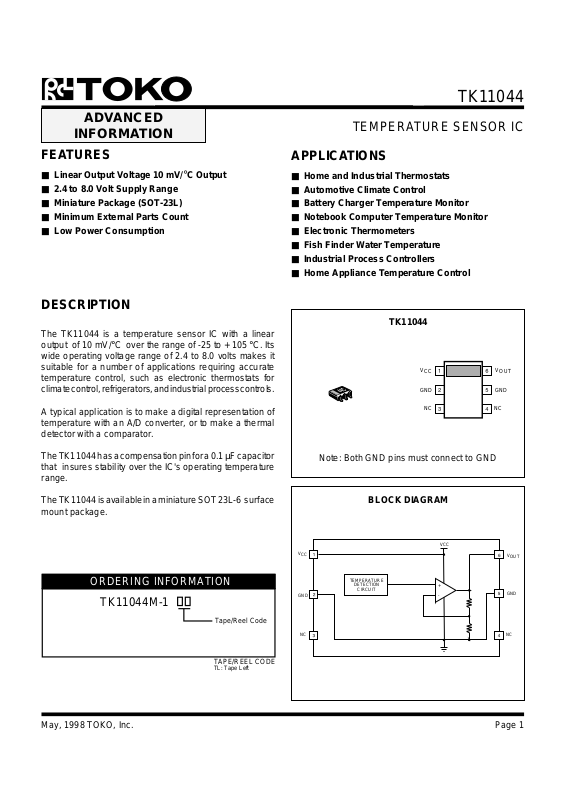

May, 1998 TOKO, Inc. Page 1
TK11044
ADVANCED INFORMATION
TK11044
TEMPERATURE SENSOR IC
FEATURES
■ Linear Output Voltage 10 mV/°C Output
■ 2.4 to 8.0 Volt Supply Range
■ Miniature Package (SOT-23L)
■ Minimum External Parts Count
■ Low Power Consumption
APPLICATIONS
■ Home and Industrial Thermostats
■ Automotive Climate Control
■ Battery Charger Temperature Monitor
■ Notebook Computer Temperature Monitor
■ Electronic Thermometers
■ Fish Finder Water Temperature
■ Industrial Process Controllers
■ Home Appliance Temperature Control
BLOCK DIAGRAM
ORDERING INFORMATION
TAPE/REEL CODE
TL: Tape Left
Tape/Reel Code
TK11044M-1
GND
V
CC
NC
V
OUT
NC
GND
20P
TEMPERATURE
DETECTION
CIRCUIT
GND
NC
GND
V
CC
V
OUT
V
CC
+
-
NC
Note: Both GND pins must connect to GND
DESCRIPTION
The TK11044 is a temperature sensor IC with a linear
output of 10 mV/°C over the range of -25 to + 105 °C. Its
wide operating voltage range of 2.4 to 8.0 volts makes it
suitable for a number of applications requiring accurate
temperature control, such as electronic thermostats for
climate control, refrigerators, and industrial process controls.
A typical application is to make a digital representation of
temperature with an A/D converter, or to make a thermal
detector with a comparator.
The TK11044 has a compensation pin for a 0.1 µF capacitor
that insures stability over the IC's operating temperature
range.
The TK11044 is available in a miniature SOT 23L-6 surface
mount package.
ADVANCED
INFORMATION
Page 2
Page 2 May, 1998 TOKO, Inc.
TK11044
ADVANCED INFORMATION
SYMBOL PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
V
OUT
Output Voltage
T
A
= 25 °C 965 995 1025 mV
T
A
= 85 °C 1573 1613 1653 mV
T
A
= -25 °C 480 mV
T
C
Temperature Coefficient TA= 25 °C to 85 °C 9.5 10.3 11.1 mV/ °C
Line Reg Line Regulation V
CC
= 3 V to 5 V
-20 -5 20 mV
Load Reg Load Regulation I
OUT
= 0 µA to 400 µA 3 20 mV
I
CC
Supply Current TA = 25 °C 160 200 µA
I
OUT
Output Current
∆V
OUT
≤ 20 mV
400 µA
Supply Voltage ......................................................... 12 V
Operating Voltage ............................................ 2.4 to 8 V
Power Dissipation (Note 1) ................................ 200 mW
Junction Temperature ........................................... 150 °C
ABSOLUTE MAXIMUM RATINGS
TK11044 ELECTRICAL CHARACTERISTICS
Test Conditions: V
CC =
3.0 V, I
OUT
= 0 µA, TA = 25 °C, unless otherwise specified.
Note 1: Power dissipation is 200 mW when mounted as recommended. Derate at 1.6 mW/°C for operation above 25 °C.
Storage Temperature Range ................... -55 to +150 °C
Operating Temperature Range .................-25 to +105 °C
Lead Soldering Temp. (10 s).................................235 °C
Page 3
May, 1998 TOKO, Inc. Page 3
TK11044
ADVANCED INFORMATION
+
10 µF
V
CC
V
OUT
C
OUT
0.1 µF
V
OUT
(V)
1.0
2.0
OUTPUT VOLTAGE vs.
TEMPERATURE
80 120
TA (°C)
0
400-40
1.5
0.5
V
ERR
(
m
V)
0
16
LINEARITY ERROR vs.
TEMPERATURE
80 120
TA (°C)
-16
400-40
8
-8
I
CC
(
µ
A)
160
200
INPUT CURRENT vs.
TEMPERATURE
80 120
TA (°C)
120
400-40
180
140
I
CC
(
µ
A)
160
200
INPUT CURRENT vs.
INPUT VOLTAGE
810
V
CC
(V)
120
642
180
140
V
ERR
(
m
V)
0
20
LINE REGULATION
810
V
CC
(V)
-20
642
10
-10
V
ERR
(mV)
0
20
LOAD REGULATION
300 400
I
OUT
(µA)
-20
2001000
10
-10

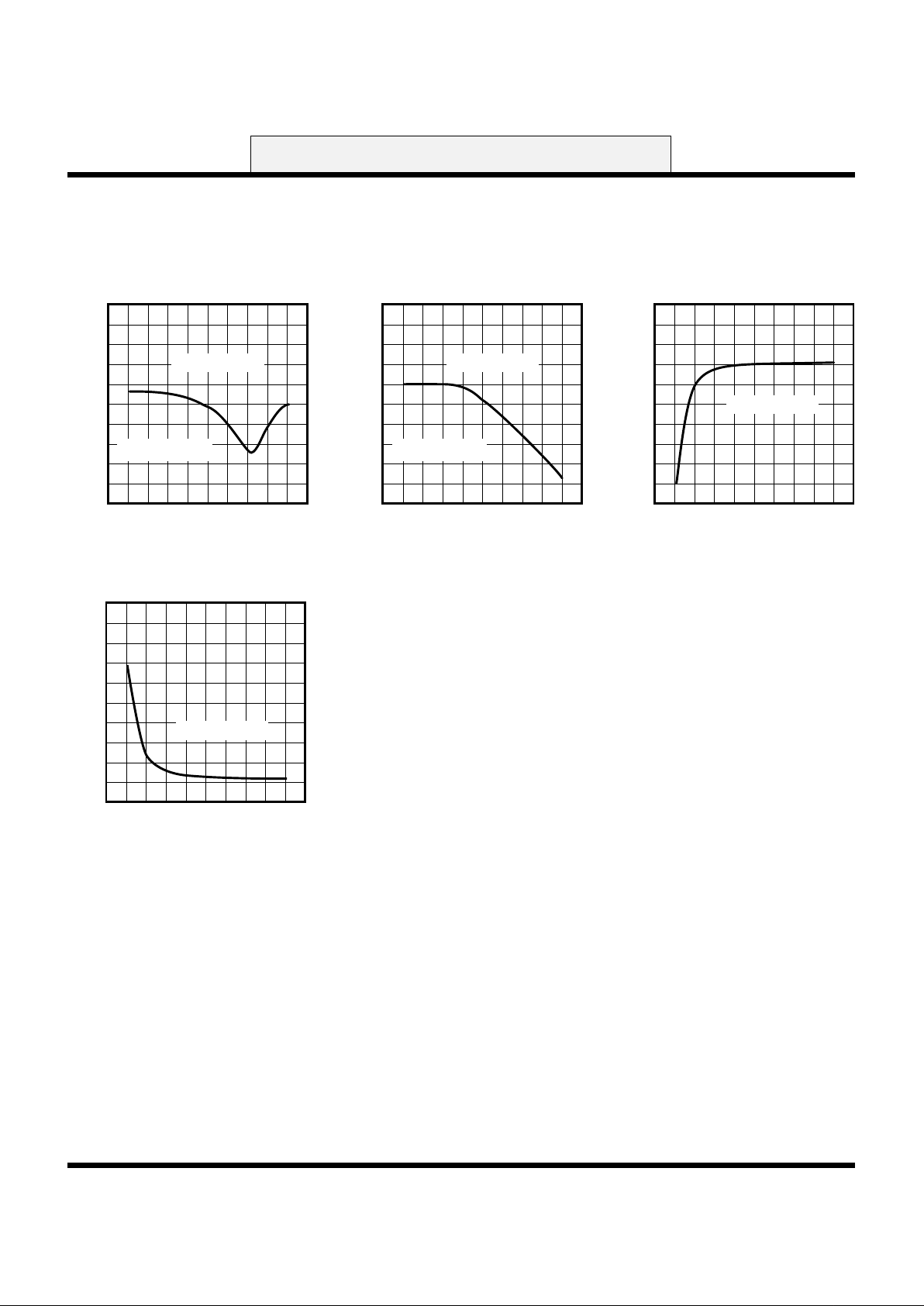

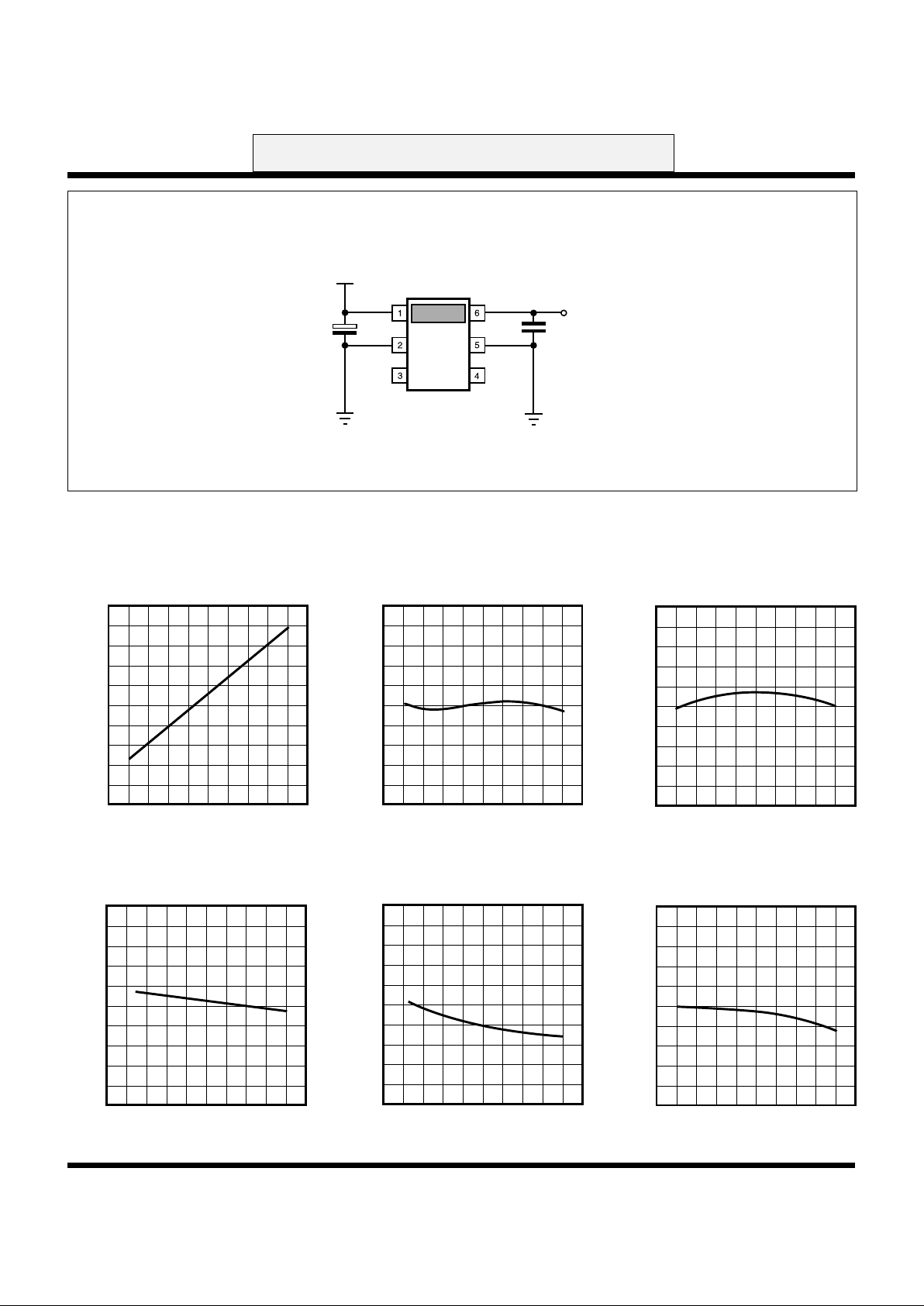

TYPICAL PERFORMANCE CHARACTERISTICS
VCC = 3 V, I
OUT
= 0 µA, TA = 25 °C, unless otherwise specified.
TEST CIRCUIT
Page 4
Page 4 May, 1998 TOKO, Inc.
TK11044
ADVANCED INFORMATION
RR
(dB)
40
80
RIPPLE REJECTION RATIO A
10 k 100 k
f (Hz)
0
1 k10010
60
20
C
OUT
= 0.1 µF
Vrr = 100mVrms
RR
(dB)
40
80
RIPPLE REJECTION RATIO B
10 k 100 k
f (Hz)
0
1 k10010
60
20
C
OUT
= 0.1 µF
Vrr = 100mVrms
V
OUT
(V)
1.4
1.8
TEMPERATURE RESPONSE A
60 80
TIME (s)
1.0
40200
1.6
1.2
25 °C TO 85 °C
V
OUT
(V)
0.8
1.2
TEMPERATURE RESPONSE B
60 80
TIME (s)
0.4
40200
1.0
0.6
25 °C TO -30 °C
TYPICAL PERFORMANCE CHARACTERISTICS
VCC = 3 V, I
OUT
= 0 µA, TA = 25 °C, unless otherwise specified.
Page 5
May, 1998 TOKO, Inc. Page 5
TK11044
ADVANCED INFORMATION
SOT 23L-6
Marking Information
Marking
TK11044 44C
IC-???-TK11044

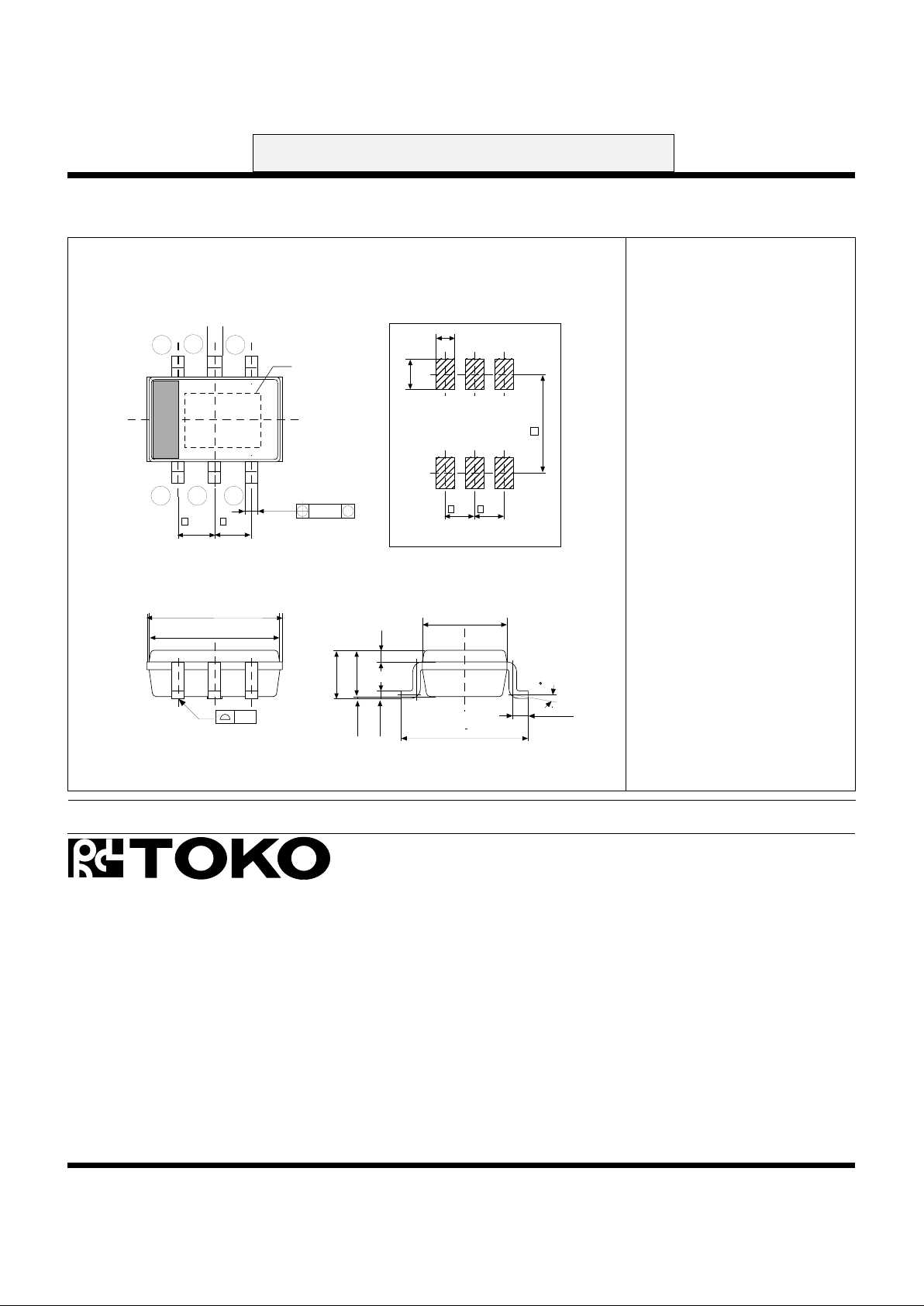

PACKAGE OUTLINE
