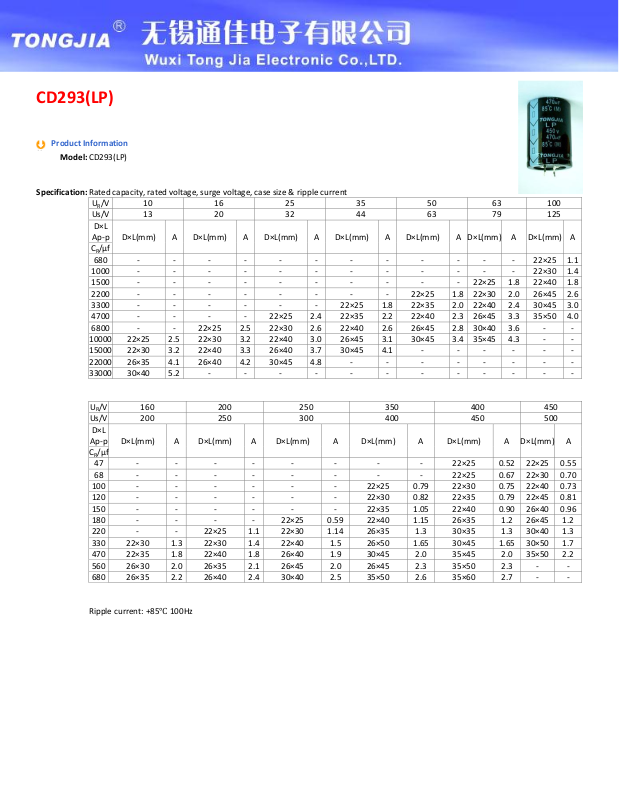

CD293(LP)
Product Information
Model:
CD293(LP)
Specification:
Rated capacity, rated voltage, surge voltage, case size & ripple current
UR/V
10
16
25
35
50
63
100
Us/V
13
20
32
44
63
79
125
D×L
Ap-p
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
CR/μf
680 - - - - - - - - - - - -
22×25
1.1
1000 - - - - - - - - - - - -
22×30
1.4
1500 - - - - - - - - - -
22×25
1.8
22×40
1.8
2200 - - - - - - - -
22×25
1.8
22×30
2.0
26×45
2.6
3300 - - - - - -
22×25
1.8
22×35
2.0
22×40
2.4
30×45
3.0
4700 - - - -
22×25
2.4
22×35
2.2
22×40
2.3
26×45
3.3
35×50
4.0
6800 - -
22×25
2.5
22×30
2.6
22×40
2.6
26×45
2.8
30×40
3.6 - -
10000
22×25
2.5
22×30
3.2
22×40
3.0
26×45
3.1
30×45
3.4
35×45
4.3 - -
15000
22×30
3.2
22×40
3.3
26×40
3.7
30×45
4.1 - - - - - -
22000
26×35
4.1
26×40
4.2
30×45
4.8 - - - - - - - -
33000
30×40
5.2 - - - - - - - - - - - -
UR/V
160
200
250
350
400
450
Us/V
200
250
300
400
450
500
D×L
Ap-p
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
CR/μf
47 - - - - - - - -
22×25
0.52
22×25
0.55
68 - - - - - - - -
22×25
0.67
22×30
0.70
100 - - - - - -
22×25
0.79
22×30
0.75
22×40
0.73
120 - - - - - -
22×30
0.82
22×35
0.79
22×45
0.81
150 - - - - - -
22×35
1.05
22×40
0.90
26×40
0.96
180 - - - -
22×25
0.59
22×40
1.15
26×35
1.2
26×45
1.2
220 - -
22×25
1.1
22×30
1.14
26×35
1.3
30×35
1.3
30×40
1.3
330
22×30
1.3
22×30
1.4
22×40
1.5
26×50
1.65
30×45
1.65
30×50
1.7
470
22×35
1.8
22×40
1.8
26×40
1.9
30×45
2.0
35×45
2.0
35×50
2.2
560
26×30
2.0
26×35
2.1
26×45
2.0
26×45
2.3
35×50
2.3 - -
680
26×35
2.2
26×40
2.4
30×40
2.5
35×50
2.6
35×60
2.7 - -
Ripple current: +85℃ 100Hz
Page 2
Property:
Rating & characteristic
No.
Item
Specifications
Case Size
1
Operating temperature
range
UR≤160V:-40～+85℃;
UR＞160V:-25～
+85℃
2
Capacitance tolerance
±20%
3
Leakage current
I≤0.03CRUR(μA)
4
Dissipation
factor(100Hz)
UR/v
10
16
25
35
50～63
100～160
≥200
tgδ
0.45
0.35
0.30
0.25
0.20
0.15
0.15
When nominal capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of
every 1000μF.
5
Endurance(+85℃)
Testing time:2000h. (Application rated voltage)
Leakage current: ≤No.3 specified value.
Capacitance change: △C/C≤±20%
Dissipation factor: ≤200% No.4 specified value or 0.4 whichever is greater
6
Other
SJ/T11001-96
Multiplier for ripple current
f(Hz)
50
100
1K
10K
20K
UR/V
≤50
0.95 1 1.10
1.15
1.15
63～100
0.95 1 1.16
1.30
1.33
≥160
0.90 1 1.20
1.50
1.55
Temperature coefficient
Temperature
+40℃
+55℃
+70℃
+85℃
Coefficient
1.7
1.5
1.3
1
Product
Description:
Snap-in for P.C.B. 2 pins. Usage as CD293
