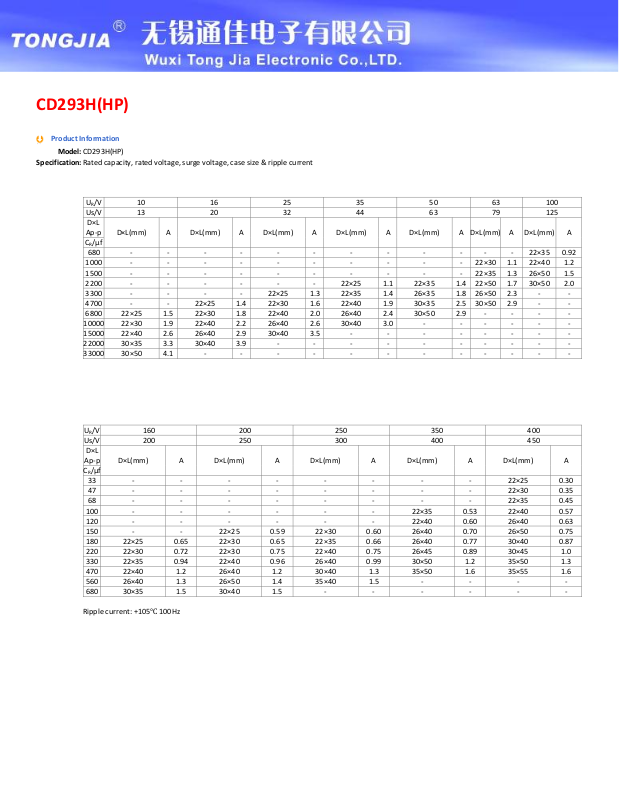

CD293H(HP)
Product Information
Model:
CD293H(HP)
Specification:
Rated capacity, rated voltage, surge voltage, case size & ripple current
UR/V
10
16
25
35
50
63
100
Us/V
13
20
32
44
63
79
125
D×L
Ap-p
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
CR/μf
680 - - - - - - - - - - - -
22×35
0.92
1000 - - - - - - - - - -
22×30
1.1
22×40
1.2
1500 - - - - - - - - - -
22×35
1.3
26×50
1.5
2200 - - - - - -
22×25
1.1
22×35
1.4
22×50
1.7
30×50
2.0
3300 - - - -
22×25
1.3
22×35
1.4
26×35
1.8
26×50
2.3 - -
4700 - -
22×25
1.4
22×30
1.6
22×40
1.9
30×35
2.5
30×50
2.9 - -
6800
22×25
1.5
22×30
1.8
22×40
2.0
26×40
2.4
30×50
2.9 - - - -
10000
22×30
1.9
22×40
2.2
26×40
2.6
30×40
3.0 - - - - - -
15000
22×40
2.6
26×40
2.9
30×40
3.5 - - - - - - - -
22000
30×35
3.3
30×40
3.9 - - - - - - - - - -
33000
30×50
4.1 - - - - - - - - - - - -
UR/V
160
200
250
350
400
Us/V
200
250
300
400
450
D×L
Ap-p
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
D×L(mm)
A
CR/μf
33 - - - - - - - -
22×25
0.30
47 - - - - - - - -
22×30
0.35
68 - - - - - - - -
22×35
0.45
100 - - - - - -
22×35
0.53
22×40
0.57
120 - - - - - -
22×40
0.60
26×40
0.63
150 - -
22×25
0.59
22×30
0.60
26×40
0.70
26×50
0.75
180
22×25
0.65
22×30
0.65
22×35
0.66
26×40
0.77
30×40
0.87
220
22×30
0.72
22×30
0.75
22×40
0.75
26×45
0.89
30×45
1.0
330
22×35
0.94
22×40
0.96
26×40
0.99
30×50
1.2
35×50
1.3
470
22×40
1.2
26×40
1.2
30×40
1.3
35×50
1.6
35×55
1.6
560
26×40
1.3
26×50
1.4
35×40
1.5 - - - -
680
30×35
1.5
30×40
1.5 - - - - - -
Ripple current: +105℃ 100Hz
Page 2

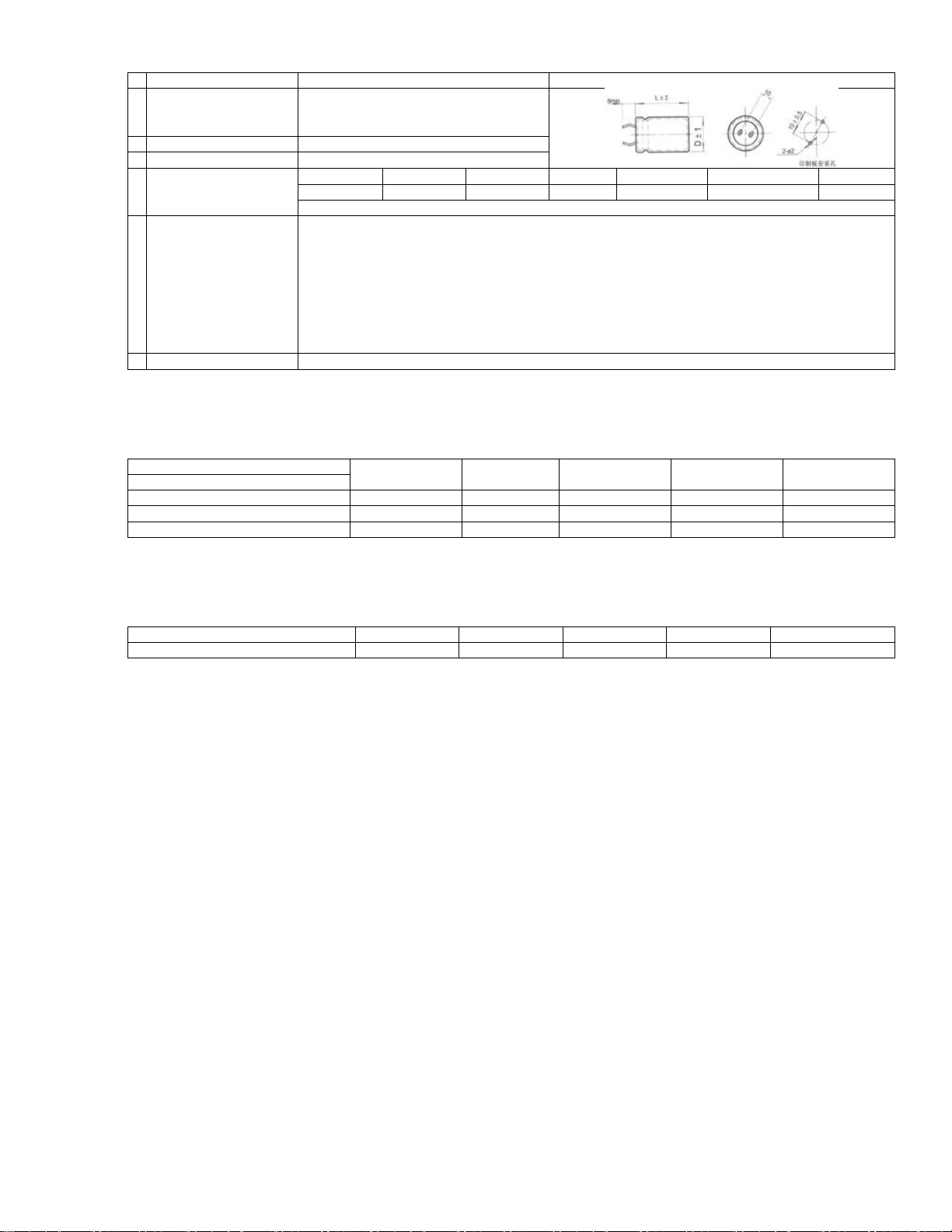

Property:
Rating & characteristic
No.
Item
Specifications
Case size
1
Operating temperature range
U
R
≤160V:-40～+105℃;
U
R
＞160V:-25～+105℃
2
Capacitance tolerance
±20%
3
Leakage current
I≤0.03CRUR(μA)
4
Dissipation factor(100Hz)
UR/v
10
16
35
50～63
100～160
≥200
tgδ
0.45
0.35
0.25
0.20
0.15
0.15
When nominal capacitance is over 1000μF, tanδ shall be added 0.02 to the listed value with increase of every1000μF.
5
Endurance(+105℃)
Testing time: 1000h. (Application rated voltage)
Leakage current: ≤No.3 specified value
Capacitance change:
U
R
≤160V,△C/C≤±30%;UR＞160V,△C/C≤±15%
Dissipation factor: ≤150% No.4 specified value or 0.4 whichever is greater.
6
Other
SJ/T11001-96
Multiplier for ripple current
f(Hz)
50
100
1K
10K
20K
UR/V
≤50
0.95 1 1.10
1.15
1.15
63～100
0.95 1 1.16
1.30
1.33
≥160
0.90 1 1.20
1.50
1.55
Temperature coefficient
Temperature
+40℃
+55℃
+70℃
+85℃
+105℃
Coefficient
2.6
2.3
1.9
1.5
1
Product
Description:
Snap-in for P.C.B. 2 pins. Usage as CD293. Wide range of operating temperature for -40～+150℃.
