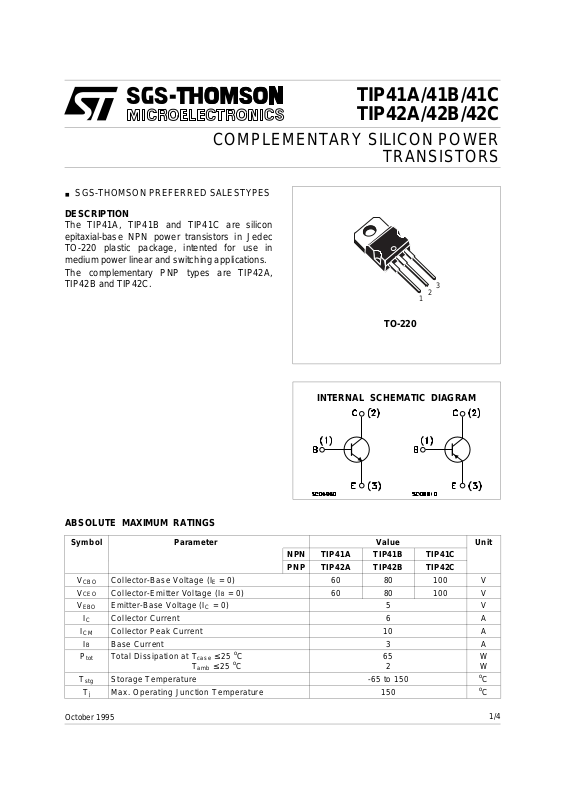

COMPLEMENTARY SILICON POWER
■ SGS-THOMSON PREFERRED SALESTYPES
DESCRIPTIO N
The TIP41A, TIP41B and TIP41C are silicon
epitaxial-base NPN power transistors in Jedec
TO-220 plastic package, intented for use in
medium power linear and switching appl ic ations.
The complementary PNP types are TIP42A,
TIP42B and TIP42C.
TIP41A/41B/41C
TIP42A/42B/42C
TRANSISTORS
3
2
1
TO-220
IN TERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol Parameter Value Unit
NPN TIP41A TIP41B TIP41C
PNP TIP42A TIP42B TIP42C
V
V
V
I
P
T
Collector-Base Voltage (IE = 0) 60 80 100 V
CBO
Collector-Emitter Voltage (IB = 0) 60 80 100 V
CEO
Emitter-Base Voltage (IC = 0) 5 V
EBO
Collector Current 6 A
I
C
Collector Peak Current 10 A
CM
Base Current 3 A
I
B
Total Dissipation at T
tot
T
Storage Temperature -65 to 150
stg
Max. Operating Junction Temperature 150
T
j
case
amb
≤ 25 oC
≤ 25 oC
65
2
W
W
o
C
o
C
October 1995
1/4
Page 2
TIP41A/TIP41B/TIP41C/TIP42A/TIP42B/TIP42C
THERMAL DATA
R
thj- ca se
R
thj-amb
Thermal Resistance Junction-case Max
Thermal Resistance Junction-ambient Max
1.92
62.5
o
C/W
o
C/W
ELECTRICAL CHARACTERISTICS (T
= 25 oC unless otherwise specified)
case
Symbol Parameter Test Conditions Min. Typ. Max. Unit
I
CBO
Collector Cut-off
Current (I
= 0)
B
for TIP41A/42A
VCE = 30 V
0.7
for TIP41B/41C/42B/42C
V
I
CES
I
EBO
V
CEO(sus)
V
CE(sat)
Collector Cut-off
Current (V
BE
= 0)
Emitter Cut-off Current
(I
= 0)
C
* Collector-Emitter
Sustaining Voltage
(I
= 0)
B
* Collector-Emitter
= 60 V
CB
for TIP41A/42A V
for TIP41B/42B V
for TIP41C/42C V
= 5 V 1 mA
V
EB
I
= 30 mA
C
for TIP41A/42A
for TIP41B/42B
for TIP41C/42C
= 60 V
CE
= 80 V
CE
= 100 V
CE
60
80
100
IC = 6 A IB = 0.6 A 1.5 V
0.7
0.4
0.4
0.4
Saturation Voltage
* Base-Emitter Voltage IC = 6 A VCE = 4 V 2 V
V
BE(on)
hFE* DC Current Gain IC = 0.3 A VCE = 4 V
I
= 3 A VCE = 4 V
C
h
Small Signal Current
fe
Gain
IC = 0.5 A VCE = 10 V
f = 1 KHz
I
= 0.5 A VCE = 10 V
C
f = 1 MHz
∗ Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2 %
For PNP types voltage and current values are negative.
30
15 75
20
3
mA
mA
mA
mA
mA
V
V
V
2/4
Page 3
E
TIP41A/TIP41B/TIP41C/T IP42A/TIP42B/TIP42C
TO-220 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 4.40 4.60 0.173 0.181
C 1.23 1.32 0.048 0.051
D 2.40 2.72 0.094 0.107
D1 1.27 0.050
E 0.49 0.70 0.019 0.027
F 0.61 0.88 0.024 0.034
F1 1.14 1.70 0.044 0.067
F2 1.14 1.70 0.044 0.067
G 4.95 5.15 0.194 0.203
G1 2.4 2.7 0.094 0.106
H2 10.0 10.40 0.393 0.409
L2 16.4 0.645
L4 13.0 14.0 0.511 0.551
L5 2.65 2.95 0.104 0.116
L6 15.25 15.75 0.600 0.620
L7 6.2 6.6 0.244 0.260
L9 3.5 3.93 0.137 0.154
DIA. 3.75 3.85 0.147 0.151
mm inch
A
C
D
D1
L2
F1
L5
Dia.
G1
F
F2
L9
G
H2
L7
L6
L4
P011C
3/4
