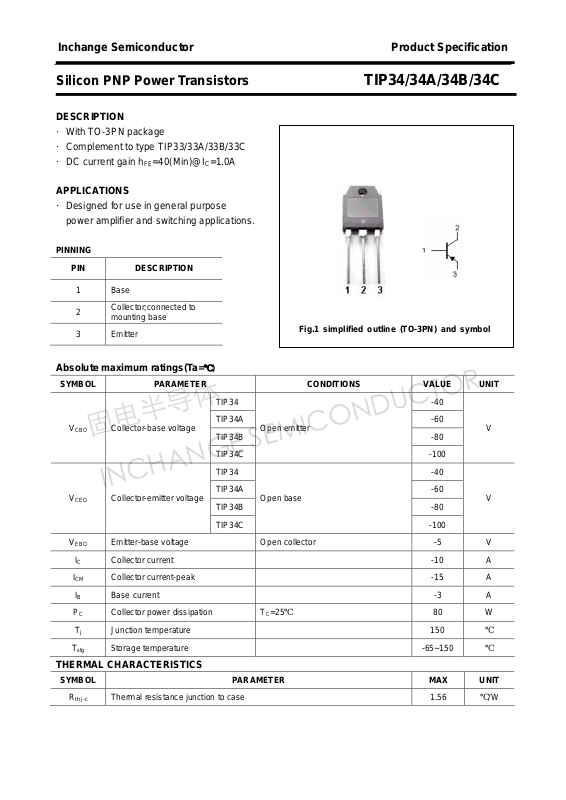

Page 1
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors TIP34/34A/34B/34C
DESCRIPTION
·With TO-3PN package
·Complement to type TIP33/33A/33B/33C
·DC current gain h
APPLICATIONS
·Designed for use in general purpose
power amplifier and switching applications.
PINNING
PIN DESCRIPTION
=40(Min)@IC=1.0A
FE
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
TIP34 -40
V
CBO
V
CEO
V
EBO
IC Collector current -10 A
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage Open collector -5 V
TIP34A -60
TIP34B -80
TIP34C
TIP34 -40
TIP34A -60
TIP34B -80
TIP34C
Open emitter
Open base
V
-100
V
-100
ICM Collector current-peak -15 A
IB Base current -3 A
T
PC Collector power dissipation
Tj Junction temperature 150
T
Storage temperature -65~150
stg
=25℃
C
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
Thermal resistance junction to case 1.56
th j-c
80 W
℃
℃
℃/W
Page 2
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors TIP34/34A/34B/34C
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
TIP34 -40
V
CEO(SUS)
V
CEsat-1
V
CEsat-2
V
BE-1
V
BE-2
I
CEO
I
CES
Collector-emitter
sustaining voltage
Collector-emitter saturation voltage IC=-3A ;IB=-0.3A -1.0 V
Collector-emitter saturation voltage IC=-10A; IB=-2.5A -4.0 V
Base-emitter on voltage IC=-3A ; VCE=-4V -1.6 V
Base-emitter on voltage IC=-10A ; VCE=-4V -3.0 V
Collector
cut-off current
Collector
cut-off current
TIP34A -60
I
=-30mA ;IB=0
C
TIP34B -80
TIP34C
TIP34/34A VCE=-30V; IB=0
TIP34B/34C V
TIP34 VCE=-40V;VEB=0
TIP34A VCE=-60V;VEB=0
TIP34B VCE=-80V;VEB=0
=-60V; IB=0
CE
-100
-0.7 mA
-0.4 mA
V
I
Emitter cut-off current VEB=-5V; IC=0 -1.0 mA
EBO
h
DC current gain IC=-1A ; VCE=-4V 40
FE-1
h
DC current gain IC=-3A ; VCE=-4V 20 100
FE-2
fT Transition frequency IC=-0.5A ; VCE=-10V;f=1MHz 3.0 MHz
2
TIP34C V
=-100V;VEB=0
CE
Page 3
固电半导体
INCHANGE SEMICONDUCTOR
Inchange Semiconductor Product Specification
Silicon PNP Power Transistors TIP34/34A/34B/34C
PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
3
