Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP33/33A/33B/33C
DESCRIPTION
·With TO-3PN package
·Complement to type TIP34/34A/34B/34C
·DC current gain h
APPLICATIONS
·Designed for use in general purpose
power amplifier and switching applications.
PINNING
PIN DESCRIPTION
=40(Min)@IC=1.0A
FE
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Ta=℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
TIP33 40
V
CBO
V
CEO
V
EBO
IC Collector current 10 A
ICM Collector current-peak 15 A
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage Open collector 5 V
TIP33A 60
TIP33B 80
TIP33C
TIP33 40
TIP33A 60
TIP33B 80
TIP33C
Open emitter
Open base
V
100
V
100
IB Base current 3 A
PC Collector power dissipation TC=25℃ 80 W
Tj Junction temperature 150 ℃
T
Storage temperature -65~150 ℃
stg
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
Thermal resistance junction to case 1.56
th j-c
℃/W
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP33/33A/33B/33C
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
TIP33 40
V
V
CEsat-1
V
CEsat-2
V
V
I
I
CEO
BE-1
BE-2
CEO
CES
Collector-emitter
sustaining voltage
Collector-emitter saturation voltage IC=3A ;IB=0.3A 1.0 V
Collector-emitter saturation voltage IC=10A; IB=2.5A 4.0 V
Base-emitter on voltage IC=3A ; VCE=4V 1.6 V
Base-emitter on voltage IC=10A ; VCE=4V 3.0 V
Collector
cut-off current
Collector
cut-off current
TIP33A 60
I
=30mA ;IB=0
C
TIP33B 80
TIP33C
TIP33/33A VCE=30V; IB=0
TIP33B/33C VCE=60V; IB=0
TIP33 VCE=40V;VEB=0
TIP33A VCE=60V;VEB=0
TIP33B VCE=80V;VEB=0
TIP33C V
=100V;VEB=0
CE
100
0.7 mA
0.4 mA
V
I
Emitter cut-off current VEB=5V; IC=0 1.0 mA
EBO
h
DC current gain IC=1A ; VCE=4V 40
FE-1
h
DC current gain IC=3A ; VCE=4V 20 100
FE-2
fT Transition frequency IC=0.5A ; VCE=10V;f=1MHz 3.0 MHz
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP33/33A/33B/33C

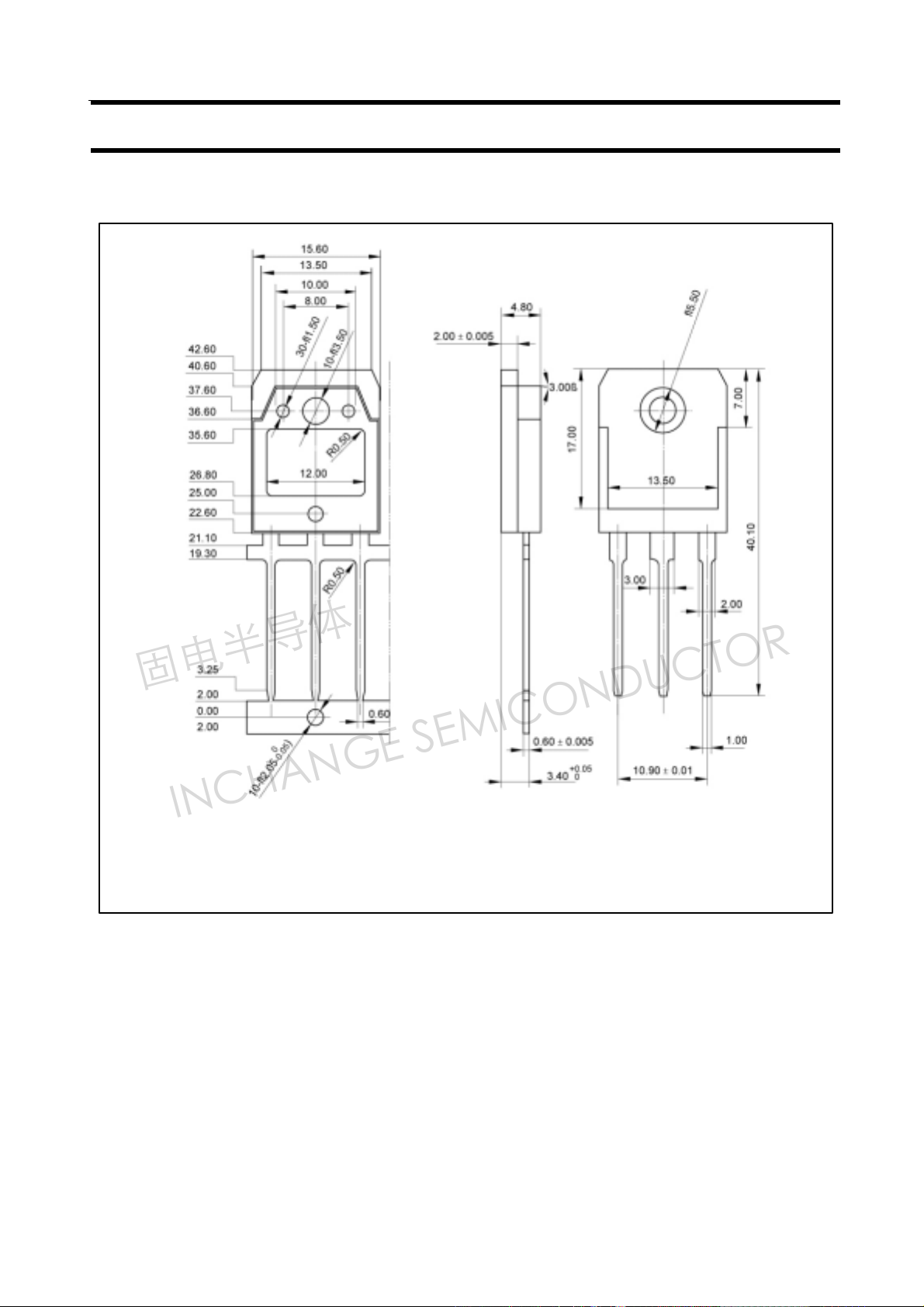

PACKAGE OUTLINE
Fig.2 outline dimensions (unindicated tolerance:±0.1mm)
