Page 1

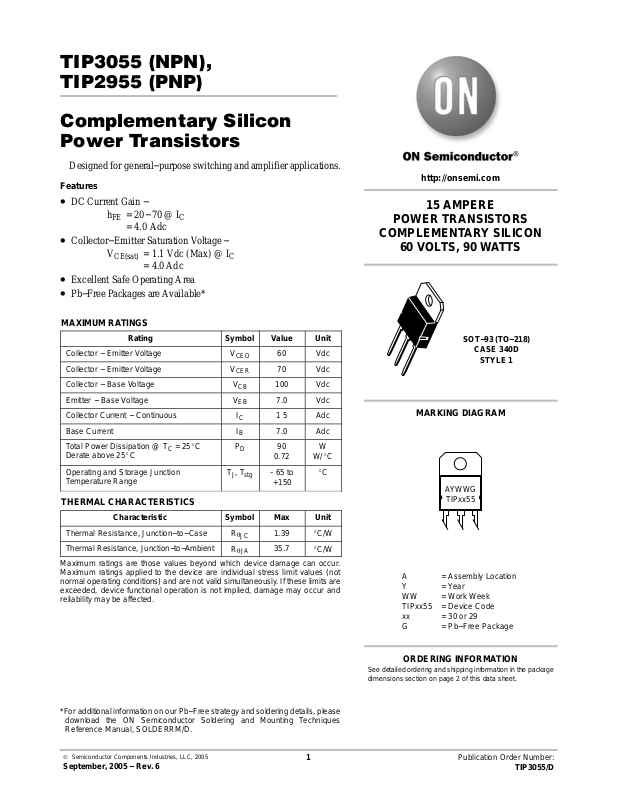

TIP3055 (NPN),

TIP2955 (PNP)

Complementary Silicon Power Transistors

Designed for general−purpose switching and amplifier applications.

Features

• DC Current Gain −

hFE= 20−70 @ IC

= 4.0 Adc

• Collector−Emitter Saturation Voltage −

• Excellent Safe Operating Area

• Pb−Free Packages are Available*

MAXIMUM RATINGS

Collector − Emitter Voltage Collector − Emitter Voltage Collector − Base Voltage Emitter − Base Voltage Collector Current − Continuous Base Current Total Power Dissipation @ TC = 25_C

Derate above 25_C Operating and Storage Junction

ОООООООООО

Temperature Range

THERMAL CHARACTERISTICS

Thermal Resistance, Junction−to−Case Thermal Resistance, Junction−to−Ambient

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

= 1.1 Vdc (Max) @ IC

CE(sat)

= 4.0 Adc

Rating

Characteristic

Symbol

CEO

CER

TJ, T

stg

Symbol

Value

60 70

100

7.0 1 5

7.0 90

0.72

–65 to

ÎÎ

+ 150

Max

1.39

35.7

Unit

Vdc Vdc Vdc Vdc Adc Adc

W/_C

Unit

_C/W _C/W

http://onsemi.com

15 AMPERE

POWER TRANSISTORS

COMPLEMENTARY SILICON

60 VOLTS, 90 WATTS

SOT−93 (TO−218)

CASE 340D

STYLE 1

MARKING DIAGRAM

AYWWG

TIPxx55

A = Assembly Location Y = Year WW = Work Week TIPxx55 = Device Code xx = 30 or 29 G = Pb−Free Package

*For additional information on our Pb−Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

September, 2005 − Rev. 6

See detailed ordering and shipping information in the package

ORDERING INFORMATION

dimensions section on page 2 of this data sheet.

1 Publication Order Number:

TIP3055/D

Page 2

TIP3055 (NPN), TIP2955 (PNP)

ÎÎÎ

ORDERING INFORMATION

Device Package Shipping

TIP3055 SOT−93 (TO−218) 30 Units / Rail TIP3055G SOT−93 (TO−218)

(Pb−Free) TIP2955 SOT−93 (TO−218) 30 Units / Rail TIP2955G SOT−93 (TO−218)

(Pb−Free)

30 Units / Rail

ELECTRICAL CHARACTERISTICS (T

= 25_C unless otherwise noted)

Characteristic

OFF CHARACTERISTICS

Collector−Emitter Sustaining Voltage (Note 1)

(IC = 30 mAdc, IB = 0)

ОООООООООООООООООООО

Collector Cutoff Current

(VCE = 70 Vdc, RBE = 100 Ohms)

Collector Cutoff Current

ОООООООООООООООООООО

(VCE = 30 Vdc, IB = 0)

Collector Cutoff Current

(VCE = 100 Vdc, V

ОООООООООООООООООООО

BE(off)

= 1.5 Vdc)

Emitter Cutoff Current

(VBE = 7.0 Vdc, IC = 0)

ON CHARACTERISTICS (Note 1)

DC Current Gain

(IC = 4.0 Adc, VCE = 4.0 Vdc)

ОООООООООООООООООООО

(IC = 10 Adc, VCE = 4.0 Vdc)

ОООООООООООООООООООО

Collector−Emitter Saturation Voltage

(IC = 4.0 Adc, IB = 400 mAdc)

ОООООООООООООООООООО

(IC = 10 Adc, IB = 3.3 Adc)

Base−Emitter On Voltage

(IC = 4.0 Adc, VCE = 4.0 Vdc)

ОООООООООООООООООООО

SECOND BREAKDOWN

Second Breakdown Collector Current with Base Forward Biased

(VCE = 30 Vdc, t = 1.0 s; Nonrepetitive)

DYNAMIC CHARACTERISTICS

Current Gain — Bandwidth Product

ОООООООООООООООООООО

(IC = 0.5 Adc, VCE = 10 Vdc, f = 1.0 MHz)

Small−Signal Current Gain

(VCE = 4.0 Vdc, IC = 1.0 Adc, f = 1.0 kHz)

ОООООООООООООООООООО

1. Pulse Test: Pulse Width = 300 ms, Duty Cycle v 2.0%. NOTE: For additional design curves, refer to electrical characteristics curves of 2N3055.

Symbol

CEO(sus)

ÎÎÎ

CER

CEO

ÎÎÎ

CEV

ÎÎÎ

EBO

ÎÎÎ

CE(sat)

ÎÎÎ

BE(on)

ÎÎÎ

s/b

ÎÎÎ

Min

−

5.0

−

3.0

2.5

Max

−

ÎÎ

1.0

0.7

ÎÎ

5.0

ÎÎ

5.0

ÎÎ

−

ÎÎ

1.1

ÎÎ

3.0

1.8

ÎÎ

−

ÎÎ

−

ÎÎ

Unit

Vdc

mAdc

−

Vdc

Adc

MHz

kHz

http://onsemi.com

Page 3

1000

TIP3055 (NPN), TIP2955 (PNP)

VCE = 4.0 V TJ = 25°C

100

50 30

5.0

3.0

2.0

1.0

0.5

, COLLECTOR CURRENT (AMPS)

0.3

0.2

0.1

1.0 2.0 4.0 6.0 10 20

SECONDARY BREAKDOWN LIMIT BONDING WIRE LIMIT THERMAL LIMIT @ TC = 25°C

TJ = 150°C

VCE, COLLECTOR−EMITTER VOLTAGE (VOLTS)

100

, DC CURRENT GAIN

TIP3055 TIP2955

0.1

0.2 0.5 0.7 3.0 5.0 IC, COLLECTOR CURRENT (AMP)

1.0 2.00.3 7.0 10

Figure 1. DC Current Gain

There are two limitations on the power handling ability of

a transistor: average junction temperature and second

1.0ms

10ms

300 ms

breakdown. Safe operating area curves indicate I limits of the transistor that must be observed for reliable operation; i.e., the transistor must not be subjected to greater dissipation than the curves indicate.

The data of Figure 2 is based on TC = 25_C; T

− V

J(pk)

is variable depending on power level. Second breakdown pulse limits are valid for duty cycles to 10% but must be derated for temperature.

40 60

Figure 2. Maximum Rated Forward Bias

Safe Operating Area

http://onsemi.com

Page 4

TIP3055 (NPN), TIP2955 (PNP)

PACKAGE DIMENSIONS

SOT−93 (TO−218)

CASE 340D−02

ISSUE E

123

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2. CONTROLLING DIMENSION: MILLIMETER.

DIM MIN MAX MIN MAX

A −−− 20.35 −−− 0.801 B 14.70 15.20 0.579 0.598 C 4.70 4.90 0.185 0.193 D 1.10 1.30 0.043 0.051 E 1.17 1.37 0.046 0.054 G 5.40 5.55 0.213 0.219 H 2.00 3.00 0.079 0.118 J 0.50 0.78 0.020 0.031 K 31.00 REF 1.220 REF L −−− 16.20 −−− 0.638 Q 4.00 4.10 0.158 0.161 S 17.80 18.20 0.701 0.717 U 4.00 REF 0.157 REF V 1.75 REF 0.069

STYLE 1:

PIN 1. BASE

2. COLLECTOR

3. EMITTER

4. COLLECTOR

INCHESMILLIMETERS
