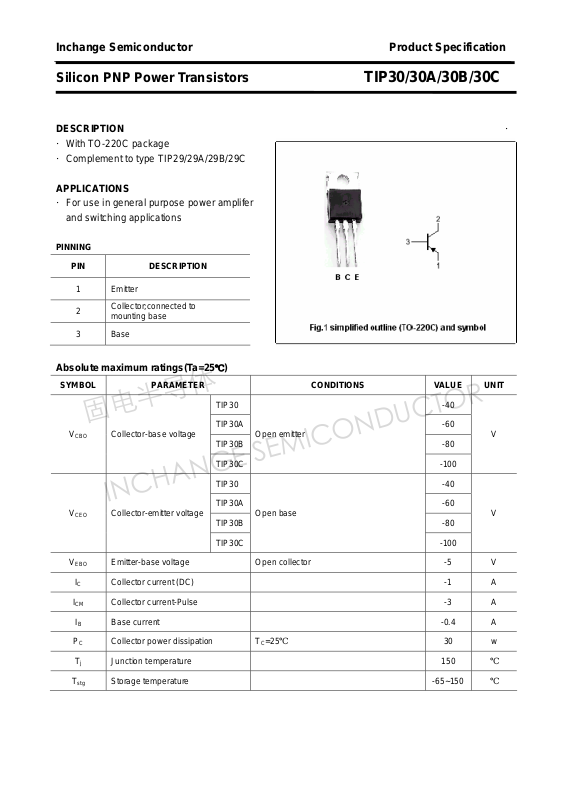

Inchange Semiconductor Product Specification

固电半导体

INCHANGE SEMICONDUCTOR

Silicon PNP Power Transistors TIP30/30A/30B/30C

DESCRIPTION ·

·With TO-220C package

·Complement to type TIP29/29A/29B/29C

APPLICATIONS

·For use in general purpose power amplifer and switching applications

PINNING

PIN DESCRIPTION

1

2

3 Base

Emitter Collector;connected to

mounting base

Absolute maximum ratings(Ta=25℃)

SYMBOL PARAMETER CONDITIONS VALUE UNIT

TIP30 -40 TIP30A -60

V

CBO

CEO

EBO

Collector-base voltage

TIP30B -80 TIP30C TIP30 -40 TIP30A -60

Collector-emitter voltage

TIP30B -80 TIP30C

Emitter-base voltage Open collector -5 V

Open emitter

Open base

V

-100

V

-100

IC Collector current (DC) -1 A

ICM Collector current-Pulse -3 A

IB Base current -0.4 A

T

PC Collector power dissipation

Tj Junction temperature 150

T

Storage temperature -65~150

stg

=25℃

C

30 w

℃ ℃

Inchange Semiconductor Product Specification

固电半导体

INCHANGE SEMICONDUCTOR

Silicon PNP Power Transistors TIP30/30A/30B/30C

CHARACTERISTICS

Tj=25℃ unless otherwise specified

SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT

TIP30 -40

V

CEO(SUS)

V

CEsat

VBE Base-emitter on voltage IC=-1A ; VCE=-4V -1.3 V

I

CES

I

CEO

I

EBO

Collector-emitter sustaining voltage

Collector-emitter saturation voltage IC=-1A ;IB=-0.125A -0.7 V

Collector cut-off current

Emitter cut-off current VEB=-5V; IC=0 -1.0 mA

TIP30A -60

I

=-30mA; IB=0

C

TIP30B -80

TIP30C

TIP30 VCE=-40V; VEB=0

TIP30A VCE=-60V; VEB=0

TIP30B VCE=-80V; VEB=0

TIP30C V

TIP30/30A VCE=-30V; IB=0

TIP30B/30C V

=-100V; VEB=0

CE

=-60V; IB=0

CE

-100

-0.2 mA

-0.3 mA

V

h

DC current gain IC=-0.2A ; VCE=-4V 40

FE-1

h

DC current gain IC=-1A ; VCE=-4V 15 75

FE-2

fT Transiton frequency IC=-0.2A ; VCE=-10V;f=1MHz 3 MHz

THERMAL CHARACTERISTICS

SYMBOL PARAMETER VALUE UNIT

R

Thermal resistance junction to case 4.167

th j-c

2

℃/W

Inchange Semiconductor Product Specification

固电半导体

INCHANGE SEMICONDUCTOR

Silicon PNP Power Transistors TIP30/30A/30B/30C

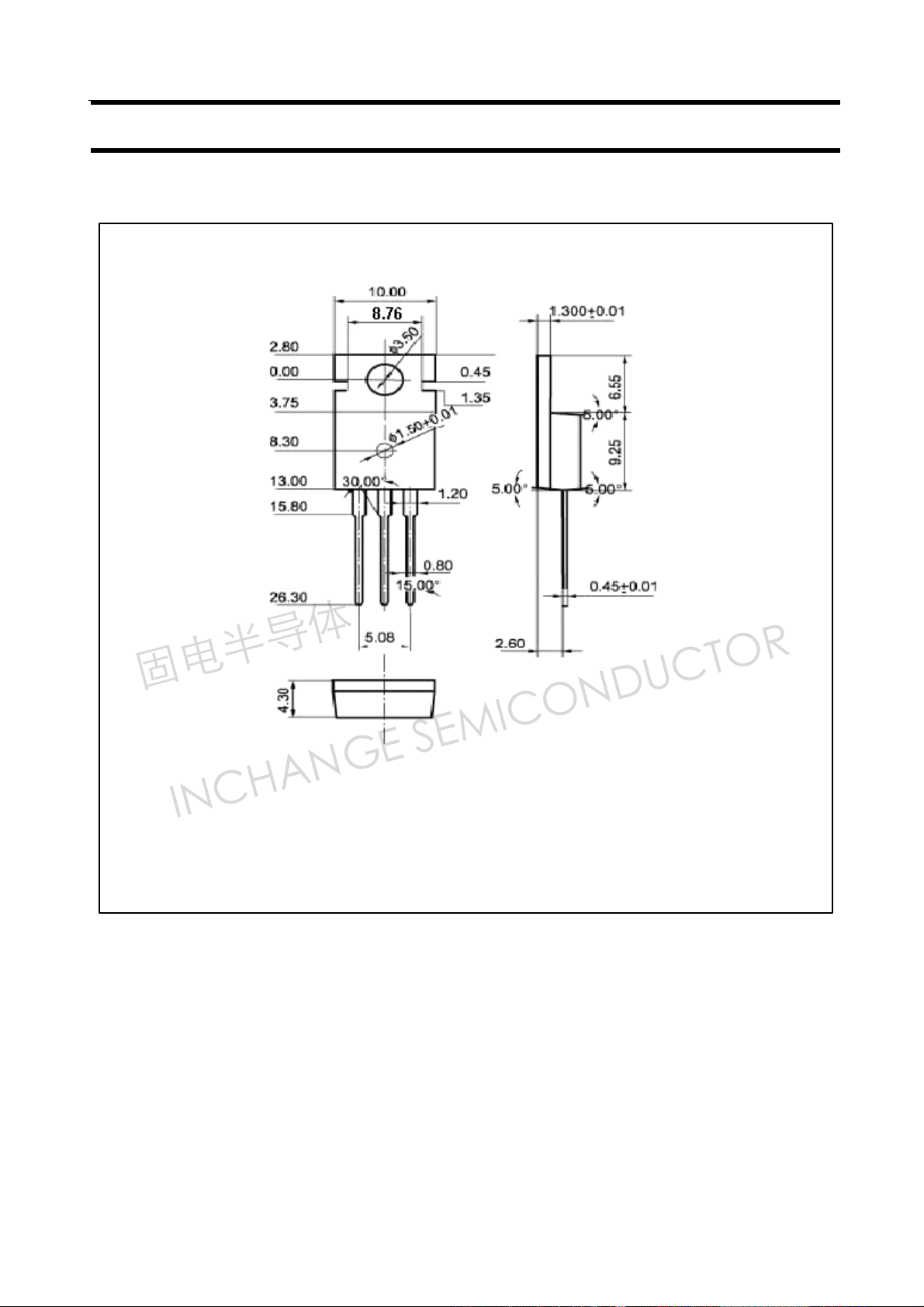

PACKAGE OUTLINE

Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
