Page 1

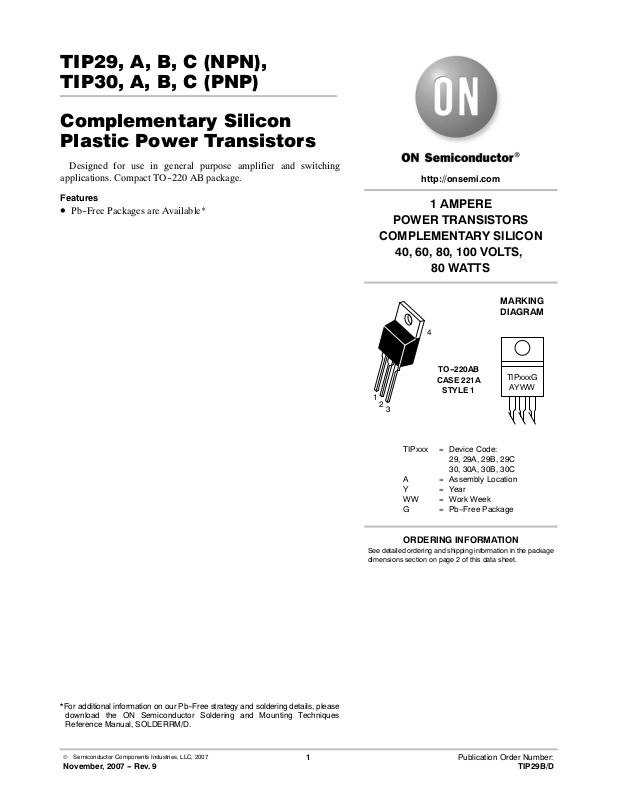

TIP29, A, B, C (NPN), TIP30, A, B, C (PNP)

Complementary Silicon Plastic Power Transistors

Designed for use in general purpose amplifier and switching

applications. Compact TO-220 AB package.

http://onsemi.com

Features

•Pb-Free Packages are Available*

1 AMPERE

POWER TRANSISTORS

COMPLEMENTARY SILICON

40, 60, 80, 100 VOLTS,

80 WATTS

MARKING DIAGRAM

TO-220AB

CASE 221A

TIPxxx = Device Code:

A = Assembly Location Y = Year WW = Work Week G = Pb-Free Package

STYLE 1

29, 29A, 29B, 29C 30, 30A, 30B, 30C

TIPxxxG

AYWW

*For additional information on our Pb-Free strategy and soldering details, please

download the ON Semiconductor Soldering and Mounting Techniques Reference Manual, SOLDERRM/D.

© Semiconductor Components Industries, LLC, 2007

November, 2007 - Rev. 9

1 Publication Order Number:

See detailed ordering and shipping information in the package

ORDERING INFORMATION

dimensions section on page 2 of this data sheet.

TIP29B/D

Page 2

TIP29, A, B, C (NPN), TIP30, A, B, C (PNP)

MAXIMUM RATINGS

TIP29

Rating

Collector - Emitter Voltage

Collector - Base Voltage

Emitter - Base Voltage

Collector Current - Continuous

Symbol

CEO

TIP30

- Peak

Base Current

Total Power Dissipation

@ TC = 25°C Derate above 25°C

Total Power Dissipation

@ TA = 25°C Derate above 25°C

Unclamped Inductive Load Energy (Note 1)

Operating and Storage Junction Temperature Range

TJ, T

stg

THERMAL CHARACTERISTICS

Characteristic

Thermal Resistance, Junction-to-Ambient

Thermal Resistance, Junction-to-Case

Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.

1. This rating based on testing with LC = 20 mH, RBE = 100 W, VCC = 10 V, IC = 1.8 A, P.R.F = 10 Hz

Symbol

TIP29A TIP30A

0.24

0.016

–65 to +150

Max

62.5

4.167

5.0

1.0

3.0

0.4

2.0

TIP29B

TIP30B

TIP29C TIP30C

100

Unit

Vdc

Adc

W/°C

°C

Unit

°C/W °C/W

ORDERING INFORMATION

Device Package Shipping

TIP29 TO-220 50 Units / Rail

TIP29G TO-220

(Pb-Free)

TIP29A TO-220 50 Units / Rail

TIP29AG TO-220

(Pb-Free)

TIP29B TO-220 50 Units / Rail

TIP29BG TO-220

(Pb-Free)

TIP29C TO-220 50 Units / Rail

TIP29CG TO-220

(Pb-Free)

TIP30 TO-220 50 Units / Rail

TIP30G TO-220

(Pb-Free)

TIP30A TO-220 50 Units / Rail

TIP30AG TO-220

(Pb-Free)

TIP30B TO-220 50 Units / Rail

TIP30BG TO-220

(Pb-Free)

TIP30C TO-220 50 Units / Rail

TIP30CG TO-220

(Pb-Free)

50 Units / Rail

http://onsemi.com

Page 3

TIP29, A, B, C (NPN), TIP30, A, B, C (PNP)

ELECTRICAL CHARACTERISTICS (T

= 25°C unless otherwise noted)

Characteristic

OFF CHARACTERISTICS

Collector-Emitter Sustaining Voltage (IC = 30 mAdc, IB = 0) (Note 2)

TIP29, TIP30 TIP29A, TIP30A TIP29B, TIP30B

TIP29C, TIP30C

Collector Cutoff Current

(VCE = 30 Vdc, IB = 0) TIP29, TIP29A, TIP30, TIP30A (VCE = 60 Vdc, IB = 0) TIP29B, TIP29C, TIP30B, TIP30C

Collector Cutoff Current

(VCE = 40 Vdc, VEB = 0) TIP29, TIP30 (VCE = 60 Vdc, VEB = 0) TIP29A, TIP30A (VCE = 80 Vdc, VEB = 0) TIP29B, TIP30B (VCE = 100 Vdc, VEB = 0) TIP29C, TIP30C

Emitter Cutoff Current (VBE = 5.0 Vdc, IC = 0)

ON CHARACTERISTICS (Note 2)

DC Current Gain(IC = 0.2 Adc, VCE = 4.0 Vdc)

DC Current Gain(IC = 1.0 Adc, VCE = 4.0 Vdc)

Collector-Emitter Saturation Voltage (IC = 1.0 Adc, IB = 125 mAdc)

Base-Emitter On Voltage (IC = 1.0 Adc, VCE = 4.0 Vdc)

DYNAMIC CHARACTERISTICS

Current-Gain - Bandwidth Product (Note 3)

(IC = 200 mAdc, VCE = 10 Vdc, f

= 1.0 MHz)

test

Small-Signal Current Gain (IC = 0.2 Adc, VCE = 10 Vdc, f = 1.0 kHz)

2. Pulse Test: Pulse Width v 300 ms, Duty Cycle v 2.0%

3. fT = ⎪hfe⎪• f

test

Symbol

CEO(sus)

CEO

CES

EBO

CE(sat)

BE(on)

Min

40 60 80

100

40 15

3.0

Max

0.3

200 200 200 200

1.0

0.7

1.3

Unit

Vdc

mAdc

Vdc

MHz

http://onsemi.com

Page 4

TIP29, A, B, C (NPN), TIP30, A, B, C (PNP)

500

300

100

70 50

, DC CURRENT GAIN

7.0

5.0

0.03

APPROX

+11 V

Vin 0

EB(off)

APPROX

+11 V

TJ = 150°C

25°C

-55°C

0.1

0.07 1.0

0.05 0.7 IC, COLLECTOR CURRENT (AMP)

0.3

0.5

VCE = 2.0 V

Figure 1. DC Current Gain

TURN-ON PULSE

TURN-OFF PULSE

t1 ≤ 7.0 ns

100 < t2 < 500 ms

t3 < 15 ns

DUTY CYCLE ≈ 2.0% APPROX -9.0 V

Cjd << C

-4.0 V

RB and RC VARIED TO OBTAIN DESIRED CURRENT LEVELS.

Figure 3. Switching Time Equivalent Circuit

3.0

SCOPE

t, TIME (s)μ

3.0

2.0

1.0

0.7

0.5

0.3

0.2

0.1

0.07

0.05

0.03

tf @ VCC = 10 V

0.03

ts′

tf @ VCC = 30 V

0.1 3.01.00.05 0.3 0.50.07 0.7 2.00.2

IC, COLLECTOR CURRENT (AMP)

IB1 = I

IC/IB = 10 ts′ = ts - 1/8 t TJ = 25°C

Figure 2. Turn-Off Time

2.0

1.0

0.7

0.5

0.3

t, TIME (s)μ

0.1

0.07

0.05

0.03

0.02

0.03

tr @ VCC = 30 V

tr @ VCC = 10 V

td @ V

EB(off)

0.05 0.3 0.5

0.1 3.0

0.07 0.7

IC, COLLECTOR CURRENT (AMP)

IC/IB = 10 TJ = 25°C

= 2.0 V

1.0

Figure 4. Turn-On Time

TJ = 150°C

3.0

0.1 SECOND BREAKDOWN LIMITED

THERMALLY LIMITED @ TC = 25°C BONDING WIRE LIMITED

, COLLECTOR CURRENT (AMPS)

CURVES APPLY BELOW

RATED V

CEO

0.1

1.0 20 10

4.0

VCE, COLLECTOR-EMITTER VOLTAGE, (VOLTS)

TIP29, 30 TIP29A, 30A TIP29B, 30B TIP29C, 30C

1 ms

Figure 5. Active Region Safe Operating Area

There are two limitations on the power handling ability of a transistor: average junction temperature and second breakdown. Safe operating area curves indicate I operation; i.e., the transistor must not be subjected to greater dissipation than the curves indicate.

The data of Figure 5 is based on T variable depending on conditions. Second breakdown pulse

5 ms

limits are valid for duty cycles to 10% provided T v 150°C. At high case temperatures, thermal limitations will reduce the power that can be handled to values less than the limitations imposed by second breakdown.

http://onsemi.com

= 150°C; TC is

J(pk)

- V

J(pk)

Page 5

TIP29, A, B, C (NPN), TIP30, A, B, C (PNP)

PACKAGE DIMENSIONS

TO-220

CASE 221A-09

ISSUE AE

NOTES:

1. DIMENSIONING AND TOLERANCING PER ANSI

SEATING

-T-

PLANE

123

Y14.5M, 1982.

2. CONTROLLING DIMENSION: INCH.

3. DIMENSION Z DEFINES A ZONE WHERE ALL BODY AND LEAD IRREGULARITIES ARE ALLOWED.

DIM MIN MAX MIN MAX

A 0.570 0.620 14.48 15.75 B 0.380 0.405 9.66 10.28 C 0.160 0.190 4.07 4.82 D 0.025 0.035 0.64 0.88 F 0.142 0.161 3.61 4.09 G 0.095 0.105 2.42 2.66 H 0.110 0.155 2.80 3.93 J 0.014 0.025 0.36 0.64 K 0.500 0.562 12.70 14.27 L 0.045 0.060 1.15 1.52 N 0.190 0.210 4.83 5.33 Q 0.100 0.120 2.54 3.04 R 0.080 0.110 2.04 2.79 S 0.045 0.055 1.15 1.39 T 0.235 0.255 5.97 6.47 U 0.000 0.050 0.00 1.27 V 0.045 --- 1.15 --- Z --- 0.080 --- 2.04

MILLIMETERSINCHES
