Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP160/161/162
DESCRIPTION
·With TO-3PN package
·DARLINGTON
·10A rated continuous collector current
APPLICATIONS
·For use in automotive ignition,switching
and motor control applications
PINNING
PIN DESCRIPTION
1
2
3 Emitter
Base
Collector;connected to
mounting base
Fig.1 simplified outline (TO-3PN) and symbol
Absolute maximum ratings(Tc=25℃)
SYMBOL PARAMETER CONDITIONS VALUE UNIT
TIP160 320
V
CBO
V
CEO
V
EBO
IC Collector current-DC 10 A
ICM Collector current-Pulse 15 A
Collector-base voltage
Collector-emitter voltage
Emitter-base voltage Open collector 5 V
TIP161 350
TIP162
TIP160 320
TIP161 350
TIP162
Open emitter
Open base
V
380
V
380
IB Base current-DC 1 A
PC Collector power dissipation TC=25℃ 125 W
Tj Junction temperature 150 ℃
T
Storage temperature -65~150 ℃
stg
THERMAL CHARACTERISTICS
SYMBOL PARAMETER MAX UNIT
R
Thermal resistance junction to case 1.0
th j-c
℃/W
Page 2
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP160/161/162
CHARACTERISTICS
Tj=25℃ unless otherwise specified
SYMBOL PARAMETER CONDITIONS MIN TYP. MAX UNIT
TIP160 320
V
(BR)CEO
V
CEsat-1
V
CEsat-2
V
BEsat
VF Diode forward voltage IF=10A 3.5 V
I
CEO
I
EBO
hFE DC current gain IC=4A ; VCE=2.2V 200
Collector-emitter
breakdown voltage
Collector-emitter saturation voltage IC=6.5A ,IB=0.1A 2.8 V
Collector-emitter saturation voltage IC=10A ,IB=1A 2.9 V
Base-emitter saturation voltage IC=6.5A ,IB=0.1A 2.2 V
Collector
cut-off current
Emitter cut-off current VEB=5V; IC=0 100 mA
TIP161 350
TIP162
TIP160 VCE=320V, IB=0
TIP161 VCE=350V, IB=0
TIP162 V
IC=10mA, IB=0
=380V, IB=0
CE
V
380
1.0 mA
Switching times
td Delay time 0.3 μs
tr Rise time 1.5 μs
ts Storage time 2.3 μs
tf Fall time
V
=33 V, IC = 6.5 A,
CC
=-IB2 =100 mA
I
B1
=20μs ;Duty Cycle≤2.0%
t
p
2.8 μs
2
Page 3
Inchange Semiconductor Product Specification
固电半导体
INCHANGE SEMICONDUCTOR
Silicon NPN Power Transistors TIP160/161/162
PACKAGE OUTLINE

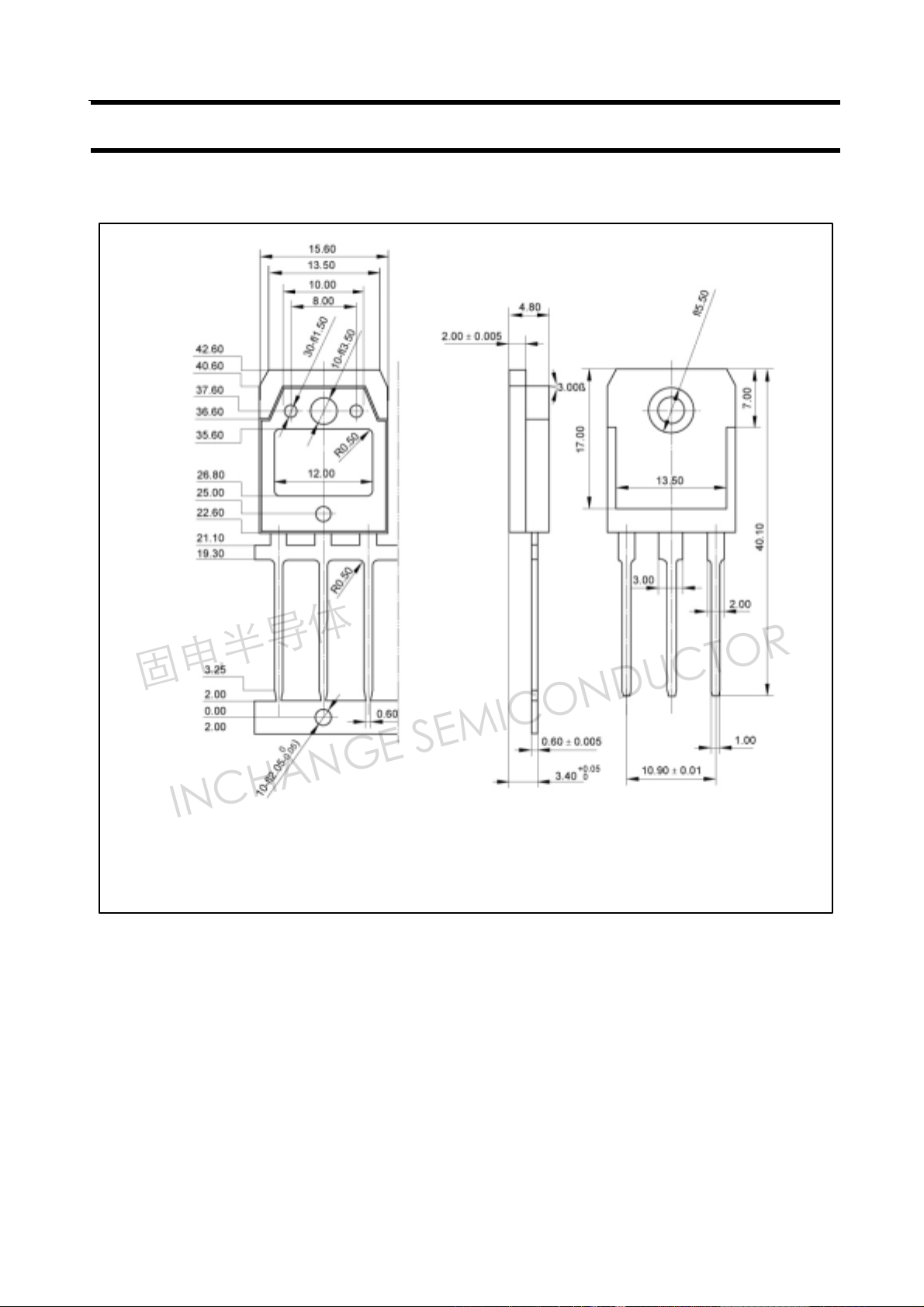

Fig.2 Outline dimensions(unindicated tolerance:±0.1mm)
3
