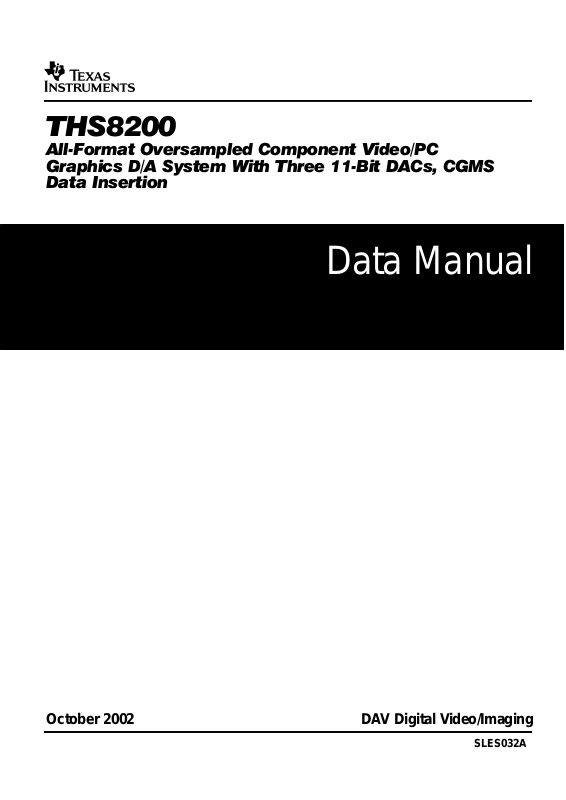

Datasheet THS8200PFP, THS8200 Datasheet (Texas Instruments)



   
       
 

October 2002 DAV Digital Video/Imaging

Data Manual

SLES032A

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty . Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty. Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. T o minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third–party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Mailing Address:

Texas Instruments
Post Office Box 655303
Dallas, Texas 75265

Copyright  2002, Texas Instruments Incorporated

iii

Contents

Section Title Page

1 Introduction 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Description 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Features 1–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Terminal Descriptions 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 THS8200 Functional Overview 3–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Data Manager (DMAN) 3–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.1 Interpolating Finite Impulse Responses Filter (IFIR) 3–2. . . . .

3.1.2 Color-Space Conversion (CSC) 3–2. . . . . . . . . . . . . . . . . . . . . . .

3.1.3 Clip/Shift/Multiplier (CSM) 3–2. . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.4 Digital Multiplexer (DIGMUX) 3–2. . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5 Display Timing Generator (DTG) 3–2. . . . . . . . . . . . . . . . . . . . . .

3.1.6 Clock Generator (CGEN) 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.7 Clock Driver (CDRV) 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.8 I

2

C Host Interface (I2CSLAVE) 3–3. . . . . . . . . . . . . . . . . . . . . . .

3.1.9 Test Block (TST) 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.10 D/A Converters (DAC) 3–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Detailed Functional Description 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.1 Data Manager (DMAN) 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.2 Input Interface Formats 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.3 Clock Generator (CGEN)/Clock Driver (CDRV) 4–5. . . . . . . . . . . . . . . . . .

4.4 Color Space Conversion (CSC) 4–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5 Clip/Scale/Multiplier (CSM) 4–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5.1 Clipping 4–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5.2 Shifting 4–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.5.3 Multiplying 4–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.6 Interpolating Finite Impulse Response Filter (IFIR) 4–11. . . . . . . . . . . . . . .

4.7 Display Timing Generator (DTG) 4–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7.1 Overview of Functionality 4–14. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7.2 Functional Description 4–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.7.3 DTG Line Type Overview 4–19. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8 D/A Conversion 4–35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8.1 RGB Output Without Sync Signal Insertion/

General-Purpose Application DAC 4–35. . . . . . . . . . . . . . . . . . . .

4.8.2 SMPTE-Compatible RGB Output With Sync

Signal Inserted on G (Green) Channel 4–36. . . . . . . . . . . . . . . . .

4.8.3 SMPTE-Compatible Analog-Level Output With

Sync Inserted on All RGB Channels 4–38. . . . . . . . . . . . . . . . . . .

4.8.4 SMPTE-Compatible YPbPr Output With

Sync Signal Inserted on Y Channel Only 4–38. . . . . . . . . . . . . . .

iv

4.8.5 SMPTE-Compatible YPbPr Output With Sync Signal

Inserted on All Channels 4–39. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.8.6 Summary of Supported Video Formats 4–40. . . . . . . . . . . . . . . .

4.9 Test Functions 4–40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.10 Power Down 4–40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.11 CGMS Insertion 4–40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4.12 I

2

C Interface 4–41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5I

2

C Register Map 5–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1 Register Descriptions 5–6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1.1 System Control (Sub-Addresses 0x02–0x03) 5–6. . . . . . . . . . .

5.1.2 Color Space Conversion Control

(Sub-Addresses 0x04–0x19) 5–8. . . . . . . . . . . . . . . . . . . . . . . . .

5.1.3 Test Control (Sub-Addresses 0x1A–0x1B) 5–10. . . . . . . . . . . . .

5.1.4 Data Path Control (Sub-Address 0x1C) 5–10. . . . . . . . . . . . . . . .

5.1.5 Display Timing Generator Control, Part 1

(Sub-Addresses 0x1D–0x3C) 5–11. . . . . . . . . . . . . . . . . . . . . . . .

5.1.6 DAC Control (Sub-Addresses 0x3D–0x40) 5–14. . . . . . . . . . . . .

5.1.7 Clip/Scale/Multiplier Control (Sub-Addresses

0x41–0x4F) 5–15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.1.8 Display Timing Generator Control, Part 2

(Sub-Addresses 0x50–0x82) 5–17. . . . . . . . . . . . . . . . . . . . . . . . .

5.1.9 CGMS Control (Sub-Addresses 0x83–0x85) 5–20. . . . . . . . . . . .

5.2 THS8200 Preset Mode Line Type Definitions 5–20. . . . . . . . . . . . . . . . . . . .

5.2.1 SMPTE_274P (1080p) 5–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2.2 274M Interlaced (1080I) 5–21. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2.3 296M Progressive (720p) 5–21. . . . . . . . . . . . . . . . . . . . . . . . . . . .

5.2.4 SDTV 525 Interlaced Mode 5–22. . . . . . . . . . . . . . . . . . . . . . . . . .

5.2.5 SDTV 525 Progressive Mode 5–22. . . . . . . . . . . . . . . . . . . . . . . . .

5.2.6 SDTV 625 Interlaced Mode 5–23. . . . . . . . . . . . . . . . . . . . . . . . . .

6 Application Information 6–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.1 Video vs Computer Graphics Application 6–1. . . . . . . . . . . . . . . . . . . . . . .

6.2 DVI to Analog YPbPr/RGB Application 6–1. . . . . . . . . . . . . . . . . . . . . . . . .

6.3 Master vs Slave Timing Modes 6–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7 Specifications 7–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.1 Absolute Maximum Ratings Over Operating Free-Air

Temperature Range 7–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.2 Recommended Operating Conditions Over Operating
Free-Air Temperature Range, T

A

7–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.2.1 Power Supply 7–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.2.2 Digital and Reference Inputs 7–1. . . . . . . . . . . . . . . . . . . . . . . . .

7.3 Electrical Characteristics Over Recommended Operating
Conditions With f

CLK

= 205 MHz and RFS = R

FS(nom)

7–2. . . . . . . . . . .

7.3.1 Power Supply, 1-MHz FS Ramp Simultaneously Applied

to All Three Channels 7–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.3.2 Digital Inputs—DC Characteristics 7–3. . . . . . . . . . . . . . . . . . . .

7.3.3 Analog (DAC) Outputs 7–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

v

7.4 Power Requirements 7–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.4.1 Power for 700 mV DAC Output Compliance + 350 mV Bias

at AVDD = 3.3V, DVDD = 1.8V, VDD_IO = 3.3 V,

VDD_DLL = 3.3 V, 1-MHz Tone on All Channels 7–5. . . . . . . .

7.4.2 Power for 700 mV DAC Output Compliance + 350 mV Bias

at AVDD = 3.3V, DVDD = 1.8 V, VDD_IO = 1.8V,

VDD_DLL = 3.3V, 1-MHz Tone on All Channels 7–6. . . . . . . . .

7.4.3 Power for 1.25V Output Compliance Without Bias at

AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 3.3 V,

VDD_DLL = 3.3 V, 1-MHz Tone on All Channels 7–7. . . . . . . .

7.4.4 Power for 1.25V Without Bias at AVDD = 3.3 V,

DVDD = 1.8 V, VDD_IO = 1.8 V, VDD_DLL = 3.3 V,

1-MHz Tone on All Channels 7–8. . . . . . . . . . . . . . . . . . . . . . . . .

7.5 Nonlinearity 7–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.5.1 Differential Nonlinearity (DNL) and Integral

Nonlinearity (INL) for 700 mV Without Bias 7–9. . . . . . . . . . . . .

7.5.2 Differential Nonlinearity (DNL) and Integral

Nonlinearity (INL) for 700 mV + 350 mV Bias 7–10. . . . . . . . . . .

7.5.3 Differential Nonlinearity (DNL) and Integral

Nonlinearity (INL) for 1.25 V Without Bias 7–11. . . . . . . . . . . . . .

7.6 Analog Output Bandwidth (sinx/x corrected) at f

S

= 205 MSPS 7–12. . . .

7.7 Output Compliance vs Full-Scale Adjustment Resistor Value 7–12. . . . . .

7.8 Vertical Sync of the HDTV 1080I Format Preset in First and Second

Field, and Horizontal Line Waveform Detail 7–13. . . . . . . . . . . . . . . . . . . . .

8 Mechanical Information 8–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vi

List of Illustrations

Figure Title Page

2–1 THS8200 Pin Location Diagram 2–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–1 Functional Block Diagram 3–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–1 24-/30-Bit RGB or YCbCr Data Format 4–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–2 20-/16-Bit YCbCr 4:2:2 Data Format (16-Bit Operation Shown) 4–3. . . . . . . . . .

4–3 16-Bit RGB 4:4:4 Data Format 4–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–4 15-Bit RGB 4:4:4 Data Format 4–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–5 Effect of Clipping on Analog Output 4–9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–6 Effect of Shifting on Clipped Analog Output 4–9. . . . . . . . . . . . . . . . . . . . . . . . . . .

4–7 Effect of Scaling the Analog Video Output 4–10. . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–8P

B

and PR Filter Requirements Based on SMPTE 296M/274M 4–11. . . . . . . . .

4–9 Y and RGB Filter Requirements Based on SMPTE 296M/274M 4–12. . . . . . . . .

4–10 Y and RGB Filter Requirements Based on ITU-R.BT601 4–12. . . . . . . . . . . . . .

4–11 Cb and Cr Filter Requirements Based on ITU-R.BT601 4–13. . . . . . . . . . . . . . .

4–12 IFIR Frequency Response 4–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–13 IFIR Pass-Band Frequency Response 4–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–14 IFIR Phase Response 4–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–15 THS8200 DTG VS/HS Output Generation 4–18. . . . . . . . . . . . . . . . . . . . . . . . . . .

4–16 Tri-Level Line-Synchronizing Signal Waveform 4–20. . . . . . . . . . . . . . . . . . . . . .

4–17 THS8200 VBI Line Types in HDTV Mode 4–21. . . . . . . . . . . . . . . . . . . . . . . . . . .

4–18 HDTV Line Type ACTIVE_VIDEO 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–19 HDTV Line Type FULL_NSTP 4–22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–20 HDTV Line Type NTSP_NTSP 4–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–21 HDTV Line Type BTSP_BTSP 4–23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–22 HDTV Line Type NTSP_BTSP 4–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–23 HDTV Line Type BTSP_NTSP 4–24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–24 HDTV Line Type FULL_BTSP 4–25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–25 Field/Frame Synchronizing Signal Waveform (1080I and

1080P Formats) 4–26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

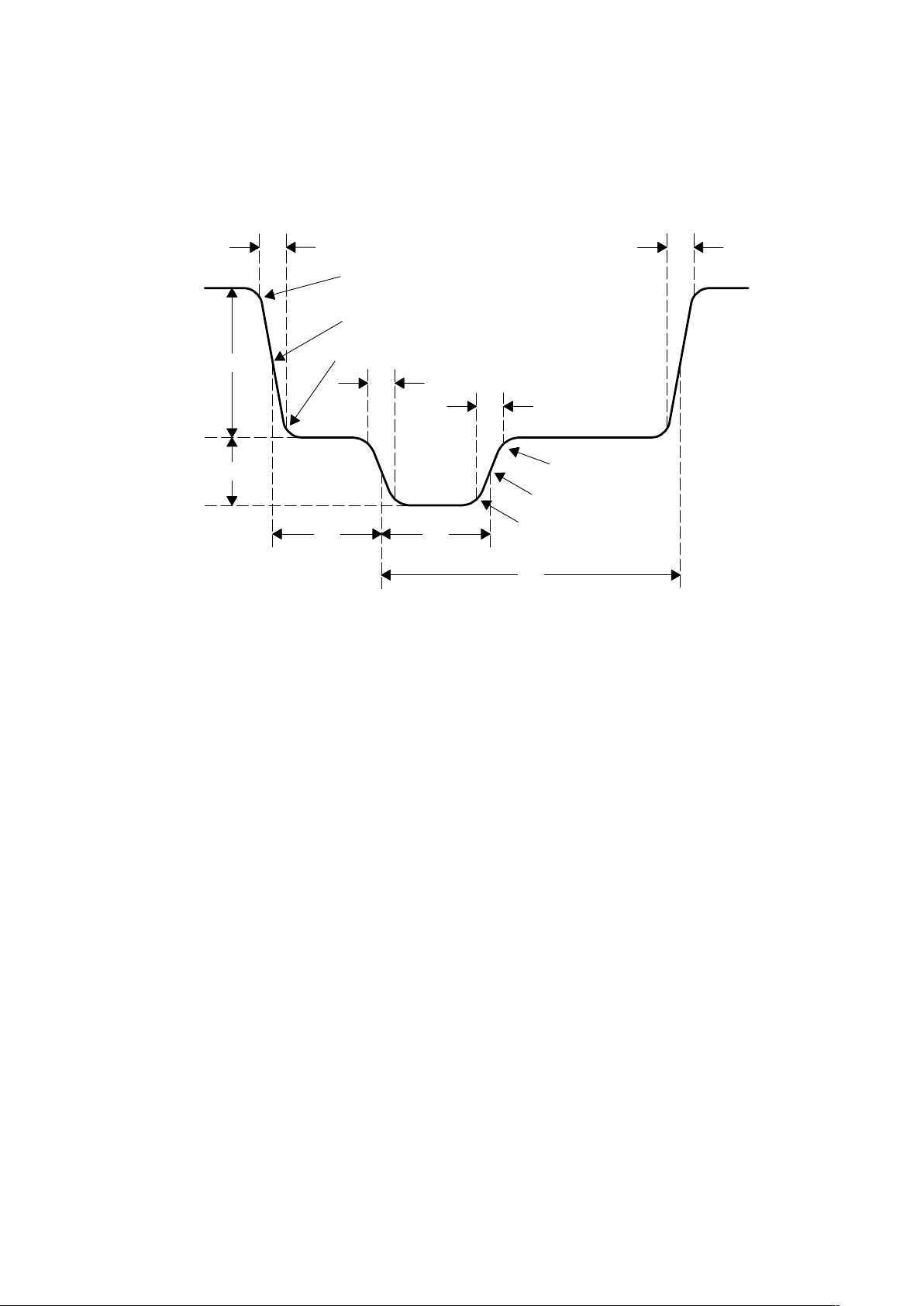

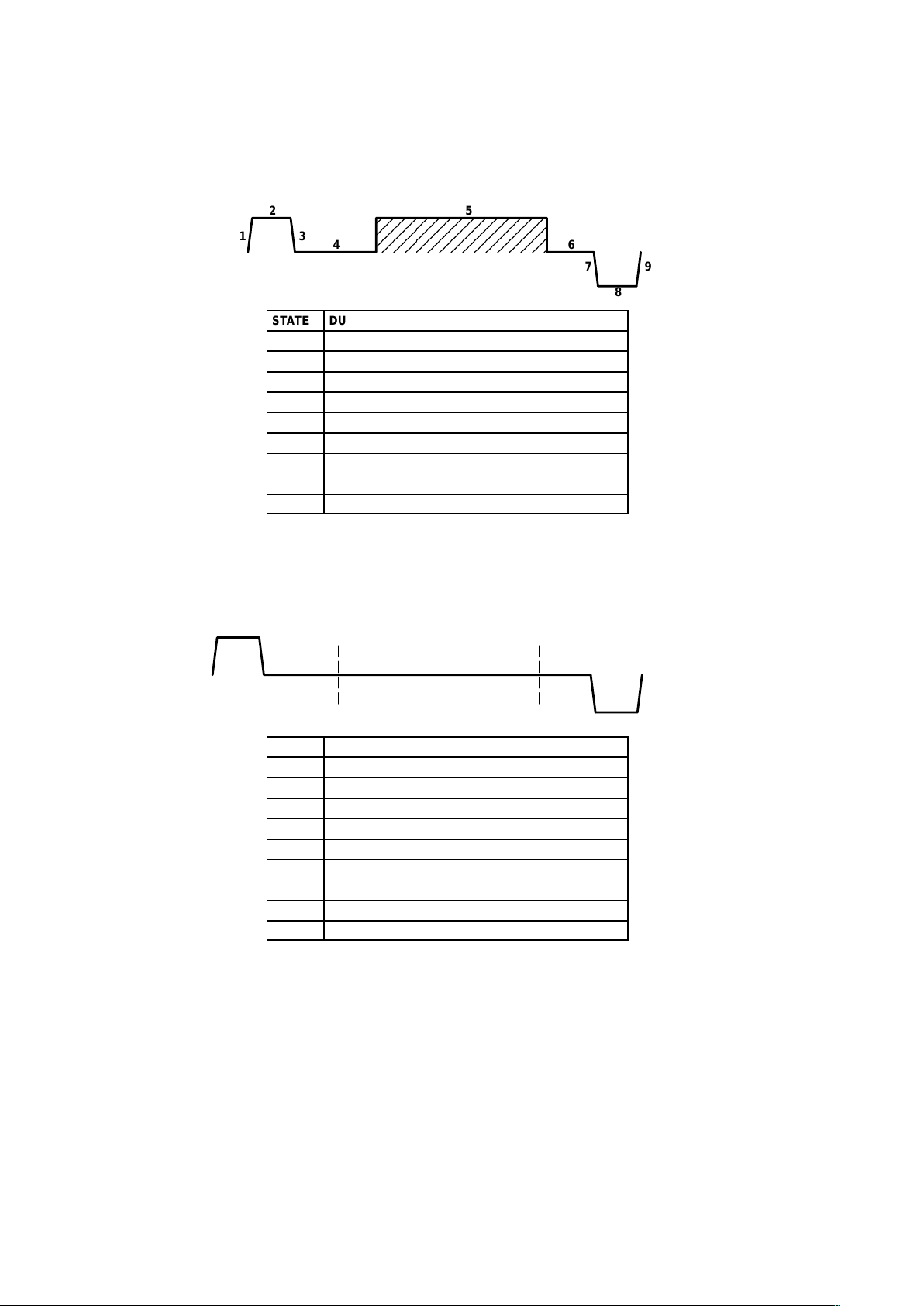

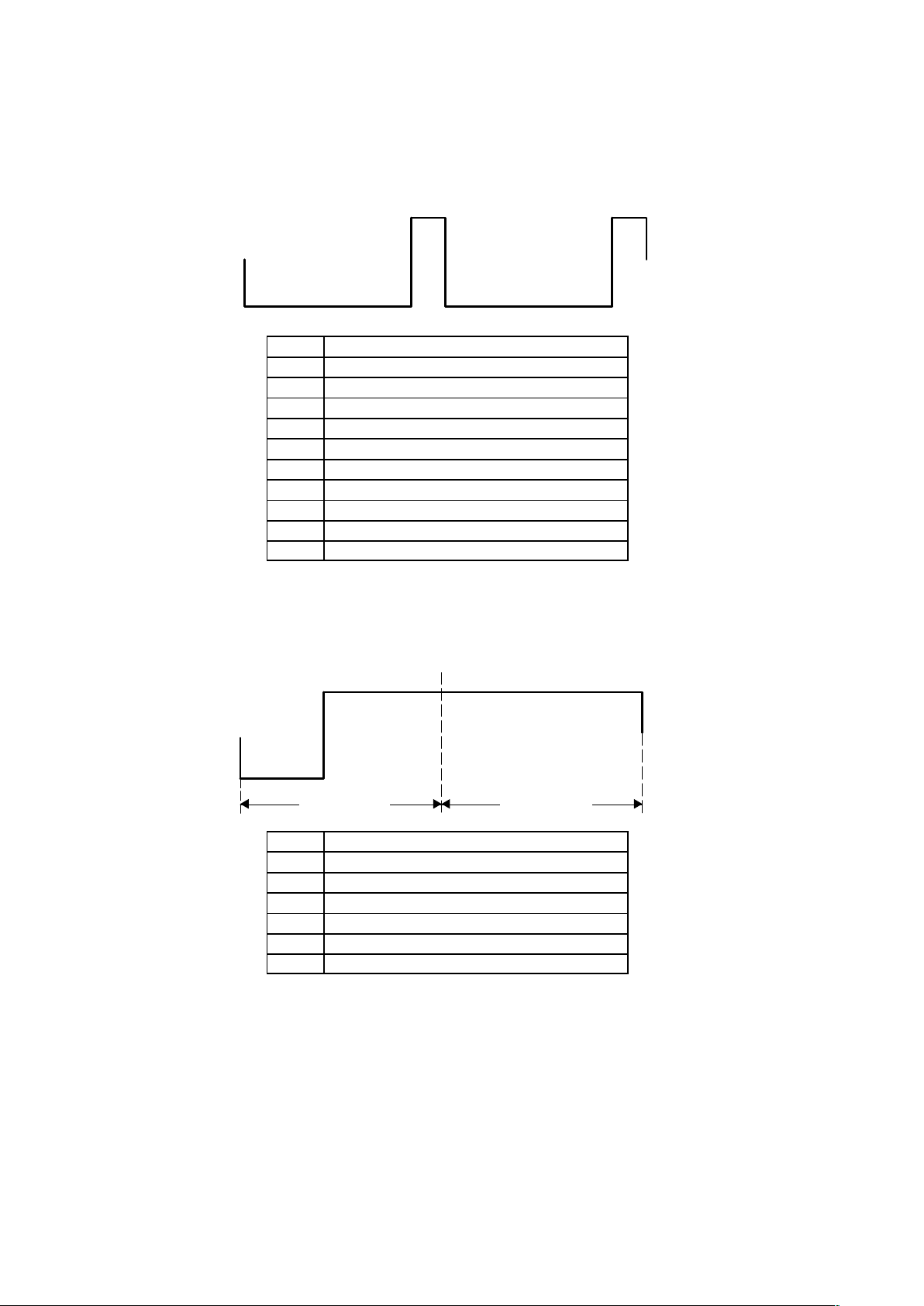

4–26 Horizontal Synchronization Signal Waveform 4–27. . . . . . . . . . . . . . . . . . . . . . . .

4–27 THS8200 VBI Line Types in SDTV Mode 4–28. . . . . . . . . . . . . . . . . . . . . . . . . . .

4–28 SDTV Line Type NEQ_NEQ 4–29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–29 SDTV Line Type FULL_BSP 4–29. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–30 SDTV Line Type BSP_BSP 4–30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vii

4–31 SDTV Line Type FULL_NSP 4–30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–32 SDTV Line Type NEQ_BSP 4–31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–33 SDTV Line Type BSP_NEQ 4–31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–34 SDTV Line Type FULL_NEQ 4–32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–35 SDTV Line Type NSP_ACTIVE 4–32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–36 SDTV Line Type ACTIVE_NEQ 4–33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–37 SDTV Line Type ACTIVE_VIDEO 4–33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

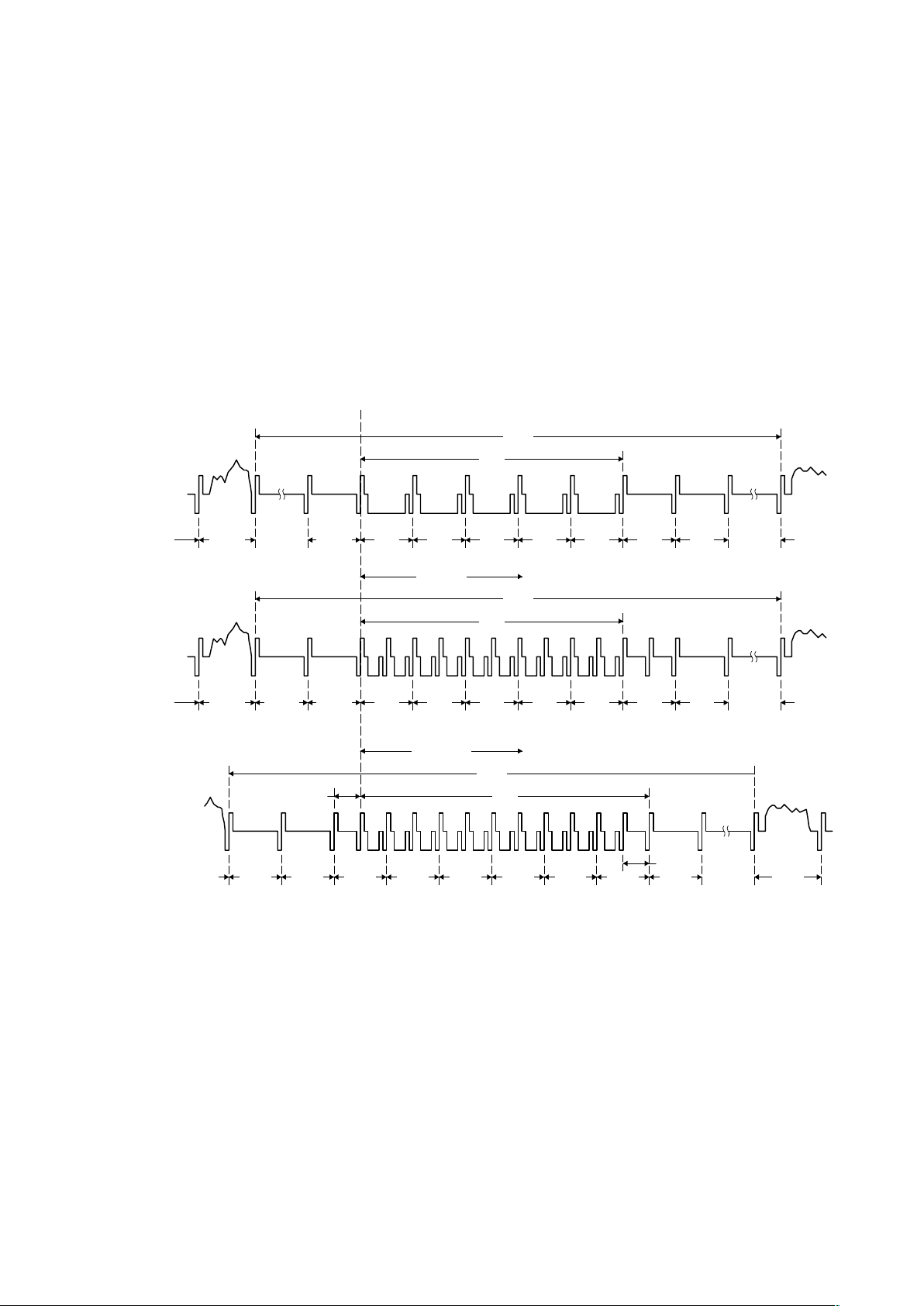

4–38 Field/Frame Synchronizing Signal Waveform (525I Format) 4–34. . . . . . . . . . .

4–39 RGB Without Sync Insertion or Composite Video Output 4–36. . . . . . . . . . . . . .

4–40 Ramping Output With Different Full-Scale Ranges 4–36. . . . . . . . . . . . . . . . . . .

4–41 G-Channel Output Waveform 4–37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–42 R- and B-Channel Output Waveform 4–37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

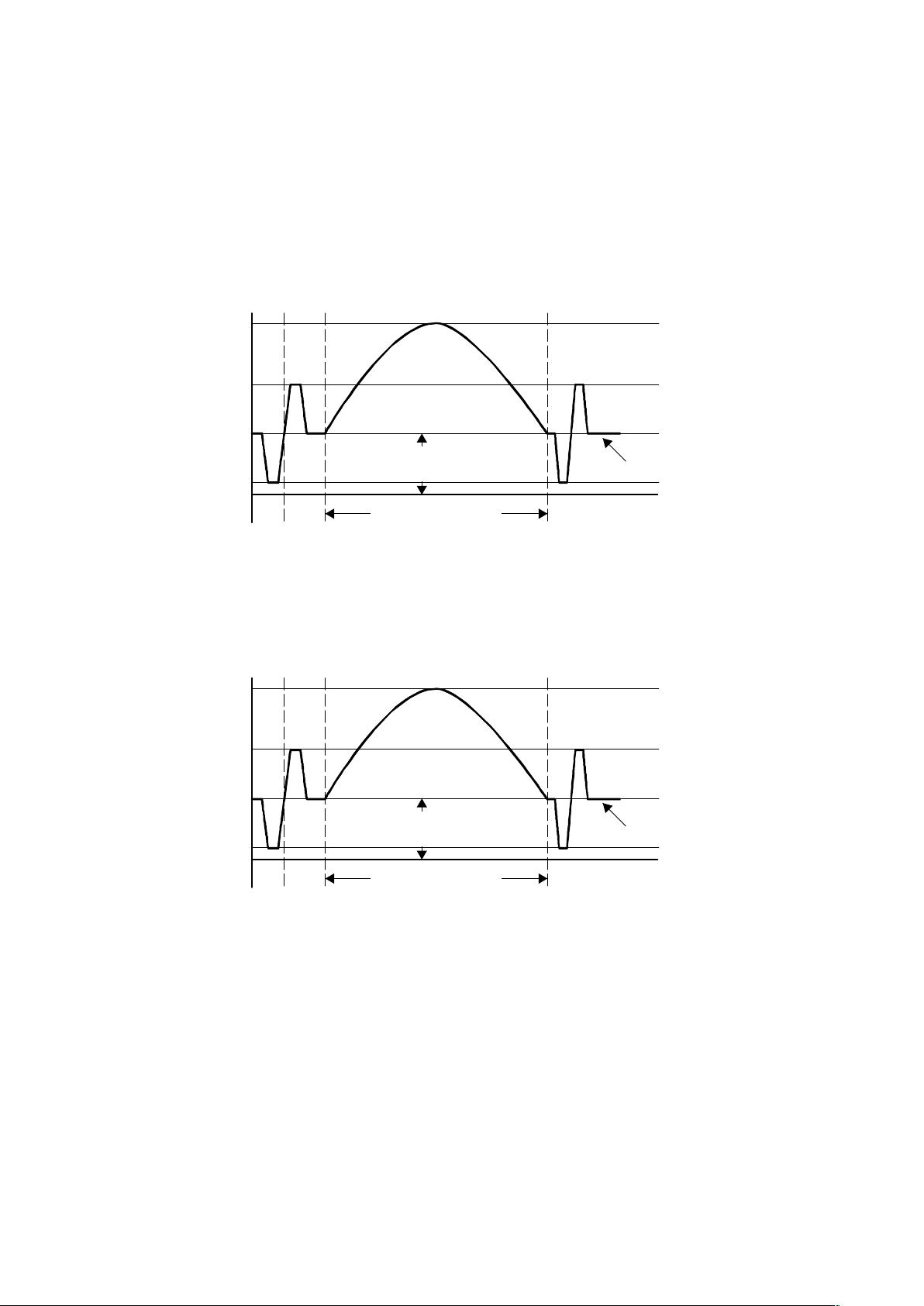

4–43 R-, G-, and B-Channel Output Waveform 4–38. . . . . . . . . . . . . . . . . . . . . . . . . . .

4–44 Y-Channel Output Waveform 4–38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

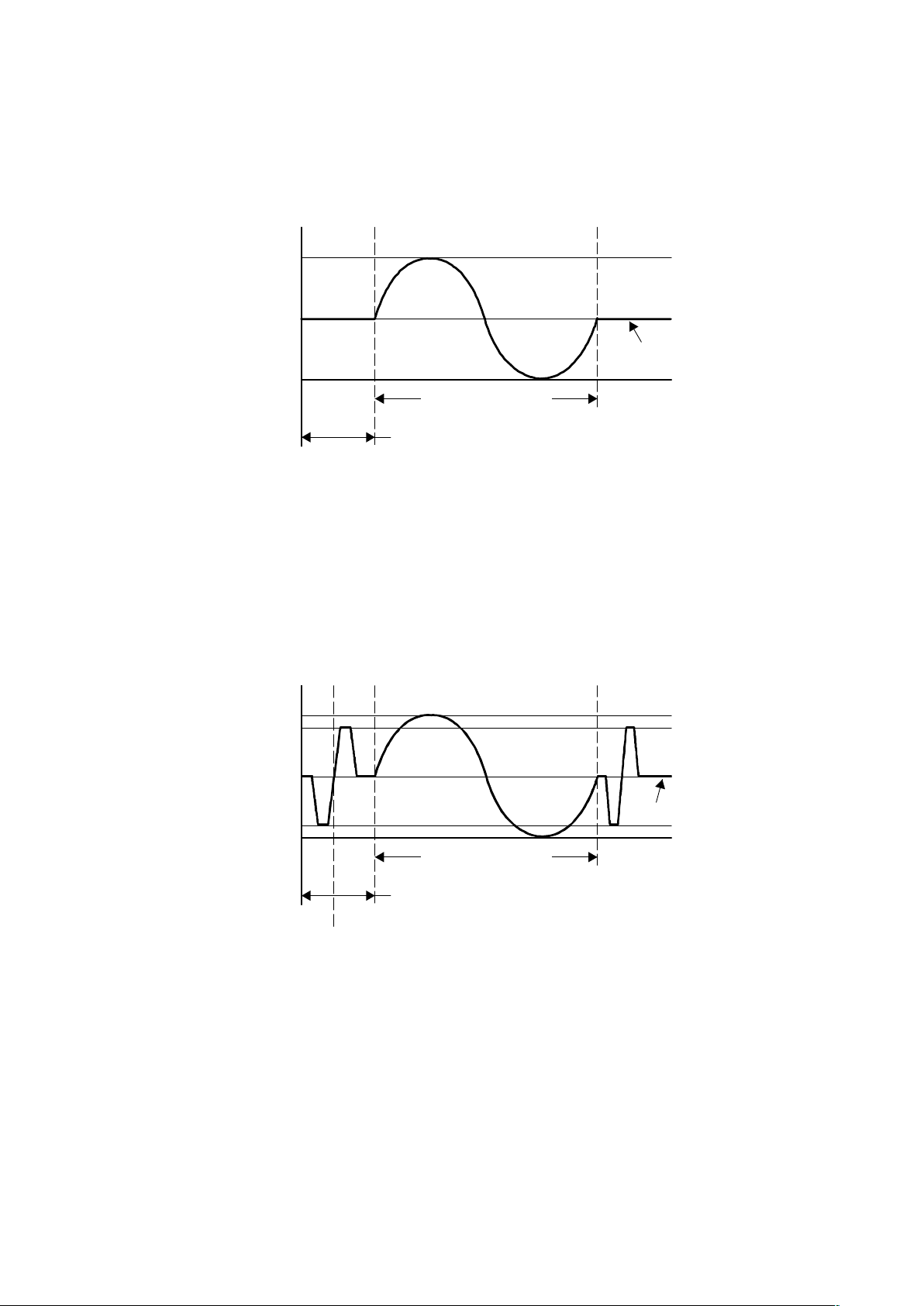

4–45 Analog Output of Cr and Cb Channels Without Sync Insertion 4–39. . . . . . . . .

4–46 Analog Output of Cr and Cb Channels With Sync Insertion 4–39. . . . . . . . . . . .

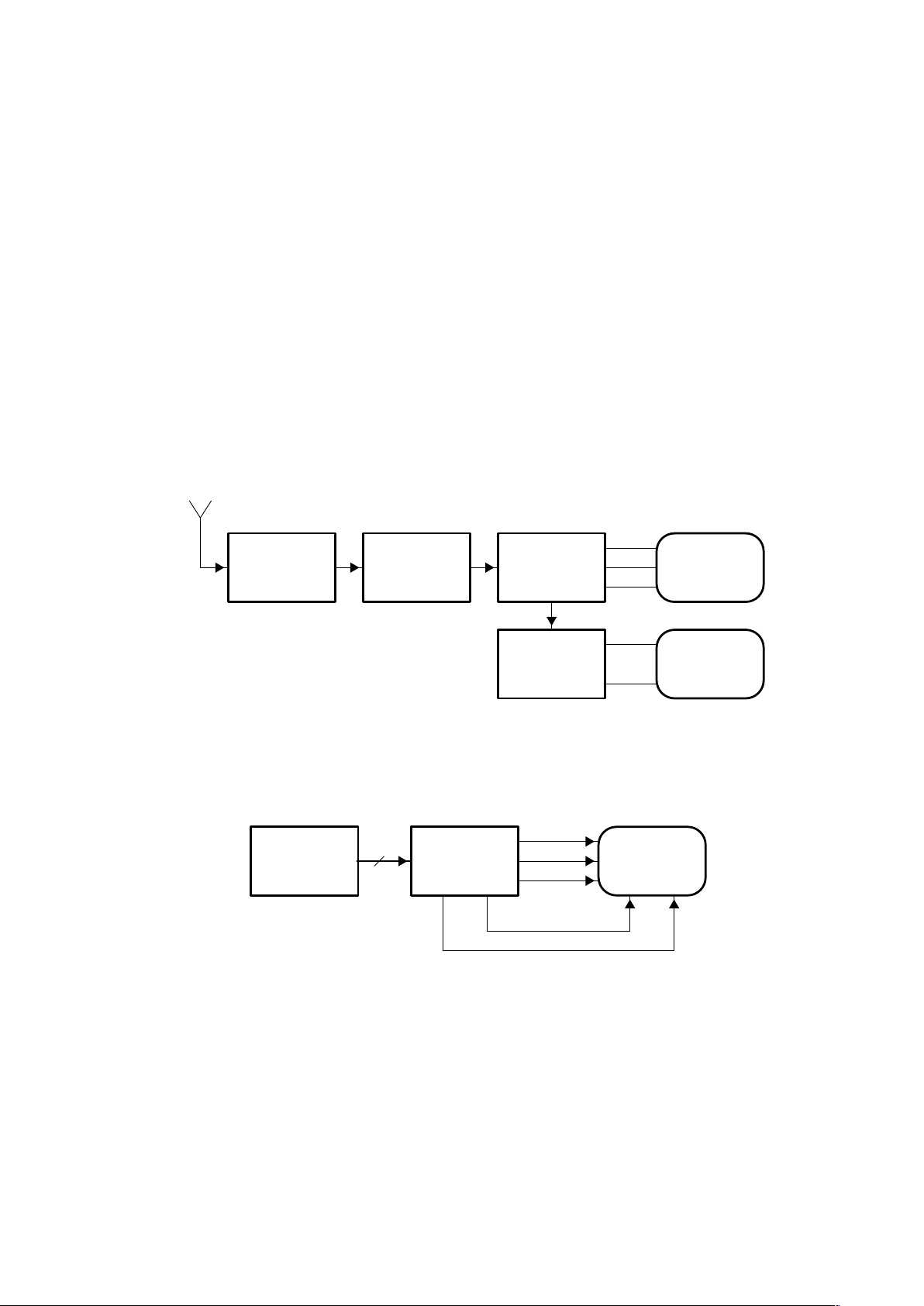

6–1 Typical Video Application 6–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6–2 Computer Graphics Application 6–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6–3 Slave Operation Mode of THS8200 6–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6–4 Master Operation Mode of THS8200 6–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

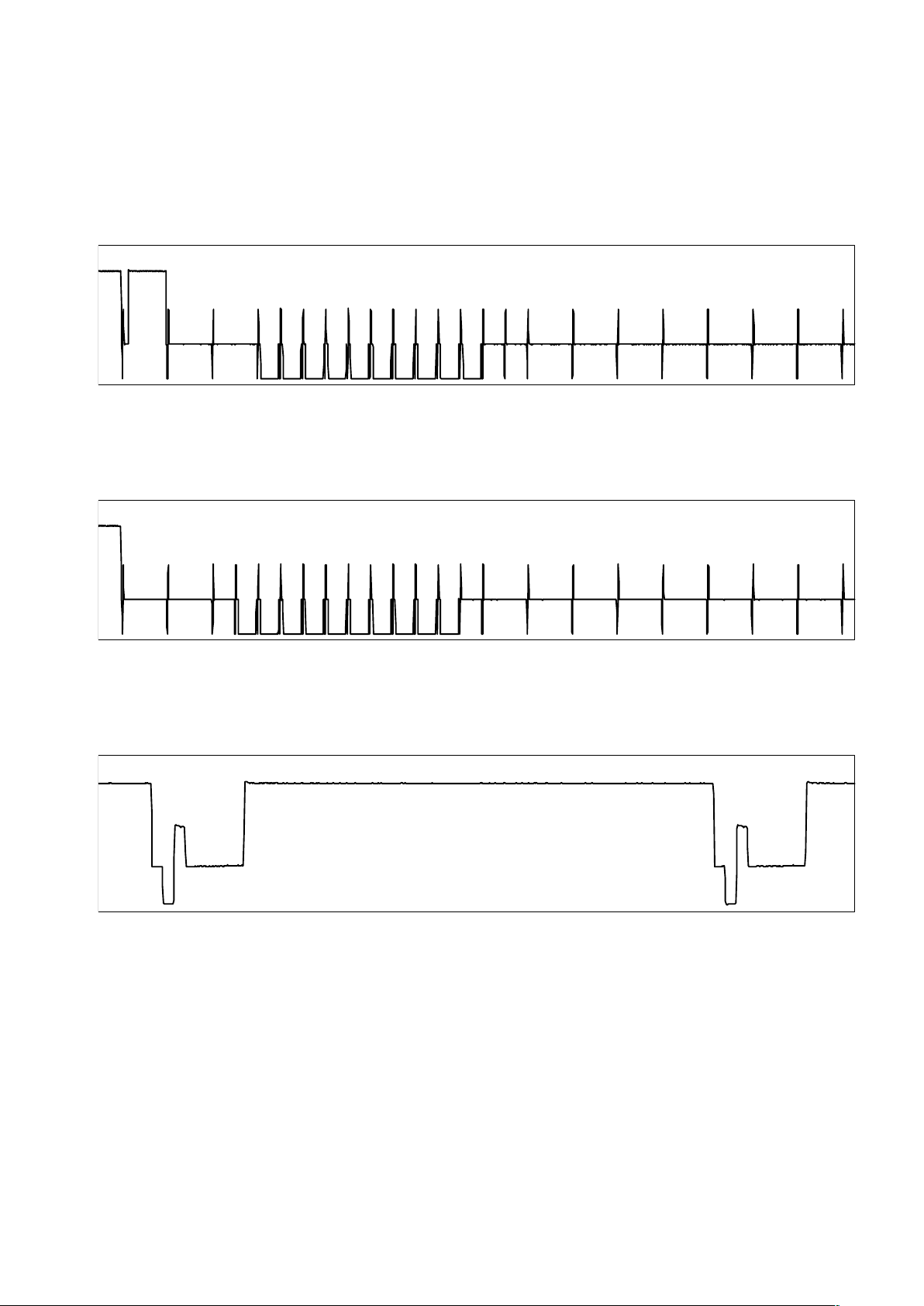

7–1 THS8200 Output Waveforms for 1080I: Vertical Blanking in First and

Second Fields, and Active Video 7–13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

List of Tables

Table Title Page

2–1 Terminal Functions 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4–1 Supported Input Formats 4–1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–1

1 Introduction

1.1 Description

THS8200 is a complete video back-end D/A solution for DVD players, personal video recorders and set-top boxes,
or any system requiring the conversion of digital component video signals into the analog domain.

THS8200 can accept a variety of digital input formats, in both 4:4:4 and 4:2:2 formats, over a 3 ×10-bit, 2 ×10-bit or
1 ×10-bit interface. The device synchronizes to incoming video data either through dedicated Hsync/Vsync inputs
or through extraction of the sync information from embedded sync (SAV/EAV) codes inside the video stream.
Alternatively , when configured for generating PC graphics output, THS8200 also provides a master timing mode in
which it requests video data from an external (memory) source.

THS8200 contains a display timing generator that is completely programmable for all standard and nonstandard
video formats up to the maximum supported pixel clock of 205 MSPS. Therefore, the device supports all component
video and PC graphics (VESA) formats. A fully-programmable 3×3 matrixing operation is included for color space
conversion. All video formats, up to the HDTV 1080I and 720P formats, can also be internally 2× oversampled.
Oversampling relaxes the need for sharp external analog reconstruction filters behind the DAC and improves the
video frequency characteristic.

The output compliance range can be set via external adjustment resistors and there is a choice of two settings, in
order to accommodate without hardware changes both component video/PC graphics (700 mV) and composite video
(1.3 V) outputs. An internal programmable clip/shift/multiply function on the video data assures standards-compliant
video output ranges for either full 10-bit or reduced ITU-R.BT601 style video input. In order to avoid nonlinearities
after scaling of the video range, the DACs are internally of 1 1-bit resolution. Furthermore, a bi- or tri-level sync with
programmable amplitude (in order to support both 700/300-mV and 714/286-mV video/sync ratios) can be inserted
either on the green/luma channel only or on all three output channels. This sync insertion is generated from additional
current sources in the DACs such that the full DAC resolution remains available for the video range. This preserves
100% of the DAC’s 11-bit dynamic range for video data.

THS8200 optionally supports the pass-through of ancillary data embedded in the input video stream or can insert
ancillary data into the 525P analog component output according to the CGMS data specification

1.2 Features

• Three 11-bit 205-MSPS D/A converters with integrated bi-level/tri-level sync insertion

• Support for all ATSC video formats (including 1080P) and PC graphics formats (up to UXGA at 75 Hz)

Input

• Flexible 10/15/16/20/24/30-bit digital video input interface with support for YCbCr or RGB data, either 4:4:4
or 4:2:2 sampled

• Video synchronization via Hsync, Vsync dedicated inputs or via extraction of embedded SAV/EAV codes
according to ITU-R.BT601 (SDTV) or SMPTE274M/SMPTE296M (HDTV)

• Glueless interface toTI DVI 1.0 (with HDCP) receivers. Can receive video-over-DVI formats according to
the EIA-861 specification and convert to YPbPr/RGB component formats with separate syncs or embedded
composite sync

Video Processing

• Programmable clip/shift/multiply function for operation with full-range or ITU-R.BT601 video range input
data

1–2

• Programmable digital fine-gain controller on each analog output channel, for accurate channel matching
and programmable white-balance control

• Built-in 4:2:2 to 4:4:4 video interpolation filter

• Built-in 2× oversampling SDTV/HDTV interpolation filter for improved video frequency characteristic

• Fully programmable digital color space conversion circuit

• Fully programmable display timing generator to supply all SDTV and HDTV composite sync timing formats,

progressive and interlaced

• Fully programmable Hsync/Vsync outputs

• Vertical blanking interval (VBI) override or data pass-thru for VBI data transparency

• Programmable CGMS data generation and insertion

Output

• Digital

– ITU-R BT.656 digital video output port

• Analog

– Analog component output from software-switchable 700 mV/1.3 V compliant output DACs at 37.5 Ω

load

– Programmable video/sync ratio (7:3 or 10:4)
– Programmable video pedestal

General

• Built-in video color bar test pattern generator

• Fast mode I

2

C control interface

• Configurable master or slave timing mode
– Configuration modes allow the device to act as a master timing source for requesting data from, e.g., the

video frame buffer . Alternatively , the device can slave to an external timing master . (Master mode only
available for PC graphics output modes).

• DAC and chip powerdown modes

• Low-power 1.8/3.3 V operation

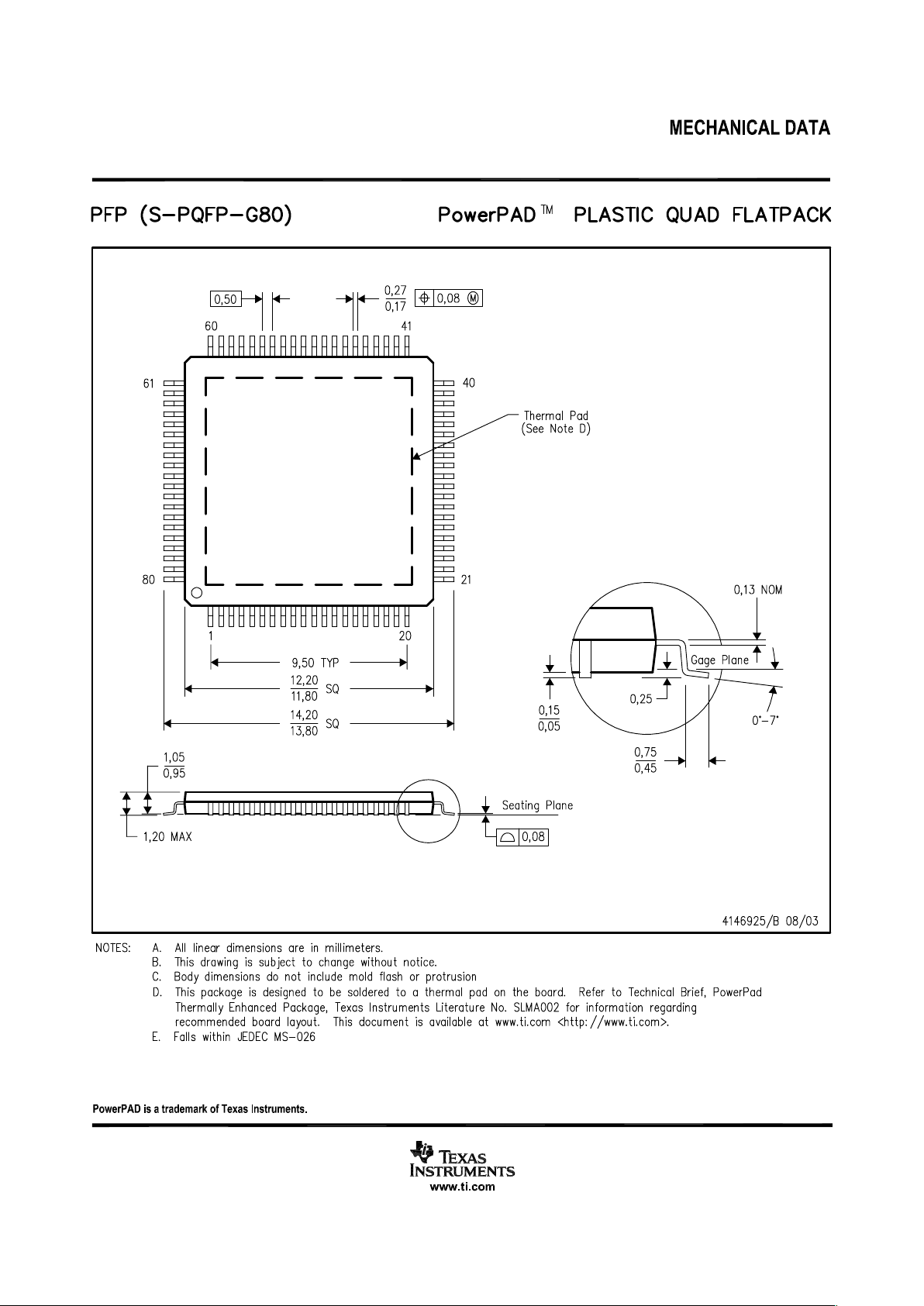

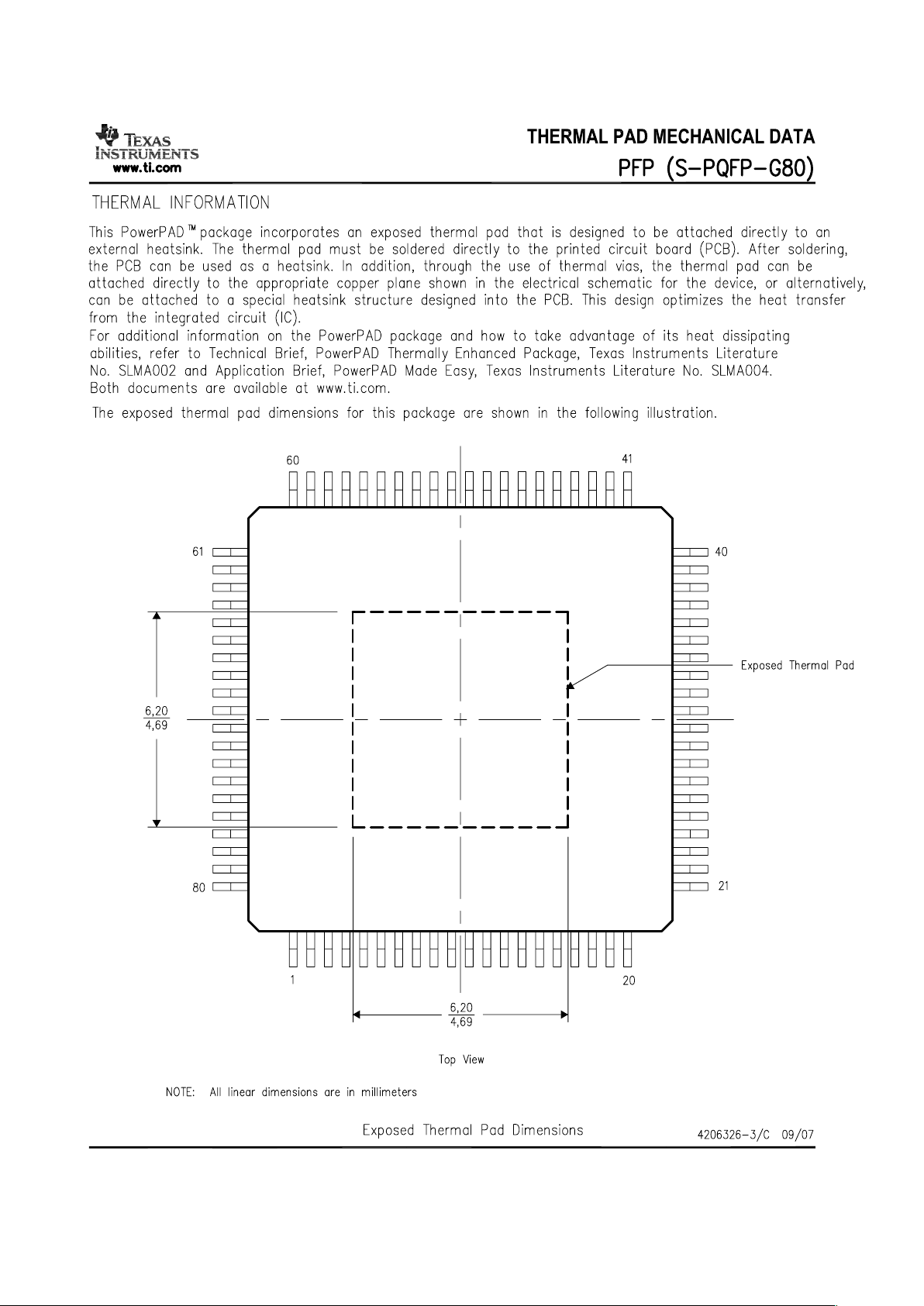

• 80-pin PowerP AD  plastic quad flatpack package with efficient heat dissipation and small physical size

Applications

• DVD players

• Digital-TV/interactive-TV/internet set-top boxes

• Personal video recorders

• HDTV display or projection systems

• Digital video systems

AVAILABLE OPTIONS

T

A

PACKAGED DEVICES

TQFP-80 POWERPAD

0°C to 70°C THS8200PFP

PowerPAD is a trademark of Texas Instruments.

2–1

2 Terminal Descriptions

23

RCr2
RCr3
RCr4
RCr5
RCr6
RCr7
RCr8
RCr9
DVDD
DVSS
BCb0
BCb1
BCb2
BCb3
BCb4
BCb5
BCb6
BCb7
BCb8
BCb9

40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21

4

61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

HS_OUT
VS_OUT

SDA

SCL
DO9
DO8
DO7
DO6
DO5

VDD_IO

D1CLKO

GND_IO

DO4
DO3
DO2
DO1
DO0

DVSS

DVDD

N.C.

5678

PFP PACKAGE

(TOP VIEW)

59 58 57 56 5560 54 52 51 5053

9

10 11 12 13

49 48147 46 45 44

14 15 16 17 18 19 20

43 42 41

RESETB

DVDD

DVSS

GY0

GY1

GY2

GY3

GY4

GY5

GY6

GY7

GY8

GY9

FID

VDD_IO

GND_IO

VS_IN

HS_IN

RCr0

RCr1

N.C.

GND_DLL

CLKIN

VDD_DLL

I2CA

PBKG

FSADJ1

FSADJ2

COMP2

COMP1

AVDD

AVSS

AGY

AVDD

ABPb

AVSS

ARPr

AVDD

VDD_IO

GND_IO

Figure 2–1. THS8200 Pin Location Diagram

2–2

Table 2–1. Terminal Functions

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

ABPb 15 O Analog output of DAC2. See AGY.
ARPr 17 O Analog output of DAC3. See AGY.
AGY 13 O Analog output of DAC1. With the proper setting of FSADJ<n>, this output is capable of driving 1.3 V full

scale into a 37.5 Ω load
AVDD 11, 14, 18 PWR Analog power supply, nominal 3.3 V
AVSS 12, 16 PWR Analog ground
BCb[9:0] 21–30 I 10-bit video data input port. All 10 bits or the 8 MSB of this port can be connected to the video data source. In

30-bit mode, the B data of RGB, or the Cb data of YCbCr, should be connected to this port. In 10-bit input

mode, this port is unused. In 20-bit input mode, this port is used for CbCr input data.
CLKIN 3 I Main clock input. Video input data on the GY[9:0]/BCb[9:0]/RCr[9:0] ports should be synchronized to

CLKIN. Depending on the input data format, CLKIN is supplied to THS8200 at 1 or 2 the pixel clock

frequency.
COMP1 10 P Compensation pin for the internal reference amplifier. A 0.1 µF capacitor should be connected between

COMP1 and analog power supply AVDD.
COMP2 9 P Compensation pin for the internal reference amplifier. A 0.1 µF capacitor should be connected between

COMP2 and analog power supply AVDD.
D1CLKO 71 O Video ITU-R.BT656-compliant clock output. This clock output is off by default and should be activated via

an I2C register setting.
DO[9:5]

DO[4:0]

65–69
73–77

O ITU-R.BT656 compliant video data output port. Only available when ITU-R.BT656 input format is used. Can

be used to connect to external PAL/NTSC video encoder . This port is off by default and should be activated

via an I2C register setting.
DVDD 32, 59, 79 PWR Digital core power, nominal 1.8 V
DVSS 31, 58, 78 PWR Digital core ground
FID 47 I Field identification signal for interlaced video formats. In slave timing mode, this is an input from the video

data source. In master timing mode this signal is unused, as only progressive-scan VESA formats are

supported in master mode.
FSADJ1 7 P Full scale adjustment control 1. A resistor should be connected between FSADJ1 and analog ground

AGND to control the full-scale output current of the DAC output channels. Via the data_fsadj I2C

programming register, the user can select between two full-scale ranges, determined by FSADJ1 or

FSADJ2.

For 700-mV video output (1 Vpp including sync), the nominal value is 2.99 kΩ ; for 1.0-Vpp video output (1.3

Vpp including sync) output the nominal value is 2.08 kΩ.
FSADJ2 8 P Full scale adjustment control 2. See FSADJ1.
GND_DLL 2 PWR Ground of clock doubler. Should be connected to analog ground
GND_IO 20, 45, 72 PWR I/O ring ground
GY[9:0] 48–57 I 10-bit video data input port. All 10 bits or the 8 MSB of this port can be connected to the video data source.

The G data of RGB or the Y data of YCbCr should be connected to this port. Port used in 10-bit mode for

CbYCrY video input data; in 20-bit input mode for Y data.
HS_IN 43 I/O Horizontal source synchronization. In slave timing mode, this is an input from the video data source. In

master timing mode, this is an output to the video data source with programmable timing and polarity,

serving as a horizontal data qualification signal to the video source.
HS_OUT 61 O Horizontal sync output (to display). Irrespective of slave/master timing mode configuration, this is always an

output with timing generated by the DTG.
I2CA 5 I I2C device address LSB selection
N.C. 1, 80 I Manufacturing test input. Must be tied to GND for normal operation.
PBKG

(VSS)

6 PWR Substrate ground. Should be connected to analog ground

†

I = input, O = output, B = bidirectional, PWR = power or ground, P = passive

2–3

Table 2–1. Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

RCr[9:0] 33–42 I 10-bit video data input port. All 10-bits or the 8 MSB of this port can be connected to the video data source. In

30-bit mode, the R data of RGB or the Cr data of YCbCr should be connected to this port. In the 10- /20-bit

input mode, this port is unused. For some input formats this port is unused.
RESETB 60 I Software reset pin (active low). The minimum reset duration is 200 ns.
SCL 64 B Serial clock line of I2C bus interface. Open-collector. Maximum specified clock speed is 400 kHz (fast I2C).
SDA 63 B Serial data line of I2C bus interface. Open-collector
VDD_DLL 4 PWR Power supply of clock doubler, nominal 1.8 V
VDD_IO 19, 46, 70 PWR I/O ring power, 1.8 V or 3.3 V nominal
VS_IN 44 I/O V ertical source synchronization. In slave timing mode, this is an input from the video data source. In master

timing mode, this is an output to the video data source with programmable timing and polarity , serving as a

vertical data qualification signal to the video source.
VS_OUT 62 O Vertical sync output (to display). Irrespective of slave/master timing mode configuration, this is always an

output with timing generated by the DTG.

†

I = input, O = output, B = bidirectional, PWR = power or ground, P = passive

3–1

3 THS8200 Functional Overview

ifir

ifir

dly

eav

sav

scl_en

scl_out

scl_in

sda_en

sda_out

sda_in

rcr_in

bcb_in

gy_in

vs_in

hs_in

databus_in
databus_out
address
addr_en

ready

dg_bias

dr_bias
db_bias

digbypass

Three Channel DACs

4:2:2 to 4:4:4

Data Manager

I2C

Slave

arst_func_n

dig_mux

ifir12_bypass
ifir35_bypass

Color

Space

Convertor

ifir

ifir

ifir

Clip

Scale

Multiplier

Display

Timing

Generator

dig_mux

digbypass

Test Block

csmouts

ifirouts

dmanouts

dtg_data

dg_bias

vs_out

hs_out

dlclko

do[9:0]

dg

db_bias

db

dr_bias

dr

clk_fx2

clk_f

cdrv

clk_h

clkin

tstmode

2X

cgen

clkin

Clock Generator

Offset Binary Signals

cscouts

Figure 3–1. Functional Block Diagram

3.1 Data Manager (DMAN)

The data manager is the block that transforms the selected input video data format present on the chip input bus(es)
to an internal 10-bit three-channel representation. Supported input formats include 10/8 bit ITU-R.BT656 with
embedded sync codes, 15-/16- or 24-/30-bit RGB with external sync, 20-/16-bit SMPTE274M/296M with embedded
sync codes, as well as 20-/16-bit YCbCr 4:2:2 with external sync. The user can optionally include a 4:2:2 to 4:4:4

3–2

interpolation on the color data path. When a format with embedded sync is selected, DMAN also extracts H(Hsync),
V(Vsync), F(FieldID) identifiers from the ITU-R.BT656 (SDTV) or SMPTE274M/296M (HDTV) data stream for internal
synchronization of the DTG. Alternatively, the device synchronizes to HS_IN, VS_IN, FID inputs.

3.1.1 Interpolating Finite Impulse Responses Filter (IFIR)

The interpolating FIR is used to upsample the input data by 2× . In the THS82000 there are five IFIRs. The first two
are used only when the input data is in 4:2:2 format for conversion to a 4:4:4 internal representation on both color
difference channels. The last three IFIRs are used to upsample the internal data to the DACs on all three channels
in case 2× video interpolation is enabled. By 2× oversampling the video data, the requirements for the analog
reconstruction filter at the DAC outputs are relaxed so it can be built with fewer components, thereby also improving
the overall video frequency characteristic (less group delay variation). All of the IFIRs can be bypassed or switched
in by programming the appropriate I

2

C registers. The coefficients of all IFIRs are fixed.

3.1.2 Color-Space Conversion (CSC)

The color-space converter block is used to convert input video data in one type of color space to output video data
in another color space (e.g., RGB to YCbCr, or vice versa). This block contains a 3×3 matrix multiplier/adder and a
3×1 adder. All multiplier and adder coefficients can be programmed via the I

2

C interface to support any linear

matrixing+offset operation on the video data.

3.1.3 Clip/Shift/Multiplier (CSM)

The clip-shift-multiply block optionally clips the input code range at a programmed low/high code, shifts the input video
data downwards, and multiplies the input by a programmable coefficient in the range 0–1.999. This allows for
operation with a reduced input code range such as prescribed in the ITU-R.BT601 recommendation. Each channel
can be independently programmed to accommodate different digital ranges for each of the three input channels. For
example, for standard video signals the Y channel has a digital input range of 64–940, whereas the two other channels
have an input range of 64–960. All three channels must have a DAC output range of 0–700 mV , so normally the analog
voltage corresponding to 1 LSB would have to change to account for the different digital inputs. This might cause
matching errors. Therefore in the THS8200 the DAC LSB does not change; rather LSB conversion is done by scaling
the digital inputs to the DAC’s full input range. Furthermore, the CSM output is 11 bits wide and is sent to the 11-bit
DACs. The extra bit of resolution resolves nonlinearities introduced by the scaling process. The clipping function can
be switched off to allow for super-white/super-black excursions.

3.1.4 Digital Multiplexer (DIGMUX)

This multiplexer in front of the DACs can select between video signals at 1× or 2× the pixel clock rate. It is also used
to switch in blanking/sync level data generated by the display timing generator (DTG) block and test pattern data (e.g.,
color bars, I

2

C-controlled DAC levels) or to perform data insertion (CGMS) during vertical blanking.

3.1.5 Display Timing Generator (DTG)

The display timing generator is responsible for the generation of the correct frame format including all sync,
equalization and serration pulses. In master timing mode, the DTG is synchronized to external synchronization inputs,
either from the dedicated device terminals HS_IN, VS_IN, and FID or is synchronized to the identifiers extracted from
the input data stream, as selected by the DMAN mode. In master timing mode, the DTG generates the required
field/frame format based on the externally applied pixel clock input.

When active data is not being passed to the DACs, i.e., during the horizontal/vertical blanking intervals, the DTG
generates the correct digital words for blank, sync levels and other level excursions, such as pre- and post-serration
pulses and equalization pulses.

Horizontal timings, as well as amplitudes of negative and positive sync, HDTV broad pulses and SDTV pre- and
post-equalization and serration pulses, are all I

2

C-programmable to accommodate, e.g., the generation of both

3–3

EIA.770-1 (10:4 video/sync ratio) and EIA.770-2 (7:3 video/sync ratio) compliant analog component video outputs,
and to support nonstandard video timing formats.

In addition or as an alternative to the composite sync inserted on green/luma channel or all analog outputs, output
video timing can be carried via dedicated Hsync/Vsync output signals as well. The position, duration and polarity of
Hsync and Vsync outputs are fully programmable in order to support, for example, the centering of the active video
window within the picture frame.

The DTG also controls the data multiplexer in the DIGMUX block. DIGMUX can be programmed to pass device input
data only on active video lines (inserting DTG-generated blanking level during blanking intervals). Alternatively , the
DTG can pass device input data also during some VBI lines (ancillary data in the input stream is passed transparently
on some VBI lines). Finally , the device can also generate its own ancillary data and insert it into the analog outputs
according to the CGMS data format for the 525P video format.

3.1.6 Clock Generator (CGEN)

The clock generator is an analog delay-locked loop (DLL) based circuit and provides a 2× clock from the CLKIN input.
The 2× clock is used by the CDRV block for 2× video interpolation. Some video formats also require a 1/2 rate clock
used for 4:2:2 to 4:4:4 conversion.

3.1.7 Clock Driver (CDRV)

The clock drive block generates all on-chip clocks. Its inputs are control signals from the digital logic, the original
CLKIN, and the 2× clock from CGEN. Outputs include a half-rate clock, full-rate clock, and a 2× full-rate clock. The
clocks are used for both optional on-chip interpolation processes: 4:2:2 to 4:4:4 interpolation and 1× to 2× video
oversampling.

3.1.8 I2C Host Interface (I2CSLAVE)

The I2C interface controls and programs the internal I2C registers. The THS8200 I2C interface implementation
supports the fast I

2

C specification (SCL: 400 kHz) and allows the writing and reading of registers. An auto-increment

addressing feature simplifies block register programming. The I

2

C interface works without a clock present on CLKIN.

3.1.9 Test Block (TST)

The test block controls all the test functions of the THS8200. In addition to manufacturing test modes, this block
contains several user test modes including a DAC internal ramp generator and a 75% SMPTE video color bar
generator.

3.1.10 D/A Converters (DAC)

THS8200 contains three DACs operating at up to 205 MSPS and with an internal resolution of 11 bits. Each DAC
contains an integrated video sync inserter. The sync(s) is (are) inserted by means of additional current source circuits
either on the green/luma (Y) channel only or on all the DAC output channels, in order to be compliant with both
consumer (EIA, sync-on-G/Y) as well as professional (SMPTE, sync-on-all) standards.

The DAC speed supports all A TSC formats, including 1080P, as well as all PC graphics (VESA) formats up to UXGA
at 75 Hz (202.5 MSPS).

4–1

4 Detailed Functional Description

4.1 Data Manager (DMAN)

Table 4–1. Supported Input Formats

INPUT INTERFACE TIMING CONTROL SYNCHRONIZATION

30-BIT 20-BIT 10-BIT

(1)

16-BIT 15-BIT

EMBEDDED

TIMING

DEDICATED

TIMING

MASTER SLAVE

[PRESET]
HDTV-SMPTE296M
progressive (720P)

X (4:4:4) X (4:2:2) X X

[PRESET]
HDTV-SMPTE274M
progressive (1080P)

X (4:4:4) X (4:2:2) X X

[PRESET]
HDTV-SMPTE274M
progressive (1080I)

X (4:4:4) X (4:2:2) X X

[GENERIC] HDTV X (4:4:4) X (4:2:2) X X X
[PRESET]

SDTV-ITU.1358 (525P)

X

(2)

X X

[PRESET]
SDTV-ITU-R.BT470 (525I)

X

(3)

X X

[PRESET]
SDTV-ITU-R.BT470 (625I)

X

(3)

X X

[GENERIC] SDTV X (4:4:4) X (4:2:2) X X X
[PRESET] VESA X

(4)

X

(4)

X

(4)

X X X

NOTES: 1. When the device is configured to receive data over a 10-bit interface, the ITU-R.BT656 output bus on the THS8200 can be enabled

via an I2C register bit to send the received data to an external device.
In other DMAN modes, this output should remain off (data_tristate656 register).

2. SMPTE293M-compliant

3. ITU-R.BT656-compliant

4. Because PC graphics data is normally only 8 bits wide, only 3×8 bits (8 MSBs of each bus) are used. Color space converter bypass
is required for modes with pixel clock > 150 MSPS.

Table 4–1 summarizes all supported video mode configurations.
Each video mode is characterized by three attributes:

• Input Interface: Data is accepted over 10-, 20- or 30-bit interface (or 8 ,16, 24 bit interface for 8-bit data
when using 8 MSBs of each input data bus and connecting 2 LSBs to ground). This selection is controlled
by the dman_cntl register.

• Timing control: Video timing is either embedded in the data stream or supplied via dedicated timing
signals. In the latter case additional Hsync (HS_IN), Vsync (VS_IN) and FieldID (FID) input signals are
required to synchronize the video data source and THS8200 in the case of slave timing mode. This selection
is controlled by the dtg2_embedded_timing register.

• Synchronization: Video timing either is supplied to the device (slave) or the THS8200 requests video data
from the source (master). This selection is controlled by the chip_ms register.

NOTE: Device operation with combinations of settings for the dman_cntl,
dtg2_embedded_timing and chip_ms registers that result in operating modes not marked in
Table 4–1 is not assured. See detailed register map description for actual register settings.

Furthermore, Table 4–1 shows for which modes presets are defined. When in a preset video mode, the
line-type/breakpoint-pairs that define the frame format (see Display Timing Generator, Section 4.7) are

4–2

preprogrammed. Therefore the user does not need to define the table with line type/breakpoint settings, nor does
the field and frame size need to be programmed. However, when in preset mode, the horizontal parameters (all
dtg1_spec_x registers for the line types used by the preset setting, and dtg1_total_pixels registers) still need to be
programmed. Presets are available for most popular DTV video formats. Alternatively, generic modes for SDTV,
HDTV or VESA can be selected, which allow full programmability of the field/frame sizes and DTG parameters.

Note from the table that:

• If embedded timing is used, the device is always in slave mode, because the data stream supplied to
THS8200 contains the video timing information.

• Master operation is only supported for PC graphics (VESA) formats.

• In HDTV modes with embedded timing, data is supplied to the device over a 20-bit interface, as defined in

SMPTE274/296M.

• In SDTV modes with embedded timing, data is supplied to the device over a 10-bit interface. When the video
format is interlaced, this interface is known as ITU-R.BT656 (525I, 625I). When the video format is
progressive, only 525P is supported with embedded timing. The 625P interface can be supported with
dedicated timing, using the SDTV generic mode.

• In generic modes with dedicated timing, both 20 bits (4:2:2) and 30 bits (4:4:4) are supported.

• In PC graphics modes (VESA generic), input data is either over the 30-bit interface or over the 16-/15-bit

interface and always has dedicated timing. Note that the 16-bit interface is not equivalent to a 2×8-bit version
of the 20-bit interface; see Section 4.2, Input Interface Formats, for details.

4.2 Input Interface Formats

The following figures define the input video format for each input mode, as selected by the data_dman_cntl register
setting. Video data is always clocked in at the rising edge of CLKIN. Note: for 8-bit operation with 10-bit input buses,
connect only the 8 MSBs of each input bus used, and tie the 2 LSBs to ground.

• 30-bit YCbCr/RGB 4:4:4

G0/Y0

GY[9:0]/[9:2]

CLKIN

G1/Y1 G2/Y2 G3/Y3 G4/Y4 G5/Y5 G6/Y6 G7/Y7

B0/Cb0

BCb[9:0]/[9:2]

B1/Cb1 B2/Cb2 B3/Cb3 B4/Cb4 B5/Cb5 B6/Cb6 B7/Cb7

R0/Cr0

RCr[9:0]/[9:2]

R1/Cr1 R2/Cr2 R3/Cr3 R4/Cr4 R5/Cr5 R6/Cr6 R7/Cr7

Figure 4–1. 24-/30-Bit RGB or YCbCr Data Format

• 20-bit YCbCr 4:2:2

CLKIN is equal to the 1× pixel clock. The pixel clock equals the rate of the Y input and is 2× the rate of the 2 other
channels in this input format where Cb and Cr are multiplexed onto the same input bus.

4–3

Y7(0)
Y6(0)
Y5(0)
Y4(0)
Y3(0)
Y2(0)
Y1(0)
Y1(0)

Y7(1)
Y6(1)
Y5(1)
Y4(1)
Y3(1)
Y2(1)
Y1(1)
Y1(1)

Y7(2)

Y6(2)

Y5(2)
Y4(2)
Y3(2)
Y2(2)
Y1(2)
Y1(2)

Y7(3)
Y6(3)
Y5(3)
Y4(3)
Y3(3)
Y2(3)
Y1(3)
Y1(3)

GY[9]
GY[8]
GY[7]
GY[6]
GY[5]
GY[4]
GY[3]

GY[2]

Cb7(0)
Cb6(0)
Cb5(0)
Cb4(0)
Cb3(0)
Cb2(0)
Cb1(0)
Cb0(0)

Cr7(0)

Cr6(0)

Cr5(0)
Cr4(0)
Cr3(0)
Cr2(0)
Cr1(0)
Cr0(0)

Cb7(2)

Cb6(2)

Cb5(2)
Cb4(2)
Cb3(2)
Cb2(2)
Cb1(2)
Cb0(2)

Cr7(2)
Cr6(2)
Cr5(2)
Cr4(2)
Cr3(2)
Cr2(2)
Cr1(2)
Cr0(2)

BCb[9]
BCb[8]
BCb[7]
BCb[6]
BCb[5]
BCb[4]
BCb[3]

BCb[2]

X
X
X
X
X
X
X
X

X

X

X
X
X
X
X
X

X
X
X
X
X
X
X
X

X
X
X
X
X
X
X
X

RCr[9]
RCr[8]
RCr[7]
RCr[6]
RCr[5]
RCr[4]
RCr[3]

RCr[2]

CLKIN

Data Manager

Cb7(0)
Cb6(0)

Cb5(0)
Cb4(0)
Cb3(0)

Cb7(2)

Cb6(2)

Cb5(2)
Cb4(2)
Cb3(2)

TO CH1

TO CH2

TO CH3

Y7(0)
Y6(0)
Y5(0)
Y4(0)
Y3(0)
Y2(0)
Y1(0)
Y1(0)

Y6(1)

Y7(2)

Y6(2)
Y5(2)
Y4(2)
Y3(2)
Y2(2)

Y1(2)
Y1(2)

Y7(3)

Y6(3)
Y5(3)
Y4(3)
Y3(3)
Y2(3)
Y1(3)
Y1(3)

Cb2(0)
Cb1(0)
Cb0(0)

Cb2(2)
Cb1(2)

Cb0(2)

Cr7’(1) Cr7(2)

Cr6(2)
Cr5(2)
Cr4(2)
Cr3(2)

Cr6’(1)
Cr5’(1)

Cr4’(1)
Cr3’(1)
Cr2’(1)
Cr1’(0)
Cr0’(1)

Cr2(2)
Cr1(2)

Cr0(2)

Cr7(0)

Cr6(0)

Cr5(0)

Cr4(0)

Cr3(0)

Cr2(0)

Cr1(0)

Cr0(0)

Cr7’(3)
Cr6’(3)
Cr5’(3)
Cr4’(3)
Cr3’(3)
Cr2’(3)
Cr1’(3)
Cr0’(3)

Y7(1)

Y5(1)
Y4(1)
Y3(1)
Y2(1)
Y1(1)
Y1(1)

Cb7’(1)

Cb5’(1)
Cb4’(1)
Cb3’(1)
Cb2’(1)
Cb1’(1)
Cb0’(1)

Cb6’(1)

Cb7’(3)
Cb6’(3)
Cb5’(3)
Cb4’(3)
Cb3’(3)
Cb2’(3)
Cb1’(3)
Cb0’(3)

NOTE: Where Cb’Cr’ are the output of half-band interpolation filter.

Figure 4–2. 20-/16-Bit YCbCr 4:2:2 Data Format (16-Bit Operation Shown)

When dedicated timing is used in this mode, there is a fixed relationship between the first active period of HS_IN (i.e.,
the first CLKIN rising edge seeing HS_IN active) and a Cb color component assumed present during that clock period
on the bus receiving CbCr samples. When embedded timing is used in this mode, the SAV/EAV structure also
unambiguously defines the CbCr sequence, according to SMPTE274M/296M for HDTV.

NOTE: The figure shows the case when only 8 bits of each 10-bit input bus are used.

• 10-bit YCbCr 4:2:2 (ITU mode)

CLKIN is equal to 2× the pixel clock since all components are multiplexed on a single 10-bit bus with a 4-multiple
sequence: CbYCrY. Therefore the pixel clock (i.e., the Y input rate) is 1/2 of CLKIN and the Cb and Cr rate are 1/4
of CLKIN.

4–4

When dedicated timing is used in this mode, there is a fixed relationship between the first active period of HS_IN (i.e.
the first CLKIN rising edge seeing HS active) and a Cb color component assumed present during that clock period
on the input bus. When embedded timing is used in this mode, the SA V/EAV structure also unambiguously defines
the CbCr sequence, according to ITU-R.BT656 (for 625I and 525I) and SMPTE293M (for 525P).

• 16-bit RGB 4:4:4

R7(0)
R6(0)

R5(0)
R4(0)
R3(0)
G7(0)
G6(0)
G5(0)

R7(1)
R6(1)
R5(1)
R4(1)
R3(1)
G7(1)
G6(1)
G5(1)

R7(2)
R6(2)
R5(2)
R4(2)
R3(2)
G7(2)
G6(2)
G5(2)

R7(3)
R6(3)
R5(3)
R4(3)
R3(3)
G7(3)
G6(3)
G5(3)

GY[9]
GY[8]
GY[7]
GY[6]
GY[5]
GY[4]
GY[3]

GY[2]

G4(0)
G3(0)
G2(0)

B7(0)
B6(0)
B5(0)
B4(0)
B3(0)

G4(1)
G3(1)
G2(1)

B7(1)
B6(1)
B5(1)
B4(1)
B3(1)

G4(2)
G3(2)
G2(2)

B7(2)

B6(2)

B5(2)

B4(2)

B3(2)

G4(3)
G3(3)
G2(3)

B7(3)
B6(3)
B5(3)
B4(3)
B3(3)

BCb[9]
BCb[8]
BCb[7]
BCb[6]
BCb[5]
BCb[4]
BCb[3]

BCb[2]

X
X
X
X
X
X
X
X

X
X
X
X
X
X
X
X

X

X

X
X
X
X
X
X

X
X
X
X
X
X
X
X

RCr[9]
RCr[8]
RCr[7]
RCr[6]
RCr[5]
RCr[4]
RCr[3]

RCr[2]

CLKIN

Data Manager

G7(0)
G6(0)

G5(0)
G4(0)
G3(0)
G2(0)

0
0

G7(1)
G6(1)
G5(1)
G4(1)
G3(1)
G2(1)

0
0

G7(2)
G6(2)
G5(2)
G4(2)
G3(2)
G2(2)

0
0

G7(3)
G6(3)
G5(3)
G4(3)
G3(3)
G2(3)

0
0

B7(0)
B6(0)

B5(0)
B4(0)
B3(0)

0
0
0

B7(1)
B6(1)
B5(1)
B4(1)
B3(1)

0
0

0

B7(2)
B6(2)

B5(2)

B4(2)

B3(2)

0
0
0

B7(3)
B6(3)
B5(3)
B4(3)
B3(3)

0
0
0

R7(0)
R6(0)

R5(0)
R4(0)
R3(0)

0
0
0

R7(1)
R6(1)
R5(1)
R4(1)
R3(1)

0
0
0

R7(2)
R6(2)

R5(2)

R4(2)

R3(2)

0
0
0

R7(3)
R6(3)
R5(3)
R4(3)
R3(3)

0
0
0

TO CH1

TO CH2

TO CH3

Figure 4–3. 16-Bit RGB 4:4:4 Data Format

CLKIN is equal to 1× the pixel clock. This format is only supported in VESA mode and can be used for PC graphics
applications that do not require full 8-bit resolution on each color component.

4–5

• 15-bit RGB 4:4:4

R7(0)
R6(0)

R5(0)
R4(0)
R3(0)
G7(0)
G6(0)

G5(0)

R7(1)
R6(1)
R5(1)
R4(1)
R3(1)

G7(1)
G6(1)

G5(1)

R7(2)

R6(2)

R5(2)
R4(2)
R3(2)
G7(2)
G6(2)

G5(2)

R7(3)
R6(3)
R5(3)
R4(3)
R3(3)
G7(3)
G6(3)

G5(3)

GY[9]
GY[8]
GY[7]
GY[6]
GY[5]
GY[4]
GY[3]

GY[2]

G4(0)
G3(0)
B7(0)
B6(0)
B5(0)
B4(0)
B3(0)

G4(1)
G3(1)
B7(1)
B6(1)
B5(1)
B4(1)
B3(1)

G4(2)
G3(2)
B7(2)
B6(2)
B5(2)
B4(2)
B3(2)

G4(3)
G3(3)
B7(3)
B6(3)
B5(3)
B4(3)
B3(3)

BCb[9]
BCb[8]
BCb[7]
BCb[6]
BCb[5]
BCb[4]
BCb[3]

BCb[2]

X
X
X
X
X
X
X
X

X
X
X
X
X
X
X
X

X

X

X
X
X
X
X
X

X
X
X
X
X
X
X
X

RCr[9]
RCr[8]
RCr[7]
RCr[6]
RCr[5]
RCr[4]
RCr[3]

RCr[2]

CLKIN

Data Manager

G7(0)
G6(0)

G5(0)
G4(0)
G3(0)

0
0
0

G7(1)
G6(1)
G5(1)
G4(1)
G3(1)

0
0
0

G7(2)
G6(2)
G5(2)
G4(2)
G3(2)

0
0
0

G7(3)
G6(3)
G5(3)
G4(3)
G3(3)

0
0
0

B7(0)
B6(0)

B5(0)
B4(0)
B3(0)

0
0
0

B7(1)

B6(1)

B5(1)
B4(1)
B3(1)

0
0

0

B7(2)
B6(2)

B5(2)

B4(2)

B3(2)

0
0
0

B7(3)
B6(3)
B5(3)
B4(3)
B3(3)

0
0
0

R7(0)
R6(0)

R5(0)
R4(0)
R3(0)

0
0
0

R7(1)

R6(1)

R5(1)
R4(1)
R3(1)

0
0
0

R7(2)
R6(2)

R5(2)
R4(2)
R3(2)

0
0
0

R7(3)
R6(3)
R5(3)
R4(3)
R3(3)

0
0
0

TO CH1

TO CH2

TO CH3

XXXX

Figure 4–4. 15-Bit RGB 4:4:4 Data Format

CLKIN is equal to 1× the pixel clock. This format is only supported in VESA mode and can be used for PC graphics
applications that do not require full 8-bit resolution on each color component.

4.3 Clock Generator (CGEN)/Clock Driver (CDRV)

The clock generator/clock driver blocks generate all on-chip clocks for 4:2:2 to 4:4:4 and 2× video oversampling. The
DMAN setting controls whether the input data is 4:2:2 or 4:4:4 sampled, and whether a 30-, 20- or 10-bit interface
is used. This selection affects the clock input frequency assumed to be present on CLKIN.

4–6

• 30-bit 4:4:4: 1× pixel clock. 4:2:2 to 4:4:4 interpolation should be bypassed. Optional 2× oversampling is
available for formats with pixel clock up to 80 MHz.

• 20-bit 4:2:2: 1× pixel clock. 4:2:2 to 4:4:4 interpolation should be switched in, and is available for formats
with pixel clock up to 150 MHz. Optional 2× oversampling available for formats with pixel clock up to 80 MHz.

• 10-bit 4:2:2 (ITU): 1/2× pixel clock. 4:2:2 to 4:4:4 interpolation should be switched in, and is available for
formats with pixel clock up to 150 MHz. Optional 2× oversampling is available for formats with pixel clock
up to 80 MHz.

The internal DLL (delay-locked loop) generates the higher clock frequencies. The user should program the input
frequency range selection register, dll_freq_sel, according to the frequency present on CLK_IN when using either
or both interpolation/oversampling stages.

The 4:2:2 to 4:4:4 stage is switched in or bypassed, depending on the setting of data_ifir12_bypass register
(interpolation only on chroma channels). This feature should only be used with YCbCr 4:2:2 input. The THS8200 can
perform color space conversion to RGB depending on the CSC setting. The dtg2_rgbmode_on register should be
set corresponding to the color space representation of the DAC output.

The 2× oversampling stage is switched in or bypassed, depending on the setting of data_ifir35_bypass register.
The user should not enable the 2× oversampling stage when the CLK_IN frequency exceeds 80 MHz, as is the case

for the higher PC graphics formats and 1080P HDTV. In this case the DLL should be bypassed using the vesa_clk
register to disable the 2× frequency generation. As explained in the detailed register map description for this register,
it is still possible to support 20-bit 4:2:2 input in this mode (e.g., for 1080P).

A second bypass mode operation exists for the DLL, enabled by the dll_bypass register. When this bypass mode is
active, the CLKIN input is assumed to be 2× pixel frequency. This mode is meant only for test purposes as it does
not correspond to any mode in the supported input formats table.

4.4 Color Space Conversion (CSC)

THS8200 contains a fully-programmable 3×3 multiply/add and 3×1 adder block that can be switched in for all video
formats up to a pixel clock frequency of 150 MHz. Color space conversion is thus available for all DTV modes,
including 1080P and VESA modes up to SXGA at 75 Hz (135 MSPS). The operation is done after optional 4:2:2 to
4:4:4 conversion, and thus on the 1× pixel clock video data prior to optional 2× video oversampling. The CSC block
can be switched in or bypassed depending on the setting of register csc_bypass.

Each of the nine floating point multiplier coefficients of the 3×3 multiply/add is represented as the combination of a
6-bit signed binary integer part, and a 10-bit fractional part. The integer part is a signed magnitude representation
with the MSB as the sign bit. The fractional part is a magnitude representation; see the following example.

The register nomenclature is: csc_<r,g,b> <i,f>c<1,2,3> where:

• <r,g,b> identifies which input channel is multiplied by this coefficient (r = red/Cr, g = green/Y, b = blue/Cb
input)

• <i,f> identifies the integer (i) or fractional (f) part of the coefficient

• <1,2,3> identifies the output channel from the color space converter: 1 = Yd/Gd, 2 = Cb/Bd, 3 = Cr/Rd

For the offset values, a value of 1/4 of the desired digital offset needs to be programmed in the individual offset register ,
so a typical offset of 512 (offset over 1/2 of the video range) requires programming a value of 128 decimal into the
offset<1,2,3> registers, where again <1,2,3> defines the output channel affected, with similar convention as shown
previously.

Saturation logic can be switched in to avoid over- and underflow on the result after color space conversion using the
csc_uof_cntl register.

We next show an example of how to program the CSC. This also explains the numeric data formats.

CSC configuration example: HDTV RGB to HDTV YCbCr

4–7

The formulas for RGB to YCbCr conversion are:

• Yd = 0.2126*Rd + 0.7152*Gd + 0.0722*Bd

• Cb = –0.1172*Rd – 0.3942*Gd + 0.5114*Bd + 512

• Cr = 0.5114*Rd – 0.4646*Gd – 0.0468*Bd + 512

To program the red coefficient of channel 1 (Y) with the value of 0.2126 the following must be done:

1. Realize that this is a positive value so the sign bit of the integer part is 0. (bit 5 of csc_ric1 = 0)

2. Note that there is no integer portion of the coefficient (bit 4–bit 0 = 00000).

3. The binary representation of the fractional part can be constructed directly from the binary equivalent of the
fractional part multiplied by 1024 (0.2126 × 1024 = 217.7), rounded to the nearest integer (218) and
represented as a binary 10-bit number (00 1101 1010).

Using the above method all the registers for the CSC blocks can be programmed with the correct value for RGB to
YCbCr conversion. Below is a complete list of register values for the above conversion.

0.2126 –> csc_ric1 = 00 0000 csc_rfc1 = 00 1101 1010

0.7152 –> csc_gic1 = 00 0000 csc_gfc1 = 10 1101 1100

0.0722 –> csc_bic1 = 00 0000 csc_bfc1 = 00 0100 1010

–0.1172 –> csc_ric2 = 10 0000 csc_rfc2 = 00 0111 1000
–0.3942 –> csc_gic2 = 10 0000 csc_gfc2 = 01 1001 0100

0.5114 –> csc_bic2 = 00 0000 csc_bfc2 = 10 0000 1100

0.5114 –> csc_ric3 = 00 0000 csc_rfc3 = 10 0000 1100

–0.4646 –> csc_gic3 = 10 0000 csc_gfc3 = 01 1101 1100
–0.0468 –> csc_bic3 = 10 0000 csc_bfc3 = 00 0011 0000

For the offsets necessary in the second and third equation the csc_offset<n> registers need to be programmed. We
need to add 512 to the Cb and Cr channels. The value to be programmed is 1/4 of this offset in a signed magnitude
representation, thus 128 or csc_offset2 = csc_offset3 = 00 1000 0000.

Packing these individual registers into the I

2

C register map, the programmed values are:

SUBADDRESS REGISTER NAME VALUE SUBADDRESS REGISTER NAME VALUE

0x04 csc_r11 0000 0000

0x0F csc_g32 1101 1100
0x05 csc_r12 1101 1010 0x10 csc_b11 0000 0000
0x06 csc_r21 1000 0000 0x11 csc_b12 0100 1010
0x07 csc_r22 0111 1000 0x12 csc_b21 0000 0010
0x08 csc_r31 0000 0010 0x13 csc_b22 0000 1100
0x09 csc_r32 0000 1100 0x14 csc_b31 1000 0000
0x0A csc_g11 0000 0010 0x15 csc_b32 0011 0000
0x0B csc_g12 1101 1100 0x16 csc_offs1 0000 0000
0x0C csc_g21 1000 0001 0x17 csc_offs12 0000 1000
0x0D csc_g22 1001 0100 0x18 csc_offs23 0000 0010
0x0E csc_g31 1000 0001 0x19 csc_offs3 0000 0000

CSC configuration example: HDTV YCbCr to HDTV RGB

• Gd = –0.4577*Cr + Yd – 0.1831*Cb +328 (= 0.6408*128*4)

• Bd = 0*Cr + Yd + 1.8142* Cb – 929 (= –1.8142*128*4)

• Rd = 1.5396* Cr +Yd +0*Cb – 788 (= –1.5396*128*4)

4–8

In a similar manner, it can be calculated that the programming array is in this case:

SUBADDRESS REGISTER NAME VALUE SUBADDRESS REGISTER NAME VALUE

0x04 csc_r11 1000 0001

0x0F csc_g32 0000 0000
0x05 csc_r12 1101 0101 0x10 csc_b11 1000 0000
0x06 csc_r21 0000 0000 0x11 csc_b12 10111011
0x07 csc_r22 0000 0000 0x12 csc_b21 0000 0111
0x08 csc_r31 0000 0110 0x13 csc_b22 0100 0010
0x09 csc_r32 0010 1001 0x14 csc_b31 0000 0000
0x0A csc_g11 0000 0100 0x15 csc_b32 0000 0000
0x0B csc_g12 0000 0000 0x16 csc_offs1 0001 0100
0x0C csc_g21 0000 0100 0x17 csc_offs12 1010 1110
0x0D csc_g22 1000 0000 0x18 csc_offs23 1000 1011
0x0E csc_g31 0000 0100 0x19 csc_offs3 0001 0100

4.5 Clip/Scale/Multiplier (CSM)

There are limits on the code range of the video data if sampled according to ITU or SMPTE standards. In other words,
the full 10-bit range [0:1023] is not used to represent video pixels. For example, typically 64 decimal is the lowest code
allowed to represent a video signal and corresponds to the blanking level. Similarly for Y, typically the maximum code
is 940 decimal. Excursions outside this range can be the result of digital video processing.

THS8200 can handle such instantaneous excursions in either of two ways: by limiting the input codes to
programmable max/min values, or by allowing such excursions to occur.

Depending on which approach is chosen, the user can scale up the video data in the CSM to make sure the full-scale
dynamic range of the DAC is used for optimal performance when using limiting. Alternatively, the instantaneous
excursions outside the code range can be output by the DAC in the analog output signal (allowing super-white/black
in analog output) when this clipping is disabled.

The CSM block allows the user to specify the behavior of THS8200 with such reduced-swing input video codes. It
consists of the following:

1. an optional clipping of the input video data at a high and low limit, where the limits are individually
programmable per channel

2. a downward shift of the input video data, where the shift amount is individually programmable per channel

3. a multiply (magnitude scaling) function of the video data, where the multiplier coefficient is individually
programmable per channel.

4.5.1 Clipping

Clipping (limiting) of the video input data can be turned on or off on a per-channel basis, and selectively at the high
and/or low end, by programming the csm_<gy ,rcr,bcb>_<high,low>_clip_on registers. The high/low clipping values
can be programmed on a per-channel basis using registers csm_clip_<gy,rcr,bcb>_<high,low>.

Figure 4–5 shows a typical situation to clip ITU-R.BT601 sampled video signals.

4–9

1023

940

817.3 mV

751.1 mV

51.1 mV

255 767511

64

0

Input Digital Codes

Analog Output From DACs

Ramping Analog Output With Clipping Effect on Top and Bottom

Output After

Clipping

Output Before

Clipping

Figure 4–5. Effect of Clipping on Analog Output

4.5.2 Shifting

Next the video data can be shifted over a programmable amount downward. The number of codes over which to shift
the input video data is set per channel by programming csm_shift_<gy ,rcr ,bcb>. Shifting of the input video data can
be done downwards over 0..255 codes inside the CSM.

1023

940

817.3 mV

751.1 mV

51.1 mV

255 767511

64

0

Input Digital Codes

Analog Output From DACs

Ramping Analog Output With Clipping Effect on Top and Bottom

700.0 mV

876

Output After

Clipping and

Shifting

Output After

Clipping

Figure 4–6. Effect of Shifting on Clipped Analog Output

4–10

Figure 4–5 and Figure 4–6 also show the analog output from the DAC if the full-scale video range over the [64..940]
input would correspond to the normal 700 mV range for component video. This full-scale range is set by the selected
FSADJ full-scale setting (register data_fsadj).

4.5.3 Multiplying

When the 10-bit range is not fully used for video, we can scale the input video data to use the full 10-bit dynamic range
of the DACs. Care should be taken not to over/underflow the available range after scaling.

This multiplying control serves two purposes:

• Use of the full 10-bit DAC range for inputs of reduced range

• Individual fine gain control per channel to compensate for gain errors and provide white balance control

1023

964

817.3 mV

770.0 mV

255 767511

0

Input Digital Codes

Analog Output From DACs

Ramping Analog Output With 1:1.1 AC Range Fine Scaling

Range After

Scaling Up 1:1.1

700.0 mV

876

DC Shifted

Original AC Range

Figure 4–7. Effect of Scaling the Analog Video Output

Figure 4–7 illustrates a shifted analog ramping output. The multiplication factor could be calculated to scale this
output range to the full 10-bit range of the DAC. Note that this scaling can be programmed individually per channel
using registers csm_mult_<gy ,rcr,bcb>. The range of the multiplication is 0..1.999, coded as a binary weighted 1 1-bit
value, thus: csm_mult_<gy,rcr,bcb> = (Desired scale ( 0 to 1.999) / 1.999) × 2047

Note that this approach allows to scale input code ranges that are different on each channel to an identical full-scale
DAC output compliance, as is required for ITU-R.BT601 sampled signals where Y video data is represented in the
range [64..940] and both Cb,Cr color difference channels are coded within the range [64..960]. All three channels
need to generate a 700-mV nominal analog output compliance. Using a combination of FSADJ—adjusting the
full-scale current of all DAC channels simultaneously in the analog domain—and digital CSM control, different
trade-offs can be made for DAC output amplitude control, including channel matching.

As discussed in Display Timing Generator (Section 4.7), the user also controls the DAC output levels during blanking,
negative and positive sync, pre- and post-equalization, and serration pulses. Using a combination of CSM and DTG
programming, it is therefore possible to accommodate many video standards, including those that require a video
blank-to-black level setup, as well as differing video/sync ratios (e.g., 10:4 or 7:3).

Finally, using the selectable full-scale adjustment from the FSADJ1 or FSADJ2 terminals, it is possible to switch
between two analog output compliance settings with no hardware changes.

Physically , the CSM output is represented internally as an 1 1-bit value to improve the DAC linearity at the 10-bit level
after scaling. Each DAC internally is of 11-bit resolution.

4–11

4.6 Interpolating Finite Impulse Response Filter (IFIR)

For relaxing the requirements of the reconstruction filter behind the DAC in the analog domain, and in order to take
advantage of the high-speed capability of the DACs in THS8200, a 2× digital up-sampling and interpolation filter
module is integrated.

Figure 4–8 through Figure 4–11 show the YRGB and CbCr filtering requirements for HDTV (SMPTE274M/296M
standards) and SDTV (ITU-R.BT601 standard), respectively.

0.20 fs

1+δ

Frequency

1

0.25 fs

1–δ

–6 dB

–40 dB
–50 dB

0.30 fs 0.37 fs

Magnitude

NOTE: δ = 0.05 dB. fs=74.25 MSPS for 1080I and 720P HDTV formats.

Figure 4–8. PB and PR Filter Requirements Based on SMPTE 296M/274M

4–12

0.40 fs

1+δ

Frequency

1

0.50 fs

1–δ

–12 dB

40 dB
50 dB

0.60 fs 0.73 fs

Magnitude

NOTE: δ = 0.05 dB. fs=74.25 MSPS for 1080I and 720P HDTV formats.

Figure 4–9. Y and RGB Filter Requirements Based on SMPTE 296M/274M

5.75

1+δ

Frequency (MHz)

1

6.75

1–δ

–12 dB

–40 dB

8.0

Magnitude

NOTE: δ = 0.05 dB.

Figure 4–10. Y and RGB Filter Requirements Based on ITU-R.BT601

4–13

2.75

1+δ

Frequency (MHz)

1

3.375

1–δ

–6 dB

–40 dB

4.0

Magnitude

NOTE: δ = 0.05 dB

Figure 4–11. Cb and Cr Filter Requirements Based on ITU-R.BT601

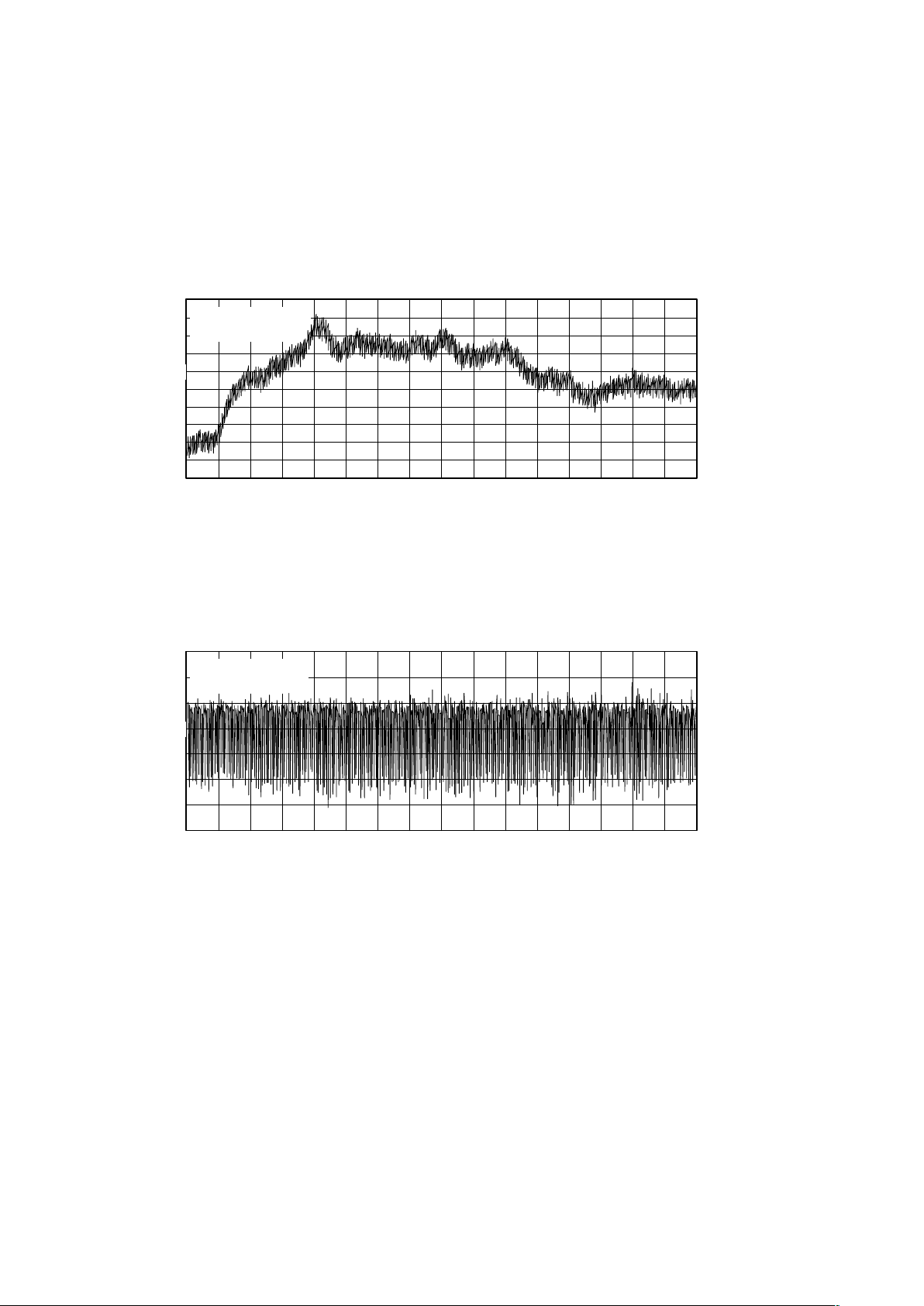

Figure 4–12 through Figure 4–14 illustrate the frequency and phase responses of the interpolating filters. The actual
response using the finite-word length coefficients present in THS8200 is shown. The same filter characteristic is used
for SDTV/HDTV modes and for both 4:2:2 to 4:4:4 interpolation (2 filters, one on each of Cb and Cr channels, switched
in when a 4:2:2 input mode is selected on DMAN to interpolate chrominance from 1/2 to 1× pixel clock rate) as well
as for 2× video oversampling (3 filters, one on each DAC channel, switched in when 2× interpolation is activated).

f – Frequency – Rad

–90

–80

–70

–60

–50

–40

–30

–20

–10

0

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

Magnitude – dB

MAGNITUDE

vs

FREQUENCY

f – Frequency – Rad

0

1

2

3

4

5

6

7

8

9

10

0.00 0.25 0.50 0.75 1.00 1.25 1.50

Magnitude – dB

MAGNITUDE

vs

FREQUENCY

0.01

0.008

0.006

0.004

0.002

0

–0.002

–0.004

–0.006

–0.008

–0.01

Figure 4–12. IFIR Frequency Response

Figure 4–13. IFIR Pass-Band Frequency Response

4–14

f – Frequency – Rad

–4

–3

–2

–1

0

1

2

3

4

0.0 0.5 1.0 1.5 2.0 2.5 3.0

Magnitude – dB

MAGNITUDE

vs

FREQUENCY

Figure 4–14. IFIR Phase Response

Each of the two interpolation stages can be switched in or bypassed:

• Register data_ifir12_bypass controls the 4:2:2 to 4:4:4 filter bank (these filters should be set active when
a 4:2:2 input mode is selected on DMAN).

• Register data_ifir35_bypass controls the 1× to 2× interpolation stage and can be set active for optional 2×
interpolation when an input format with pixel clock < 80 MSPS is present.

4.7 Display Timing Generator (DTG)

4.7.1 Overview of Functionality

THS8200 can generate dedicated Hsync/Vsync/FieldID video synchronization outputs, as well as a composite sync
inserted on either the G/Y or all analog output channels. Both types of output synchronization can be available
simultaneously and programmed independently . Synchronization patterns are fully programmable to accommodate
all standard VESA (PC graphics) and ATSC (DTV) formats as well as nonstandard formats.

For the purpose of output video timing generation, the device is configured in HDTV, SDTV or VESA mode
(dtg1_mode register). Depending on the selected DTG mode, a number of line types are available to generate the
full video frame format. The timing and position of horizontal and vertical syncs, the position of horizontal and vertical
blanking intervals, and the structure, position and width of equalization pulses, pre- and post-serration pulses within
the vertical blanking interval are user-programmable.

The DTG determines:

• the frame format/field format (number of pixels/line, number of lines/field1, number of lines/field2, number
of fields/frame = 1 for progressive or 2 for interlaced formats) and its synchronization to the input data source

– registers: dtg1_total_pixels, dtg1_linecnt, dtg1_frame_size, dtg1_field_size

• in slave mode, whether HS_IN, VS_IN, FID (dedicated sync inputs) are used for input video synchronization
or video timing is extracted from embedded SAV/EAV codes, as well as the relative position of the video
frame with respect to these synchronization signals

– registers: dtg2_embedded_timing, dtg2_hs_in_dly, dtg2_vs_in_dly

4–15

• the I/O direction of the HS_IN and VS_IN input signals (master vs slave mode), and the polarity of the
HS_IN, VS_IN, and FID signals

– registers: dtg2_hs_pol, dtg2_vs_pol, dtg2_fid_pol

• the position and width of the HS_OUT, VS_OUT output signals, and their polarity
– registers: dtg2_hlength, dtg2_hdly, dtg2_vlength1, dtg2_vdly1, dtg2_vlength2, dtg2_vdly2,

dtg2_vsout_pol, dtg2_hsout_pol

• field reversal within DTG
– register: dtg1_field_flip

• the active video window: width and position of horizontal blanking interval, width and position of vertical
blanking interval

– registers: dtg2_bp<n>, dtg2_linetype<n> and the dtg1_spec_x registers, see DTG Line Type Overview

(Section 4.7.3).

• the composite sync format: horizontal line timing includes serration, interlaced sync and broad pulses on
each line in vertical blanking interval, width of vertical sync

– registers: dtg1_mode, dtg1_spec_<a,b,c,d,d1,e,g,h,i,k,k1>

• the behavior of the composite sync insertion: inserted on G/Y -channel only, or inserted on all channels, or
no composite sync insertion; the amplitudes of the inserted negative and positive sync, the amplitudes of
all serration pulses and broad pulses during the vertical blanking interval

– registers: dtg1_<y,cbcr>_sync_high, dtg1_<y,cbcr>_sync_low

• the DAC output amplitude during blanking and whether video data is passed or not during the active video
portion of lines within the vertical blanking interval that contain no vertical sync, serration, or broad pulses

– registers: dtg1_<y,cbcr>_blank, dtg1_pass_through

• the width of each color bar of the color bar test pattern
– registers: dtg1_vesa_cbar_size

4.7.2 Functional Description

The user should program the DTG with the correct parameters for the current video format. The DTG contains a line
and a pixel counter, and a state machine to determine which user–defined line waveform to output for each line on
the analog outputs. The pixel counter counts horizontally up to the total number of pixels per line, programmed in
‘dtg1_total_pixels’. The line counter counts up to ‘dtg1_field_size’ lines in the first field, and continues its count up
to ‘dtg1_frame_size’ lines in the total frame (field1+field2).

The current field is derived from the even/odd field ID signal, which is sampled at the start of the Vsync period. The
source for the internal FID signal can be either the signal to the FID terminal, or can be internally derived from relative
Hsync/Vsync alignment on the corresponding terminals, as selected by ‘dtg2_fid_de_cntl’ and the current DTG mode
(VESA vs. SDTV/HDTV). See register map description of ‘dtg2_fid_de_cntl’ for more details. Derivation of FID from
Hsync/Vsync input alignment is done according to the EIA–861 specification. There is a tolerance implemented on
Hsync/Vsync transition misalignment. When the active edge of the Vsync transition occurs within +/– 63 clock cycles
from the active edge of Hsync, both signals are interpreted as aligned, which signals field 1. Because of this timing
window, the internal FieldID signal is generated later than the start of Vsync period. Since the signal is internally
sampled at the start of the Vsync period to determine the current field, the field interpretation is opposite. Use the
‘field_flip’ register to correct this through field reversal.

If the video format is progressive, only field1 exists and no FID signal is needed. However the DTG will only startup
when a field 1 condition is detected i.e when FID is detected low at the start of the Vsync period. Thus in the case
of a progressive video format, and when using the device with external FID input, the user must make sure to keep
the FID terminal low.

4–16

It is also needed for proper DTG synchronization that the programmed Hsync and Vsync input polarities are correct.
Since Hsync, Vsync polarities change for different VESA PC formats, the device has built–in support to detect the
incoming sync polarities. This is done by comparing the width of Hsync high (‘misc_ppl’) to the total line length
(‘dtg2_pixel_cnt’) to derive the Hsync duty cycle and thus its polarity . Upon this detection, the user can program the
detected incoming polarity for DTG input synchronization (‘dtg2_hs_pol’) – it is not set automatically by the device.
The procedure is similar for Vsync polarity detection, using registers ‘misc_lpf’, ‘dtg2_line_cnt’ and ‘dtg2_vs_pol’.

The DTG synchronization can be separated into three functions:

• Internal synchronization: how the DTG is synchronized with respect to the internal horizontal and vertical
counters

• Source synchronization: how the horizontal and vertical counters are synchronized to the
HS_IN/VS_IN/FID or SAV/EAV signals

• Output synchronization: how the output timings HS_OUT, VS_OUT, and the composite sync output are
synchronized to the DTG and the horizontal and vertical counters

The DTG is based on a state machine that can generate a set of line types which can override the values on the DAC
inputs. The DTG output is multiplexed into the data path by the DIGMUX. The selected video format preset setting,
or the programmed (line type, breakpoint) table in case a generic mode is selected in dtg1_mode, determines which
line type is generated for a particular line, and where this DTG output is used to override the normal DAC inputs.
Internally, a fixed preconfigured number of line types exists from which the user can select.

Also, for each set of line types (we will see next there are two different sets of line types possible) the user can program
the horizontal duration of each predefined excursion (negative sync, positive sync, back porch, front porch, broad
pulse, interlaced sync, etc.) and also the amplitude (e.g., negative sync amplitude, positive sync amplitude, blank
amplitude).

The setting of dtg1_mode determines:

• Internal synchronization: the 0H reference (horizontal reset of the DTG) is different between SDTV and
HDTV.

• Output synchronization: the available set of output synchronization line types depends on these modes.
The user can choose from a number of predefined line types for each mode. In each mode, the user is able
to program the timings along the line. However some timings are hard coded by the selected DTG_mode
(e.g., rise/fall times for sync are different; see DTG Line T ype Overview , Section 4.7.3) and not all line types
can be selected in each DTG mode (e.g., HDTV allows tri-level sync, while SDTV only allows generation
of bi-level negative syncs).

4.7.2.1 Predefined DTG Video Formats (presets)

While the DTG has the flexibility to generate a wide array of video output formats and their synchronization signals,
the most common video formats have predefined settings for the field and frame sizes and for (line type, breakpoint)
settings.

When selecting a video format preset, the horizontal timings of the line types still need to be programmed. The preset
only fixes the (line type, breakpoint) table.

4.7.2.2 Internal Synchronization

The pixel and line counters of the DTG are reset by internal signals. In slave mode (THS8200 slaves to external video
input source) these signals are derived from either the embedded SA V/EAV codes or the dedicated Hsync/Vsync/FID
inputs. In master mode, these counters are in free-run and the HS_IN/VS_IN signals are generated by the THS8200
based on the programmed field/frame parameters. Master mode is only available for progressive-scan VESA modes.
FID is not generated in master mode.

The user can delay , in both horizontal and vertical directions, the 0-reference of the DTG by programming the input
delay registers. Physically, the horizontal and vertical DTG startup values are altered. The effect is that, when a

4–17

vertical or horizontal sync is received, either from dedicated inputs or from embedded SAV/EAV codes, the output
frame starts at position (x,y). This ensures that, for example, the output video frame can be centered on the display .

Based on the 0-reference of the DTG, the line types are generated and the DIGMUX will select between the video
input and the DTG output for each line type. All horizontal timings of the different line types are programmable,
including the portion of the video line seen as active video. A complete overview of all available line types in either
SDTV or HDTV mode is presented in Section 4.7.3.

Additionally , Hsync/Vsync outputs can be generated, synchronized to the THS8200 DAC outputs. These outputs are
programmable in width, position and polarity , based on the horizontal/vertical pixel counters, and thus independently
of the DTG reference. This ensures that independent synchronization is possible between the composite sync output
inserted into the DAC output(s) and the dedicated Hsync/Vsync outputs. Because of their programmability, these
output signals could be used for other purposes as well; e.g., Vsync could be programmed as a signal active during
the VBI.

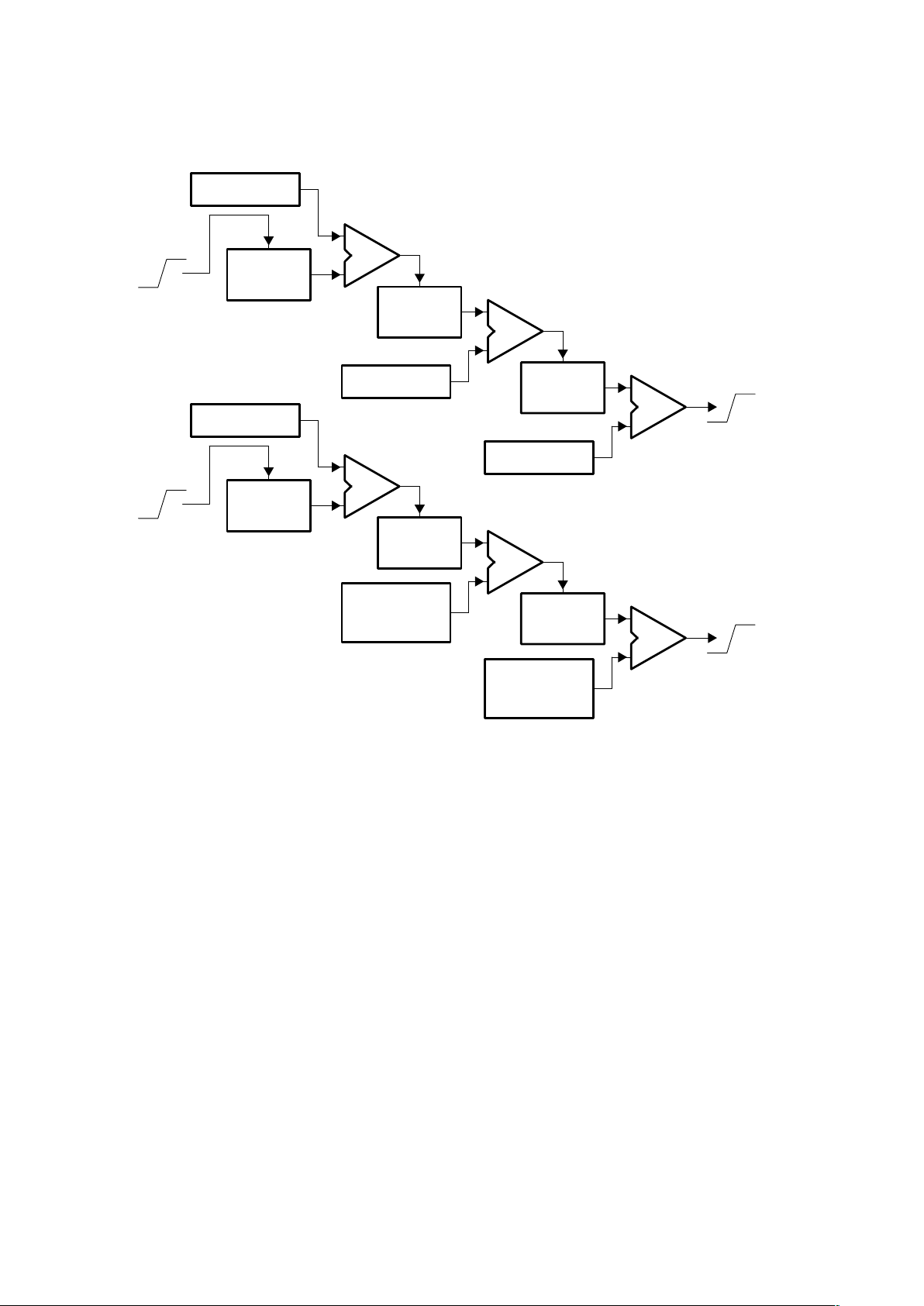

Figure 4–15 shows how the internal pixel and line counters are synchronized to internal HS and VS signals in slave
mode. HS and VS are internal signals derived from either HS_IN, VS_IN, or from embedded SA V/EAV codes in the
input video data. Since the 0-reference of the DTG is determined by these counters, the dtg2_vs_in_dly and
dtg2_hs_in_dly register settings influence both HS_OUT, VS_OUT and composite sync output timing. The
dtg2_vdly<1,2> and dtg2_hdly settings, on the other hand, only affect HS_OUT and VS_OUT, because they are
downstream of the pixel counter. Likewise, dtg2_hlength and dtg2_vlength<1,2> only affect these dedicated sync
output signals.

4–18

>

HS (Input)

dtg2_hs_in_dly

RESET

Counter

RESET

Pixel

Counter

dtg2_hdly

>

=

=

RESET

Counter

dtg2_hlength

>

<

HS_Out

>

VS (Input)

dtg2_vs_in_dly

RESET

Counter

RESET

Line

Counter

>

=

=

RESET

Counter

dtg2_vlength

or

dtg2_vlength2

>

<

VS_Out

dtg2_vdly

or

dtg2_vdly2

Figure 4–15. THS8200 DTG VS/HS Output Generation

Note that both independent sets of delay registers allow accommodation of different input timing references in slave
mode. When the device is configured in master mode, the delay registers can compensate for different external
(frame memory) synchronization requirements.

4.7.2.3 Output Synchronization: Composite Sync

The composite sync is generated from a programmed sequence of (line type, breakpoint) combinations, either
user-programmed (in generic mode) or preset (in preset mode). The line type determines the waveform shape at the
output of the DAC(s) with programmable amplitudes and timings.

On each line, at the horizontal reference point of the DTG, the DTG decides where to start/stop the DTG-generated
data and where to pass input video data. For example, during an active video line, ancillary data can be embedded
in the digital stream outside the active video portion of the line, that we might want to convert to analog. Alternatively ,
during a nonactive video line, where normally the predefined line type would be inserted, ancillary data might need
to be passed during the active video portion of the line.

The amplitudes of positive, negative sync excursions and of the negative serration, pre- and post-equalization and
broad pulses are independently programmable between G/Y and BPb, RPr channels. Therefore sync insertion can
be programmed on only the G/Y output or on all DAC outputs.

In order to limit the number of selection bits to select the line type, and because of the fact that we can define a set
of line types that is mutually exclusive for SDTV and HDTV video modes, there are two DTG video modes: SDTV and
HDTV. There is a third DTG mode (VESA) which does not use the line type/breakpoint state machine and only
generates Hsync/Vsync outputs.

4–19

4.7.2.4 Output Synchronization: Hsync/Vsync Outputs

These are the HS_OUT and VS_OUT signals, of which the width, position and polarity are programmable in all DTG
modes.

4.7.3 DTG Line Type Overview

4.7.3.1 HDTV Mode

When an HDTV mode is selected in dtg1_mode (preset or generic), a tri-level sync is inserted on the analog output
at the start of every video line. The amplitudes during negative and positive excursions are programmable, as well
as the horizontal timing parameters (width, position) of both excursions.

The transition time for negative-to-blank and blank-to-positive excursions during VBI is fixed to 2T, generating a
tri-level sync negative-to-positive excursion of 4T. The line type is programmed in registers dtg2_linetype<n> and is
output by the DTG from the vertical field/frame position corresponding to the line number programmed in register
dtg2_breakpoint<n>, until the line number listed in the next breakpoint register is reached. An example for 1080I is
shown in Figure 4–25.

The DTG overrides the input video data except where specified below for the specific line types.

4–20

The horizontal timings shown in Figure 4–16 and Figure 4–17 correspond to the dtg1_spec_<x> registers. Note that
the f spec is fixed.

S

p

f

f

f

Sp/2

Sp/2

V/2

V/2

S

m

Sm/2

Sm/2

a

c

b

d

e

OH Line Sync Timing References

f

2

90%

10%

f

1

f

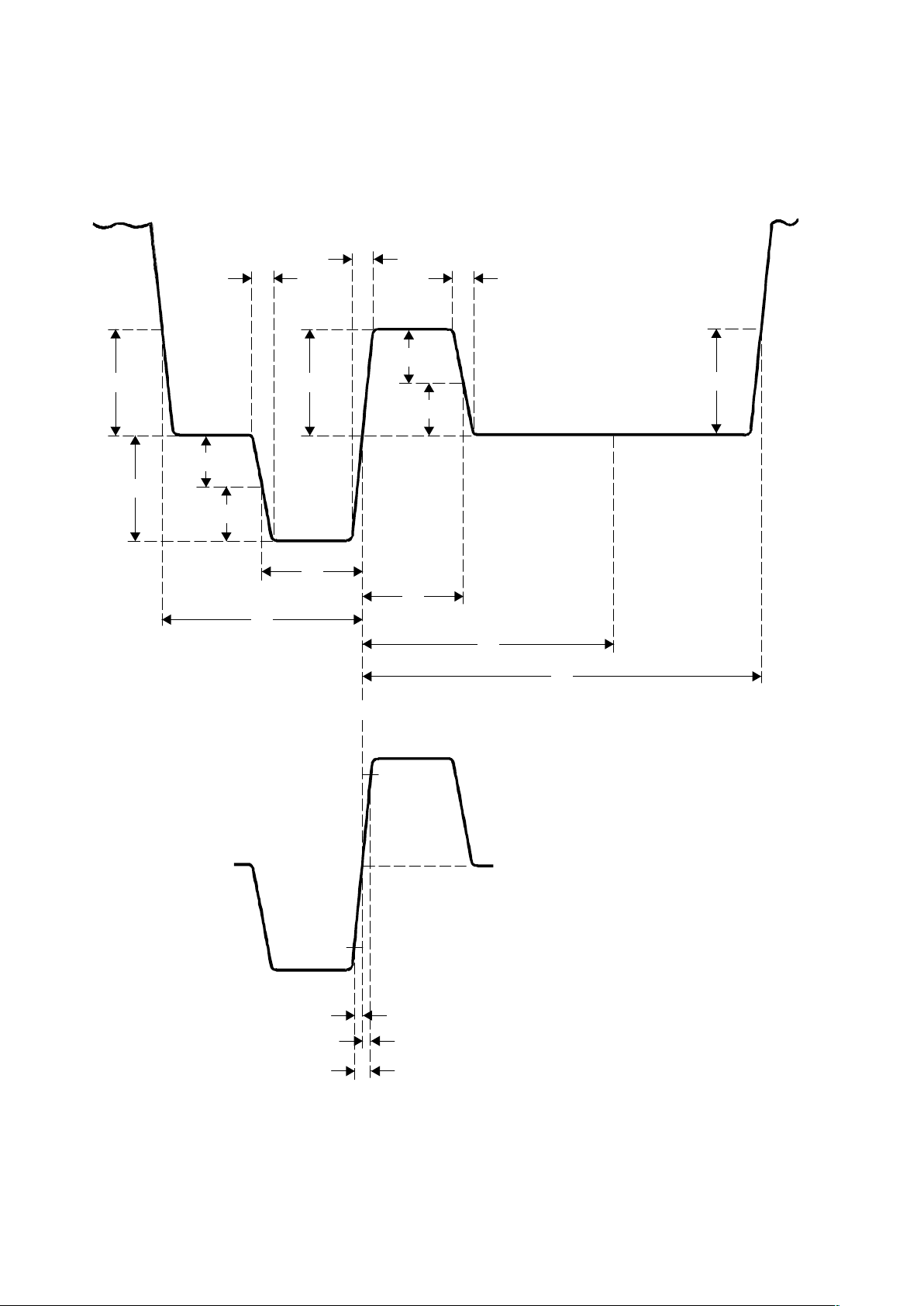

Figure 4–16. Tri-Level Line-Synchronizing Signal Waveform

4–21

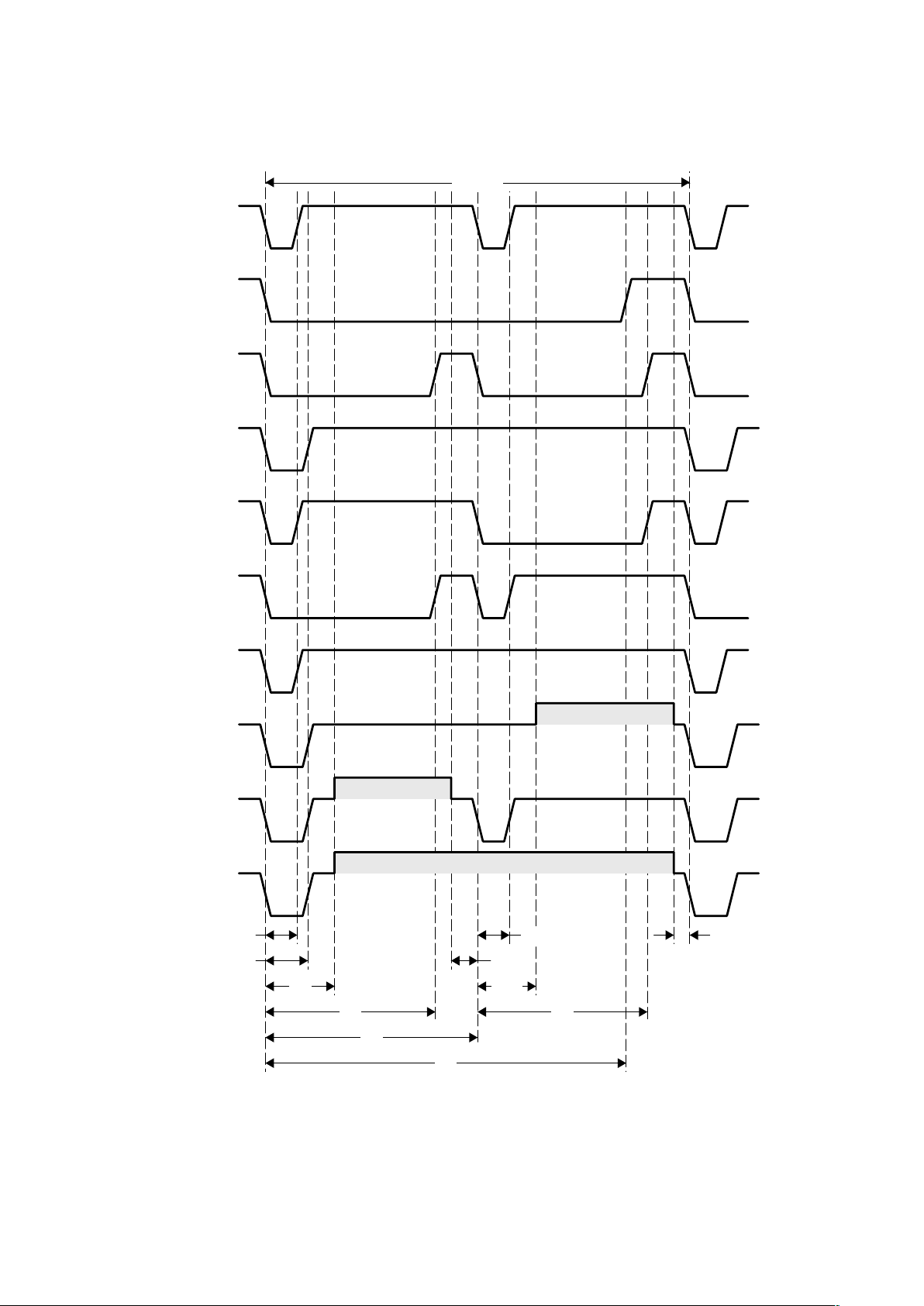

In addition: Active video linetype (ACTIVE_VIDEO)

f

a c

g g

1 Line

O

H

f

f

O

H

1 Line

O

H

O

H

Blank Level (FULL_NTSP)

Interlaced Sync (NTSP_NTSP)

1 Line

O

H

O

H

f

d h1

f

Broad Pulse (FULL_BTSP)

k

a c

g h

1 Line

O

H

O

H

Interlaced Sync and Broad Pulse in 2nd Half (NTSP_BTSP)

f f

kd

f

a c

g

h

1 Line

O

H

f

f

O

H

Broad Pulses and Interlaced Sync (BTSP_BTSP)

f f

kd

f

h kd

f

a c

g

1 Line

O

H

O

H

Broad Pulse in 1st Half With Interlaced Sync (BTSP_NTSP)

f

h kd

g

f

f

f

f

f

f

f

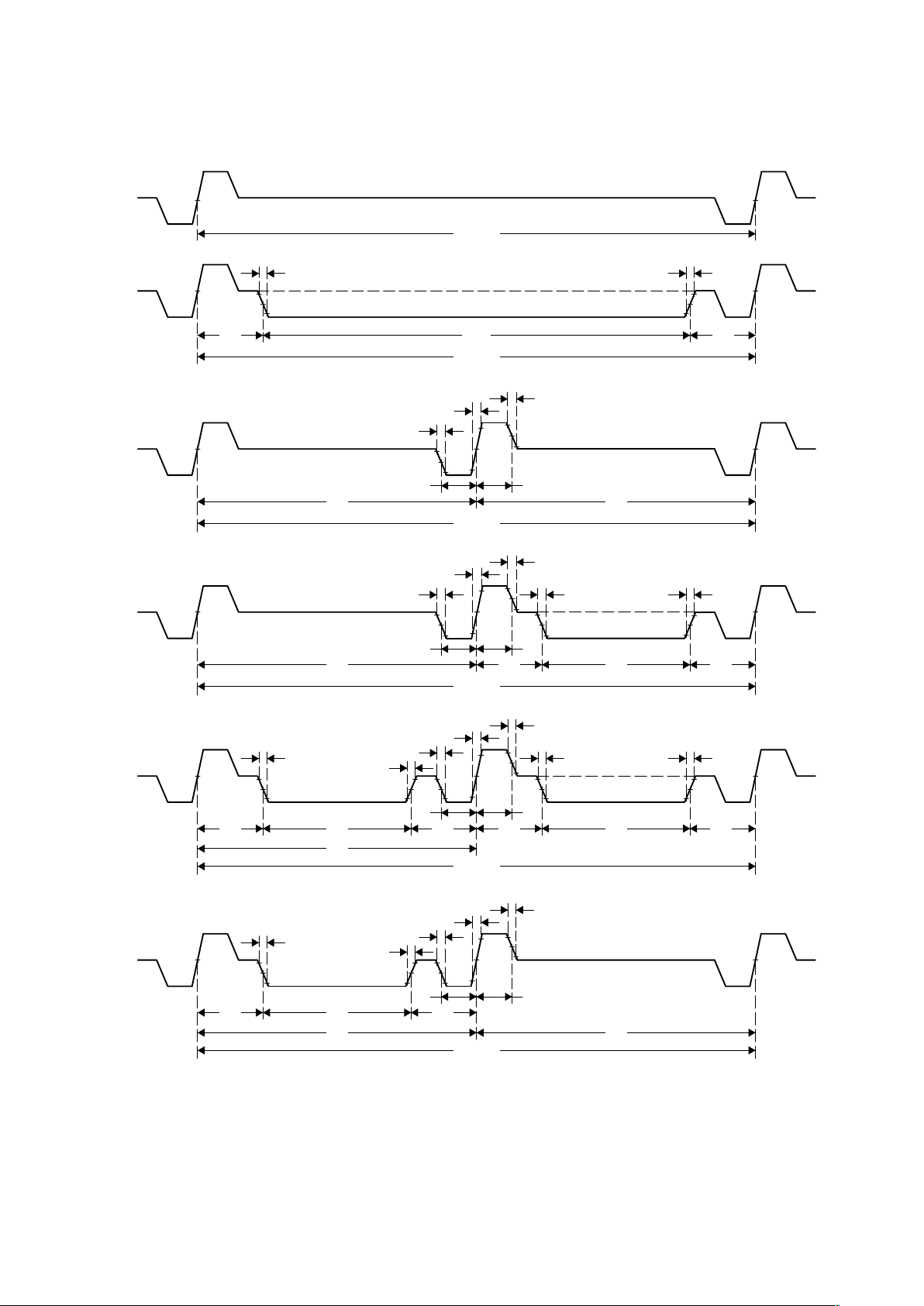

Figure 4–17. THS8200 VBI Line Types in HDTV Mode

4–22

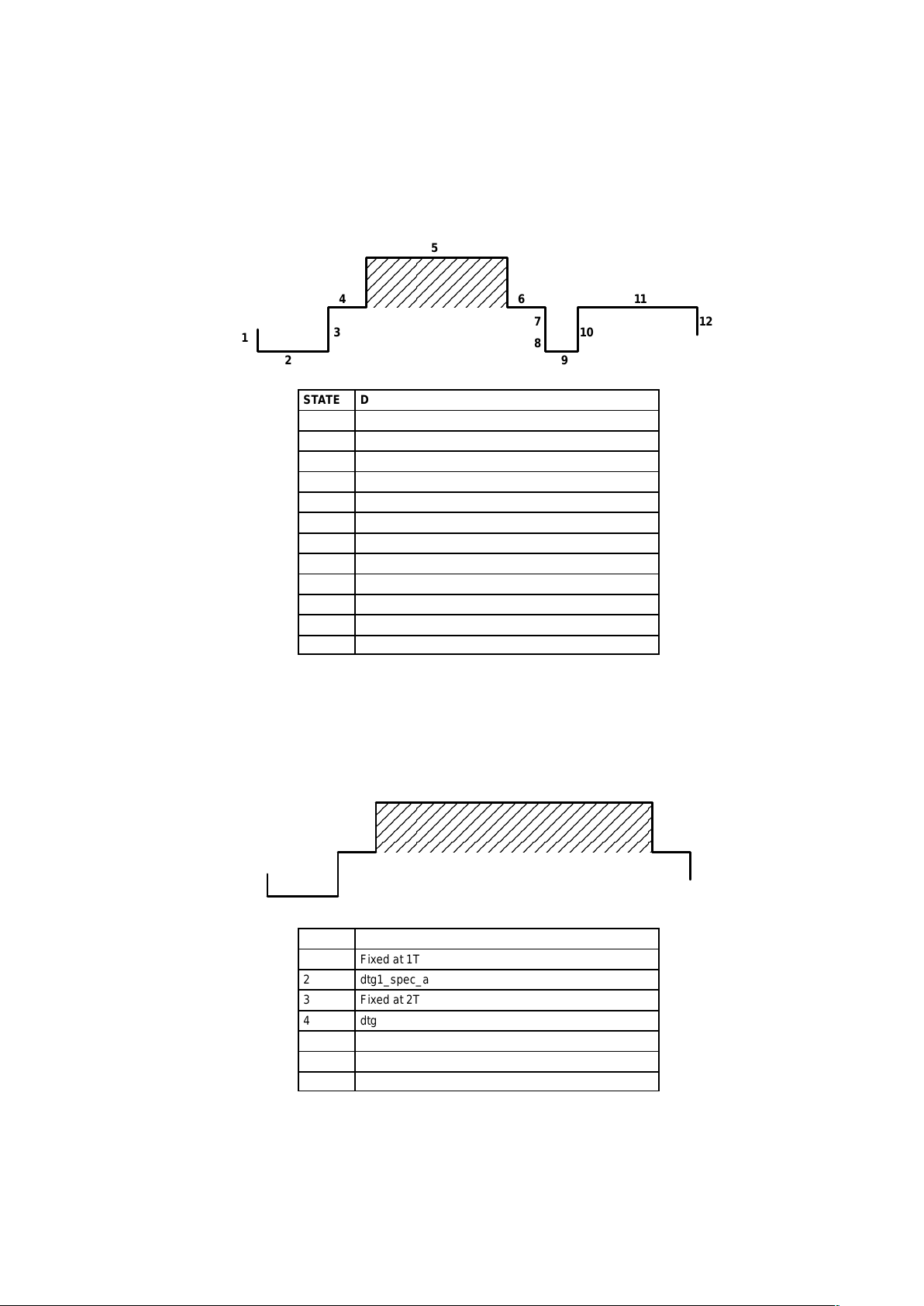

4.7.3.2 Active Video

1

2

8

9

3

4

7

6

5

STATE DURATION

1 Fixed at 2T
2 dtg1_spec_c-4
3 Fixed at 4T
4 dtg1_spec_e – dtg1_spec_c-2
5 dtg1_total_pixels – dtg1_spec_e – dtg1_spec_b
6 dtg1_spec_b – dtg1_spec_a-2
7 Fixed at 4T
8 dtg1_spec_a-4
9 Fixed at 2T

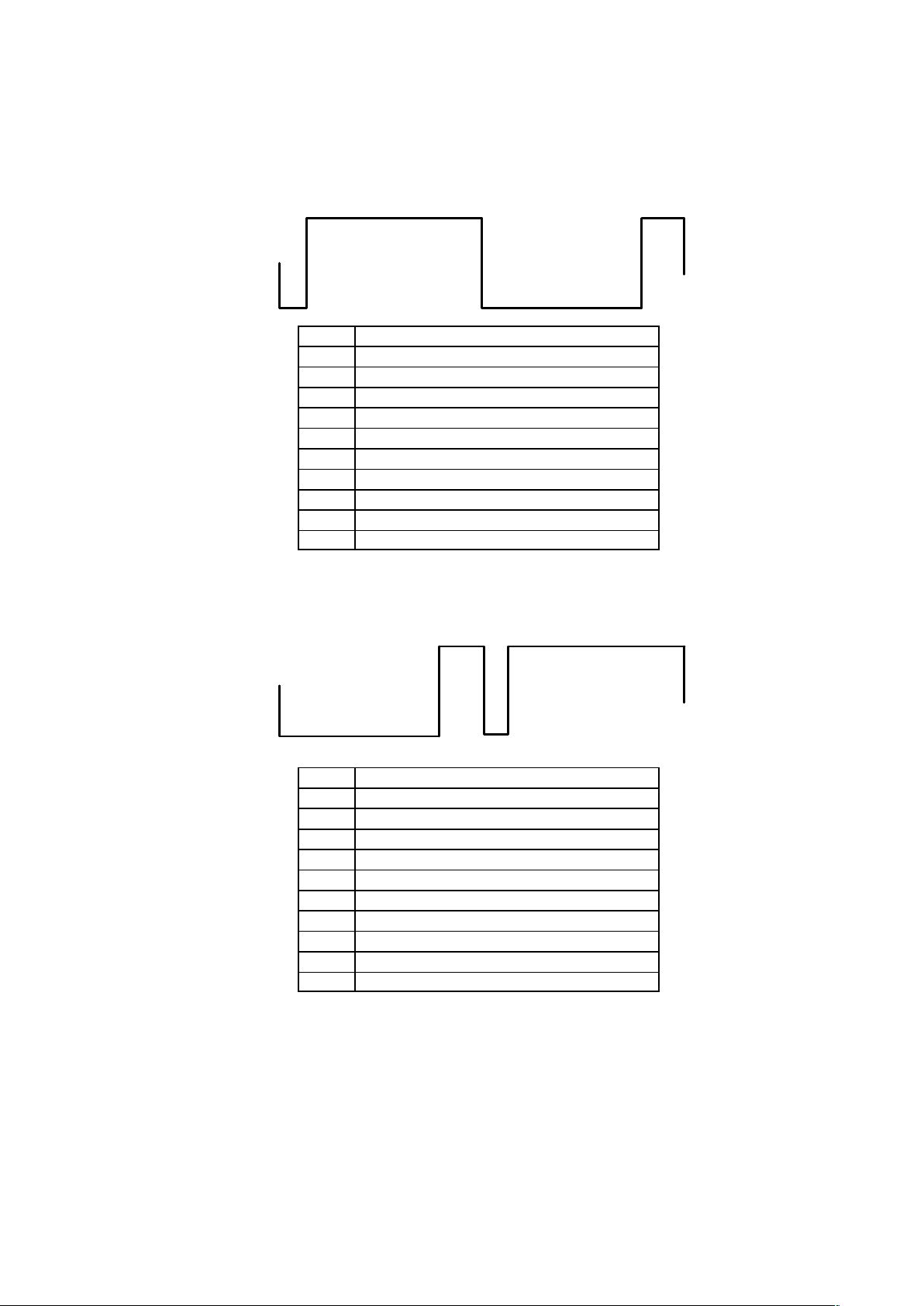

Figure 4–18. HDTV Line Type ACTIVE_VIDEO

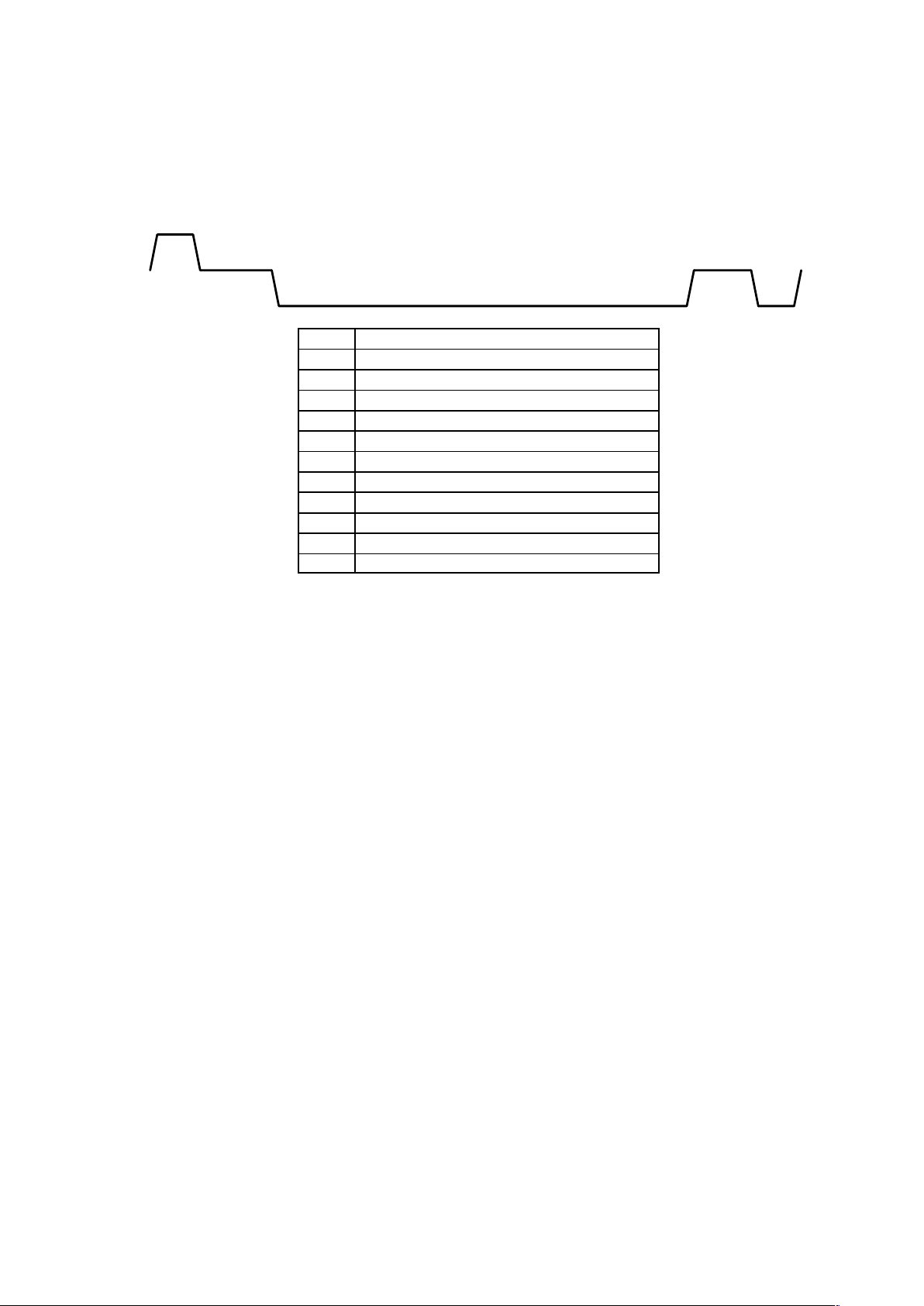

4.7.3.3 FULL NTSP (Full Normal Tri-Level Sync Pulse)

Device input data is passed during state #5 if dtg1_pass_through is on.

1

2

8

9

3

4

7

65

STATE DURATION

1 Fixed at 2T
2 dtg1_spec_c-4
3 Fixed at 4T
4 dtg1_spec_e – dtg1_spec_c-2
5 dtg1_total_pixels – dtg1_spec_e – dtg1_spec_b
6 dtg1_spec_b – dtg1_spec_a-2
7 Fixed at 4T
8 dtg1_spec_a-4
9 Fixed at 2T

Figure 4–19. HDTV Line Type FULL_NSTP

4–23

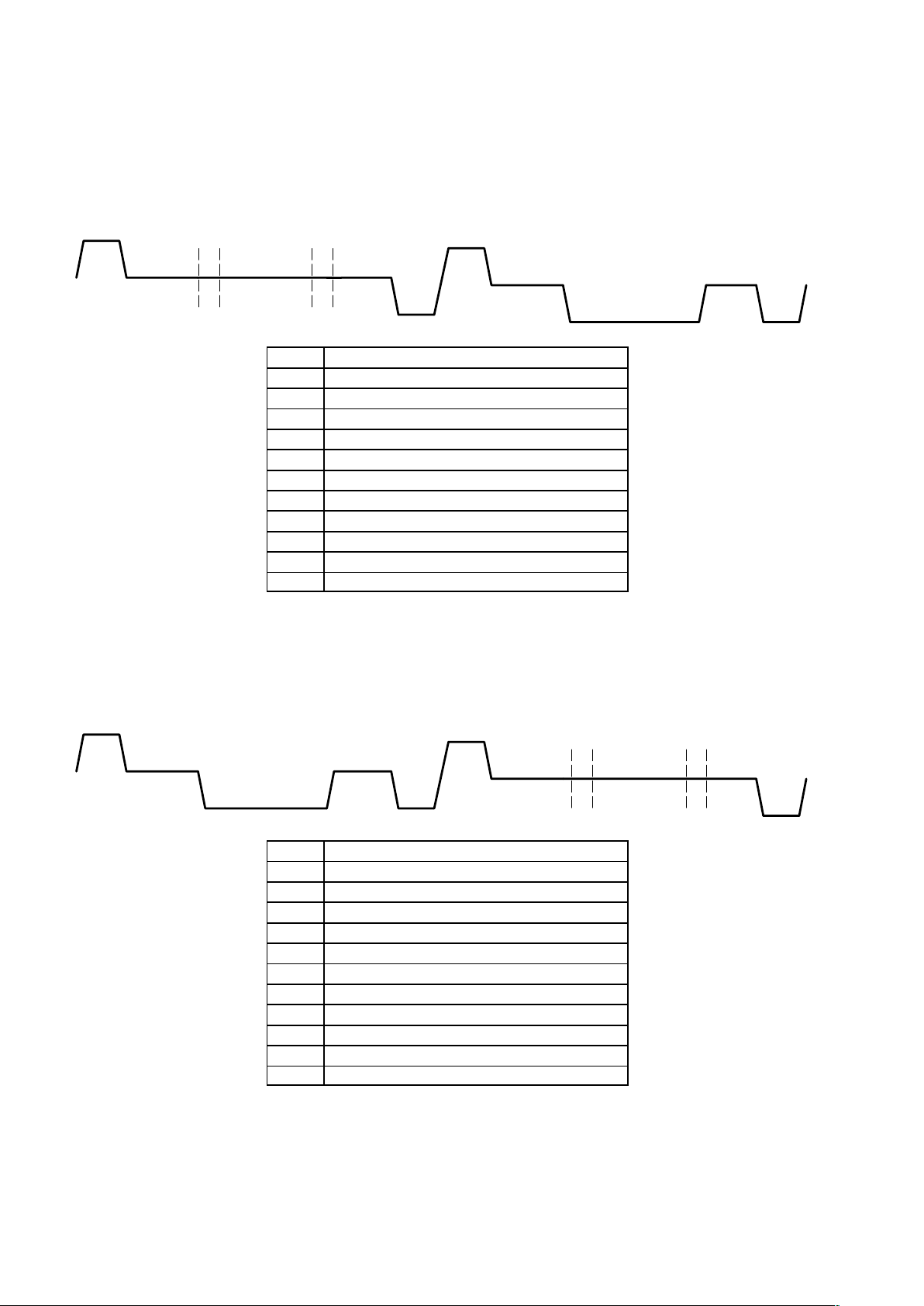

4.7.3.4 NTSP NTSP (Normal Tri-Level Sync Pulse/Normal Tri-Level Sync Pulse)

1

2

8

10

3

4

9

65

7

11

12

13

19

21

14

15

20

1716

18

22

STATE DURATION

1/12 Fixed at 2T
2/13 dtg1_spec_c-4
3/14 Fixed at 4T
4/15 dtg1_spec_d_lsb – dtg1_spec_c-4
5/16 Fixed at 4T
6/17 dtg1_total_pixels/2 – dtg1_spec_k – dtg1_spec_d-4
7/18 Fixed at 4T
8/19 dtg1_spec_k—dtg1_spec_a-12
9/20 Fixed at 4T
10/21 dtg1_spec_a-4
11/22 Fixed at 2T

Figure 4–20. HDTV Line Type NTSP_NTSP

4.7.3.5 BTSP BTSP (Broad Pulse and Tri-Level Sync Pulse/Broad Pulse and Tri-Level Sync Pulse)

1

2

8

10

3

4

96

5

7 11

12

13

19

21

14

15

20

17

16 18 22

STATE DURATION

1/12 Fixed at 2T
2/13 dtg1_spec_c-4
3/14 Fixed at 4T
4/15 dtg1_spec_d_lsb – dtg1_spec_c-4
5/16 Fixed at 4T
6/17 dtg1_total_pixels/2 – dtg1_spec_k – dtg1_spec_d-4
7/18 Fixed at 4T
8/19 dtg1_spec_k – dtg1_spec_a-12
9/20 Fixed at 4T
10/21 dtg1_spec_a-4
11/22 Fixed at 2T

Figure 4–21. HDTV Line Type BTSP_BTSP

4–24

4.7.3.6 NTSP BTSP (Normal Tri-Level Sync Pulse/ Broad Pulse and Tri-Level Sync Pulse)

1

2

8

10

3

4

9

65

7

11

12

13

19

21

14

15

20

17

16 18 22

STATE DURATION

1/12 Fixed at 2T
2/13 dtg1_spec_c-4
3/14 Fixed at 4T
4/15 dtg1_spec_d – dtg1_spec_c-4
5/16 Fixed at 4T
6/17 dtg1_total_pixels/2 – dtg1_spec_k – dtg1_spec_d-4
7/18 Fixed at 4T
8/19 dtg1_spec_k – dtg1_spec_a-12
9/20 Fixed at 4T
10/21 dtg1_spec_a-4
11/22 Fixed at 2T

Figure 4–22. HDTV Line Type NTSP_BTSP

4.7.3.7 BTSP NTSP (Broad Pulse and Tri-Level Sync Pulse/Normal Tri-Level Sync Pulse)

1

2

8

10

3

4

96

5

7 11

12

13

19

21

14

15

20

1716

18

22

STATE DURATION

1/12 Fixed at 2T
2/13 dtg1_spec_c-4
3/14 Fixed at 4T
4/15 dtg1_spec_d – dtg1_spec_c-4
5/16 Fixed at 4T
6/17 dtg1_total_pixels/2 – dtg1_spec_k – dtg1_spec_d-4
7/18 Fixed at 4T
8/19 dtg1_spec_k – dtg1_spec_a-12
9/20 Fixed at 4T
10/21 dtg1_spec_a-4
11/22 Fixed at 2T

Figure 4–23. HDTV Line Type BTSP_NTSP

4–25

4.7.3.8 Full BTSP (Full Broad Pulse and Tri-Level Sync Pulse)

1

2

8

10

3

4

9

6

5 7 11

STATE DURATION

1/12 Fixed at 2T
2/13 dtg1_spec_c-4
3/14 Fixed at 4T
4/15 dtg1_spec_d – dtg1_spec_c-4
5/16 Fixed at 4T
6/17 dtg1_total_pixels/2 – dtg1_spec_k – dtg1_spec_d-4
7/18 Fixed at 4T
8/19 dtg1_spec_k – dtg1_spec_a-12
9/20 Fixed at 4T
10/21 dtg1_spec_a-4
11/22 Fixed at 2T

Figure 4–24. HDTV Line Type FULL_BTSP

Example: 1080I/P
THS8200 is put into 1080I mode by programming dtg1_mode = 0001. Figure 4–25 shows the required output format

of both fields for 1080I and 1080P.
When in 1080I preset mode, the (line type, breakpoint) table and frame and field size registers are filled out as follows

internally:

Breakpoints Line Type

6 BTSP_BTSP
7 NTSP_NTSP
21 FULL_NTSP
561 ACTIVE_VIDEO
563 FULL_NTSP
564 NTSP_BTSP
568 BTSP_BTSP
569 BTSP_NTSP
584 FULL_NTSP
1124 ACTIVE_VIDEO
1126 FULL_NTSP
frame_size = 10001100101; 1125d
field_size = 01000110011; 563d

From line 1 to 5, line type BTSP_BTSP is generated. When the line counter reaches line 6, the DTG switches to line
type NTSP_NTSP, etc. Note that the dtg1_spec_<x> registers need to be filled out with the correct values to set the
horizontal line timings.

4–26

No. 562

Interlace

Progressive

First Field

Interlace

Second Field

No. 1125

O

V

First Field Sync Timing Reference

45 H

5 H

First Field

22 H

5 H

No. 1121 No. 1 No. 2 No. 3 No. 4 No. 5 No. 6 No. 7 No. 42

No. 1125 No. 1 No. 2 No. 3 No. 4 No. 5 No. 6 No. 7 No. 21No. 1124No. 1123

23 H

Second Field

5 H

No. 584No. 569

1/2 H

1/2 H

No. 560 No. 561 No. 563 No. 564 No. 565 No. 566 No. 567 No. 568

Figure 4–25. Field/Frame Synchronizing Signal Waveform (1080I and 1080P Formats)

4–27

4.7.3.9 SDTV Mode

In SDTV mode, the start of a video line is signaled by the leading edge of a negative-going bi-level sync.

f

90% of Amplitude

50% of Amplitude

10% of Amplitude

V

S

m

b a

d

f

f

90% of Amplitude

50% of Amplitude

10% of Amplitude

f

Figure 4–26. Horizontal Synchronization Signal Waveform

4–28

Active Video

Active Video

FULL_NSP

BSP_BSP

NEQ_NEQ

NEQ_BSP

BSP_NEQ

FULL_NEQ

NSP_ACTIVE

ACTIVE_NEQ

ACTIVE_VIDEO

k

k1

FULL_BSP

1 Line

Active Video

NOTE: All Rise/Fall times are equal to f = 2T

c
a

d

h

g

i

h

d1

c

Figure 4–27. THS8200 VBI Line Types in SDTV Mode

4–29

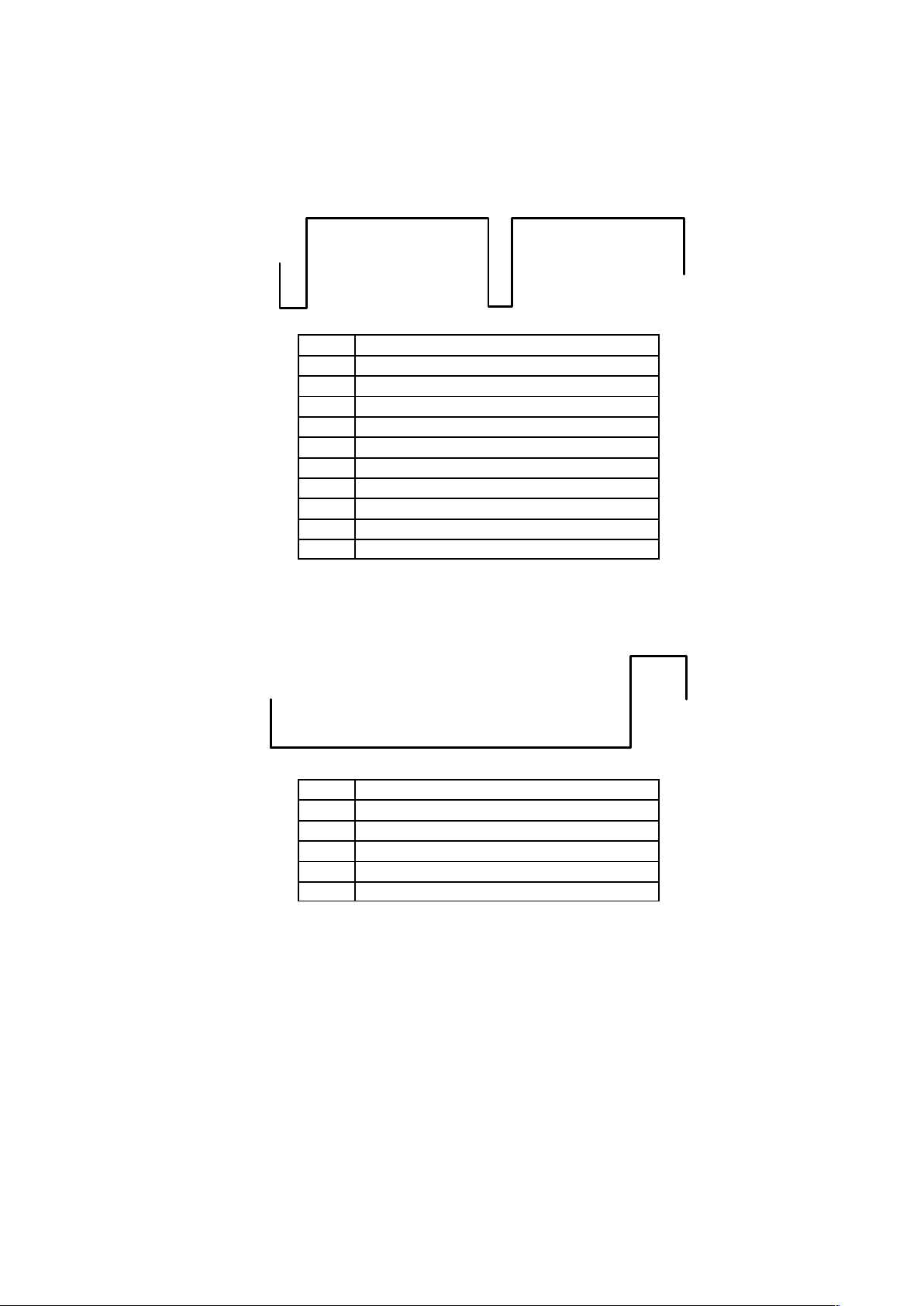

4.7.3.10 NEQ NEQ (Negative Equalization Pulse/Negative Equalization Pulse)

1

2

3

4

5

6

7

8

9

10

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_c
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_c-4
5 Fixed at 1T
6 Fixed at 1T
7 dtg1_spec_c
8 Fixed at 2T
9 dtg1_spec_g – dtg1_spec_c-4
10 Fixed at 1T

Figure 4–28. SDTV Line Type NEQ_NEQ

4.7.3.11 FULL BSP (Full Broad Sync Pulse)

1

2

3

4

5

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_i
3 Fixed at 2T
4 dtg1_total_pixels – dtg1_spec_i-4
5 Fixed at 1T

Figure 4–29. SDTV Line Type FULL_BSP

4–30

4.7.3.12 BSP BSP (Broad Sync Pulse/Broad Sync Pulse)

1

2

3

4

5

6

7

8

9

10

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_h
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_h-4
5 Fixed at 1T
6 Fixed at 1T
7 dtg1_spec_h
8 Fixed at 2T
9 dtg1_spec_g – dtg1_spec_h-4
10 Fixed at 1T

Figure 4–30. SDTV Line Type BSP_BSP

4.7.3.13 FULL NSP (Full Normal Sync Pulse)

Device input data is passed during states number 4 and number 5 if dtg1_pass_through is on.

1

2

3

45

6

dtg1_spec_g dtg1_spec_g

STATE

DURATION

1 Fixed at 1T
2 dtg1_spec_a
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_a-4
5 dtg1_spec_g
6 Fixed at 1T

Figure 4–31. SDTV Line Type FULL_NSP

4–31

4.7.3.14 NEQ BSP (Negative Equalization Pulse/Broad Sync Pulse)

1

2

3

4

5

6

7

8

9

10

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_c
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_c-4
5 Fixed at 1T
6 Fixed at 1T
7 dtg1_spec_h
8 Fixed at 2T
9 dtg1_spec_g – dtg1_spec_h-4
10 Fixed at 1T

Figure 4–32. SDTV Line Type NEQ_BSP

4.7.3.15 BSP NEQ (Broad Sync Pulse/Negative Equalization Pulse)

1

2

3

4

5

6

7

8

9

10

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_h
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_h-4
5 Fixed at 1T
6 Fixed at 1T
7 dtg1_spec_c
8 Fixed at 2T
9 dtg1_spec_g – dtg1_spec_c-4
10 Fixed at 1T

Figure 4–33. SDTV Line Type BSP_NEQ

4–32

4.7.3.16 FULL NEQ (Full Negative Equalization Pulse)

1

2

3

45

6

dtg1_spec_g dtg1_spec_g

STATE

DURATION

1 Fixed at 1T
2 dtg1_spec_c
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_c-4
5 dtg1_spec_g
6 Fixed at 1T

Figure 4–34. SDTV Line Type FULL_NEQ

4.7.3.17 NSP ACTIVE (Normal Sync Pulse/Active Video)

Video data is always passed during state number 5.

1

2

3

4

5

6

7

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_a
3 Fixed at 2T
4 dtg1_spec_g – dtg1_spec_a+ dtg1_spec_d1-3
5 dtg1_spec_g – dtg1_spec_d1 – dtg1_spec_k
6 dtg1_spec_k–1
7 Fixed at 1T

Figure 4–35. SDTV Line Type NSP_ACTIVE

4–33

4.7.3.18 ACTIVE NEQ (Active Video/Negative Equalization Pulse)

Video data is always passed during state number 5.

1

2

3

4

5

6

7
8

9

10

11

12

STATE

DURATION

1 Fixed at 1T
2 dtg1_spec_a
3 Fixed at 2T
4 dtg1_spec_d – dtg1_spec_a-3
5 dtg1_spec_g – dtg1_spec_d – dtg1_spec_k1
6 dtg1_spec_k-1
7 Fixed at 1T
8 Fixed at 1T
9 dtg1_spec_c
10 Fixed at 2T
11 dtg1_spec_g – dtg1_spec_c-4
12 Fixed at 1T

Figure 4–36. SDTV Line Type ACTIVE_NEQ

4.7.3.19 ACTIVE VIDEO

Video data is always passed during state number 5.

1

2

3

4

5

6

7

STATE DURATION

1 Fixed at 1T
2 dtg1_spec_a
3 Fixed at 2T
4 dtg1_spec_d – dtg1_spec_a-3
5 dtg1_total_pixels – dtg1_spec_d – dtg1_spec_k
6 dtg1_spec_k-1
7 Fixed at 1T

Figure 4–37. SDTV Line Type ACTIVE_VIDEO

4–34

Example:525I

j

l m n

O

E1

First FieldSecond Field

j

O

E2

First Field Second Field

Signal at the Beginning of Each First Field

l m n

NOTE: l = m = n = 3

j = 20

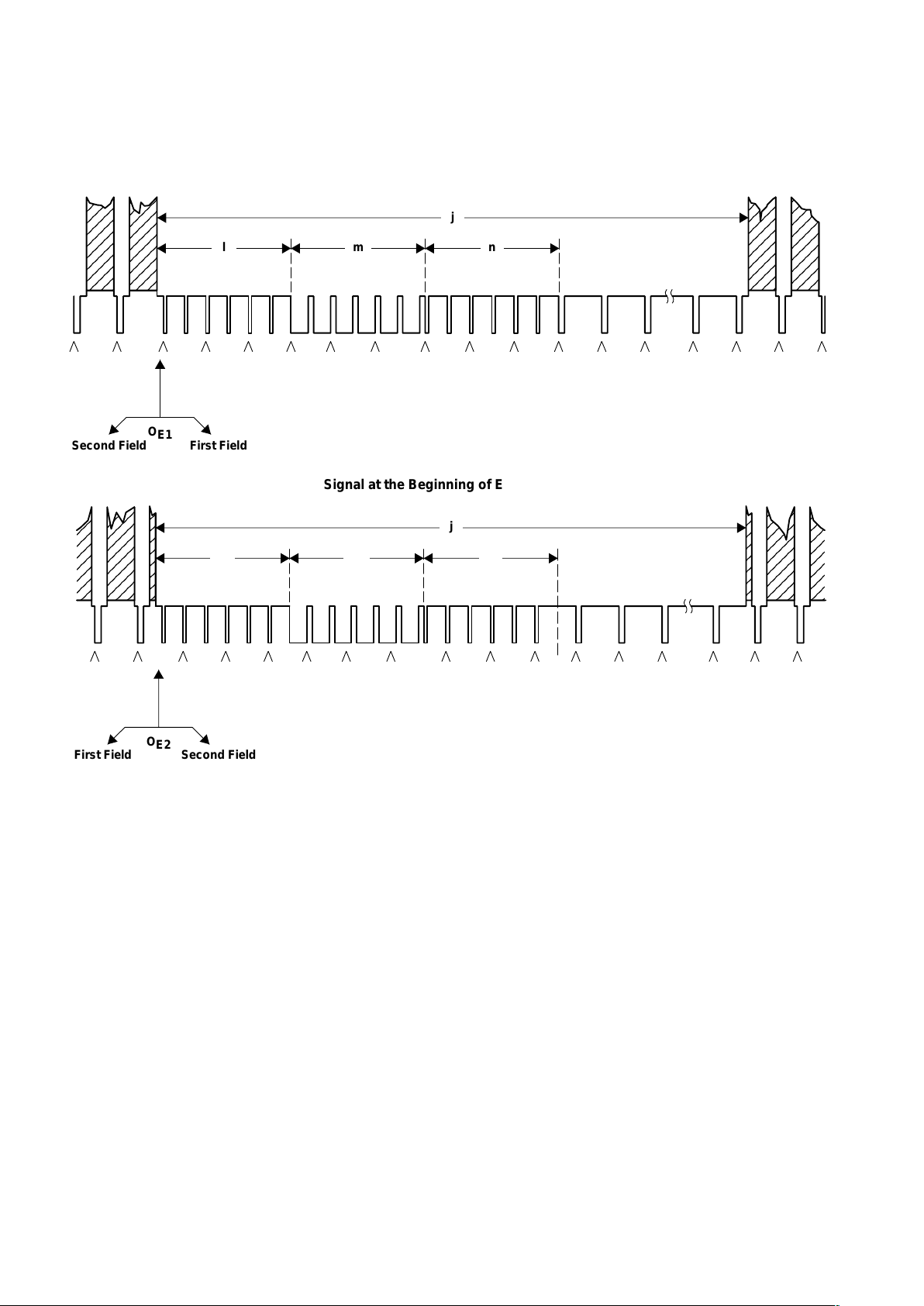

Figure 4–38. Field/Frame Synchronizing Signal Waveform (525I Format)

When the 525I preset is selected, the following line type sequence is active:

Breakpoints Line Type

4 NEQ_NEQ
7 BSP_BSP
10 NEQ_NEQ
20 FULL_NSP
263 ACTIVE_VIDEO
264 ACTIVE_NEQ
266 NEQ_NEQ
267 NEQ_BSP
269 BSP_BSP
270 BSP_NEQ

4–35

272 NEQ_NEQ
273 FULL_NEQ
282 FULL_NSP
283 NSP_ACTIVE
526 ACTIVE_VIDEO
frame_size = 1000001101; 525d
field_size = 00100000111; 263d

It can be seen this corresponds to the frame format shown, with 263 lines in digital field1 and 262 lines in digital field2.

4.8 D/A Conversion

THS8200 contains 3 DACs with an internal resolution of 11 bits, and maximum speed of 205 MSPS. This allows
operation with all (H)DTV formats including 1080P, and PC graphics formats up to UXGA at 75 Hz.

The DAC output compliance can be selected between two full-scale ranges using the data_fsadj register. DIGMUX
selects DTG output data during nonvideo line types, except when dtg1_passthrough is active: in this case video input
data still is passed during the active video portion of certain line types, as identified in Section 4.7.3 on the DTG line
types.

THS8200 supports output in either RGB or YPbPr color spaces. When using RGB output, the dtg2_rgb_mode_on
register needs to be set. In this case an offset is added to all DAC output channels in order to provide headroom for
the negative sync. Nominally the blanking level is at 350 mV , and the 700 mV swing extends upwards. Therefore peak
white corresponds to 1.05 V . When YPbPr mode is selected on this register , the offset is only added to the Y channel
output; Pb and Pr outputs now have a video range from 0 to 700 mV with 0 V corresponding to internal DAC input
code 0 (note that due to the CSM block this could correspond to another device input code). The Cb and Cr chroma
difference channels are thus assumed to be offset binary encoded, not 2s complement.

Finally , the DTG mode determines whether the DIGMUX switches in output data from the DTG. For example, in VESA
mode the DACs are always driven by the video input bus. When the DTG overrides the video input bus in SDTV or
HDTV modes, the actual amplitude levels output by the DACs during this time are user-programmable via the
dtg1_<y,cbcr>_blank , dtg1_<y, cbcr>_sync_low, and dtg1_<y, cbcr>_high registers.

We next outline some of the analog component video output formats that can be generated from THS8200.

4.8.1 RGB Output Without Sync Signal Insertion/General-Purpose Application DAC

In this mode, no sync signal is inserted on any of the analog outputs. HS_OUT and VS_OUT signals are generated
for output video synchronization. This mode is commonly used in computer graphics video output.

Two levels of full-scale output can be selected by software. For video applications, the nominal voltage levels are

0.7 V and 1.305 V.
For component video applications, the nominal voltage level is 0.7 V; 1.305 V is used in NTSC/P AL composite video

display . For composite video applications, the digital video stream must be encoded in an external digital NTSC/P AL
encoder. The THS8200 only converts the digital composite signal to analog composite video. Figure 4–39 illustrates
analog outputs without sync insertion.

When the THS8200 is programmed in this mode, it can also be used as a general-purpose DAC due to the linear
response to the DAC input codes. Optionally , the CSM block can be bypassed to avoid any processing on the device
input codes.

4–36

0.700 V/1.305 V

0.000 V/0.000 V

1023

0

Analog Output

Codes Input to DACs

Figure 4–39. RGB Without Sync Insertion or Composite Video Output

The figure below shows the linear DAC I/O relationship for either of the two nominal full-scale settings.

0.700 V

1.305 V

1023255 511 767

0

Input Digital Codes

Ramping Output With Different Full-Scale Ranges

Analog Outputs From DACs

Figure 4–40. Ramping Output With Different Full-Scale Ranges

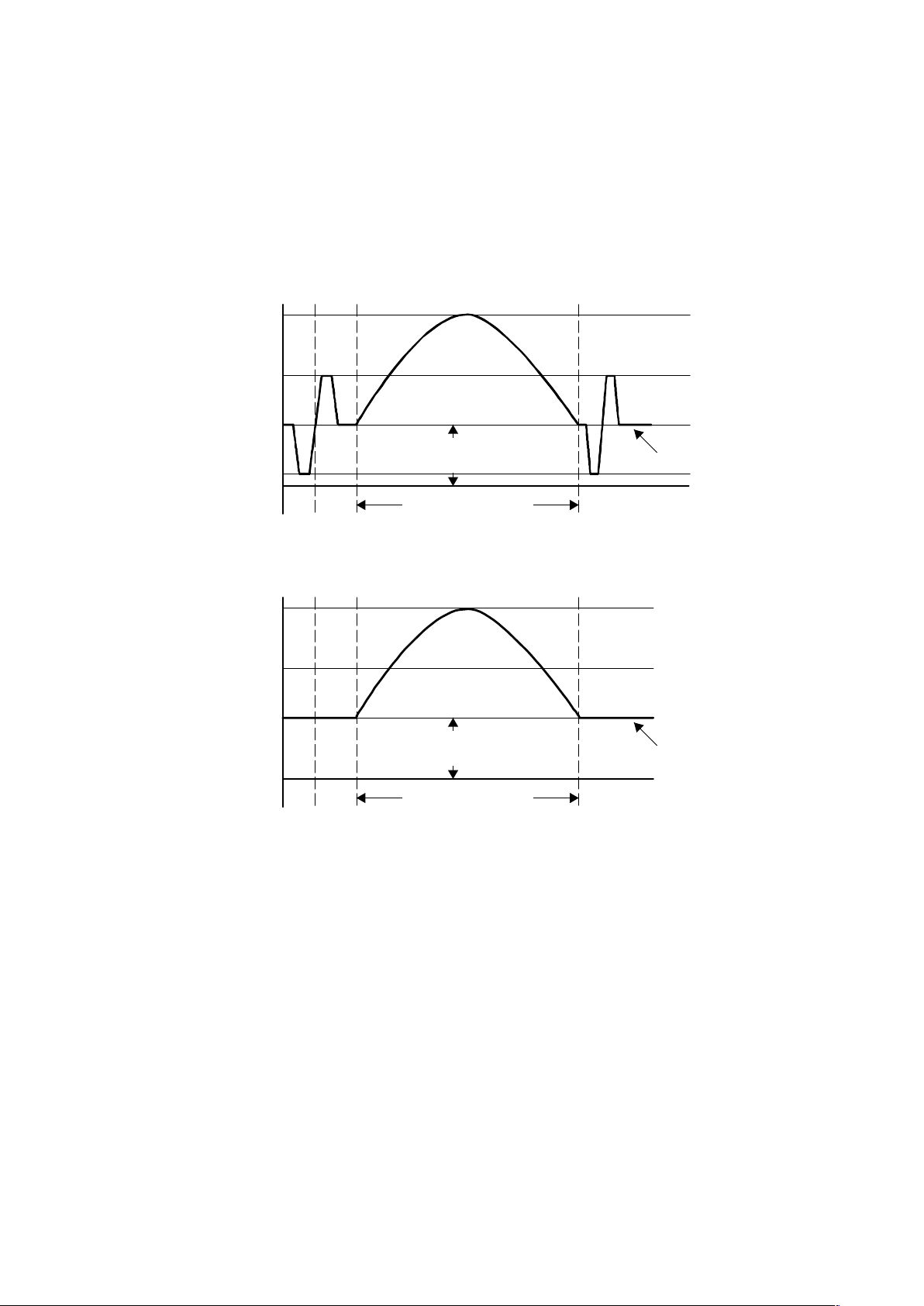

4.8.2 SMPTE-Compatible RGB Output With Sync Signal Inserted on G (Green) Channel

In this mode, a tri-level (HDTV modes)/bi-level (SDTV modes) sync signal is inserted into the G channel. The nominal
analog output voltage range, which is from the sync tip to the peak of active video, is from 0.0 V to 1.050 V. During
the active video period, the peak-to-peak ac value (dynamic range) is 700 mV (from 350 mV to 1050 mV). The blank
levels on all three channels correspond to the bottom code 64 and are at 350 mV. Figure 4–41 and Figure 4–42
illustrate the analog video output signals, both the output from the G channel with a tri-level or a bi-level sync pulse
inserted, as well as the outputs from R and B channels. No sync signal is inserted during the sync period on R and
B channels.

Alternatively, sync can be inserted on all three channels on THS8200 by appropriately programming the sync
amplitude levels. On those channels where no sync is inserted, the blank levels are maintained at a 350-mV dc level.

4–37

The range of active video codes on the R, G, and B channels is from 64 to 940. By definition, code 64 corresponds
to blank-level output, and code 940 corresponds to peak analog output. Input codes outside this region can either
be clipped by THS8200 or can be passed, depending on the CSM setting. When passed, the user should make sure
not to overdrive the DAC outputs outside the DAC output compliance range if instantaneously high output codes
would occur.

E’

G

G Channel Output Waveform

1050 mV

650 mV

350 mV

50 mV

0 mV

Active Video Period

Blank Level

350 mV DC Level Added

During Active Video Period

Analog Output

Codes to DACs

940

64

Figure 4–41. G-Channel Output Waveform

E’RE’

B

R and B Channel Output Waveform

1050 mV

350 mV

0 mV

Active Video Period

Blank Level

350 mV DC Level Added

During Active Video Period

Analog Output

Codes to DACs

940

64

Figure 4–42. R- and B-Channel Output Waveform

4–38

4.8.3 SMPTE-Compatible Analog-Level Output With Sync Inserted on All RGB Channels

This is another SMPTE-compatible RGB output. This mode is very similar to the mode described in Section 4.8.2,
except the sync signals are inserted on all three channels. Now all three channels have the same analog output
format, during both the active video period and the sync period.

E’R, E’G, E’

B

R, G, and B Channel Output Waveform

1050 mV

650 mV

350 mV

50 mV

0 mV

Active Video Period

Blank Level

350 mV DC Level Added

During Active Video Period

Analog Output

Codes to DACs

940

64

Figure 4–43. R-, G-, and B-Channel Output Waveform

4.8.4 SMPTE-Compatible YPbPr Output With Sync Signal Inserted on Y Channel Only

In this mode, the output color space is YCrCb. The sync signal is inserted on the Y channel only.

E’

Y

Y Channel Output Waveform

1050 mV

650 mV

350 mV

50 mV

0 mV

Active Video Period

Blank Level

350 mV DC Level Added

During Active Video Period

Analog Output

Codes to DACs

940

64

Figure 4–44. Y-Channel Output Waveform

4–39

The input code range of the Y channel is from 64 to 940, but the range of input codes of Cr and Cb is from 64 to 960.

350 mV

0 mV

Active Video Period

Blank Level

Analog Output

Codes to DACs

960

512

700 mV

64

E’cr, E’

cb

Analog Output of Cr and Cb Channels Without Sync Insertion

Blanking Interval

Figure 4–45. Analog Output of Cr and Cb Channels Without Sync Insertion

The blanking level of all channels is at 350 mV . Note that for the Pb and Pr output channels, there is no dc offset added,
so DAC input code 0 now corresponds to 0 V dc output. Whether or not offset is added to the DAC outputs is
determined from the setting of the dtg2_rgb_mode_on register.

4.8.5 SMPTE-Compatible YPbPr Output With Sync Signal Inserted on All Channels

In this mode, sync signals are inserted on all three channels Y, Cr , and Cb. The Y channel output is identical to that
of Section 4.8.4. The Pb and Pr channel outputs are shown below. The range of input codes to the Y channel is from
64 to 940. The range of input codes to the CrCb channels is from 64 to 960.

650 mV

350 mV

50 mV

0 mV

Active Video Period

Blank Level

Analog Output

Codes to DACs

960

512

700 mV

896

64

128

E’cr, E’

cb

Analog Output of Cr and Cb Channels With Sync Insertion

Blanking Interval

O

H

Figure 4–46. Analog Output of Cr and Cb Channels With Sync Insertion

The ac dynamic range during the active video period is the same on all channels, 700 mV. This means that two
different code ranges are mapped to the same analog output range. Because three DACs in the THS8200 share a
common full-scale adjust resistor, therefore, different input codes to the DAC result in different analog outputs. In
order to map two code ranges into a same analog output, the input code range must be scaled in the CSM block.

4–40

4.8.6 Summary of Supported Video Formats

RGB WITHOUT

SYNC

RGB SYNC ON G RGB SYNC ON ALL YPbPr SYNC ON Y

YPbPr SYNC ON

ALL

Range of input
codes

0 to 1023 64 to 940 64 to 940

64 to 940 on Y;
64 to 960 on Cr and Cb

64 to 940 on Y;
64 to 960 on Cr and Cb

Peak level 700 mV or 1305 mV 1050 mV 1050 mV 1050 mV 1050 mV
Blank level 0.0 V 350 mV 350 mV 350 mV 350 mV
DC level shift during

active video period

0 350 mV 350 mV 350 mV 350 mV

4.9 Test Functions

The user can activate a 75% SMPTE color bar test pattern when the device is configured in VESA mode using the
vesa_colorbars register setting. The width of each color bar can be programmed using the dtg1_vesa_cbar_size
register.

The digital logic in front of the DACs can be completely bypassed and the DACs can be driven directly with levels
programmed from the I

2

C interface by activating the dac_i2c_cntl register. In this case the dac<n>_cntl registers set
the DAC input codes. A fast or slow ramp signal can be internally generated and sent to the DACs using tst_fastramp
and tst_slowramp registers. This could be useful for a static DAC linearity test.

Alternatively, the input bus can directly drive the DACs when the tst_digbypass register is activated for tests at full
speed.

The delay of the Y channel can be changed in YCbCr modes with respect to Cb and Cr channels by programming
the tst_ydelay register.

Finally , there is a digital output port with data encoded according to ITU-R.BT656. This is a loop-through of the original
input bus, prior to any THS8200 internal processing, and thus only provides standard data when input to the THS8200
is provided in a 10-bit ITU-R BT .656 format. This output bus could be used to connect to a separate NTSC/P AL video
encoder. The data_clk656_on register activates the clock output on this bus and the data_tristate656 register
disables the output bus. It is recommended to disable this output when not in use.

4.10 Power Down

THS8200 implements two power-down modes: dac_pwdn powers down the DAC channels but keeps all digital logic
active; chip_pwdn powers down the digital logic except the I

2

C interface. Activating both registers enforces a

complete analog/digital power down except for the I

2

C interface.

4.11 CGMS Insertion

The THS8200 can embed data within the vertical blanking interval, encoded according to the EIA-805 data insertion
standard. CGMS is an implementation of the EIA-805 standard that defines data insertion in component video
interface (CVI) video signals.

The THS8200 supports CGMS data insertion on line 41 of every frame in the 525P format. The data is inserted on
the Y channel only; Pb and Pr channels remain at the blanking level. CGMS data insertion is enabled by activating
the cgms_en register and programming the cgms_header and cgms_payload registers appropriately . The user needs
to program header and payload data in the correct format, as no additional data encoding is done prior to insertion
into the analog DAC output. The THS8200 only performs a play-out function for the programmed data. The CGMS
encoding block assumes that a full 10-bit video range is used in order to determine the 70% of peak-white amplitude
of a logic 1 bit, as prescribed by EIA-805. The CSM does not affect the amplitude of the CGMS data insertion.

CGMS is inserted on line 41 as prescribed by EIA 770 standards for progressive format display of SDTV. Fourteen
bits can be inserted on this line, consisting of 6 bits header and 8 bits payload. The user can directly program these

4–41

bits into the corresponding THS8200 registers. Care should be taken to format this data according to CGMS
semantics; the user is referred to the original standards to determine header/payload data programming. To avoid
the transmission of invalid data, the data transmitted is updated only when the CGMS register with the highest
subaddress is programmed with cgms_en active.

CGMS insertion is possible in either 1× or 2× interpolated video modes of the THS8200. While EIA-805 allows the
inserted data to change on every frame, and also allows data packets that would span multiple lines (and therefore
also multiple frames, since only 1 line/frame is used for insertion), the THS8200 does not support multiline data
insertion because it is not required for CGMS.

4.12 I2C Interface

The THS8200 contains a slave-only I2C interface on which both write and read are supported. The register map
shows which registers support read/write (R/W) and which are read-only (R). The device supports normal and fast
I

2

C modes (SCL up to 400 kHz). The I2C interface is also operational when no input clock is received on CLKIN.

To discriminate between write and read operations, the device is addressed at separate device addresses. There is
an automatic internal sub-address increment counter to efficiently write/read multiple bytes in the register map during
one write/read operation. Furthermore, bit1 of the I

2

C device address is dependent upon the setting of the I2CA pin,

as follows:

• If address-selecting pin I2CA = 0, then

– write address is 40h (0100 0000)
– read address is 41h (0100 0001)

• If address-selecting pin I2CA = 1, then

– write address is 42h (0100 0010)
– read address is 43h (0100 0011)

The I

2

C interface supports fast I2C, i.e., SCL up to 400 kHz.

WRITE FORMAT

S Slave address(w) A Sub-address A Data0 A ...... DataN-1 A P

S Start condition
Slave address(w) 0100 0000 (0x40) if I2CA = 0, or 0100 0010 (0x42) if I2CA = 1
A Acknowledge, generated by the THS8200
Sub-address Sub-address of the first register to write, length: 1 byte
Data0 First byte of the data
DataN-1 Nth byte of the data
P Stop condition

4–42

READ FORMAT

First write the sub-address, where the data must be read out to the THS8200 in the format as follows:

S Slave address(w) A Sub-address A P

S Slave address(r) A DataN AM Data(N+1) AM ...... NAM P

S Start condition
Slave address(r) 0100 0001 (0x41) if I2CA = 0, or 0100 0011 (0x43) if I2CA = 1
A Acknowledge, generated by THS8200; if the transmission is successful, then A = 0, else

A = 1
AM Acknowledge, generated by a master
NAM Not acknowledge, generated by a master
Sub-address Sub-address of the first register to read, length = one byte
Data0 First byte of the data read
Data(N+1) Nth byte of the data read
P Stop condition

In both write and read operations, the sub-address is incremented automatically when multiple bytes are written/read.
Therefore, only the first sub-address needs to be supplied to the THS8200.

5–1

5I2C Register Map

R/W registers can be written and read.
R registers are read-only

REGISTER

NAME

R/W

SUB-

ADDRESS

BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1 BIT0

0x00
0x01

Reserved

SYSTEM

version R 0x02 ver7 ver6 ver5 ver4 ver3 ver2 ver1 ver0

chip_ctl R/W 0x03 vesa_clk dll_bypass vesa_color

bars

dll_freq_sel dac_pwdn chip_pwdn chip_ms arst_

func_n

COLOR SPACE CONVERSION

csc_r11 R/W 0x04 csc_ric1(5:0) csc_rfc1(9:8)
csc_r12 R/W 0x05 csc_rfc1(7:0)
csc_r21 R/W 0x06 csc_ric2(5:0) csc_rfc2(9:8)
csc_r22 R/W 0x07 csc_rfc2(7:0)
csc_r31 R/W 0x08 csc_ric3(5:0) csc_rfc3(9:8)
csc_r32 R/W 0x09 csc_rfc3(7:0)

csc_g11 R/W 0x0a csc_gic1(5:0) csc_gfc1(9:8)
csc_g12 R/W 0x0b csc_gfc1(7:0)
csc_g21 R/W 0x0c csc_gic2(5:0) csc_gfc2(9:8)
csc_g22 R/W 0x0d csc_gfc2(7:0)
csc_g31 R/W 0x0e csc_gic3(5:0) csc_gfc3(9:8)
csc_g32 R/W 0x0f csc_gfc3(7:0)

csc_b11 R/W 0x10 csc_bic1(5:0) csc_bfc1(9:8)
csc_b12 R/W 0x11 csc_bfc1(7:0)
csc_b21 R/W 0x12 csc_bic2(5:0) csc_bfc2(9:8)
csc_b22 R/W 0x13 csc_bfc2(7:0)
csc_b31 R/W 0x14 csc_bic3(5:0) csc_bfc3(9:8)
csc_b32 R/W 0x15 csc_bfc3(7:0)

csc_offs1 R/W 0x16 csc_offset1(9:2)
csc_offs12 R/W 0x17 csc_offset1(1:0) csc_offset2(9:4)
csc_offs23 R/W 0x18 csc_offset2(3:0) csc_offset3(9:6)

csc_offs3 R/W 0x19 csc_offset3(5:0) csc_bypass c_uof_cntl

TEST

tst_cntl1 R/W 0x1a tst_digb-

pass

tst_offset Reserved

tst_cntl2 R/W 0x1b tst_ydelay(1:0) Reserved Reserved Reserved Reserved tst_

fastramp

tst_
slowramp

DATA PATH

data_cntl R/W 0x1c data_clk65

6_on

data_fsadj data_ifir12_

bypass

data_ifir35
_bypass

data_tri­state656

data_dman_cntl(2:0)

5–2

BIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7

SUB-

ADDRESS

R/W

REGISTER

NAME

DISPLAY TIMING GENERATION, PART 1

dtg1_y_

sync1_lsb

R/W 0x1d dtg1_y_blank(7:0)

dtg1_y_

sync2_lsb

R/W 0x1e dtg1_y_sync_low(7:0)

dtg1_y_

sync3_lsb

R/W 0x1f dtg1_y_sync_high(7:0)

dtg1_cbcr_

sync1_lsb

R/W 0x20 dtg1_cbcr_blank(7:0)

dtg1_cbcr_

sync2_lsb

R/W 0x21 dtg1_cbcr_sync_low(7:0)

dtg1_cbcr_

sync3_lsb

R/W 0x22 dtg1_cbcr_sync_high(7:0)

dtg1_y_

sync_msb

R/W 0x23 Reserved Reserved dtg1_y_blank(9:8) dtg1_y_sync_low(9:8) dtg1_y_sync_high(9:8)

dtg1_cbcr_

sync_msb

R/W 0x24 Reserved Reserved dtg1_cbcr_blank(9:8) dtg1_cbcr_sync_low(9:8) dtg1_cbcr_

sync_high(9:8)

dtg1_spec_aR/W 0x25 dtg1_spec_a(7:0)

dtg1_spec_bR/W 0x26 dtg1_spec_b(7:0)

dtg1_spec_cR/W 0x27 dtg1_spec_c(7:0)

dtg1_spec_

d_lsb

R/W 0x28 dtg1_spec_d(7:0)

dtg1_spec_d1R/W 0x29 dtg1_spec_d1(7:0)

dtg1_spec_

e_lsb

R/W 0x2a dtg1_spec_e(7:0)

dtg1_spec_

deh_msb

R/W 0x2b dtg1_spec_

d(8)

dtg1_spec_
e(8)

Reserved Reserved Reserved Reserved dtg1_spec_h(9:8)

dtg1_spec_

h_lsb

R/W 0x2c dtg1_spec_h(7:0)

dtg1_spec_

i_msb

R/W 0x2d Reserved Reserved Reserved Reserved dtg1_spec_i(11:8)

dtg1_spec_

i_lsb

R/W 0x2e dtg1_spec_i(7:0)

dtg1_spec_

k_lsb

R/W 0x2f dtg1_spec_k(7:0)

dtg1_spec_

k_msb

R/W 0x30 Reserved Reserved Reserved Reserved Reserved dtg1_spec_k(10:8)

dtg1_spec_k1R/W 0x31 dtg1_spec_k1(7:0)

dtg1_spec_

g_lsb

R/W 0x32 dtg1_spec_g(7:0)

dtg1_spec_

g_msb

R/W 0x33 Reserved Reserved Reserved Reserved dtg1_spec_g(11:8)

dtg1_total_
pixels_msb

R/W 0x34 Reserved Reserved Reserved dtg1_total_pixels(12:8)

dtg1_total_

pixels_lsb

R/W 0x35 dtg1_total_pixels(7:0)

5–3

BIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7

SUB-

ADDRESS

R/W

REGISTER

NAME

dtg1_field-

flip_linecnt_

msb

R/W 0x36 dtg1_field_f

lip

Reserved Reserved Reserved Reserved dtg1_linecnt(10:8)

dtg1_

linecnt_lsb

R/W 0x37 dtg1_linecnt(7:0)

dtg1_mode R/W 0x38 dtg1_on Reserved Reserved dtg1_pass_

through

dtg1_mode(3:0)

dtg1_frame_
field_size_m

sb

R/W 0x39 Reserved dtg1_frame_size(10:8) Reserved dtg1_field_size(10:8)

dtg1_frame

size_lsb

R/W 0x3a dtg1_frame_size(7:0)

dtg1_field_

size_lsb

R/W 0x3b dtg1_field_size(7:0)

dtg1_vesa_

cbar_size

R/W 0x3c dtg1_vesa_cbar_size(7:0)

DAC

dac_cntl_

msb

R/W 0x3d Reserved dac_i2c_

cntl

dac1_cntl(9:8) dac2_cntl(9:8) dac3_cntl(9:8)

dac1_cntl_

lsb

R/W 0x3e dac1_cntl(7:0)

dac2_cntl_

lsb

R/W 0x3f dac2_cntl(7:0)

dac3_cntl_

lsb

R/W 0x40 dac3_cntl(7:0)

CLIP/SHIFT/MULTIPLIER

csm_clip_

gy_low

R/W 0x41 csm_clip_gy_low(7:0)

csm_clip_

bcb_low

R/W 0x42 csm_clip_bcb_low(7:0)

csm_clip_

rcr_low

R/W 0x43

csm_clip_rcr_low(7:0)

csm_clip_

gy_high

R/W 0x44 csm_clip_gy_high(7:0)

csm_clip_

bcb_high

R/W 0x45 csm_clip_bcb_high(7:0)

csm_clip_

rcr_high

R/W 0x46 csm_clip_rcr_high(7:0)

csm_shift_gyR/W 0x47 csm_shift_gy(7:0)

csm_shift_

bcb

R/W 0x48 csm_shift_bcb(7:0)

csm_shift_

rcr

R/W 0x49 csm_shift_rcr(7:0)

csm_gy_

cntl_mult_

msb

R/W 0x4a csm_mult_

gy_on

csm_shift_
gy_on

csm_gy_
high_clip_
on

csm_gy_
low_

clip_

on

csm_of_
cntl

csm_mult_gy(10:8)

csm_mult_

bcb_rcr_

msb

R/W 0x4b Reserved csm_mult_bcb(10:8) Reserved csm_mult_rcr(10:8)

csm_mult_

gy_lsb

R/W 0x4c csm_mult_gy(7:0)

5–4

BIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7

SUB-

ADDRESS

R/W

REGISTER

NAME

csm_mult_

bcb_lsb

R/W 0x4d csm_mult_bcb(7:0)

csm_mult_

rcr_lsb

R/W 0x4e csm_mult_rcr(7:0)

csm_rcr_

bcb_cntl

R/W 0x4f csm_mult_

rcr_on

csm_mult_
bcb_on

csm_shift_
rcr_on

csm_shift_
bcb_on

csm_rcr_
high_clip_
on

csm_rcr_
low_clip_on

csm_bcb_
high_clip_
on

csm_bcb_
low_clip_on

DISPLAY TIMING GENERATION, PART 2

dtg2_bp1_

2_msb

R/W 0x50 Reserved

dtg2_bp1(10:8)

Reserved dtg2_bp2(10:8)

dtg2_bp3_

4_msb

R/W 0x51 Reserved dtg2_bp3(10:8) Reserved dtg2_bp4(10:8)

dtg2_bp5_

6_msb

R/W 0x52 Reserved dtg2_bp5(10:8) Reserved dtg2_bp6(10:8)

dtg2_bp7_

8_msb

R/W 0x53 Reserved dtg2_bp7(10:8) Reserved dtg2_bp8(10:8)

dtg2_bp9_

10_msb

R/W 0x54 Reserved dtg2_bp9(10:8) Reserved dtg2_bp10(10:8)

dtg2_bp11_

12_msb

R/W 0x55 Reserved dtg2_bp11(10:8) Reserved dtg2_bp12(10:8)

dtg2_bp13_

14_msb

R/W 0x56 Reserved dtg2_bp13(10:8) Reserved dtg2_bp14(10:8)

dtg2_bp15_

16_msb

R/W 0x57 Reserved dtg2_bp15(10:8) Reserved dtg2_bp16(10:8)

dtg2_bp1_

lsb

R/W 0x58 dtg2_bp1(7:0)

dtg2_bp2_

lsb

R/W 0x59 dtg2_bp2(7:0)

dtg2_bp3_

lsb

R/W 0x5a dtg2_bp3(7:0)

dtg2_bp4_

lsb

R/W 0x5b dtg2_bp4(7:0)

dtg2_bp5_

lsb

R/W 0x5c dtg2_bp5(7:0)

dtg2_bp6_

lsb

R/W 0x5d dtg2_bp6(7:0)

dtg2_bp7_

lsb

R/W 0x5e dtg2_bp7(7:0)

dtg2_bp8_

lsb

R/W 0x5f dtg2_bp8(7:0)

dtg2_bp9_

lsb

R/W 0x60 dtg2_bp9(7:0)

dtg2_bp10_

lsb

R/W 0x61 dtg2_bp10(7:0)

dtg2_bp11_

lsb

R/W 0x62 dtg2_bp11(7:0)

dtg2_bp12_

lsb

R/W 0x63 dtg2_bp12(7:0)

dtg2_bp13_

lsb

R/W 0x64 dtg2_bp13(7:0)

dtg2_bp14_

lsb

R/W 0x65 dtg2_bp14(7:0)

5–5

BIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7

SUB-

ADDRESS

R/W

REGISTER

NAME

dtg2_bp15_lsbR/W 0x66 dtg2_bp15(7:0)

dtg2_bp16_lsbR/W 0x67 dtg2_bp16(7:0)

dtg2_

linetype1

R/W 0x68 dtg2_linetype1(3:0) dtg2_linetype2(3:0)

dtg2_

linetype2

R/W 0x69 dtg2_linetype3(3:0) dtg2_linetype4(3:0)

dtg2_

linetype3

R/W 0x6a dtg2_linetype5(3:0) dtg2_linetype6(3:0)

dtg2_

linetype4

R/W 0x6b dtg2_linetype7(3:0) dtg2_linetype8(3:0)

dtg2_

linetype5

R/W 0x6c dtg2_linetype9(3:0) dtg2_linetype10(3:0)

dtg2_

linetype6

R/W 0x6d dtg2_linetype11(3:0) dtg2_linetype12(3:0)

dtg2_

linetype7

R/W 0x6e dtg2_linetype13(3:0) dtg2_linetype14(3:0)

dtg2_

linetype8

R/W 0x6f dtg2_linetype15(3:0) dtg2_linetype16(3:0)

dtg2_

hlength_lsb

R/W 0x70 dtg2_hlength(7:0)

dtg2_

hlength_lsb_

hdly_msb

R/W 0x71 dtg2_hlength(9:8) Reserved dtg2_hdly(12:8)

dtg2_hdly_

lsb

R/W 0x72 dtg2_hdly(7:0)

dtg2_

vlength1_lsb

R/W 0x73 dtg2_vlength1(7:0)

dtg2_vleng-

th1_msb_

vdly1_msb

R/W 0x74 dtg2_vlength1(9:8) Reserved Reserved Reserved dtg2_vdly1(10:8)

dtg2_vdly1_

lsb

R/W 0x75 dtg2_vdly1(7:0)

dtg2_

vlength2_lsb

R/W 0x76 dtg2_vlength2(7:0)

dtg2_vleng-

th2_msb_

vdly2_msb

R/W 0x77 dtg2_vlength2(9:8) Reserved Reserved Reserved dtg2_vdly2(10:8)

dtg2_vdly2_

lsb

R/W 0x78 dtg2_vdly2(7:0)

dtg2_hs_

in_dly_msb

R/W 0x79 Reserved Reserved Reserved dtg2_hs_in_dly(12:8)

dtg2_hs_

in_dly_lsb

R/W 0x7a dtg2_hs_in_dly(7:0)

dtg2_vs_in_

dly_msb

R/W 0x7b Reserved Reserved Reserved Reserved Reserved dtg2_vs_in_dly(10:8)

dtg2_vs_in_

dly_lsb

R/W 0x7c dtg2_vs_in_dly(7:0)

dtg2_pix-

el_cnt_msb

R 0x7d dtg2_pixel_cnt(15:8)

dtg2_pix-

el_cnt_lsb

R 0x7e dtg2_pixel_cnt(7:0)

5–6

BIT0BIT1BIT2BIT3BIT4BIT5BIT6BIT7

SUB-

ADDRESS

R/W

REGISTER

NAME

dtg2_line_

cnt_msb

R 0x7f dtg2_ip_fmt Reserved dtg2_line_cnt(10:8)

dtg2_line_

cnt_lsb

R 0x80 dtg2_line_cnt(7:0)

0x81 Reserved

dtg2_cntl R/W 0x82 dtg2_fid_

de_cntl

dtg2_rgb_
mode_on

dtg2_em­bedded_
timing

dtg2_
vsout_pol

dtg2_h
sout_pol

dtg2_fid_
pol

dtg2_vs_
pol

dtg2_hs_
pol

CGMS CONTROL

cgms_cntl_

header

R/W 0x83 Reserved cgms_en

cgms_header(5:0)

cgms_pay-

load_msb

R/W 0x84 Reserved Reserved cgms_payload(13:8)

cgms_pay-

load_lsb

R/W 0x85 cgms_payload(7:0)

misc_ppl_

lsb

R 0x86 misc_ppl(7:0)

misc_ppl_

lsb

R 0x87 misc_ppl(15:8)

misc_lpf_

lsb

R 0x88 misc_lpf(7:0)

misc_lpf_

msb

R 0x89 misc_lpf(15:8)

5.1 Register Descriptions

Legend: Between { } are shown the name(s), subaddress(es) and bit position(s) where each register can be found in
the register map.
The default register value is shown between [ ] in binary format, and hexadecimal (h) and/or decimal (d) notation
where listed.

5.1.1 System Control (Sub-Addresses 0x02–0x03)

ver(7:0): Device version

{version 0x02(7..0)} [0000 0000]
The user can read this register to find out which version of THS8200 is in the system.

vesa_clk: Clock mode selection

{chip_ctl 0x03(7)} [0]
0 : Normal operation

1 : All clocks become identical, except for the half-rate clock, and the DLL is bypassed. This is used in VESA mode to
support a direct 205-MHz input clock. No internal 2× interpolation is available. This mode should be used for all
formats that require a >80 MSPS pixel clock because the internal DLL for 2× clock generation is specified only up to
80 MSPS.

The half-rate clock is still internally generated if needed to allow, e.g., 148-MHz 20-bit input (1080P).

5–7

dll_bypass: DLL bypass

{chip_ctl 0x03(6)} [0]
0 : DLL used for clock generation; normal operation with internally generated 2× clock. This mode should be

selected for most video formats when a 1× clock is available on the device clock input, and either 1× or 2× DAC
operation is desired internally (as selected by register data_ifir35_bypass)

1 : DLL bypassed for clock generation. In this case the clock input on the CLKIN pin is used directly as the 2× clock,
rather than the internally generated signal from the DLL. This mode is meant for test purposes only.

vesa_colorbars: Color bar test pattern

{chip_ctl 0x03(5)} [0]
0 : normal operation

1 : Device generates color bar pattern; external video inputs are ignored. The color bar pattern is only
supported in VESA PC graphics mode, with the device configured in master mode (chip_ms = 1).

dll_freq_sel: DLL frequency range select

{chip_ctl 0x03(4)} [0]
Sets a frequency range for the DLL 2× clock generation. The DLL should not be used at >80 MHz. In this case the

vesa_clk register should be enabled. As a consequence, 2× video interpolation is not available for formats with
>80 MHz pixel clock.

0 : high frequency range: pixel clock from 40–80 MHz
1 : low frequency range: pixel clock from 10–40 MHz

dac_pwdn: DAC power down

{chip_ctl 0x03(3)} [0]
0 : normal operation

1 : DACs go into power-down state.

chip_pwdn: Chip power down

{chip_ctl 0x03(2)} [0]
0 : normal operation

1 : power down of all digital logic except I2C

chip_ms: Chip mode select

{chip_ctl 0x03(1)} [0]
0 : slave mode. Device synchronizes to incoming video sync signals, either embedded in ITU-R.BT656 interface or

received from dedicated timing signals.
1 : master mode. Device requests video data and generates video input timing signals to external (memory) device,

according to the programmed frame/field format. Master mode is only available when the DTG is operating in VESA
mode (PC graphics signals).

arst_func_n: Chip software reset

{chip_ctl 0x03(0)} [1]
0 : functional block goes into reset state. I2C registers retain values.

Note: the user needs to issue a software reset after input video is disconnected from the input bus and recon­nected (e.g. after a video format change), in order to synchronize the internal display timing generator to the
input video source properly.

1 : normal operation

5–8

5.1.2 Color Space Conversion Control (Sub-Addresses 0x04–0x19)

Numerical formats:
Signed magnitude: MSB is sign bit, remaining bits are binary representation of magnitude. This is not a 2s
complement notation.
Magnitude: binary representation of magnitude

csc_ric1(5:0): R/Cr input channel – G/Y output channel coefficient, integer part

{csc_r11 0x04(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce G/Y output (signed magnitude format)

csc_rfc1(9:0): R/Cr input channel – G/Y output channel, fractional part

{csc_r11 0x04(1:0) and csc_r12 0x05(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce G/Y output (magnitude format)

csc_ric2(5:0): R/Cr input channel – B/Cb output channel, integer part

{csc_r21 0x06(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce B/Cb output (signed magnitude

format)

csc_rfc2(9:0): R/Cr input channel – B/Cb output channel, fractional part

{csc_r21 0x06(1:0) and csc_r22 0x07(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce B/Cb output (magnitude format)

csc_ric3(5:0): R/Cr input channel – R/Cr output channel, integer part

{csc_r31 0x08(7:2)} [000000]
6-bit integer portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (signed magnitude format)

csc_rfc3(9:0): R/Cr input channel – R/Cr output channel, fractional part

{csc_r31 0x08(1:0) and csc_r32 0x09(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (magnitude format)

csc_gic1(5:0): G/Y input channel – G/Y output channel, integer part

{csc_g11 0x0A(7:2)} [00 0000]
6-bit fractional portion of coefficient that is multiplied with R/Cr input, to produce R/Cr output (magnitude format)

csc_gfc1(9:0): G/Y input channel – G/Y output channel, fractional part

{csc_g11 0x0A(1:0) and csc_g12 0x0B(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce G/Y output (magnitude format)

csc_gic2(5:0): G/Y input channel – B/Cb output channel, integer part

{csc_g21 0x0C(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with G/Y input, to produce G/Y output (magnitude format)

csc_gfc2(9:0): G/Y input channel – B/Cb output channel, fractional part

{csc_g21 0x0C(1:0) and csc_g22 0x0D(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce B/Cb output (magnitude format)

5–9

csc_gic3(5:0): G/Y input channel – R/Cr output channel, integer part

{csc_g31 0x0E(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with G/Y input, to produce R/Cr output (signed magnitude format)

csc_gfc3(9:0) G/Y input channel – R/Cr output channel, fractional part

{csc_g31 0x0E(1:0) and csc_g32 0x0F(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with G/Y input, to produce R/Cr output (magnitude format)

csc_bic1(5:0): B/Cb input channel – G/Y output channel, integer part

{csc_b11 0x10(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce G/Y output (signed magnitude format)

csc_bfc1(9:0): B/Cb input channel – G/Y output channel, fractional part

{csc_b11 0x10(1:0) and csc_b12 0x11(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce G/Y output (magnitude format)

csc_bic2(5:0): B/Cb input channel – B/Cb output channel, integer part

{csc_b21 0x12(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce B/Cb output (signed magnitude

format)

csc_bfc2(9:0): B/Cb input channel – B/Cb output channel, fractional part

{csc_b21 0x12(1:0) and csc_b22 0x13(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce B/Cb output (magnitude format)

csc_bic3(5:0): B/Cb input channel – R/Cr output channel, integer part

{csc_b31 0x14(7:2)} [00 0000]
6-bit integer portion of coefficient that is multiplied with B/Cb input, to produce R/Cr output (signed magnitude

format)

csc_bfc3(9:0): B/Cb input channel – R/Cr output channel, fractional part

{csc_b31 0x14(1:0) and csc_b32 0x15(7:0)} [00 0000 0000]
10-bit fractional portion of coefficient that is multiplied with B/Cb input, to produce R/Cr output (magnitude format)

csc_offset1(9:0): DAC channel 1 offset

{csc_offs1 0x16(7:0) and csc_offs12 0x17(7:6)} [00 0000 0000]
Offset value for G/Y output (signed magnitude format)

csc_offset2(9:0): DAC channel 2 offset

{csc_offs12 0x17(5:0) and csc_offs23 0x18(7:4)} [00 0000 0000]
Offset value for B/Cb output (signed magnitude format)

csc_offset3(9:0): DAC channel 3 offset

{csc_offs23 0x18(3:0) and csc_offs3 0x19(7:2)} [00 0000 0000]
Offset value for R/Cr output (signed magnitude format)

5–10

csc_bypass: Bypass for CSC block

{csc_offs3 0x19(1)} [1]
0 : Color space conversion (CSC) not bypassed
1 : CSC bypassed

csc_uof_cntl: Under-/overflow control for CSC block

{csc_offs3 0x19(1)} [0]
Controls over-/underflow protection logic on color space converter
0 : Under-/overflow protection off
1 : Under-/overflow protection on

5.1.3 Test Control (Sub-Addresses 0x1A–0x1B)

tst_digbypass: Bypass to DAC inputs

{tst_cntl1 0x1A(7)} [0]
0 : Normal operation; nonbypass
1 : Digital logic bypassed to directly control DACs from input bus

tst_offset: Bypass for DAC offsets

{tst_cntl1 0x1A(6)} [0]
0 : Normal operation; logic not bypassed
1 : Programmed offsets are always added to DAC codes regardless of mode or dtg_state.

tst_ydelay(1:0): Y delay path control

{tst_cntl2 0x1B(7:6)} [00]
Adjusts the delay of the Y channel during YCbCr modes.

tst_fastramp: DAC test control, fast ramp

{tst_cntl2 0x1B(1)} [0]
0 : Normal operation
1 : DAC outputs a ramp at 2× clock rate.

tst_slowramp: DAC test control, slow ramp

{tst_cntl2 0x1B(0)} [0]
0 : Normal operation
1 : DAC outputs a ramp at 2× clock rate divided by 64,000. This mode has a higher priority than the one set by

tst_fastramp.

5.1.4 Data Path Control (Sub-Address 0x1C)

data_clk656_on: ITU-R.BT656 output clock control

{data_cntl 0x1C(7)} [0]
0 : D1CLKO output off
1 : D1CLKO output on

5–11

data_fsadj: Full-scale adjust control

{data_cntl 0x1C(6)} [0]
Selects which full-scale setting to use. See FSADJ<n> terminal description for nominal full-scale adjust resistor

values.
0 : Use full-scale setting from resistor connected to FSADJ2 terminal
1 : Use full-scale setting from resistor connected to FSADJ1 terminal

data_ifir12_bypass: Bypass control 4:2:2 to 4:4:4

{data_cntl 0x1C(5)} [0]
0 : Interpolation filters before the CSC are in the data path, enabling 4:2:2 to 4:4:4 conversion internally . This mode

should be used when the input data is in 4:2:2 format
1 : Interpolation filters before the CSC are bypassed. This mode should be used when the input data is in 4:4:4

format.

data_ifir35_bypass: Bypass control 2 interpolation

{data_cntl 0x1C(4)} [0]
0 : interpolation filters after the CSC are in the data path; enabling 1× to 2× interpolation of the video data.
1 : interpolation filters after the CSC are bypassed. This mode should be used when 1× DAC operation is desired.

data_tristate656: ITU-R.BT656 output bus

{data_cntl 0x1C(3)} [0]
0 : the ITU-R.BT656 output bus is active.
1 : the ITU-R.BT656 output bus is in the high-impedance state.

data_dman_cntl(2:0): Data manager control

{data_cntl 0x1C(2:0)} [011]
Selects the format for the input data manager, as follows:

dman_cntl MODE

000 30-bit YCbCr/RGB 4:4:4
001 16-bit RGB 4:4:4
010 15-bit RGB 4:4:4
011 20-bit YCbCr 4:2:2
100 10-bit YCbCr 4:2:2 (ITU mode)
Others (Reserved)

5.1.5 Display Timing Generator Control, Part 1 (Sub-Addresses 0x1D–0x3C)

dtg1_y_blank(9:0): Y channel blanking level amplitude control

{dtg1_y_sync_msb 0x23(5:4) and dtg1_y_sync1_lsb 0x1D(7:0)} [10 0000 0000]
Sets the amplitude of the blanking level for the Y channel.

dtg1_y_sync_low(9:0): Y channel low sync level amplitude control

{dtg1_y_sync_msb 0x23(3:2) and dtg1_y_sync2_lsb 0x1E(7:0)} [00 0000 0000]
Sets the amplitude of the negative sync and equalization/serration/broad pulses for the Y channel.

5–12

dtg1_y_sync_high(9:0): Y channel high sync level amplitude control

{dtg1_y_sync_msb 0x23(1:0) and dtg1_y_sync3_lsb 0x1F(7:0)} [11 0000 0000]
Sets the amplitude of the positive sync for the Y channel.

dtg1_cbcr_blank(9:0): Cb/Cr channel blanking level amplitude control

{dtg1_cbcr_sync_msb 0x24(5:4) and dtg1_cbcr_sync1_lsb 0x20(7:0)} [10 0000 0000]
Sets the amplitude of the blanking level for the Cb and Cr channels.

dtg1_cbcr_sync_low (9:0): Cb/Cr channel low sync level amplitude control

{dtg1_cbcr_sync_msb 0x24(3:2) and dtg1_cbcr_sync2_lsb 0x21(7:0)} [00 0000 0000]
Sets the amplitude of the negative sync and equalization/serration/broad pulses for the Cb and Cr channels

dtg1_cbcr_sync_high(9:0): Cb/Cr channel high sync level amplitude control

{dtg1_cbcr_sync_msb 0x24(1:0) and dtg1_cbcr_sync3_lsb 0x22(7:0)} [11 0000 0000]
Sets the amplitude of the positive sync for the Cb and Cr channels

dtg1_spec_a(7:0): Negative HSync width

{dtg1_spec_a 0x25(7:0)} [0010 1100] = [44d]
Width of negative excursion of tri-level (HDTV mode) or bi-level (SDTV mode) sync

dtg1_spec_b(7:0): End of active video to 0H

{dtg1_spec_b 0x26(7:0)} [0101 1000] = [88d]
Distance from end of active video to start of negative sync (SDTV mode) or to negative-to-positive transition of

tri-level sync (HDTV mode).

dtg1_spec_c(7:0): Positive Hsync width (HDTV)/Equalization pulse (SDTV) width

{dtg1_spec_c 0x27(7:0)} [0010 1100] = [44d]
Width of positive excursion of tri-level (HDTV mode). Width of equalization pulses (SDTV mode).

dtg1_spec_d(8:0): Sync to active video(SDTV)/sync to broad pulse(HDTV)

{dtg1_spec_deh_msb 0x2B(7) and dtg1_spec_d_lsb 0x28(7:0)} [0 1000 0100] = [132d]
Distance from leading edge of Hsync to start of active video (SDTV mode) or from negative-to-positive transition of

tri-level sync to start of broad pulse (HDTV mode)

dtg1_spec_d1(7:0): Center equalization pulse to active video (SDTV)

{dtg1_spec_d1 0x29(7:0)} [0000 0000]
Distance from equalization pulse at center of line to active video (SDTV mode)

dtg1_spec_e(8:0): Sync to active video (HDTV)/Color bar start (VESA)

{dtg1_spec_deh_msb 0x2B(6) and dtg1_spec_e_lsb 0x2A(7:0)} [0 1100 0000] = [192d]
Distance from negative-to-positive transition of tri-level sync to start of active video (HDTV mode). In case color bars

are activated in VESA mode, this parameter specifies the start of the color bar with respect to the horizontal sync.

dtg1_spec_h(9:0): Broad pulse duration (SDTV)

{dtg1_spec_deh_msb 0x2B(1:0) and dtg1_spec_h_lsb 0x2C(7:0)} [00 0000 0000]
Duration of broad pulse (SDTV mode).

5–13

dtg1_spec_i(11:0): Full-line broad pulse duration (SDTV)

{dtg1_spec_i_msb 0x2D(3:0) and dtg1_spec_i_lsb 0x2E(7:0)} [0000 0000 0000]
Duration of full-line broad pulse (SDTV mode)

dtg1_spec_k(10:0): End of active video to sync (SDTV)/end of broad pulse to sync (HDTV)

{dtg1_spec_k_msb 0x30(2:0) and dtg1_spec_k_lsb 0x2F(7:0)} [000 0101 1000] = [88d]
Distance from end of active video to leading edge of sync (SDTV) or from end of broad pulse to negative-to-positive

transition of tri-level sync (HDTV)

dtg1_spec_k1(7:0): End of active video in first half of line to center equalization pulse (SDTV)

{dtg1_spec_k1 0x31(7:0)} [00000000]
Distance from end of active video in first half of line to center equalization pulse for SDTV line type ACTIVE_NEQ

dtg1_spec_g(11:0): 1/2 of line length (SDTV)

{dtg1_spec_g_msb 0x33(3:0) and dtg1_spec_g_lsb 0x32(7:0)} [0000 0101 1000] = [88d]
Half the line length. Only used in the calculations of SDTV line types

dtg1_total_pixels(12:0): Total pixels per line (SDTV/HDTV/VESA)

{dtg1_total_pixels_msb 0x34(4:0) and dtg1_total_pixels_lsb 0x35(7:0)} [0 0101 0010 0000] = [1312d]
Total number of pixels per line. Used in all DTG modes

dtg1_field_flip: FID/F polarity select

{dtg1_fieldflip_linecnt_msb 0x36(7)} [0]
0 : DTG is initialized to field1 at active VS edge when a 0 is received on FID signal or F bit.
1 : DTG is initialized to field1 at active VS edge when a 1 is received on FID signal or F bit.

dtg1_linecnt(10:0): DTG start line number

{dtg1_fieldflip_linecnt_msb 0x36(2:0) and dtg1_linecnt_lsb 0x37(7:0)} [000 0000 0001]
Sets the starting line number for the DTG when Vsync input or V-bit is asserted (vertical display control)

dtg1_on: DTG on/off

{dtg1_mode 0x38(7)} [1]
0 : DTG output held to dtg_y_blank value
1 : DTG on

dtg1_pass_through: DTG pass-through

{dtg1_mode 0x38(4)} [0]
0 : Video data blocked during certain line types
1 : Video data passed during certain line types
See DTG Line Types Overview (Section 4.7.3) for details.

dtg1_mode(3:0): DTG mode selection

{dtg1_mode 0x38(3:0)} [0110]
Selects the operation mode of the DTG according to the following table. Each setting is either an SDTV, HDTV or

VESA format, as shown:

5–14

dtg1_mode MODE

0000 ATSC mode 1080P (SMPTE 274M progressive) [HDTV]
0001 ATSC mode 1080I (SMPTE274M interlaced) [HDTV]
0010 ATSC mode 720P (SMPTE296M progressive) [HDTV]
0011 Generic mode for HDTV [HDTV]
0100 ATSC mode 480I (SDTV 525 lines interlaced) [SDTV]
0101 ATSC mode 480P (SDTV 525 lines progressive) [SDTV]
0110 VESA master [VESA]
0111 VESA slave [VESA]
1000 SDTV 625 interlaced [SDTV]
1001 Generic mode for SDTV [SDTV]
Others [Null]

dtg1_frame_size(10:0): Generic mode frame size

{dtg1_frame_field_size_msb 0x39(6:4) and dtg1_framesize_lsb 0x3A(7:0)} [011 0000 0000]
Determines number of lines per frame when in generic mode

dtg1_field_size(10:0): Generic mode field size

{dtg1_frame_field_size_msb 0x39(2:0) and dtg1_fieldsize_lsb 0x3B(7:0)} [000 0010 0000]
Determines number of lines in field 1 when in generic mode. This number should be programmed higher than

frame_size for progressive scan formats.

dtg1_vesa_cbar_size(7:0): Color bar pattern, width

{dtg1_vesa_cbar_size 0x3C(7:0)} [1000 0000]
Sets the width of each color bar in the color bar test pattern. This test pattern is only available when the DTG is in

VESA mode.

5.1.6 DAC Control (Sub-Addresses 0x3D–0x40)

dac_i2c_cntl: DAC I2C control

{dac_cntl_msb 0x3D(6)} [0]
0 : DAC normal operation
1 : DAC inputs are fixed to values of <dac_cntl> registers.

dac1_cntl(9:0): DAC1 input value

{dac_cntl_msb 0x3D(5:4) and dac1_cntl_lsb 0x3E(7:0)} [00 0000 0000]
Direct input to G/Y DAC

dac2_cntl(9:0): DAC2 input value

{dac_cntl_msb 0x3D(3:2) and dac2_cntl_lsb 0x3F(7:0)} [00 0000 0000]
Direct input to B/Cb DAC

dac3_cntl(9:0): DAC3 input value

{dac_cntl_msb 0x3D(1:0) and dac3_cntl_lsb 0x40(7:0)} [00 0000 0000]
Direct input to R/Cr DAC

5–15

5.1.7 Clip/Scale/Multiplier Control (Sub-Addresses 0x41–0x4F)

csm_clip_gy_low(7:0): G/Y low clipping value

{csm_clip_gy_low 0x41(7:0)} [0100 0000]
Sets the value at which low end clipping occurs on G/Y channel, if clipping is enabled. Range is 0–255.

csm_clip_bcb_low(7:0): B/Cb low clipping value

{csm_clip_bcb_low 0x42(7:0)} [0100 0000]
Sets the value at which low end clipping occurs on B/Cb channel, if clipping is enabled. Range is 0–255.

csm_clip_rcr_low(7:0): R/Cr low clipping value

{csm_clip_rcr_low 0x43(7:0)} [0100 0000]
Sets the value at which low end clipping occurs on R/Cr channel, if clipping is enabled. Range is 0–255.

csm_clip_gy_high(7:0): G/Y high clipping value

{csm_clip_gy_high 0x44(7:0)} [0101 0011]
Sets the value at which high end clipping occurs on G/Y channel, if clipping is enabled.

High clip value = 1023-csm_clip_gy_high

csm_clip_bcb_high(7:0): B/Cb high clipping value

{csm_clip_bcb_high 0x45(7:0)} [0011 1111]
Sets the value at which high end clipping occurs on B/Cb channel, if clipping is enabled.

High clip value = 1023–csm_clip_bcb_high

csm_clip_rcr_high(7:0): R/Cr high clipping value

{csm_clip_rcr_high 0x46(7:0)} [0011 1111]
Sets the value at which high end clipping occur on R/Cr channel, if clipping is enabled.
High clip value = 1023–csm_clip_rcr_highs

csm_shift_gy(7:0): G/Y shift value

{csm_shift_gy 0x47(7:0)} [0100 0000]
V alue that G/Y data is shifted downwards. Range 0–255. Note: it is possible to shift the data so much that a roll over

condition occurs.

csm_shift_bcb(7:0): B/Cb shift value

{csm_shift_bcb 0x48(7:0)} [0100 0000]
V alue that B/Cb data is shifted downwards. Range: 0–255. Note: It is possible to shift the data so much that a roll

over condition occurs.

csm_shift_rcr(7:0): R/Cr shift value

{csm_shift_rcr 0x49(7:0)} [0100 0000]
V alue that B/Cb data is shifted downwards. Range: 0–255. Note: It is possible to shift the data so much that a roll over

condition occurs.

csm_mult_gy_on: G/Y scaling on/off

{csm_gy_cntl_mult_msb 0x4A(7)} [0]
0 : Scaling for G/Y channel off
1 : Scaling for G/Y channel on

5–16

csm_shift_gy_on: G/Y shifting on/off

{csm_gy_cntl_mult_msb 0x4A(6)} [0]
0 : Shifting for G/Y channel off
1 : Shifting for G/Y channel on

csm_gy_high_clip_on: G/Y high-end clipping on/off

{csm_gy_cntl_mult_msb 0x4A(5)} [0]
0 : G/Y data clipping at high end off
1 : G/Y data clipping at high end on

csm_gy_low_clip_on: G/Y low-end clipping on/off

{csm_gy_cntl_mult_msb 0x4A(4)} [0]
0 : G/Y data clipping at low end off
1 : G/Y data clipping at low end on

csm_of_cntl: CSM overflow control

{csm_gy_cntl_mult_msb 0x4A(3)} [1]
Controls overflow protection of the CSM multiplier
0 : Overflow protection off
1 : Overflow protection on

Numerical format of the CSM mult registers:
The 11-bit value is a binary weighted value in the range 0–1.999.
Thus: csm_mult_<gy,rcr,bcb>(10:0) = [(multiplier in range 0..1.999)/1.999] × 2047.

csm_mult_gy(10:0): G/Y scaling value

{csm_gy_cntl_mult_msb 0x4A(2:0) and csm_mult_gy_lsb 0x4C(7:0)} [000 0000 0000]
Multiplication factor for G/Y channel in CSM. Range: 0–1.999. Note: it is possible to scale the input so much that a

rollover occurs.

csm_mult_bcb(10:0): B/Cb scaling value

{csm_mult_bcb_rcr_msb 0x4B(6:4) and csm_mult_bcb_lsb 0x4D(7:0)} [000 0000 0000]
Multiplication factor for B/Cb channel in CSM. Range: 0–1.999. Note: it is possible to scale the input so much that a

rollover occurs.

csm_mult_rcr(10:0): R/Cr scaling value

{csm_mult_bcb_rcr_msb 0x4B(2:0) and csm_mult_rcr_lsb 0x4E(7:0)} [000 0000 0000]
Multiplication factor for R/Cr channel in CSM. Range: 0–1.999. Note: it is possible to scale the input so much that a

rollover occurs.

csm_mult_rcr_on: R/Cr scaling on/off

{csm_rcr_bcb_cntl 0x4F(7)} [0]
0 : Scaling for R/Cr channel off
1 : Scaling for R/Cr channel on

5–17

csm_mult_bcb_on: B/Cb scaling on/off

{csm_rcr_bcb_cntl 0x4F(6)} [0]
0 : Scaling for B/Cb channel of
1 : Scaling for B/Cb channel on

csm_shift_rcr_on: R/Cr shifting on/off

{csm_rcr_bcb_cntl 0x4F(5)} [0]
0 : Shifting for R/Cr channel off
1 : Shifting for R/Cr channel on

csm_shift_bcb_on: B/Cb shifting on/off

{csm_rcr_bcb_cntl 0x4F(4)} [0]
0 : Shifting for B/Cb channel off
1 : Shifting for B/Cb channel on

csm_rcr_high_clip_on: R/Cr high-end clipping on/off

{csm_rcr_bcb_cntl 0x4F(3)} [0]
0 : R/Cr data clipping at high end off
1 : R/Cr data clipping at high end on

csm_rcr_low_clip_on: R/Cr low-end clipping on/off

{csm_rcr_bcb_cntl 0x4F(2)} [0]
0 : R/Cr data clipping at low end off
1 : R/Cr data clipping at low end on

csm_bcb_high_clip_on: B/Cb high-end clipping on/off

{csm_rcr_bcb_cntl 0x4F(1)} [0]
0 : B/Cb data clipping at high end off
1 : B/Cb data clipping at high end on

csm_bcb_low_clip_on: B/Cb low-end clipping on/off

{csm_rcr_bcb_cntl 0x4F(0)} [0]
0 : B/Cb data clipping at low end off
1 : B/Cb data clipping at low end on

5.1.8 Display Timing Generator Control, Part 2 (Sub-Addresses 0x50–0x82)

dtg2_bp<n>(10:0): breakpoint<n> line number

{see register map table} [000 0000 0000]
DTG outputs line type dtg2_linetype<n> until line number of dtg2_bp<n+1> is reached. (n = 1..16)

dtg2_linetype<n>(3:0): Line type for dtg2_bp<n>

{see register map table} [0000]
The DTG outputs a line format corresponding to the table below until the next breakpoint line number is reached.

(n = 1..16)

5–18

LINE TYPE dtg1_linetype <n>(3:0)

0000 ACTIVE_VIDEO
0001 FULL_NTS
0010 FULL_BTSP
0011 NTSP_NTSP
0100 BTSP_BTSP
0101 NTSP_BTSP
0110 BTSP_NTSP
0111 ACTIVE_NEQ
1000 NSP_ACTIVE
1001 FULL_NSP
1010 FULL_BSP
1011 FULL_NEQ
1100 NEQ_NEQ
1101 BSP_BSP
1110 BSP_NEQ
1111 NEQ_BSP

dtg2_hlength(9:0): HS_OUT duration

{dtg2_hlength_lsb_hdly_msb 0x71(7:6) and dtg2_hlength_lsb 0x70(7:0)} [00 0110 0000]
Sets the duration of the HS_OUT output signal.

dtg2_hdly(12:0): HS_OUT delay

{dtg2_hlength_lsb_hdly_msb 0x71(4:0) and dtg2_hdly_lsb 0x72(7:0)} [0 0000 0000 0010]
Sets the pixel value that the HS_OUT signal is asserted on. Note: when programmed to a value higher than the total

number of pixels per line, there will be no HS_OUT output.

dtg2_vlength1(9:0): VS_OUT duration, field 1

{dtg2_vlength1_msb_vdly1_msb 0x74(7:6) and dtg2_vlength1_lsb 0x73(7:0)} [00 0000 0011]
Sets the duration of the VS_OUT output signal during progressive scan video modes or during the vertical blank

interval of field 1 in interlaced video modes.

dtg2_vdly1(10:0): VS_OUT delay, field 1

{dtg2_vlength1_msb_vdly1_msb 0x74(2:0) and dtg2_vdly1_lsb 0x75(7:0)} [000 0000 0011]
Sets the line number that the VS_OUT signal is asserted on for progressive video modes or for field 1 of interlaced

video modes. Note: when programmed to a value higher than the total number of lines per frame, there is no
VS_OUT output.

dtg2_vlength2(9:0): VS_OUT duration, field 2

{dtg2_vlength2_msb_vdly2_msb 0x77(7:6) and dtg2_vlength2_lsb 0x76(7:0)} [00 0000 0000]
Sets the duration of the VS_OUT output signal during the vertical blank interval of field 2 in interlaced video modes.

In progressive video modes, this register must be set to all 0.

dtg2_vdly2(10:0): VS_OUT delay, field 2

{dtg2_vlength2_msb_vdly2_msb 0x77(2:0) and dtg2_vdly2_lsb 0x78(7:0)} [111 1111 1111]
Sets the line number that the VS_OUT signal is asserted on for field 2 of interlaced scan video modes. For

progressive scan video modes, this register must be set to all 1.

5–19

dtg2_hs_in_dly(12:0): DTG horizontal delay

{dtg2_hs_in_dly_msb 0x79(4:0) and dtg2_hs_in_dly_lsb 0x7A(7:0)} [0 0000 0011 1101]
Sets the number of pixels that the DTG startup is horizontally delayed with respect to HS input for dedicated timing

modes or EAV input for embedded timing modes.
Note: It is possible to delay startup past the end of a line when this delay is programmed higher than the total number

of pixels per line.

dtg2_vs_in_dly(10:0): DTG vertical delay

{dtg2_vs_in_dly_msb 0x7B(2:0) and dtg2_vs_in_dly_lsb 0x7C(7:0)} [000 0000 0011]
Sets the number of lines that the DTG startup is vertically delayed with respect to VS input for dedicated timing

modes or the line counter value for embedded timing.
Note: It is possible to delay startup past the end of a frame when this delay is programmed higher than the total

number of lines per frame.

dtg2_pixel_cnt(15:0): Pixel count readback

{dtg2_pixel_cnt_msb 0x7D(7:0) and dtg2_pixel_cnt_lsb 0x7E(7:0)}
Reports the number of clock 1 rising edges between consecutive Hsync input pulses

dtg2_ip_fmt: Interlaced/progressive-scan indicator

{dtg2_line_cnt_msb 0x7F(7)
Indicates whether current video frame is progressive (0) or interlaced (1)

dtg2_line_cnt(10:0): Line count readback

{dtg2_lined_cnt_msb 0x7F(2:0) and dtg2_line_cnt_lsb 0x80(7:0)}
Reports the number of Hsync input pulses between consecutive dtg_start signals (i.e., over one frame period)

dtg2_fid_de_cntl: FID (field-ID)/DE (data enable)input selection for FID terminal

{dtg2_cntl 0x82(7)} [0]
Controls interpretation of signal on FID terminal
0 : Signal interpeted as FieldID
1 : If the DTG is programmed to the VESA mode, the FID pin becomes a data-enable input pin. Data enable is

assumed high during the active video window, and low outside this area. This is compatible with the DE signal from
TI DVI receivers. Data is passed through the THS8200 only when data enable is high. Otherwise, the input data is
overridden by the THS8200 internally programmed blanking value. If the DTG is programmed in the SDTV or HDTV
video mode with dedicated timing signals, a 1 in this register location causes the THS8200 to generate an internal
FieldID value from the relative alignment of Hsync and Vsync inputs, rather than using the signal on the FID input pin
(which is ignored). This is for EIA-861 compliant operation for video-over-DVI 1.0 (with HDCP) where there is no
dedicated FID signal available but the even/odd field ID is determined from Hsync/Vsync alignment.

dtg2_rgb_mode_on: RGB/YPbPr mode selection

{dtg2_cntl 0x82(6)} [1]
This selection affects the relative blank vs video level position: on R,G,B, and Y channels an offset is added to the

DAC outputs
0 : YPbPr mode (blanking at bottom range for Y – mid-range for Pb, Pr channels)
1 : RGB mode (blanking at bottom ranges for all channels)

5–20

dtg2_embedded_timing: Video sync input source

{dtg2_cntl 0x82(5)} [0]
0 : Timing of video input bus is derived from HS, VS, and FID dedicated inputs
1 : Timing of video input bus is assumed embedded in video data using SAV/EAV code sequences.

dtg2_vsout_pol: VS_OUT polarity

{dtg2_cntl 0x82(4)} [1]
0 : Positive polarity
1 : Negative polarity

dtg2_hsout_pol: HS_OUT polarity

{dtg2_cntl 0x82(3)} [1]
0 : Negative polarity
1 : Positive polarity

dtg2_fid_pol: FID polarity

{dtg2_cntl 0x82(2)} [1]
0 : Negative polarity
1 : Positive polarity

dtg2_vs_pol: VS_IN polarity

{dtg2_cntl 0x82(1)} [1]
0 : Negative polarity
1 : Positive polarity

dtg2_hs_pol: HS_IN polarity

{dtg2_cntl 0x82(0)} [1]
0 : Negative polarity
1 : Positive polarity

5.1.9 CGMS Control (Sub-Addresses 0x83–0x85)

cgms_en: CGMS enable

{cgms_cntl_header 0x83(6)} [0]
0 : No CGMS data inserted.
1 : CGMS data inserted on line 41 in SDTV mode.

cgms_header: CGMS header

{cgms_cntl_header 0x83(5:0)} [00 0000]
CGMS header data

cgms_payload(13:0): CGMS payload

{cgms_payload_msb 0x84(5:0) and cgms_payload_lsb 0x85(7:0)} [00 0000 0000 0000]
CGMS payload data

5–21

5.2 THS8200 Preset Mode Line Type Definitions

The following are the (line type, breakpoint) combinations that are preprogrammed when selecting the corresponding
DTG preset setting.

5.2.1 SMPTE_274P (1080P)

Breakpoints Line Type

6 FULL_BTSP
42 FULL_NTSP
1122 ACTIVE_VIDEO
1126 FULL_NTSP
frame_size = 10001100101; 1125d
field_size = 11111111111; not needed

5.2.2 274M Interlaced (1080I)

Breakpoints Line Type

6 BTSP_BTSP
7 NTSP_NTSP
21 FULL_NTSP
561 ACTIVE_VIDEO
563 FULL_NTSP
564 NTSP_BTSP
568 BTSP_BTSP
569 BTSP_NTSP
584 FULL_NTSP
1124 ACTIVE_VIDEO
1126 FULL_NTSP
frame_size = 10001100101; 1125d
field_size = 01000110011; 563d

5.2.3 296M Progressive (720P)

Breakpoints Line Type

6 FULL_BTSP
26 FULL_NTSP
746 ACTIVE_VIDEO
751 FULL_NTSP
frame_size = 01011101110; 750d
field_size = 11111111111; not needed

5–22

5.2.4 SDTV 525 Interlaced Mode

Breakpoints Line Type

4 NEQ_NEQ
7 BSP_BSP
10 NEQ_NEQ
20 FULL_NSP
263 ACTIVE_VIDEO
264 ACTIVE_NEQ
266 NEQ_NEQ
267 NEQ_BSP
269 BSP_BSP
270 BSP_NEQ
272 NEQ_NEQ
273 FULL_NEQ
282 FULL_NSP
283 NSP_ACTIVE
526 ACTIVE_VIDEO
frame_size = 1000001101; 525d
field_size = 00100000111; 263d

5.2.5 SDTV 525 Progressive Mode

Breakpoints Line Type

10 FULL_NSP
16 FULL_BSP
46 FULL_NSP
526 ACTIVE_VIDEO
frame_size = 01000001101; 525d
field_size = 11111111111; not needed

5–23

5.2.6 SDTV 625 Interlaced Mode

Breakpoints Line Type

3 BSP_BSP
4 BSP_NEQ
6 NEQ_NEQ
23 FULL_NSP
24 NSP_ACTIVE
311 ACTIVE_VIDEO
313 NEQ_NEQ
314 NEQ_BSP
316 BSP_BSP
318 NEQ_NEQ
319 FULL_NEQ
336 FULL_NSP
623 ACTIVE_VIDEO
624 ACTIVE_NEQ
626 NEQ_NEQ
frame_size = 01001110001; 625d
field_size = 00100111000; 312d

6–1

6 Application Information

6.1 Video vs Computer Graphics Application

THS8200 is a highly integrated and flexible universal analog component video/graphics generator that can be used
in any application requiring D/A conversion of video/graphics signals.

In a typical video application (e.g., DVD player, set-top box), the THS8200 receives its input from an MPEG decoder
or media processor engine and converts the signal into the analog domain, thereby generating the correct
timing/frame format for the selected format.

Its ITU-R.BT656 output port could be used to connect to an NTSC/P AL video encoder, such as the T exas Instruments
TVP6000, for regular composite/S-video output.

Note that because the DAC speed is rated up to 205 MSPS, all popular SDTV and HDTV formats, including 1080I
and 720P, are supported in both 1× and 2× interpolated modes. The 1080P is supported at the 1× rate.

Signal Receiver

(From Satellite,

Cable, DVD Disk)

G/Pb

MPEG Decoder

or

Media

Processor

CCIR656

THS8200

HDTV

Monitor

B/Pr

R/Y

NTSC/PAL

Video Encoder

SDTV

(NTSC/PAL)

Figure 6–1. Typical Video Application

Because of its programmable Hsync/Vsync outputs, the on-chip support for RGB as well as YCbCr color spaces and
its internal color space conversion circuit, and the DAC operational speed of 205 MSPS, all PC graphics formats are
supported as well, up to UXGA at 75 Hz. Video interpolation is now bypassed so that the full 205 MSPS can be used
for the 1× pixel clock.

3-D/2-D

Graphics

Controller

G

THS8200

VESA

Compatible

CRT Monitor

B

R

24 Bits

HS_OUT

VS_OUT

Figure 6–2. Computer Graphics Application

6.2 DVI to Analog YPbPr/RGB Application

Together with a DVI receiver, this device forms a two-chip solution to convert video or graphics formats sent over a
DVI interface to an analog RGB or YPbPr format using embedded composite sync or separate Hsync, Vsync.
THS8200 connects gluelessly to a DVI receiver using its data input bus and HS_IN and VS_IN terminals. TI DVI 1.0
(with HDCP) receivers provide a data enable (DE) signal that is high during the active video window . The THS8200
can be configured to interpret this DE signal on its FID terminal to automatically insert a user-programmable

6–2

blanking-level amplitude outside the active video window on its analog outputs; this blanking level can be correctly
positioned for either RGB or YPbPr analog outputs. The user can optionally perform color space conversion in the
THS8200 and adjust offset and gain ranges through the device’s CSM block.

When sending (interlaced) video over DVI, the EIA-861 specification describes a method to derive the fieldID
signal—not directly available from a DVI1.0 (with HDCP) receiver—from the relative alignment of the Hsync and
Vsync signals. The THS8200 can be configured to derive internally the correct even/odd field identification from
Hsync/Vsync alignment according to this specification, instead of using the FieldID signal on its FID input terminal.
This avoids the need for additional glue logic in a DVI application.

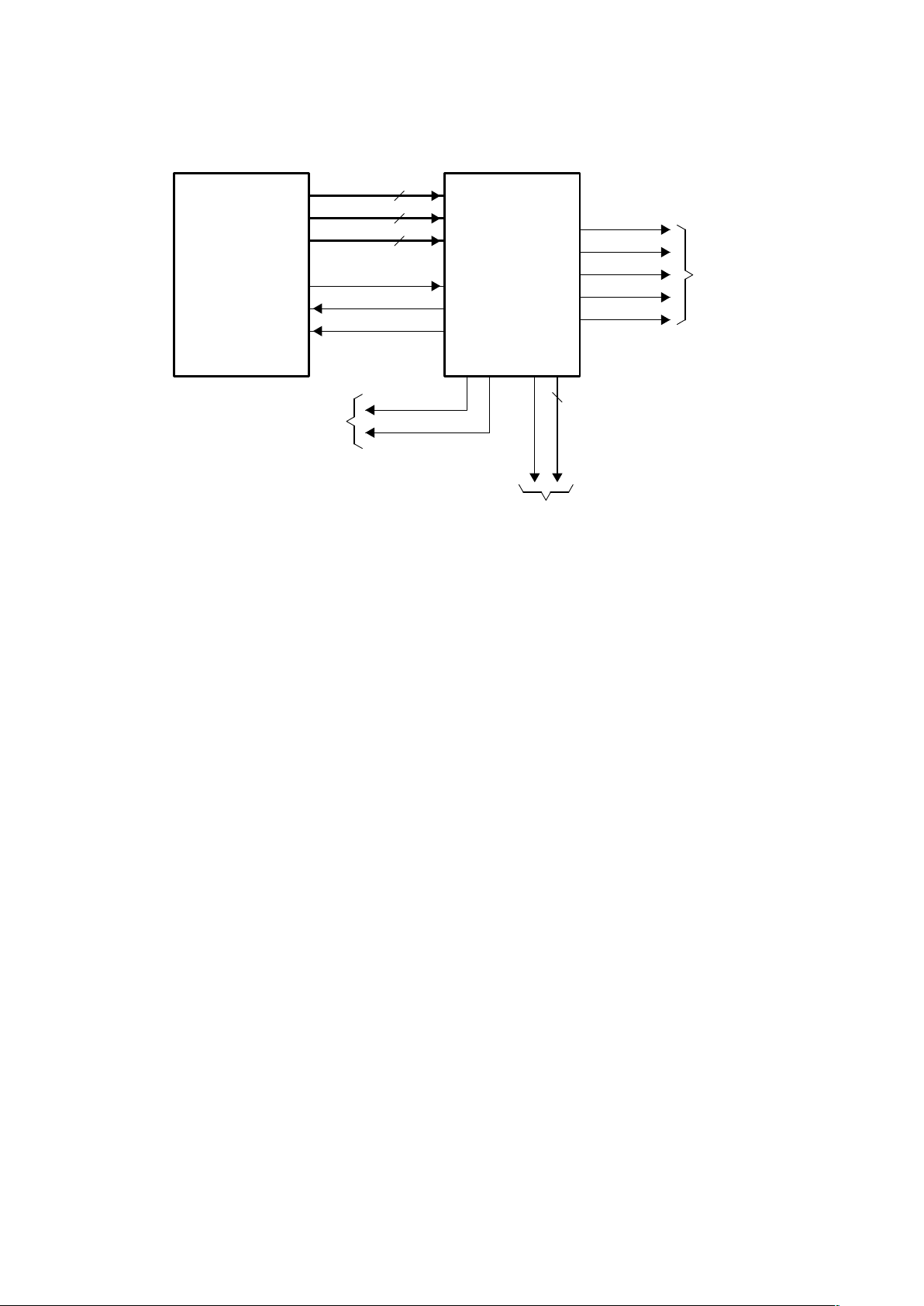

6.3 Master vs Slave Timing Modes

In slave timing mode, the THS8200 output display timing is synchronized to the video data source. Display timing
output signals are based on input sync signals, either fed to the device on the dedicated Hsync, Vsync, and FieldID
(HS_IN, VS_IN, and FID) input terminals or based on SAV/EAV codes embedded in the input video data.

MPEG Decoder/

Graphics Processor/

Video Memory

BPb[9:0]

GY[9:0]

RPr[9:0]

CLKIN
HS
VS
FID

THS8200

VS_OUT

HS_OUT

R/Pr

B/Pb

G/Y

Drive TV or
Computer Monitor

SDA
SCL

To an NTSC/PAL

Encoder

To an I2C

Master Device

D1CLK

DO[9:0]

Figure 6–3. Slave Operation Mode of THS8200

In master timing mode, the THS8200 generates two sets of output synchronization signals

• HS_IN, VS_IN now become output signals to the video source (FID unused)

• HS_OUT, VS_OUT are still output signals to display device

The intended purpose is that THS8200 requests video data from a source that requires external timing, such as video
memory.

6–3

MPEG Decoder/

Graphics Processor/

Video Memory

BPb[9:0]

GY[9:0]

RPr[9:0]

CLKIN
HS
VS

THS8200

VS_OUT

HS_OUT

R/Pr

B/Pb

G/Y

Computer Monitor

SDA
SCL

To an NTSC/PAL

Encoder

To an I2C

Master Device

D1CLK

DO[9:0]

Figure 6–4. Master Operation Mode of THS8200

7–1

7 Specifications

7.1 Absolute Maximum Ratings Over Operating Free-Air Temperature Range

Supply voltage: AVDD to AVSS, VDD_IO to GND_IO –0.5 V to 4.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DV

DD

to DVSS, VDD_DLL to DV

SS

–0.5 V to 2.5V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Digital input voltage range to DV

SS

–0.5 V to VDD_IO + 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating free-air temperature range, T

A

0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 Recommended Operating Conditions Over Operating Free-Air Temperature Range,
T

A

7.2.1 Power Supply

MIN NOM MAX UNIT

AV

DD

3.0 3.3 3.6

Supply voltage

DV

DD,

VDD_DLL 1.65 1.8 2.0

V

Su ly voltage

VDD_IO 1.65 1.8/3.3 3.6

V

7.2.2 Digital and Reference Inputs

TEST CONDITIONS MIN NOM MAX UNIT

VDD_IO = 1.8 V 0.95 VDD_IO

High-level input voltage, V

IH

VDD_IO = 3.3 V 2.3 VDD_IO

V

VDD_IO = 1.8 V DV

SS

0.4

Low-level input voltage, V

IL

VDD_IO = 3.3 V DV

SS

1.15

V

Clock frequency, f

clk

10 205 MHz

Pulse duration, clock high, t

w(CLKH)

40% 60%

Pulse duration, clock low, t

w(CLKL)

40% 60%

VOC = 700 mV 2.99

FSADJ resistor, R

FS

VOC = 1 V 2.08

kΩ

7–2

7.3 Electrical Characteristics Over Recommended Operating Conditions With
f

CLK

= 205 MHz and RFS = R

FS(nom)

(Unless Otherwise Noted)

7.3.1 Power Supply, 1-MHz FS Ramp Simultaneously Applied to All Three Channels

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

=

=

Video + no bias (700 mV) 94 98

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_DLL = 1.8 V , VDD_IO = 3.3 V,

Video + bias (1.05 V) 94 98

Operating analog

VDD_DLL 1.8 V, VDD_IO 3.3 V,

CLK = 80 MHz

Generic + no bias (1.25 V) 162 170

IAV

DD

O erating analog

supply current

=

=

Video + no bias (700 mV) 94 98

mA

y

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_DLL = 1.8 V (DLL bypassed),

Video + bias (1.05 V) 94 98

VDD_DLL 1.8 V (DLL by assed),

VDD_IO = 1.8 V, CLK = 200 MHz

Generic + no bias (1.25 V) 162 170

=

=

Video + no bias (700 mV) 38 45

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_IO = 3.3 V , VDD_DLL = 1.8 V,

Video + bias (1.05 V) 38 45

Operating digital

VDD_IO 3.3 V, VDD_DLL 1.8 V,

CLK = 80 MHz

Generic + no bias (1.25 V) 38 45

IDV

DD

O erating digital

supply current

Video + no bias (700 mV) 89 95

mA

y

AV

DD

=

3.3 V, DV

DD

=

1.8 V

,

VDD_DLL = 1.8 V (DLL bypassed),

Video + bias (1.05 V) 89 95

_

8 ( by assed),

VDD_IO = 1.8 V, CLK = 200 MHz

Generic + no bias (1.25 V) 89 95

=

=

Video + no bias (700 mV) 1.7 2.2

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_IO = 3.3 V , VDD_DLL = 1.8 V,

Video + bias (1.05 V) 1.7 2.2

Operating IO

VDD_IO 3.3 V, VDD_DLL 1.8 V,

CLK = 80 MHz

Generic + no bias (1.25 V) 1.7 2.2

IVDD_IO

O erating IO

supply current

=

=

Video + no bias (700 mV) 1.7 2.2

mA

y

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_DLL = 1.8 V (DLL bypassed),

Video + bias (1.05 V) 1.7 2.2

VDD_DLL 1.8 V (DLL by assed),

VDD_IO = 1.8 V, CLK = 200 MHz

Generic + no bias (1.25 V) 1.7 2.2

=

=

Video + no bias (700 mV) 4.9 5.6

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_IO = 3.3 V , VDD_DLL = 1.8 V,

Video + bias (1.05 V) 4.9 5.6

Operating DLL

VDD_IO 3.3 V, VDD_DLL 1.8 V,

CLK = 80 MHz

Generic + no bias (1.25 V) 4.9 5.6

IVDD_DLL

O erating DLL

supply current

=

=

Video + no bias (700 mV) 4.9 5.6

mA

y

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_DLL = 1.8 V (DLL bypassed),

Video + bias (1.05 V) 4.9 5.6

VDD_DLL 1.8 V (DLL by assed),

VDD_IO = 1.8 V, CLK = 200 MHz

Generic + no bias (1.25 V) 4.9 5.6

=

=

Video + no bias (700 mV) 398 430

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_IO = 3.3 V , VDD_DLL = 1.8 V,

Video + bias (1.05 V) 398 430

VDD_IO 3.3 V, VDD_DLL 1.8 V,

CLK = 80 MHz

Generic + no bias (1.25 V) 641 660

P

D

Power dissipation

=

=

Video + no bias (700 mV) 489 500

mW

AV

DD

= 3.3 V,

DV

DD

= 1.8 V,

VDD_DLL = 1.8 V (DLL bypassed),

Video + bias (1.05 V) 489 500

VDD_DLL 1.8 V (DLL by assed),

VDD_IO = 1.8 V, CLK = 200 MHz

Generic + no bias (1.25 V) 700 735

7–3

7.3.2 Digital Inputs—DC Characteristics

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

I

IH

High-level input current 1

I

IL

Low-level input current

VDD_IO = 3.3 V,

p

–1

I

IL(CLK)

Low-level input current, CLK

Digital inputs and CLK at 0 V for IIL;
Di

gita

l inputs and CLK at 3.6 V for I

1

µA

I

IH(CLK)

High-level input current, CLK

Digital in uts and CLK at 3.6 V for I

IH

–1

C

I

Input capacitance TA = 25°C 5 pF

t

s

Data and control inputs setup time 1.5 ns

t

H

Data and control inputs hold time 0.5 ns

10-bit/20-bit 4:2:2 with CSM, CSC, and 2
interpolation active

73

(2)

t

d

(D)

Digital process delay

(1)

30-bit 4:4:4

33

(2)

pixels

t

d(D)

Digital rocess delay

()

VESA clock mode (DLL, CSM, CSC, FIRs
bypassed)

9

ixels

NOTES: 1. Defined as the delay on Y pixel data, starting from the rising edge of CLKIN, until the clock period when corresponding analog output

becomes available. Because analog output starts to become available on falling edge of CLKIN, an additional 1/2 cycle is to be added
to this delay.

2. CSC contribution, 8 pixels; CSM contribution, 1 pixel; 2 interpolation filter contribution, 18 pixels

7–4

7.3.3 Analog (DAC) Outputs

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

DAC resolution

10

(11 bit internal)10(11 bit internal)

bits

Best-fit
VDD_IO =

Video (0.7 + 0.35 V
bias)

+0.5/–1.2 +2/–2

INL Integral nonlinearity

VDD_IO =

3.3 V, CLK =
500 kHz

Generic (1.25 + 0 V
bias)

+1/–2.1 +5/–5

LSB

VDD_IO =

Video (0.7 + 0.35 V
bias)

+0.2/–0.3 +1/–1

DNL Differential nonlinearity

3.3 V, CLK =
500 kHz

Generic (1.25 + 0 V
bias)

+0.3/–0.5 +1/–1

LSB

PSRR

Power supply ripple rejection
ratio of DAC output (full scale)

f = dc to 100 kHz, See Note 1 40 42 dB

CLK = 205

–

1 MHz sine wave, offset
bias off

49

MH

z, –1

dB

sine wave
applied to

1 MHz sine wave, offset
bias on

42

a lied to

active
channel,

10 MHz sine wave,
offset bias off

49

XTALK Crosstalk between channels

offset bias
applied to all
channels

10 MHz sine wave,
offset bias on

42

dB

channels

when turned
on, 37.5 Ω

30 MHz sine wave,
offset bias off

48

load on all
channels

30 MHz sine wave,
offset bias on

40.5

K

IMBAL

Imbalance between DACs CLK = 80 MHz See Note 3 ±2%

DAC output compliance R

= 37.5 Ω,

Video mode (bias offset
can be added)

0.7 0.72

V

OC

DAC out ut com liance

voltage (video only)

R

L

= 37.5 Ω,

See Note 4

Generic mode (bias
offset cannot be added)

1.25 1.3

V

C

o

DAC output capacitance (pin
capacitance)

5 pF

t

ri

DAC output current rise time 10 to 90% of full-scale, CLK = 80 MHz 3.5 4.2 ns

t

fi

DAC output current fall time 10 to 90% of full-scale, CLK = 80 MHz 3.5 4.2 ns

t

d

Analog output delay

Measured from falling edge of CLKIN to
50% of full-scale transition, See Note 5

6.5 ns

t

sa

Analog output settling time

Measured from 50% of full scale
transition on output to output settling,
within 2%, See Note 6

6.6 ns

SFDR Spurious-free dynamic range 1 MHz, –1 dB FS digital sine input –55 dB
SFDR Spurious-free dynamic range 10 MHz, –1 dB FS digital sine input –43 dB
BW Bandwidth (3 dB) 90 MHz
E

glitch

Glitch energy Full-scale code transition at 205 MSPS 25 pVs

NOTES: 1. PSRR is defined as 20*log (ripple voltage at DAC output/ripple voltage at AVDD input). Limits from characterization only.

2. Crosstalk spec applies to each possible pair of the 3 DAC outputs. Limit from characterization only.

3. The imbalance between DACs applies to all possible pairs of the three DACs.

4. Nominal values at RFS = R

FS(nom),

see figure in Section 7.7. Limit from characterization only. Excludes bias of fset.

5. This value excludes the digital process delay, t

D(D).

Limit from characterization only . Data is clocked in on the rising edge of CLKIN.

Analog outputs become available on the falling edge of CLKIN.

6. Limit from characterization only.

7–5

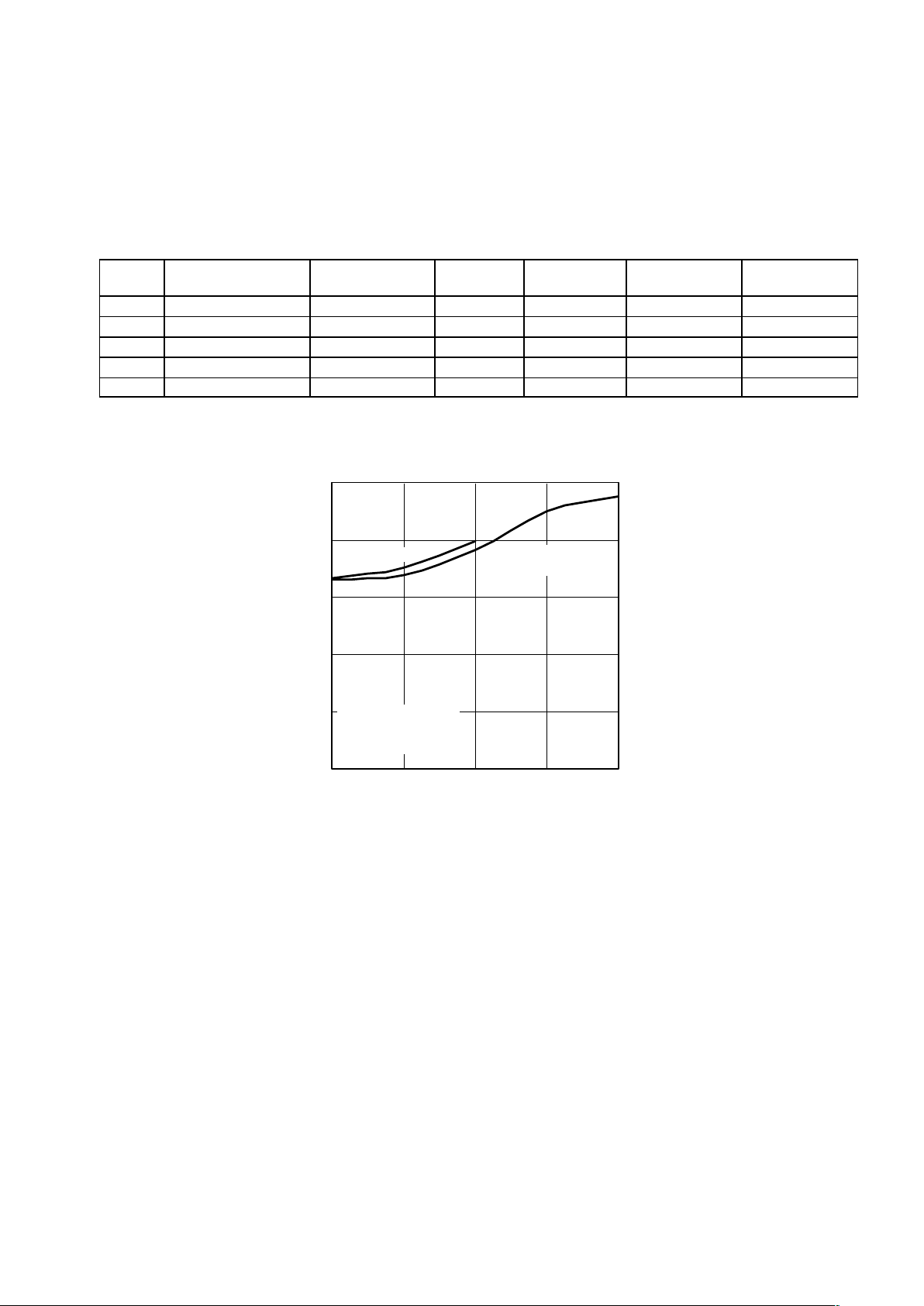

7.4 Power Requirements

7.4.1 Power for 700 mV DAC Output Compliance + 350 mV Bias at AVDD = 3.3V, DVDD = 1.8V,
VDD_IO = 3.3 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels

f (MHz)

POWER (mW),

DLL BYPASSED

POWER (mW),

DLL USED

IAVDD

(mA)

IDVDD

(mA)

IVDD_IO

(mA)

IVDD_DLL

(mA)

20 329.91 332.88 93.2 10.4 1.1 0.9
30 338.52 351.72 93.2 15 1.2 4

80 382.47 399.63 93.2 38.5 1.7 5.2
160 450.51 93.2 75.2 2.3
200 476.01 93.2 89 2.5

f – Frequency – MHz

0

100

200

300

400

500

V = 700 mV
VIO = 3.3 V
V

(BIAS)

= 350 mV

P – Power – mW

POWER

vs

FREQUENCY

20 80 160 20030

DLL

Bypassed

DLL Used

7–6

7.4.2 Power for 700 mV DAC Output Compliance + 350 mV Bias at AVDD = 3.3V, DVDD = 1.8 V,
VDD_IO = 1.8V, VDD_DLL = 3.3V, 1-MHz Tone on All Channels

f (MHz)

POWER (mW),

DLL BYPASSED

POWER (mW),

DLL USED

IAVDD

(mA)

IDVDD

(mA)

IVDD_IO

(mA)

IVDD_DLL

(mA)

20 328.26 331.23 93.2 10.4 1.1 0.9
30 336.72 349.92 93.2 15 1.2 4

80 379.92 397.08 93.2 38.5 1.7 5.2
160 447.06 93.2 75.2 2.3
200 472.26 93.2 89 2.5

f – Frequency – MHz

0

100

200

300

400

500

V = 700 mV
VIO = 1.8 V
V

(BIAS)

= 350 mV

P – Power – mW

POWER

vs

FREQUENCY

20 80 160 20030

DLL

Bypassed

DLL Used

7–7

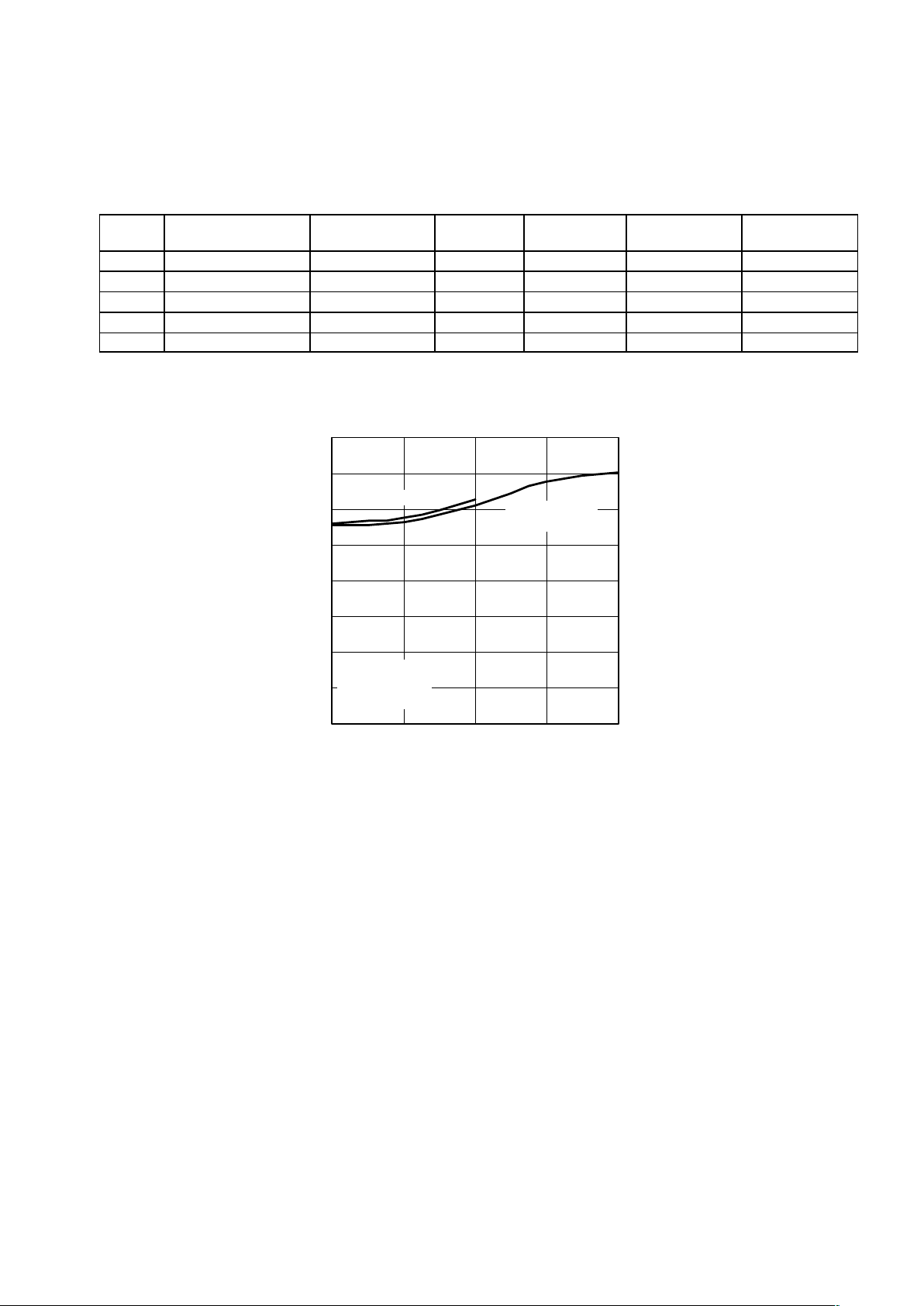

7.4.3 Power for 1.25V Output Compliance Without Bias at AVDD = 3.3 V, DVDD = 1.8 V,
VDD_IO = 3.3 V, VDD_DLL = 3.3 V, 1-MHz Tone on All Channels

f (MHz)

POWER (mW),

DLL BYPASSED

POWER (mW),

DLL USED

IAVDD

(mA)

IDVDD

(mA)

IVDD_IO

(mA)

IVDD_DLL

(mA)

20 556.95 559.92 162 10.4 1.1 0.9
30 565.56 578.76 162 15 1.2 4

80 609.51 626.67 162 38.5 1.7 5.2
160 677.55 162 75.2 2.3
200 703.05 162 89 2.5

f – Frequency – MHz

0

100

200

300

400

500

600

700

800

V = 1.25 V
VIO = 3.3 V
V

(BIAS)

= 0 V

P – Power – mW

POWER

vs

FREQUENCY

20 80 160 20030

DLL

Bypassed

DLL Used

7–8

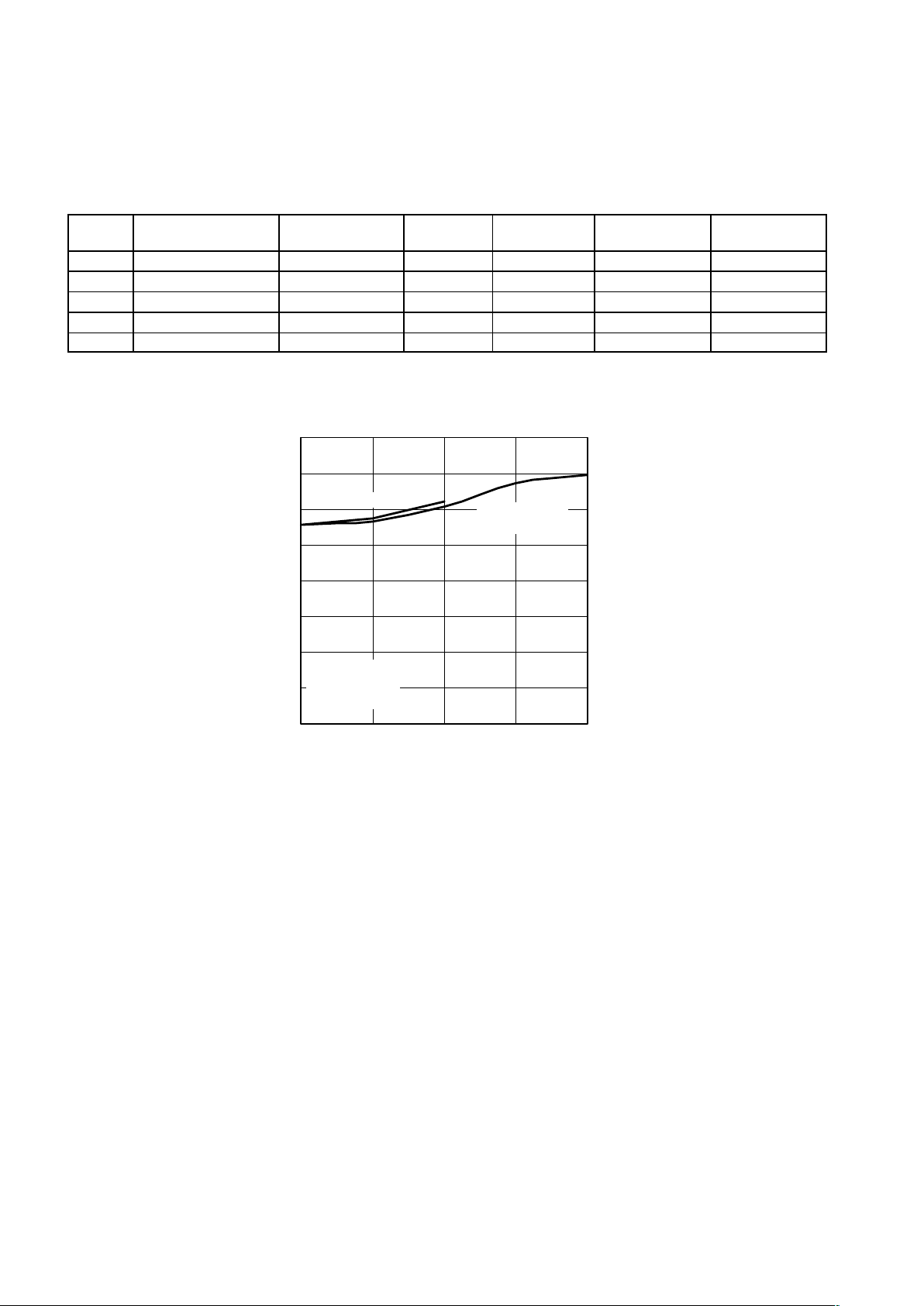

7.4.4 Power for 1.25V Without Bias at AVDD = 3.3 V, DVDD = 1.8 V, VDD_IO = 1.8 V,
VDD_DLL = 3.3 V, 1-MHz Tone on All Channels

f (MHz)

POWER (mW),

DLL BYPASSED

POWER (mW),

DLL USED

IAVDD

(mA)

IDVDD

(mA)

IVDD_IO

(mA)

IVDD_DLL

(mA)

20 555.3 558.27 162 10.4 1.1 0.9
30 563.76 576.96 162 15 1.2 4

80 606.96 624.12 162 38.5 1.7 5.2
160 674.1 162 75.2 2.3
200 699.3 162 89 2.5

f – Frequency – MHz

0

100

200

300

400

500

600

700

800

V = 1.25 V
VIO = 1.8 V
V

(BIAS)

= 0 V

P – Power – mW

POWER

vs

FREQUENCY

20 80 160 20030

DLL

Bypassed

DLL Used

7–9

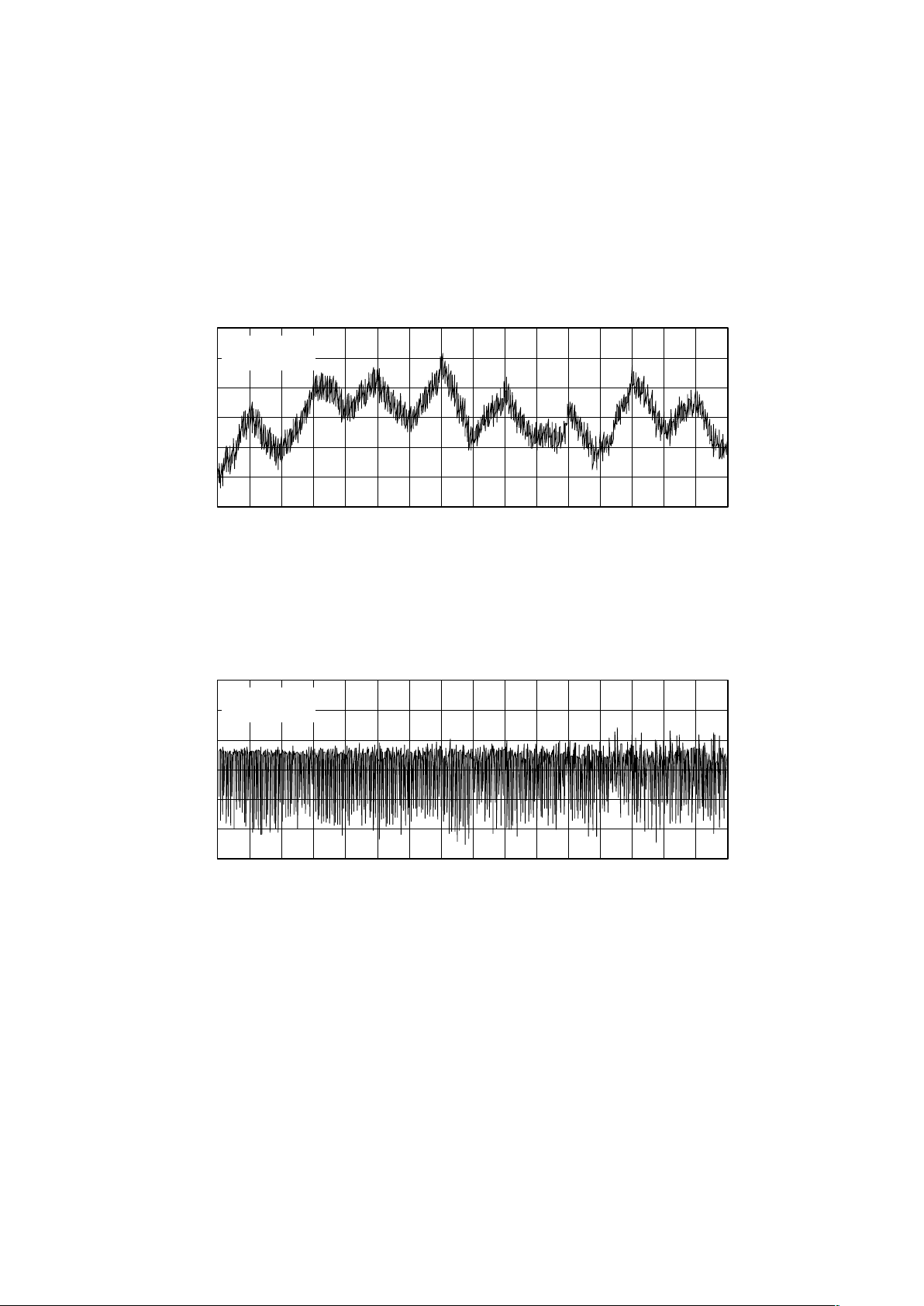

7.5 Nonlinearity

7.5.1 Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 700 mV Without Bias

–0.6

–0.4

–0.2

–0.0

0.2

0.4

0.6

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

INTEGRAL NONLINEARITY

vs

CODE

Code

0

INL – Integral Nonlinearity – LSB

V = 700 mV
V

(BIAS)

= 0 V

–0.3

–0.2

–0.1

–0.0

0.1

0.2

0.3

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

DIFFERENTIAL NONLINEARITY

vs

CODE

Code

0

DNL – Differential Nonlinearity – LSB

V = 700 mV
V

(BIAS)

= 0 V

7–10

7.5.2 Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 700 mV + 350 mV
Bias

–1.2

–1.0

–0.8

–0.6

–0.4

–0.2

–0.0

0.2

0.4

0.6

0.8

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

INTEGRAL NONLINEARITY

vs

CODE

Code

0

INL – Integral Nonlinearity – LSB

V = 700 mV
V

(BIAS)

= 350 mV

–0.4

–0.3

–0.2

–0.1

–0.0

0.1

0.2

0.3

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

DIFFERENTIAL NONLINEARITY

vs

CODE

Code

0

DNL – Differential Nonlinearity – LSB

V = 700 mV
V

(BIAS)

= 350 mV

7–11

7.5.3 Differential Nonlinearity (DNL) and Integral Nonlinearity (INL) for 1.25 V Without Bias

–0.30

–0.25

–0.20

–0.15

–0.10

–0.05

–0.00

0.05

0.10

0.15

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

DIFFERENTIAL NONLINEARITY

vs

CODE

Code

0

DNL – Differential Nonlinearity – LSB

V = 1.25 V , V

(BIAS)

= 0 V

–2.0

–1.5

–1.0

–0.5

0.0

0.5

1.0

0 64 128 192 256 320 384 448 512 576 640 704 768 832 896 960 1024

INTEGRAL NONLINEARITY

vs

CODE

Code

0

INL – Integral Nonlinearity – LSB

V = 1.25 V
V

(BIAS)

= 0 V

7–12

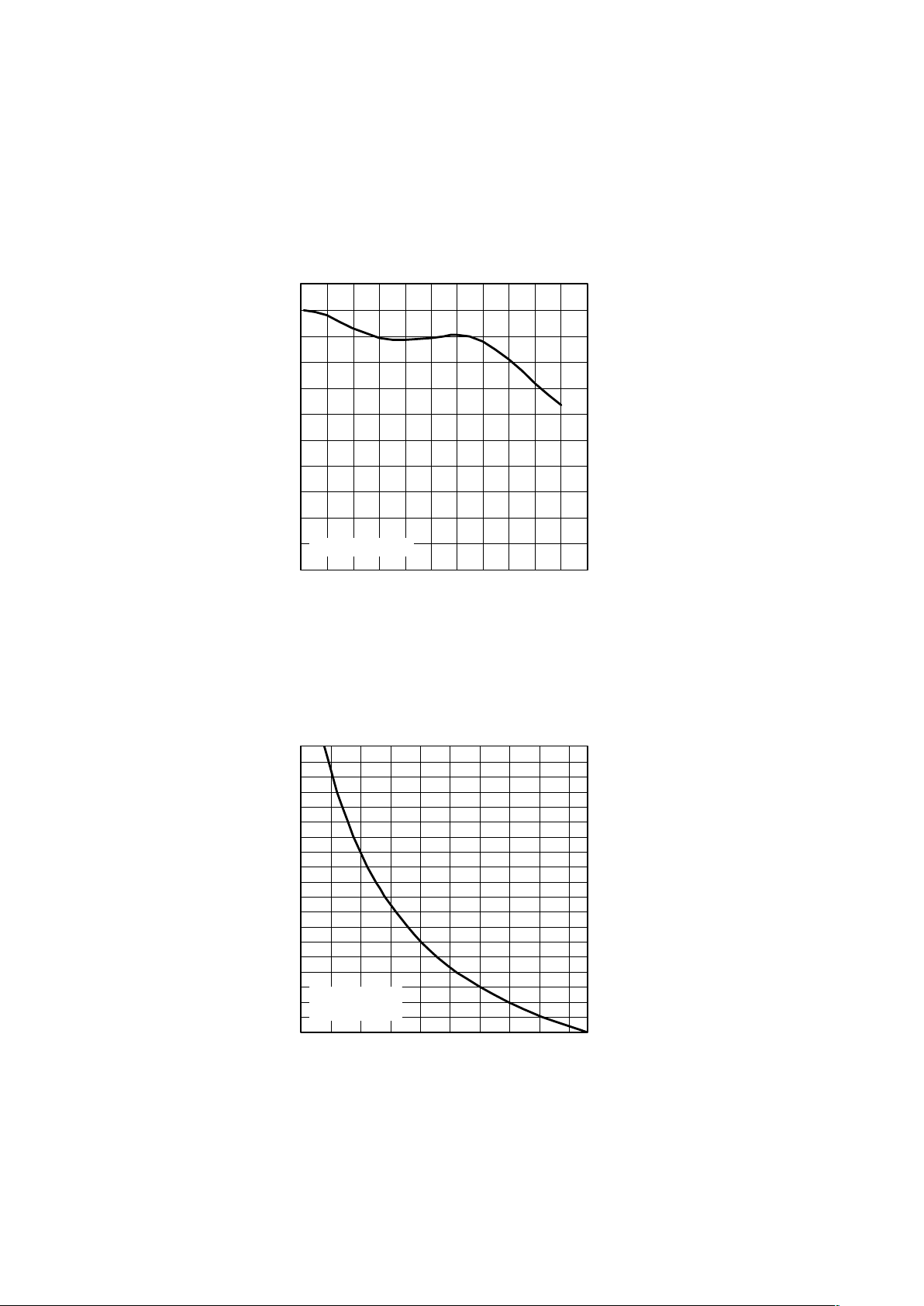

7.6 Analog Output Bandwidth (sinx/x corrected) at fS = 205 MSPS

f

(O)

– Output Frequency – MHz

–10

–9

–8

–7

–6

–5

–4

–3

–2

–1

0

1

0 102030405060708090100110

fS = 205 MSPS

Amplitude – dB

AMPLITUDE

vs

OUTPUT FREQUENCY

7.7 Output Compliance vs Full-Scale Adjustment Resistor Value

R

(fs)

– Full-Scale Resistance – kΩ

350

400

450

500

550

600

650

700

750

800

850

900

950

1000

1050

1100

1150

1200

1250

1300

1.2 1.7 2.2 2.7 3.2 3.7 4.2 4.7 5.2 5.7

RL = 37.5 Ω
V

(BIAS)

= 0 V

V

O

– Output Voltage – mV

OUTPUT VOLTAGE

vs

FULL-SCALE RESISTANCE

7–13

7.8 Vertical Sync of the HDTV 1080I Format Preset in First and Second Field, and
Horizontal Line Waveform Detail

Vertical Blanking, First Field

Vertical Blanking, Second Field

Active Video Line

Figure 7–1. THS8200 Output Waveforms for 1080I:

Vertical Blanking in First and Second Fields, and Active Video

8–1

8 Mechanical Information

PFP (S-PQFP-G80)
PowerPAD PLASTIC QUAD FLATPACK

40

Thermal Pad
(see Note D)

21

0,13 NOM

0,25

0,75
0,45

Seating Plane

4146925/A 01/98

Gage Plane

0,27

41

0,17

20

60

1

61

80

SQ

SQ

12,20

13,80

14,20

11,80

9,50 TYP

1,05

1,20 MAX

0,95

0,50

0,08

M

0,08

0°–ā7°

0,15
0,05

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion.
D. The package thermal performance may be enhanced by bonding the thermal pad to an external thermal plane.

This pad is electrically and thermally connected to the backside of the die and possibly selected leads.

E. Falls within JEDEC MS-026

PowerPAD is a trademark of Texas Instruments.

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish MSL Peak Temp

(3)

THS8200PFP ACTIVE HTQFP PFP 80 96 Green (RoHS &

no Sb/Br)

CU NIPDAU Level-3-260C-168 HR

THS8200PFPG4 ACTIVE HTQFP PFP 80 TBD CallTI Call TI

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.
