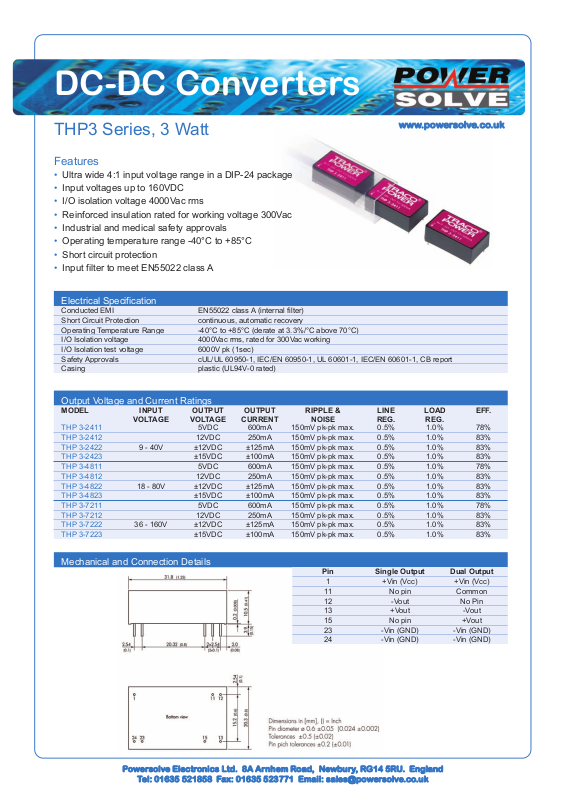

DC-DC Converters

THP3 Series, 3 Watt

www.powersolve.co.uk

Features

• Ultra wide 4:1 input voltage range in a DIP-24 package

• Input voltages up to 160VDC

• I/O isolation voltage 4000Vac rms

• Reinforced insulation rated for working voltage 300Vac

• Industrial and medical safety approvals

• Operating temperature range -40°C to +85°C

• Short circuit protection

• Input filter to meet EN55022 class A

Electrical Specification

Conducted EMI EN55022 class A (internal filter)
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +85°C (derate at 3.3%/°C above 70°C)
I/O Isolation voltage 4000Vac rms, rated for 300Vac working
I/O Isolation test voltage 6000V pk (1sec)
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1, UL 60601-1, IEC/EN 60601-1, CB report
Casing plastic (UL94V-0 rated)

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.

THP 3-2411 5VDC 600mA 150mV pk-pk max. 0.5% 1.0% 78%
THP 3-2412 12VDC 250mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-2422 9 - 40V ±12VDC ±125mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-2423 ±15VDC ±100mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-4811 5VDC 600mA 150mV pk-pk max. 0.5% 1.0% 78%
THP 3-4812 12VDC 250mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-4822 18 - 80V ±12VDC ±125mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-4823 ±15VDC ±100mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-7211 5VDC 600mA 150mV pk-pk max. 0.5% 1.0% 78%
THP 3-7212 12VDC 250mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-7222 36 - 160V ±12VDC ±125mA 150mV pk-pk max. 0.5% 1.0% 83%
THP 3-7223 ±15VDC ±100mA 150mV pk-pk max. 0.5% 1.0% 83%

VOLTAGE VOLTAGE CURRENT NOISE REG. REG.

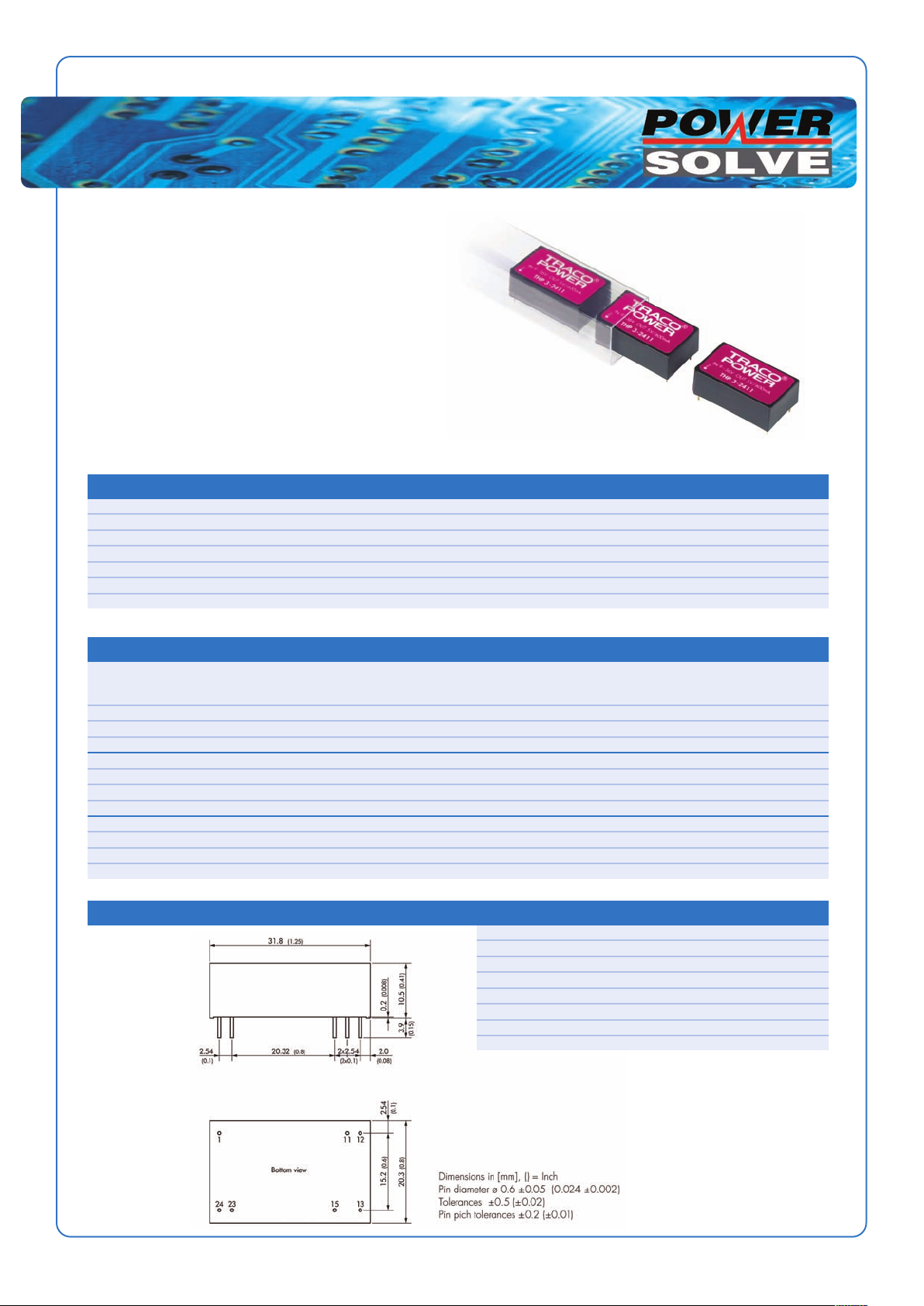

Mechanical and Connection Details

Pin Single Output Dual Output

1 +Vin (Vcc) +Vin (Vcc)
11 No pin Common
12 -Vout No Pin
13 +Vout -Vout
15 No pin +Vout
23 -Vin (GND) -Vin (GND)
24 -Vin (GND) -Vin (GND)
