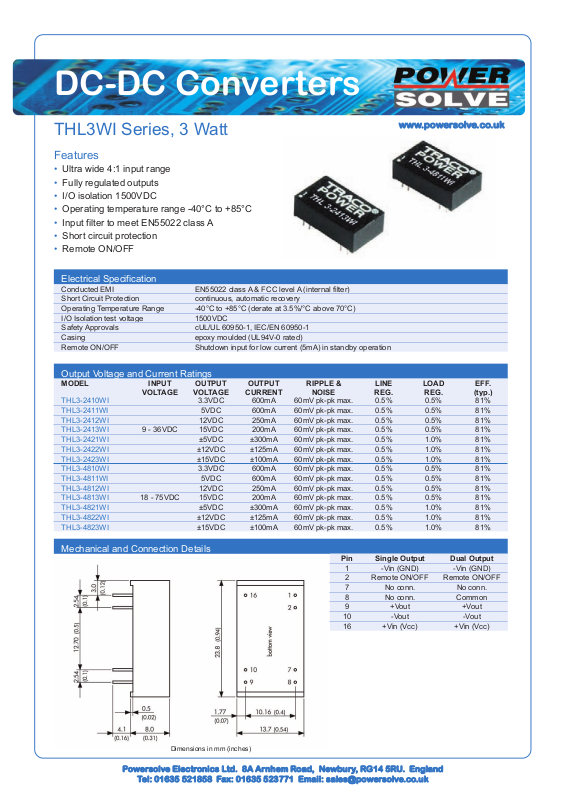

DC-DC Converters

THL3WI Series, 3 Watt

www.powersolve.co.uk

Features

• Ultra wide 4:1 input range

• Fully regulated outputs

• I/O isolation 1500VDC

• Operating temperature range -40°C to +85°C

• Input filter to meet EN55022 class A

• Short circuit protection

• Remote ON/OFF

Electrical Specification

Conducted EMI EN55022 class A & FCC level A (internal filter)
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +85°C (derate at 3.5%/°C above 70°C)
I/O Isolation test voltage 1500VDC
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1
Casing epoxy moulded (UL94V-0 rated)
Remote ON/OFF Shutdown input for low current (5mA) in standby operation

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.

THL3-2410WI 3.3VDC 600mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-2411WI 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-2412WI 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-2413WI 9 - 36VDC 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-2421WI ±5VDC ±300mA 60mV pk-pk max. 0.5% 1.0% 81%
THL3-2422WI ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 81%
THL3-2423WI ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 81%
THL3-4810WI 3.3VDC 600mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-4811WI 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-4812WI 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-4813WI 18 - 75VDC 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 81%
THL3-4821WI ±5VDC ±300mA 60mV pk-pk max. 0.5% 1.0% 81%
THL3-4822WI ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 81%
THL3-4823WI ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 81%

VOLTAGE VOLTAGE CURRENT NOISE REG. REG. (typ.)

Mechanical and Connection Details

Dimensions in mm (inches)

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Pin Single Output Dual Output

1 -Vin (GND) -Vin (GND)
2 Remote ON/OFF Remote ON/OFF
7 No conn. No conn.
8 No conn. Common

9 +Vout +Vout
10 -Vout -Vout
16 +Vin (Vcc) +Vin (Vcc)
