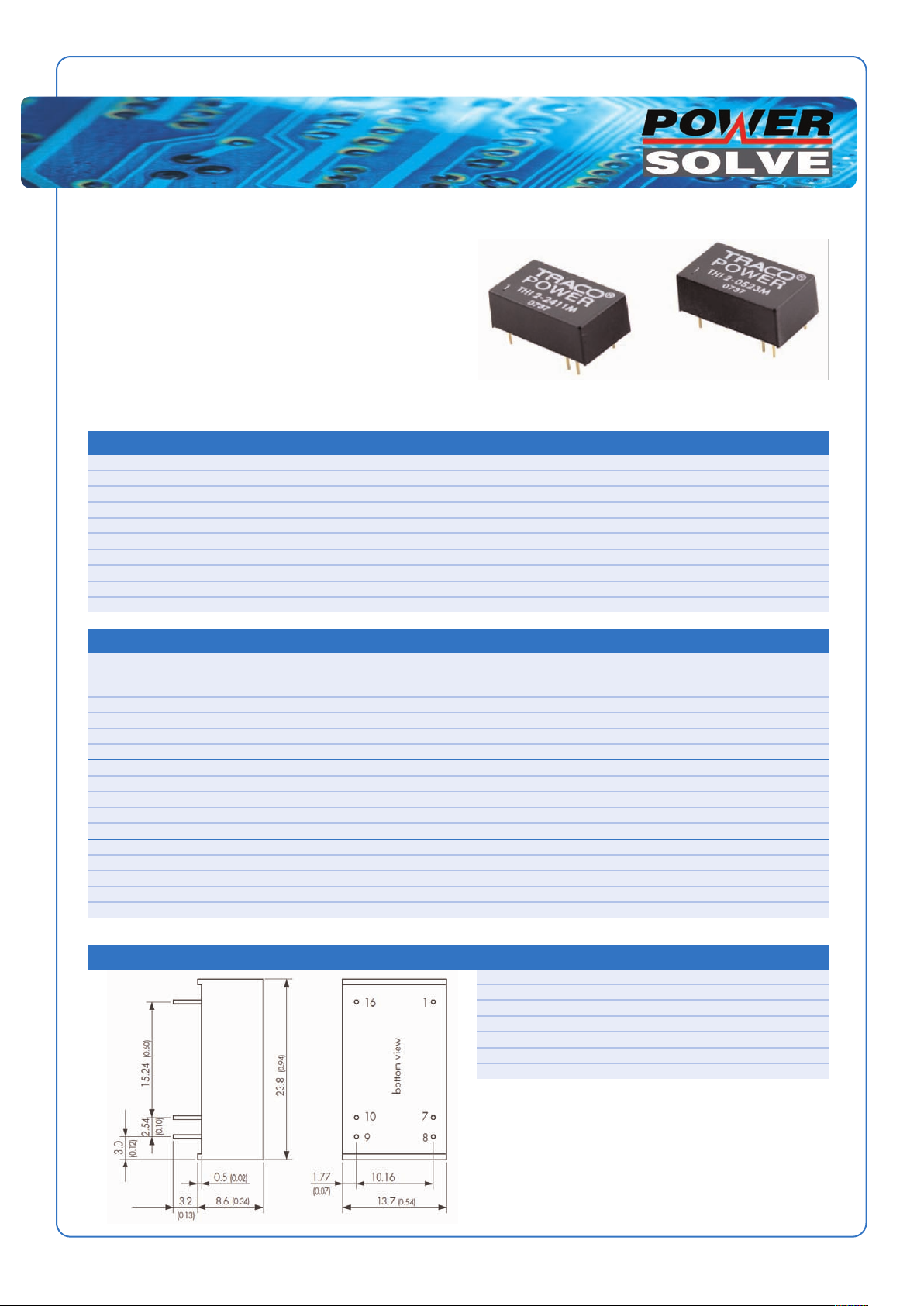

DC-DC Converters

THI 2M Series, 2 Watt

www.powersolve.co.uk

Features

• Ultra compact DIP 16 package

• I/O isolation 4000Vac rms

• Industrial and medical safety approval

• Operating temperature range -40°C to +71°C

• Short circuit protection

• Reinforced insulation rated for working voltage up to 300VAC

Electrical Specification

Input filter Pi-filter
Short Circuit Protection limited 0.5 sec.
Efficiency See Table
Operating Temperature Range -40°C to +71°C (derate at 2.5%/°C above 60°C)
I/O isolation voltage 4000Vac rms, rated for 300Vac working voltage
I/O Isolation test voltage 6000Vpk (1 sec.)
I/O Isolation capacitance 20pF typical
I/O Isolation resistance >10,000M ohm
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1, cUL/UL 60601-1, IEC/EN 60601-1, CB report
Casing plastic (UL94V-0 rated)

Output Voltage and Current Ratings

MODEL INPUT OUTPUT OUTPUT  RIPPLE & LINE LOAD EFFICIENCY

THI2-0511M 5VDC 400mA 150mV pk-pk max. non-regulated 12% 66%
THI2-0512M 5VDC ±10% 12VDC 165mA 150mV pk-pk max. non-regulated 10% 66%
THI2-0513M 15VDC 133mA 150mV pk-pk max. non-regulated 10% 66%
THI2-0522M ±12VDC ±83mA 150mV pk-pk max. non-regulated 10% 72%
THI2-0523M ±15VDC ±66mA 150mV pk-pk max. non-regulated 10% 73%
THI2-1211M 5VDC 400mA 150mV pk-pk max. non-regulated 12% 66%
THI2-1212M 12VDC ±10% 12VDC 165mA 150mV pk-pk max. non-regulated 10% 66%
THI2-1213M 15VDC 133mA 150mV pk-pk max. non-regulated 10% 66%
THI2-1222M ±12VDC ±83mA 150mV pk-pk max. non-regulated 10% 74%
THI2-1223M ±15VDC ±66mA 150mV pk-pk max. non-regulated 10% 75%
THI2-2411M 5VDC 400mA 150mV pk-pk max. non-regulated 12% 66%
THI2-2412M 24VDC ±10% 12VDC 165mA 150mV pk-pk max. non-regulated 10% 66%
THI2-2413M 15VDC 133mA 150mV pk-pk max. non-regulated 10% 66%
THI2-2422M ±12VDC ±83mA 150mV pk-pk max. non-regulated 10% 74%
THI2-2423M ±15VDC ±66mA 150mV pk-pk max. non-regulated 10% 75%

VOLTAGE VOLTAGE CURRENT NOISE REG. REG.

Mechanical and Connection Details

Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England

Tel: [phone] Fax: [phone] Email: [e-mail]

Pin Single Output Dual Output

1 -Vin (GND) -Vin (GND)
7 No conn. No conn.
8 No conn. Common

9 +Vout +Vout
10 -Vout -Vout
16 +Vin (Vcc) +Vin (Vcc)
