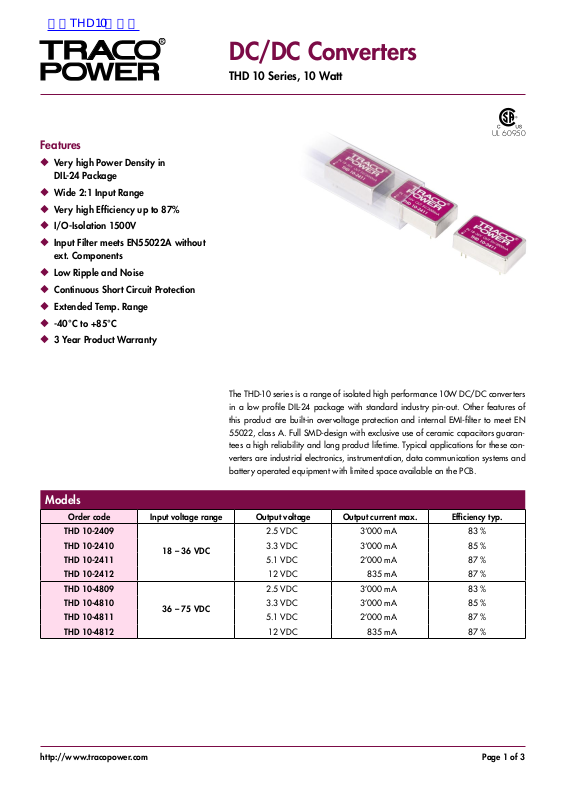

DC/DC Converters
THD 10 Series, 10 Watt
Features
◆ Very high Power Density in
DIL-24 Package
◆ Wide 2:1 Input Range
◆ Very high Efficiency up to 87%
◆ I/O-Isolation 1500V
◆ Input Filter meets EN55022A without
ext. Components
◆ Low Ripple and Noise
◆ Continuous Short Circuit Protection
◆ Extended Temp. Range
◆ -40°C to +85°C
◆ 3 Year Product Warranty

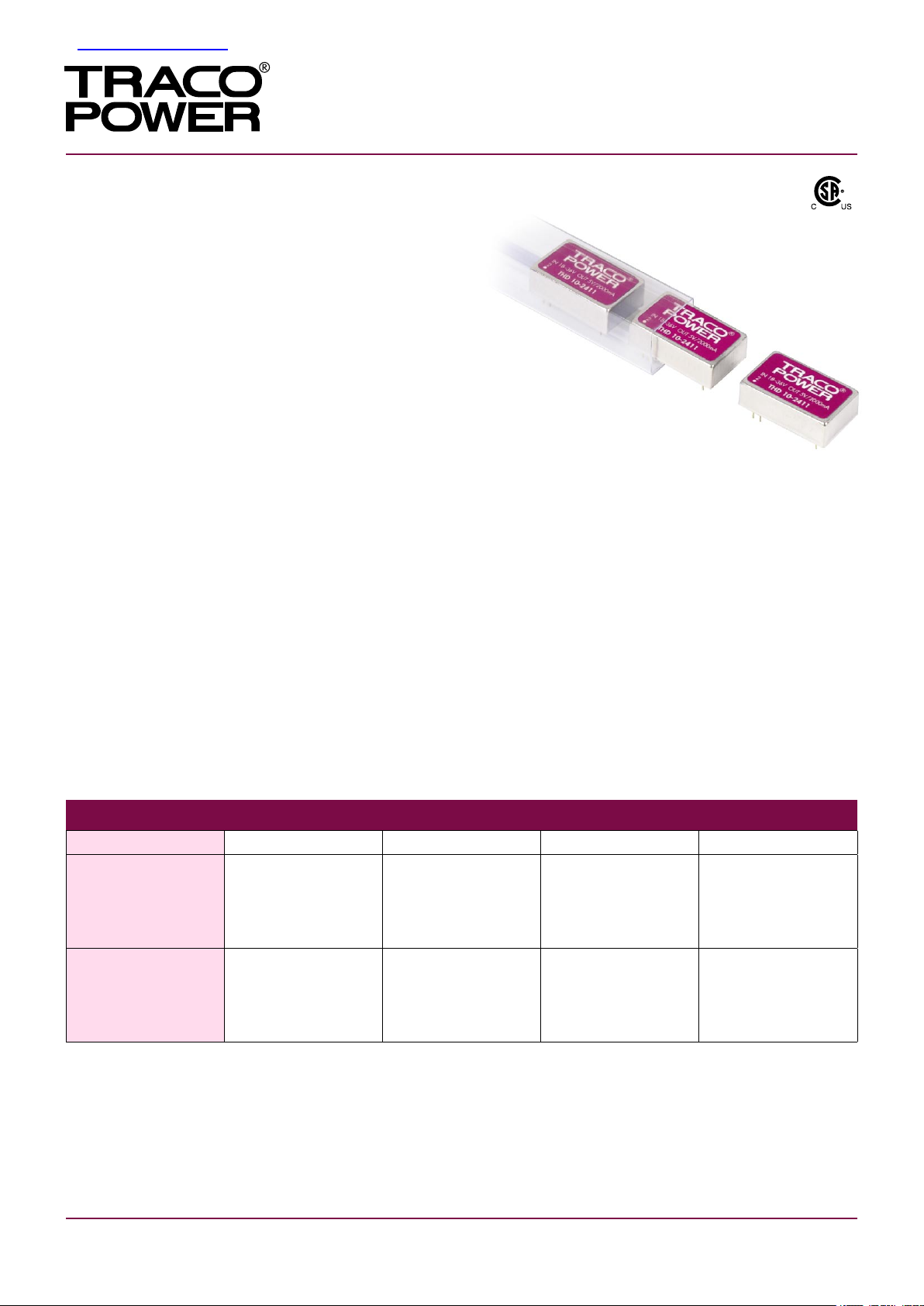

The THD-10 series is a range of isolated high performance 10W DC/DC converters
in a low profile DIL-24 package with standard industry pin-out. Other features of
this product are built-in overvoltage protection and internal EMI-filter to meet EN
55022, class A. Full SMD-design with exclusive use of ceramic capacitors guarantees a high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and
battery operated equipment with limited space available on the PCB.
Order code Input voltage range Output voltage Output current max. Efficiency typ.
THD 10-2409
2.5 VDC 3‘000 mA 83 %
THD 10-2410
18 – 36 VDC
3.3 VDC 3‘000 mA 85 %
THD 10-2411
5.1 VDC 2’000 mA 87 %
THD 10-2412
12 VDC 835 mA 87 %
THD 10-4809
2.5 VDC 3’000 mA 83 %
THD 10-4810
36 – 75 VDC
3.3 VDC 3’000 mA 85 %
THD 10-4811
5.1 VDC 2’000 mA 87 %
THD 10-4812
12 VDC 835 mA 87 %
Models
UL 60950
查询THD10供应商
Page 2
http://www.tracopower.com Page 2 of 3
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
DC/DC Converters
THD 10 Series 10 Watt
Input Specifications
Input current (no load) 24 Vin models: 20 mA typ.
48 Vin models: 10 mA typ.
Input current (full load) 24 Vin; 2.5.Vout models: 380 mA typ.
24 Vin; other output models: 480 mA typ.
48 Vin; 2.5.Vout models: 190 mA typ.
48 Vin; other output models: 240 mA typ.
Start-up voltage / 24 Vin models: 18 VDC / 17 VDC
under voltage shut down 48 Vin models: 36 VDC / 34 VDC
Surge voltage 24 Vin models: 50 V max.
(1 sec. max.) 48 Vin models: 100 V max.
Reverse voltage protection 0.5 A max.
Conducted noise (input) EN 55022 level A, FCC part 15, level A
Output Specifications
Voltage set accuracy ±1.2 %
Regulation – Input variation Vin min. to Vin max. ± 1.0 % max.
– Load variation 10 – 100 % ± 1.2 % max. (± 1.5% max. for 2.5 Vout models)
Ripple and noise (20 MHz Bandwidth) 85 mVpk-pk max.
Temperature coefficient ± 0.02 % /K
Output current limitation >110% of Iout max., constant current
Short circuit protection indefinite (automatic recovery)
Capacitive load single output models: 2’200 µF max.
12 VDC output models: 820 µF max.
General Specifications
Temperature ranges – Operating –40 °C ... +85 °C
– Derating 3%/K above 70°C
– Case temperature +100 °C max.
– Storage –55 °C ... +125 °C
Humidity (non condensing) 95 % rel H max.
Reliability, calculated MTBF (MIL-HDBK-217 F) >1 Mio. h @ + 25 °C
Isolation voltage Input/Output 1‘500 VDC
Isolation capacity Input/Output 1’200 pF typ
Isolation resistance Input/Output (500 VDC) > 1‘000 M Ohm
Switching frequency (fixed) 400 kHz typ. (Pulse width modulation PWM)
Safety standards UL/cUL60950, EN 60950, IEC 60950
compliance up to 60 VDC input voltage
(SELV limit)
Safety approvals UL/cUL 60950
Page 3
Page 3 of 3
Specifications can be changed without notice
Rev. 03/05
J
enatschstrasse 1 · CH-8002 Zurich · Switzerland
Tel. +41 43311 4511 · Fax +41 43311 4545 · [email protected] · www.tracopower.com
DC/DC Converters
THD 10 Series 10 Watt

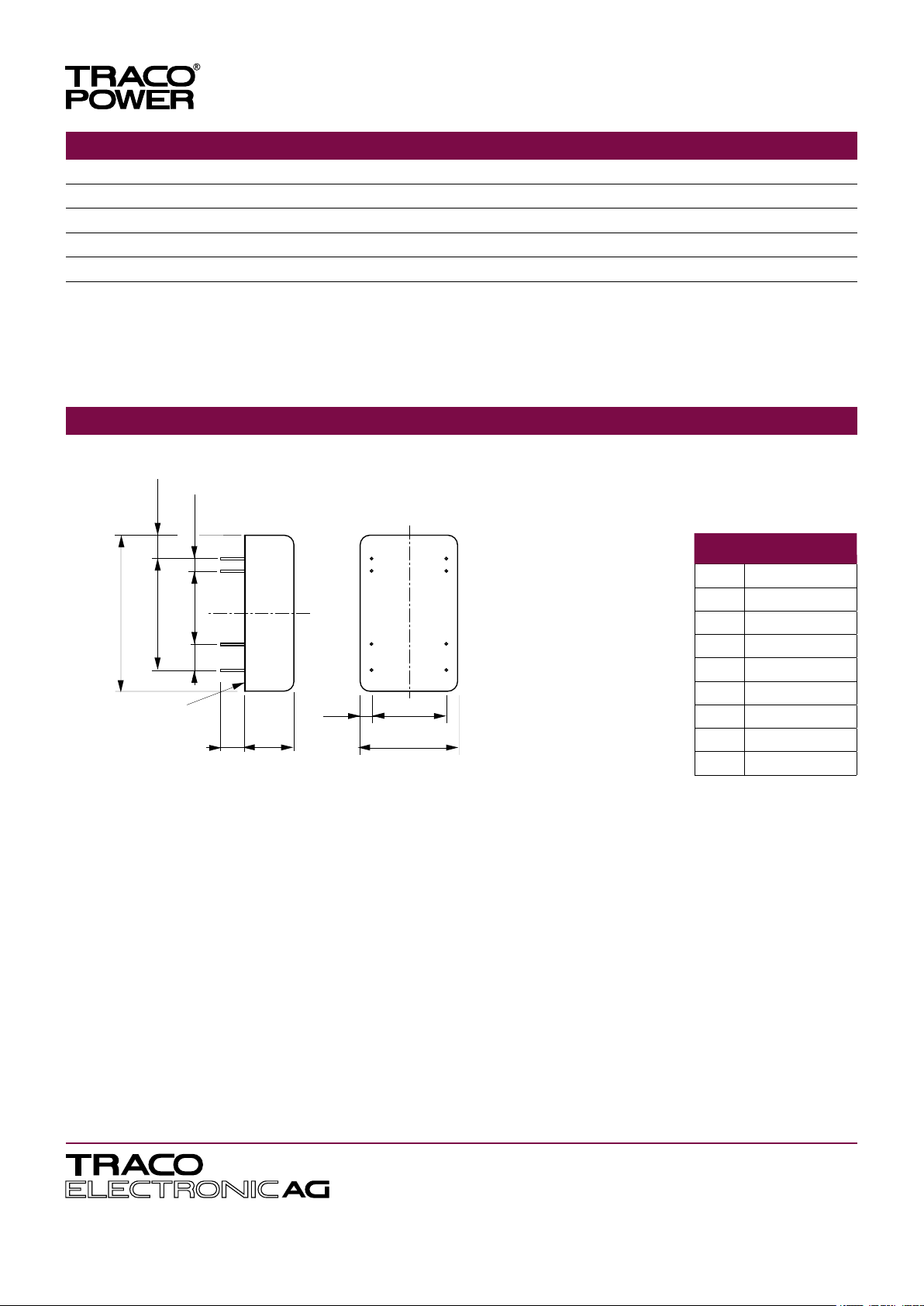

Physical Specifications
Case material steel, nickel plated
Baseplate material non conductive FR4
Potting material silicon rubber TES (UL94V-0 rated)
Weight 17.3 g (0.61 oz)
Soldering temperature max. 260 °C / 10 sec.
Outline Dimensions mm (inches)
4.5
(0.18)
22.86
(0.90)
20.3
(0.80)
2.54
(0.10)
31.8
(1.25)
10.2
15.24
(0.60)
9
11
22
23
2
3
16
14
Bottom view
15.24
(0.60)
5.08
2.5
4.1
Insulated Baseplate
(0.10)
(0.16)
(0.20)
(0.40)
Pin diameter ø 0.5 ±0.05 (0.02 ±0.002)
Tolerances ±0.25 (0.01)
Pin Single output
2
–Vin (GND)
3
–Vin (GND)
9
No pin
11
No con.
14
+Vout
16
–Vout
22
+Vin (Vcc)
23
+Vin (Vcc)
Pin-Out
