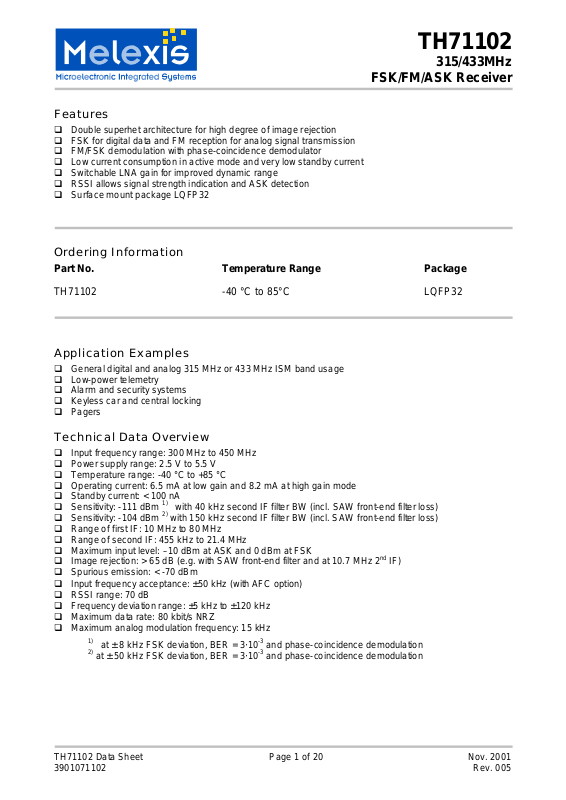

TH71102

315/433MHz

FSK/FM/ASK Receiver

Features

! Double superhet architecture for high degree of image rejection ! FSK for digital data and FM reception for analog signal transmission ! FM/FSK demodulation with phase-coincidence demodulator ! Low current consumption in active mode and very low standby current ! Switchable LNA gain for improved dynamic range ! RSSI allows signal strength indication and ASK detection ! Surface mount package LQFP32

Ordering Information

Part No. Temperature Range Package

TH71102 -40 °C to 85°C LQFP32

Application Examples

! General digital and analog 315 MHz or 433 MHz ISM band usage ! Low-power telemetry ! Alarm and security systems ! Keyless car and central locking ! Pagers

Technical Data Overview

! Input frequency range: 300 MHz to 450 MHz ! Power supply range: 2.5 V to 5.5 V ! Temperature range: -40 °C to +85 °C ! Operating current: 6.5 mA at low gain and 8.2 mA at high gain mode ! Standby current: < 100 nA ! Sensitivity: -111 dBm ! Sensitivity: -104 dBm ! Range of first IF: 10 MHz to 80 MHz ! Range of second IF: 455 kHz to 21.4 MHz ! Maximum input level: –10 dBm at ASK and 0 dBm at FSK ! Image rejection: > 65 dB (e.g. with SAW front-end filter and at 10.7 MHz 2 ! Spurious emission: < -70 dBm ! Input frequency acceptance: ±50 kHz (with AFC option) ! RSSI range: 70 dB ! Frequency deviation range: ±5 kHz to ±120 kHz ! Maximum data rate: 80 kbit/s NRZ ! Maximum analog modulation frequency: 15 kHz

at ± 8 kHz FSK deviation, BER = 3⋅10-3 and phase-coincidence demodulation

at ± 50 kHz FSK deviation, BER = 3⋅10-3 and phase-coincidence demodulation

with 40 kHz second IF filter BW (incl. SAW front-end filter loss)

with 150 kHz second IF filter BW (incl. SAW front-end filter loss)

IF)

TH71102 Data Sheet Page 1 of 20 Nov. 2001 3901071102 Rev. 005

Page 2

TH71102

315/433MHz

FSK/FM/ASK Receiver

General Description

The TH71102 receiver IC consists of the following building blocks:

" PLL synthesizer (PLL SYNTH) for generation of the first and second local oscillator signals LO1 and LO2 " Parts of the PLL SYNTH are the high-frequency VCO1, the feedback dividers DIV_8 and DIV_2,

a phase-frequency detector (PFD) with charge pump (CP) and a crystal-based reference oscillator (RO)

" Low-noise amplifier (LNA) for high-sensitivity RF signal reception " First mixer (MIX1) for down-conversion of the RF signal to the first IF (IF1) " second mixer (MIX2) for down-conversion of the IF1 to the second IF (IF2) " IF amplifier (IFA) to amplify and limit the IF2 signal and for RSSI generation " Phase coincidence demodulator (DEMOD) with third mixer (MIX3) to demodulate the IF signal " Operational amplifier (OA) for data slicing, filtering and ASK detection " Bias circuitry for bandgap biasing and circuit shutdown

With the T H71102 receiver c hip, various circuit c onfigurations c an be arranged in or der to m eet a num ber of different custom er requirements . For FM/FSK reception the IF tank used in the phase coincidence dem odulator can be constituted either by a ceramic resonator or an LC tank (optionally with a varactor diode to create an AFC circuit). In ASK configuration, the RSSI signal is feed to an ASK detector, which is constituted by the operational amplifier.

Demodulation Type of receiver

FM / FSK FM / FSK

ASK

The superheterodyne configuration is double conversion where MIX1 and MIX2 are driven by the internal local oscillator signals LO1 and LO2, r espectively. This allows a high degree of im age rejec tion, achieved in conjunction with an RF frontend filter. Efficient RF frontend f iltering is realized by using a SAW, ceram ic or helix filter in front of the LNA and by adding an LC filter at the LNA output.

A single-conversion variant, called TH71101, is also available. Both RXICs have the same die. At the TH71101 the second mixer MIX2 operates as an amplifier.

narrow-band RX with ceramic demodulation tank wide-band RX with LC demodulation tank RX with RSSI-based demodulation

TH71102 Data Sheet Page 2 of 20 Nov. 2001 3901071102 Rev. 005

Page 3

Block Diagram

TH71102

315/433MHz

FSK/FM/ASK Receiver

IN_DEM

OUT_IFA

15 16

RSSI

FPC2

FBC1

IN_IFA

VEE_IF

OUT_MIX2

932

VCC_MIX

IF1N

IF1P

VEE_MIX

OUTP

OUTN

OAP

OAN

OUT_OA

VCC_BIAS

VEE_BIAS

MIX3

ENRX

BIAS

VCC_PLL

VEE_RO

IFA

PFD

IF2

LO2

DIV_2

MIX2

IF1

DIV_8

LO1

VCO1

MIX1

IN_MIX1

OUT_LNA

GAIN_LNA VEE_LNAC

LNA

IN_LNA

VEE_LNA

VCC_LNA

Fig. 1: TH71102 block diagram

TH71102 Data Sheet Page 3 of 20 Nov. 2001 3901071102 Rev. 005

Page 4

TH71102

315/433MHz

FSK/FM/ASK Receiver

Frequency Planning

Frequency planning is straightforward for single-conversion applications because there is only one IF that might be chosen, and then the only possible choice is low-side or high-side injection of the LO1 s ignal (which is now the one and only LO signal in the receiver).

The receiver’s double-conver sion architecture requires careful frequenc y planning. Besides the desired RF input signal, there are a number of s purious signals that may cause an undesired response at the output. Among them are the image of the RF signal (that must be suppressed by the RF front-end f ilter), spurious signals injected to the first IF ( IF1) and their im ages which could be m ixed down to the sam e sec ond IF (IF2) as the desired RF signal (they must be suppressed by the LC filter at IF1 and/or by low-crosstalk design).

By configuring the TH71102 for double conversion and using its internal PLL synthesizer with fixed feedback divider ratios of N1 = 8 (DIV_8) and N2 = 2 (DIV_2) , four types of down-conversion are possible: low-side injection of LO1 and LO2 (low - low), LO1 low-side and LO2 high-side (low-high), LO1 high-side and LO2 low-side (high-low) or LO1 and LO2 high-s ide (high-high). T he following table sum m arizes som e equations that are useful to calculate the crystal reference frequency (REF), the firs t IF (IF1) and the VCO1 or firs t LO frequency (LO1), respectively, for a given RF and second IF (IF2).

Injection type high-high low-low high-low low-high

REF (RF – IF2)/14 (RF – IF2)/18 (RF + IF2)/14 (RF + IF2)/18 LO1

16•REF 16•REF 16•REF 16•REF

IF1 LO1 – RF RF – LO1 LO1 – RF RF – LO1

LO2

2•REF 2•REF 2•REF 2•REF

IF2 LO2 – IF1 IF1 – LO2 IF1 – LO2 LO2 – IF1

The following table depicts generated, desired, pos sible images and som e undesired s ignals cons idering the examples of 315 MHz and 433.6 MHz RF reception at IF2 = 10.7 MHz.

Signal type RF = 315

MHz

Injection type high-high low-low REF / MHz 21.73571 16.90556

LO1 / MHz 347.77143 270.48889 IF1 / MHz 32.77143 44.51111 LO2 / MHz 43.47143 33.81111 RF image/MHz 380.54286 225.97778 IF1 image/MHz 54.17143 23.11111

RF = 315

MHz

RF = 315

MHz

high-low

23.26429

372.22857

57.22857

46.52857

429.45714

35.82857

RF = 315

MHz

low-high high-high

18.09444 30.20714

289.51111 483.31429

25.48889 49.71429

36.18889 60.41429

264.02222 533.02857

46.88889 71.11429

RF =

433.6 MHz

RF =

433.6 MHz

low-low

23.49444

375.91111

57.68889

46.98889

318.22222

36.28889

RF =

433.6 MHz

high-low low-high

31.73571 24.68333

507.77143 394.93333

74.17143 38.66667

63.47143 49.36667

581.94286 356.26667

52.77143 60.06667

RF =

433.6 MHz

The selection of the ref erence crystal frequency is based on som e assumptions. As for example: the f irst IF and the image frequencies should not be in a radio band where strong interfering signals might occur (because they could represent parasitic receiving s ignals), the LO1 s ignal should be in the range of 300 MHz to 430 MHz (because this is the optimum frequency range of the VCO1). Furtherm ore the first IF should be as high as possible to achieve highest RF image rejection. The colum ns in bold depict the selec ted f r equenc y plans to receive at 315 MHz and 433.6 MHz, respectively.

TH71102 Data Sheet Page 4 of 20 Nov. 2001 3901071102 Rev. 005

Page 5

TH71102

315/433MHz

FSK/FM/ASK Receiver

Pin Definition and Descripti on

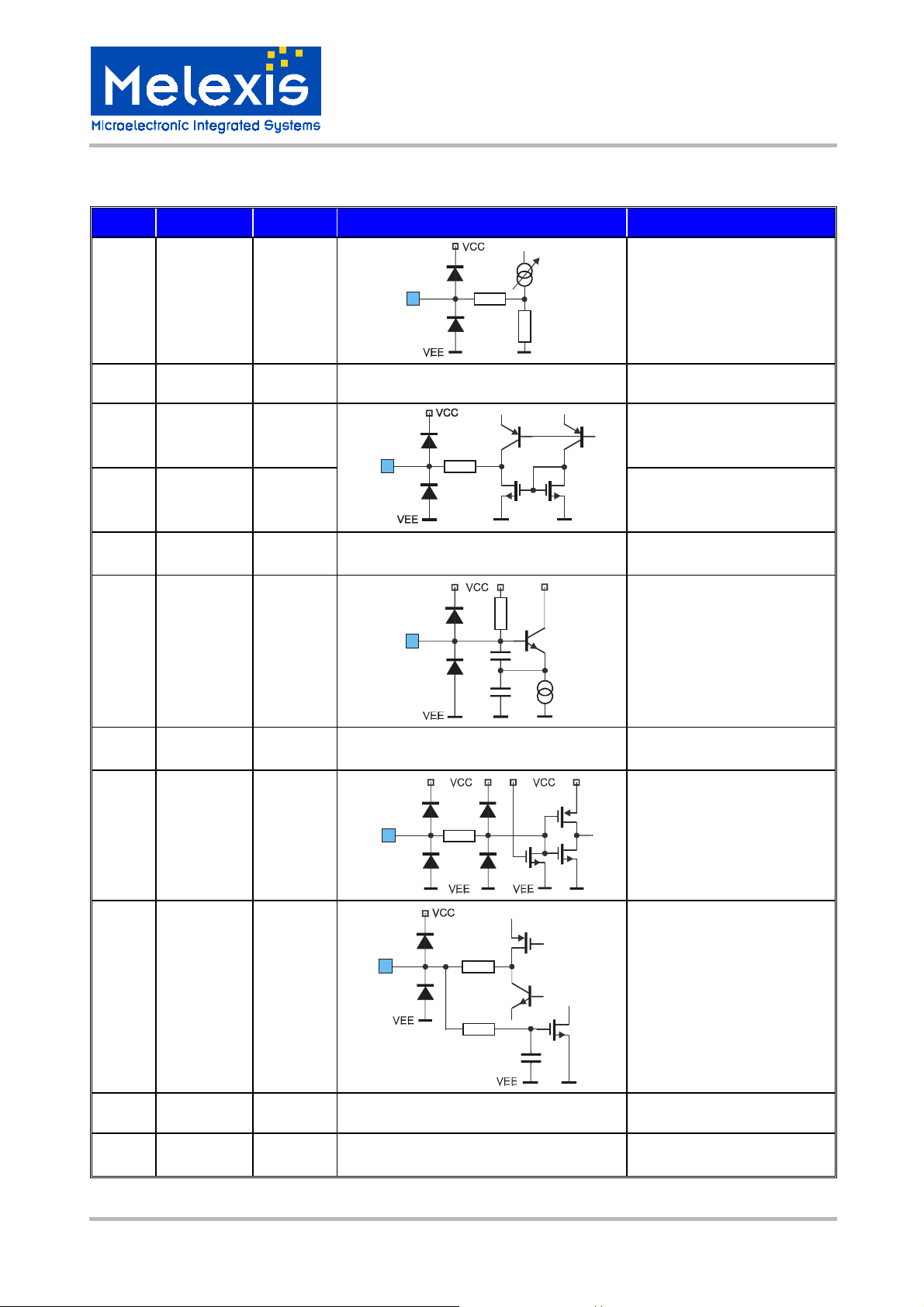

Pin No. Name I/O Type Functional Schematic Description

3 OUT_LNA analog

output

31 IN_LNA analog

input

1 VEE_LNAC ground

2 GAIN_LNA analog

input

IN_LNA

GAIN_LNA

400

Ω

OUT_LNA

VEE_LNAC

LNA open-collector output, to be connected to external LC tank that resonates at RF

LNA input, approx. 26Ω single-ended

ground of LNA core (cascode)

LNA gain control (CMOS input with hysteresis)

4 IN_MIX1 analog

input

IN_MIX1

Ω

500µA

MIX1 input, approx. 33Ω single-ended

5 VEE_MIX ground LNA biasing ground 6 IF1P analog I/O open-collector output, to be

IF1P

7 IF1N analog I/O

VEE

VCC

20p

2x500µA

20p

VEE

IF1N

connected to external LC tank that resonates at first IF

open-collector output, to be connected to external LC tank that resonates at first IF

8 VCC_MIX supply MIX1 and MIX2 positive

supply

9 OUT_MIX2 analog

output

OUT_MIX2

130

6.8k

Ω

230µA

MIX2 output, approx. 330Ω output impedance

10 VEE_IF ground ground for MIX2, IFA and

DEMOD

TH71102 Data Sheet Page 5 of 20 Nov. 2001 3901071102 Rev. 005

Page 6

TH71102

315/433MHz

FSK/FM/ASK Receiver

Pin No. Name I/O Type Functional Schematic Description

11 IN_IFA analog

input

VCC

IN_IFA

VCC

IFA input, approx. 2.2kΩ input impedance

FBC1

IFA feedback capacitor

VEE

to be connected to external IFA feedback capacitor

positive supply for IFA,

VEE

FBC2

VCC

VEE

2.2k

200µA

VEE

12 FBC1 analog I/O to be connected to external

13 FBC2 analog I/O

14 VCC_IF supply

DEMOD

15 OUT_IFA analog I/O

IFA output and MIX3 input (of DEMOD)

OUT_IFA

40µA

16 IN_DEM analog

input

IN_DEM

47k

DEMOD input, to MIX3 core

17 VCC_BIAS supply

positive supply of general bias system and OA

18 OUT_OA analog

output

OUT_OA

Ω

OA output, 40uA current drive capability

19 OAN analog

input

20 OAP analog

input

OAN

20µA

Ω

negative OA input, input voltage limited to approx.

between pins OAP

OAP

0.7 V and OAN

negative OA input, input

voltage limited to approx.

0.7 V

between pins OAP

and OAN

TH71102 Data Sheet Page 6 of 20 Nov. 2001 3901071102 Rev. 005

Page 7

TH71102

315/433MHz

FSK/FM/ASK Receiver

Pin No. Name I/O Type Functional Schematic Description

21 RSSI analog

output

RSSI

I (Pi)

Ω

36k

RSSI output, for RSSI and ASK detection, approx. 36kΩ output impedance

22 VEE_BIAS ground

ground for general bias system and OA

23 OUTP analog

output

24 OUTN analog

OUTP OUTN

23 24

Ω

20µA

FSK/FM positive output, output impedance of 100kΩ to 300kΩ

FSK/FM negative output, output impedance of 100kΩ to 300kΩ

25 VEE_RO ground ground of dividers, PFD and

26 RO analog

input

RO 26

50k

30p

RO input, Colpitts type oscillator with internal feedback capacitors

27 VCC_PLL supply positive supply of RO, DIV,

PFD and charge pump

28 ENRX digital

input

ENRX

1.5k

mode control input (CMOS Input)

29 LF analog

output

LF 29

200

400

Ω

charge pump output and VCO1 control input

30 VEE_LNA ground LNA biasing ground

32 VCC_LNA supply positive supply of LNA

biasing

TH71102 Data Sheet Page 7 of 20 Nov. 2001 3901071102 Rev. 005

Page 8

Technical Data

Mode Configurations

ENRX Mode Description

0 SBY standby mode 1 ON entire chip active

Note: ENRX are pulled down internally

LNA Gain Control

TH71102

315/433MHz

FSK/FM/ASK Receiver

GAIN_LNA

Mode Description

< 0.8 V HIGH GAIN LNA set to high gain by voltage at GAIN_LNA > 1.4 V LOW GAIN LNA set to low gain by voltage at GAIN_LNA

Note: hysteresis between gain modes to ensure stability

Absolute Maximum Ratings

Parameter Symbol Condition / Note Min Max

Supply voltage V Input voltage V Input RF level P Storage temperature T

cc IN imax STG

Electrostatic discharge ESD

0 7.0 V

- 0.3 VCC+0.3 V no damage 10 dBm

-40 +125 °C human body model, MIL STD 833D method 3015.7, all pins except OUT_IFA pin OUT_IFA -500 +250 V

-500

+500

Unit

Normal Operating Conditions

Parameter Symbol Condition Min Max Unit

Supply voltage V Operating temperature T Input frequency f Frequency deviation FSK data rate R FM bandwidth f ASK data rate R

cc a

∆f

FSK

ASK

2.5 5.5 V

-40 +85 ºC 300 450 MHz at FM or FSK

±5 ±120

kHz

NRZ 40 kbit/s

15 kHz

NRZ 80 kbit/s

TH71102 Data Sheet Page 8 of 20 Nov. 2001 3901071102 Rev. 005

Page 9

DC Characteristics

all parameters under normal operating conditions, unless otherwise stated; typical values at T

= 23 °C and V

= 3 V

Parameter Symbol Condition Min Typ Max Unit

Standby current I Total supply current at low gain I

SBY cc, low

ENRX=0 100 nA ENRX=1, LNA at LOW GAIN

Total supply current at high gain I

cc, high

ENRX=1,

LNA at HIGH GAIN Opamp input offset voltage V Opamp input offset current I Opamp input bias current I RSSI voltage at low input level V

offs offs bias

RSSI, low

– I

OAP

OAN

0.5 * (I

OAP

+ I

Pi = -65 dBm,

) -100 100 nA

OAN

LNA at LOW GAIN

RSSI voltage at high input level V

RSSI, high

Pi = -35 dBm, LNA at LOW GAIN

TH71102

315/433MHz

FSK/FM/ASK Receiver

5.0 6.5 8.0 mA

6.5 8.2 10.0 mA

-20 20 mV

-50 50 nA

0.5 1.0 1.5 V

1.25 1.9 2.45 V

AC System Characteristics

all parameters under normal operating conditions, unless otherwise stated; all parameters based on test circuits for FSK (Fig. 2), FM (Fig. 4) and ASK (Fig. 5), respectively; typical values at T

= 23 °C and V

= 3 V, RF at 433.6 MHz, second IF at 10.7 MHz

Parameter Symbol Condition Min Typ Max Unit

start-up time – FSK/FM T

FSK

ENRX from 0 to 1,

0.9 ms

valid data at output

start-up time – ASK T

ASK

depends on ASK

R3•C12

detector time constant,

input sensitivity – FSK (narrow band)

input sensitivity – FSK (wide band)

input sensitivity – ASK (narrow band)

input sensitivity – ASK (wide band)

maximum input signal – FSK/FM P maximum input signal – ASK P

min, n

min, w

minA, n

minA, w

max, FM

max, ASK

valid data at output B

= 40kHz

IF2

∆f = ±15kHz (FSK/FM) BER ≤ 3⋅10 B

= 150kHz

IF2

∆f = ±50kHz (FSK/FM) BER ≤ 3⋅10 B

= 40kHz

IF2

BER ≤ 3⋅10 B

= 150kHz

IF2

BER ≤ 3⋅10 BER ≤ 3⋅10

LNA at LOW GAIN BER ≤ 3⋅10

-3

-111 dBm

-104 dBm

-109 dBm

-106 dBm 0dBm

-10 dBm

LNA at LOW GAIN spurious emission P image rejection blocking immunity

VCO gain K Charge pump current I

∆P ∆P

spur

imag block

VCO

∆f

> ±2MHz, note 1

block

65 dB 57 dB

250 MHz/V

60 µA

-70 dBm

Notes: 1. desired signal with FSK/FM or ASK modulation, CW blocking signal

FSK

TH71102 Data Sheet Page 9 of 20 Nov. 2001 3901071102 Rev. 005

Page 10

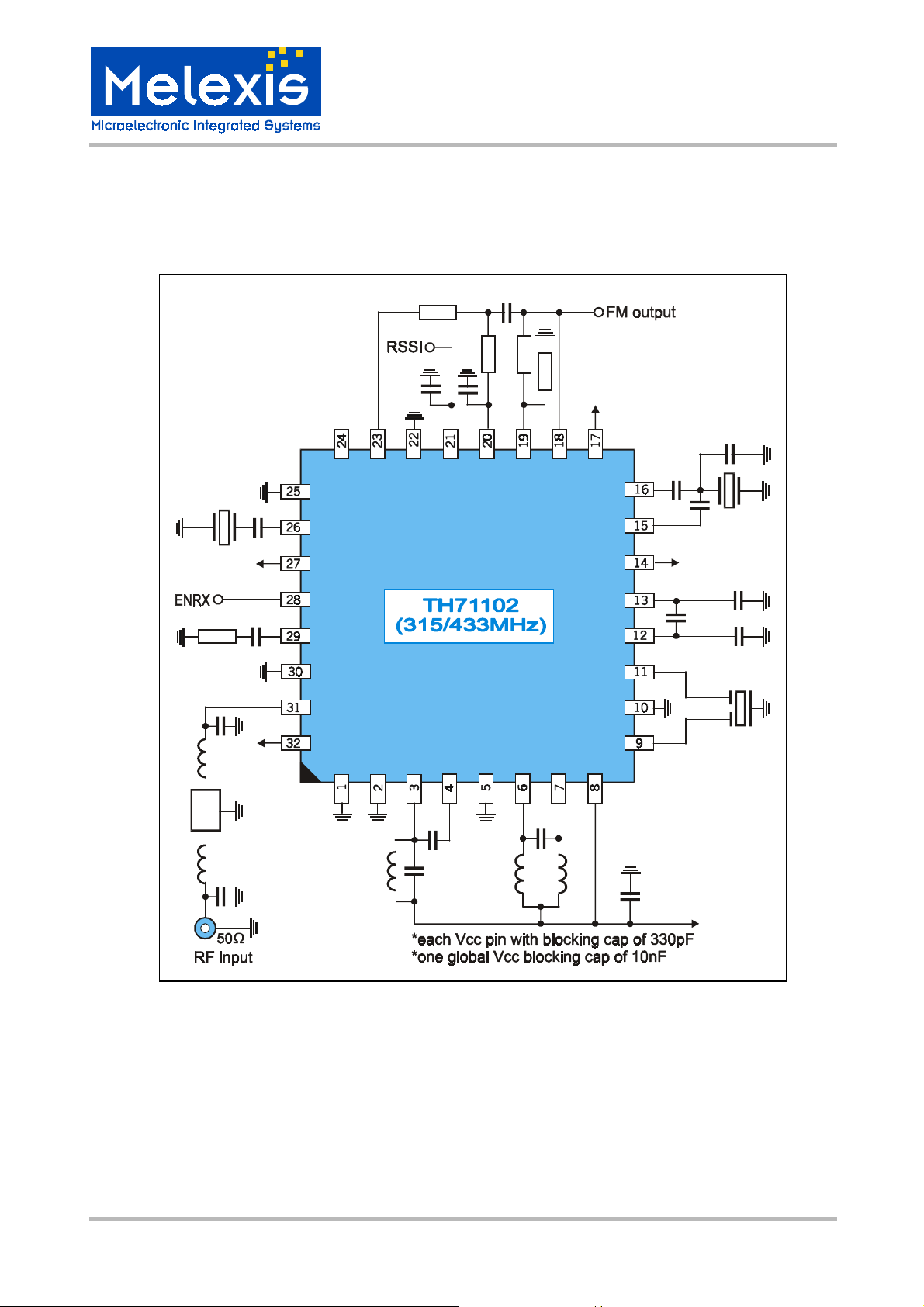

Test Circuits

FSK Reception

TH71102

315/433MHz

FSK/FM/ASK Receiver

XT AL

VCC

VEE

VCC

C14

OUTN

VCC

ENRX

VEE

IN_LNA

VEE

OUTP

GAIN_LNA

C16C15

VEE

RSSI

LQFP32

IN_MIX1

OUT_LNA

OAP

VEE

OAN

IF1P

VCC

IN_DEM

OUT_OA

OUT_IFA

VCC

FBC2

FBC1

IN_IFA

VEE

VCC

IF1N

VCC

OUT_MIX2

C13

C12

CERRES

VCC

C11

C10

CERFIL

SAWFIL

LCFIL

CB*

VCC

Fig. 2: Test circuit for FSK reception

TH71102 Data Sheet Page 10 of 20 Nov. 2001 3901071102 Rev. 005

Page 11

FSK/FM/ASK Receiver

FSK test circuit component list to Fig. 2

Part Size Value / Type Tolerance Description

C1 0805 15 pF C3 0805 1 nF C4 0603 3.3 pF C5 0603 3.3 pF C6 0603 4.7 pf C7 0603 2.2 pf C8 0603 27 pF

C9 0805 33 nF C10 0603 1 nF C11 0603 1 nF C12 0603 1.5 pF C13 0603 680 pF

CP 0805 10 – 12 pF C14 0805 10 – 47 pF

C15 0805 10 – 47 pF

C16 0603 330 pF

R1 0805

L1 0603 33 nH L2 0603 33 nH L3 0603 15 nH L4 0805 100 nH L5 0805 100 nH

XTAL HC49

SMD

SAWFIL QCC8C

10 kΩ±10%

23.49444 MHz

@ RF = 433.6 MHz

B3555

@ RF = 433.6 MHz

±10% ±10%

±5% ±5% ±5% ±5%

±5% ±10% ±10% ±10%

±5% ±10%

±5%

±10%

±5%

±25ppm calibra-

tion

±30ppm temp.

= 860 kHz

3dB

±100 kHz

= 433.92 MHz)

crystal series capacitor loop filter capacitor capacitor to match to SAW filter input capacitor to match to SAW filter output LNA output tank capacitor MIX1 input matching capacitor IF1 tank capacitor IFA feedback capacitor IFA feedback capacitor IFA feedback capacitor DEMOD phase-shift capacitor DEMOD coupling capacitor CERRES parallel capacitor demodulator output low-pass capacitor, depending on

data rate demodulator output low-pass capacitor, depending on

data rate RSSI output low-pass capacitor loop filter resistor inductor to match SAW filter inductor to match SAW filter LNA output tank inductor IF1 tank inductor IF1 tank inductor fundamental-mode crystal, C

0, max

= 7 pF, R

m, max

= 50 Ω

low-loss SAW filter from EPCOS

TH71102

315/433MHz

= 10 pF to 15pF,

load

CERFIL

CERRES SMD type CDACV10.7MG18-A

leaded

type

SMD type SFECV10.7MJS-A

SFE10.7MFP

= 40 kHz

@ B

IF2

= 150 kHz

@ B

IF2

TBD

±40 kHz

ceramic filter from Murata

ceramic demodulator tank from Murata

NIP – not in place, may be used optionally

TH71102 Data Sheet Page 11 of 20 Nov. 2001 3901071102 Rev. 005

Page 12

FSK Circuit with AFC and Ceramic Resonator Tolerance Compensation

TH71102

315/433MHz

FSK/FM/ASK Receiver

XTAL

VCC

VEE

VCC

C14

OUTN

VCC

ENRX

VEE

IN_LNA

VEE

OUTP

GAIN_LNA

C16C15

VEE

RSSI

LQFP32

IN_MIX1

OUT_LNA

C17

OAP

VEE

C18

OAN

IF1P

VCC

IN_DEM

OUT_OA

OUT_IFA

VCC

FBC2

FBC1

IN_IFA

VEE

VCC

IF1N

VCC

OUT_MIX2

C13

C12

CP VD

CERRES

VCC

C11

C10

CERFIL

LCFIL

CB*

VCC

SAWFIL

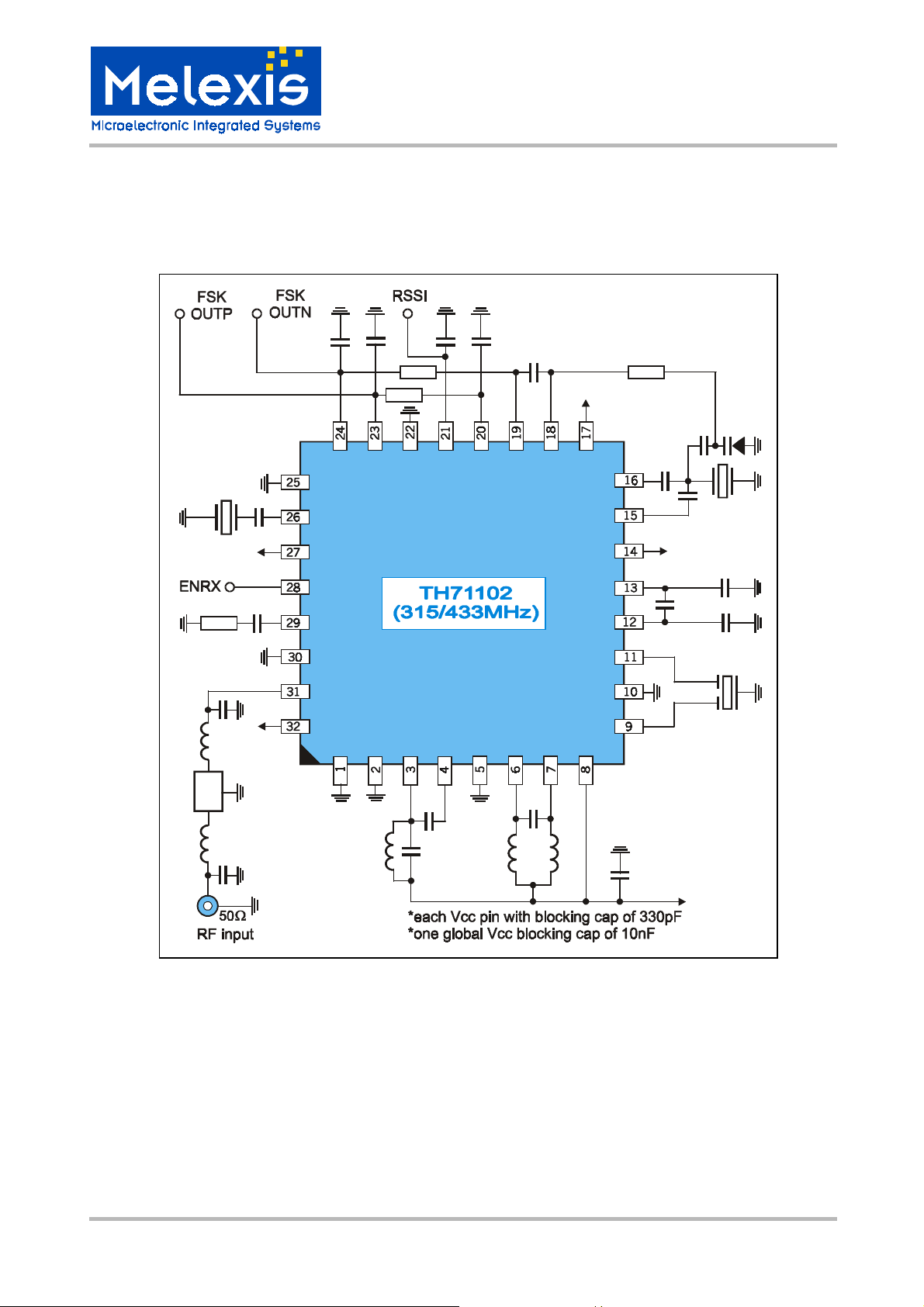

Fig. 3: Test circuit for FSK with AFC and resonator compensation

Circuit Feature

! Improves input frequency acceptance range up to RF

±50 kHz

nom

! Eliminates calibration tolerances of ceramic resonator ! Eliminates temperature tolerances of ceramic resonator ! Non-inverted and inverted CMOS-compatible outputs

TH71102 Data Sheet Page 12 of 20 Nov. 2001 3901071102 Rev. 005

Page 13

FSK/FM/ASK Receiver

FSK test circuit with AFC component list to Fig. 3

Part Size Value / Type Tolerance Description

C1 0805 15 pF C3 0805 1 nF C4 0603 3.3 pF C5 0603 3.3 pF C6 0603 4.7 pF C7 0603 2.2 pF C8 0603 27 pF

C9 0805 33 nF C10 0603 1 nF C11 0603 1 nF C12 0603 1.5 pF C13 0603 680 pF

CP 0805 27 pF C14 0805 10 – 47 pF

C15 0805 10 – 47 pF

C16 0603 330 pF C17 33 nF C18 0805

R1 0805

L1 0603 33 nH L2 0603 33 nH L3 0603 15 nH L4 0805 100 nH L5 0805 100 nH

VD SOD-323 BB535

XTAL HC49

SAWFIL QCC8C

CERFIL

CERRES SMD type CDACV10.7MG18-A

0805 0805 0805

SMD

leaded

type

SMD type SFECV10.7MJS-A

33 nF 10 nF

1 nF

10 kΩ±10% 100 kΩ 680 kΩ±10% 680 kΩ±10%

23.49444 MHz

@ RF = 433.6 MHz

B3555

@ RF = 433.6 MHz

SFE10.7MFP

= 40 kHz

@ B

IF2

= 150 kHz

@ B

IF2

NIP – not in place, may be used optionally

±10% ±10%

±5% ±5% ±5% ±5%

±5% ±10% ±10% ±10%

±5% ±10%

±5%

±10% ±10% ±10%

±10%

±5%

±25ppm calibra-

tion

±30ppm temp.

= 860 kHz

3dB

±100 kHz

= 433.92 MHz)

TBD

±40 kHz

crystal series capacitor loop filter capacitor capacitor to match to SAW filter input capacitor to match to SAW filter output LNA output tank capacitor MIX1 input matching capacitor IF1 tank capacitor IFA feedback capacitor IFA feedback capacitor IFA feedback capacitor DEMOD phase-shift capacitor DEMOD coupling capacitor ceramic resonator loading capacitor demodulator output low-pass capacitor, depending on

data rate demodulator output low-pass capacitor, depending on

data rate RSSI output low-pass capacitor integrator capacitor, fixed integrator capacitor, @ 0.5 to 2 kbit/s NRZ integrator capacitor, @ 2 to 20 kbit/s NRZ integrator capacitor, @ 20 to 40 kbit/s NRZ loop filter resistor varactor diode biasing resistor integrator resistor integrator resistor inductor to match SAW filter inductor to match SAW filter LNA output tank inductor IF1 tank inductor IF1 tank inductor varactor diode from Infineon fundamental-mode crystal, C

0, max

= 7 pF, R

m, max

= 50 Ω

low-loss SAW filter from EPCOS

ceramic filter from Murata

ceramic demodulator tank from Murata

TH71102

315/433MHz

= 10 pF to 15pF,

load

TH71102 Data Sheet Page 13 of 20 Nov. 2001 3901071102 Rev. 005

Page 14

FM Reception

TH71102

315/433MHz

FSK/FM/ASK Receiver

XT AL

VCC

VEE

VCC

OUTN

VCC

ENRX

VEE

IN_LNA

VEE

OUTP

GAIN_LNA

C16

C15

VEE

RSSI

LQFP32

IN_MIX1

OUT_LNA

C14

OAP

VEE

OAN

IF1P

VCC

IN_DEM

OUT_OA

OUT_IFA

VCC

FBC2

FBC1

IN_IFA

VEE

VCC

IF1N

VCC

OUT_MIX2

C13

C12

CERRES

VCC

C11

C10

CERFIL

SAWFIL

LCFIL

CB*

VCC

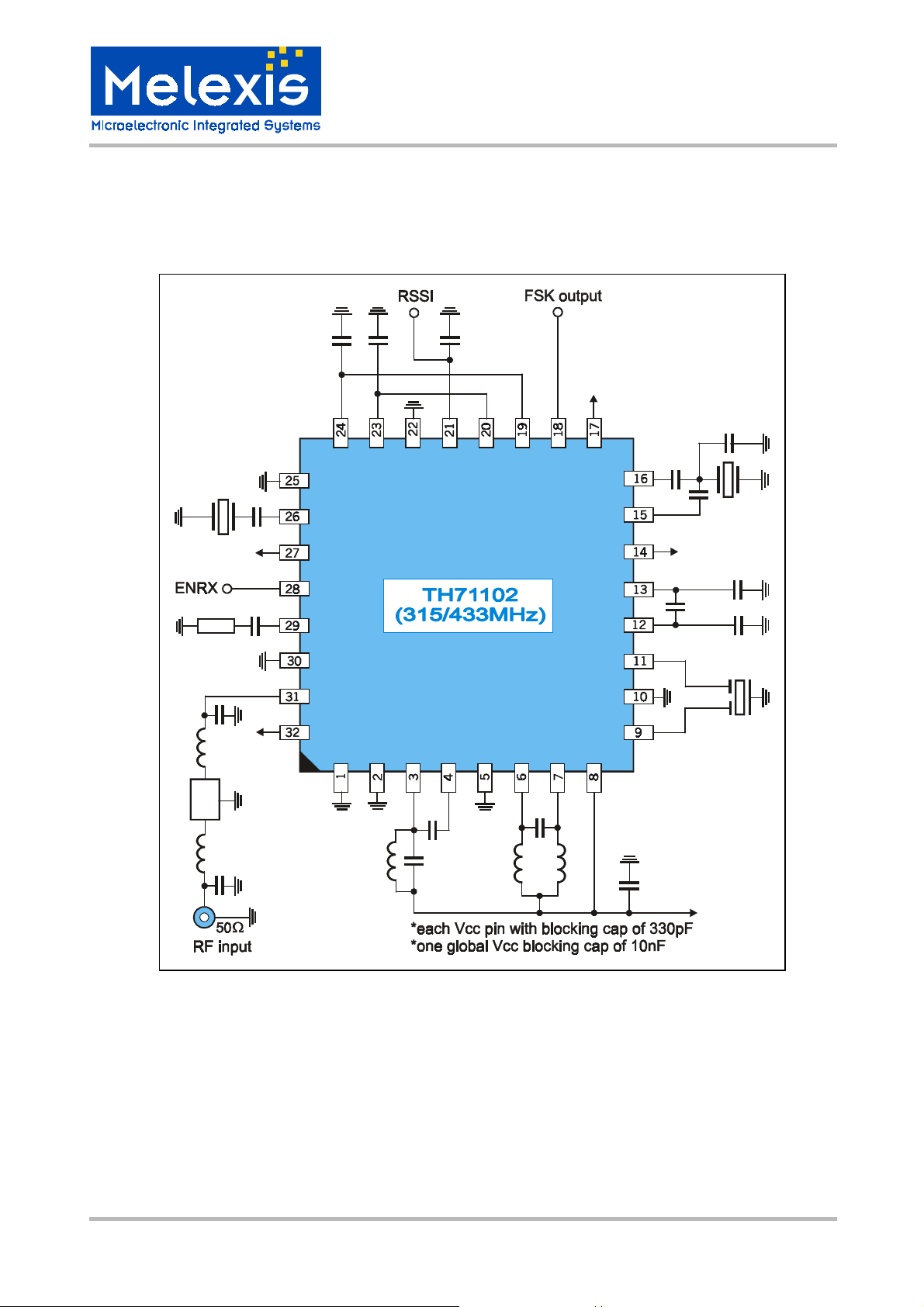

Fig. 4: Test circuit for FM reception

TH71102 Data Sheet Page 14 of 20 Nov. 2001 3901071102 Rev. 005

Page 15

FSK/FM/ASK Receiver

FM test circuit component list to Fig. 4

Part Size Value / Type Tolerance Description

C1 0805 15 pF C3 0805 1 nF C4 0603 3.3 pF C5 0603 3.3 pF C6 0603 4.7 pF C7 0603 2.2 pF C8 0603 27 pF

C9 0805 33 nF C10 0603 1 nF C11 0603 1 nF C12 0603 1.5 pF C13 0603 680 pF

CP 0805 10 – 12 pF C14 0805 100 pF

C15 0805 100 pF

C16 0603 330 pF

R1 0805

R3 0805

R4 0805

R5 0805

R6 0805

L1 0603 33 nH L2 0603 33 nH L3 0603 15 nH L4 0603 100 nH L5 0603 100 nH

XTAL HC49

SAWFIL QCC8C

CERFIL

CERRES SMD type CDACV10.7MG18-A

SMD

leaded

type

SMD type SFECV10.7MJS-A

10 kΩ±10% 12 kΩ±5%

6.8 kΩ±5% 33 kΩ±5% 33 kΩ±5%

23.49444 MHz

@ RF = 433.6 MHz

B3555

@ RF = 433.6 MHz

SFE10.7MFP

= 40 kHz

@ B

IF2

= 150 kHz

@ B

IF2

NIP – not in place, may be used optionally

±10% ±10%

±5% ±5% ±5% ±5%

±5% ±10% ±10% ±10%

±5% ±10%

±5%

±10%

±5%

±25ppm calibra-

tion

±30ppm temp.

= 860 kHz

3dB

±100 kHz

= 433.92 MHz)

TBD

±40 kHz

crystal series capacitor loop filter capacitor capacitor to match to SAW filter input capacitor to match to SAW filter output LNA output tank capacitor MIX1 input matching capacitor IF1 tank capacitor IFA feedback capacitor IFA feedback capacitor IFA feedback capacitor DEMOD phase-shift capacitor DEMOD coupling capacitor CERRES parallel capacitor sallen-Key low-pass filter capacitor, to set cut-off fre-

quency sallen-Key low-pass filter capacitor, to set cut-off fre-

quency RSSI output low-pass capacitor loop filter resistor sallen-Key filter resistor, to set desired filter characteristic sallen-Key filter resistor, to set desired filter characteristic sallen-Key filter resistor, to set cut-off frequency sallen-Key filter resistor, to set cut-off frequency inductor to match SAW filter inductor to match SAW filter LNA output tank inductor IF1 tank inductor IF1 tank inductor fundamental-mode crystal, C

0, max

= 7 pF, R

m, max

= 50 Ω

low-loss SAW filter from EPCOS

ceramic filter from Murata

ceramic demodulator tank from Murata

TH71102

315/433MHz

= 10 pF to 15pF,

load

TH71102 Data Sheet Page 15 of 20 Nov. 2001 3901071102 Rev. 005

Page 16

ASK Reception

TH71102

315/433MHz

FSK/FM/ASK Receiver

C13

C12

VEE

XT AL

VCC

SAWFIL

OUTN

VCC

ENRX

VEE

IN_LNA

VEE

OUTP

RSSI

OAN

OAP

LQFP32

IN_MIX1

VEE

GAIN_LNA

OUT_LNA

IF1P

VCC

IN_DEM

OUT_OA

OUT_IFA

VCC

FBC2

FBC1

IN_IFA

VEE

VCC

IF1N

VCC

C11

C10

CERFIL

OUT_MIX2

LCFIL

CB*

VCC

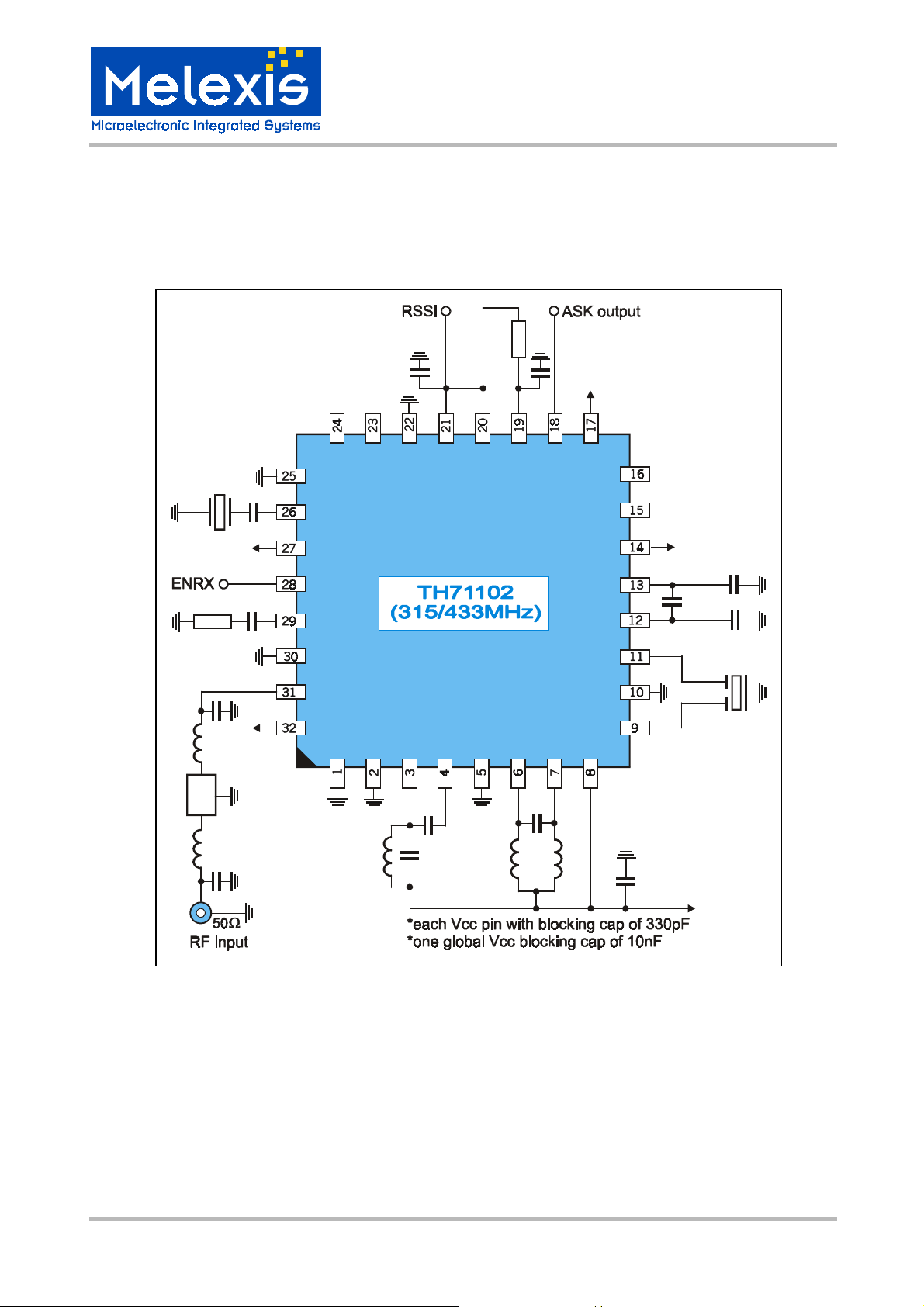

Fig. 5: Test circuit for ASK reception

TH71102 Data Sheet Page 16 of 20 Nov. 2001 3901071102 Rev. 005

Page 17

FSK/FM/ASK Receiver

ASK test circuit component list to Fig. 5

Part Size Value / Type Tolerance Description

C1 0805 15 pF C3 0805 1 nF C4 0603 3.3 pF C5 0603 3.3 pF C6 0603 4.7 pF C7 0603 2.2 pF C8 0805 27 pF

C9 0805 33 nF C10 0603 1 nF C11 0603 1 nF C12 0805 1 nF to 10 nF C13 0603 330 pF

R1 0805

R3 0603

L1 0603 33 nH L2 0603 33 nH L3 0603 15 nH L4 0603 100 nH L5 0603 100 nH

XTAL HC49

SAWFIL QCC8C

CERFIL

SMD

leaded

type

SMD type SFECV10.7MJS-A

10 kΩ±10%

100 kΩ±5%

23.49444 MHz

@ RF = 433.6 MHz

B3555

@ RF = 433.6 MHz

SFE10.7MFP

= 40 kHz

@ B

IF2

= 150 kHz

@ B

IF2

NIP – not in place, may be used optionally

±10% ±10%

±5% ±5% ±5% ±5%

±5% ±10% ±10% ±10% ±10% ±10%

±5%

±25ppm calibra-

tion

±30ppm temp.

= 860 kHz

3dB

±100 kHz

= 433.92 MHz)

TBD

±40 kHz

crystal series capacitor loop filter capacitor capacitor to match to SAW filter input capacitor to match to SAW filter output LNA output tank capacitor MIX1 input matching capacitor IF1 tank capacitor IFA feedback capacitor IFA feedback capacitor IFA feedback capacitor ASK data slicer capacitor, depending on data rate RSSI output low-pass capacitor loop filter resistor ASK data slicer resistor, depending on data rate inductor to match SAW filter inductor to match SAW filter LNA output tank inductor IF1 tank inductor IF1 tank inductor fundamental-mode crystal, C

0, max

= 7 pF, R

m, max

= 50 Ω

low-loss SAW filter from EPCOS

ceramic filter from Murata

TH71102

315/433MHz

= 10 pF to 15pF,

load

TH71102 Data Sheet Page 17 of 20 Nov. 2001 3901071102 Rev. 005

Page 18

Package Dimensions

TH71102

315/433MHz

FSK/FM/ASK Receiver

1724

A1A2A

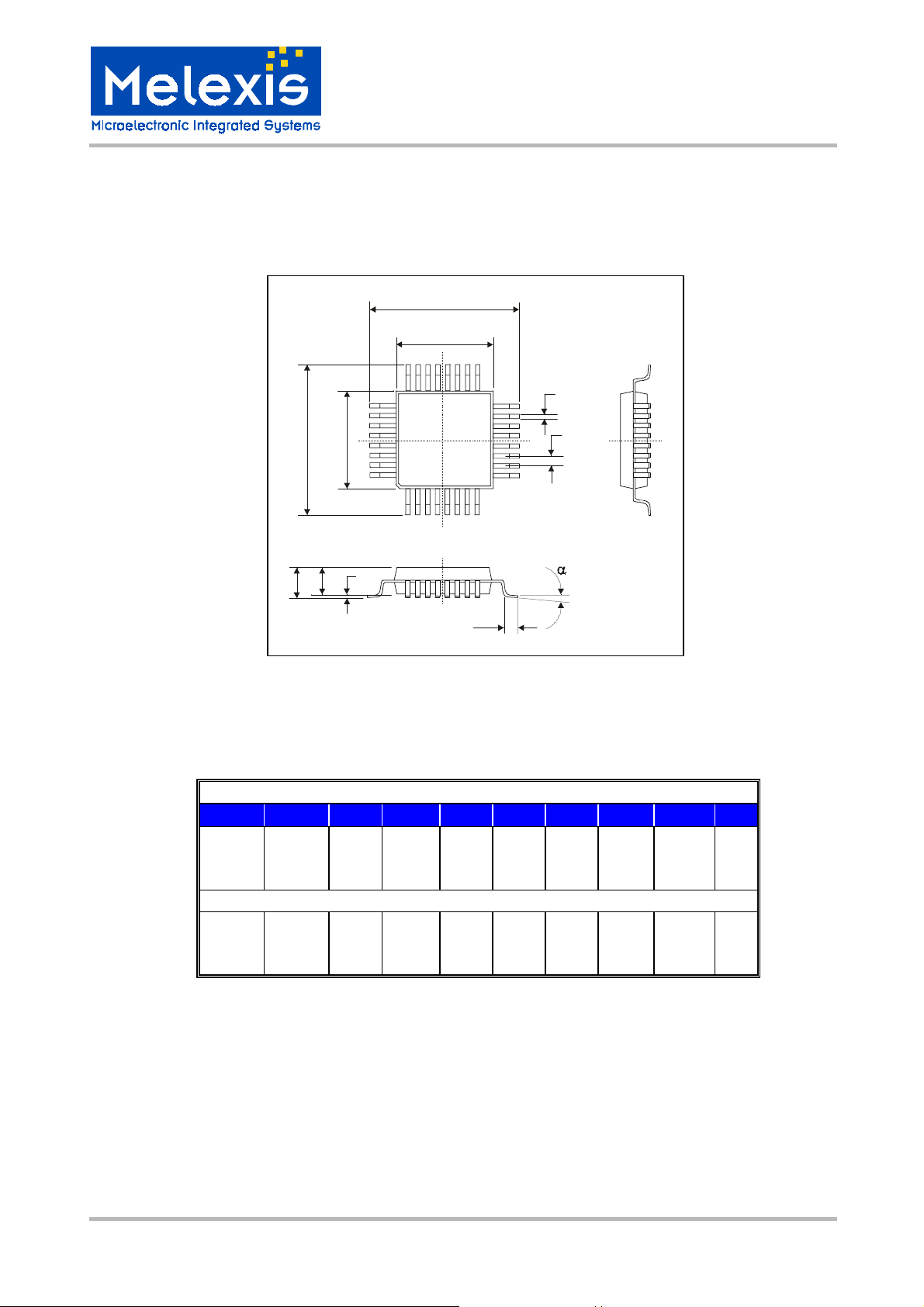

Fig. 6: LQFP32 (Low Quad Flat Package)

All Dimension in mm, coplanaríty < 0.1mm

E1, D1 A A1 A2 e b L E, D

min 0.05 1.35 0.30 0.45 0°

7.00 0.8 9.00

max 1.60 0.15 1.45 0.45 0.75 7°

All Dimension in inch, coplanaríty < 0.004”

min 0.002 0.053 0.012 0.018 0°

0.276 0.031 0.354

max 0.630 0.006 0.057 0.018 0.030 7°

αααα

TH71102 Data Sheet Page 18 of 20 Nov. 2001 3901071102 Rev. 005

Page 19

Your Notes

TH71102

315/433MHz

FSK/FM/ASK Receiver

TH71102 Data Sheet Page 19 of 20 Nov. 2001 3901071102 Rev. 005

Page 20

Your Notes

TH71102

315/433MHz

FSK/FM/ASK Receiver

Important Notice

Devices sold by Melexis are covered by the warranty and patent indemnification provisions appearing in its Term of Sal e. Melexis makes no warranty, express, statutory, implied, or by description regarding the information set forth herein or regarding the freedom of the described devi ces from patent infringement. Melexis reserves the right to change specifications and prices at any time and without notice. Therefore, prior to designing this product into a system, it is necessary to check with Melexis for current information. This product is intended for use in normal com mercial applications. Applications requi ring extended temperature range, unusual environmental requirements, or high reliability applications, such as military, medical life- support or life-sustaining equi pment are specifically not recommended without additional processing by Melexis for each application. The information furnished by Melexis is believed to be correct and accurate. However, Melexis shall not be liable to recipient or any third party for any damages, including but not limited to personal injury, property damage, loss of profits, loss of use, interrupt of business or indirect, special incidental or consequential damages, of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein. No obligation or liability to recipient or any third party shall arise or flow out of Melexis’ rendering of technical or other services. © 2000 Melexis GmbH. All rights reserved.

For the latest version of thi s document. Go to our website at

www.melexis.com

Or for additional informat i on contact Melexis Direct:

Europe and Japan: All other locations:

E-mail: [email protected] E-mail: [email protected]

Phone: +32 1361 1631 Phone: +1 603 223 2362

QS9000, VDA6.1 and ISO14001 Certified

TH71102 Data Sheet Page 20 of 20 Nov. 2001 3901071102 Rev. 005
