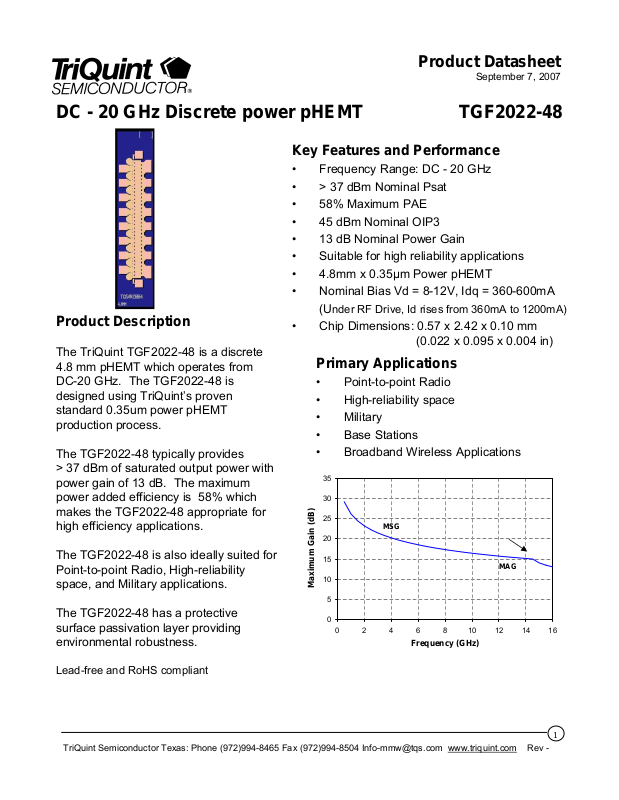

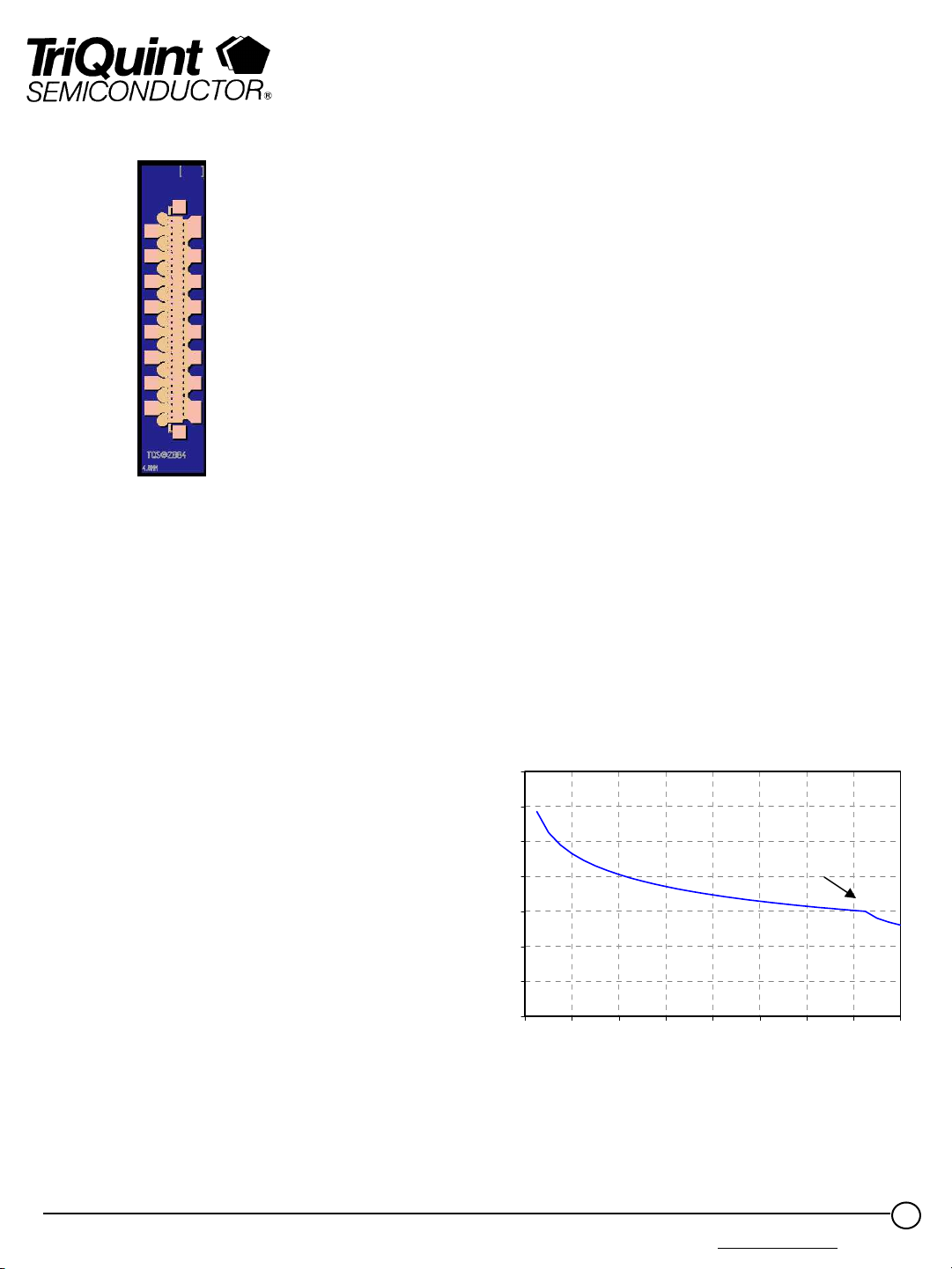

DC - 20 GHz Discrete power pHEMT TGF2022-48

Key Features and Performance

•

Product Description

The TriQuint TGF2022-48 is a discrete

4.8 mm pHEMT which operates from
DC-20 GHz. The TGF2022-48 is
designed using TriQuint’s proven
standard 0.35um power pHEMT
production process.

Frequency Range: DC -

•

> 37 dBm Nominal Psat

•

58% Maximum PAE

•

45 dBm

•

13 dB Nominal Power Gain

•

Suitable for high reliability applications

•

4.8mm x 0.35μm Power pHEMT

•

Nominal Bias Vd = 8-12V, Idq

Nominal OIP3

(Under RF Drive, Id rises from 360mA to 1200mA)

•

Chip Dimensions: 0.57 x 2.42 x 0.10 mm

(0.022 x 0.095 x 0.004 in)

Primary Applications

•

Point-to-point Radio

•

High-reliability space

•

Military

•

Base Stations

20 GHz

= 360-600mA

•

The TGF2022-48 typically provides

Broadband Wireless Applications

> 37 dBm of saturated output power with
power gain of 13 dB. The maximum
power added efficiency is 58% which
makes the TGF2022-48 appropriate for
high efficiency applications.

The TGF2022-48 is also ideally suited for
Point-to-point Radio, High-reliability
space, and Military applications.

The TGF2022-48 has a protective
surface passivation

layer providing

environmental robustness.

Lead-free and RoHS

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

compliant

35

30

25

20

15

10

Maximum Gain (dB)

5

0

0246810121416

MSG

MAG

Frequency (GHz)

1

Product Datasheet

September 7, 2007

TABLE I

TGF2022-48

MAXIMUM RATINGS

Symbol Parameter 1/

+

V

-

V

+

I

| IG | Gate Supply Current 56 mA

P

IN

P

D

T

CH

T

M

T

STG

1/ These ratings represent the maximum operable values for this device.

2/ Combinations of supply voltage, supply current, input power, and output power shall

not exceed PD.

Positive Supply Voltage 12.5 V 2/

Negative Supply Voltage Range -5V to 0V

Positive Supply Current 2250 mA 2/

Input Continuous Wave Power 32 dBm 2/

Power Dissipation See note 3 2/ 3/

Operating Channel Temperature

Mounting Temperature (30 Seconds)

Storage Temperature

Value Notes

150 °C

320 °C

-65 to 150 °C

4/

3/ For a median life time of 1E+6 hrs, Power dissipation is limited to:

PD(max) = (150 °C – TBASE °C) / 17.3 (°C/W)

4/ Junction operating temperature will directly affect the device median time to failure

(TM). For maximum life, it is recommended that junction temperatures be maintained
at the lowest possible levels.

TABLE II

DC PROBE CHARACTERISTICS

(T

= 25 °C, Nominal)

A

Symbol Parameter Minimum Typical Maximum Unit

Idss Saturated Drain Current - 1440 - mA

Gm Transconductance - 1800 - mS

VP Pinch-off Voltage -1.5 -1 -0.5 V

V

BGS

V

BGD

Note: For TriQuint’s 0.35um power pHEMT devices, RF breakdown >> DC breakdown

Breakdown Voltage

Gate-Source

Breakdown Voltage

Gate-Drain

-30 - -8 V

-30 - -14 V

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

2

Product Datasheet

September 7, 2007

TABLE III

RF CHARACTERIZATION TABLE 1/

(TA = 25 °C, Nominal)

SYMBOL PARAMETER f = 10 GHz f = 18 G Hz UNITS

TGF2022-48

Power Tuned:

Psat

PAE

Gain

Γ

L

Efficiency

Tuned:

Psat

PAE

Gain

Γ

2/

L

OIP3 Output TOI 46 45 46 45 dBm

2/

Saturated Output Power

Power Added Efficiency

Power Gain

Load Reflection

coefficient

Saturated Output Power

Power Added Efficiency

Power Gain

Load Reflection

coefficient

Vd = 10V

Idq = 360 mA

37.9

52.4

12.9

0.870 ∠ 173.9

37.3

58.3

13

0.856 ∠169.8

Vd = 12V

Idq = 360 mA

38.6

51.9

12.9

0.857 ∠171.8

36.5

56.0

13

0.858 ∠169.5

Vd = 10V

Idq = 360 mA

37.1

41.5

8.3

0.911 ∠173.9

38.3

46.0

8.5

0.930 ∠173.3

Vd = 12V

Idq = 360 mA

37.7

37.0

8.0

0.917 ∠173.4

37.1

42.5

8.3

0.94 ∠172.8

dBm

%

dB

-

dBm

%

dB

-

1/

Values in this table are from measurements taken from a 0.6mm unit pHEMT cell at 10 and 18 GHz

2/

Optimum load impedance for maximum power or maximum PAE at 10 and 18 GHz

TABLE IV

THERMAL INFORMATION

Parameter Test Conditions T

Thermal Resistance

θ

JC

(channel to backside of carrier)

Vd = 12 V
Idq = 360 mA

CH

(oC)

145

θ

JC

(°C/W)

17.3 1.6 E+6

Pdiss = 4.32 W

Note: Assumes eutectic attach using 1.5 mil 80/20 AuSn mounted to a 20 mil CuMo
Carrier at 70°C baseplate temperature.

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

T

M

(HRS)

3

Product Datasheet

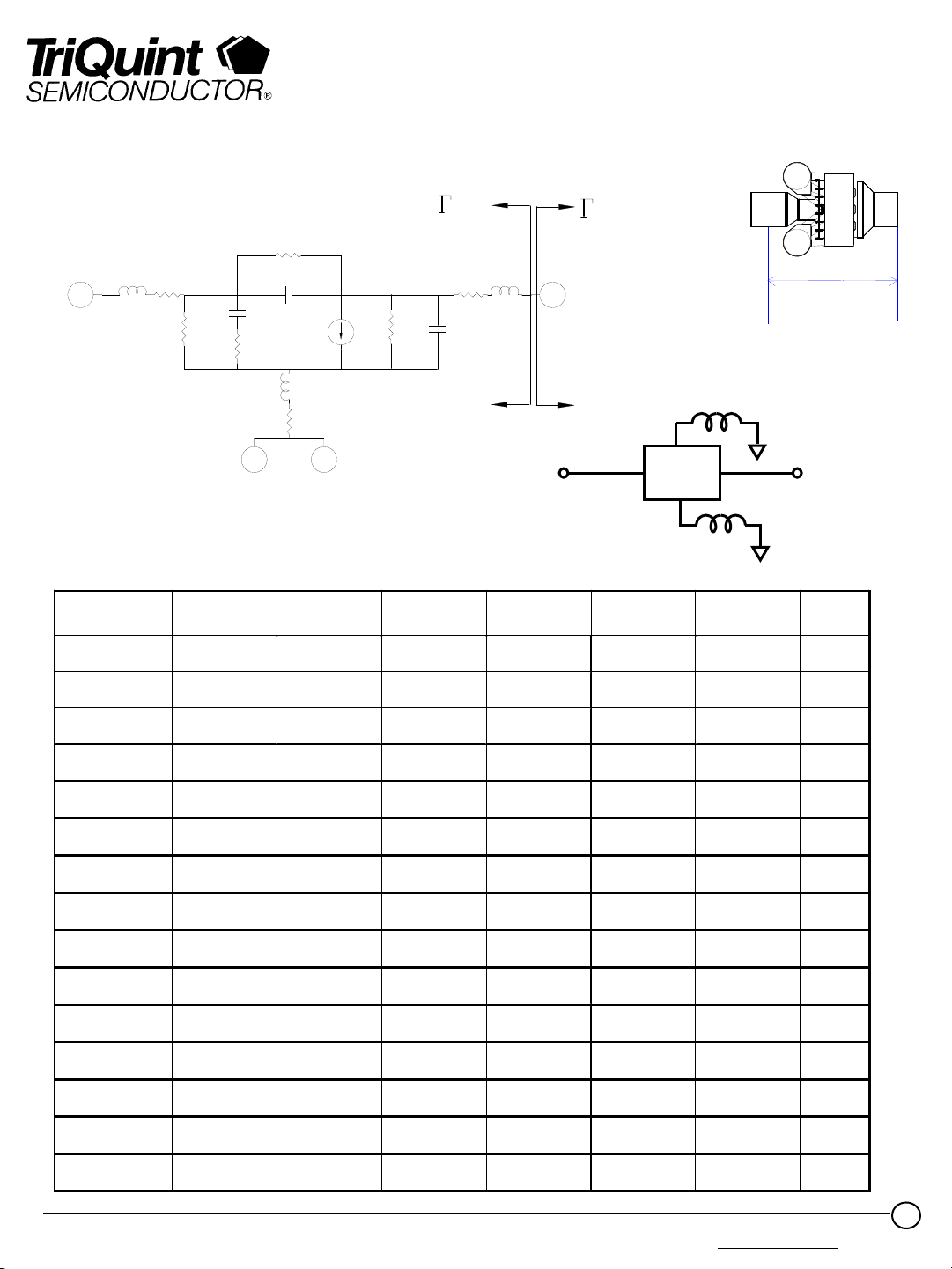

Linear Model for 0.6 mm Unit pHEMT cell

September 7, 2007

TGF2022-48

Gate

PARAMETER

Lg Rg

Rgs

Cgs

R

OUT

Rdg

Cdg

+

gmVi

V

i

i

-

L

s

R

s

Rds

Cds

Rd

Ld

L

Drain

Source

Gate

Source Source

UPC

Source

UPC = 0.6mm Unit pHEMT Cell

MODEL

Rg 0.22 0.23 0.24 0.23 0.24 0.24

Rs 0.40 0.41 0.41 0.46 0.45 0.50

Vd = 8V

Idq = 45mA

Vd = 8V

Idq = 60mA

Vd = 8V

Idq = 75mA

Vd = 10V

Idq = 45mA

Vd = 10V

Idq = 60mA

Idq = 45mA

Unit pHEMT cell

Reference Plane

Drain

Vd = 12V

UNITS

Ω

Ω

Rd 0.51 0.52 0.52 0.50 0.50 0.48

gm 0.195 0.202 0.202 0.188 0.195 0.183 S

Cgs 1.50 1.63 1.70 1.64 1.73 1.71 pF

Ri 1.65 1.59 1.58 1.72 1.64 1.73

Cds 0.115 0.115 0.116 0.114 0.115 0.114 pF

Rds 243.14 247.08 255.12 278.72 279.31 302.49

Cgd 0.072 0.066 0.063 0.064 0.061 0.060 pF

Tau 5.94 6.23 6.51 6.85 6.95 7.36 pS

Ls 0.001 0.001 0.001 0.001 0.001 0.001 nH

Lg 0.108 0.108 0.108 0.108 0.108 0.108

Ld 0.121 0.120 0.118 0.118 0.118 0.117

Rgs 5110 5140 8310 5110 5420 5120

Rgd 57700 64800 74400 79400 82900 82300

Ω

Ω

Ω

nH

nH

Ω

Ω

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

4

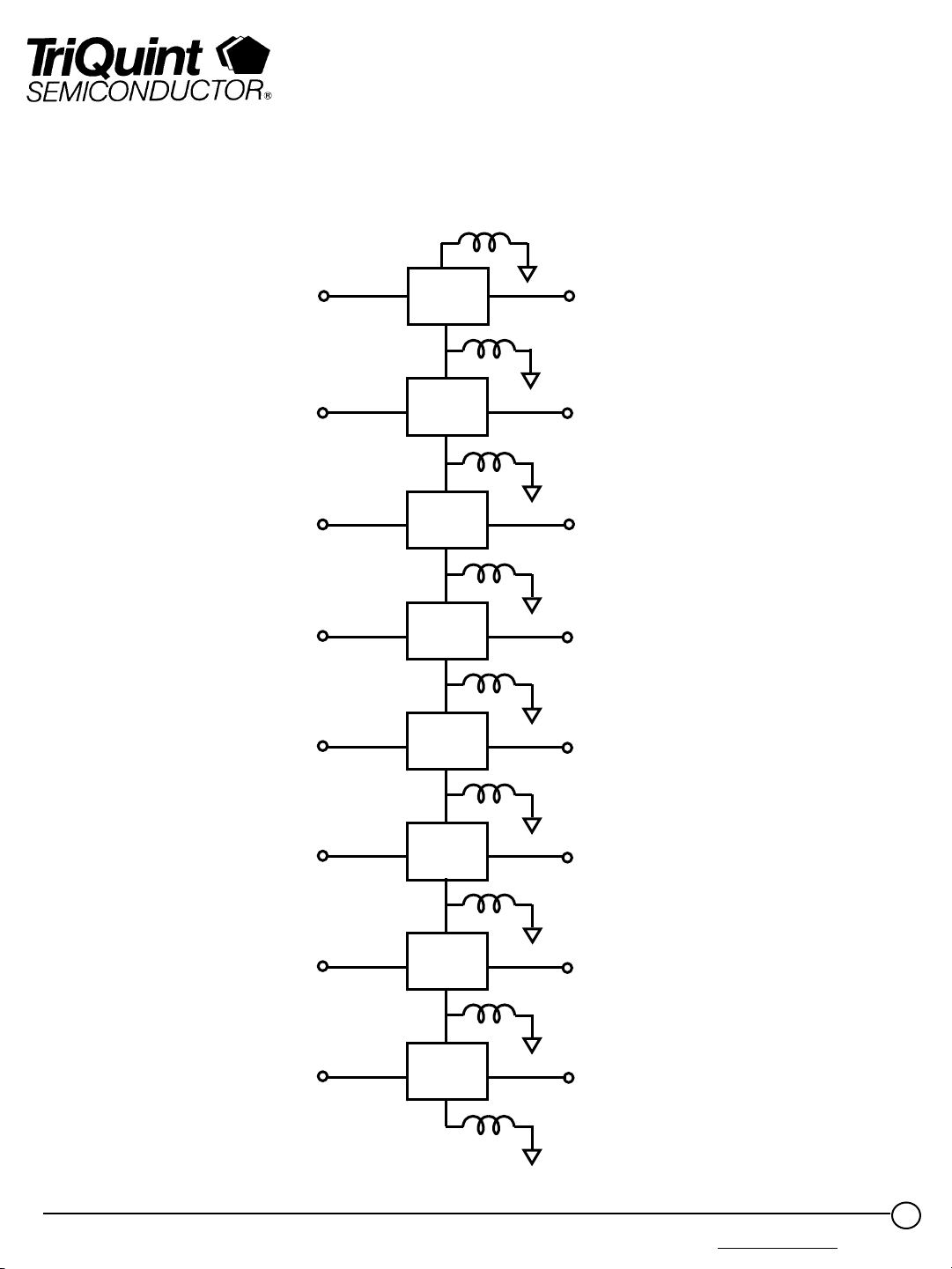

Linear Model for 4.8mm pHEMT

L -

via = 0.0135 nH

(9x)

Product Datasheet

September 7, 2007

TGF2022-48

Gate Pads (8x)

8 9

7 10

6 11

5 12

4 13

UPC

UPC

UPC

UPC

UPC

Drain Pads (8x)

3 14

2 15

1 16

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

UPC

UPC

UPC

5

Product Datasheet

September 7, 2007

TGF2022-48

Unmatched S-parameters for 4.8 mm pHEMT

Bias Conditions: Vd = 12V, Idq = 360mA

Frequency s11 s11 ang s21 s21 ang s12 s12 ang s22 s22 ang
(GHz) dB deg dB deg dB deg dB deg

0.5 -0.325 -154.69 22.299 100.31 -36.239 12.13 -4.759 -167.50
1 -0.288 -167.22 16.442 90.63 -36.078 4.39 -4.554 -171.69

1.5 -0.280 -171.50 12.929 85.31 -36.075 0.99 -4.470 -172.31
2 -0.276 -173.66 10.408 81.12 -36.105 -1.27 -4.388 -172.05

2.5 -0.272 -174.97 8.431 77.41 -36.153 -3.07 -4.296 -171.49
3 -0.270 -175.86 6.797 73.96 -36.214 -4.61 -4.191 -170.82

3.5 -0.267 -176.50 5.399 70.66 -36.287 -5.99 -4.076 -170.14
4 -0.264 -176.99 4.170 67.48 -36.371 -7.25 -3.953 -169.49

4.5 -0.260 -177.38 3.071 64.39 -36.464 -8.42 -3.822 -168.89
5 -0.257 -177.70 2.072 61.39 -36.567 -9.50 -3.687 -168.37

5.5 -0.253 -177.97 1.154 58.45 -36.678 -10.51 -3.548 -167.91
6 -0.250 -178.21 0.303 55.59 -36.797 -11.45 -3.409 -167.54

6.5 -0.246 -178.41 -0.494 52.79 -36.922 -12.32 -3.270 -167.23
7 -0.242 -178.60 -1.244 50.05 -37.054 -13.12 -3.133 -167.00

7.5 -0.238 -178.77 -1.953 47.37 -37.192 -13.85 -2.998 -166.83
8 -0.234 -178.92 -2.627 44.75 -37.334 -14.53 -2.867 -166.72

8.5 -0.230 -179.06 -3.270 42.19 -37.481 -15.13 -2.739 -166.67
9 -0.226 -179.20 -3.886 39.69 -37.632 -15.68 -2.616 -166.66

9.5 -0.222 -179.33 -4.477 37.24 -37.786 -16.16 -2.498 -166.70

10 -0.219 -179.45 -5.045 34.84 -37.942 -16.58 -2.385 -166.78

10.5 -0.215 -179.57 -5.592 32.50 -38.101 -16.94 -2.276 -166.90
11 -0.211 -179.68 -6.121 30.21 -38.261 -17.25 -2.173 -167.04

11.5 -0.208 -179.79 -6.632 27.97 -38.423 -17.49 -2.074 -167.21
12 -0.204 -179.89 -7.127 25.78 -38.586 -17.69 -1.981 -167.40

12.5 -0.201 -180.00 -7.607 23.64 -38.748 -17.82 -1.892 -167.61
13 -0.198 179.90 -8.073 21.54 -38.911 -17.90 -1.807 -167.83

13.5 -0.195 179.81 -8.525 19.48 -39.074 -17.93 -1.727 -168.07
14 -0.192 179.71 -8.965 17.47 -39.236 -17.91 -1.651 -168.32

14.5 -0.189 179.61 -9.392 15.50 -39.397 -17.84 -1.579 -168.58
15 -0.186 179.52 -9.808 13.56 -39.557 -17.73 -1.510 -168.85

15.5 -0.184 179.43 -10.214 11.66 -39.716 -17.56 -1.446 -169.12
16 -0.181 179.34 -10.609 9.80 -39.872 -17.35 -1.384 -169.40

16.5 -0.179 179.25 -10.994 7.97 -40.027 -17.10 -1.326 -169.68
17 -0.176 179.16 -11.370 6.18 -40.180 -16.80 -1.271 -169.96

17.5 -0.174 179.07 -11.737 4.42 -40.330 -16.47 -1.219 -170.24
18 -0.172 178.99 -12.096 2.69 -40.478 -16.09 -1.169 -170.53

18.5 -0.170 178.90 -12.446 0.98 -40.623 -15.68 -1.122 -170.81
19 -0.168 178.82 -12.789 -0.69 -40.765 -15.23 -1.077 -171.10

19.5 -0.166 178.73 -13.124 -2.34 -40.904 -14.74 -1.034 -171.38
20 -0.164 178.65 -13.451 -3.97 -41.039 -14.22 -0.994 -171.66

20.5 -0.162 178.57 -13.772 -5.57 -41.172 -13.66 -0.955 -171.95
21 -0.161 178.48 -14.087 -7.14 -41.300 -13.08 -0.919 -172.22

21.5 -0.159 178.40 -14.394 -8.70 -41.425 -12.46 -0.884 -172.50
22 -0.157 178.32 -14.696 -10.23 -41.547 -11.82 -0.851 -172.78

22.5 -0.156 178.24 -14.992 -11.75 -41.664 -11.14 -0.819 -173.05
23 -0.155 178.16 -15.283 -13.24 -41.778 -10.44 -0.789 -173.32

23.5 -0.153 178.08 -15.568 -14.72 -41.887 -9.72 -0.760 -173.59
24 -0.152 178.01 -15.848 -16.18 -41.992 -8.97 -0.733 -173.85

24.5 -0.151 177.93 -16.123 -17.63 -42.093 -8.20 -0.706 -174.12
25 -0.149 177.85 -16.393 -19.05 -42.189 -7.41 -0.681 -174.38

25.5 -0.148 177.77 -16.659 -20.47 -42.281 -6.61 -0.657 -174.63
26 -0.147 177.70 -16.920 -21.87 -42.369 -5.78 -0.634 -174.89

Note: The s-parameters are calculated by connecting nodes 1-8 together, and
nodes 9-16 together to form a 2-port network.

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

6

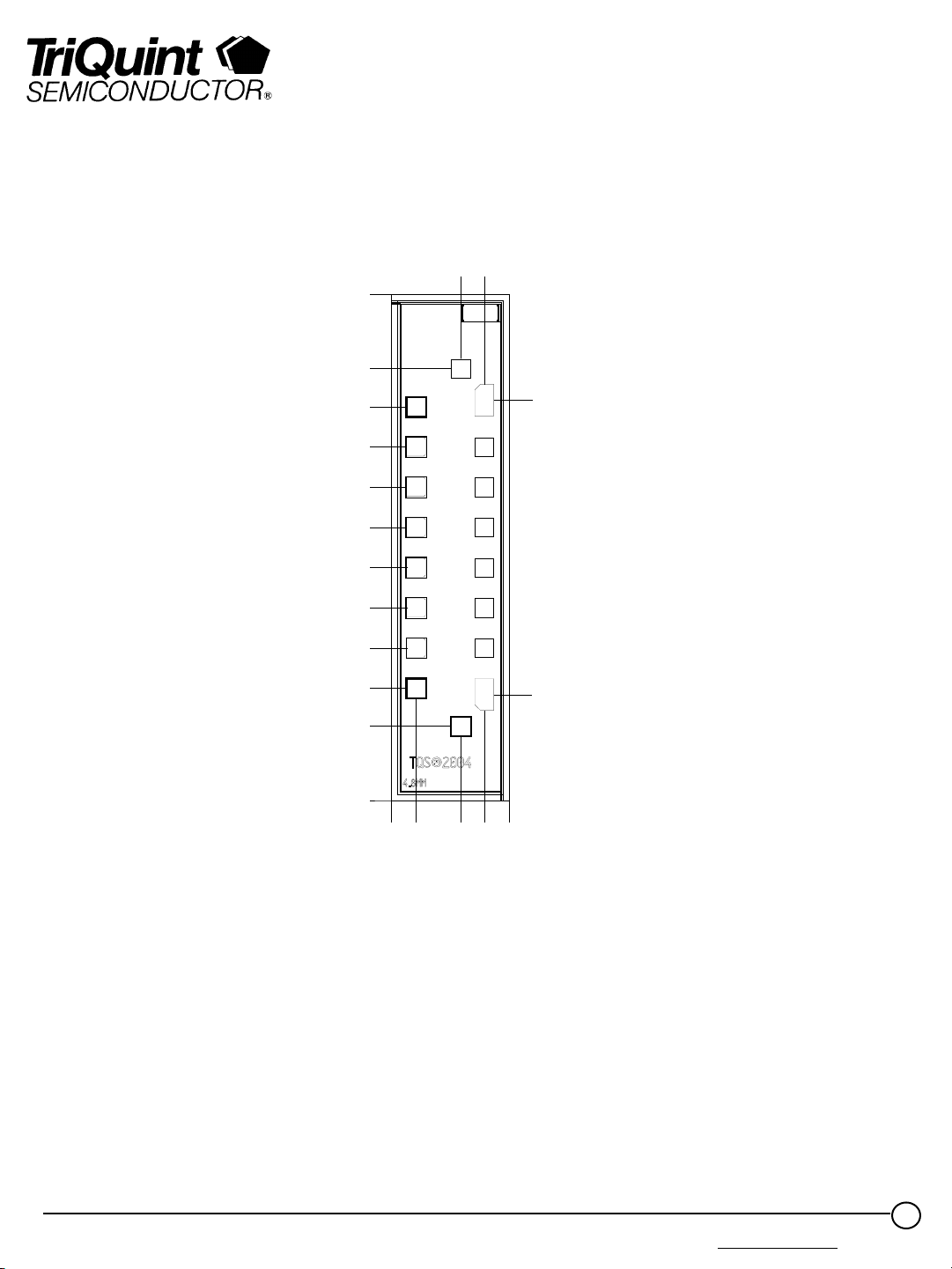

Mechanical Drawing

2.418 [0.095]

Product Datasheet

September 7, 2007

TGF2022-48

0.333 [0.013]

0.445 [0.018]

GATE

2.063 [0.081]

1.881 [0.074]

1.689 [0.066]

1.497 [0.059]

1.305 [0.051]

1.113 [0.044]

0.921 [0.036]

0.729 [0.029]

0.537 [0.021]

0.356 [0.014]

0.000 [0.000]

17

8

7

6

5

215

116

10

11

12

134

143

18

9

1.912 [0.075]

0.506 [0.020]

DRAIN

0.000 [0.000]

0.119 [0.005]

Units: millimeters (inches)
Thickness: 0.100 (0.004)
Chip edge to bond pad dimensions are shown to center of bond pad
Chip size tolerance: +/- 0.051 (0.002)

GND IS BACKSIDE OF MMIC
Bond pads #1-8: (Gate) 0.090 x 0.090 (0.004 x 0.004)

Bond pads #9-16: (Drain) 0.090 x 0.090 (0.004 x 0.004)
Bond pad #17: (Vg*) 0.090 x 0.090 (0.004 x 0.004)
Bond pad #18: (Vg*) 0.090 x 0.090 (0.004 x 0.004)

*Note: Bond pads #17 & 18 are alternate gate pads
that can be used for paralleling FETs.

0.565 [0.022]

0.333 [0.013]

0.445 [0.018]

GaAs MMIC devices are susceptible to damage from Electrostatic Discharge. Proper precautions should be observed during
handing, assembly and test.

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

7

Assembly Process Notes

Reflow process assembly notes:

•

Use AuSn (80/20) solder with limited exposure to temperatures at or above 300 °C for 30 sec

•

An alloy station or conveyor furnace with reducing atmosphere should be used.

• No fluxes should be utilized.

• Coefficient of thermal expansion matching is critical for long-term reliability.

• Devices must be stored in a dry nitrogen atmosphere.

Component placement and adhesive attachment assembly notes:

• Vacuum pencils and/or vacuum collets are the preferred method of pick up.

• Air bridges must be avoided during placement.

• The force impact is critical during auto placement.

• Organic attachment can be used in low-power applications.

• Curing should be done in a convection oven; proper exhaust is a safety concern.

•

Microwave or radiant curing should not be used because of differential heating.

•

Coefficient of thermal expansion matching is critical.

Product Datasheet

September 7, 2007

TGF2022-48

Interconnect process assembly notes:

•

Thermosonic ball bonding is the preferred interconnect technique.

•

Force, time, and ultrasonics are critical parameters.

• Aluminum wire should not be used.

• Devices with small pad sizes should be bonded with 0.0007-inch wire.

• Maximum stage temperature is 200 °C.

TriQuint Semiconductor Texas: Phone [phone] Fax [phone] [email protected] www.triquint.com Rev -

8
