Page 1

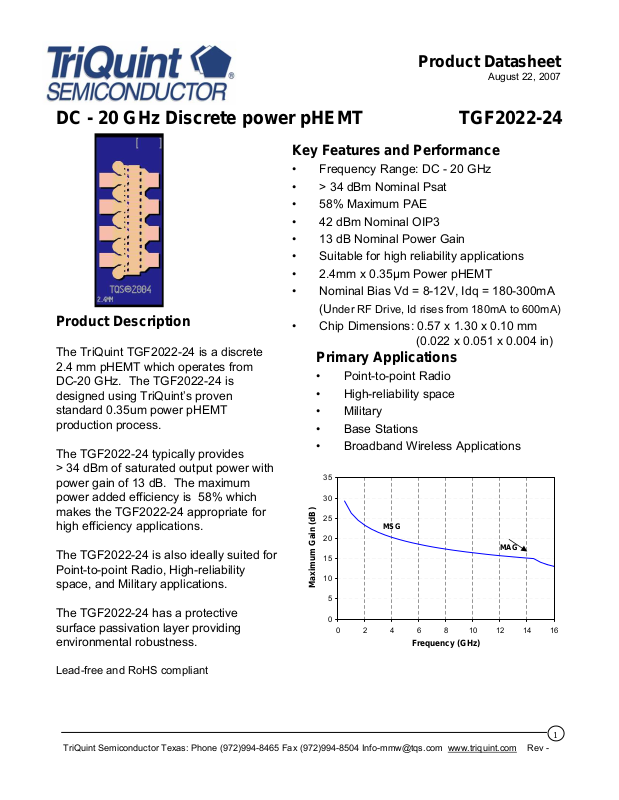

Product Datasheet
August 22, 2007

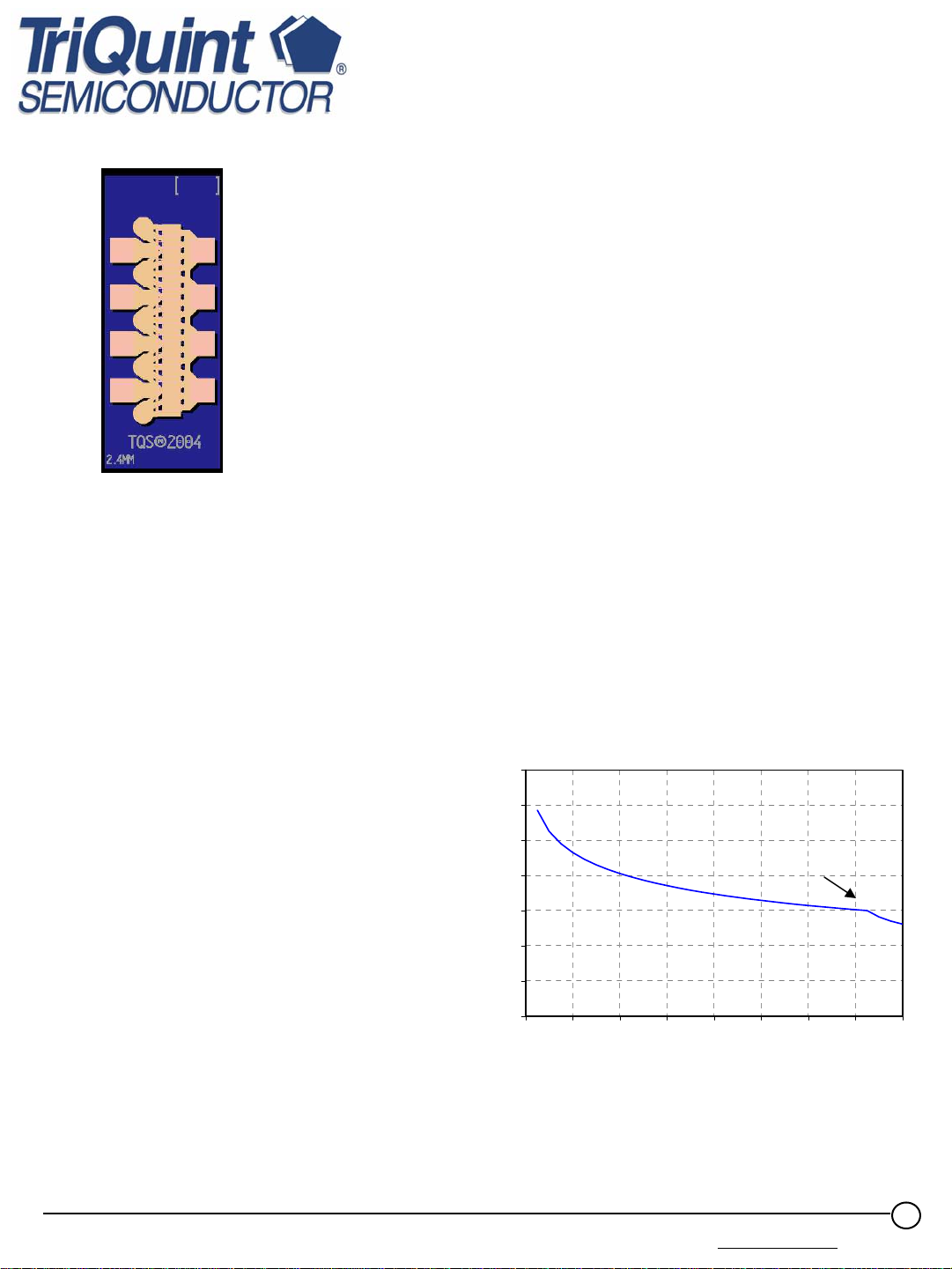

DC - 20 GHz Discrete power pHEMT TGF2022-24
Key Features and Performance
•
Product Description
The TriQuint TGF2022-24 is a discrete
2.4 mm pHEMT which operates from DC-20 GHz. The TGF2022-24 is designed using TriQuint’s proven standard 0.35um power pHEMT production process.
Frequency Range: DC -
•
> 34 dBm Nominal Psat
•
58% Maximum PAE
•
42 dBm
•
13 dB Nominal Power Gain
•
Suitable for high reliability applications
•
2.4mm x 0.35μm Power pHEMT
•
Nominal Bias Vd = 8-12V, Idq
Nominal OIP3
(Under RF Drive, Id rises from 180mA to 600mA)
•
Chip Dimensions: 0.57 x 1.30 x 0.10 mm
(0.022 x 0.051 x 0.004 in)
Primary Applications
•
Point-to-point Radio
•
High-reliability space
•
Military
•
Base Stations
20 GHz
= 180-300mA
•
The TGF2022-24 typically provides
Broadband Wireless Applications
> 34 dBm of saturated output power with power gain of 13 dB. The maximum power added efficiency is 58% which makes the TGF2022-24 appropriate for high efficiency applications.
The TGF2022-24 is also ideally suited for Point-to-point Radio, High-reliability space, and Military applications.
The TGF2022-24 has a protective surface passivation
layer providing
environmental robustness.
Lead-free and RoHS
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
compliant
35
30
25
20
15
10
5
0
0246810121416
MSG
MAG
Frequency (GHz)
1
Page 2
Product Datasheet
August 22, 2007
TABLE I
TGF2022-24
MAXIMUM RATINGS
Symbol Parameter 1/
+
V
-
V
+
I
| IG | Gate Supply Current 28 mA
P
IN
P
D
T
CH
T
M
T
STG
1/ These ratings represent the maximum operable values for this device.
2/ Combinations of supply voltage, supply current, input power, and output power shall
not exceed PD.
Positive Supply Voltage 12.5 V 2/
Negative Supply Voltage Range -5V to 0V
Positive Supply Current 1120 mA 2/
Input Continuous Wave Power 29 dBm 2/
Power Dissipation See note 3 2/ 3/
Operating Channel Temperature
Mounting Temperature (30 Seconds)
Storage Temperature
Value Notes
150 °C
320 °C
-65 to 150 °C
4/
3/ For a median life time of 1E+6 hrs, Power dissipation is limited to:
PD(max) = (150 °C – TBASE °C) / 34.5 (°C/W)
4/ Junction operating temperature will directly affect the device median time to failure
(TM). For maximum life, it is recommended that junction temperatures be maintained at the lowest possible levels.
TABLE II
DC PROBE CHARACTERISTICS
(T
= 25 °C, Nominal)
A
Symbol Parameter Minimum Typical Maximum Unit
Idss Saturated Drain Current - 720 - mA
Gm Transconductance - 900 - mS
VP Pinch-off Voltage -1.5 -1 -05 V
V
BGS
V
BGD
Note: For TriQuint’s 0.35um power pHEMT devices, RF breakdown >> DC breakdown
Breakdown Voltage
Gate-Source
Breakdown Voltage
Gate-Drain
-30 - -8 V
-30 - -14 V
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
2
Page 3
Product Datasheet
August 22, 2007
TGF2022-24
TABLE III
RF CHARACTERIZATION TABLE 1/
(TA = 25 °C, Nominal)
SYMBOL PARAMETER f = 10 GHz f = 18 GHz UNITS
Power Tuned:
Psat
PAE
Gain
Γ
L
Efficiency
Tuned:
Psat
PAE
Gain
Γ
L
OIP3 Output TOI 43 42 43 42 dBm
2/
2/
Saturated Output Power
Power Added Efficiency
Power Gain
Load Reflection
coefficient
Saturated Output Power
Power Added Efficiency
Power Gain
Load Reflection
coefficient
Vd = 10V
Idq = 180 mA
34.9
52.4
12.9
0.757 ∠ 167.6
35.3
58.3
13
0.738 ∠159.3
Vd = 12V
Idq = 180 mA
35.6
51.9
12.9
0.737 ∠163.4
35.3
56.0
13
0.741 ∠158.8
Vd = 10V
Idq = 180 mA
34.1
41.5
8.3
0.831 ∠167.8
33.5
46.0
8.5
0.867 ∠166.6
Vd = 12V
Idq = 180 mA
34.7
37.0
8.0
0.842 ∠166.7
34.1
42.5
8.3
0.885 ∠165.6
dBm
%
dB
-
dBm
%
dB
-
1/
Values in this table are from measurements taken from a 0.6mm unit pHEMT cell at 10 and 18 GHz
2/
Optimum load impedance for maximum power or maximum PAE at 10 and 18 GHz
TABLE IV
THERMAL INFORMATION
Parameter Test Conditions T
Thermal Resistance
θ
JC
(channel to backside of carrier)
Vd = 12 V Idq = 180 mA
CH
(oC)
145
θ
JC
(°C/W)
34.5 1.6 E+6
Pdiss = 2.16 W
Note: Assumes eutectic attach using 1.5 mil 80/20 AuSn mounted to a 20 mil CuMo Carrier at 70°C baseplate temperature.
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
T
M
(HRS)
3
Page 4
Product Datasheet

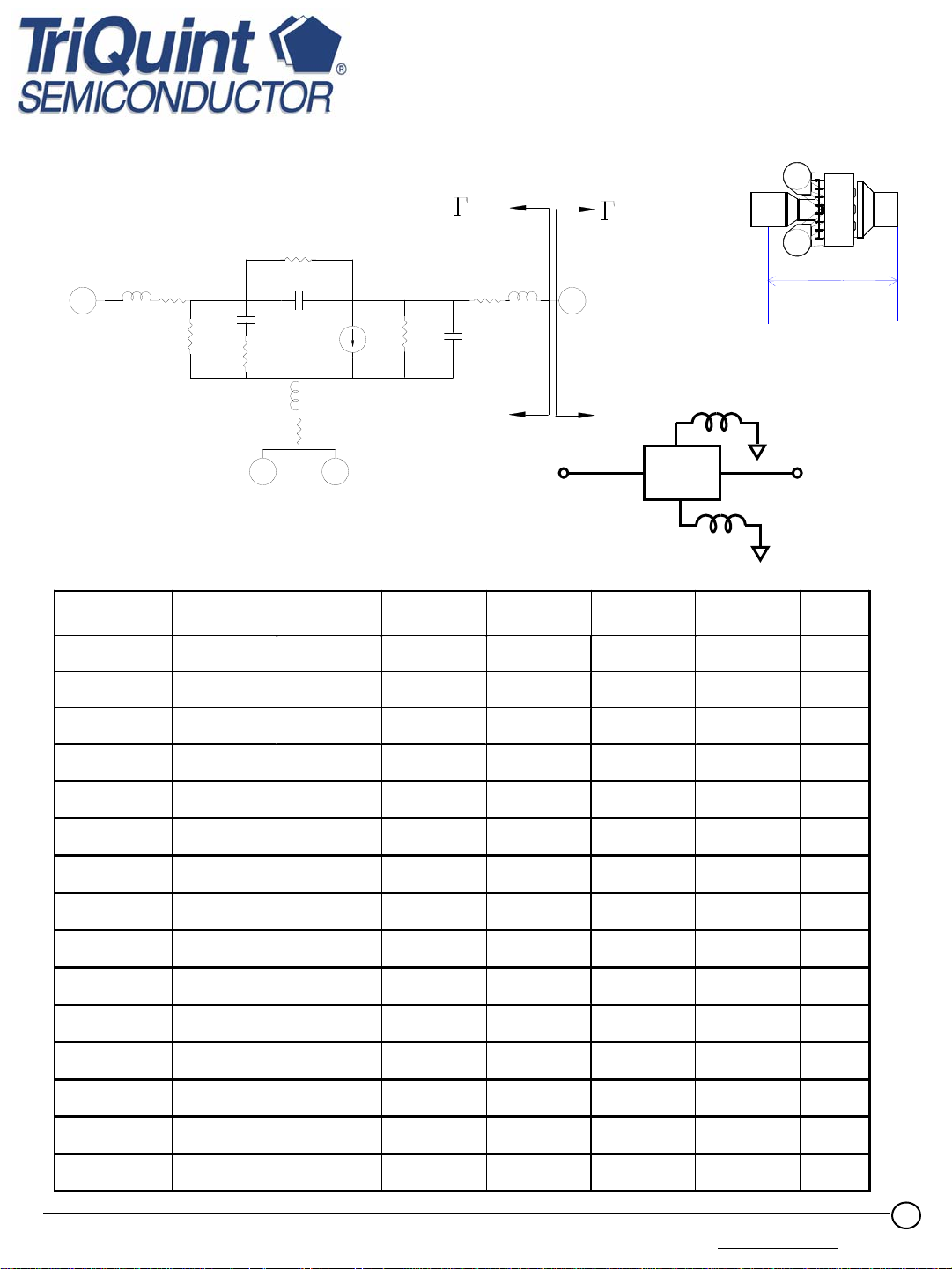

Linear Model for 0.6 mm Unit pHEMT cell
August 22, 2007
TGF2022-24
Gate
PARAMETER
Lg Rg
Rgs
Cgs
OUT
Rdg
Cdg
+
gmVi
V
i
R
i
-
L
s
R
s
Rds
Cds
Rd
Ld
L
Drain
Source
Gate
UPC
Source Source
Source
UPC = 0.6mm Unit pHEMT Cell
MODEL
Rg 0.22 0.23 0.24 0.23 0.24 0.24
Rs 0.40 0.41 0.41 0.46 0.45 0.50
Vd = 8V
Idq = 45mA
Vd = 8V
Idq = 60mA
Vd = 8V
Idq = 75mA
Vd = 10V
Idq = 45mA
Vd = 10V
Idq = 60mA
Idq = 45mA
Unit pHEMT cell
Reference Plane
Drain
Vd = 12V
UNITS
Ω
Ω
Rd 0.51 0.52 0.52 0.50 0.50 0.48
gm 0.195 0.202 0.202 0.188 0.195 0.183 S
Cgs 1.50 1.63 1.70 1.64 1.73 1.71 pF
Ri 1.65 1.59 1.58 1.72 1.64 1.73
Cds 0.115 0.115 0.116 0.114 0.115 0.114 pF
Rds 243.14 247.08 255.12 278.72 279.31 302.49
Cgd 0.072 0.066 0.063 0.064 0.061 0.060 pF
Tau 5.94 6.23 6.51 6.85 6.95 7.36 pS
Ls 0.001 0.001 0.001 0.001 0.001 0.001 nH
Lg 0.108 0.108 0.108 0.108 0.108 0.108
Ld 0.121 0.120 0.118 0.118 0.118 0.117
Rgs 5110 5140 8310 5110 5420 5120
Rgd 57700 64800 74400 79400 82900 82300
Ω
Ω
Ω
nH
nH
Ω
Ω
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
4
Page 5
Product Datasheet
TGF2022-24

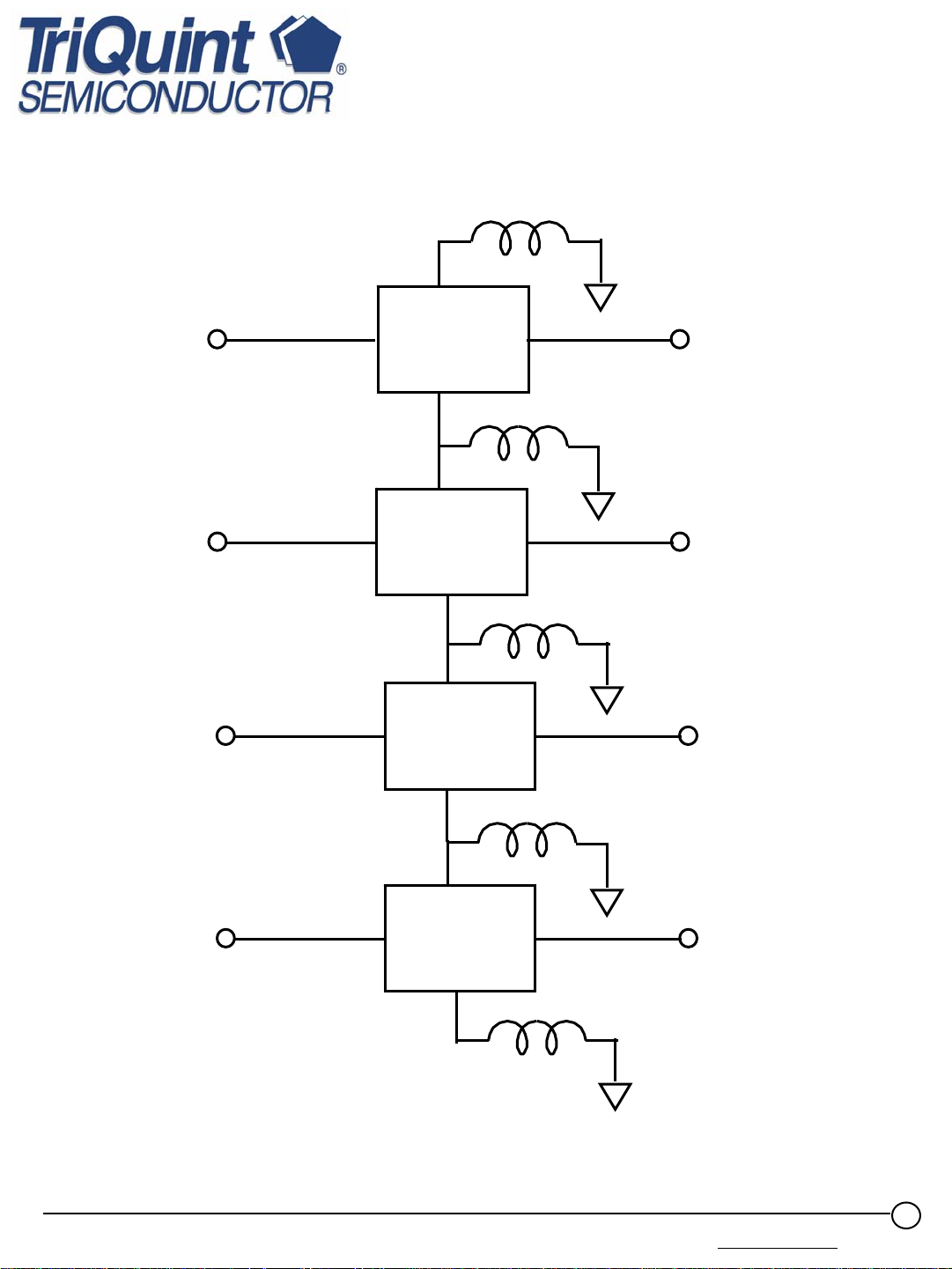

Linear Model for 2.4mm pHEMT
L -
via = 0.0135 nH
UPC
Gate Pads (4x) Drain Pads (4x)
3 6
UPC
(5x)
54
August 22, 2007
2
UPC
1
UPC
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
7
8
5
Page 6
Product Datasheet
Unmatched S-parameters for 2.4 mm pHEMT
Bias Conditions: Vd = 12V, Idq = 180mA
Frequency s11 s11 ang s21 s21 ang s12 s12 ang s22 s22 ang (GHz) dB deg dB deg dB deg dB deg
0.5 -0.489 -123.26 25.697 115.91 -32.842 27.72 -9.738 -127.01 1 -0.456 -149.89 20.491 99.75 -32.030 13.51 -9.284 -147.73
1.5 -0.448 -159.80 17.125 92.03 -31.879 7.69 -9.068 -153.52 2 -0.444 -164.92 14.667 86.72 -31.845 4.30 -8.858 -155.29
2.5 -0.441 -168.06 12.731 82.43 -31.853 1.91 -8.627 -155.54 3 -0.438 -170.19 11.130 78.67 -31.881 0.06 -8.372 -155.16
3.5 -0.436 -171.74 9.762 75.22 -31.922 -1.49 -8.097 -154.53 4 -0.433 -172.93 8.565 71.97 -31.974 -2.83 -7.809 -153.84
4.5 -0.429 -173.88 7.498 68.87 -32.035 -4.02 -7.512 -153.19 5 -0.426 -174.66 6.533 65.88 -32.104 -5.10 -7.212 -152.62
5.5 -0.423 -175.31 5.650 62.97 -32.179 -6.08 -6.913 -152.15 6 -0.419 -175.87 4.834 60.15 -32.261 -6.99 -6.617 -151.80
6.5 -0.415 -176.36 4.074 57.39 -32.349 -7.82 -6.328 -151.57 7 -0.411 -176.80 3.362 54.69 -32.443 -8.60 -6.046 -151.44
7.5 -0.407 -177.20 2.691 52.04 -32.541 -9.31 -5.775 -151.41 8 -0.403 -177.56 2.055 49.45 -32.644 -9.97 -5.513 -151.48
8.5 -0.398 -177.89 1.451 46.90 -32.751 -10.57 -5.262 -151.63 9 -0.394 -178.20 0.874 44.40 -32.862 -11.12 -5.023 -151.84
9.5 -0.390 -178.48 0.322 41.95 -32.976 -11.62 -4.794 -152.12
10 -0.385 -178.75 -0.208 39.54 -33.094 -12.07 -4.576 -152.46
10.5 -0.381 -179.01 -0.717 37.17 -33.213 -12.47 -4.369 -152.84 11 -0.377 -179.26 -1.209 34.85 -33.335 -12.83 -4.172 -153.26
11.5 -0.373 -179.49 -1.684 32.56 -33.459 -13.13 -3.986 -153.72 12 -0.368 -179.72 -2.143 30.31 -33.585 -13.39 -3.809 -154.20
12.5 -0.364 -179.94 -2.588 28.11 -33.712 -13.61 -3.641 -154.71 13 -0.360 179.85 -3.019 25.93 -33.840 -13.78 -3.482 -155.24
13.5 -0.356 179.64 -3.438 23.80 -33.968 -13.91 -3.331 -155.78 14 -0.352 179.44 -3.846 21.70 -34.097 -13.99 -3.188 -156.34
14.5 -0.349 179.24 -4.242 19.63 -34.226 -14.04 -3.052 -156.91 15 -0.345 179.05 -4.628 17.60 -34.355 -14.04 -2.924 -157.48
15.5 -0.341 178.86 -5.004 15.59 -34.483 -14.00 -2.802 -158.06 16 -0.338 178.68 -5.371 13.62 -34.611 -13.92 -2.686 -158.65
16.5 -0.334 178.49 -5.729 11.68 -34.737 -13.80 -2.577 -159.23 17 -0.331 178.31 -6.079 9.77 -34.863 -13.65 -2.472 -159.82
17.5 -0.328 178.14 -6.421 7.88 -34.987 -13.45 -2.373 -160.41 18 -0.324 177.96 -6.755 6.03 -35.110 -13.23 -2.279 -160.99
18.5 -0.321 177.79 -7.082 4.20 -35.231 -12.96 -2.190 -161.57 19 -0.318 177.62 -7.401 2.39 -35.350 -12.67 -2.105 -162.15
19.5 -0.316 177.45 -7.715 0.61 -35.467 -12.34 -2.024 -162.73 20 -0.313 177.28 -8.022 -1.15 -35.582 -11.98 -1.947 -163.30
20.5 -0.310 177.12 -8.322 -2.89 -35.694 -11.59 -1.874 -163.87 21 -0.307 176.95 -8.617 -4.60 -35.804 -11.16 -1.804 -164.44
21.5 -0.305 176.79 -8.907 -6.30 -35.911 -10.71 -1.737 -164.99 22 -0.302 176.63 -9.191 -7.97 -36.015 -10.24 -1.673 -165.55
22.5 -0.300 176.47 -9.470 -9.63 -36.116 -9.73 -1.612 -166.10 23 -0.298 176.31 -9.744 -11.26 -36.214 -9.21 -1.554 -166.64
23.5 -0.295 176.15 -10.013 -12.88 -36.308 -8.65 -1.498 -167.18 24 -0.293 176.00 -10.278 -14.49 -36.399 -8.08 -1.445 -167.71
24.5 -0.291 175.84 -10.538 -16.07 -36.487 -7.48 -1.394 -168.23 25 -0.289 175.69 -10.794 -17.64 -36.571 -6.86 -1.345 -168.76
25.5 -0.287 175.53 -11.047 -19.20 -36.652 -6.23 -1.299 -169.27 26 -0.285 175.38 -11.295 -20.74 -36.729 -5.58 -1.254 -169.78
August 22, 2007
TGF2022-24
Note: The s-parameters are calculated by connecting nodes 1-4 together, and nodes 5-8 together to form a 2-port network.
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
6
Page 7
1.297 [0.051]
Product Datasheet
August 22, 2007
TGF2022-24

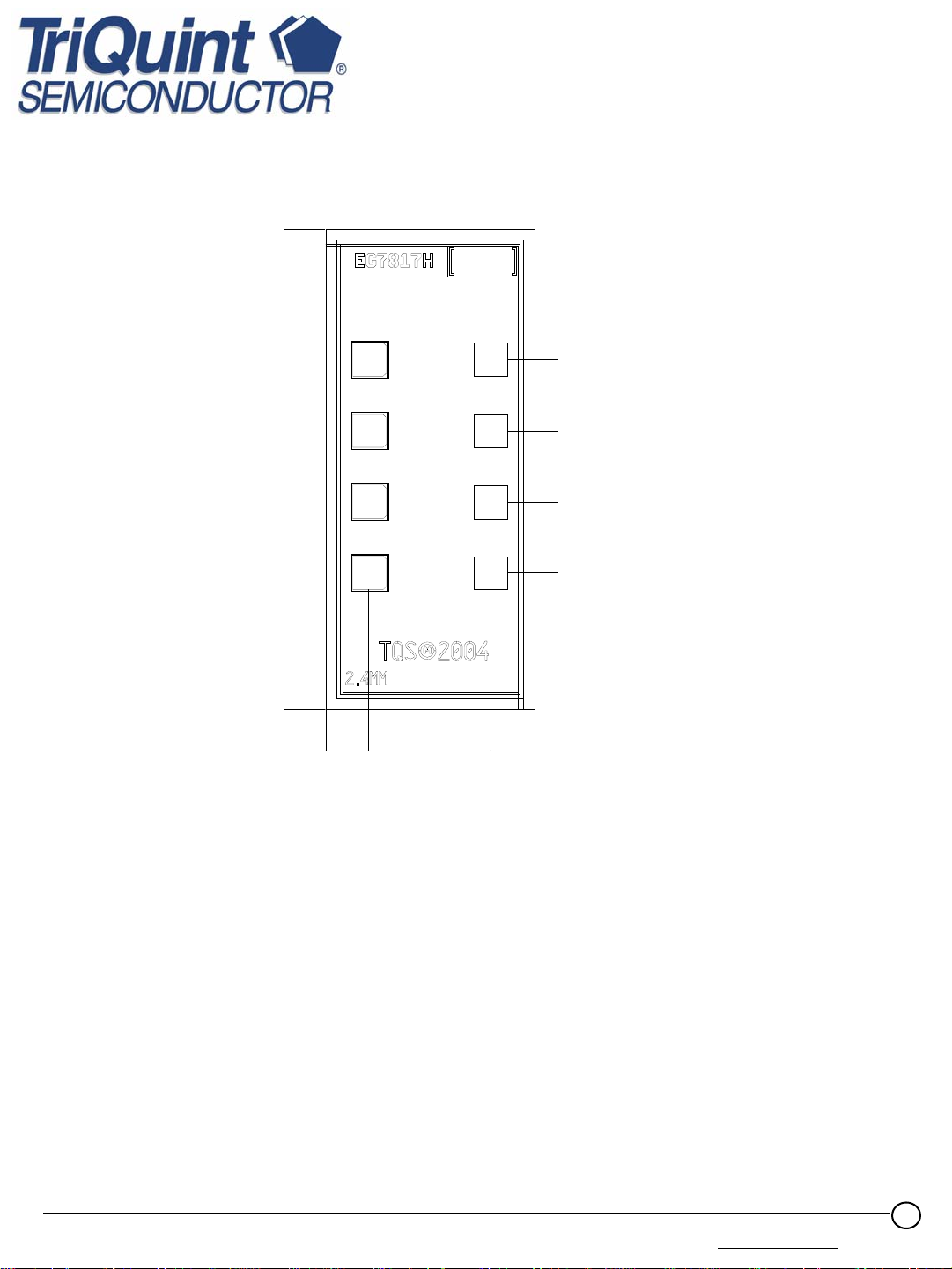

Mechanical Drawing
RCRC B B
GATE
0.000 [0.000]
4
5
63
2
7
18
NE
0.000 [0.000]
0.115 [0.005]
0.445 [0.018]
0.944 [0.037]
0.752 [0.030]
0.560 [0.022]
0.368 [0.015]
DRAIN
0.565 [0.022]
Units: millimeters (inches) Thickness: 0.100 (0.004) Chip edge to bond pad dimensions are shown to center of bond pad Chip size tolerance: +/- 0.051 (0.002)
GND IS BACKSIDE OF MMIC Bond pads #1-4: (Gate) 0.090 x 0.090 (0.004 x 0.004)
Bond pads # 5-8: (Drain) 0.090 x 0.090 (0.004 x 0.004)
GaAs MMIC devices are susceptible to damage from Electrostatic Discharge. Proper precautions should be observed during handing, assembly and test.
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
7
Page 8
Assembly Process Notes
Reflow process assembly notes:
•
Use AuSn (80/20) solder with limited exposure to temperatures at or above 300 °C for 30 sec
•
An alloy station or conveyor furnace with reducing atmosphere should be used.
• No fluxes should be utilized.
• Coefficient of thermal expansion matching is critical for long-term reliability.
• Devices must be stored in a dry nitrogen atmosphere.
Component placement and adhesive attachment assembly notes:
• Vacuum pencils and/or vacuum collets are the preferred method of pick up.
• Air bridges must be avoided during placement.
• The force impact is critical during auto placement.
• Organic attachment can be used in low-power applications.
• Curing should be done in a convection oven; proper exhaust is a safety concern.
•
Microwave or radiant curing should not be used because of differential heating.
•
Coefficient of thermal expansion matching is critical.
Product Datasheet
August 22, 2007
TGF2022-24
Interconnect process assembly notes:
•
Thermosonic ball bonding is the preferred interconnect technique.
•
Force, time, and ultrasonics are critical parameters.
• Aluminum wire should not be used.
• Devices with small pad sizes should be bonded with 0.0007-inch wire.
• Maximum stage temperature is 200 °C.
TriQuint Semiconductor Texas: Phone (972)994-8465 Fax (972)994-8504 [email protected] www.triquint.com Rev -
8
