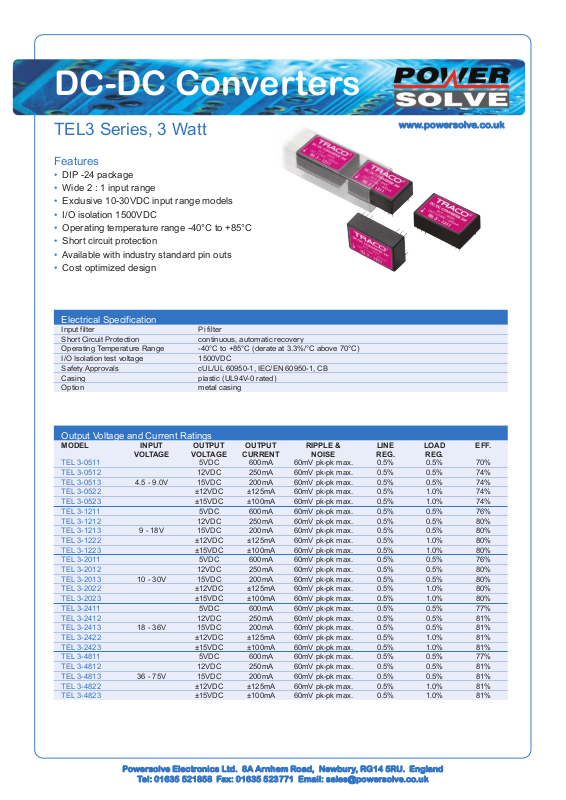

Page 1

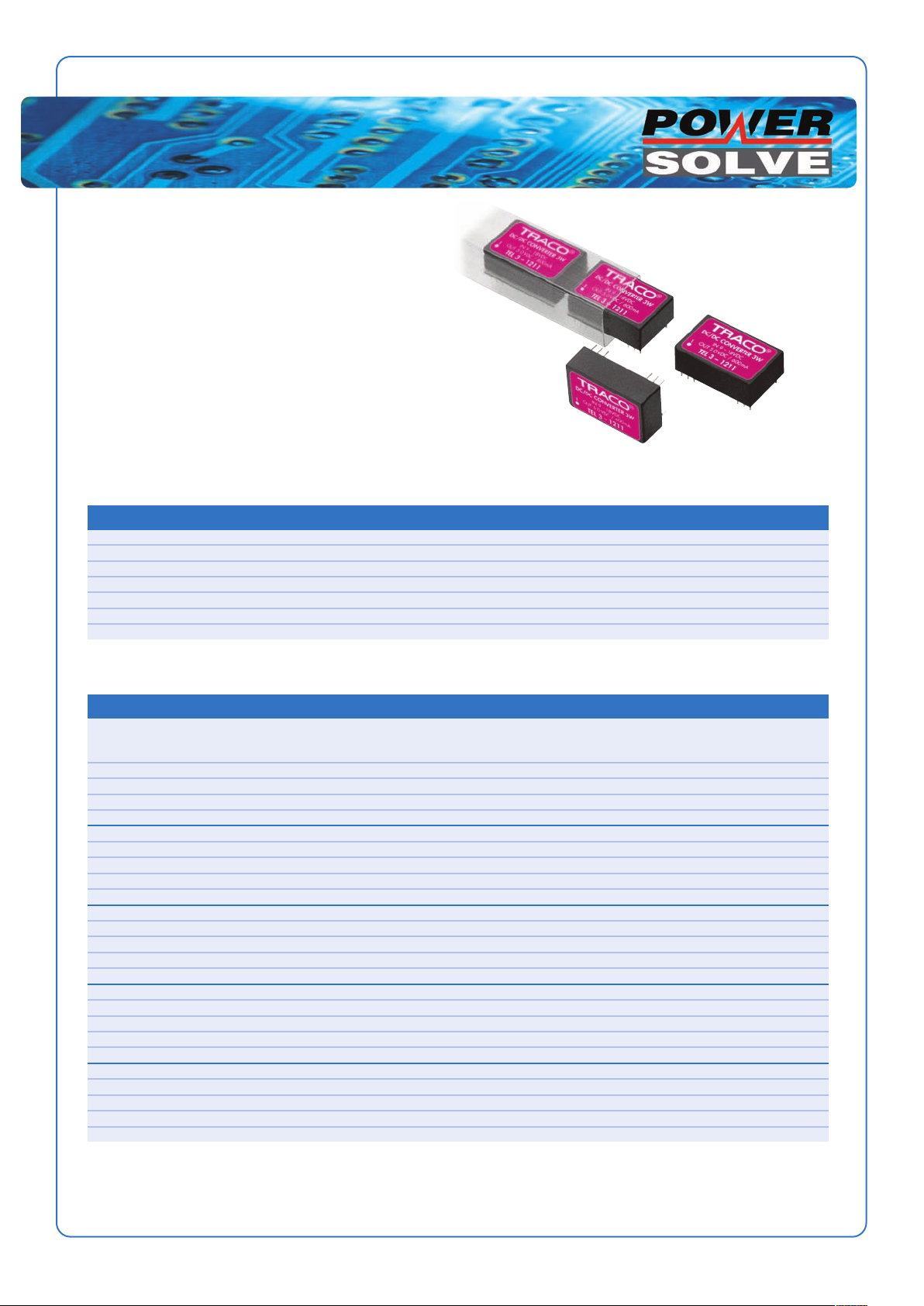

DC-DC Converters
TEL3 Series, 3 Watt
Features
• DIP -24 package
• Wide 2 : 1 input range
• Exclusive 10-30VDC input range models
• I/O isolation 1500VDC
• Operating temperature range -40°C to +85°C
• Short circuit protection
• Available with industry standard pin outs
• Cost optimized design
Electrical Specification
Input filter Pi filter
Short Circuit Protection continuous, automatic recovery
Operating Temperature Range -40°C to +85°C (derate at 3.3%/°C above 70°C)
I/O Isolation test voltage 1500VDC
Safety Approvals cUL/UL 60950-1, IEC/EN 60950-1, CB
Casing plastic (UL94V-0 rated)
Option metal casing
www.powersolve.co.uk
Output Voltage and Current Ratings
MODEL INPUT OUTPUT OUTPUT RIPPLE & LINE LOAD EFF.
TEL 3-0511 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 70%
TEL 3-0512 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 74%
TEL 3-0513 4.5 - 9.0V 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 74%
TEL 3-0522 ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 74%
TEL 3-0523 ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 74%
TEL 3-1211 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 76%
TEL 3-1212 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 80%
TEL 3-1213 9 - 18V 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 80%
TEL 3-1222 ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 80%
TEL 3-1223 ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 80%
TEL 3-2011 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 76%
TEL 3-2012 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 80%
TEL 3-2013 10 - 30V 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 80%
TEL 3-2022 ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 80%
TEL 3-2023 ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 80%
TEL 3-2411 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 77%
TEL 3-2412 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 81%
TEL 3-2413 18 - 36V 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 81%
TEL 3-2422 ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 81%
TEL 3-2423 ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 81%
TEL 3-4811 5VDC 600mA 60mV pk-pk max. 0.5% 0.5% 77%
TEL 3-4812 12VDC 250mA 60mV pk-pk max. 0.5% 0.5% 81%
TEL 3-4813 36 - 75V 15VDC 200mA 60mV pk-pk max. 0.5% 0.5% 81%
TEL 3-4822 ±12VDC ±125mA 60mV pk-pk max. 0.5% 1.0% 81%
TEL 3-4823 ±15VDC ±100mA 60mV pk-pk max. 0.5% 1.0% 81%
VOLTAGE VOLTAGE CURRENT NOISE REG. REG.
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
Page 2
DC-DC Converters

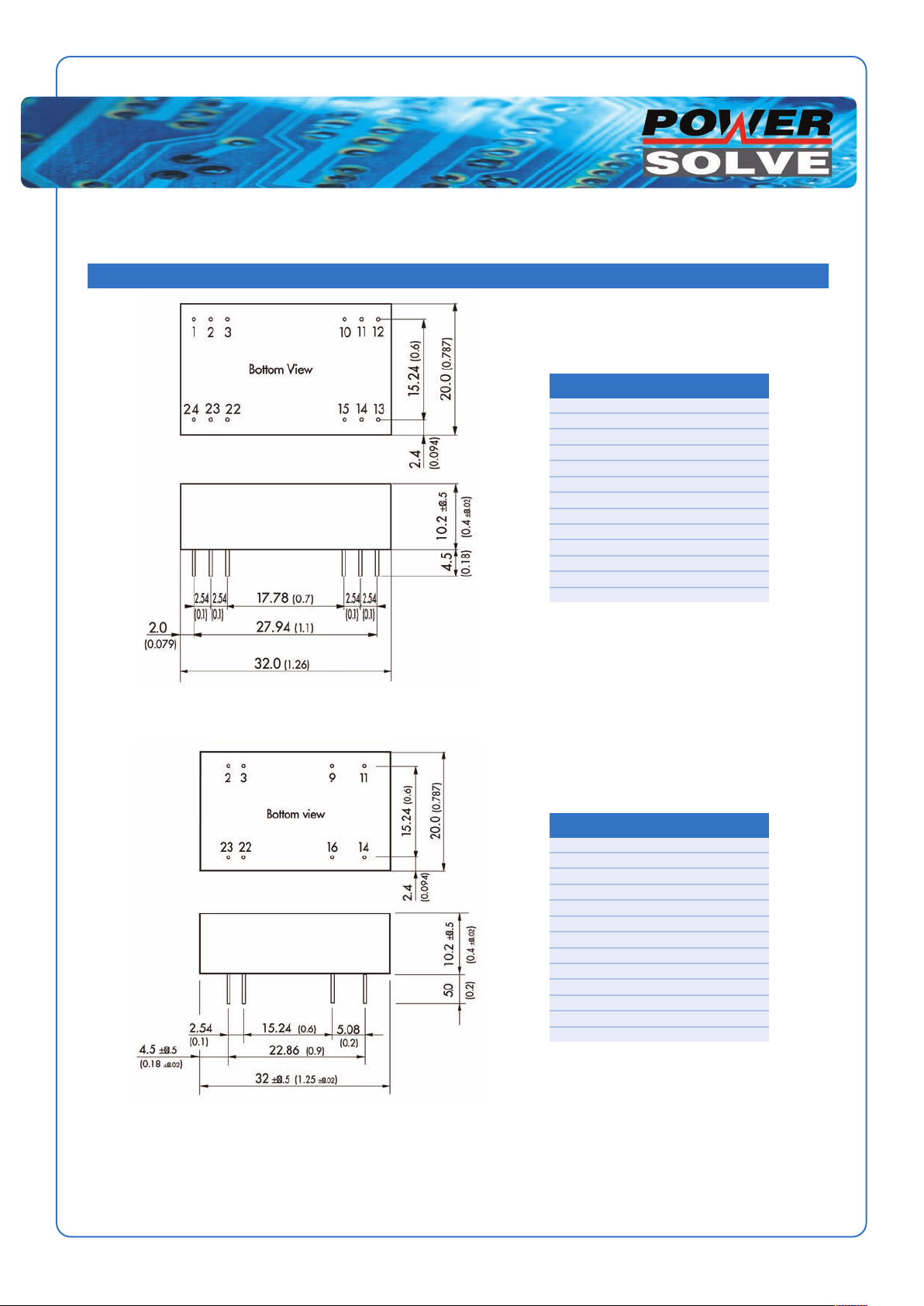

Mechanical and Connection Details
Pin Out (standard version)
Pin Single Output Dual Output
1 +Vin (Vcc) +Vin (Vcc)
2 No Conn. -Vout
3 No Conn. Common
10 -Vout Common
11 +Vout +Vout
12 -Vin (GND) -Vin (GND)
13 -Vin (GND) -Vin (GND)
14 +Vout +Vout
15 -Vout Common
22 No Conn. Common
23 No Conn. -Vout
24 +Vin (Vcc) +Vin (Vcc)
www.powersolve.co.uk
Pin Out (NP version)
Pin Single Output Dual Output
1 +Vin (Vcc) +Vin (Vcc)
2 No Conn. -Vout
3 No Conn. Common
10 -Vout Common
11 +Vout +Vout
12 -Vin (GND) -Vin (GND)
13 -Vin (GND) -Vin (GND)
14 +Vout +Vout
15 -Vout Common
22 No Conn. Common
23 No Conn. -Vout
24 +Vin (Vcc) +Vin (Vcc)
Powersolve Electronics Ltd. 8A Arnhem Road, Newbury, RG14 5RU. England
Tel: 01635 521858 Fax: 01635 523771 Email: [email protected]
