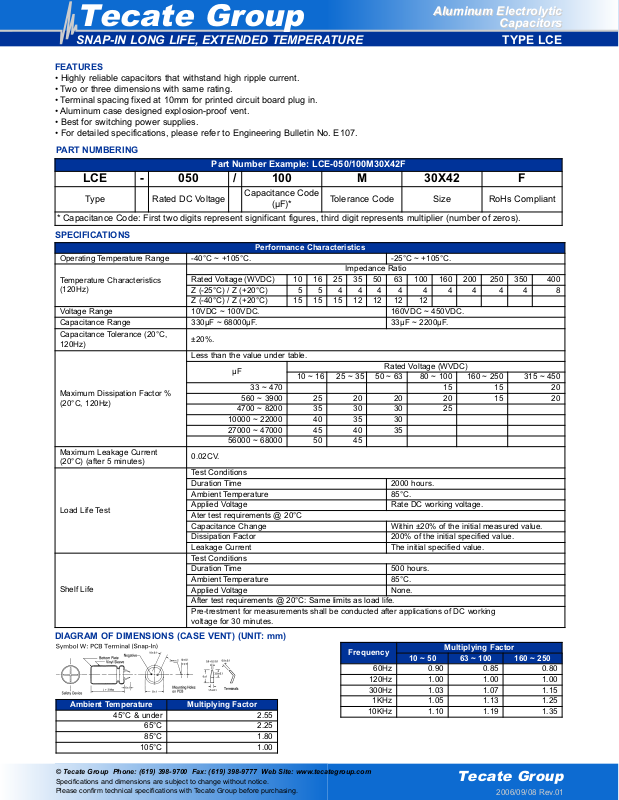

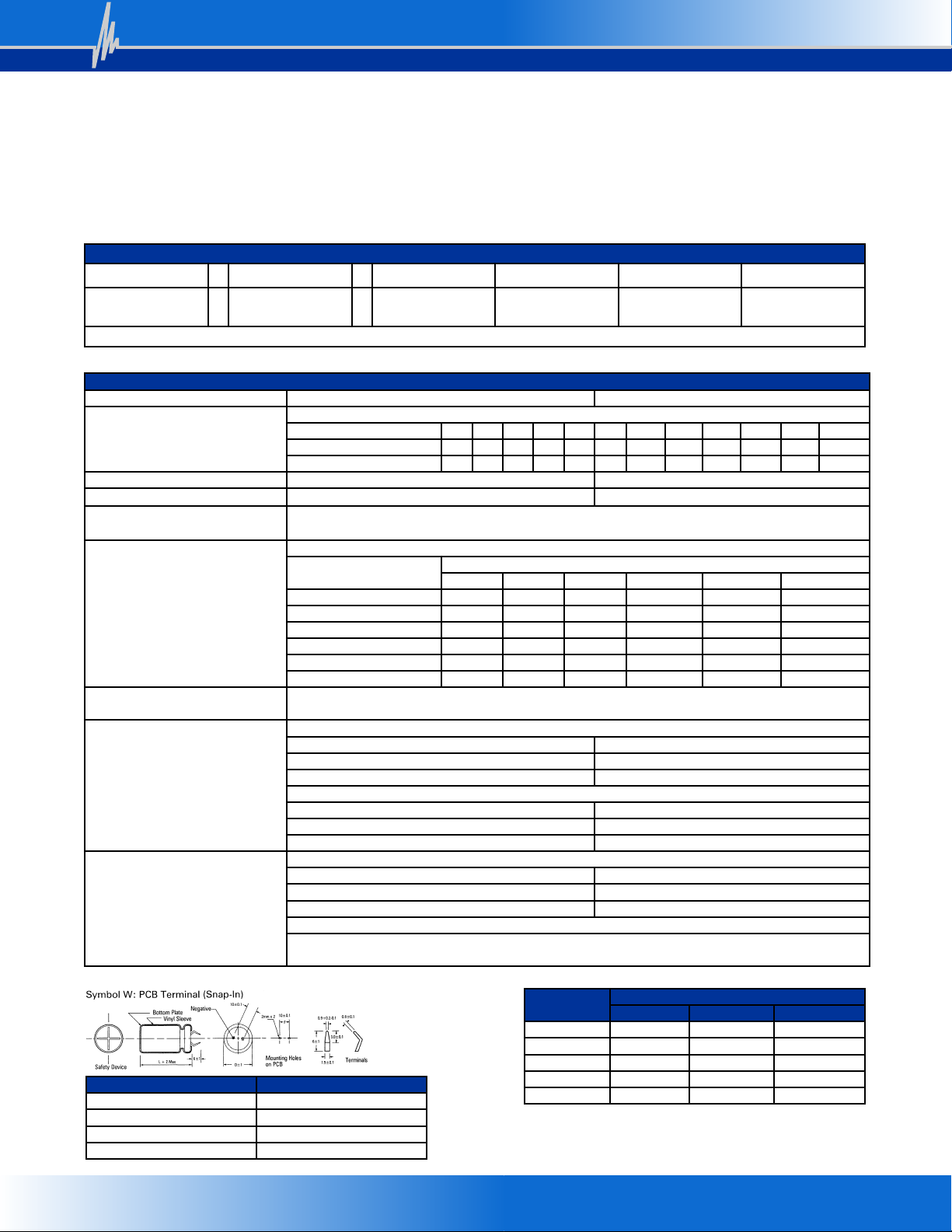

Page 1
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2006/09/08 Rev.01
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
SNAP-IN LONG LIFE, EXTENDED TEMPERATURE
FEATURES
• Highly reliable capacitors that withstand high ripple current.
• Two or three dimensions with same rating.
• Terminal spacing fixed at 10mm for printed circuit board plug in.
• Aluminum case designed explosion-proof vent.
• Best for switching power supplies.
• For detailed specifications, please refer to Engineering Bulletin No. E107.
SPECIFICATIONS
TYPE LCE
DIAGRAM OF DIMENSIONS (CASE VENT) (UNIT: mm)
Ambient Temperature Multiplying Factor
45°C & under 2.55
65°C 2.25
85°C 1.80
105°C 1.00
Frequency
Multiplying Factor
10 ~ 50 63 ~ 100 160 ~ 250
60Hz 0.90 0.85 0.80
120Hz 1.00 1.00 1.00
300Hz 1.03 1.07 1.15
1KHz 1.05 1.13 1.25
10KHz 1.10 1.19 1.35
Performance Characteristics
Operating Temperature Range -40°C ~ +105°C. -25°C ~ +105°C.
Temperature Characteristics
(120Hz)
Impedance Ratio
Rated Voltage (WVDC) 10 16 25 35 50 63 100 160 200 250 350 400
Z (-25°C) / Z (+20°C) 5 5 4 4 4 4 4 4 4 4 4 8
Z (-40°C) / Z (+20°C) 15 15 15 12 12 12 12
Voltage Range 10VDC ~ 100VDC. 160VDC ~ 450VDC.
Capacitance Range 330µF ~ 68000µF. 33µF ~ 2200µF.
Capacitance Tolerance (20°C,
120Hz)
±20%.
Maximum Dissipation Factor %
(20°C, 120Hz)
Less than the value under table.
µF
Rated Voltage (WVDC)
10 ~ 16 25 ~ 35 50 ~ 63 80 ~ 100 160 ~ 250 315 ~ 450
33 ~ 470 15 15 20
560 ~ 3900 25 20 20 20 15 20
4700 ~ 8200 35 30 30 25
10000 ~ 22000 40 35 30
27000 ~ 47000 45 40 35
56000 ~ 68000 50 45
Maximum Leakage Current
(20°C) (after 5 minutes)
0.02CV.
Load Life Test
Test Conditions
Duration Time 2000 hours.
Ambient Temperature 85°C.
Applied Voltage Rate DC working voltage.
Ater test requirements @ 20°C
Capacitance Change Within ±20% of the initial measured value.
Dissipation Factor 200% of the initial specified value.
Leakage Current The initial specified value.
Shelf Life
Test Conditions
Duration Time 500 hours.
Ambient Temperature 85°C.
Applied Voltage None.
After test requirements @ 20°C: Same limits as load life.
Pre-trestment for measurements shall be conducted after applications of DC working
voltage for 30 minutes.
Part Number Example: LCE-050/100M30X42F
LCE - 050 / 100 M 30X42 F
Type Rated DC Voltage
Capacitance Code
(µF)*
Tolerance Code Size RoHs Compliant
* Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
PART NUMBERING
Page 2
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2006/04/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
SNAP-IN LONG LIFE, EXTENDED TEMPERATURE TYPE LCE
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
10
4700 22 x 26 1.24
6800
22 x 26
1.56
25 x 26
8200 22 x 26 2.04
10000
22 x 31
2.2025 x 26
30 x 26
12000 22 x 36 2.43
15000
22 x 36
2.7625 x 31
30 x 26
18000
22 x 36
2.94
25 x 31
22000
22 x 41
3.12
25 x 36
30 x 31
35 x 27
27000
22 x 46
3.48
25 x 36
30 x 31
35 x 27
33000
25 x 46
3.7230 x 36
35 x 32
39000
25 x 51
4.1030 x 41
35 x 32
47000
30 x 46
4.38
35 x 37
56000
30 x 51
4.64
35 x 42
68000 35 x 52 4.80
16
3300 22 x 26 1.17
4700
22 x 31
1.53
25 x 26
6800
22 x 31
2.0225 x 26
30 x 26
8200 22 x 31 2.20
10000
22 x 36
2.7925 x 31
30 x 26
12000
22 x 36
3.0625 x 31
30 x 26
15000
22 x 51
3.24
25 x 41
30 x 36
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
16
15000 35 x 32 3.24
18000
22 x 51
3.51
25 x 46
30 x 36
35 x 32
22000
25 x 51
4.0830 x 46
35 x 32
27000
25 x 51
4.30
30 x 41
35 x 37
33000
30 x 46
4.83
35 x 37
39000
30 x 51
5.78
35 x 42
47000 35 x 47 6.32
56000 35 x 52 7.05
25
2200 22 x 26 1.03
3300
22 x 26
1.48
25 x 26
4700
22 x 31
1.9225 x 26
30 x 36
5600 22 x 31 2.25
6800
22 x 31
2.6025 x 26
30 x 26
8200
22 x 36
3.0425 x 31
30 x 26
10000
22 x 41
3.50
25 x 36
30 x 31
35 x 27
12000
22 x 46
4.02
25 x 41
30 x 31
35 x 27
15000
25 x 46
4.5830 x 36
35 x 32
18000
25 x 51
4.8230 x 41
35 x 37
22000
30 x 46
5.12
35 x 37
27000 35 x 47 5.47
33000 35 x 52 6.09
Page 3
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2006/04/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
SNAP-IN LONG LIFE, EXTENDED TEMPERATURE TYPE LCE
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
35
1500 22 x 26 1.26
2200
22 x 31
1.35
25 x 26
3300
22 x 31
1.8425 x 26
30 x 26
3900 22 x 31 2.23
4700
22 x 36
2.4225 x 31
30 x 26
5600
22 x 36
2.8925 x 31
30 x 26
6800
22 x 41
3.24
25 x 36
30 x 31
35 x 27
8200
22 x 51
3.57
25 x 41
30 x 31
35 x 27
10000
25 x 46
3.9630 x 36
35 x 32
12000
25 x 51
4.2130 x 41
35 x 32
15000
30 x 46
4.69
35 x 37
18000 25 x 42 5.07
22000 35 x 52 5.50
50
1000 22 x 26 0.84
1500
22 x 31
1.10
25 x 26
1800 22 x 31 1.54
2200
22 x 31
1.6525 x 26
30 x 26
2700
22 x 36
1.94
25 x 31
3300
22 x 36
2.2425 x 31
30 x 26
3900
22 x 41
2.5425 x 36
30 x 31
4700
22 x 46
2.95
25 x 41
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
50
4700
30 x 31
2.95
35 x 27
5600
22 x 51
3.10
25 x 46
30 x 41
35 x 32
6800
25 x 51
3.2630 x 41
35 x 32
8200
30 x 46
3.58
35 x 37
10000
30 x 51
4.11
35 x 42
12000 35 x 47 4.62
15000 35 x 52 5.05
63
680 22 x 26 0.70
1000
22 x 26
0.85
25 x 26
1200 22 x 26 0.98
1500
22 x 31
1.1025 x 26
30 x 26
1800
22 x 31
1.40
25 x 26
2200
22 x 36
1.6525 x 31
30 x 26
2700
22 x 41
2.0725 x 36
30 x 26
3300
22 x 51
2.48
25 x 41
30 x 31
35 x 27
3900
25 x 46
3.0530 x 36
35 x 32
4700
25 x 51
3.4330 x 41
35 x 32
5600
30 x 46
3.86
35 x 37
6800
30 x 51
4.64
35 x 42
8200 35 x 47 5.05
10000 35 x 52 5.75
80
470 22 x 26 0.63
680 22 x 31 0.84
Page 4
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2006/04/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
SNAP-IN LONG LIFE, EXTENDED TEMPERATURE TYPE LCE
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
80
680 25 x 26 0.84
820 22 x 31 1.02
1000
22 x 36
1.1625 x 31
30 x 26
1200
22 x 36
1.46
25 x 31
1500
22 x 41
1.7425 x 36
30 x 31
1800
22 x 46
1.9525 x 41
30 x 31
2200
22 x 51
2.25
25 x 46
30 x 36
35 x 32
2700
25 x 51
2.6830 x 41
35 x 37
3300
25 x 56
3.3030 x 51
35 x 42
3900
30 x 51
3.85
35 x 42
4700
30 x 51
4.29
35 x 42
5600 35 x 47 5.10
6800 35 x 52 5.66
100
330 22 x 26 0.54
470
22 x 31
0.79
25 x 26
560 25 x 26 0.96
680
22 x 31
1.0225 x 26
30 x 26
820
22 x 31
1.24
25 x 26
1000
22 x 41
1.3825 x 31
30 x 26
1200
22 x 46
1.6525 x 36
30 x 31
1500
22 x 46
1.83
25 x 41
30 x 31
35 x 27
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
100
1800
25 x 41
2.5230 x 36
35 x 32
2200
25 x 51
3.0330 x 41
35 x 32
2700
30 x 46
4.10
35 x 37
3300
30 x 56
4.59
35 x 47
3900 35 x 47 4.98
4700 35 x 52 5.43
160
220 22 x 26 0.65
270 22 x 22 0.74
330
22 x 31
0.9025 x 26
30 x 26
390
22 x 36
1.00
25 x 31
470
22 x 36
1.18
25 x 31
560
22 x 41
1.3225 x 36
30 x 31
680
22 x 46
1.58
25 x 41
30 x 36
35 x 32
820
25 x 46
1.7530 x 36
35 x 32
1000
25 x 51
2.08
30 x 41
1200
25 x 56
2.30
30 x 46
1500
30 x 51
2.68
35 x 42
1800
30 x 51
3.00
35 x 42
2200 35 x 52 3.39
200
100 22 x 26 0.38
150
22 x 26
0.54
25 x 26
220
22 x 31
0.7325 x 26
30 x 26
270 22 x 31 0.94
Page 5
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
Tecate Group
2006/04/17 Rev.00
Aluminum Electrolytic
Aluminum Electrolytic
Capacitors
Capacitors
SNAP-IN LONG LIFE, EXTENDED TEMPERATURE TYPE LCE
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
200
270 25 x 26 1.03
330
22 x 36
1.2125 x 31
30 x 26
390
22 x 41
1.3925 x 36
30 x 31
470
22 x 46
1.62
25 x 41
30 x 31
35 x 26
560
22 x 51
1.8525 x 41
30 x 36
680
22 x 56
2.0425 x 51
30 x 36
820
25 x 56
12.3430 x 41
35 x 37
1000
30 x 51
2.70
35 x 42
1200
30 x 51
3.00
35 x 42
1500 35 x 52 3.43
250
68 22 x 26 0.27
100
22 x 31
0.44
25 x 26
150
22 x 31
0.6025 x 26
30 x 26
180
22 x 31
0.69
25 x 26
220
22 x 36
1.0025 x 31
30 x 26
270
22 x 41
1.1625 x 36
30 x 31
330
22 x 46
1.28
25 x 36
30 x 31
35 x 26
390
22 x 46
1.4825 x 36
30 x 31
470
25 x 46
1.76
30 x 36
WVDC
Capacitance
(uF)
Case Size
dØ x L
(mm)
Ripple
Current
(A) rms max
(120Hz/105 °C)
250
470 35 x 32 1.76
560
25 x 51
1.9330 x 41
35 x 32
680
30 x 46
2.22
35 x 37
820
30 x 51
2.48
35 x 42
1000 35 x 47 2.80
1200 35 x 52 3.17
400
33 22 x 26 0.39
47
22 x 26
0.56
25 x 26
100
22 x 36
0.8225 x 31
30 x 26
220
25 x 51
1.2130 x 40
35 x 32
330
30 x 51
1.57
35 x 42
470 35 x 52 1.98
560 35 x 52 2.23
450
33 22 x 26 0.24
47
22 x 31
0.35
25 x 26
56
22 x 31
0.41
25 x 26
68
22 x 36
0.5525 x 31
30 x 26
82
22 x 36
0.6425 x 31
30 x 36
100
22 x 41
0.7425 x 31
30 x 31
120
22 x 46
0.8225 x 31
30 x 26
150
22 x 46
0.9625 x 41
30 x 36
180
25 x 51
1.1430 x 41
35 x 36
220
30 x 46
1.24
35 x 37
270
30 x 51
1.48
35 x 42
330 35 x 47 1.64
390 35 x 52 1.86
Loading...
