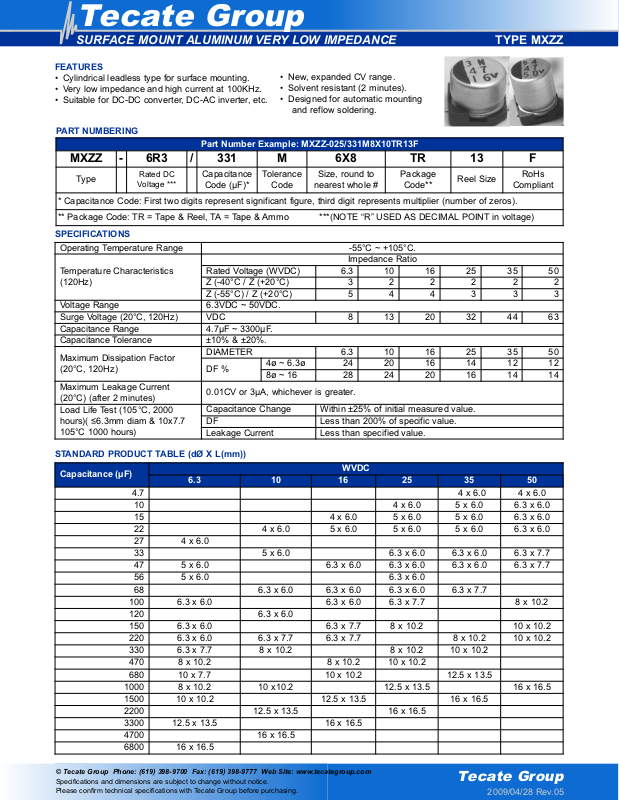

Datasheet Tecate [smd] MXZZ Series Datasheet

Page 1

Tecate Group

2009/04/28 Rev.05

Specifications and dimensions are subject to change without notice. Please confirm technical specifications with Tecate Group before purchasing.

Tecate Group

TYPE MXZZSURFACE MOUNT ALUMINUM VERY LOW IMPEDANCE

FEATURES

• Cylindrical leadless type for surface mounting.

• Very low impedance and high current at 100KHz.

• Suitable for DC-DC converter, DC-AC inverter, etc.

SPECIFICATIONS

STANDARD PRODUCT TABLE (dØ X L(mm))

Part Number Example: MXZZ-025/331M8X10TR13F

MXZZ - 6R3 / 331 M 6X8 TR 13 F

Type

Rated DC

Voltage ***

Capacitance

Code (µF)*

Tolerance

Code

Size, round to

nearest whole #

Package

Code**

Reel Size

RoHs

Compliant

* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).

** Package Code: TR = Tape & Reel, TA = Tape & Ammo ***(NOTE “R” USED AS DECIMAL POINT in voltage)

PART NUMBERING

Operating Temperature Range -55°C ~ +105°C.

Temperature Characteristics (120Hz)

Impedance Ratio Rated Voltage (WVDC) 6.3 10 16 25 35 50 Z (-40°C / Z (+20°C) 3 2 2 2 2 2 Z (-55°C) / Z (+20°C) 5 4 4 3 3 3

Voltage Range 6.3VDC ~ 50VDC. Surge Voltage (20°C, 120Hz) VDC 8 13 20 32 44 63 Capacitance Range 4.7µF ~ 3300µF. Capacitance Tolerance ±10% & ±20%.

Maximum Dissipation Factor (20°C, 120Hz)

DIAMETER 6.3 10 16 25 35 50

DF %

4ø ~ 6.3ø 24 20 16 14 12 12

8ø ~ 16 28 24 20 16 14 14 Maximum Leakage Current (20°C) (after 2 minutes)

0.01CV or 3µA, whichever is greater.

Load Life Test (105°C, 2000 hours)( ≤6.3mm diam & 10x7.7 105°C 1000 hours)

Capacitance Change Within ±25% of initial measured value. DF Less than 200% of specific value. Leakage Current Less than specified value.

Capacitance (µF)

WVDC

6.3 10 16 25 35 50

4.7 4 x 6.0 4 x 6.0 10 4 x 6.0 5 x 6.0 6.3 x 6.0 15 4 x 6.0 5 x 6.0 5 x 6.0 6.3 x 6.0 22 4 x 6.0 5 x 6.0 5 x 6.0 5 x 6.0 6.3 x 6.0 27 4 x 6.0 33 5 x 6.0 6.3 x 6.0 6.3 x 6.0 6.3 x 7.7 47 5 x 6.0 6.3 x 6.0 6.3 x 6.0 6.3 x 6.0 6.3 x 7.7 56 5 x 6.0 6.3 x 6.0 68 6.3 x 6.0 6.3 x 6.0 6.3 x 6.0 6.3 x 7.7

100 6.3 x 6.0 6.3 x 6.0 6.3 x 7.7 8 x 10.2 120 6.3 x 6.0 150 6.3 x 6.0 6.3 x 7.7 8 x 10.2 10 x 10.2 220 6.3 x 6.0 6.3 x 7.7 6.3 x 7.7 8 x 10.2 10 x 10.2 330 6.3 x 7.7 8 x 10.2 8 x 10.2 10 x 10.2 470 8 x 10.2 8 x 10.2 10 x 10.2

680 10 x 7.7 10 x 10.2 12.5 x 13.5 1000 8 x 10.2 10 x10.2 12.5 x 13.5 16 x 16.5 1500 10 x 10.2 12.5 x 13.5 16 x 16.5 2200 12.5 x 13.5 16 x 16.5 3300 12.5 x 13.5 16 x 16.5 4700 16 x 16.5 6800 16 x 16.5

• New, expanded CV range.

• Solvent resistant (2 minutes).

• Designed for automatic mounting and reflow soldering.

Page 2

Tecate Group

2009/04/28 Rev.05

Specifications and dimensions are subject to change without notice. Please confirm technical specifications with Tecate Group before purchasing.

Tecate Group

TYPE MXZZ

DIMENSIONS (mm)

RECOMMENDED LAND PATTERN

SURFACE MOUNT ALUMINUM VERY LOW IMPEDANCE

MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C) MAXIMUM IMPEDANCE (Ω AT 20°C & 100KHZ)

Case Size dø ±0.5 L Max. A ± 0.2 B ± 0.2 I ± 0.2 W P ± 0.2

4 x 6.0 4 6.3 4.3 4.3 1.8 0.5 ~ 0.8 1 5 x 6.0 5 6.3 5.3 5.3 2.1 0.5 ~ 0.8 1.4

6.3 x 6.0 6.3 6.3 6.6 6.6 2.5 0.5 ~ 0.8 2.2

6.3 x 7.7 6.3 8 6.6 6.6 2.5 0.5 ~ 0.8 2.2 8 x 10.2 8 10.5 8.3 8.3 2.9 0.7 ~ 1.0 3.2 10 x 7.7 10 8 10.3 10.3 3.2 1.1 ~ 1.4 4.6 10 x 10.2 10 10.5 10.3 10.3 3.2 1.1 ~ 1.4 4.6

12.5 x 13.5 12.5 13.8 12.8 12.8 4.5 1.1 ~ 1.4 4.8 16 x 16.5 16 18.8 16.3 16.3 5.2 1.8 ~ 2.1 7

Case Size A B P

4 x 6.0 2.6 1.8 1 5 x 6.0 2.6 1.8 1.4

6.3 x 6.0 3 1.8 2.1

6.3 x 7.7 3 1.8 2.1 8 x 10.2 4.1 2.1 2.8 10 x 7.7 4.4 2.5 4.3 10 x 10.2 4.4 2.5 4.3

12.5 x 13.5 5.8 2.5 4.3 16 x 16.5 6.5 5 6.6

Cap.

(µF)

WVDC

6.3 10 16 25 35 50

4.7 80 60 10 80 150 165 15 80 150 150 22 80 150 150 150 165 27 80 33 150 230 230 195 47 150 230 230 230 195 56 150 230 68 230 230 280

100 230 230 280 300 120 230 150 230 280 450 450 620 220 230 280 280 450 450 620 330 280 450 450 450 670 470 450 450 450 670 900

680 450 670 900 1000 450 900 790 1500 670 900 1250 2200 900 1250 3300 900 1250 4700 1250 6800 1250

Cap.

(µF)

WVDC

6.3 10 16 25 35 50

4.7 1.8 2.9 10 1.8 0.76 0.88 15 1.8 0.76 0.76 22 1.8 0.76 0.76 0.76 0.88 27 1.8 33 0.76 0.44 0.44 0.68 47 0.76 0.44 0.44 0.44 0.68 56 0.76 0.44 68 0.44 0.44 0.34 0.39

100 0.44 0.44 0.34 0.39 120 0.44 150 0.44 0.34 0.17 0.17 0.21 220 0.44 0.34 0.34 0.17 0.17 0.21 330 0.34 0.17 0.17 0.17 0.09 0.14 470 0.17 0.17 0.17 0.09 0.066

680 0.17 0.09 0.066 1000 0.17 0.09 0.066 0.078 1500 0.09 0.066 0.052 2200 0.066 0.052 3300 0.066 0.052 4700 0.052 6800 0.052
