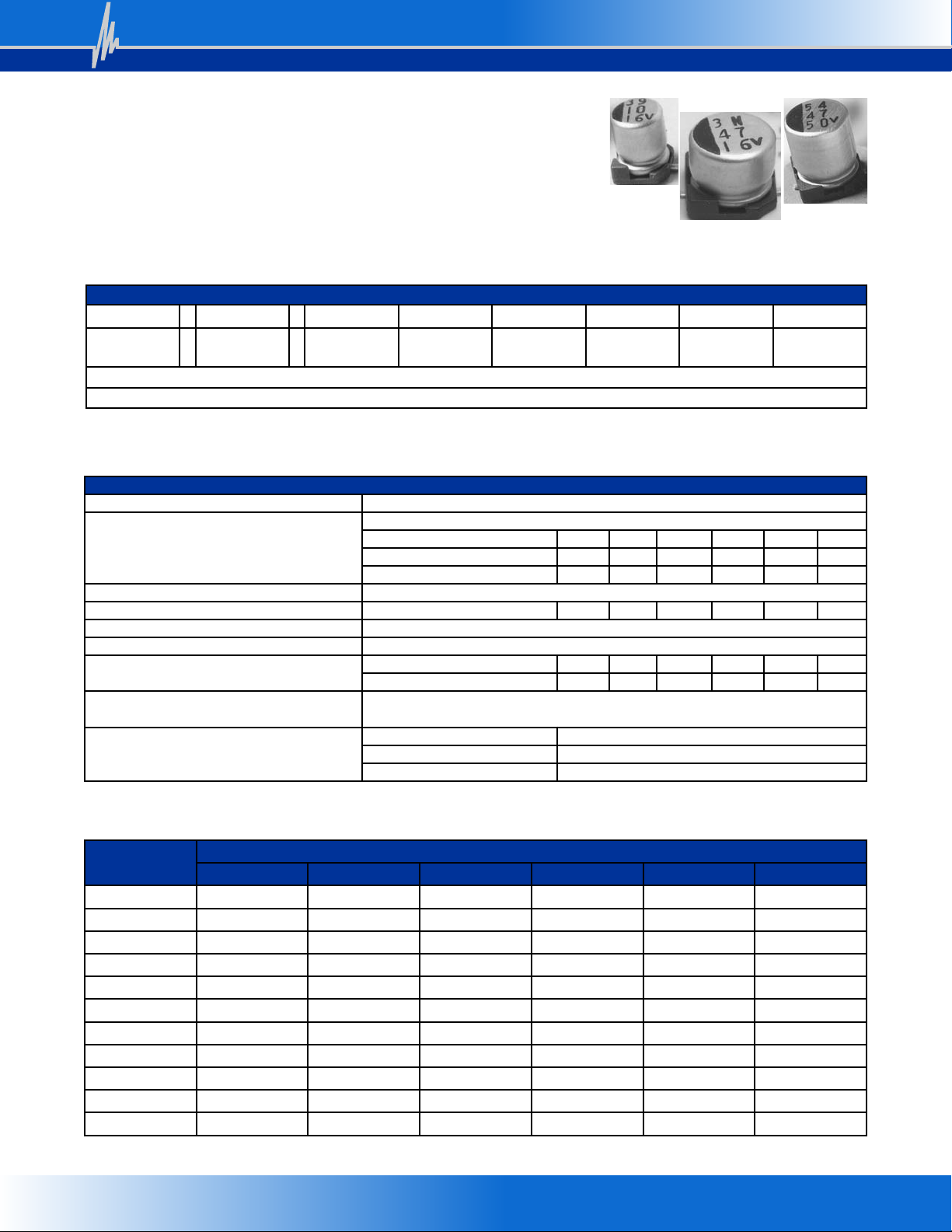

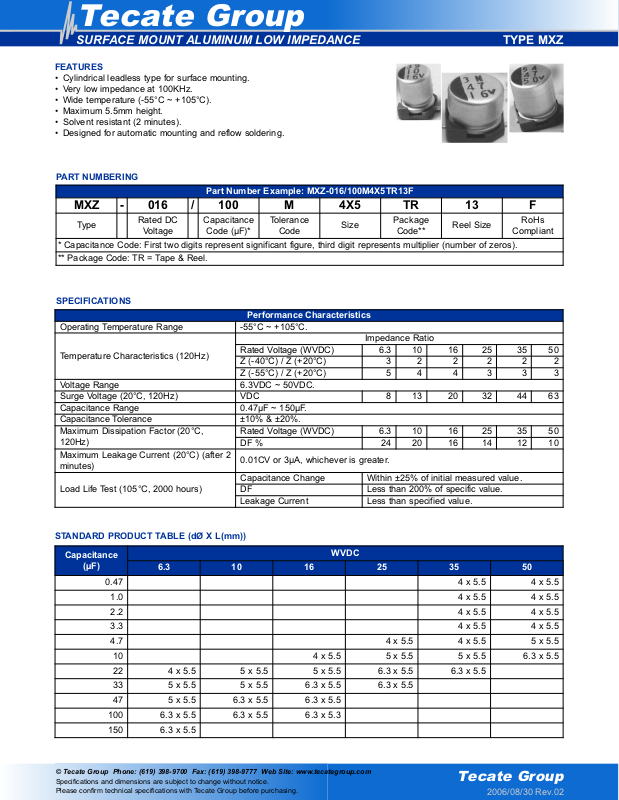

SURFACE MOUNT ALUMINUM LOW IMPEDANCE
FEATURES
• Cylindrical leadless type for surface mounting.
• Very low impedance at 100KHz.
• Wide temperature (-55°C ~ +105°C).
• Maximum 5.5mm height.
• Solvent resistant (2 minutes).
• Designed for automatic mounting and reflow soldering.
STANDARD PRODUCT TABLE (dØ X L(mm))
TYPE MXZ
SPECIFICATIONS
Capacitance
(µF)
WVDC
6.3 10 16 25 35 50
0.47 4 x 5.5 4 x 5.5
1.0 4 x 5.5 4 x 5.5
2.2 4 x 5.5 4 x 5.5
3.3 4 x 5.5 4 x 5.5
4.7 4 x 5.5 4 x 5.5 5 x 5.5
10 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5
22 4 x 5.5 5 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5
33 5 x 5.5 5 x 5.5 6.3 x 5.5 6.3 x 5.5
47 5 x 5.5 6.3 x 5.5 6.3 x 5.5
100 6.3 x 5.5 6.3 x 5.5 6.3 x 5.3
150 6.3 x 5.5
Performance Characteristics
Operating Temperature Range -55°C ~ +105°C.
Temperature Characteristics (120Hz)
Impedance Ratio
Rated Voltage (WVDC) 6.3 10 16 25 35 50
Z (-40°C) / Z (+20°C) 3 2 2 2 2 2
Z (-55°C) / Z (+20°C) 5 4 4 3 3 3
Voltage Range 6.3VDC ~ 50VDC.
Surge Voltage (20°C, 120Hz) VDC
8 13 20 32 44 63
Capacitance Range 0.47µF ~ 150µF.
Capacitance Tolerance ±10% & ±20%.
Maximum Dissipation Factor (20°C,
120Hz)
Rated Voltage (WVDC) 6.3 10 16 25 35 50
DF % 24 20 16 14 12 10
Maximum Leakage Current (20°C) (after 2
minutes)
0.01CV or 3µA, whichever is greater.
Load Life Test (105°C, 2000 hours)
Capacitance Change Within ±25% of initial measured value.
DF Less than 200% of specific value.
Leakage Current Less than specified value.
Part Number Example: MXZ-016/100M4X5TR13F
MXZ - 016 / 100 M 4X5 TR 13 F
Type
Rated DC
Voltage
Capacitance
Code (µF)*
Tolerance
Code
Size
Package
Code**
Reel Size
RoHs
Compliant
* Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
** Package Code: TR = Tape & Reel.
PART NUMBERING
Page 2
Tecate Group
2006/04/17 Rev.00
© Tecate Group Phone: (619) 398-9700 Fax: (619) 398-9777 Web Site: www.tecategroup.com
Specifications and dimensions are subject to change without notice.
Please confirm technical specifications with Tecate Group before purchasing.
Tecate Group
TYPE MXZ
MAXIMUM RIPPLE (mA rms @ 120Hz & 105°C)
Cap.
(µF)
WVDC
6.3 10 16 25 35 50
0.47 6.5 8.0
1.0 3.6 7.4
2.2 3.6 6.6
3.3 3.6 5.4
4.7 3.6 3.6 2.9
10 3.6 1.5 1.5 1.3
22 3.6 1.5 1.5 0.8 0.8
33 1.5 1.5 0.8 0.8
47 1.5 0.8 0.8
100 0.8 0.8 0.8
150 0.7
MAXIMUM IMPEDANCE (Ω AT 20°C & 100KHZ)
Case Size dØ ± 0.5 L Max. A ± 0.2 B ± 0.2 1 ± 0.2 W P ± 0.2
4 x 5.5 4.0 5.5 4.3 4.3 1.8 0.5 ~ 0.8 1.0
5 x 5.5 5.0 5.5 5.3 5.3 2.1 0.5 ~ 0.8 1.4
6.3 x 5.5 6.3 5.5 6.6 6.6 2.5 0.5 ~ 0.8 2.2

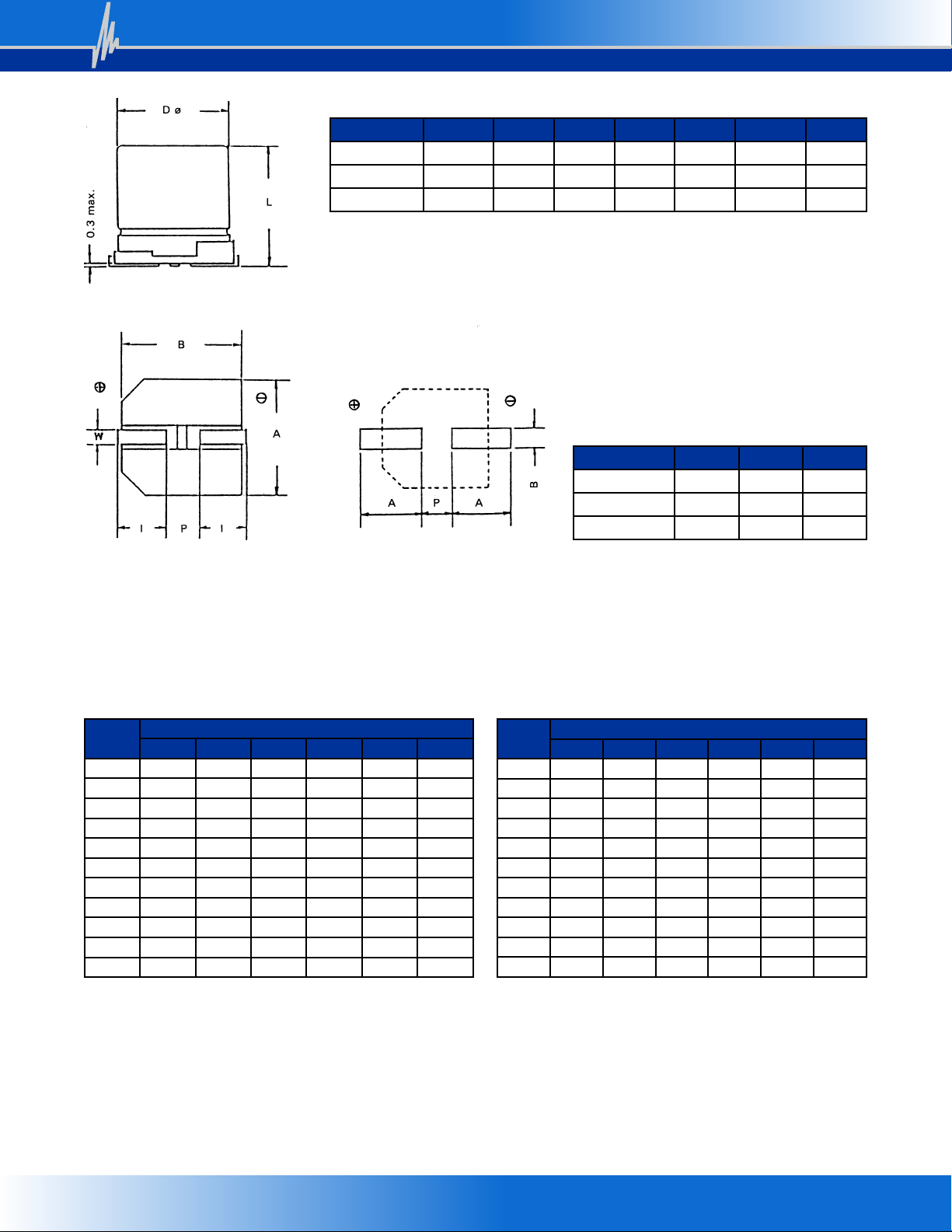

DIMENSIONS (mm)
Case Size A B P
4 x 5.5 2.5 1.6 1.0
5 x 5.5 2.7 1.6 1.4
6.3 x 5.5 3.1 1.6 2.2
Cap.
(µF)
WVDC
6.3 10 16 25 35 50
0.47 45 30
1.0 60 37
2.2 60 45
3.3 60 52
4.7 60 60 75
10 60 95 95 120
22 60 95 95 140 140
33 95 95 140 140
47 95 140 140
100 140 140 140
150 140
RECOMMENDED LAND PATTERN (mm)
SURFACE MOUNT ALUMINUM LOW IMPEDANCE
